Urbana 50-3883 Manual

| 1
50-3883 Power Vent
INSTALL MANUAL
CERTIFIED TO: ANSI Z21.88 / CSA 2.33 VENTED GAS FIREPLACE HEATERS
WARNING: If the information in this manual is not followed exactly, a re or
explosion may result causing property damage, personal injury or loss of life.
Installation and service must be performed by a qualied installer, service agency or
the gas supplier.
C#4001609
DATE: 12/5/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
50-3666 C-G Series Horizontal Power Vent
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
50-3954

2 |
Table of Contents
Contents
Specications ...........................................3
Dimensions .................................3
Kit Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation..............................................4
Venting .....................................4
Exhuast Restriction..........................6
Termination Restrictions & Clearances........7
Termination Framing ........................8
Termination.................................9
Wiring .................................................10
Termination................................10
Diagram ...................................12
Fireplace...................................13
Enable PV Mode ........................................14
Troubleshooting........................................15
Parts List ...............................................16
This manual to be used by qualied installers only

| 3
181
8
"
460mm
185
16
"
465mm
163
16
"
411mm
163
8
"
416mm
11
8
"
29mm
913
16
"
250mm
141
16
"
356mm
47
16
"
113mm
1 OF 1 SHEET
Part Description
FINISH
SCALE- 1:6
HEAT TREATMENT
Sherwood Industries Ltd.
MATERIAL
UNLESS OTHERWISE SPECIFIED
+/- .002
Hole Pos.
+/- .5
Angles
+/- .005
General
DIMENSIONS APPLY AFTER PLATING OR
HEAT TREATMENT
THREADS EXTERNAL CL 2A INTERNAL CL 2B
TOLERANCE
ALL DIMENSIONS IN INCHES
+/- .001
Hole Size
APPROVAL
CHECKED BY
DRAWN BY
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
GP
50-3666 C-G Series Horizontal Power Vent
2/20/19
REV
Specications
Dimensions:

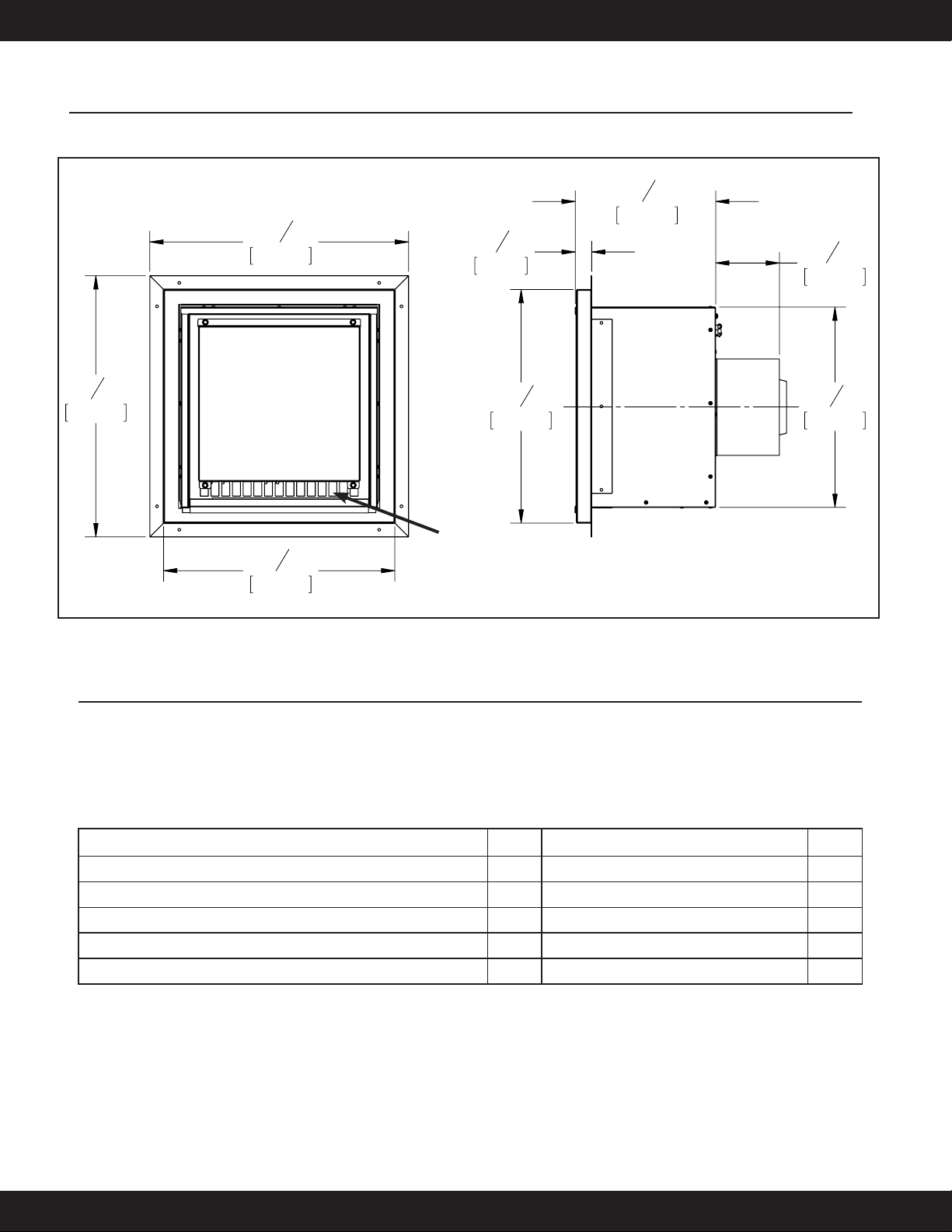

Figure 1: Power Vent Dimensions
Kit Contents:
The table below outlines the complete contents of the Urbana Power Vent Kit (50-3883). Refer to
the parts diagram section of this manual for reference and ensure that your kit is complete and
undamaged.
Part Description Qty Part Description Qty
Power Head Assembly w/ Finishing Face 1 5 Lead Cable - 110ft / 33.5m 1
Framing Thimble Assembly w/ Inner Wall Cover 1 U30 Restrictor Disk 1
U50 Restrictor Disk 1 1 U50 Restrictor Disk 2 1
U70 PV Bafe 1 #8-32 Wing Nuts 3
#8-32 Hex Nuts 2
Table 1: Power Vent Kit Contents
Exhaust
Outlet

4 |
Installation - Venting
Plan out the venting and wiring installation. Important notes to
consider when planning where the venting will be installed:
• Minimum total venting run allowed is 20 ft (6.1m), see boxed notes in Figures 2 & 3. If required
venting run is shorter than 20ft (6.1m) the replace must be direct vented. See replace installation manual
for further information regarding permitted venting and restrictions.
• Maximum total venting run allowed is 110 ft (33.5m) (V1+ H1+ V2+ H2+ H3+ H4+ H5), refer to
Figures 2 & 3.
• Maximum negative vertical run allowed is 4ft (1.2m) as measured from the elbow where it started
(see V2 in Figures 2 and 3).
• Multi-elbow installations are possible with a maximum of six (6) 90° elbows (two (2) 45° elbows is
equivalent to one (1) 90° elbow)
NOTE: A 90° elbow in the horizontal plane is equivalent to 3’ of vent and a 45°
elbow in the horizontal plane is equivalent to 1 1/2’, these equivalencies must be added
to the total vent length.
• IMPORTANT: This power vent kit has been approved for use with only Duravent 3” x 5” CVS Venting.
Specic venting adaptors are required (not included) for both the replace and power head to enable
the use of 3” x 5” CVS. Refer to Table 2 below for the required adaptors and part numbers.
Fireplace End Model
Description Duravent Part # U30 U50 U70
4 x 6 5/8” to 3” x 5” CVS 46DVA-X35CVS X
X X
5” x 8” to 4 x 6 5/8” *see below* 58DVA-X46
5” x 8” to 3” x 5” CVS 58DVA-X35CVS X X
Power Head End Model
3” x 5” CVS to 4 x 6 5/8” 35CVS-X46DVA X X X
* If 5” x 8” to 4 x 6 5/8” reducer is used, 4 x 6 5/8” to 3” x 5” CVS adaptor must be used as well. 5” x 8”
to 4 x 6 5/8” reducer can also be ordered using Urbana Part #50-2321.
Table 2: CVS Vent Adaptors
• Venting Clearances: 1” (25 mm) clearance to combustibles must be maintained around any vertical vent
pipe. Around a horizontal vent pipe, the clearance to combustibles should be 2” (51 mm) above and 1” (25
mm) on the sides and bottom. When combustible materials are directly above a 90° elbow, 3” (76 mm) of
clearance is necessary. Additionally all venting clearances, within the chase, must be followed as listed in
the replace installation manual.

| 5

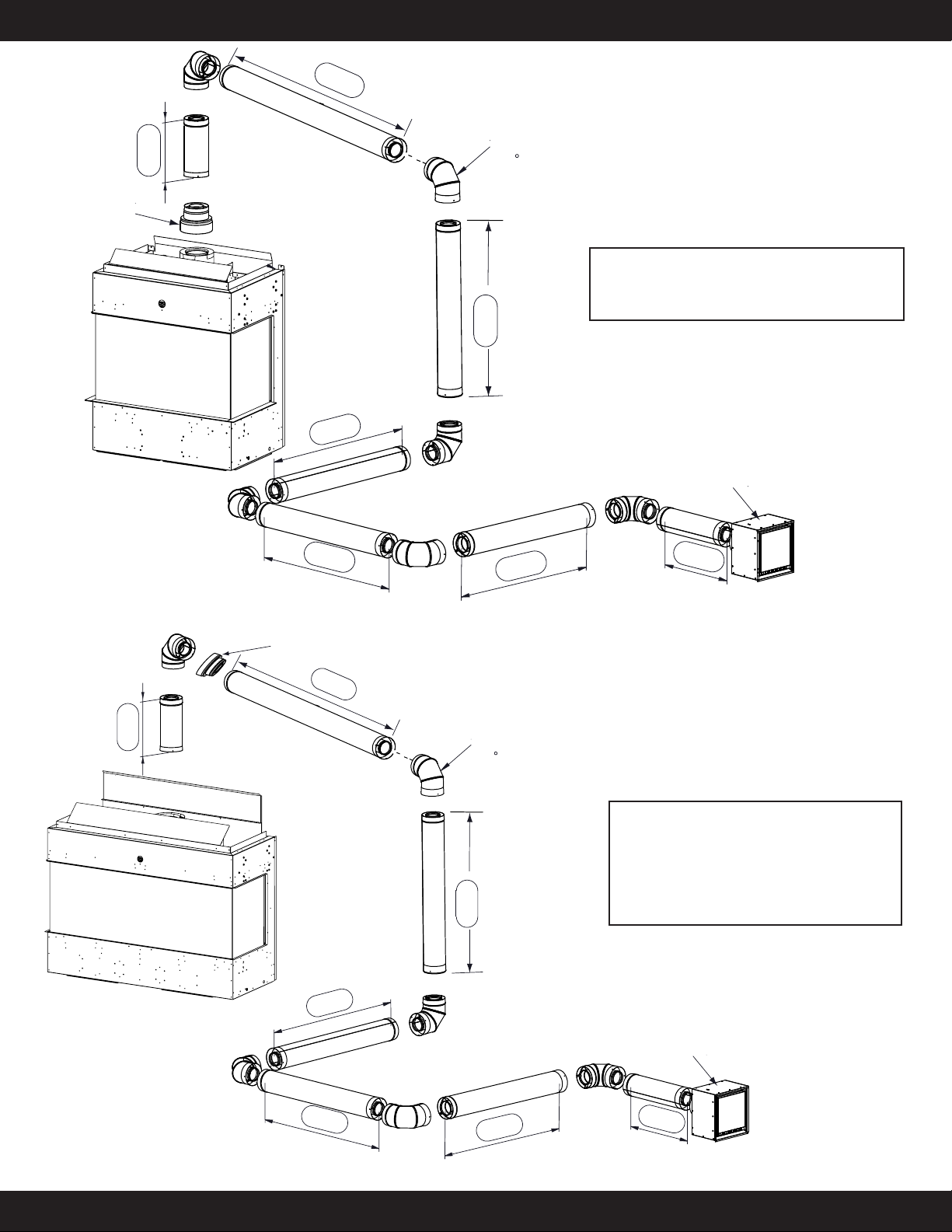

Figure 2: U30 Power Venting
Installation - Venting
V1*
H1
2V
H2
H3
H4
H5
Max of six (6)
90
elbows
CVS
Adaptor
Power Vent
Terminal w/
CVS Adaptor
*No initial rise (V1) required prior to
an elbow or reducing to CVS on U30
only
CVS Adaptor
V1*
H1
2V
H2
H3
H4
H5
Max of six (6)
90
elbows
Power Vent
Terminal w/
CVS Adaptor
Figure 3: U50 / U70 Power Venting
*Minimum initial rise (V1) must be
at least 1ft section of 5 x 8 venting
prior to an elbow. First elbow after
minimum rise must also be 5 x 8 size
prior to reducing to CVS.
U30
U50/U70

6 |
Installation - Exhaust Restriction
For proper operation, the correct restrictor setup is critical when power
venting an Urbana replace. The total vent length and number of elbows
is important where as horizontal and vertical length is less important.
U30 U50 U70
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
105
110
)tf(htgneLtneVllarevO
Model
Power Vent Restrictor Chart
U50 Disk
+
Seng 6
U30 Disk
+
Seng 6
U70 Baffle
+
Seng 6
Remember to consider elbows in the HORIZONTAL plane account for total vent length.
Calculate the total vent length accounting for horizontal plane elbows to conrm it is within the permitted limits and refer
to the chart below (Table 3) for the correct restrictor setup. Your climate and altitude may alter what restrictor is required
for your particular application. Figure 4 below shows how to install the disks required for the U30 & U50. Figure 5 below
shows how to install the bafe required for the U70. Refer to the replace’s manual for instructions regarding the restrictor
adjustment.
Table 3: Restrictor Settings

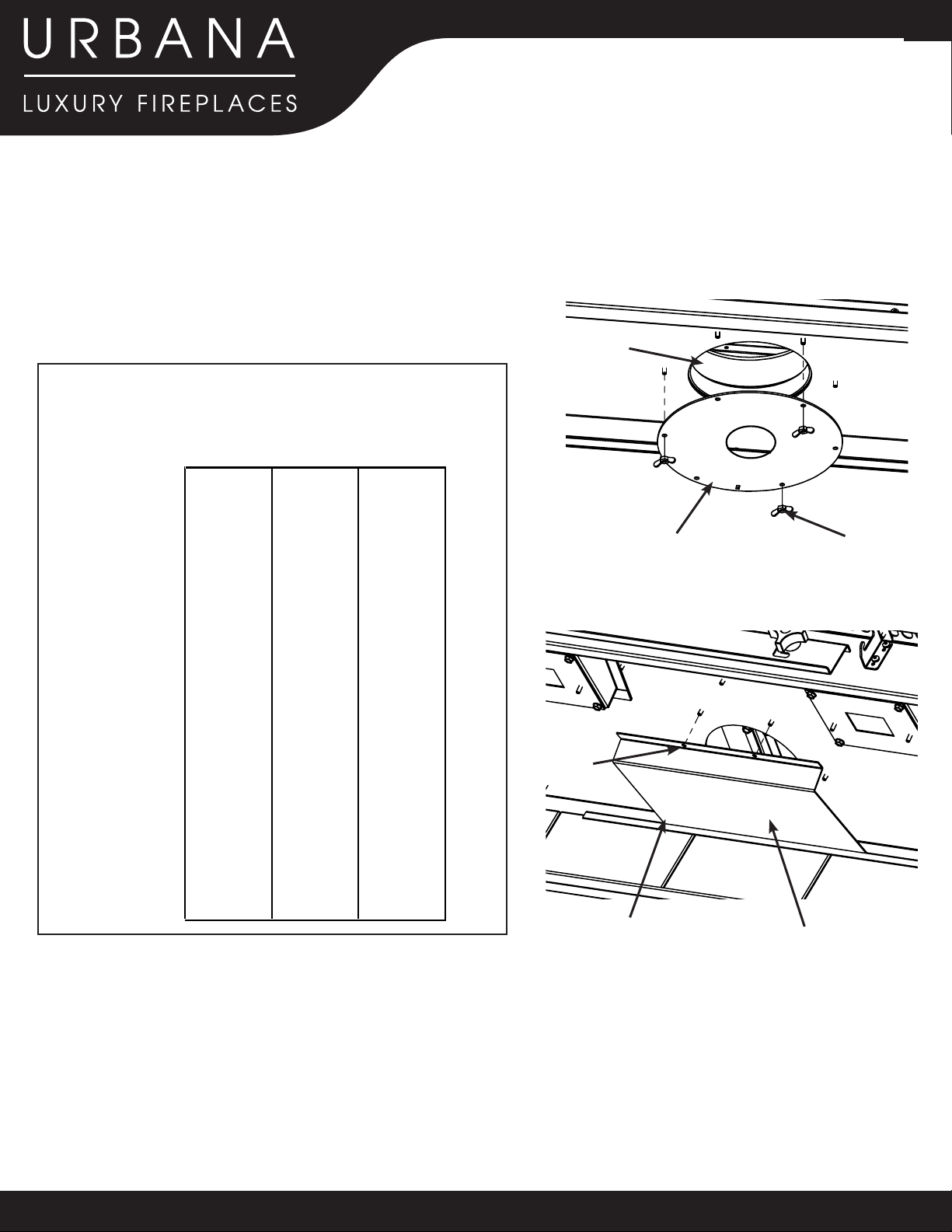

Figure 4: U30 / U50 Disk Installation
Figure 5: U70 Bafe Installation
Restrictor
Disk
Wing
Nut (x3)
Firebox
Exhaust
Restrictor
Bafe
#8-32
Nut (x2)
Rests on top of
rear liner retainer
When using Propane (LP) - If desired, further restriction may be added to the replace to improve the ame
appearance. This is done by installing the venturi box cover plate supplied along with the replace’s manuals. Refer to
the replace installation guide for instructions regarding burner removal in order to access the open side of the venturi
box to install the cover plate. The venturi will still need to be correctly set.
Note - This cover plate is already installed on Natural Gas (NG) models.

| 7
Installation - Termination Restrictions & Clearances
J 12 in (30 cm) 9 in (23 cm) Clearance to non-mechanical air supply inlet to building, or
the combustion air inlet to any other appliance.
K 6 ft (1.83 m) 3 ft (91 cm) above if within 10
ft (3 m) horizontally
Clearance to mechanical air supply inlet.
L 7 ft (2.13 m)t 7 ft (2.13 m)*t Clearance above paved sidewalk or paved driveway located
on public property.
M0 in (0 cm)+Clearance under verandah, porch, deck, or balcony.
N 12 in (30 cm)* Clearance horizontally to any surface (such as an exterior
wall) for vertical terminations.
O 12 in (30 cm) Clearance above roof line for vertical terminations.
Letter Canadian Installation 1US Installation2Description
A 12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony.
B 12 in (30 cm) 9 in (23 cm) Clearance from window or door that may be opened.
C 12 in (30 cm)* Clearance from permanently closed window (to prevent
condensation).
D 0 in (0 cm) Vertical clearance to ventilated soft located above the
terminal, within a horizontal distance of 2 ft (60 cm) from
center line of terminal.
E 0 in (0 cm) Clearance to unventilated soft.
F 12 in (30 cm)* Clearance to outside corner.
G 4 in (10.2 cm) Clearance to inside corner.
H 3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly
3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly*
Clearance to each side of center line extended above me-
ter/regulator assembly.
I 3 ft (91 cm) 3 ft (91 cm)* Radial clearance around service regulator vent outlet.
Table 4: Vent Termination Clearances
A
A
DE
LB
C
F
B
B
B
JMK
G
H
I
Openable
Fixed
Closed
Openable Fixed
Closed
Termination Cap Air Supply Inlet Gas MeterG
G
Restriction Zone
(Termination not allowed)
N
O

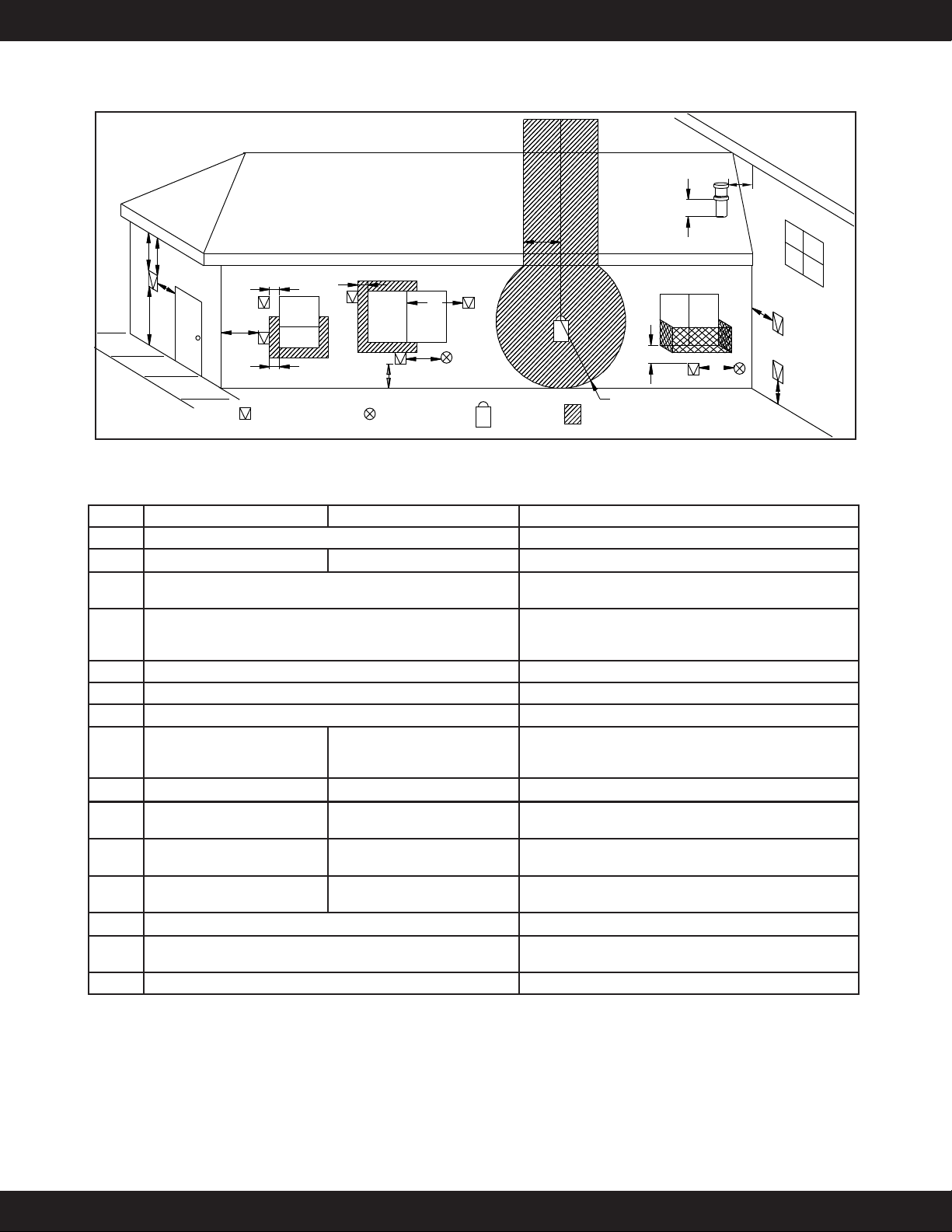

Figure 6: Vent Termination Restrictions
1 In accordance with the current CSA B149, Natural Gas and Propane Installation Code.
2In accordance with the current ANSI Z223.1 NFPA 54, National Fuel Gas Code.
* These numbers are only estimates.
t A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings
and it serves both dwellings.
+ Permitted only if verandah, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
Clearances are in accordance with local installation codes and the requirements of the gas supplier.

8 |
20 15/16” (532 mm)
18 3/4” (476mm)
Installation - Termination Framing
1. Determine the location of the power vent termination based on Figure 6 & Table 4 Vent Termination
Minimum Clearances on the previous page.
NOTE: The Urbana Power Vent Kit allows for a minimum wall thickness of 8” (203mm) and a
maximum wall thickness of 12” (305mm).
2. Cut and frame an opening that is 19” (483mm) tall by 14 5/8” (371mm) wide for the exterior thimble as
shown in Figure 7.
DATE: 11/28/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
Framing Box
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
19” Inside
14 5/8” Inside
(16” Joist centre )

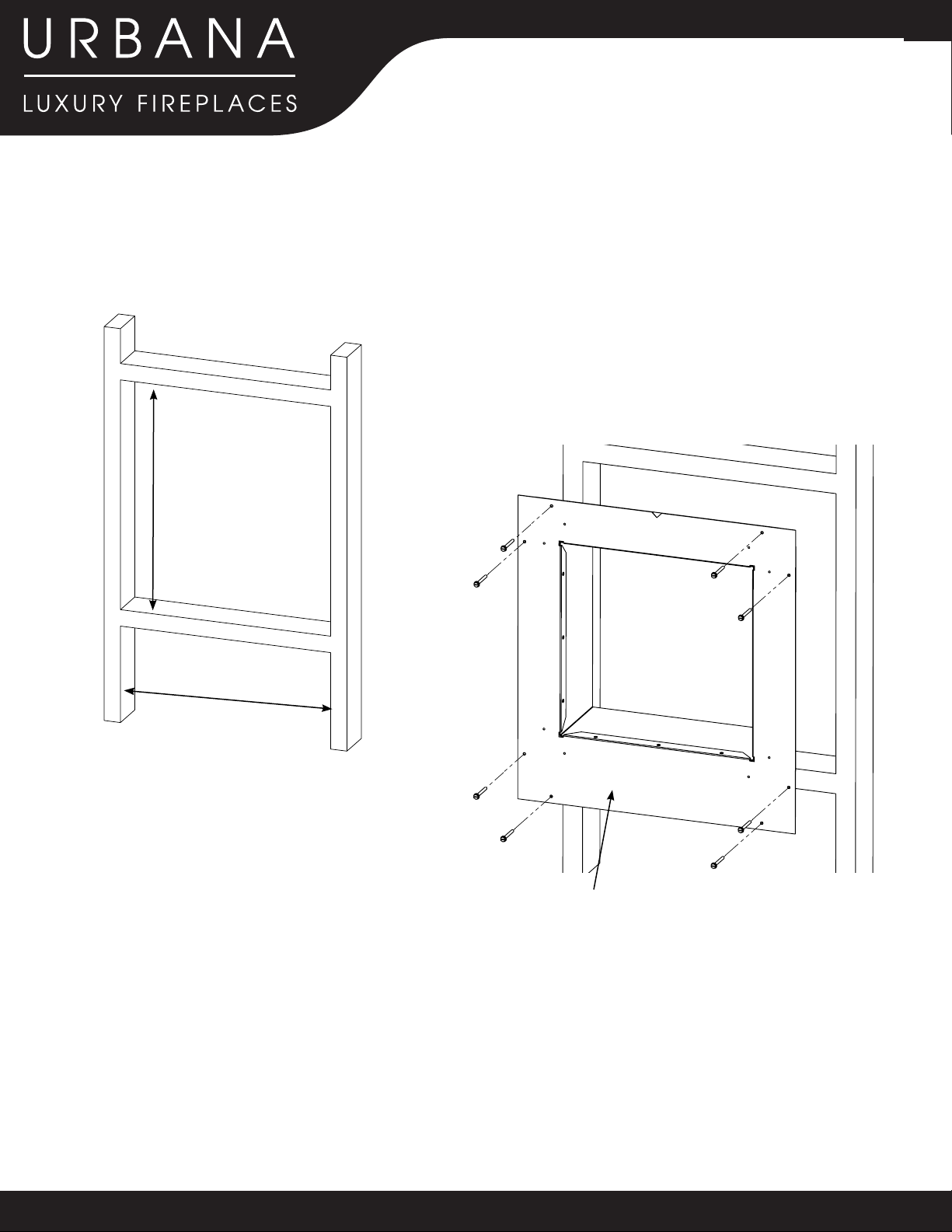

Figure 7: Power Vent Framing Dimensions
3. Fasten the exterior thimble, using standard wood
screws to the framed opening. Making note to install
the thimble with the thicker border at the bottom.
Refer to Figure 8. Wall cladding can now be applied
on top of the thimble while leaving only the opening
for the power vent terminal installation.
4. Repeat step 2 for the interior timble
using the same dimensions.
5. Repeat step 3 by sliding the interior
thimble, identied with a “2” on the face,
around the sleeve of the exterior thimble.
The interior thimble does NOT have a notch
at the top, again ensure the thicker border
is at the bottom.
NOTE: Ensure the two framed openings
are the same height from the ground as
thimble alignment will be greatly impacted.
7. Determine the depth that the power vent terminal
will sit within the wall. For wall thicknesses greater
than 9”, the power vent terminal will mount ush
with the nishing face. For walls thinner than 9”,
the power vent terminal will be required to protrude
from the nishing face.
6. Mount the inner wall plate to the interior
thimble using eight (8) of the supplied black
screws as shown in Figure 9.
Thicker Bottom Border
Figure 8: Exterior Thimble Installation

| 9
Installation - Termination
20 15/16” (532 mm)
17 1/2” (444 mm)
Figure 9: Inner wall plate installed
DATE: 11/28/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
50-3666 C-G Series Horizontal Power Vent
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
Self-tapping
screws
Figure 10: Finishing face installed
8. Upon completion of Step 5, mount the nishing face to the
power vent terminal using the eight (8) self-tapping screws.
Three (3) screws for each side and two (2) screws for the
bottom tab. Seal the screw heads with silicone.
IMPORTANT: Ensure the nishing face is mounted square to
the front of the power vent terminal.
To wire the power vent terminal to the replace, this kit includes a 5 lead cable that is equal in length
to the maximum permitted venting run. BX armored cable (not supplied), similar to furnace wiring, may
also be used if desired.
9. BEFORE the power vent terminal is inserted into the wall the 5 lead cable needs to be routed to the
termination point.
a) Prepare the cable by stripping each wire in preperation of being attached to the electrical
termination block within the power vent.
DATE: 11/28/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
50-3666 C-G Series Horizontal Power Vent
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
5 Lead cable
b) Feed the cable through the rubber grommet in
the inner wall plate.
c) Then feed the cable through the strain relief on
the back of the power vent terminal. Roughly 3-6”
of harness is recommended to be feed into the
power vent terminal. See Figure 11 for reference.
d) Tighten the two (2) screws on the strain relief
to clamp down and secure the cable within the
power vent terminal.
10. Install the power vent terminal into the
exterior thimble and fasten in place using eight
(8) standard wood screws. See Figure 13 for
reference.
NOTE: Be sure to pull any cable slack back
through the inner wall plate so it does not bind
within the thimbles.
Figure 11: Cable Routing

10 |
Figure 12: Power vent terminal installation
11. Seal the perimeter of the power vent terminal
between the power vent terminal and the nishing
face with silicone or caulking. Refer to Figure 13 for
exact locations.
DATE: 11/28/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
50-3666 C-G Series Horizontal Power Vent
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
Silicone these
gaps
12. The exterior wall nishing material can now be installed
around the power vent terminal. The nishing material can butt
up against the perimeter of the nishing face but the thickness
cannot exceed 1” (25.4mm). Refer to Figure 14.
Figure 13: Silicone locations
Exterior
Wall
Cladding
Figure 14: Finishing Material
1. Remove the power vent’s front cover by removing the four
(4) #10-24 bolts using a 5/16” nut driver. See Figure 15.
2. Remove the power vent mid plate by removing the six (6)
#10-24 bolts using a 5/16” nut driver. See Figure 16.
Finishing Material
max. thickness
1” (25.4mm)
Power Vent termination wiring:
To wire the power vent terminal to the replace, a 5 lead cable
is included that is equal in length to the maximum permitted
venting run. BX armored cable (not supplied), similar to furnace
wiring, may also be used if desired.
NOTE: The cable end with electrical quick connects attached
is for wiring to the replace. The other end of the cable is for
wiring the termination.
Installation - Termination
Wood Screws

| 11
Wiring - Termination
DATE: 11/28/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
50-3666 C-G Series Horizontal Power Vent
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
Figure 15: Front cover removal
Pressure Switch 2 (black)
Blower Motor 1 (white)
Pressure Switch 1 (black)
Blower Motor 2 (white)
Power Vent Terminal side
Wiring Harness Side
DATE: 12/4/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
C-14922 Ceramic Terminal Block 4 Pole
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
Figure 17: Power Vent electrical termination
block wiring
4. Install the ground wire (GREEN) onto the stud above
the terminal block and clamp it down between the two
nuts. See Figure 18 for reference.
5. Insert the RED and BROWN pressure switch leads
into the top two slots in the termination block using a
small athead screwdriver to secure. See Figure 18.
NOTE: Polarity of the leads does not effect operation
Figure 18: Power vent cable installed
DATE: 11/29/2018 BY
SHERWOOD INDUSTRIES LTD.
INTERNAL ASSEMBLY MANUAL
THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHERWOOD INDUSTRIES LTD.
1 of 1
SHEET:
50-3666 C-G Series Horizontal Power Vent
STOVE:
UPDATED: ----/--/-- BY
--
REVISION:
0.0
Figure 16: Mid plate removal
3. Determine which wires within the 5 lead cable will
be used for which connections. Use the terminal block
wiring diagram in Figure 17 for reference. The cable
consists of 1 ground lead (GREEN), 2 pressure switch
leads (RED and BROWN), and 2 blower motor leads
(BLACK and WHITE).
6. Insert the BLACK and WHITE blower motor leads
into the bottom two slots in the termination block,
using a small athead screwdriver to secure. See
Figure 18.
NOTE: Polarity of the leads does not effect operation
7. Reinstall the power vent mid plate and front cover to
complete the power vent termination installation.
BLACK
WHITE
BROWN
RED
GREEN

12 |
Wiring - Diagram
The replace must be electrically connected and grounded in
accordance with local codes or, in the absence of local codes, with
the current CSA C22.1 Canadian Electrical Code Part 1, Safety
Standards For Electrical Installations, or The National Electrical
Code ANSI / NFPA 70 in the US.
CAUTION: When servicing controls, label all wires prior to disconnection. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
If any of the original wire supplied with the appliance must be replaced, it must be replaced with 18 AWG wire with
a temperature rating of 105°C.
C-15909 U SERIES WIRING DIAGRAM
C-15909 U SERIES WIRING DIAGRAM
39/($' *5281'
39/($'1
9$&
723/,*+7
)86($
)$15+(267$7 ),;('
3,/27
/('675,3/,*+76
/(''5,9(5:
9$/9(
,)&&21752/%2$5'
7,0,1*5(/$<
)86($
6$,/6:,7&+ $//02'(/6
6$,/6:,7&+ 8821/<
7(03 6:,7&+
%$55,(5)$1
$'',7,21$/)$16 02'(/'(3(1'(17
396:,7&+
,)&5(6(7
%851(56:,7&+
/(':,), &21752/
5)$17(11$
39/($'/
723/,*+7
821/<
/('&20321(176 $5(02'(/'(3(1'(17
,16,'(
,)&
9$&729'&
/ terre
/ fusible 4A
/ veilleuse
TOP LIGHT/
lumière
supérieure
TIMING RELAY/ relais
temporisé
TEMP. SWITCH /
interrupteur de
température
/ fusible 4A
TOP LIGHT/
lumière
supérieure
U70 ONLY/
uniquement
SAIL SWITCH
(ALL MODELS)
/ interrupteur de voile
(tous les modèles)
SAIL SWITCH
(U50/U70 ONLY)
/ interrupteur de voile
(U50/U70 uniquement)
/ contrôleur IFC INSIDE / à
l'intérieur
IFC
BARRIER FAN / ventilateur de barrière
FIXED FAN
CONTROL /
commande xe du
ventilateur
l PV (N)/ l PV (L)/
/ l PV
/ interrupteur
/ réinitialisation / interrupteur du brûleur / antenne
/ vanne
/ lumières LED
LED WIFI
CONTROL
/ contrôle
wi LED
/ les composants LED dépendent du modèle*
LED DRIVER / transformateur (60W)
120VAC TO / à12-24 VDC
ADDITIONAL FANS (MODEL
DEPENDANT) / Ventilateurs
supplémentaires (selon le
modèle)
U SERIES WIRING DIAGRAM / SCHÉMA DE CÂBLAGE
C-15909
Figure 19: Wiring Diagram

| 13
Wiring - Fireplace
1. Wiring the pressure switch - The power vent kit utilizes a
pressure switch as a safety feature.
IMPORTANT: Proper wiring of the pressure switch is critical
for operation of the power vent circuit.
a. Locate the large white 10-pin connector at the front of the
IFC, this wiring harness will be modied
b. Locate the looped yellow wire within the wiring harness
of the large white plug shown in Figure 20. Note: the wiring
harness cable tie may need to be cut for slack, replace the
cable tie upon completion.
c. Cut the yellow looped wire at the center of the loop using
wire cutters.
d. Attach one of the supplied red wire taps to each of the cut
leads as shown in Figure 21. Install the wire taps roughly 1/2”
from the end of the leads. Make sure there is an audible click
upon closing the wire taps.
Note: the wires do not require stripping when using the
supplied wire taps.
Looped yellow
wire
Figure 20: Location of the pressure
switch wire
All Urbana replaces come pre-wired for power venting to make the wiring as easy as possible.
IMPORTANT: Prior to wiring the replace all incoming power must be disconnected.
Figure 21: Pressure switch wire taps
attached
2. Routing the 5-Wire Cable - Locate the unused electrical strain
relief at the bottom of cabinet back and route the supplied
5-wire cable through it (Figure 22). Feed enough cable through
to reach the IFC then tighten the strain relief.
Note - U30 models have an additional cover plate with a large
grommet in the middle that will need to be removed to access
the strain relief (Figure 22).
Figure 22: Power Vent Cable Strain Relief
PV Strain
Relief
Fireplace
Power
Cord
U30
Only
Main Power
120VAC
3. Connecting the 5-Wire Cable - Refer to the wiring diagram
(Figure 19) while following the directions below.
Power - Locate the unused BLACK lead on the green terminal
block plugged into X12 on the IFC. Connect the BLACK cable
lead to it. Next, locate the unused WHITE
lead on the 8 position busbar behind the IFC.
Connect the WHITE cable lead to it.
Ground - Locate the unused GREEN wire on the
4 position busbar behind the IFC. Connect the
GREEN cable lead to it.
Pressure switch - Connect the remaining RED
and BROWN cable leads to the wire taps
installed in 1. The polarity of the wires doesn’t
effect operation.
The replace power vent wiring is now
complete but DO NOT connect main power
yet.

14 |
Enable PV Mode
LOCATION OF SWITCH
PANEL
IN BETWEEN FRONT GLASS
AND FIREPLACE CABINET
REMOTE
SYNC
BUTTON
POWER VENT
SWITCH
*SHOWN IN
DV MODE*
MAIN
BURNER
SWITCH
To complete the power vent installation the replace IFC must
be switched from direct vent mode into power vent mode.
IMPORTANT - Main power must not be connected prior to switching
to power vent mode or else IFC will remain in direct vent mode
To switch the IFC into power vent (PV) mode locate the replace switch panel at the front right corner of the cabinet
(Figure 23). The far left rocker switch with the cover above it controls the mode setting of the IFC. From the factory
the -symbol is down, press the rocker switch so that the O symbol is down. To clarify:
- symbol down = Direct Vent (DV) mode O symbol down = Power Vent (PV) mode
If for some reason the IFC needs to be switched back to DV mode simply press the switch again with main power
disconnected. This completes the power vent installation and now main power can be supplied to the replace. For
replace operation refer to the User Manual included with the replace.
Figure 23: Fireplace Switch Panel

| 15
Troubleshooting
Problem Possible Cause Solution
Power vent
blower doesn’t
turn on.
Incorrect Wiring
• Yellow wire harness loop has not been cut.
• Refer to wiring instructions and conrm the blower and
wire taps have been wired correctly.
• Use a volt meter to conrm incoming and outgoing
power at the IFC.
• Conrm all spade connectors are correctly engaged.
Blower Motor
• Conrm blower is operational by wiring it to a direct
120VAC power source outside of IFC circuit.
• Replace blower.
IFC
• IFC is in lockout state. Fully reset the IFC.
• PV mode hasn’t been enabled. Conrm “O” side of
power vent rocker switch is pushed down.
• Replace IFC.
Power vent
blower runs but
pilot will not try
to light.
Valve / Pilot Wiring
• Conrm the red valve wire was not disconnected during
PV installation.
• Conrm the orange and white pilot wires were
reconnected to the IFC during PV installation.
Vacuum Switch
• Ensure the vacuum switch is mounted in a vertical non-
angled position within Power Vent cap.
• Ensure the silicone hose is attached to the port furthest
from electrical connections.
• Check electrical connections, the middle spade
connector of the vacuum switch should be UNUSED.
• Jump the cut yellow harness wires together after the
blower turns on. If pilot and burner turns on, there is a
problem with the vacuum switch circuit.
• Replace vacuum switch.
Burner will not
light.
Valve Wiring • Conrm the green valve wire was not disconnected
during PV installation.
Vent Restriction • The replace is not restricted enough. Increase the
restrictor setting/size as needed.
Flames are very
low on HIGH.
Venturi Setting • Venturi is set too open, adjust it closed accordingly
Vent Restriction • The replace is not restricted enough for the vent run.
Increase the restrictor setting/size as needed.
Flames are
transparent /
lifting off burner.
Venturi Setting • Venturi is set incorrectly, adjust it accordingly.
Vent Restriction • The replace is over restricted for the vent run. Reduce
the restrictor setting/size as needed.
Power vent
blower runs post
shutdown.
Normal Operation
• The blower will operate for a few minutes post
shutdown to purge remaining ue gas from the vent.
• Blower will remain in continuous operation if pilot is left
in CPI mode.

16 |

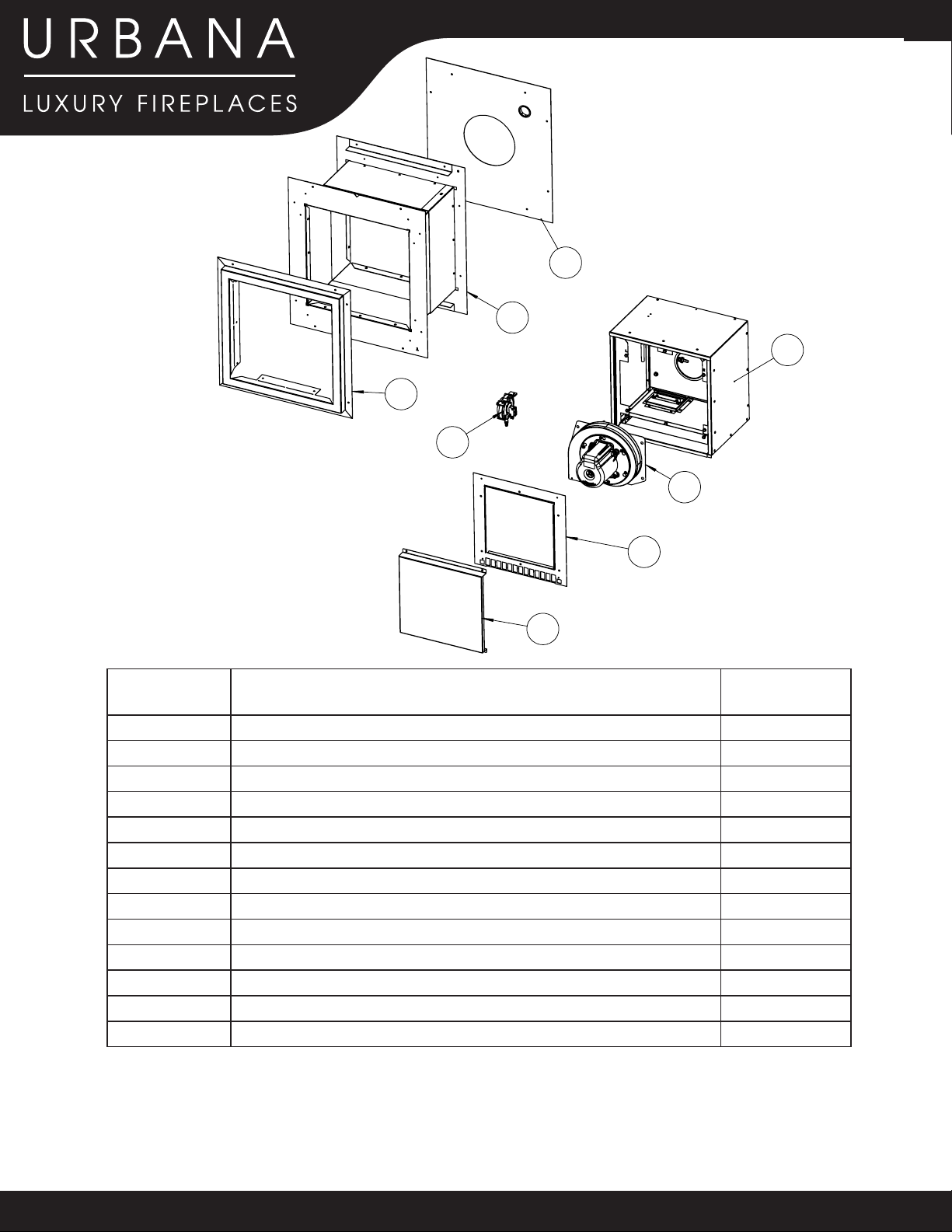

Parts List
1
3
2
5
4
7
6
8
Reference
Number Part Description Part Number
1 Power Head Complete Assembly 50-3763
2 PV Front Cover 50-3764
3 PV Mid Plate 50-3765
4PV Vacuum Switch 50-3766
5 PV Blower Motor 50-3767
6 PV Framing Thimble Assembly 50-3768
7 PV Framing Thimble - Inner Wall Cover 50-3769
8 PV Finishing Face 50-3770
- U30 PV Disk 50-3952
- U50 PV Disk 50-3968
-U70 PV Bafe 50-3953
- WiFi ready Proame 2 IFC (0.584.665) 50-3887
- Urbana Power Vent Owner’s Manual 50-3954
MANUFACTURED BY: SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.Urbanareplaces.com
Spring 2020
C-15906
