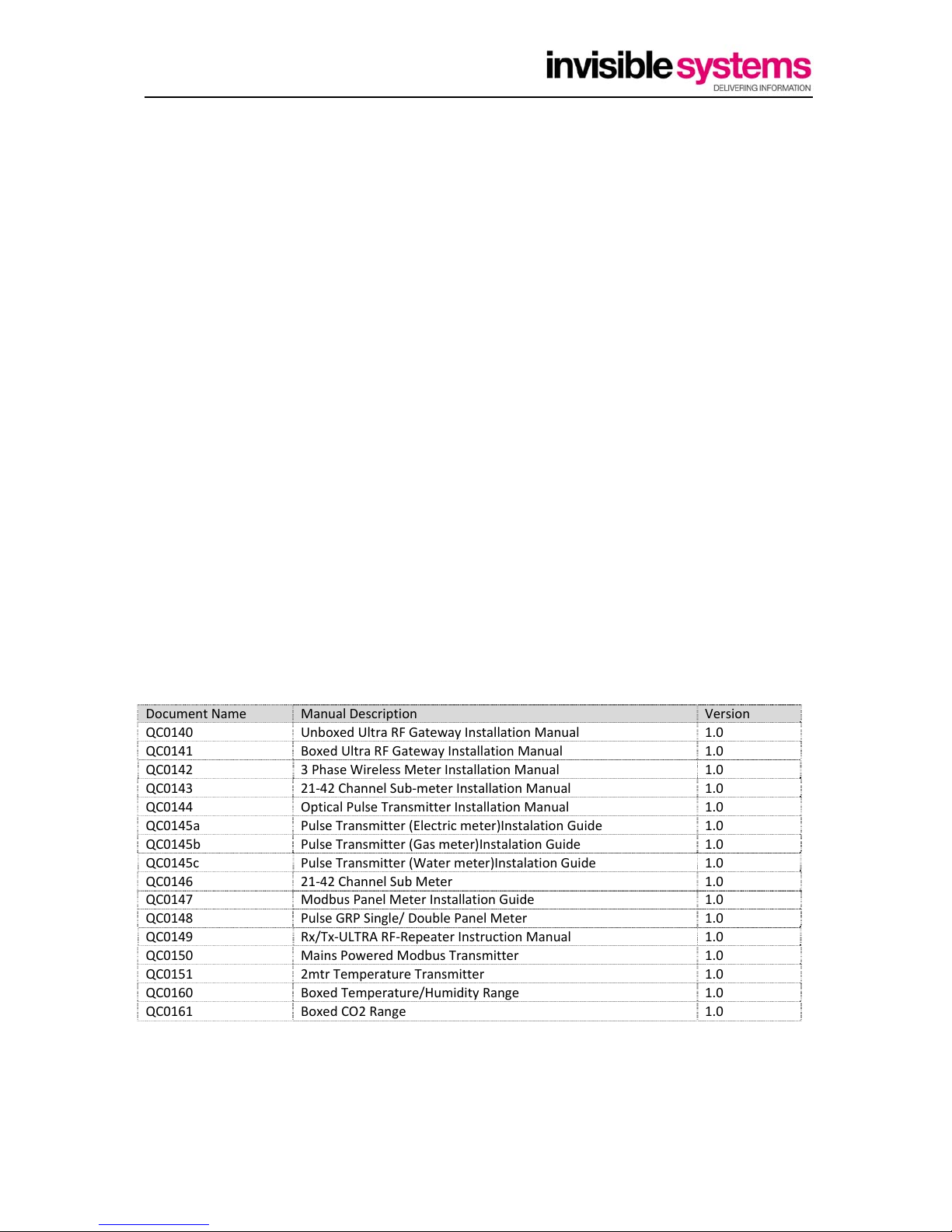

DocumentNameManualDescriptionVersion
QC0140UnboxedUltraRFGatewayInstallationManual1.0
QC0141BoxedUltraRFGatewayInstallationManual1.0
QC01423PhaseWirelessMeterInstallationManual1.0
QC014321‐42ChannelSub‐meterInstallationManual1.0
QC0144OpticalPulseTransmitterInstallationManual1.0
QC0145aPulseTransmitter(Electricmeter)InstalationGuide1.0
QC0145bPulseTransmitter(Gasmeter)InstalationGuide1.0
QC0145cPulseTransmitter(Watermeter)InstalationGuide1.0
QC014621‐42ChannelSubMeter1.0
QC0147ModbusPanelMeterInstallationGuide1.0
QC0148PulseGRPSingle/DoublePanelMeter1.0
QC0149Rx/Tx‐ULTRARF‐RepeaterInstructionManual1.0
QC0150MainsPoweredModbusTransmitter1.0
QC01512mtrTemperatureTransmitter1.0
QC0160BoxedTemperature/HumidityRange1.0
QC0161BoxedCO2Range1.0


InvisibleSystemsLimited Page|5
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor

1. Introduction
TheBoxedTemperature/Humidty/CO2Transmitterisabatterypoweredwirelesstransmitter
capableofcapturingtemperatureinformationviathefittedtemperatureprobe.Thissensoris
intendedtomeasuretemperature/humidityinairofchosenlocation.Itisnotintendedforusewith
veryhotorcoldproducts,forthatcaseusetheextendedtemperaturerange(PT100)probe.(3999‐
913‐2147)
ThismanualreferstoBoxedTemperature/Humidity/CO2forinstallationbutotherUltraRFsensor
transmittersareavailablefordifferentapplications.
ThedatacollectedbytheadditionalwirelessgatewaycanbeviewedontheRealtimeOnline
platform.
Features
Avarietyofavailableradiofrequencyoptions
Smallfootprint
Automaticdatacollectionandtransmission
Wireless,rangeofupto15kmlineofsight
Batterypoweredwithupto3‐yearbatterylife
Noneinvasiveandrapidinstallationwithnocablingrequired
AlarmTemperatureThresholdCapability(Optional3999‐913‐2238/39)
OptionalInternalorExternalAntenna
Technicalinformation
Operatingfrequency868MHz(Otherfrequenciesavailable915MHz)
Normaloperatingrangefrom0°Cto+50°C(0.5°CAccuracy)
Updaterateevery7.5mins
AlarmRangesbetween+2+8,+3+7,+15+25(othersrangesavailableonrequest)
CO2(0‐5000ppm)
CO2(0‐20%)
OptionalAlarmCapability
TheBoxedTemperatureandHumiditySensoriscapableofbeingsettosendAlarmmessageswhenit
reachescertainparameters
Rangescurrentlyavailable
+2to+8
+3to+7
+15+25
Thealarmcapabilityworksinsuchawaythatinnormaloperationthetransmitteristransmitting
every10minuteswhenthetransmitterisprogrammedtotherangesquotedaboveandgoesoutof
theseparametersthetransmitterautomaticallysendsthemessagesevery1minuteandtiggersan
alarmmessagewithinGatewayReciever,changingthenormaloperatinguploadtimeofdatafrom
15minstotypicallywithin1minuteallowingtheinfobebeseemsoonerontheRealtime–Online
platform.
SpecificDataSheetsareavailableforthisthisproductalso.


InvisibleSystemsLimited Page|6
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor

2. Installation

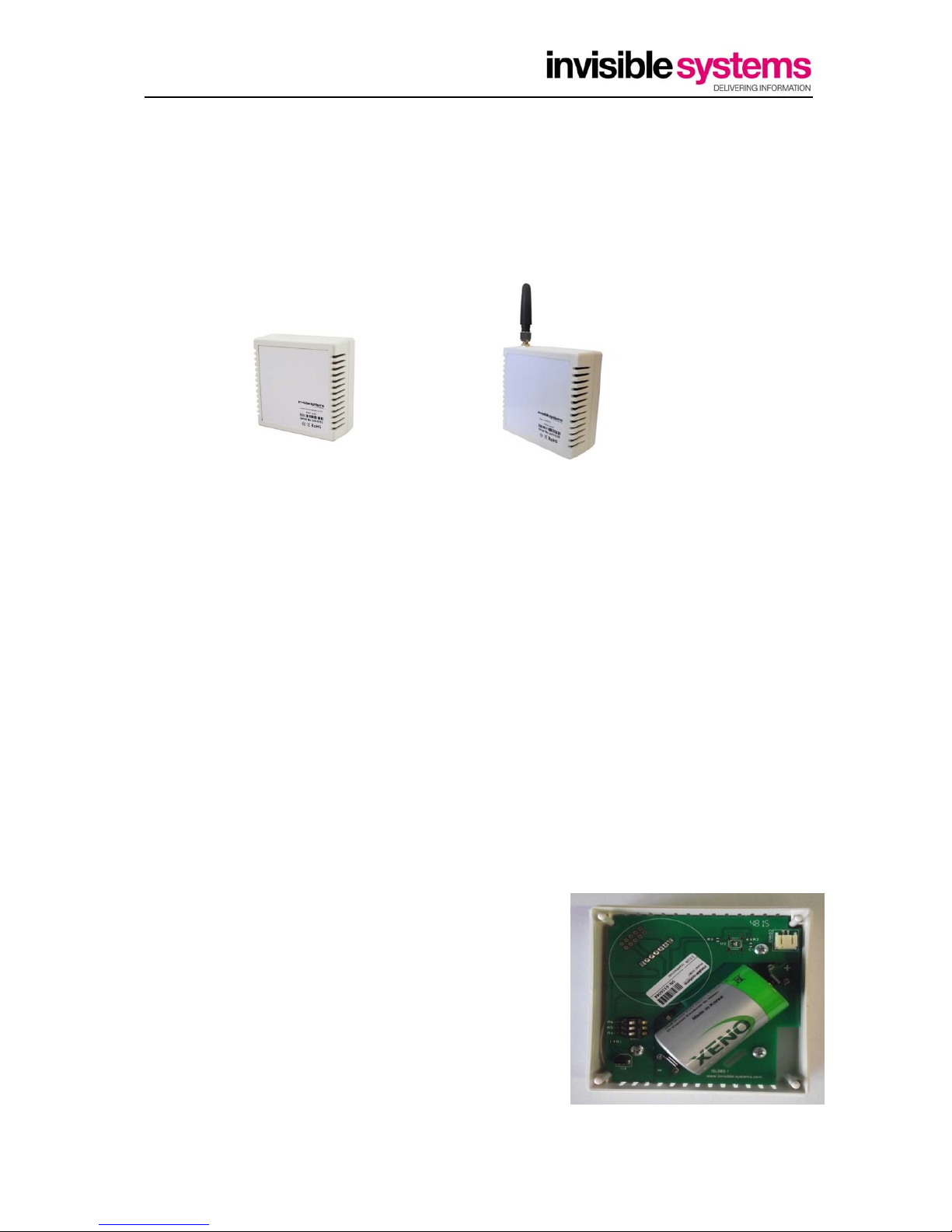

ThisTransmitterissuppliedinaventedboxenclosure.
Itcanbefittedbyremovingthefrontcoveranddrillingthroughtherearcasingtofixintodesired
position.
Oritcanbeplacedindesignatedareasallocatedformonitoringwiththeneedtobemovedinto
differentlocations

Theyaresuppliedwitheitheraninternalantennaorexternalantennatohelpwithextendingthe
rangeiffromitsdesiredlocationitisidentifiedmoreobsticlessuchaswallsorequipmentmay
hamperthesignal.
TemperatureTransmitterscanbefittedinsidetheallocatedFridges/ColdStoresbutitisadvised
againstthisas;
ThecoldtemperaturesreachedinsomeFridges/ColdStorescanhaveadetrimentaleffectto
batterylife.Thisneedstobetakenintoaccount.
Asmoisturecanbuildupinthistypeofenvironment.Andcausedamagetotheequipment
overtime.WehaveaconformalcoatedandpottedTxavailableforthistypeofinstallation
atanadditionalcostshouldplacinginthistypeofenviormentbeunavoidable.
RangeoftheTransmitterissignificantlyreducedinthistypeofinstallation.
2.1Battery 
Forsafetyconsiderations,allwirelesstransmittersaretransportedwiththeinternalbatteryfitted
butdisconnectedfromtheterminalsviaatabthatneedsremovingfromwithin.
Onfirstuseitisthereforenecessarytoconnectthebatteryfollowingthestepsbelow:
RemovetheFrontoftheunitbypullingitawayfromthebaseusingslightpressure,asitis
heldtogetherusingfourplasticpinsthatlineupwith
thebaseoftheunit.
Thiswillexposethebatterythetabwillbeplaced
inbetweenthe+Batterytermalandthecircuitboard,
oncethetabisremovedtheunitwillstart
transmitting.
ReplacetheBasebylininguptheplasticpinswithit
untilbothsidesareflush



InvisibleSystemsLimited Page|7
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor

2.2CO2Sensors
TheCO2sensorneedstocalibrateitselfwhenthebatteryisinstalled.Todothis,pleasefollowthe
sequencebelow:
1.Movethetransmitteroutsideintofreshair
2.Removethelabelprotectingthebatteryandinstallthebattery,beingcarefultoobservethe
correctpolarity
3.Leavethetransmitterforatleast2minutesinfreshairafterinstallingthebattery‐theCO2sensor
willtakeareadingandsetthisasbaselineof400ppm
4.After2minutes,installthetransmitterinitsfinallocation

Toensurenolong‐termdriftoftheCO2sensor,theaboveprocessshouldberepeatedtore‐
calibratethesensor.
ThemoreaccuratetheCO2levelreadingrequired,themoreoftenitshouldbecalibrated.Suggested
re‐calibrationintervalsare:
*Scientificexperiments‐beforeeachtest
*Greenhouse‐aftereachgrowingseason
*Manufacturing‐bi‐annuallytoannually
*Indoorairquality‐annually
Thesearegeneralguidelines.Calibrationschedulesmayalsobedictatedbyexperimentalprotocols
orbyparticularindustrialstandards.Consultyourspecificsensorrequirementsforyourapplication.













InvisibleSystemsLimited Page|8
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor
3. SensorNumbering

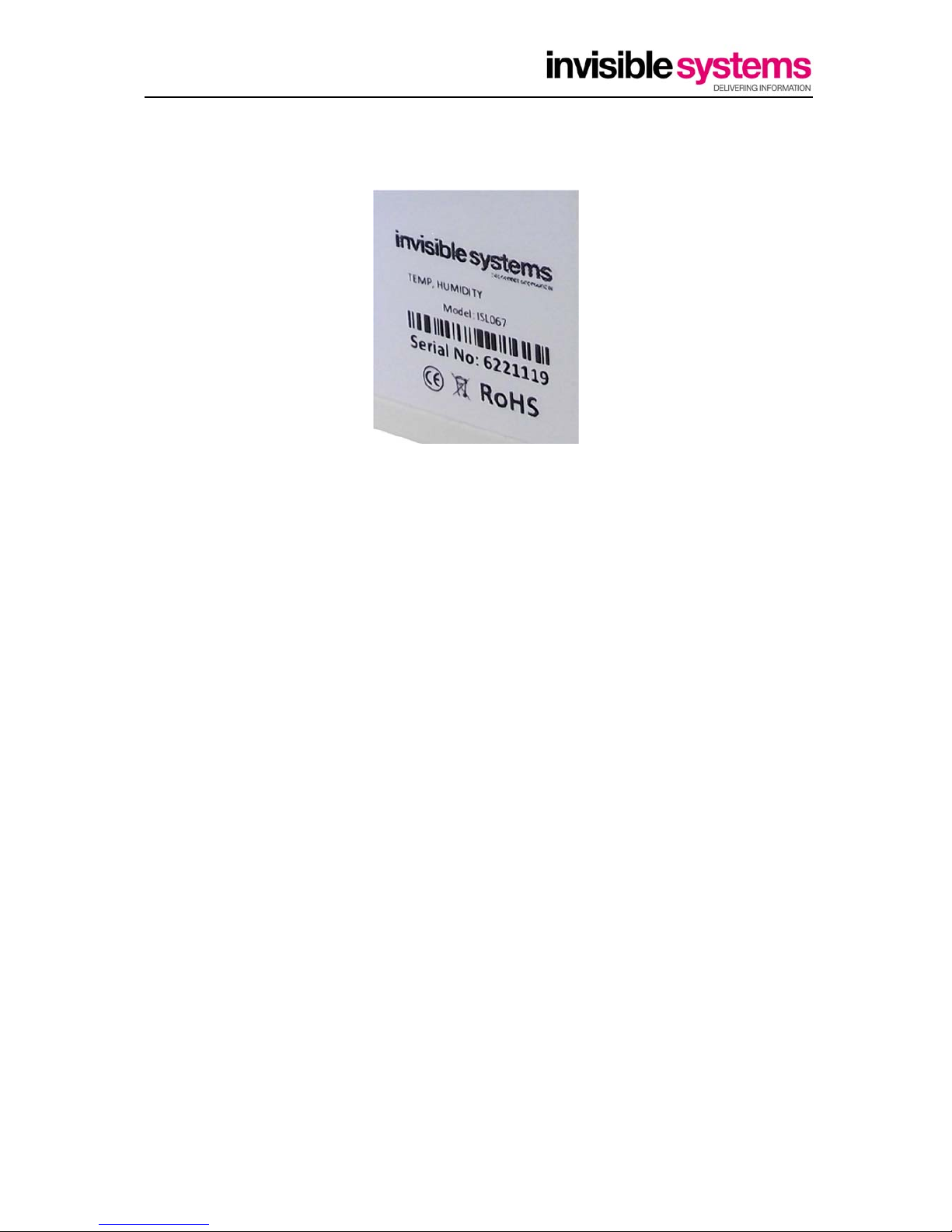

Eachsensorissuppliedwithauniqueserialnumbermarkedonthesidetogetherwithabarcode
whichisusedtoidentifythesensorontheRealtime‐Onlinedashboard.

Itisvitalthatthesenumbersareaccuratelyrecordedasotherwiseitwillbeimpossibletoidentify
thesensorinISLSetuportheserverdashboardforthespecificsite.
Notethatasensornumbercannotappeartwiceonthesamesite,butcanappearonmorethanone
sitedashboard.

4. LocatingSensors
Realtime‐Online™Sensorsuseradiofrequencycommunicationtoalocalgateway.Thedistance
betweensensorsandthegatewaycanalsobeverylong(upto15Kmlineofsight).However,
environmentalfactorssuchaswallsandfurniturecanreducethisdistanceconsiderablysooptimal
placementofsensorsisimportant.
NotethatthisdocumentdoesnotspecificallycovertheinstallationofGatewayswhicharecovered
inaseparatedocument,(seeindex)butthefollowinggeneralguidanceisgiven.
Whenplacingsensors,avoidthefollowing:
a. Placingthetransmitterinmetalenclosures(suchasadistributionboard,afridgeoraserver
rack).Inthesecases,trytolocatethesensorhead(CT,tempprobeetc)insidetheenclosure
andleadthecableoutside.
b. Theboxtransmittersarenotsplashproofandarenotsuitableforinstallationinoutdoor
areas.Donotinstalltheminpositionswheretheyareliabletobeexposedtowater.
c. DonotinstallthetransmittersclosetootherRFsourcessuchasalarmsystems,door
openersorotherradiosystems.AlthoughtheamountofRFenergytransmittedbythe
sensorsisverysmallindeed,thereisapossibilitythattheycouldinterferewithother
electricaldevices,sotheymustnotbeinstalledclosetootherdeviceswhichcouldbe
affectede.g.medicaldevicesorwirelessalarmsystems.
Whensitingthegateway,trytoensurethatthelocationisapproximatelyequidistantinradiosignal
termsfromallthesensors.
Typically,sensorscanbeexpectedtopassthrough4–5normalinternalwallswithoutdifficulty.


InvisibleSystemsLimited Page|9
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor
Thefollowingillustrationshowshowsensorswhicharehiddenbehindlargemetalobjectsliketanks
orsteelwallsmayhavedifficultyintransmittingtothegateway.

Notes
Caremustbetakenwheninstallingthissensorasliveelectricalcircuitsareusuallywithin
thevicinity.Seektoguidanceofaqualifiedelectricianifyouareunsure.

5. Checkingoperation
FollowinginstallationoftheBoxTemperaturetransmitter,itissuggestedthattheoperationis
checkedtoensurethetransmitterisbeingreceivedbytheGateway.
OpenUltraRFGatewaySetup–Thisshouldbelocatedonthedesktopofyourlaptop.


Onfirstuse,ifrequested,selecttheUSBleadbeingusedandhighlightforuse.









Screeninformationbeingdisplayed.
Namelead
connectionand
selectitindrop
downlist
Possible
repeater
location


InvisibleSystemsLimited Page|10
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor
TheScreenwillshowthetransmittersitcanseeinrangeofthereceiver,thesecanbesortedby
sensortypeorIDasperpreference.



EachTransmitterwillshowthefollowing
1. SensorID
2. TransmitterType
3. BatteryVoltage
4. Valuesbeingreceived
5. SignalStrengthandfrequency

Itisimportanttocheckallofthisinformationtoconfirmthateachsensorisbeingseenbythe
gatewayandatregularintervalsinrelationto(5).Bluecolourdotsshowdirectmessagesbeing
receivedandOrangecolourdotsshowmessagesreceivedviarepeaters.
CorrectsetupandoperationofRealtime‐online,willrequirealltheSensorID’sandTransmittertypes
inconjunctionwiththeGatewayID.
TheRSSIisshownindBmwithabarchartshowingsignalstrength.Thisisanimportantparameter.
ThetablebelowshowsdBmrangesinrelationtoSignalstrength.
Therangeshownabovereads‐100dBmthisisshowninthetableasaMarginalsignalthereforewill
needimprovingeitherbyreviewingthetransmitterlocation,movingtheGatewaycloseroraddinga
signalrepeaterinbetweentransmitterandreceiver.




InvisibleSystemsLimited Page|11
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor


ValueRSSI
dBm
Signal
Strength
ValueRSSI
dBm
Signal
Strength
2 ‐109Marginal17 ‐79Good
3 ‐107Marginal18 ‐77Good
4 ‐105Marginal19 ‐75Good
5 ‐103Marginal20 ‐73Excellent
6 ‐101Marginal21 ‐71Excellent
7 ‐99Marginal22 ‐69Excellent
8 ‐97Marginal23 ‐67Excellent
9 ‐95Marginal24 ‐65Excellent
10 ‐93OK25 ‐63Excellent
11 ‐91OK26 ‐61Excellent
12 ‐89OK27 ‐59Excellent
13 ‐87OK28 ‐57Excellent
14 ‐85OK29 ‐55Excellent
15 ‐83Good30 ‐53Excellent
16 ‐81Good   

Furthertechnicalreferenceandproductinfocanbeobtainedfromassociateddatasheets



















InvisibleSystemsLimited Page|12
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor

6. Dashboardconfiguration
6.1Temperature
FollowingsuccessfullogintoRealtime‐Online™withyourusernameandpassword,createnew
sensor(System>SensorSetup>CreateNewSensor)
EnterSensorIDnumberlocatedonthesideoftheTemperatureTransmitter
NametheSenorasrequiredwithreferencetositerequirementsforeaseofidentification.
SelectSensorType=‘Temperature’.
Selectunit=‘C’.
Select‘Temp1’fromdropdown.
EntertheMINandMAXValuesasrequired
EnterthedesiredAlertstimeinminutesasrequired
Click‘CreateSensor’
Example:





InvisibleSystemsLimited Page|13
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor

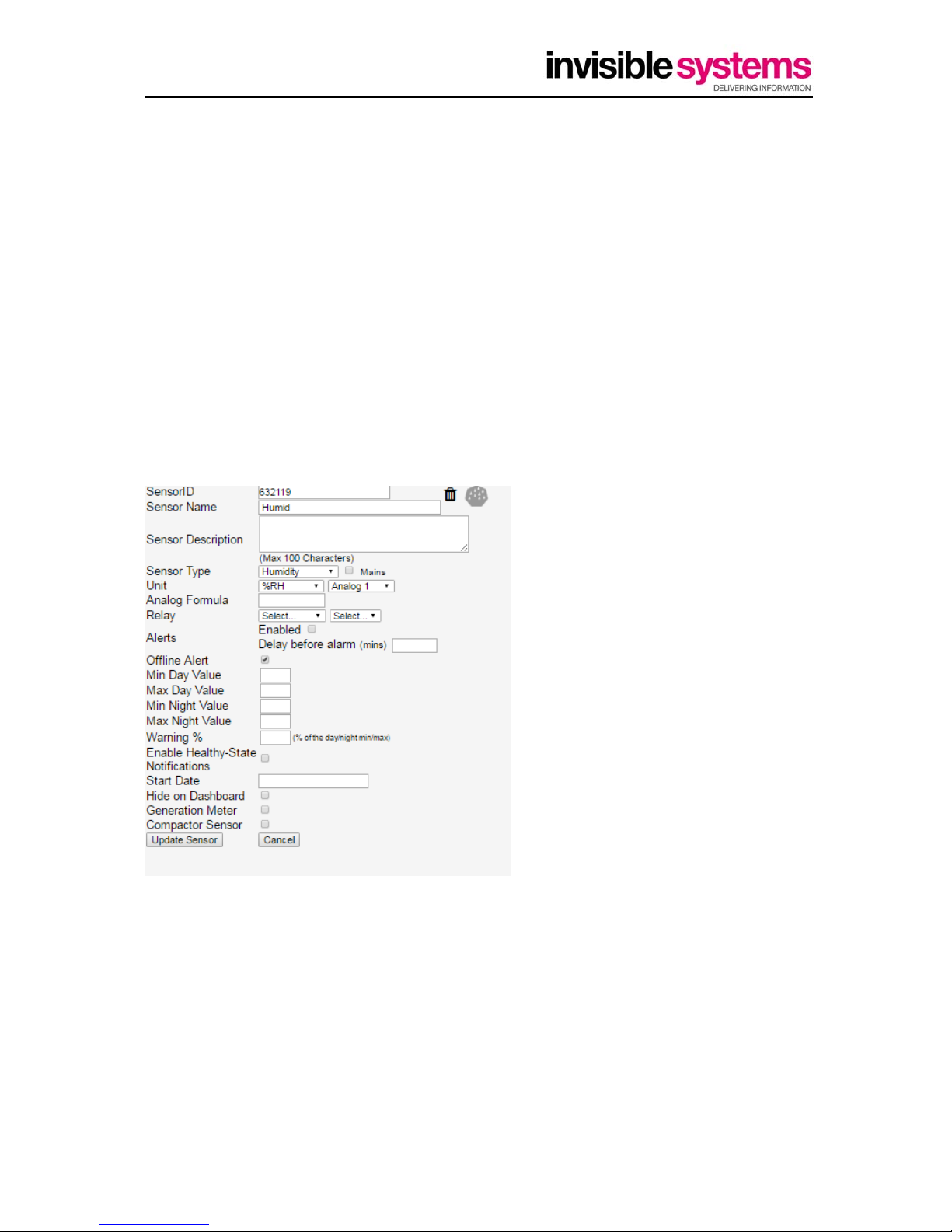

6.2Humidity
FollowingsuccessfullogintoRealtime‐Online™withyourusernameandpassword,createnew
sensor(System>SensorSetup>CreateNewSensor)
EnterSensorIDnumberlocatedonthesideoftheTemperatureTransmitter
NametheSenorasrequiredwithreferencetositerequirementsforeaseofidentification.
SelectSensorType=‘Humidity’.
Selectunit=‘%RH’.
Select‘Analog1’fromdropdown.
EntertheMINandMAXValuesasrequired
EnterthedesiredAlertstimeinminutesasrequired
Click‘CreateSensor’
Example:








InvisibleSystemsLimited Page|14
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor
6.3CO2
FollowingsuccessfullogintoRealtime‐Online™withyourusernameandpassword,createnew
sensor(System>SensorSetup>CreateNewSensor)
EnterSensorIDnumberlocatedonthesideoftheTemperatureTransmitter
NametheSenorasrequiredwithreferencetositerequirementsforeaseofidentification.
SelectSensorType=‘Condition’.
Selectunit=‘ppm’.
Select‘Analog1’fromdropdown.
TheAnalogueformulawillbeadvisedwiththeequipment
EntertheMINandMAXValuesasrequired
EnterthedesiredAlertstimeinminutesasrequired
Click‘CreateSensor’
Example:










InvisibleSystemsLimited Page|15
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor
7. Appendix1–PartNumbers.

PartNumberItemDescription
3999‐913‐2103UltraRF‐TempTXTemperatureTransmitter(2m)‐25+85
3999‐913‐215
6
UltraRF‐TempTXTemperatureTransmitterRadiationShield‐25+85
3999‐913‐222
0
UltraRF‐TempTXTemperatureTransmitterRadiationShield‐
25+85(Memory)
3999‐913‐223
0
UltraRF‐TempTXTemperatureTransmitterRadiationShield‐
25+85(Alarmed)
3999‐913‐220
0
UltraRF‐TempTX(PVC)OptionalAlarmTemperature‐25+85
3999‐913‐2184UltraRF‐TempTX(PTFE)TemperatureTransmitter(2m)‐55+85
3999‐913‐2208UltraRF‐TempTX(PTFE)OptionalAlarmTemperature‐55+85
3999‐913‐2218UltraRF‐TempTX(PVC)OptionalMemoryTemperature‐25+85
3999‐913‐214
7
UltraRF‐TempTX(PTFE)PT100Temperature(‐200/+300)
3999‐901‐1212UltraRFRepeaterRFSignalRepeaterMainsPowered
200‐360‐1001Battery3.6vLithiumwithJSTplug
40
0
‐402‐241
0
‐
A
AccessoriesSleeveforceilingprobefixing
400‐402‐2430‐AAccessoriesCeilingfixingassemblyforTx&40x6mmSSprobe
3999‐913‐219
6
UltraRFBoxedTempRangeTemperature(InternalAntenna)
3999‐913‐2205UltraRFBoxedTempRangeTemperature(ExternalAntenna)
3999‐913‐2211UltraRFBoxedTempRangeTemperatureAlarmed(InternalAntenna)
3999‐913‐2215UltraRFBoxedTempRangeTemperatureAlarmed(ExternalAntenna)
3999‐913‐219
7
UltraRFBoxedTempRangeTemperature/Humidity(InternalAntenna)
3999‐913‐220
6
UltraRFBoxedTempRangeTemperature/Humidity(ExternalAntenna)
3999‐913‐2212UltraRFBoxedTempRangeTemperature/HumidityAlarmed(InternalAntenna)
3999‐913‐221
6
UltraRFBoxedTempRangeTemperature/HumidityAlarmed(ExternalAntenna)
3999‐913‐2198UltraRFBoxedTempRangeTemp/Humid/CO20‐5000ppm(InternalAntenna)
3999‐913‐220
7
UltraRFBoxedTempRangeTemp/Humid/CO20‐5000ppm(ExternalAntenna)
3999‐913‐2213UltraRFBoxedTempRangeTemp/Humid/CO20‐5000ppmAlarmed(Internal
Antenna)
3999‐913‐221
7
UltraRFBoxedTempRangeTemp/Humid/CO20‐5000ppmAlarmed(External
Antenna)
3999‐913‐2203UltraRFBoxedTempRangeCO20‐5000ppmRoom(InternalAntenna)
3999‐913‐222
9
UltraRFBoxedTempRangeCO20‐5000ppmRoom(ExternalAntenna)
3999‐913‐2201UltraRFBoxedTempRangeTemp/Humid/CO2‐0‐20%(internalAntenna)
3999‐913‐2214UltraRFBoxedTempRangeTemp/Humid/CO2‐0‐20%(ExternalAntenna)
3999‐913‐2238UltraRFBoxedTempRangeTemp/Humid/CO2‐0‐20%Alarmed(InternalAntenna)
3999‐913‐223
9
UltraRFBoxedTempRangeTemp/Humid/CO2‐0‐20%Alarmed(ExternalAntenna)
3999‐913‐223
6
UltraRFBoxedTempRangeCO2‐0‐20%(InternalAntenna)
3999‐913‐223
7
UltraRFBoxedTempRangeCO2‐0‐20%(ExternalAntenna)




InvisibleSystemsLimited Page|16
7‐9BeethamRoad,MilnthorpeCumbria,LA77QL,England
Phone:01539722520Email:info@invisible‐systems.com
QC0161Temperature/Humidity/CO2Sensor

Intentionallyeftblank
