user guide
refrigerator
read these instructions before installing your refrigerator
ITV085ICER, ITV095ICER, ITV110ICER, ITV120ICER
PM01

2
¡Congratulations!
Index
Parts .............................................................
Installation .................................................
Operation ...................................................
- Make a test run ......................................
- Temperature control ...........................
- Making ice cubes ..................................
- Food storage ..........................................
- Cleaning the evaporator
drain tray ................................................
- Lamp replacement ..............................
- Deodorizer .............................................
Cleaning ....................................................
Caution..................... .................................
Trouble Shooting ...................................
Notes ..........................................................
3
4
5
5
5
6
6
7
7
7
8
8
11
12
Please read these instructions carefully before using your microwave oven,
and keep them in a safe place.
If you follow the instructions, your oven will give you many years good
service.
You have acquired a product of the highest quality, design and technology.
Since in we are committed to meeting the expectations and needs of
our customers; we work to provide the best service, with products that are safe and
highly competitive on an international scale.
With pride we appreciate your preference and condence.

3

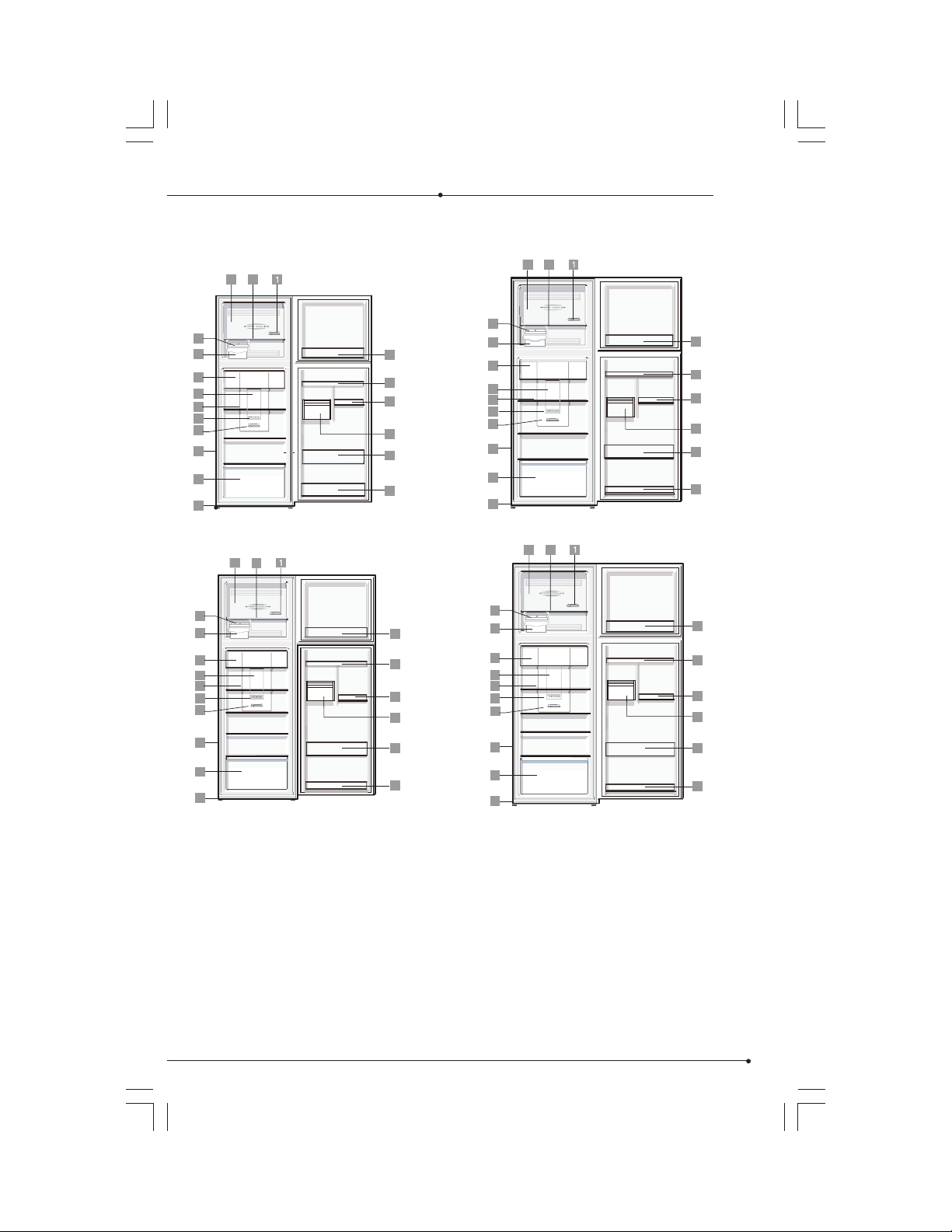

1. Temperature Control Knob
2. Freezer Shelf
3. Freezer Compartment
4. Twist Ice Maker
5. Ice Cube Box
6. Chilled Room
7. Multi-Airow Control Knob
8. Refrigerator Shelf
9. LED Lamp
10. Evaporator Drain Tray
11. Vegetable Crisper
12. Adjustable Leg
13.Bottle Rack
14.Canned Food Rack
15. Egg Rack
16. Utility Rack
17. Utility Box
18. Deodorizer
Parts
ITV085ICER
15
14
13
13
17
16
2
3
4
5
6
7
8
9
10
12
11
18
14
23
4
5
6
7
8
9
10
12
11
18
15
14
13
13
17
16
14
ITV095ICER
23
15
14
13
13
17
16
14
4
5
6
7
8
9
10
12
11
18
ITV110ICER
ITV120ICER
23
4
5
6
7
8
9
10
12
11
18
15
14
13
13
17
16
14

4
Installation
Suggestion
Relocation of refrigerator.
• Disconnect the power cord.
• Remove water from the evaporating
tray.
• Take food out of the refrigerator
compartments.
• Fasten the doors with tape while
moving to prevent them from
opening.

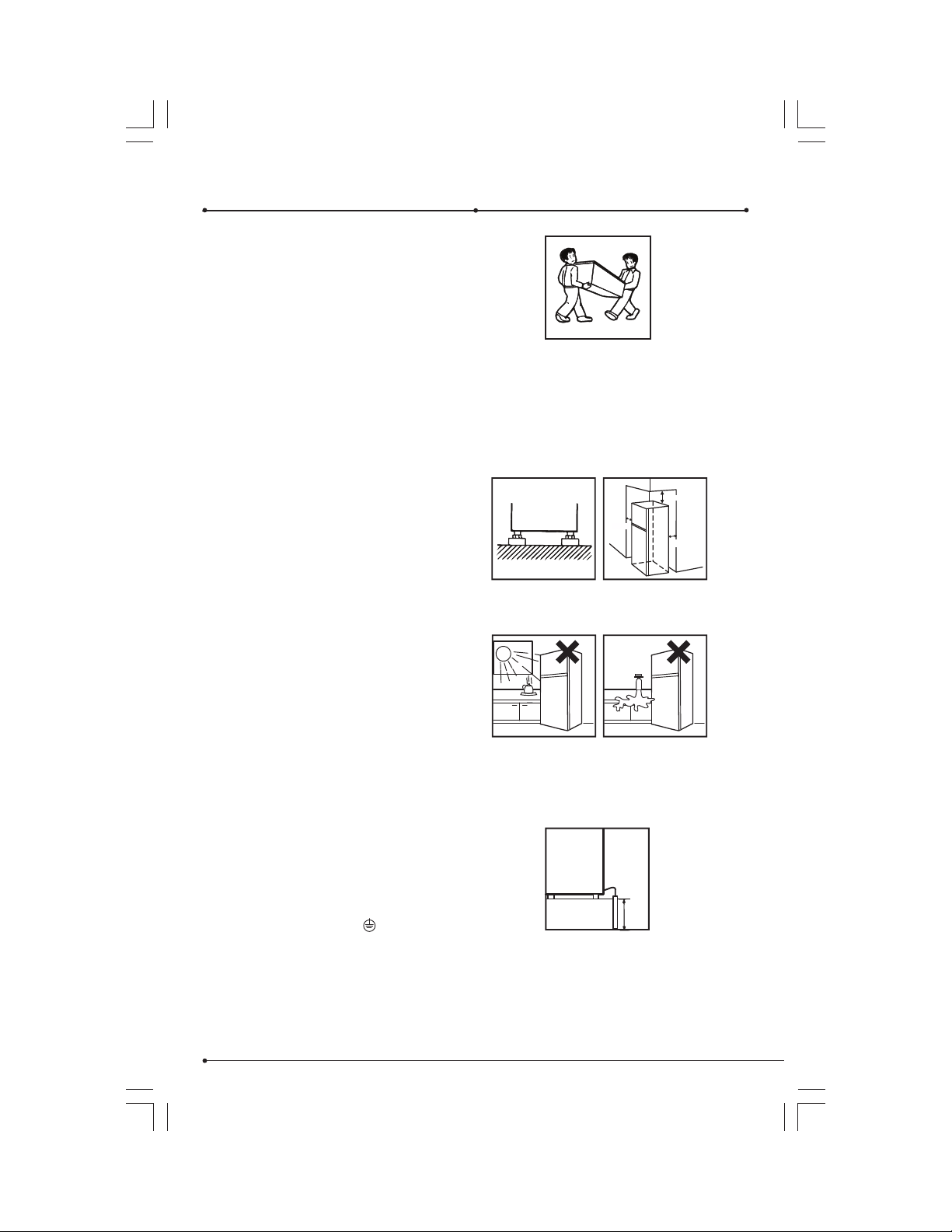

1. Select a place with strong, level
oor. If the oor is not quite level,
adjust the height of the screw
accordigly.
2. Allow sucient clearance between
there frigerator’s back, also the
sidewall, so the door can open fully
and to minimize noise.
3. Avoid direct sunlight and heat.
Direct sunlight may aect the
enamel coating. Heat sources
nearby will cause higher electricity
consumption.
4. Avoid very moist place.Too much
moisture in the air will cause frost to
from very quickly on the evaporator,
and the refrigerator will have to be
defrost very frequently.
5. Don´t connect multiple appliances
to one outlet. It may cause re.
To avoid the possibility of electrical
shock, ground the refrigerator
properly. The earth screw is located
on the rear side of the refrigerator.
6. In case of customer desire to add the
ground wire with Earth Screw
junction earth symbol at the
back of the refrigerator. Should
attach the ground wire to metal
pipe or to cover screw of the wall
receptacle or to a rod buried at least
2.4 meters in the ground.
10 cm.
30cm.
15cm.
refrigerator
unit
ground
wire
2.4
meters
7. After relocated, leave the fridge
statically 3-6 hours before switching
it on.This intend to ensure a proper
cooling system operation.
• For safety, use 2 people to carry the
refrigerator.
• Do not lift the unit in a horizontal
angle, however, it may be 45 degrees
tilted slightly.

5
Operation
Make a test run Suggestion:
Freezer Compartment
RefrigeratorCompartment
(ITV085ICER, ITV095ICER,
ITV110ICER,ITV120ICER)
1. Your refrigerator is usually cleaned
by manufacture, however you may
want to clean it before using with a
soft towel cloth.
2. After cleaned, replace all parts in
proper.
3. Keep the door open and plug the
power cord into its own electrical
outlet. The interior lamp should lit.
4. Properly close the door.
Temperature setting for the
beginning installation.
For faster cooling in refrigerator
compartment, should set temperature
accordingly.
Frezzer Compartment: Dial to
position“MIN”
Refrigerator Compartment: Dial to
position“MAX”
Waiting the unit operates for 3 hours
then turn the freezer and refrigerator
Temperature controlTemperature control
The refrigerator is equipped with 2 independent controls to control the degree of
cooling of the refrigerator and freezer compartment.
Freezer Compartment
MIN.: Minimum Setting for fairly cold
in freezer compartment.
MAX.: Maximum Setting for the
coldest in freezer compartment.
Refrigerator Compartment
MIN.: Low volume of air circulation in
refrigerator compartment.
MAX.: High volume of air circulation in
refrigerator compartment.

6
Making ice cubes
Food storage
• Ice cubes are made in Twist Ice
Maker, turn the lever clockwise to
empty the ice into Ice Cube Box.
• Store the ice cubes in the Ice Cube
Box. Do not store wet ice cubes or
they will stick together.
• Do not use the “Ice Cube Box” as an
ice making tray, or it will be
damaged.
1. Refrigerat air goes down at the rear
of the fresh food compartment and
rises up at the front. Then, store the
foodstus such as sh and meats
which require quick refrigeration to
the rear of the compartment.
2. Leave spaces among foodstus to
help air circulation.
3. Foodstus which are easily dried
should be well wrapped with
waxed paper, aluminum foil or
plastic lm.
4. Wrapsh and smoked meats in
moisture-vapor-proof material to
prevent transfer for odors.
5. Pre-cool hot foods, wrap them with
plastic lm or put them in the air
tight receptacle.
6. Wipe the water on the surface of
the bottles before storing them.
7. Be sure not to store bottles such as
beer,cokes,etc. in the freezer
compartment.
8. Do not put vegetables which are
liable to freeze at the rear part of
the shelves.
9. If planning to keep fresh sh and
meats for a long period, wrap them
in freezer paper and store in the
freezer compartment.

7

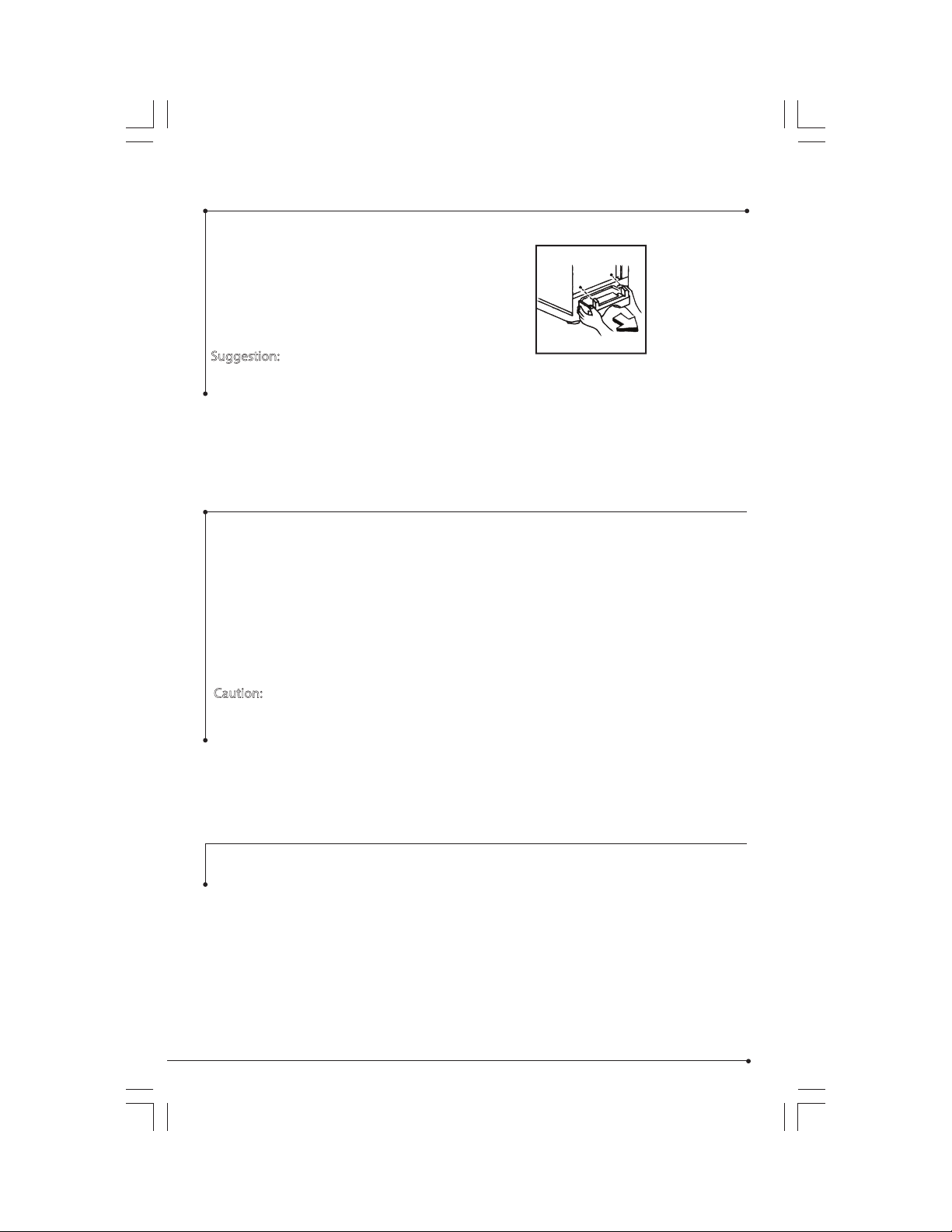

Cleaning the evaporator drain tray
Since dust accumulated on the
evaporator drain tray will decrease the
evaporation eciency, remove the
tray to clean. If the tray is not securely
in place, defrosted water may spill or
the evaporation process may be
hindered.
Suggestion: The Evaporator Drain Tray
should be cleaned at least once a
month.
Lamp replacement
Deodorizer
MODEL:(ITV085ICER,ITV095ICER,
ITV110ICER,ITV120ICER)
If the illuminating does not work
properly. In case of the replacement
LED is needed, it must be replaced by
its service agent or similarly qualied
person in order to avoid hazard.
Caution: To prevent any breakage do not over tighten the lamp to socket. It is highly
recommended to have the service agent or qualied person to do the lamp replace-
ment.
Inside the refrigerator compartment Deodorizer system Charcoal Filters is
installed, thus keeping the air in refrigerator compartment fresh.

Cleaning
8

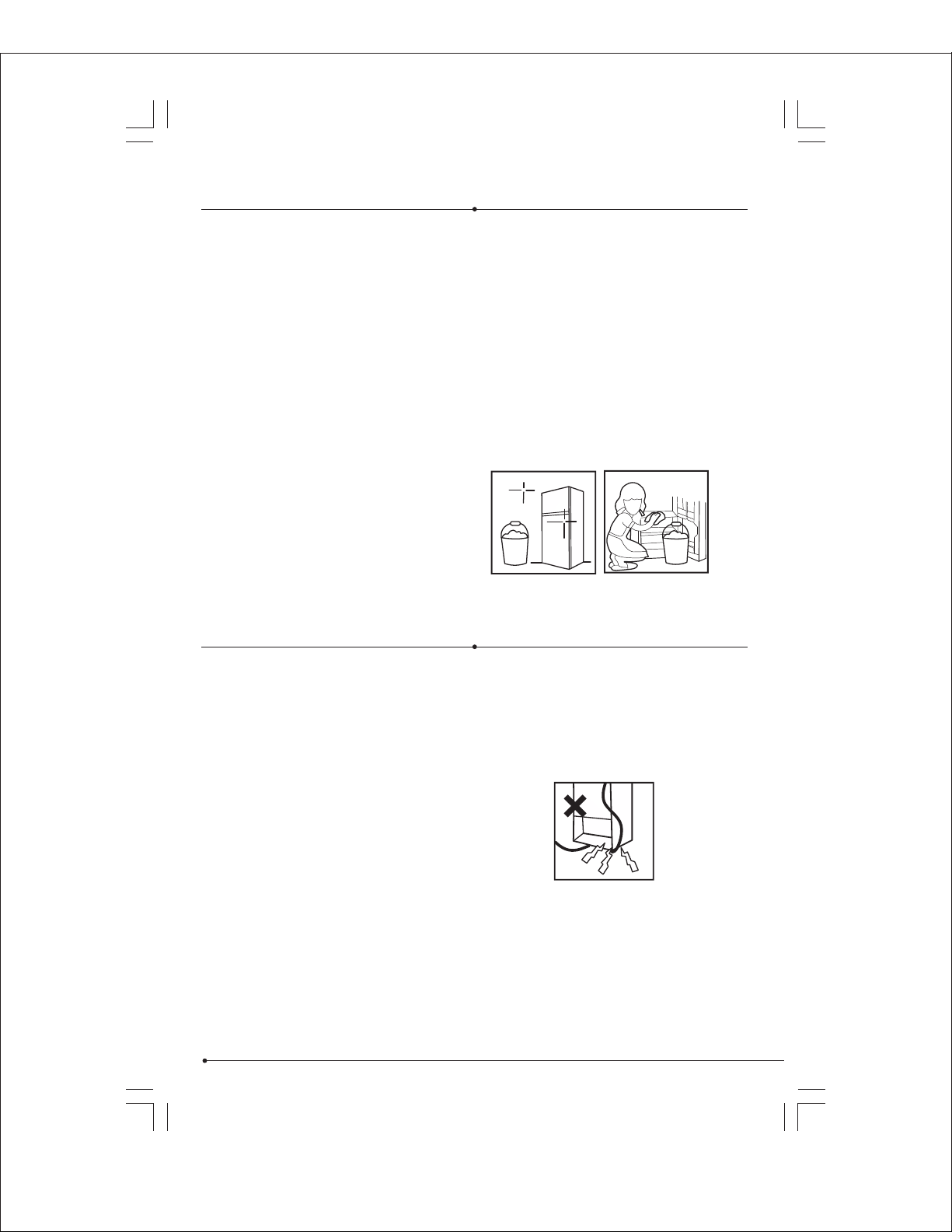

1. Before cleaning the refrigerator, you
should always unplug it from the
electrical outlet and remove all
food.
2. Both exterior and interior of
refrigerator, wipe with damp and
warming water until dry.
3. Cleaning internal accessories using
a warm water and dry it with a soft
clean cloth.
4. Cleaning door gasket with warm
water and dry it with a soft clean
cloth.
5. Wipe the control knob with a soft
clean cloth. Never wash it with
water because this will cause an
electric shock.
6. Never use brushes, acids, chemical
thinner, gasoline or benzine for
cleaning any part of the refrigera-
tor.
7. To remove odors from your fridge,
mix a lemon skin and warm water.
Wipe thoroughly on odors surface
and dry with a soft clean cloth. Do
not use cologne, air freshener or any
other perfume.
8. Cleaning inside of the refrigerator
and door gasket once a month. It is
the best to clean the freezer compart
ment every time when it is defrosted.
Caution

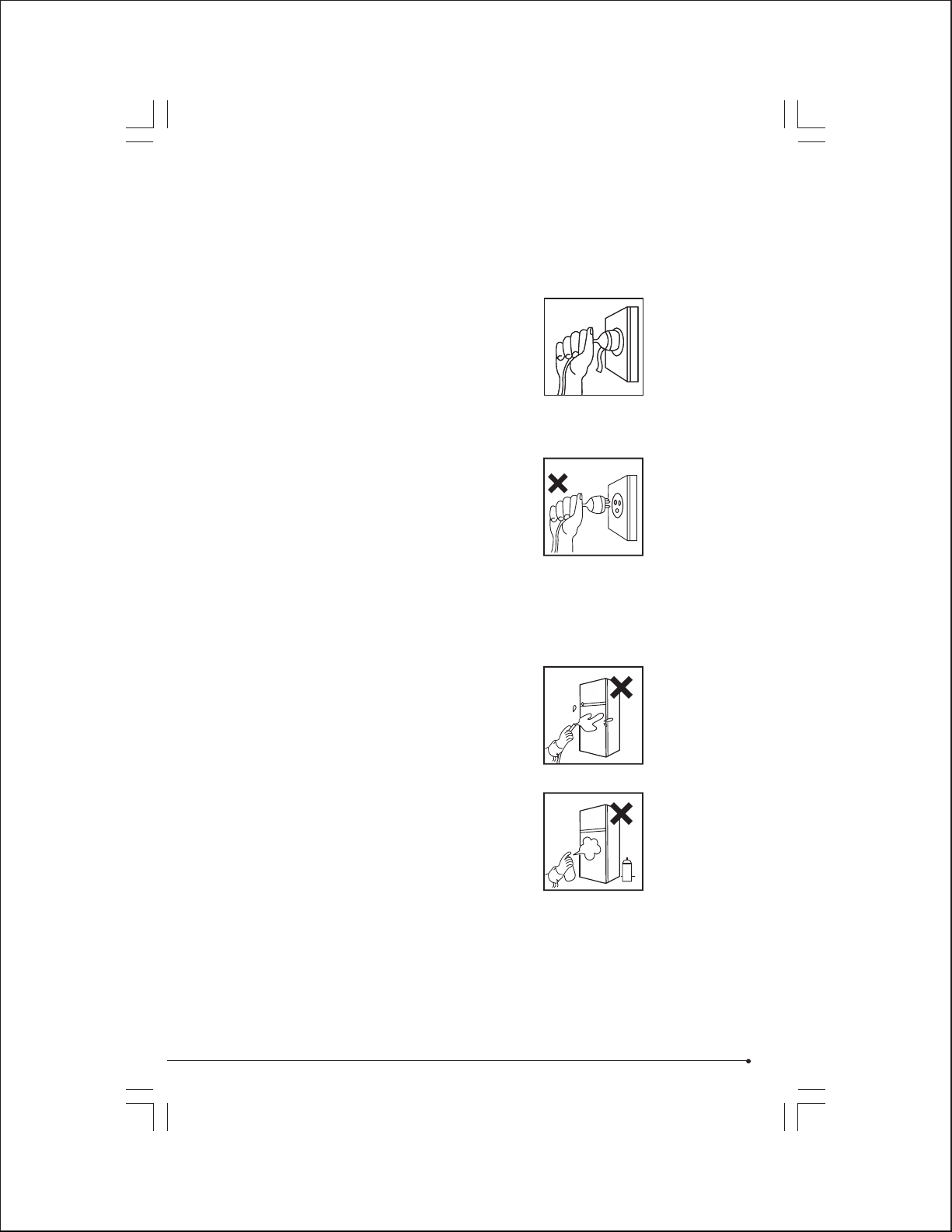

1. Do not insert the power plug form
any products at the same time or
do not share other product to the
same power supply socket with
refrigerator.
2. Set the power plug free from the
back side of the refrigerator.
Damaged powerplug may cause
re due to overheating.
3 .Be careful not to place the power
cord underneath of the refrigerator
or other objects. Damage to the
power cord could cause a short
circuit and re.
4. If the supply cord is damaged, it
must be replaced by the manufac-
turer or its service agent or a
similarly qualied person in order
to avoid a hazard.
5 .Do not place hot container or high
temperature hot object on top of
refrigerator.
6. Do not place the refrigerator close to
inammable or gas area, don't
unplugged during gas leakage due to
can sparking re and explosion.
7. Do not place water container on the
top of refrigerator.
8 .Do not install the refrigerator in a
moist or wet place.
9. Do not insert the power plug with a
wet hand.
10.Do no try to service the refrigerator
yourself, please contact service
agent.
11. Be sure grounding connection to
prevent electric shock.
12. Do not take out the power plug by
pull out the power cord.
13. Long period power failure such as
power uctuate, should promptly
unplug the powercord and leave at
least 5 minutes before plugging in
again. It will help prolong refrigera-
tor and compressor life.
14 .Frequently open door during the
power failure should cause too fast
closing cool.
15. If the door is not properly close it
should cause high electrical
consumption and food in refrigera-
tor become spoil.
16. When cleaning the refrigerator do
not splash water directly to the
refrigeration.
17. Do not use a soaked water cloth
wipe the refrigerator due to water
may drop into electrical parts and
cause short circuit.
18. Do not use inammable sprays near
the refrigerator, because there is a
danger of igniting.
19. Do not hang on or climbing the
refrigerator which will cause it
collapse.
20.This appliance is not intended for
use by persons with reduced
physical including children, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by the safety way.
21. Children should be supervised to
ensure that they do not play with the
appliance.
22. When not using refrigerator for long
period ,should disconnect the power
plug, remove all the foods o from
compartment, defrosting and clean
interior and exterior parts then open
the door until the unit dry and properly
close the door.
23.This fridge using refrigerant R-600 a
and Cyclopentane insulation, should
be kept away from heat or ame when
it isn’t properly used.
Be ensure this refrigerator is disposed
of correctly, you will help prevent
potential negative consequences of
environment and human health,
which could other wise be caused by
inappropriate waste handling of this
product. For more detail, please
contact your local city oce, your
household waste disposal service.

9
1. Do not insert the power plug form
any products at the same time or
do not share other product to the
same power supply socket with
refrigerator.
2. Set the power plug free from the
back side of the refrigerator.
Damaged powerplug may cause
re due to overheating.
3 .Be careful not to place the power
cord underneath of the refrigerator
or other objects. Damage to the
power cord could cause a short
circuit and re.
4. If the supply cord is damaged, it
must be replaced by the manufac-
turer or its service agent or a
similarly qualied person in order
to avoid a hazard.
5 .Do not place hot container or high
temperature hot object on top of
refrigerator.
6. Do not place the refrigerator close to
inammable or gas area, don't
unplugged during gas leakage due to
can sparking re and explosion.
7. Do not place water container on the
top of refrigerator.
8 .Do not install the refrigerator in a
moist or wet place.
9. Do not insert the power plug with a
wet hand.
10.Do no try to service the refrigerator
yourself, please contact service
agent.
11. Be sure grounding connection to
prevent electric shock.
12. Do not take out the power plug by
pull out the power cord.
13. Long period power failure such as
power uctuate, should promptly
unplug the powercord and leave at
least 5 minutes before plugging in
again. It will help prolong refrigera-
tor and compressor life.
14 .Frequently open door during the
power failure should cause too fast
closing cool.
15. If the door is not properly close it
should cause high electrical
consumption and food in refrigera-
tor become spoil.
16. When cleaning the refrigerator do
not splash water directly to the
refrigeration.
17. Do not use a soaked water cloth
wipe the refrigerator due to water
may drop into electrical parts and
cause short circuit.
18. Do not use inammable sprays near
the refrigerator, because there is a
danger of igniting.
19. Do not hang on or climbing the
refrigerator which will cause it
collapse.
20.This appliance is not intended for
use by persons with reduced
physical including children, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by the safety way.
21. Children should be supervised to
ensure that they do not play with the
appliance.
22. When not using refrigerator for long
period ,should disconnect the power
plug, remove all the foods o from
compartment, defrosting and clean
interior and exterior parts then open
the door until the unit dry and properly
close the door.
23.This fridge using refrigerant R-600 a
and Cyclopentane insulation, should
be kept away from heat or ame when
it isn’t properly used.
Wait for
5 min
Be ensure this refrigerator is disposed
of correctly, you will help prevent
potential negative consequences of
environment and human health,
which could other wise be caused by
inappropriate waste handling of this
product. For more detail, please
contact your local city oce, your
household waste disposal service.

13. Long period power failure such as
power uctuate, should promptly
unplug the powercord and leave at
least 5 minutes before plugging in
again. It will help prolong refrigera-
tor and compressor life.
14 .Frequently open door during the
power failure should cause too fast
closing cool.
15. If the door is not properly close it
should cause high electrical
consumption and food in refrigera-
tor become spoil.
16. When cleaning the refrigerator do
not splash water directly to the
refrigeration.
17. Do not use a soaked water cloth
wipe the refrigerator due to water
may drop into electrical parts and
cause short circuit.
18. Do not use inammable sprays near
the refrigerator, because there is a
danger of igniting.
19. Do not hang on or climbing the
refrigerator which will cause it
collapse.
20.This appliance is not intended for
use by persons with reduced
physical including children, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by the safety way.
21. Children should be supervised to
ensure that they do not play with the
appliance.
22. When not using refrigerator for long
period ,should disconnect the power
plug, remove all the foods o from
compartment, defrosting and clean
interior and exterior parts then open
the door until the unit dry and properly
close the door.
23.This fridge using refrigerant R-600 a
and Cyclopentane insulation, should
be kept away from heat or ame when
it isn’t properly used.
WARNING:
- Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accele-
rate the defrosting process, other than those recommen-
ded by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
10
Be ensure this refrigerator is disposed
of correctly, you will help prevent
potential negative consequences of
environment and human health,
which could other wise be caused by
inappropriate waste handling of this
product. For more detail, please
contact your local city oce, your
household waste disposal service.

Solving problems.
When Check if...
13. Long period power failure such as
power uctuate, should promptly
unplug the powercord and leave at
least 5 minutes before plugging in
again. It will help prolong refrigera-
tor and compressor life.
14 .Frequently open door during the
power failure should cause too fast
closing cool.
15. If the door is not properly close it
should cause high electrical
consumption and food in refrigera-
tor become spoil.
16. When cleaning the refrigerator do
not splash water directly to the
refrigeration.
17. Do not use a soaked water cloth
wipe the refrigerator due to water
may drop into electrical parts and
cause short circuit.
18. Do not use inammable sprays near
the refrigerator, because there is a
danger of igniting.
19. Do not hang on or climbing the
refrigerator which will cause it
collapse.
20.This appliance is not intended for
use by persons with reduced
physical including children, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by the safety way.
21. Children should be supervised to
ensure that they do not play with the
appliance.
22. When not using refrigerator for long
period ,should disconnect the power
plug, remove all the foods o from
compartment, defrosting and clean
interior and exterior parts then open
the door until the unit dry and properly
close the door.
23.This fridge using refrigerant R-600 a
and Cyclopentane insulation, should
be kept away from heat or ame when
it isn’t properly used.
11
Trouble shooting
• Temperature control is set too cold.
Not operating...
Warmer
than usual...
Unusual sounds...
•Power supply cord is unplugged.
• Too frequent or too long door openings.
• Check the temperature control dial setting.
• Large amounts of food placed in refrigerator.
• You put warm food in the refrigerator.
• The oor is weak or uneven.
• Make sure the back o fthe refrigerator does
not touch the wall.
•Temperature control in“0”or “OFF”position.
•If home fuse blown or circuit breaker o?
Note: Normal working unit, the back and side cabinet should be warm.
Before you call for service please check the table below. Your problems
could be easily rectied. If you still need service, please contact the store
where your purchased or the nearest service center.
• Normal when refrigerator is rst delivered to
your home - usually requires 24 hours to
completely cool down.
• Large amounts o ood placed in
refrigerator to be cooled or frozen.
• Hot weather -frequent door openings.
Door left open.
• Too frequent or too long door openings.
• You put warm food in the refrigerator.
• In humid weather, air carries moisture into
refrigerator when door is opened.
Motor operates
for long
periods...
Moisture
collects inside...
Be ensure this refrigerator is disposed
of correctly, you will help prevent
potential negative consequences of
environment and human health,
which could other wise be caused by
inappropriate waste handling of this
product. For more detail, please
contact your local city oce, your
household waste disposal service.

Notes
12

13
Notes

32
