1. Key Features
y125o Wide Angle Lens.
yAutomatic Event Video Recording for sudden external impact.
yContinuous loop recording for unexpected incidents.
yGeo-information capture in photo or video files with the built-in GPS sensor.
yHigh quality video recording up to 1296p high quality videos.
yPhoto capture during recording.
yVoice Prompt.
yWi-Fi Function.
EN-3
2. Package Contents
1 USB Cable 2 5M Power Cable
3 USB Car Adapter 4 Windshield Mount
5 Sensormatic Tag 6 DashCam Wi-Fi Software CD
7 Warranty Card 8 QSG
9 iON label
EN-4
3. Functional Parts
EN-5

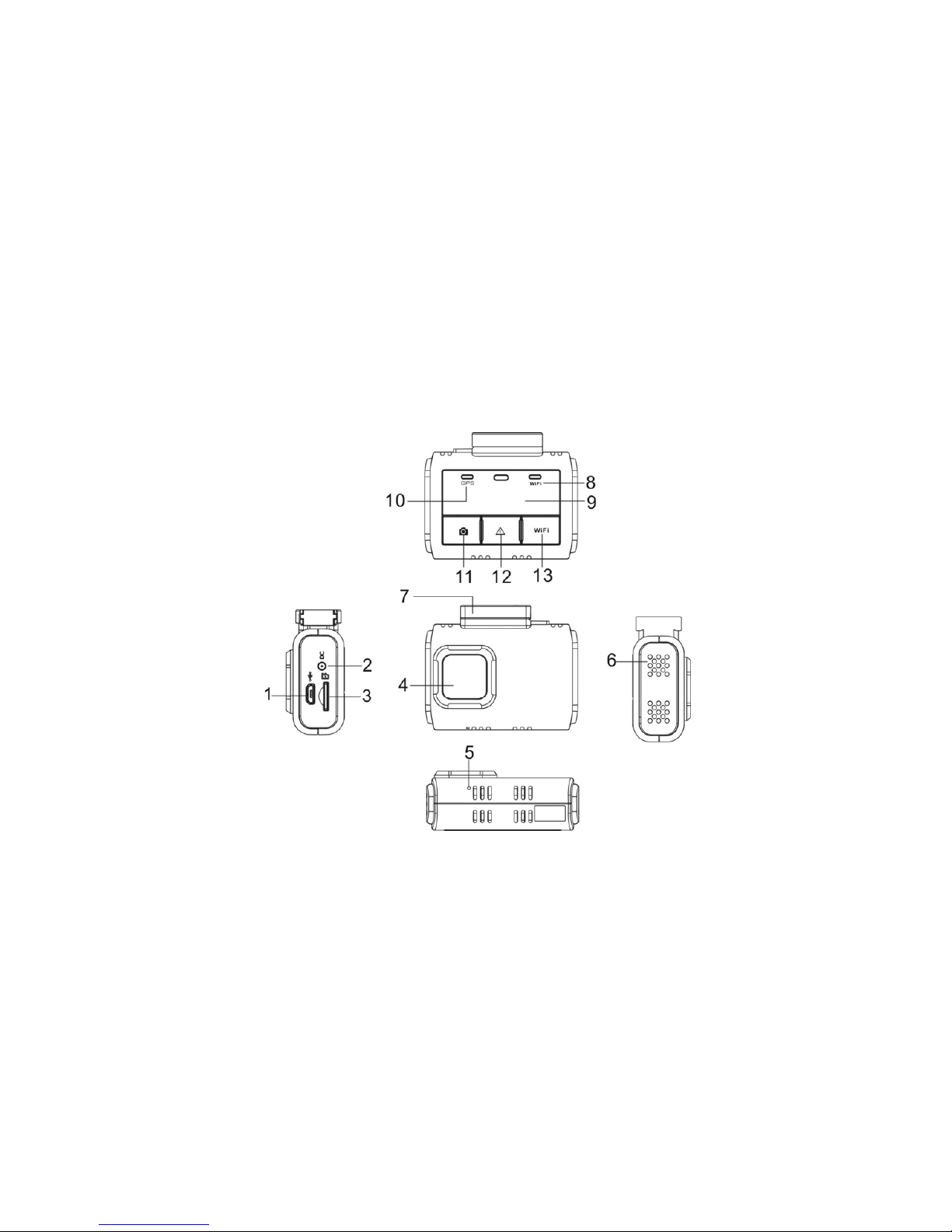

1 Micro USB Port Connect to PC for file browsing and file transfer
2 DC in Port Connect to the provided DC in to USB cable for charging
3 MicroSD Slot MicroSD card storage location
4 Wide Angle Lens Capture a wide angle view
5 Reset Button Reset DashCam Wi-Fi
6 Speaker Vent Output the sound
7 Mounting Socket
Install the windshield mount. You can detach the socket on
the top of the DashCam Wi-Fi to mount the DashCam Wi-Fi
on the other optional mounting accessories
8 Wi-Fi LED Indicator Wi-Fi status indication
9 Status LED Indicator Operation status indication
10 GPS LED Indicator GPS status indication
11 Capture a photo during recording
12 Manually trigger an Event Protection Video Recording
13 Wi-Fi Button Turn on/off Wi-Fi function
EN-6
4. Installing the Windshield Mount & DashCam
Wi-Fi in a Vehicle
1. Clean the area on the windshield.
2. Peel off the protective membrane of the 3M adhesive and stick the Windshield Mount to the front
windshield inside the car.

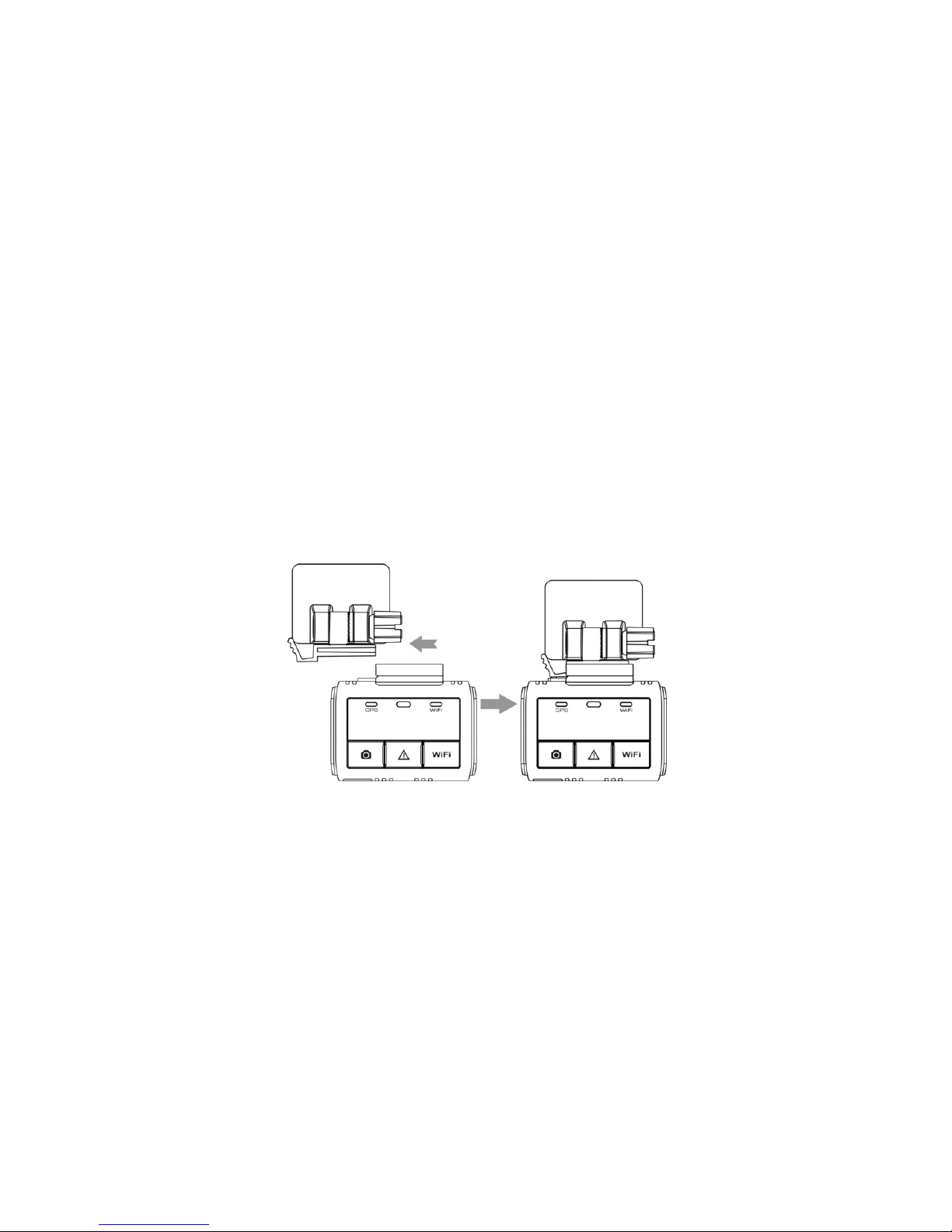

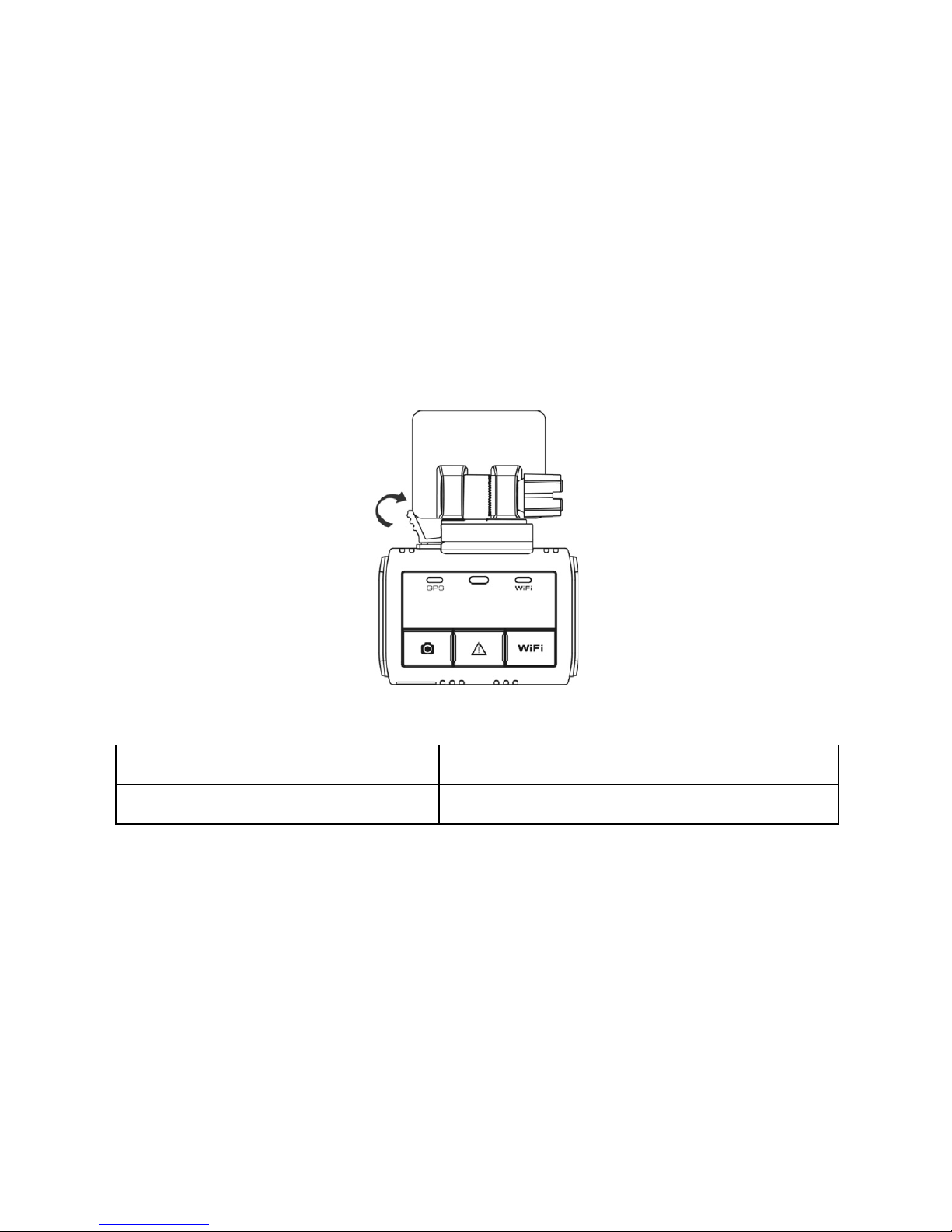

3. Slip the socket on the top of the DashCam Wi-Fi into Windshield Mount until it is latched.

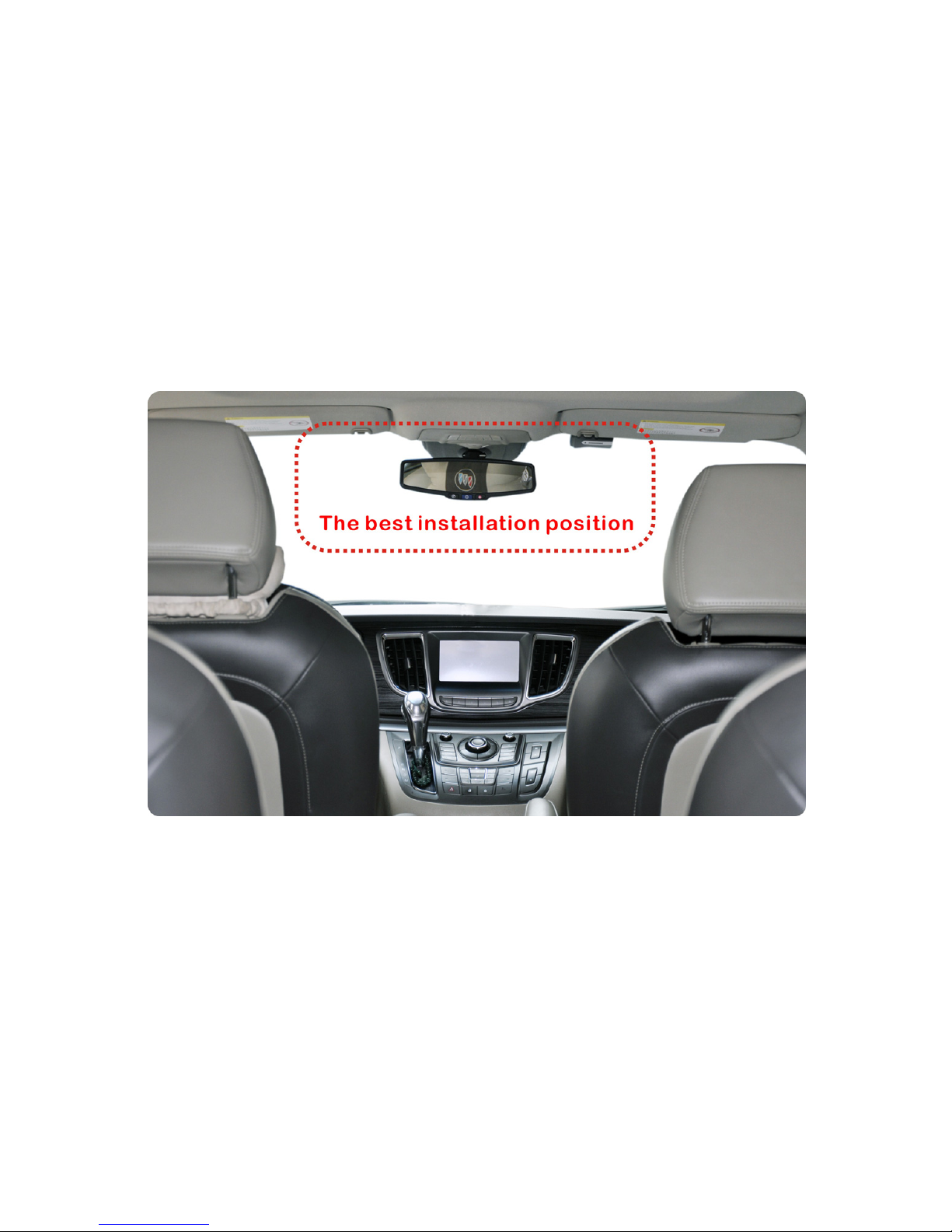

4. The lens of DashCam Wi-Fi should be at the center of the front windshield and be aware not to block the
driver’s visibility.
EN-7

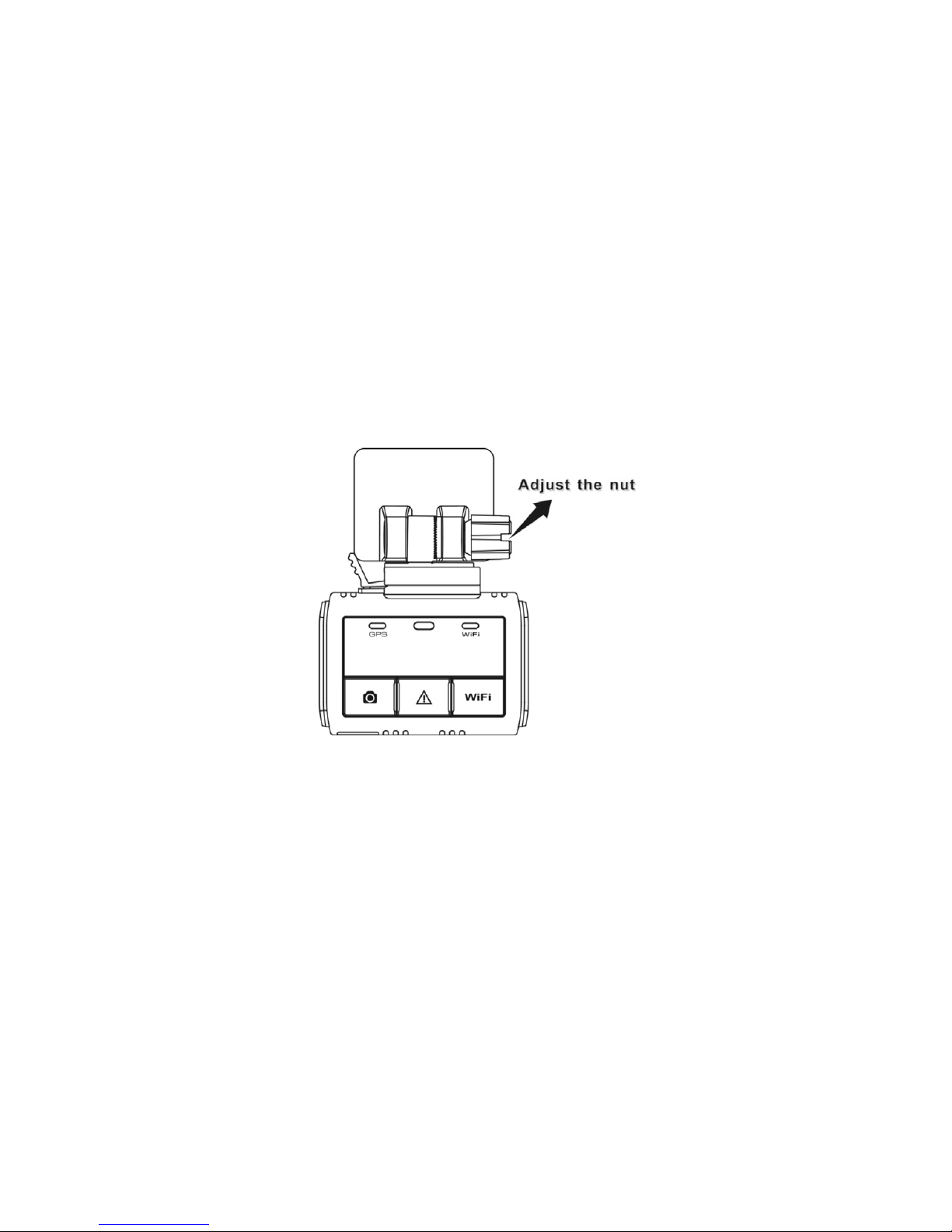

5. Adjust the nut on the Windshield Mount for suitable direction and orientation.
EN-8
6. Connect the DashCam Wi-Fi to the DC Power jack with included DC in to USB cable and the Dual USB
CLA. Secure the cable with the cable holder to avoid interference of driver's motion.
EN-9
EN-10
7. Press the Windshield Mount side to release and slide the DashCam Wi-Fi off the mount.
5. LED Indication
“RED” Status LED ON DashCam Wi-Fi is under Normal Looping
Recording.
“RED” Status LED Flashes continuously Counting down to shut down due to power source
being removed.
EN-11
“PURPLE” Status LED ON DashCam Wi-Fi is under Event Protection
Recording.
“BLUE“ Status LED ON DashCam Wi-Fi is connecting to PC through USB
cable.
Blue & Red status LED alternating flash
1. No memory card is installed
2. Memory card is less than 8GB
3. Card error
“ORANGE” GPS LED ON GPS signal is received.
“ORANGE” GPS LED Flashes No GPS signal or GPS signal is weak.
“GREEN” Wi-Fi LED ON Wi-Fi is initializing.
“GREEN” Wi-Fi LED Flashes slowly Wi-Fi is ready for connection or enabled.
“GREEN” Wi-Fi LED Flashes rapidly Data is transferring in Wi-Fi mode.
6. Using Your DashCam Wi-Fi
6.1. Inserting a MicroSD Memory Card (required but not
included)

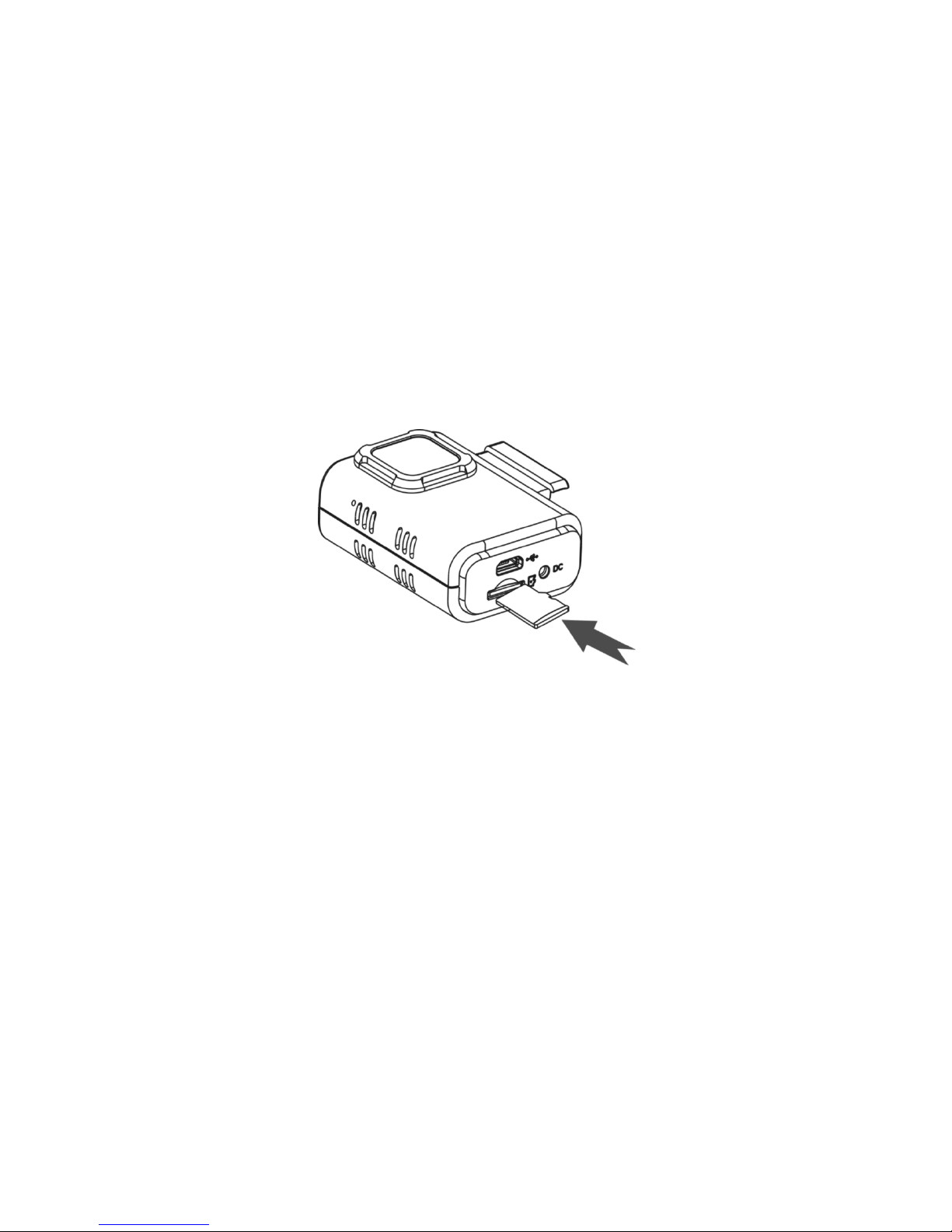

Insert a MicroSD card (not included) to the slot before using the DashCam Wi-Fi. Assure that the DashCam Wi-
EN-12
Fi power is turned OFF before inserting the card. A min 8GB, Class 6 or above card is recommended.
Notes:
1. The correct direction should be followed to insert the MicroSD card into the slot.
2. A new MicroSD card should be formatted before using. You can format the MicroSD card through the
DashCam Wi-Fi software.
EN-13
6.2 Turning on/off DashCam Wi-Fi
The DashCam Wi-Fi will detect car ignition vibration and automatically turn on and start Normal Looping
Recording. .
6.3 Video Recording and Photo Taking
Normal Looping Recording
The DashCam Wi-Fi will start Normal Looping Recording once turned on. The Red status LED lights up during
Normal Looping recording. Video recording is repeatedly creating successive files of 3 min, 5 min or 10 min. The
most outdated file will be replaced if the memory is full for continuous recording.
Event Protection Recording
Files will be protected from the auto deletion if an impact is detected. The sensitivity of impact detection can be
adjusted through the DashCam Wi-Fi software.
By pressing during normal recording can also enter the Event Protection Recording mode to protect your
video files. The Purple status LED lights up during Event Protection recording.
You can store up to 30 Event protection videos to the DashCam Wi-Fi.
Each Protected video file length will be 20 sec.
EN-14
Photo Taking
Press once during recording to take a photo. The Status LED will flash each time a photo is taken. You
can store up to 500 photos to the DashCam Wi-Fi.
Please note:
During recording, please do not release MicroSD card from the card slot as this may damage video or photo
files.
7. Connecting the DashCam Wi-Fi via Wi-Fi
7.1Enabling the Wi-Fi Function
1. Connect the DashCam Wi-Fi to an external power supply with the included DC in to USB cable. The Wi-
Fi mode will turn on automatically.
2. The Green Wi-Fi LED indicates the Wi-Fi is warming up.
3. Wait for Wi-Fi to initialize. The Wi-Fi LED will flash when the Wi-Fi is active or connected.
4. To turn off Wi-Fi, press and hold or disconnect DashCam Wi-Fi from the external power supply.
EN-15
7.2Connecting the DashCam Wi-Fi to your Computer or
Smart Device using Wi-Fi
1. Turn on the Wi-Fi mode on DashCam Wi-Fi.
2. Go to network settings on your computer or Smart Device to enable the Wi-Fi setting. Search for the
“DashCam Wi-Fi” network.
3. Enter password “123456789” to connect to the DashCam Wi-Fi.
7.3 Using the Free App
1. Search for iON DashCam app via the Google Play Store or App Store.
2. Download and install the app to your smart device.
3. Connect the DashCam Wi-Fi to your Smart Device by following the steps in section 7.2.
4. Open your iON DashCam app. You may conduct relevant operations in accordance with specific
Application interface.
EN-16
8. Connecting the DashCam Wi-Fi to a
Computer
You may also connect the DashCam Wi-Fi to your computer and view videos and pictures on the computer
monitor.

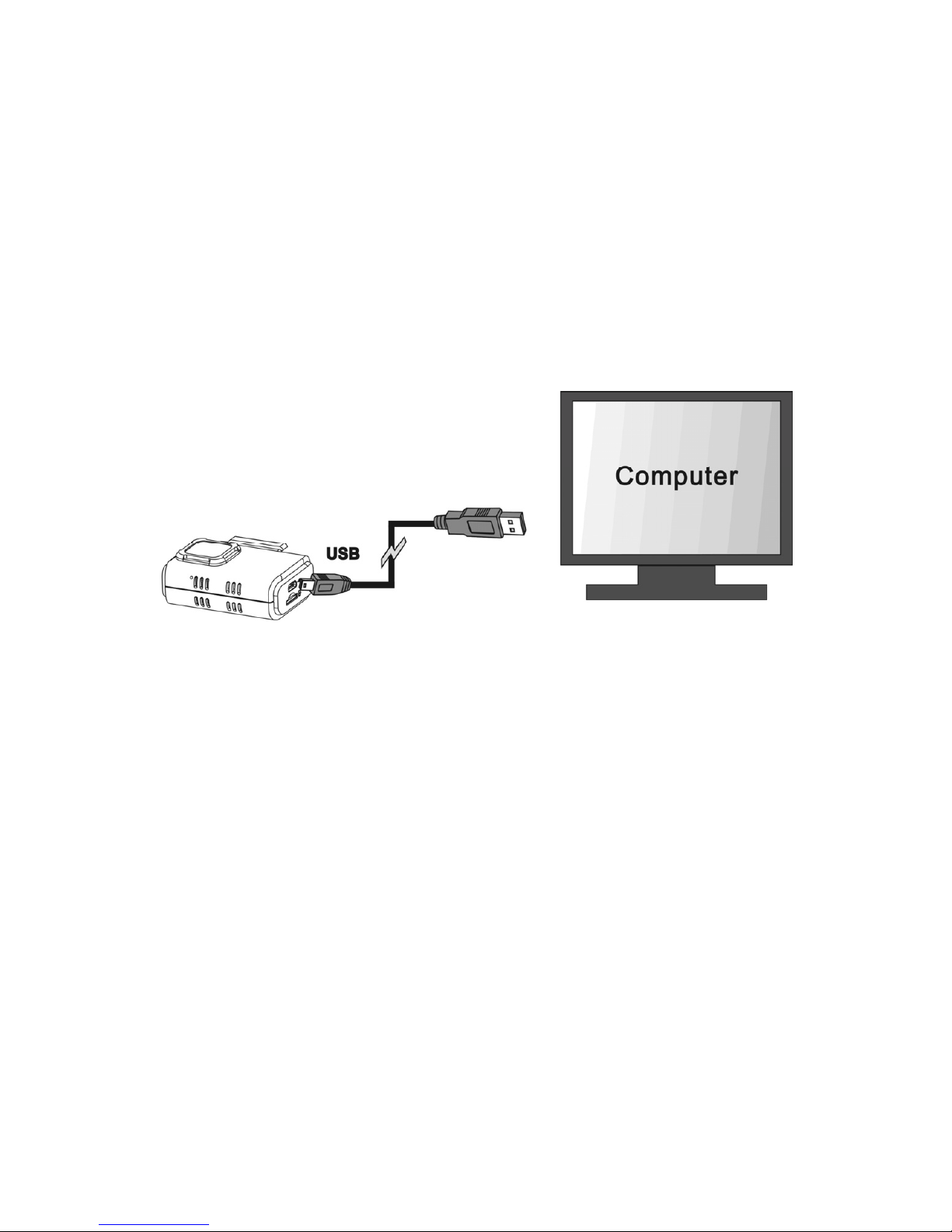

1. Connect the DashCam Wi-Fi to your computer with a USB cable to enter into USB mode.
2. Your computer will recognize the DashCam Wi-Fi as a “Removable Disk”. The Blue Status LED will light
up. Open the disk and go to relevant file folder to view, import, copy, transfer or delete the videos or
photos.
EN-17
Note:
If the Removable Device Window did not launch automatically, go to your “My Computer” and find the device
under Removable Disk.
9. Specifications
EN-18
Lens 125 o Wide Angle Lens
Still Image Resolution
on Recording
3MP on 1296p
2MP on 1080p
1MP on 720p
Video Resolution
1296P: 2304x1296 P30
1080P: 1920x1080 P30
720P: 1280x720 P30
Video Format MPEG4 (H.264) .MOV File
Photo Format JPG
GPS Sensor Yes
G Sensor Yes
Wi-Fi Yes
USB Port Micro USB
Power DC in
Microphone Yes
Speaker Yes
EN-19
Language English
Voice Language English, Mandarin
Battery 185mAh
Operation Temperature -20 to 60 degree
Storage Temperature -40 to 80 degree
Dimension (L x H x W) 63X51X25 mm
Weight 67g+/-2g
10. Computer System Minimum
Requirements
Operating System Windows 7&8 / Vista / XP and Mac OS 10.5 or above
CPU Pentium Ⅲor above4 / 3.0G or faster recommended
RAM At least 256MB
Interface USB port
CD 4x speed CD ROM or above
