Preface
This document is intended to assist the service technician in the operation, maintenance and
repair of the ION Audio device. Together with the User Reference Manual, this document
provides a complete description of the functionality and serviceability of the Device. Any
comments or suggestions you may have pertaining to the document are welcome and
encouraged.
Read This!
In addition to any purchase price that ION Audio may charge as consideration for ION Audio
selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service
and repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized
Service Center, ION Audio sells or transfers the Manual to you on the following terms and
conditions:
Only Service Centers authorized by ION Audio in writing are authorized to perform service and
repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not
authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual
is used to perform, any service or repairs on any ION Audio product or part thereof, any
and all warranties of ION Audio as to that product and any service contract with ION Audio
for that product shall be voided and shall no longer apply for such product, even if your
services or repairs were done in accordance with the Manual.
All service or repairs done by you or with reference to the Manual shall be solely your
responsibility, and ION Audio shall have no liability for any such repairs or service work. All such
service or repairs are performed at the sole risk of the person performing the service or
repairs. You agree that all such work will be performed in a competent, professional and safe
manner at all times and to indemnify and fully hold ION Audio and its successors and assigns
harmless in the event of any failure to so perform.
Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of
resale or other transfer.
As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the
Manual, and you agree not to copy the Manual without the written authorization of ION Audio.
ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual,
or any new or superseding version thereof.
ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to
you in its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts
supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third
parties or (ii) to any third parties for any purpose.
You shall not make any warranties or guarantees with respect to the products of ION Audio or
the use thereof on behalf of ION Audio or in your own name.
The foregoing describes the entire understanding related to sale or transfer of the Manual to you,
and no other terms shall apply unless in a writing signed by an authorized representative of ION
Audio.
All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual
Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE
THIS PRODUCT TO WATER OR MOISTURE.
The arrowhead symbol on a lightning flash inside a triangle is
intended to alert the user to the presence of uninsulated
“dangerous voltage” within the enclosed product which may be of
sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point inside a triangle is intended to alert the user
to the presence of important operating, maintenance and servicing
instructions in the literature which accompanies the product.
REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY.
PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO
COMPETE WITH ANY ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR
SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE OR
MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.
ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION
AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF
THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT
ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.
Regarding the Power Supply Fuse
Caution: The product under service may employ the use of a
replaceable fuse. Danger of fire or electrocution if fuse is incorrectly
replaced. Replace with only the same type or equivalent type
recommended by the equipment manufacturer.
Regarding the Internal Battery
Caution: The product under service may employ the use of a
internal battery. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instruction.

Confidential ION Audio Service Manual
Safety Instructions
Carefully read the applicable items of the operating instructions and these safety suggestions
before using this product. Use extra care to follow the warnings written on the product itself and
in the operating instructions. Keep the operating instructions and safety suggestions for
reference in the future.
1. Power Source. The product should only be connected to a power supply which is
described either in the operating instructions or in markings on the product.
2. Power Cord Protection. AC power supply cords should be placed such that no one is likely
to step on the cords and such that nothing will be placed on or against them.
3. Periods of Non-use. If the product is not used for any significant period of time, the
product’s AC power supply cord should be unplugged from the AC outlet.
4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into
any openings of the product.
5. Water or Moisture. The product should not be used near any water or in moisture.
6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators
or other heat producing equipment.
7. Ventilation. When installing the product, make sure that the product has adequate
ventilation. Improperly ventilating the product may cause overheating, which may damage
the product.
8. Mounting. The product should only be used with a rack which the manufacturer
recommends. The combination of the product and rack should be moved carefully. Quick
movements, excessive force or uneven surfaces may overturn the combination which may
damage the product and rack combination.
9. Cleaning. The product should only be cleaned as the manufacturer recommends.
10. Service. The user should only attempt the limited service or upkeep specifically described in
the operating instructions for the user. For any other service required, the product should be
taken to an authorized service center as described in the operating instructions.
11. Damage to the Product. Qualified service personnel should service the unit in certain
situations including without limitation when:
a. Liquid has spilled or objects have fallen into the product,
b. The product is exposed to water or excessive moisture,
c. The AC power supply plug or cord is damaged,
d. The product shows an inappropriate change in performance or does not operate
normally, or
e. The enclosure of the product has been damaged.

Bill of Materials (BOM)
Item Part No spec Qty Unit position
1 001-001-F1-001 PCB 59*53*1.0mm FR4 duble side board PCS 1
2 001-003-10p-001 SMT cap SMD 10PF ±0.25% NPO 0402 PCS 1
3 001-003-05P-001 SMT cap SMD 0.5PF ±0.1PF NPO 0402 GRM1555C1HR50BA01D PCS 1
4 001-004-012N-001 SMT cap SMD C/L,1.2nH,0402,LQG15HS1N2S02D PCS 1
5 001-003-105p-001 SMT cap SMD 105PF ±10% X7R 0603 PCS 12
6 001-003-475p-001 SMT cap SMD 475PF ±10% X7R 0603 PCS 8
7 001-003-104p-001 SMT cap SMD 104PF ±10% X7R 0603 PCS 10
8 001-003-062p-001 SMT cap SMD 62PF ±0.5P NPO 0603 PCS 1
9 001-003-274p-001 SMT cap SMD 2.7NF ±10% X7R 0603 PCS 1
10 001-003-051p-001 SMT cap SMD 51PF ±0.5P NPO 0603 PCS 1
11 001-003-102p-001 SMT cap SMD 102P ±10% X7R 0603 PCS 5
12 001-003-225p-001 SMT cap 225PF ±10% X7R 0603 PCS 2
13 001-003-106p-001 SMT cap 106/16V X5R SMD0805 PCS 5
14 001-003-226p-001 SMT cap 226/16V X5R SMD0805 PCS 1
15 001-003-470p-001 SMT cap 470pF±10% NPO 0603 PCS 1
16 001-007-100M-002 magnetic bead 100M/60R IDC:5A 0805 PCS 1
17 001-003-SS54-001 diode SS54 DO-214AB current 5A PCS 1
18 001-003-SS14-001 diode SS14 DO-214AC current 1A PCS 1
19 001-007-100M-001 magnetic bead 100M/600R SMD0603 PCS 6
20 001-005-4777-001 SMT inducto
r
4.7UH 7*7 current 5A PCS 1
21 001-002-103k-001 SMT resisto
r
10KΩ±5% 0603 PCS 4
22 001-002-104k-001 SMT resisto
r
100KΩ±5% 0603 PCS 2
23 001-002-100R-001 SMT resisto
r
100RΩ±5% 0603 PCS 1
24 001-002-333K-001 SMT resisto
r
33KΩ±5% 0603 PCS 1
25 001-002-1000Ω-001 SMT resisto
r
1KΩ±5% 0603 PCS 5
26 001-002-222k-001 SMT resisto
r
2.2KΩ±5% 0603 PCS 1
27 001-002-223K-001
SMT resistor 5.6KΩ±5% 0603
PCS
2
28 001-002-806K-001 SMT resisto
r
8.06KΩ±1% 0603 PCS 1
29 001-002-301K-001 SMT resisto
r
3.01KΩ±1% 0603 PCS 1
30 001-002-563K-001 SMT resisto
r
56KΩ±5% 0603 PCS 4
31 001-002-513K-001 SMT resisto
r
51KΩ±5% 0603 PCS 1
32 001-002-273K-001 SMT resisto
r
27KΩ±5% 0603 PCS 2
33 001-002-152K-001 SMT resisto
r
1.5KΩ±1% 0603 PCS 1
34 001-002-114K-001 SMT resisto
r
110KΩ±1% 0603 PCS 1
35 001-002-103k-001 SMT resisto
r
10KΩ±1% 0603 PCS 1
36 001-002-223K-001 SMT resisto
r
22KΩ±1% 0603 PCS 1
37 001-002-000R-001 SMT resisto
r
0Ω±5% 0603 PCS 1
38 001-012-25Q16-001 IC SST25Q16 SOP8 SPIflash PCS 1
39 001-012-QFN56-001 IC AK1050T SMD QFN56 PCS 1
40 001-012-8696-001 IC HT8696 SOP16 AMP IC PCS 1
41 001-012-4056-001 IC
T
P4056 SOP8 PCS 1
42 001-012-6298-001 IC FP6298 SOP8 PCS 1
43 001-010-1005A-001 FPC socket 10pinFPC socket 0.5mm PCS 1
44 001-013-003-002 LED red SMD0603 high ligh
t
PCS 1
45 001-013-002-002 LED blue SMD0603 high ligh
t
PCS 1
46 001-013-001-002 LED green SMD0603 high light PCS 1
47 001-002-3225-001 crystal oscillato
r
26M 10PPM 9PF 3.2*2.5mm SMT 4 feet, with matel seal PCS 1
48 001-002-470UF-001 electrolytical ca
p
470UF±20%/16V 8*9mm PCS 1
49 001-002-470UF-002 electrolytical ca
p
470UF±20%/10V 6.3*8mm PCS 1
50 001-002-1000UF-001 electrolytical ca
p
1000UF±20%/16V 8*16mm PCS 1
51 001-015-6655-001 button 6*6*5.5mm with frame 2.5mm fee
t
PCS 4
52 001-009-220B-002 socket 2pin 2.0mm socket male red PCS 1
53 001-009-220A-001 socket 2pin 2.0mm socket male whit
e
PCS 2
54 001-001-F1-002 PCB 28*13mm*1.0mm FR4 double side board 1
55 001-010-1005B-001 FPC socket 10pinFPC socket 0.5MM stander 1
56 001-007-100M-002 magnetic bead 100M/120R SMD0805 2
57 001-008-005P-001 USB USB_MICRO_5pin SMD fixed feed 1
58 001-009-614MM-001 earphone jack AUX blac
k
，PJ320 6*14MM 1
59 001-016-64260-001 MIC 6MM -42db red long 60mm waterproof 1
60 SMT+Solder+test PCS 1
Plastic
61 002-001-F10A-001 inlay inlay 188*78*8MM ABS，dark plating PCS 2
62 002-001-F10A-002 Main body 190*81*38mm ABS+TPU，black,ABS 92g,TPE PCS 1
63 002-001-F10A-003 light leade
r
F1 leader 34*9*8mm ABS transparent PCS 1
EM
MM
Version：V1.0

64 002-001-F10A-004 back panel back panel 185*74*15mm ABS PCS 1
65 002-001-F10A-005 USB cap USB cap ABS 41*19*14mm blac
k
PCS 1
66 002-001-F10A-006 pression part 50*48*7mm ABS，blac
k
PCS 2
67 002-001-F10A-007 pression part 109.5*61.5*8.5mm ABS for passive PCS 1
68 002-001-F10A-008 pression part 22.5*9*7mm ABS，black for MI
C
PCS 1
69 003-001-70MM-001 2P wire
2P wire with 2.0 head 1007#24( Dia1.4mm）L=70MM
red / blac
k
PCS 2
70 003-011-120MM-001 FPC wire 10
p
inFPC wire 0.5mm s
p
ace,lon
g
120mm PCS 1
71 003-001-2028-001 wire charger 30CM，Dia 2.8MM PCS 1
72 003-001-2029-001 wire line in, 50cm lengh PCS 1
73 004-001-F10A-001 pluge 50A silicone，for relex air blac
k
PCS 1
74 004-001-F10A-002 pluge for screw 50A silicone，black (for scre
w
）PCS 8
75 004-001-F10A-003 MIC waterproof ring 50A silicon，black for MI
C
PCS 1
76 004-001-F10A-004 O-ring 50A silicon，black for drive
r
PCS 2
77 004-001-F10A-005 USB pluge 60A silicon，black for USB cap PCS 1
78 004-001-F10A-006 USB o-ring 50A silicone，black (USB cap）PCS 1
79 004-001-F10A-007 o-ring bod
y
50A silicon，black for bod
y
PCS 1
80 005-004-0055-001 passive 109*47mm , metal passed 72H PCS 1
81 001-018-18650-002 Battery 1800mAh 3.7V lithium ，with saft board and current 6
A
PCS 1
82 005-001-43W-001 drive
r
45mm, NdFeB 4Ohm, Rate 3W PCS 2
83 005-003-F1A-001 metal mesh 155*61.5*4.2mm T=0.5mm，Φ0.8mm Passed PCS 2
84 005-003-810A-001 copper nut nut 1/4 tooth*H8*10 PCS 1
85 005-003-CA38-001 screw CA3×8MM Hex socket PCS 8
86 005-003-28B-001 screw BA2.0*8MM balck PCS 8
87 005-003-28P-001 screw PA2.0×8MM for dirver, body and MI
C
PCS 24
88 009-001-150805-001 EVA black EVA 150*8*0.5mm PCS 3
89 adhesive wafterproof adhesive gram 2
90 振膜胶 g 0.002
90 012-001-F1-001 gift box 240*165*400MM
灰PCS 1
91 012-001-F1-002 insert 300G PCS 1
92 012-001-F1-003 Warrant book 140*210MM 80G PCS 1
93 012-001-F1-004 QSG 114.3 x 282.6MM 105G PCS 1
94 012-001-F1-005 seal sticke
r
30mm Dia transparent PCS 2
95 012-001-F1-006 Yellow STOP card 215*280MM, 80G PCS 1
96 012-001-F1-007 bliste
r
PVC 0.65mm, 22.9*11.3CM PCS 1
97 012-001-F1-008 S/N 1.3 64*13MM(21)C81603I80200001-02500 PCS 3
98 012-001-F1-009 S/N 1.1 19*4MM(21)C81603I80200001-02500 PCS 1
99 012-001-F1-010 Code 39 US 76*50MM AQUABOOMXUS PCS 0.125
100 012-001-F1-011 Gtin 14 inne
r
38*26MM 208 12715 01802 7 PCS 0.5
101 012-001-F1-012 Gtin 14 oute
r
38*26MM108 12715 01802 0 PCS 0.125
102 012-001-F1-013 ISP59PE 04mm 36*25CM PCS 1
103 012-001-F1-014 export carton 45.7*27*40CM K＝K （1/16）PCS 0.0625
104 012-001-F1-015 TOP/Bottom board 24.8*21.3CM B3B （2/4）PCS 0.5
105 012-001-F1-016 inner carton 25.6*22*18.6CM A3A （1/4）） PCS 0.25
106 Plating PCS 2
107 PCBA PCS 1
108 manager handle PCS 1
109 transportation PCS 1
110 consume 2% PCS 1
Wires
Silicone
Metal
Package
Assembly

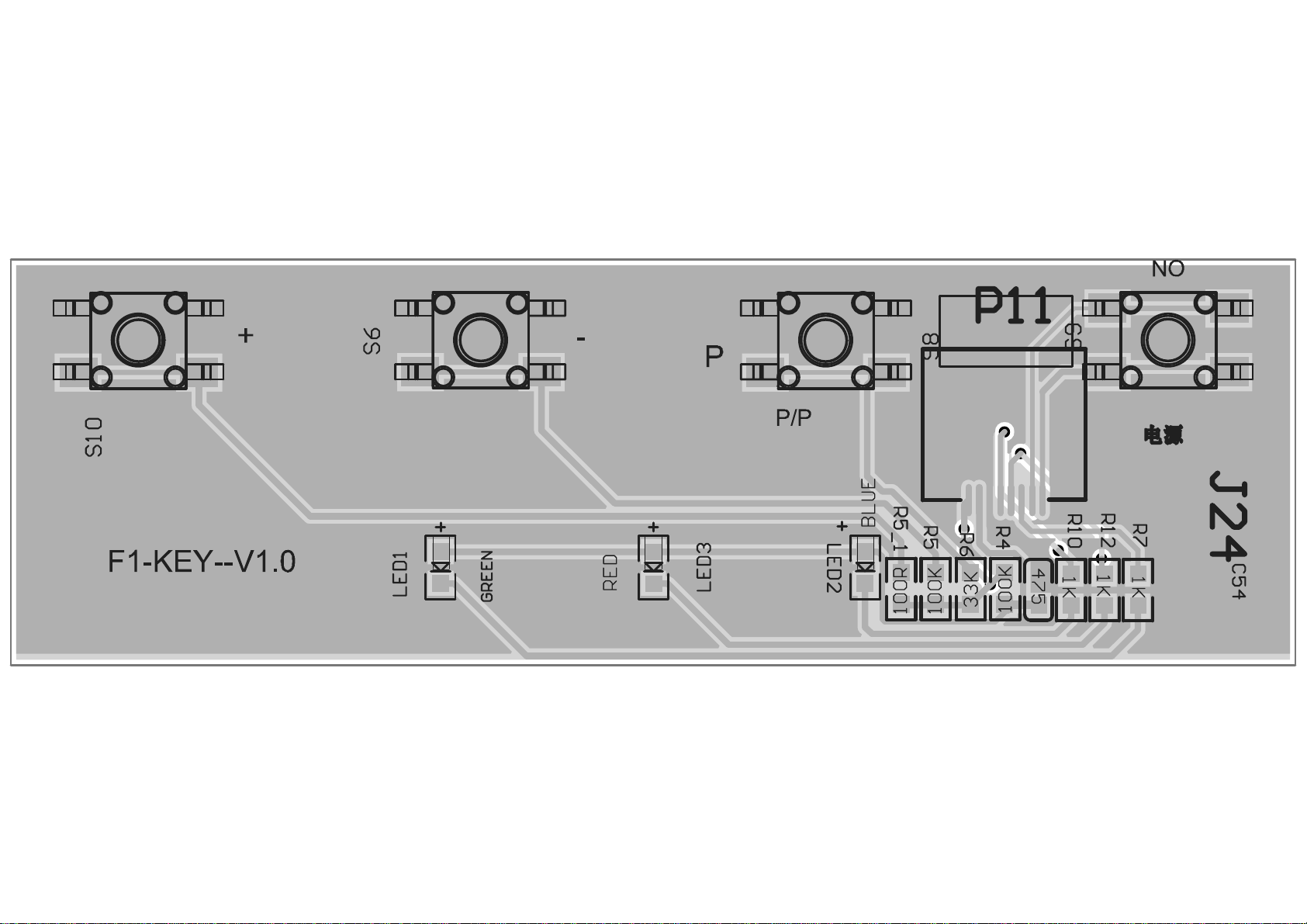

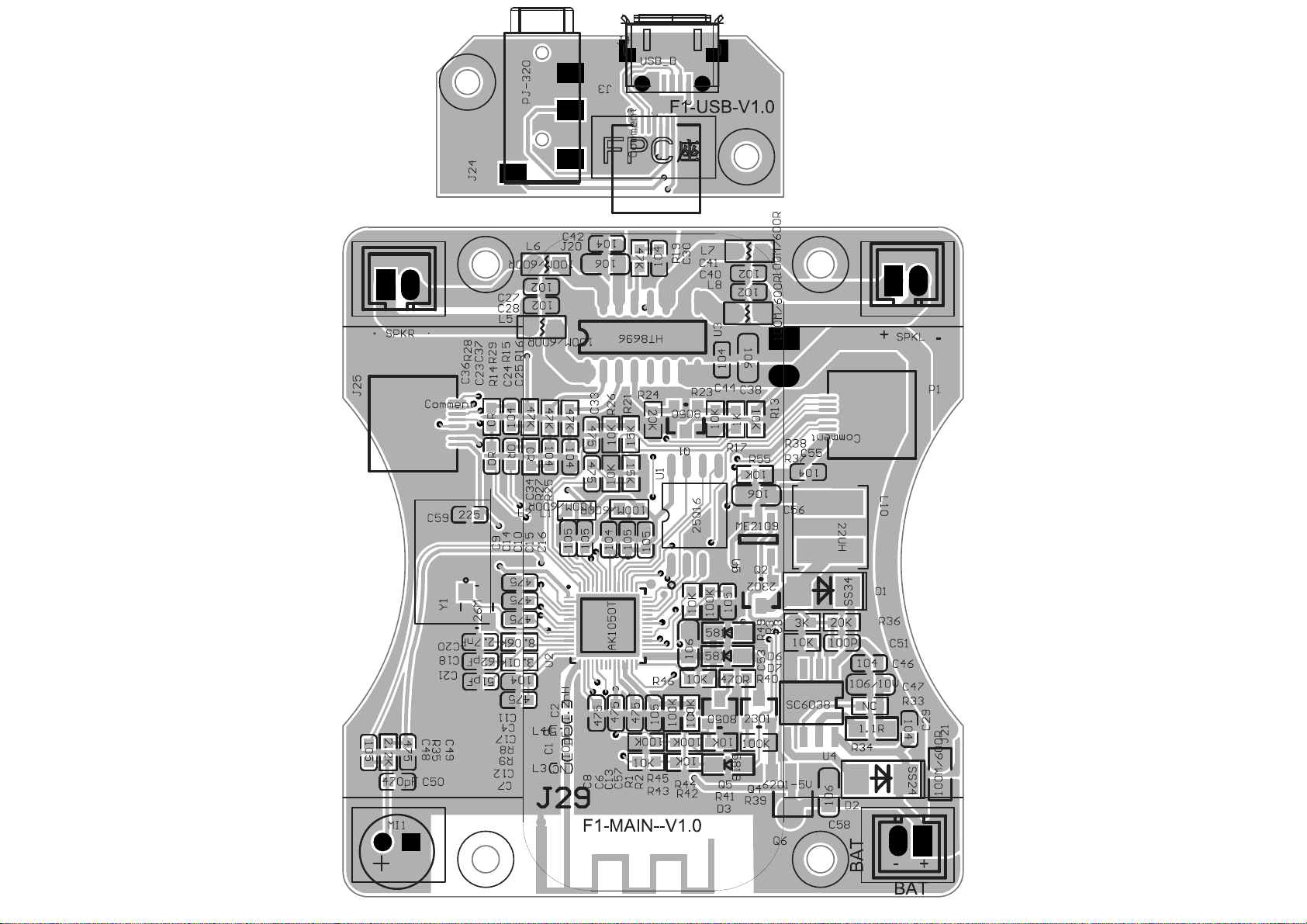

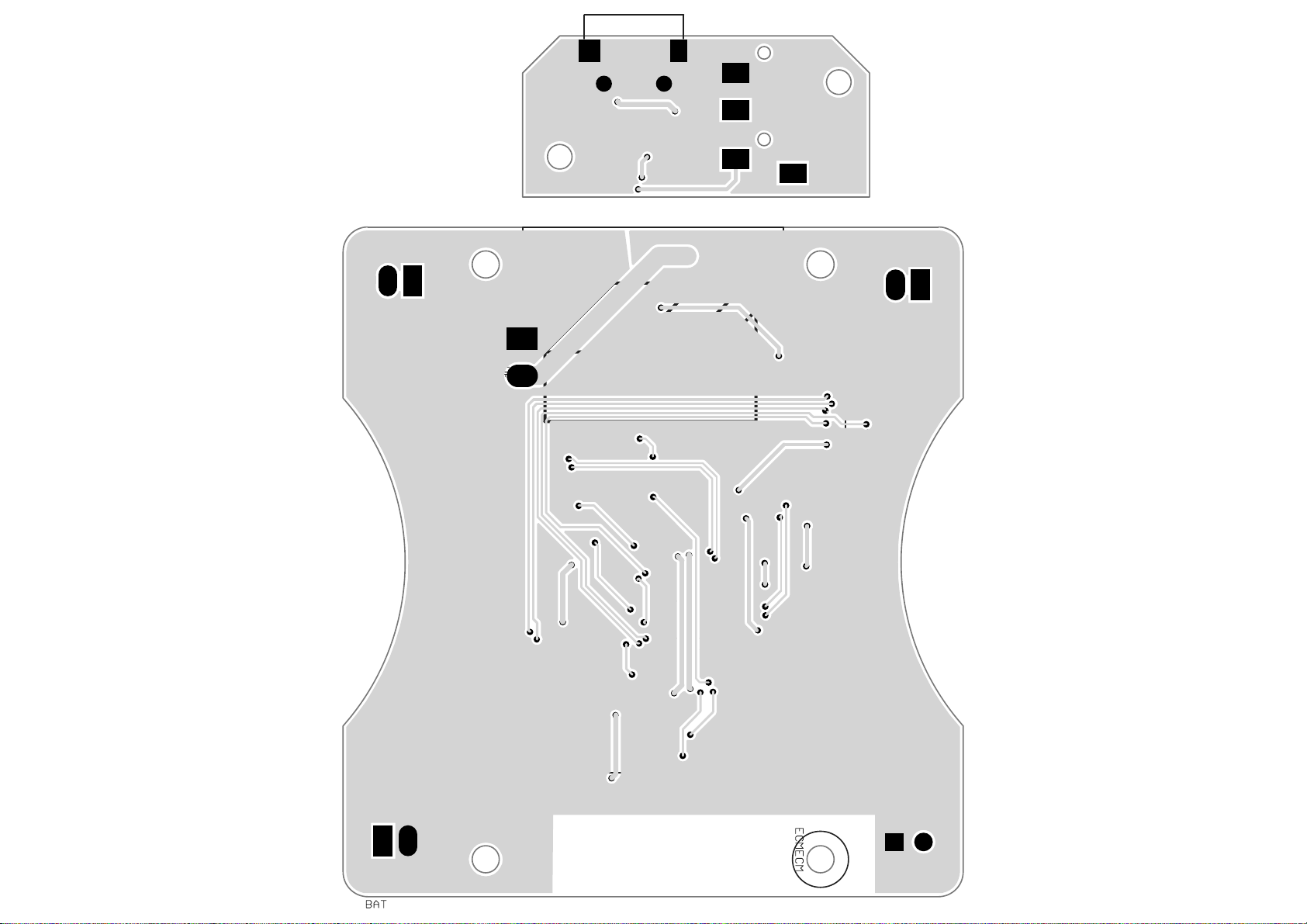

1
1
2
2
3
3
4
4
5
5
6
6
D D
C C
B B
A A
Title
Number RevisionSize
A4
Date: 2015-5-22 Sheet of
File: E:\jwh RD\F2\3
次打样 \F2.SchDoc Drawn By:
MONO MIC
GPIO6/BOOT/UART_TXD_PU_WU
43
GPIO7/UART_RXD_PU
40
GPIO8/PWM0_PU_WU
45
VBAT2 26
GPIO12/NEC_IRDA_RX_PU_WU
21
GPIO16/PWM1_PU_WU
22
GPIO19/I2S_LRCLK_PU_WU
31
GPIO21/I2S_DIN_PU_WU
33
GPIO22/I2S_DOUT_PU_WU
20
GPIO18/I2S_MCLK_PU_WU
42
USB_DET 28
DM1 50
DP1 51
X32KI 34
X32KO 35
X26MI 10
X26MO 11
AIN 1
HPOUT_L 7
HPOUT_R 8
LINEIN_L 54
LINEIN_R 55
MICP 56
VBAT1 25
VIN_CHG 29
ON/OFF 27
VCM2/RESET 5
VDD_MIC 4
VDD12 49
VDD12_OUT 23
VDD33 48
AVCC3V0 3
VDD33_OUT 24
HPVDD 9
AVCC_USB 52
VREF 53
RX/TX
15
CP_OUT
12
V_TUNE
13
VCC33_RF 16
AVDD12RF 14
AVSS
2
HPVSS
6
VSS
57
GPIO13_PU_WU
17
GPIO20/I2S_BCLK_PU_WU
32
GPIO23_PU_WU
44
GPIO24_PU_WU
38
GPIO17/CLK32_OUT_PD_WU
19
GPIO27_PD_WU
18
VIN_CTRL 30
SPI_CS 36
SPI_WP/SPI_D2 37
SPI_DIN/SPI_D1 39
SPI_DOUT/SPI_D0 41
SPI_CLK 46
SPI_HOLD/SPI_D3 47
AK1050T
U2
4
433
1
122
26M,CL=8PF,3225
Y1
#CE
1
SO
2
#WP
3
VSS
4SI 5
CLK 6
#HOLD 7
VDD 8
GD25Q16B
U1
E1
Antenna
C1
10pF
C2
10pF
L3
NC L4
NC
GND
CP_OUT
V_TUNE
IRDA
LINE_DET
SPK_EN
TXD
RXD
RED_LED
BLUE_LED
CHARG_LED
GND
DM
DP
MIC_P
AIN
LINEIN_R
LINEIN_L
HPR
HPL
26MO
26MI
32KI
32KO
SPI_CS
SPI_CLK
SPI_DOUT
SPI_DIN
SPI_WP
SPI_HOLD
VIN_CTRL
POWER_KEY
PWR_IN VREF
VDD_MIC
VDD12
VDD33
HPVDD AVCC3V0 AVCC_USB VCC33_RF
VDD12_RF
VCM2 VBAT
R8
8.06K,1%
R9
3.01K,1%
C18
62pF
C20
2.7nF C21
51pF
GND
CP_OUT
V_TUNE
GND GND
26MO
26MI
SPI_CS
SPI_DIN
SPI_WP
GND
VDD33
C19
100nF
GND
C48
1uF C49
4.7uF
C50
470pF
R35
2.2K
MI1
ECMECM
MIC_P
VDD_MIC
C6
4.7uF C10
100nF C8
475
C7
4.7uF
VDD12
GND
C12
100nF
C4
4.7uF
VDD12_RF
GND
VCC33_RF
GND
VCM2
GND
C11
4.7uF
AVCC3V0
GND
VREF
C9
1uF
GND
C13
105 C15
105 C16 105
L2
FB
C17
475
VDD33
GND
HPVDD
GND
L1
FB
C14
105
C5
106
VDD33 AVCC_USB PWR_IN
GND GND
R7
1K
R10
1K
R12
1K
RED_LED
BLUE_LED
R40
470R
R4
100K
R5
100K
R6
10R
R11
33K
AIN
LINEIN_L
LINEIN_R
GND
SPI_DOUT
SPI_CLK
SPI_HOLD
1
122
S1
SW-PB
S2
+
S3
P/P
S4
-
GND
VDD33
L4
R3
GND 2
DET
5
J3
PJ-320
R21
15K
R27
10K
R25
15K
R26
10K
C34
225
C33
225
GND
GND
lINE_DET
VBUS 1
D- 2
D+ 3
ID 4
GND 5
6 7
8 9
J4
USB_B
EXT 5 FB
1
VDD
2
CE
3GND 4
*5
ME2109F 升压 IC
C46
104
C55
104
C56
106/10V
GND
GS
DQ2
AO3414
GS
DQ3
AO3414
GND GND
L9
电感
D1
SS34
GND C51
100P
C47
106/10V
GND
R36
20K
R38
3K
GND
VIN
1
TS
2
CHRG
3
GND
4VOUT 5
EN 6
CS 7
BAT 8
U4
sc6038 8.4V 充电 IC
R37
10K
GND
D2
SS24
C52
106/10V
1
2
J5
BAT
GND
BAT 7.4V
7.4V
GND
1
VOUT 2 VIN
3U6
ME6201-5V
7.4V
C54
106/10V
GND
C53
106/10V
POWER_5V
R2
RES1
R1
RES1
GND 7.4V
VBAT
R14
0R
C23
0R
OUTR+
1
INR+
2
INR-
3
CTRL
4
NC
5
NC
6
VDD
7
VDD
8OUTL- 9
GND 10
OUTL+ 11
INL+ 12
INL- 13
VDD 14
OUTR- 15
GND 16
U3
HT8696
INR INR
R16
39K
C25
104
GND R17
1K
R28
10K
C36
105
INL
HPR
HPL
Q1
3904
R13
33K
R23
47K
SPK_EN
7.4V
GND
GND
MUTE
C39
220UF/16V
C31
220UF/16V
C44
220UF/16V
C38
104
C42
CAP
C29
104
GND
GND
GND
INL
C30
104
GND
R19
39K
7.4V L7
100M/600R
L8
100M/600R
C40
CAP
C41
CAP
1
2
J2
SPK
GND GND
L5
100M/600R
L6
100M/600R
C27
102
C28
102
1
2
J1
SPK
GND GND
7.4V
1
K
2
LED1
开机绿灯
1
K
2
LED2
蓝牙蓝灯
1
K
2
LED3
充电低电红灯
VDD33
R34
1R
R33
NC
GND
GND
GND
DM
DP
C60
105
GND
CHARG_LED
R55
10K
USB_DET
G
SD
Q4
SI2301
Q5
8050
R39
100K
R42
10K
R41
10K
R44
10K
Keep_ON
PWR_IN
GND
GND
R43
10K
keep_ON
KEY_POW
P0WER_5V
D3
S4
KEY_POW
C3
105
GND
R45
10K
GND
D6
SS14
D7
SS14
R46
10K
CHECK_ON
CHECK_ON
USB_DET
R49
10K
CHECK_ON
PWR_IN
MUTE
C59
104
