IP Power 9258SX User manual

IP POWER 9258SX USER MANUAL
IP POWER 9258SX
USER MANUAL

IP POWER 9258 USER MANUAL
USER MANUAL
IP POWER 9258SX Series
Version: V1.38
2006.08
- 1 - VER. X.X,

IP POWER 9258 USER MANUAL
Warning:
Any changes to this equipment without permission may cause damages to your equipment! This equipment
has been proved byCE & FCC to can be prevented from the influence of harmful electronic jamming in normal
business use condition.
IMPORTANT NOTICE
1. We have no responsibility for the possible damage caused by improper usage or abnormal working
environment.
2. Do not use IP POWER in strong shaking condition.
3. Please contact the dealer If IP POWER works improperly.
Copyright © 2006 All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or
otherwise, without the prior written consent of us
All other products mentioned in this document are trademarks of their respective manufactures.
We are exempt from notify any change of our products.
- 2 -

IP POWER 9258 USER MANUAL
Table of Content
1. INTRODUCTION..........................................................................................................4
FEATURES .........................................................................................................................
9258 FUNCTION DESCRIBE ................................................................................................
2.SPECIFICATION...........................................................................................................5
PACKAGE CONTENTS.........................................................................................................
MINIMUM SYSTEM REQUIREMENTS ....................................................................................
3.INTERFACE DESCRIPTION........................................................................................7
4.HARDWARE & SOFTWARE INSTALLATION........................................................10
HARDWARE INSTALLATION..................................................................................................
SOFTWARE INSTALLATION ..................................................................................................
5. INITIAL SETTING.......................................................................................................12
INITIAL SETTING THROUGH ETHERNET ................................................................................
SETTING OF SOFTWARE SHUT DOWN CONTROLLED PC/ SERVER…………………….
6. HARDWARE CONTROL AND SETTING................................................................15
7. CONTROL AND SETTING THROUTH THE INTERNET EXPLORE....................16
LOGIN ................................................................................................................................

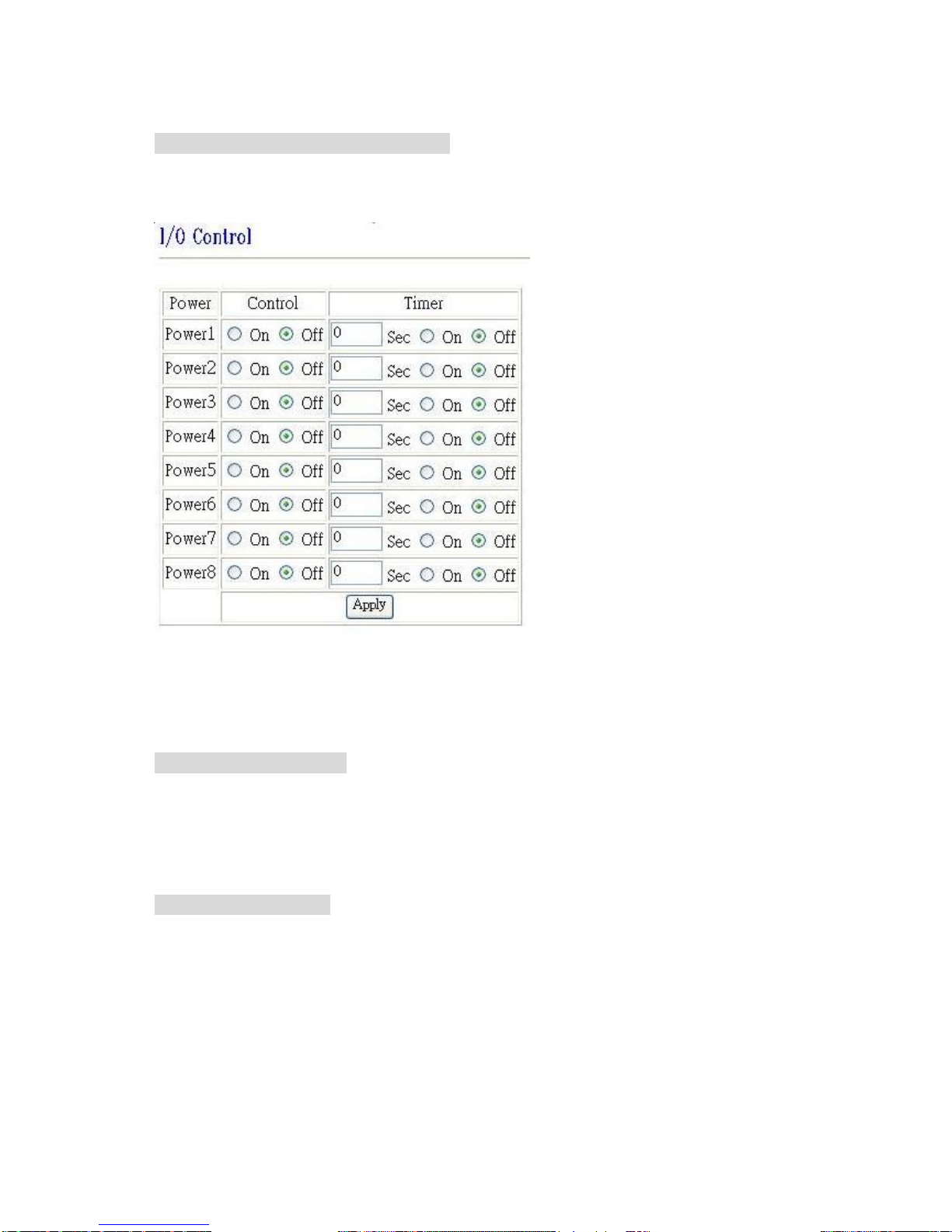

CONTROL THE POWER SUPPLY OF OUTLETS………………………………………………..
POWER SUPPLY STATE QUERY……………………………………………………………...
SYSTEM SETTING ...........................................................................................................…
SETTING THE PASSWORD…………………………………………………………….……
SETTING THE IP ADDRESS.…………………………………………………………………

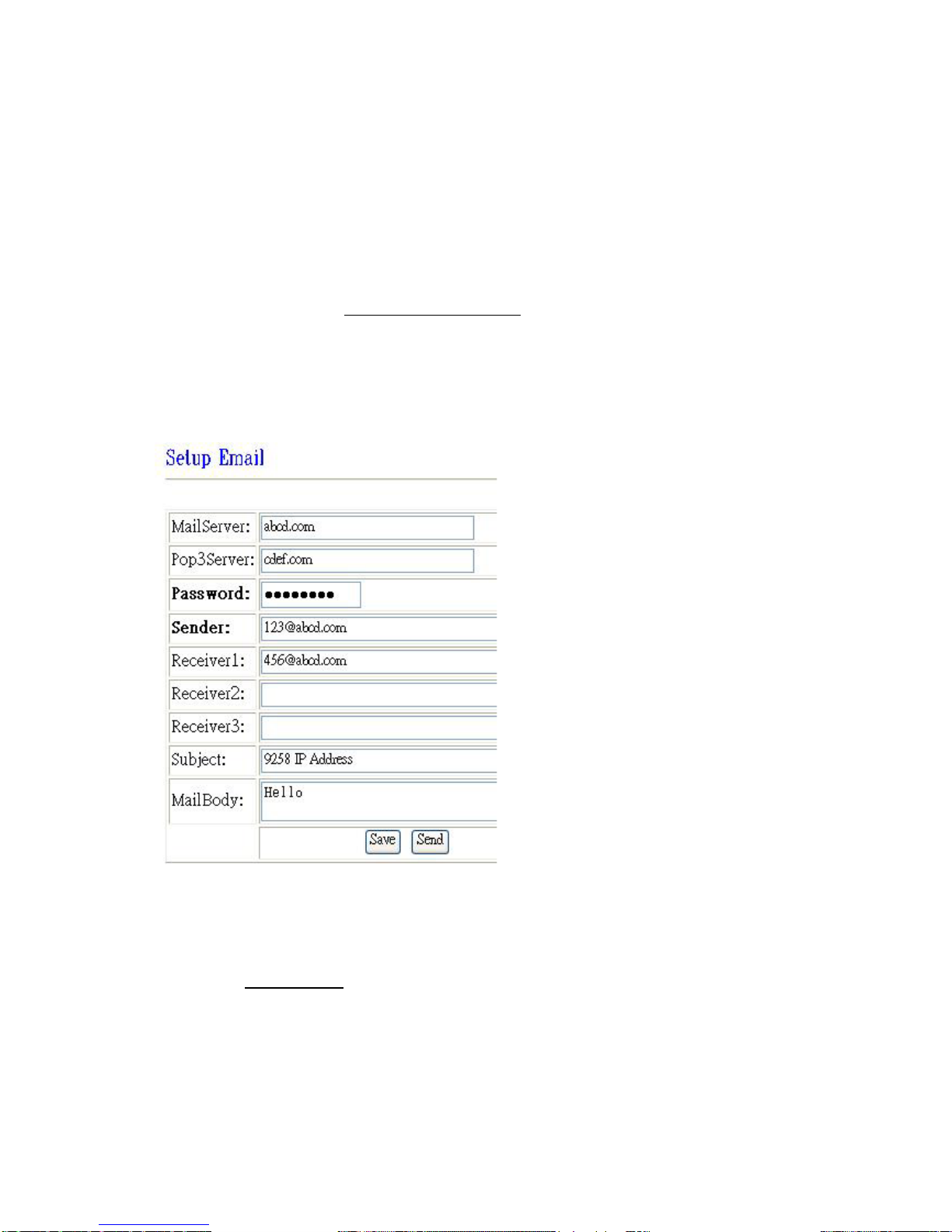

EMAIL SETTINGS……………………………………………………………………….. …
SETTING THE TIME SCHEDULE……………………………………………………………..
SETUP UP OWN OUTLET DEFAULT STATUS ………………….……………………………
. Internal Clock Settings & Network Time Protocol (NTP)………..……………………..
. WAKE ON LAN………………………………………………………………………………
. GPRS FOR CELL PHONE : SUPPORT WAP……………………………………………….
. FIRMWARE UPDATE:……………………………………………………………………….
.
8. DDNS SETTING........................................................................................................…25
9. CHECK STATUS THROUGH SNMP ……………….………………….……………26
10. CONTROL AND SETTINGS THROUGH HTTP ORDER…………………………27
11.FAQ ……………………………………………………………….…………………….29
12. Webpage Customization ….……………………………….……………………….29
- 3 - VER. X.X,

IP POWER 9258 USER MANUAL
1. Introduction
IP POWER 9258S is a web controller which can be easily used in the industry field. With the remote network
control technology, user can control or query the power supply of equipment.
User can do this in any computer connected to the internet or local area network, there is no special program
needed, also there is no need to open the external case of the computer.
Try to imagine that while traveling in a foreign country, you can control the power supply of your electric
equipments, such as a computer, a server, a router, an entrance guard or security / surveillance system directly
or use a time schedule comes with the IP POWER . You can remotely control the power switch with any
computer connected to the network, which is not only convenient, but it also big saving on the manpower and
time.
Feature
1. Built in web server, can be used through the Ethernet or Internet network .
AN - virtual IP
et / Ethernet. ress time .
6. Provide SDK (VB & VC) for own Software develop and application .
7. Safety shut down controlled PC/ Server ( WINDOWS OS ) by own software .
2. Support multiple browser, such as Internet Explore, Netscape, you can operate the switch and check the
state without any special program .
3. Control 8set AC outlet equipment at the same time.
nectors . * 4 Set : power control by standard IEC 320 Outlet con
* 4 Set : power control by power outlet connectors .
rt multiple electric power outlet : For UK, Australia , France and German .4. Suppo
5. Supported HTTP, DDNS, SMTP, ,SNMP, INTERNET- fixed IP, DHCP, L
6. Security passwords identify. Easily installed and can be updated online.
7. Supported serial port communication, indicate all kinds of real time state of 9258.
8. Separated LED indicates the state of each switch.
9. Develop tool (SNMP) is provided. It can be modified to meet the user’s special need.
10. Safely designed for high voltage resistance and protection for leakage of electrical currency, using
nonflammable material
11. Network Server reboot -- can remote control to reboot the power on for the PC or Server at remote site ,
12. Timer Schedule -- can pre-set the time schedule to turn power on / off thru Intern
13. Support NTP (Network Time Protocol ) - synchronize the time of 9258to the Internet web add
14. WAP Mobile Phone Control - can use the GPRS cell phone via WAP to control
5. Setup up own outlet default : when regain power it store each outlet to those status setting.1
1
1
Specification
* Maximum rated voltage of each 4 outlet : 250V AC, 24V DC
4 outlet : 15A AC/DC,
Maximum rated currency of Individual outlet : 6A AC/DC
* Action delay: Max 10ms
* Working temperature: 0~ 70°C
* Maximum rated currency of each
*
- 4 -

IP POWER 9258 USER MANUAL
X.X,
- 5 -
2.Specification

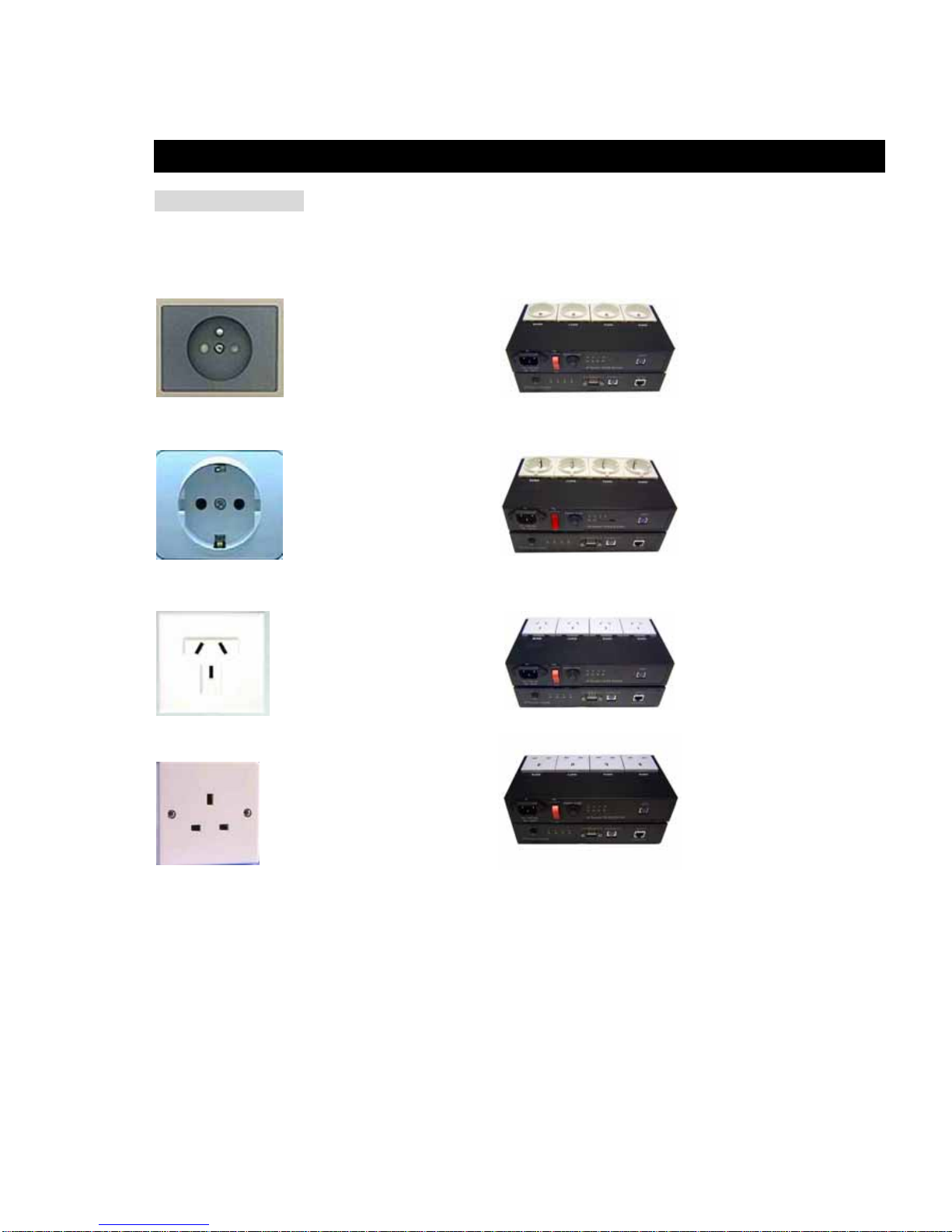

Package contents
One set of 9258S Series :
* 9258SF :
* 9258SG -
* 9258SA -
* 9258SU -
Connect cable (Mini 8P - Mini 8P):
Option : RJ45 (Cat5) net wire
Option : Power Cable ( Inlet) :
VER.

IP POWER 9258 USER MANUAL
Minimum System Requirements
 Intel Pentium III 300MHz or above/compatible AMD CPU
 WINDOWS operating system (IE5.0+SPI) & LINUX
 Minimum 64MB RAM
 VGA Card: supported direct draw
 Network card with RJ45 port & Ethernet HUB or Switcher
 Network : FIX IP address for Internet power control .
NOTICES:
1. IP Power 9258S Series :
* For 220-250V : please use power ( Input ) cable at Maximum 10A current for each power input.
Total Max output current for per 4 outlets : 10A.
Individual Max output current for per outlet : 6A.
* For 100-120V : please use power ( Input ) wire at Maximum 15A current..
Total Max output current for per 4 outlets : 15A.
Individual Max output current for per outlet : 6A.
- 6 -

IP POWER 9258 USER MANUAL
X.X,
- 7 -

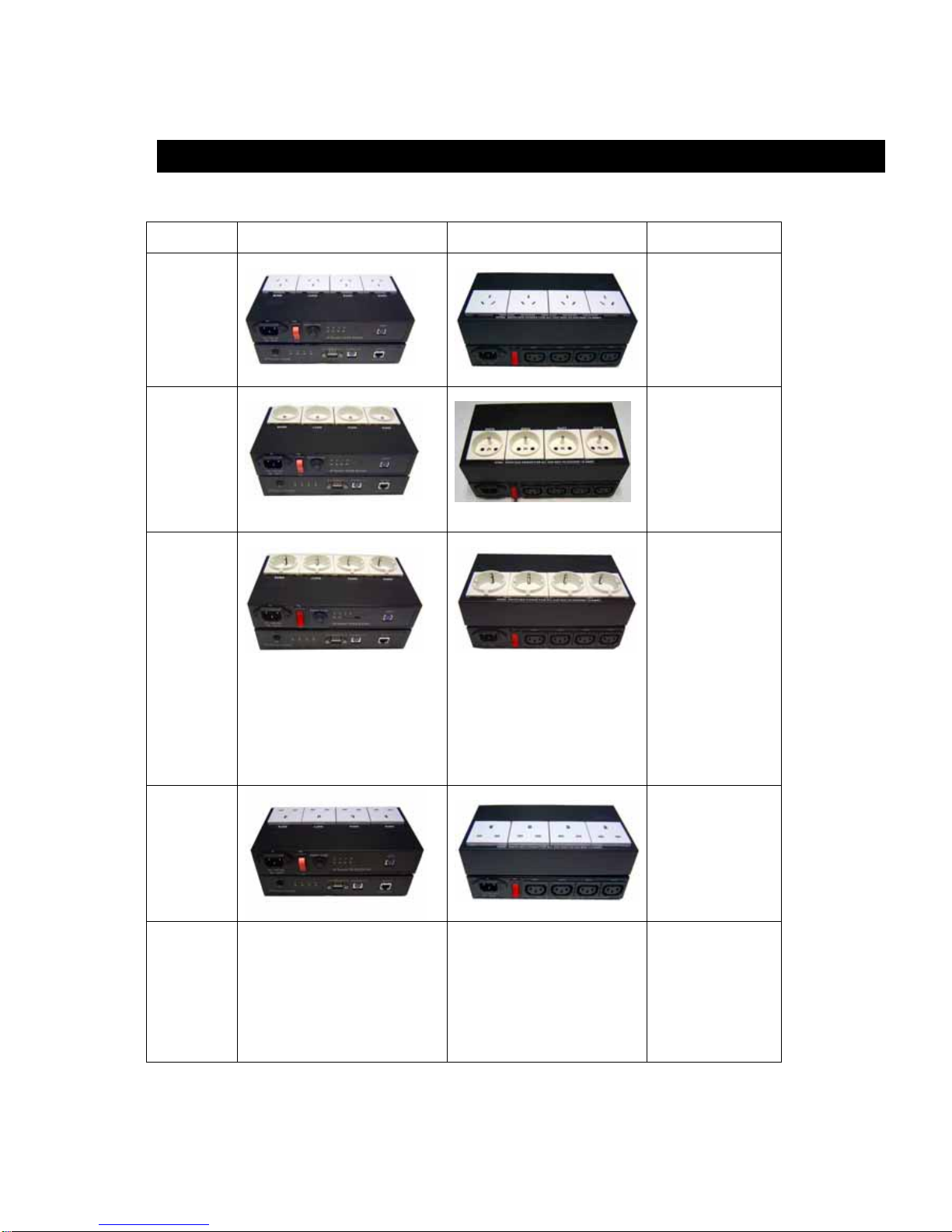

3. Interface Description
There are total four models of IP Power 9258S Series , please refer the outlet style each model as follow :
Model &
outlet style Outlook : Front Outlook : Back Country
IP Power
9258SA :
4 IEC320+
4 AS3112
Argentina,
Australia, China,
New Zealand.
IP Power
9258SF :
4 IEC320+
4 CEE7
Pan - European :
Belgium, Czech,
France, Monaco,
Poland, Slovakia.
IP Power
9258SG:
4 IEC320+
4 CEE7
Schuko
Pan- European :
Austria, Bulgaria,
Estonia, Finland,
German, Greece,
Hungary, Iceland,
Italy, Korea-South,
Latvia,
Luxembourg,
Netherlands,
Norway, Portugal ,
Romania, Russia,
Slovenia, Spain,
Sweden, Turkey,
Ukraine.
IP Power
9258SU:
4 IEC320+
4 BS1363
Hong Kong ,
Indonesia, Iraq,
Ireland, Malaysia,
Singapore, Saudi
Arabia, U.A.E., UK,
Vietnam.
9258SG & SF:
* 4 IEC320+
4 CEE7
* 4 IEC320+
4 CEE7
Schuko
Chile, Denmark,
Egypt, Greenland,
India, Iran, Israel,
South Africa,
Switzerland,
Swaziland.
There are two box for IP Power 9258SX Series( SF / SG / SA / SU ) : include IP Power 9258S & 9258 Outlet
VER.

IP POWER 9258 USER MANUAL
*IP Power 9258S ( Mother Device) : all four series apply same main device.
Front panel show as below:
*****************************************************************************************************************************
* From left to the right :
1. Power Reset: Self-protect AC reset button. IP Power 9258S can cut off the power supply of outlets
automatically if there is a shortcut or current overload. After user having solved the problem, push
the reset button, the AC power supply will become normal.
2. LED: 4 LED indicator lights ( Outlet 1-4 ) . If the LED is on, means the corresponding outlet is power on.
3. RS232 port: Detect each output state and get IP address to re-update if update fail .
4. Output : To connect with daughter device - IP Power 9258 Outlet
5. Circle sign and On & Off : Hardware power ON /OFF setup. Please do o refer page 13 for proper
operation.
6. RJ45 Ethernet port: Link to the net wire.

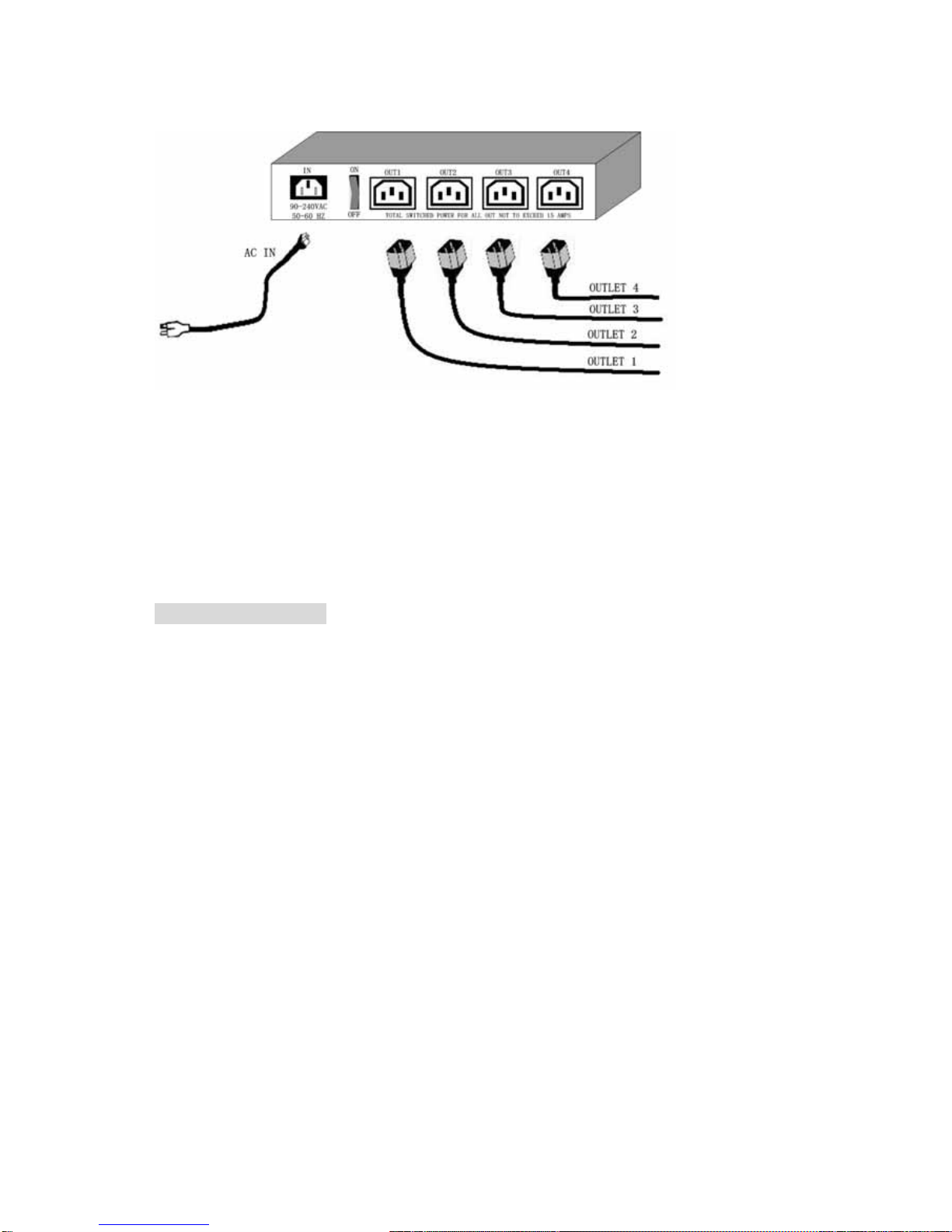

* Rear panel shown as below:
From left to the right :
1. 90-240VAC power input port
2. Power switch : the power switch ON /OFF of IP Power 9258S.
3. OUT 1- 4 : 4 individually switched AC outlets
* IP Power 9258 Outlet ( Daughter Device ) : all 4 models with same function but different style outlet.
- 8 -

IP POWER 9258 USER MANUAL
Front and top panel as below ( take IP Power 9258SU as example) :
Front panel from left to right :
1. 90-240VAC power input port
2. Power switch : the power switch ON /OFF of IP Power 9258 Outlet.
3. RESET: Self-protect AC reset button. IP Power 9258 Outlet can cut off the power supply of outlets
automatically if there is a shortcut or current overload. After user having solved the problem, push
the reset button, the AC power supply will become normal.
4. LED: 4 LED indicator lights ( Outlet 5-8 ) . If the LED is on, means the corresponding outlet is power on.
5. External I/O : for connect with daughter device - IP Power 9258 Outlet
Top panel : OUT 5- 8 : 4 individually switched AC outlets
- 9 - VER. X.X,

IP POWER 9258 USER MANUAL
4. Hardware & Software installation
Before you star to use IP Power 9258, please follow the steps below
 Check the package to make sure the contents is complete.
 Prepare one Ethernet HUB or Router
 Check the voltage of the power supply to make sure it is AC 110-240 volt
 Please confirm the specification of your power cable.
 IP Power 9258S Series : for 220-250V, please use power cable at MAX 10A for each 4 outlet.
for 100-120V, please use power cable at MAX 15A for each outlet.
Hardware installation
1 Connect the 9258 to HUB through network wire.
2 Connect purple port of 9258S Input “ port of 9258 Outlet .
3 Connect the HUB or Router to the internet (may through ADSL/XDSL modem).
4 Connect the power adapter to the 9258.
5 Connect the power adapters of under control electric equipment to corresponding
out port of 9258.
- 10 -

IP POWER 9258 USER MANUAL
Turn on your computer and the power adapter of IP Power 9258
＊ for 220-250V, please use power wire can support 10A current..
Max. output current: ( total of each four outlets ) 10A , ( each outlet ) 6A.
for 100-120V, please use power wire can support 15A current..
Max. output current: (total of each four outlets ) 15A , (each outlet ) 6A
Software installation
Having connected the power supply and network wire with RJ45 port to the 9258, please install the software by
following the steps below:
1. Start your computer, put the installation disc in the CDROM, then find the file named “ ipedit.exe” in
the installation disc.
2. Save the exe file to your HD or desktop
3. Start the initial setting process following the construction in next section.
- 11 - VER. X.X,

IP POWER 9258 USER MANUAL
5. Initial Settings

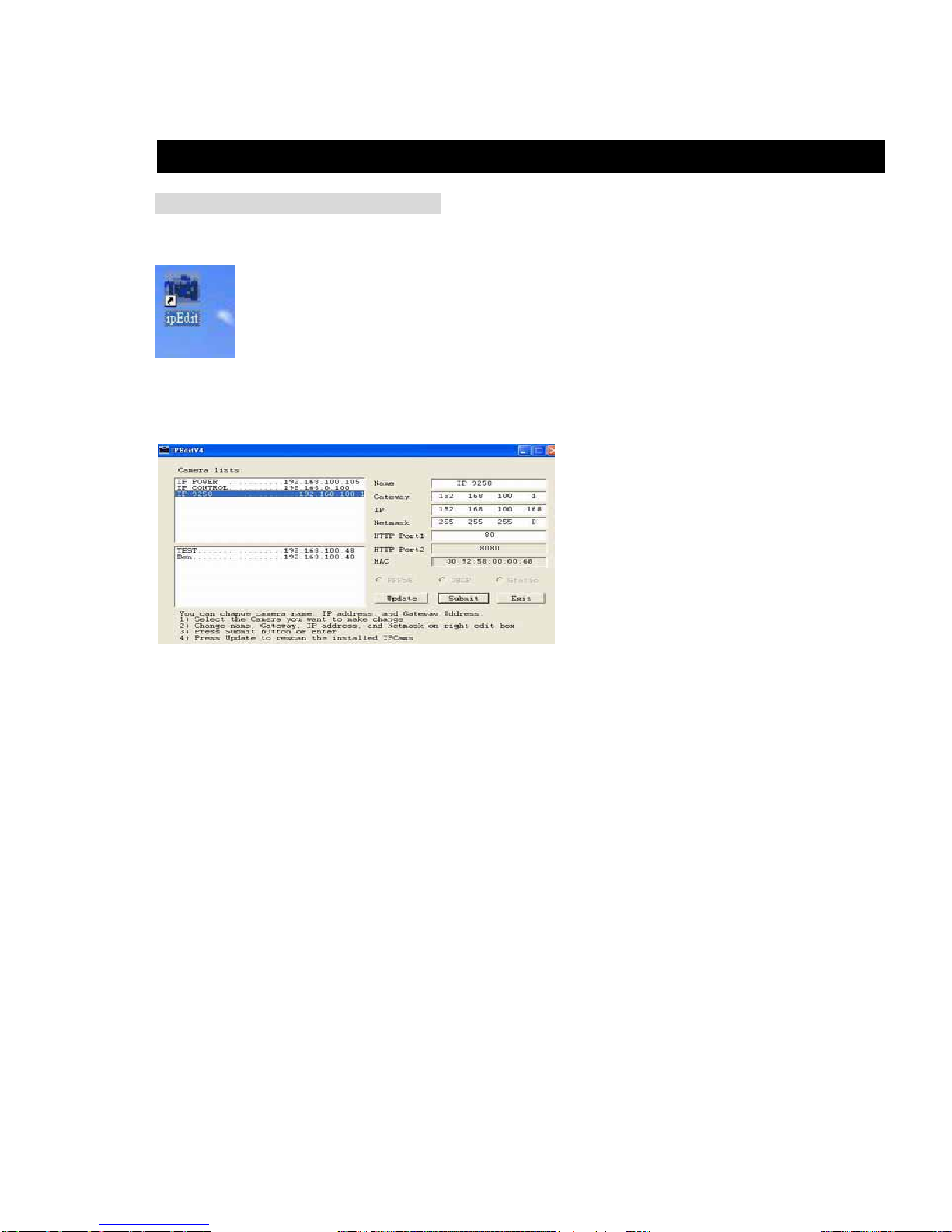

Initial setting through the Ethernet
1. Open attached CD and save IPEDIT.exe in to your Hardisk , execute IPEdit.exe
2. All the IP 92XX series, like IP Power 9258 IP Kamera 9000 series/IP Video 9100 series in the same subnet
of the Ethernet will be found and be display in the window by the software. The default name of IP Power
9258 is IP 9258
.
3. Click the equipment‘s name that you want to edit in the left of the window; it will turn fuscous, the
equipment’s name and IP address willdisplay in the windows, you can rename (use numbers and letters). After
that, click the update button and the new setting will be work in 20 seconds.
4. Double click the name of the equipmentyou want tocontrol, the IE browser window will open and connected
to this equipment in that Ethernet automatically. You alsocan type the IP address of the 9258 in the IE browser
to open the web page . We suggest you toupdate the IE to version 6.0 with SP1or higherif your IE notices you
the security level is too low to open that web page.
NOTICE:
1. Make sure RJ45 network cable have been connected and the 9258 are power on.
2. IP Power 9258’s default setting is fixed IP address: 192.168.10.100. The IP address of your computer
should in the same subnet with that of IP Power 9258’s, so that you can open the control web page. In
the figure above, the IP address of IP Power 9258 is 192.168.100.168. You can make sure the IP
address of your computer first, then use the ipedit.exe to modify the IP address of IP Power
9258.after that, your computer can connect to the IP Power 9258.
3. IF user can not enter the control web page, please set the IP address of IP Power 9258 and your
computer in the same subnet. User can obtain the computer’s IP address, subnet mask, and default
gateway through the following method.
start runtype in “cmd”then open the MS –DOS window, now type in
“ipconfig”
- 12 -

IP POWER 9258 USER MANUAL
The last number of the IP address (default is 100) can be any number between 1~254, but cannot be the same
with that of the computer’s. If you want to use it at home, you can enter theweb page by typing in the IP, the IE,
or using ipedit.exe program.
*Same subnet : means the first three parts of the IP address must be the same, such as XXX.XXX.X.abc. For
example, 192.168.1.100 and 192.168.1.123 are in the same subnet.
5 .The default username and password of IP Power 9258 are:
Username: admin
Password: 12345678
Setting of software shut down controlled PC/ Server
9258 can safety turn off the PC/Server through Network then cut off the power of PC /Server . By this way you
can remote shut down PC/ Server which is connect with IP Power 9258 by normal Windows shut down
procedure, Please install our software on controlled PC/ Server by following step:
1. Please install program “ IP9258service.exe “ in controlled PC.
2. If there is operate program like WINDOWS OFFICE which can not be save automatically. 9258 will
still shut down controlled PC/server without save the file.
3. To reserve enough time for controlled PC / Server shut down after receive 9258 command. Please
set the delay time at 30 or 60 second in 9258 web page( setupdelay switch ).
4. The controlled PC /Server must be in the same ETHERNET and the same SUBNET.
Installation &setting of “ IP9258service.exe” :
1. Insert attached CD in controlled PC .
2. Please install double click “ IP9258config.exe” ，then go to the install page as right illustration:
- 13 - VER. X.X,

IP POWER 9258 USER MANUAL
3. Please fill correct information in each section :
IP9258 Address：please type in the IP address of 9258.
HttpPort：please fill the port of 9258, default value is 80, if amend the port in 9258 please do correct
UserName：admin
PassWord：12345678 ( password can be amend in web page)
Power Number：please fill the power channel in 9258 you wouldlike to control ( If many PC/Server use same
power extended line, the extended line connect to channel 1 of 9258 and if all the PC / Server
set as channel 1 and same IP address in IP9258service.exe , then all the PC/Server will be
controlled at same time).
After fill above setting please click “Save Change “. Click “InstallService” then “StartService” then please
shutdown the PC/Server . After restart PC, the function start working.
- 14 -

IP POWER 9258 USER MANUAL
X.X,
- 15 -
6. Hardware control & setting
* Hardware control the power on/off. :
NOTE: Before use H/W control function, please do UNPLUG / DISCOUNT all the connection of 8
outlet .
Control panel as follow:
1. Round circle button ( Left ) : select power outlet 1 ~4.
2. ON/ OFF button ( Right ) : Open /Close the H/W control function And
turn ON/OFF each outlet.
To do the Hardware control function, please unplug all the outlet connection first.
Press “ON/OFF” button for 5 seconds then you can hear one fast bee which
mean enable the H/W function. Then you can see the power light of front panel is flashing
and the relay is ticking.
From the power light flash situation, the outlet which is not keep flash can be control the ON& OFF
setting by click “ON/OFF “ button soon. You can select different outlet by click “Round circle
“ button.
To disable the Hardware control function, please Press “ON/OFF” button for 5 seconds then you can hear one
fast bee which means disable function.
VER.

IP POWER 9258 USER MANUAL
7. Control and settings through the Internet Explore)
Type the new IP address of IP Power 9258 in the address field and you can enter the login webpage. Input the
default username : admin and password : 12345678, or the password reset by you, click OK, and you can then
enter the Web Control page.
- 16 -

IP POWER 9258 USER MANUAL
- 17 -
Control the power supply of outlets
Having entered the Web Control page of 9258, click the SET POWER button on the left, you can enter the IO
setting page as the following figure:
IP Power 9258 can control 8outputs individually at the same time. User can choose power on or power off with
an electrical outlet . User may fill in the corresponding columns with the delay time you wish in seconds, then
choose the action after delay to be on or off.
Power Supply State Query
Click the “ Set Power” button on the left, the page will be refreshed. The state of each electric outlet will be
displayed in column control.
System Settings of 9258
User can set the password, IP address, e-mail address, timer setting, online firmware update, and the time of
9258 through the system settings.
1. Setting the IP address for IP Power 9258:
Click the “ Setup “ button on the left side; fill in the proper IP address, Subnet Mask, Default Gateway, DNS. If
you choose to use DHCP, please make sure that your network support DHCP service so the IP Power 9258
will search and gain an IP address automatically when it start. You can also control the Beeper sound .
VER. X.X,

IP POWER 9258 USER MANUAL
* Http Command Verification : setup the control possibility from HTTP command or SDK (VB & VC)
1. Select “ Cookie +Base64 “ : enable Http command & SDK control
2. Select “ Cookie “ : enable Http command & SDK control
3. DelaySwitch：to safety turn of PC / Server ( Windows OS ) by Software program , please set up the
delayswitch at 30 / 60 second . It help the PC connected to 9258 had enough time to do the
normal shut down work. After setting, all outlet will delay tunr off by appointed time.
1-1 IP address Settings: Ethernet (LAN ) and Internet(WAN)
1-1-1 Local Area Network (LAN) :
In LAN, you can set a fixed IP address or gain it from a DHCP server automatically. We suggest to use a fixed
IP address in order to let the other computers can visit the 9258.
Now type the new IP address in the address field of IE, you can visit the 9258. You also can use the ipedit.exe
to find the IP Power 9258 and modify its IP address.
1-1-2 Work on Internet (WAN) :
User can set the IP provided by your ISP. If the IP Power 9258 has a public IP address,
you can control it through the Internet. IP Sensor 9258 supports fixed IP, DHCP.
* IP Address: please type in the IP address provided by your ISP. If IP Power 9258 is working with a Router,
please refer to the network settings of the Router.
* Subnet Mask : please type in the Subnet Mask provided by your ISP. If IP Power 9258 is working with a
Router, please refer to the network settings of the Router.
* Default gateway: please type in the Default Gateway provided by your ISP. If IP Power 9258 is working with a
Router, please refer to the network settings of the Router.
* DNS Server : please fill in the IP address of DNS server. If you are in Taiwan, you can set it to 168.95.1.1.
* DHCP Clients: Enable– activate DHCP service. DHCP will assign IP address for each PC.
Disable – shut down the DHCP service. You can set the IP address by yourself.
* Beeper : Enable – activate the beeper . Disable – turn off the beeper.
- 18 -

IP POWER 9258 USER MANUAL
If you control the 9258 through the web page, the beeper will beep once when the operation
work.
NOTICE:
1) IP address format : xxx.xxx.xxx.xxx: yyyyy. yyyy means the port number,
Ranging from 1 to 32767.
2) Subnet Mask: from 0 to 254 ( xxx.xxx.xxx.0 ~ xxx.xxx.xxx.254 )
3) If DHCP is disabled, user must set the TCP Port and default Gateway .If DHCP is
enabled, then the TCP port will be preset to 80( xxx.xxx.xxx.xxx: 80 ) and the
default gateway will be set by the DHCP server, too..
4) If the TCP port you set is not 80, your should type in the whole IP address and port in
IE or Netscape, such as http://xxx.xxx.xxx.xxx:yyyyy , or you can use the ipedit.exe
to login into the virtual IP of IP Power 9258.
2. EMAIL SETTINGS:
When you finished the e-mail settings, you can set to let IP Power 9258 send its IP address automatically.
For example:
* Mail Server: abc.com
* Pop3Servcer : cdef.com
* Password : XXXXXXXX
* Sender: [email protected]
* Receiver 1: [email protected]
* Receiver 2: [email protected]
* Receiver 3:
* Subject: 9258 IP address
* MailBody : Hello
- 19 - VER. X.X,
