iPazzPort KP-810-19SAC User manual

iPazzPort Mini Wireless Keyboard
with touchpad and scrollbar
User Manual
Rev. 1.0
Mode:KP-810-19S
www.iPazzPort.com
iPazzPort
Contact us at
Website： www.iPazzPort.com
Email: [e-mail]
Facebook: @iPazzPortfans
Twitter: @iPazzPortfans
YouTube: @iPazzPortfans

Package:
Mini Wireless Keyboard 1
User manual 1
USB Cable 1
Features and specifications:









Support Multi-language need to be customized
Ultra sensitive Multi-touch
Working voltage: 3.3V
Power supply: DC 3V(1.5V AAA battery X 2)
Portable size: 164.4x59x16.2mm
Weight: 62g
Windows
- Mac OS/ Linux
- Android/Google/Smart TV OS
System requirement:
-
Bullet points
- With sensitive touchpad for effective gesture recognitions.
- Comfortable in hand for Ergo ,slim, portable design .
- Qwerty keyboard layout for smooth input.
- With auto sleep and wake function to prolong standby time.
- USB receiver for reliable wireless connection within 10M plug and play
Please Note
1). Windows 7 OS will take several minutes upon first use to install
the driver (included on USB receiver)
2)This version does not include a laser pointer or backlit
3). Not compatible with Samsung Smart TV
4) Please confirm the iPazzPort brand and buy it on credible platform.
1

2.1 Unique keys and functions:
Touchpad
RF communication
indicator
Caps indicator
Page Up
Page Down
Right mouse
Left mouse
Up/Down/Left/Right
Left mouse
Key Fn
FN+ Spacebar
Adjust of the touchpadsensitivity
Fn+F9 return
to main page
Fn+F8to browser
home page
F8 F9
ECS
CTRL+ALT+DEL
FN+ Enter
To Operate CTRL+ALT+DEL
Change directions
of cursor Fn+Esc Mute Fn+F4
F4
Remark:If you need to operate blue characters please
press key FN + blue character
2 Appearance
2

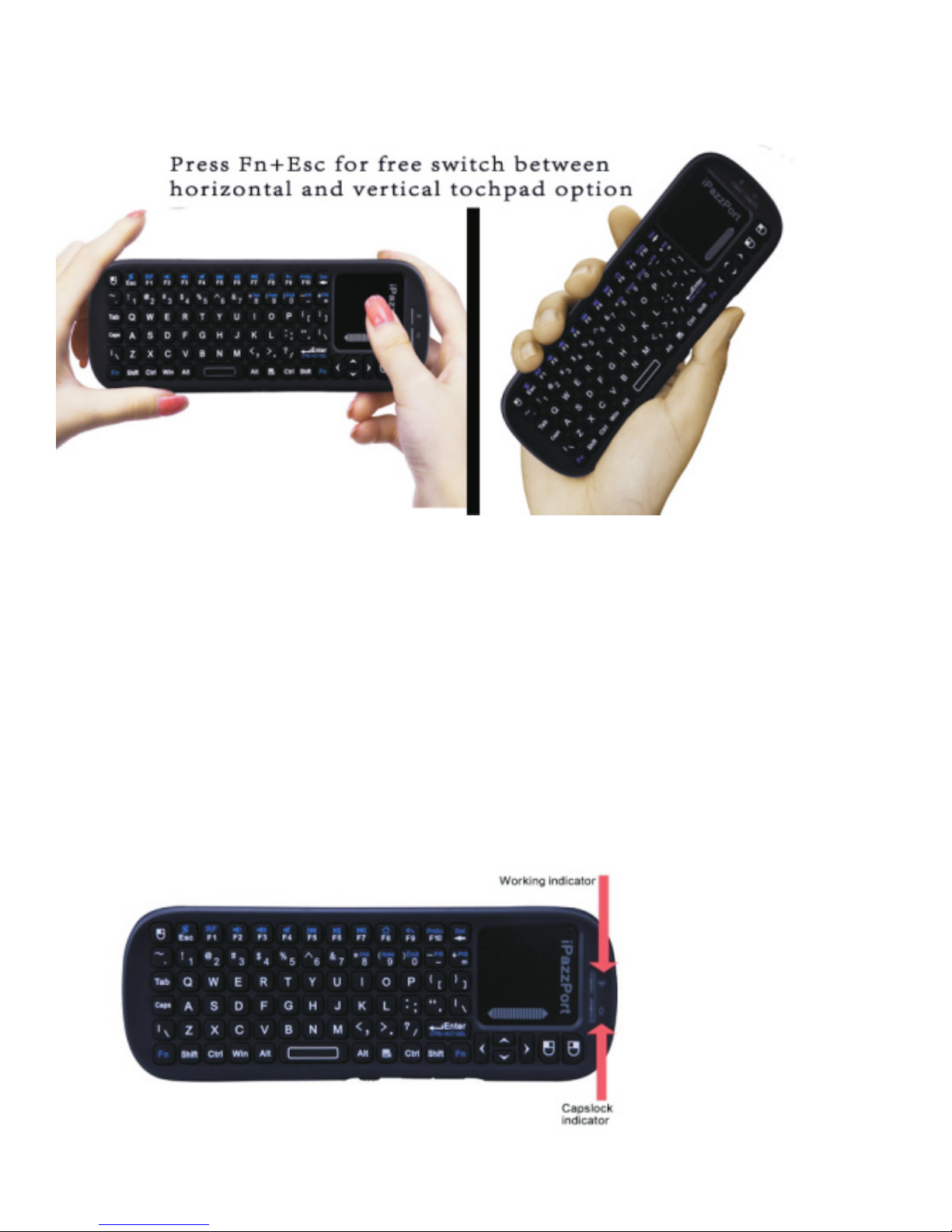

2.2 Switch in vertical/horizontal use
2.3 a bout the indicators
(1)when you power on the keyboard both of the indicator will blink
two or three times and then go off.
(2)the working indicator resonates with every action on the key or
on the touch pad
(3) The steady blue Capslock indicator implies the letters you are
inputting is in capital mode(one click on the key”Capslock to switch)
(4) unexpected blinks under inactivity means a low voltage. please
remove the back cover to replace with two new batteries.
5
3

1.5V
(2).Take USB Dongle out
USB Dongle
Battery
3 How to use the keyboard:
3.1 how to start it
Battery cover
(1).Remove battery cover
to install two AAA battery
(3).Plug USB into any
USB port of your device
(Raspberry Pi/Smart TV/PC)
dongle
Power Switch
(4).Turn the unit on by switching
the power switch to on
(The LED would be flashing
then go out )
(5)The connection is successful, slide your finger on
touchpad, you can see the cursor moving on the screen
4

The touchpad supports gesture recognitions:
Touchpad
Function
Mouse
Function
Finger
Gesture
Finger
Action Remark
Moving Move
Cursor Slide one finger
on the touchpad
Tap the touchpad
with two finger
simultaneously
Middle
botton
click
Scroll
middle
key
Middle
botton
click
Vertical
two finger
scroll Slide two finger
vertically
Zoom in or out
the picture when
view pictures
Scroll pages
quicky when
browse website
Scroll
upward
Scroll
downward
3.2 to use the touchpad
Another form for more details
Attention:
(1) Please refer to the picture in page 2 for more intuitive demonstration
(2) The main function of the touchpad is to move the cursor, select
and confirm the item
(3) copy/ pasty and other functions can be available in the help of the
left/mouse mouse key
5

the following are some common problem and useful tips . You can
also email us or leave messages on our social platform by searching
ipazzaportfans on facebook, twitter, YouTube, Google+
4.1 No response on the keyboard
(The USB receiver has be paired with the keyboard in factory ) it is
much easy to connect it with other device through USB (plug and play )
and you don't have to pair it next time for its auto memory function.
Please follow the steps below if you fail to connect it with other device
(1) to make sure the USB receiver is not loose in the USB port
(2) to make sure the keyboard is not in low power capacity
(3) to make sure the keyboard is powered on
(4) to make sure the PC is not too old-fashioned to recognize the USB
Useful tips:
(1) pull out and plug the USB receiver into the USB port and wait for
a few seconds(It will take the PC some seconds to recognize the
USB receive
(2) If one of the indicators blinks even without any operation on the
keyboard ,the keyboard is in low power capacity .Please replace
the batteries timely
(3) please switch the power button to the position “on” ( a blue light
will blink several times and then go off)
(4) to check out if the system requirement of the keyboard is
compatible with the PC
Attention :
Please turn to the last resort if all the tips above fail (Your PC has
recognized the USB receiver but still no response on the screen after
you power on the keyboard and slide on the touchpad, which means
the USB doesn’t pair with the keyboard in advance.) : pull out and
plug in the receiver in the PC USB port and press ‘Fn+F1” as soon as
you can. When the indicator goes off, the keyboard will recognize the
USB successfully.
4 Troubleshooting:
6

4.2 bad and interrupted connection
This may result from these reasons below that you should check
out:
(1) Please make sure the resource signal is strong enough and
both the devices are in good condition.
(2) Frequency interference always exists ,but we could still do
something is to reduce it to the bottom by shutting off some
other unnecessary units around ,or putting the keyboard
closer to the PC or TV box.
(3) Make sure your keyboard are not in low power capacity status
(4) Signal strength may result from some stuffs between the
keyboard and PC, so just put away the suspected stuffs
between each other.
(5) To reduce the frequency interference from the PC itself, you
may plug the USB receiver into the port of an external cable
USB port instead of directly in the PC USB port.
(6) to make sure the keyboard is compatible with the PC by
referring to the system requirement of the keyboard
(7) the signal may be interrupted by uncertain reasons ,you may
pull out the USB receiver or turn off the keyboard to restart the
basic connection from beginning.
(8) The keyboard have an automatic sleep and wake mode to
prolong the standby time, you may click any key to wake it up
before you slide or click on the touchpad
.
.
7

4.3 weird touchpad
(1) About the touchpad sensitivity: You may adust the touchpad
sensitivity by press the key “Fn” and the spacebar between
the key “AIT” and “AIT ” ( two levels are available )
(2) Touchpad performance is confined to the wireless connection,
so you make sure the signal and wireless connection are in good
condition.(you may refer to the troubleshooting part “ the bad
connection”)
(3) Please refer to the basic gesture recognitions we stated in the
page 7 ( how to use the touchpad)
(4) please slide or click on the right place and with correct
gestures,
(5) We produced a specific article to solve problem about the
touchpad which contains more detailed descriptions and tips ,
please refer to our official site---news– ‘How to make best of
the touchpad and scrollbar on mini keyboard ?”
-http://ipazzport.com/en_article.asp?id=19
(6) Please keep our thanks card or download the latest user manual
or email us or visit and leave messages on our social platform by
searching ipazzportfans
4.4
The multi media keys can't work
Update player version or install relevant driver.
Attention.
Other needs beyond above query, please contact with below
email to get support. email: All
questions would be answered within 2 business days.
[e-mail]
8

5 FAQ
1) Will this work with my Android smart tv?
Answer: Sure. As a matter of fact ,this device works well for almost
all the devices with USB port.
2) I got a cable but it doesn't have a slot to charge it, any idea?
Answer:That is a USB connector extender. It's battery operated.
3) Does it work for ios
Answer:This mini wireless keyboard can support
-Windows/ ios
-Linux/Mac OS
-Android/Google/Smart TV OS
4) Is there a Blutooth version?
Answer: This product is USB version. The following is the link to a
Blutooth one: https://www.amazon.com/iPazzPort-Wireless-Bluetooth-
Raspberry-KP-810-19BT/dp/B01CE8F7YO
5） Will it work with a DVD player?
Answer:
As long as it support standard USB port.
6) Can we speed up the scroll speed? So slow!
Answer:
hi, press Fn+space key to adjust the speed.
7) How to set the track pad in vertical, like a remote ?
Answer:
Press FN+Esc” for free switches between vertical trackpad mode
and horizontal mode.
8) How to browse up /down the page with this keyboard?
(1)Slide in the middle of the touchpad to move the cursor
(2)Slide on the scrollbar to browse up/down
(3)Press the key page up/down to browse the previous/next page.
9

6 Safety matters and maintenance :
1).Don’t drop this keyboard into water .Never expose it to the sunlight
or the fire .
2). please turn off the keyboard in hospital ,airport and gas station.
3) never use it while driving .
4)please take out the battery if you keep it in standby time for a
long time.
5) please shut off other unnecessary devices to abate frequency
interference .
6) handle it gently and put it beyond infant’s reach.
7) please contact us if you have any question with this product.
8) Never take apart the unit without permission in case of unexpected
damages to the keyboard that results in invalid warranty
7 warranties and support :
1) Your suggestion , feedback are important for us to better products
and service in the future.
2) The warranties is in line with the business standard and Amazon
platform rules
3) warranties may not apply to all cases ,it depends on some other
factors like the way you use, the place you buy from, the time you
keep it ,etc.
4)Please contact us for helps and warranty in valid period. Please email
us at [e-mail] if you have any question
5) please make clear the full name of the product and the question so
that we can support you more effectively.
6)Please keep on eye to our product updates (version, software, useful
tips) on our official site and social platform ( search iPazzPortFans
on facebook, twitter, Google+, etc)
7) Please share your reviews on Amazon or other platform if you like this
product . Please email us or leave messages on our social platform if
you have any question, suggestion ,complaints with our product and
service.
10

8 WEEE Directive & Product Disposal
At the end of its serviceable life,
this
product should not be treated as household
or general waste.
It should be handed over to the applicable
collection point for the recycling of electrical
and electronic equipment, or returned to
the supplier for disposal
Notice to customer:
This symbol on the battery indicates that
the battery is to be collected separately.
The following apply only to users in
European countries.
This battery is designed for separate
collection at an appropriatecollection point.
Do not dispose of as household waste
 For more information, contact the retailer
or local authorities in charge of waste
management.
Caution :
Changes or modifications not expressly approved by the
dealer or fulfillment platform may damage this device
or invalid the after-service warranty.
11
