iPega PG-SW035 User manual

N.S音频转换器
产品说明书(PG-SW035)

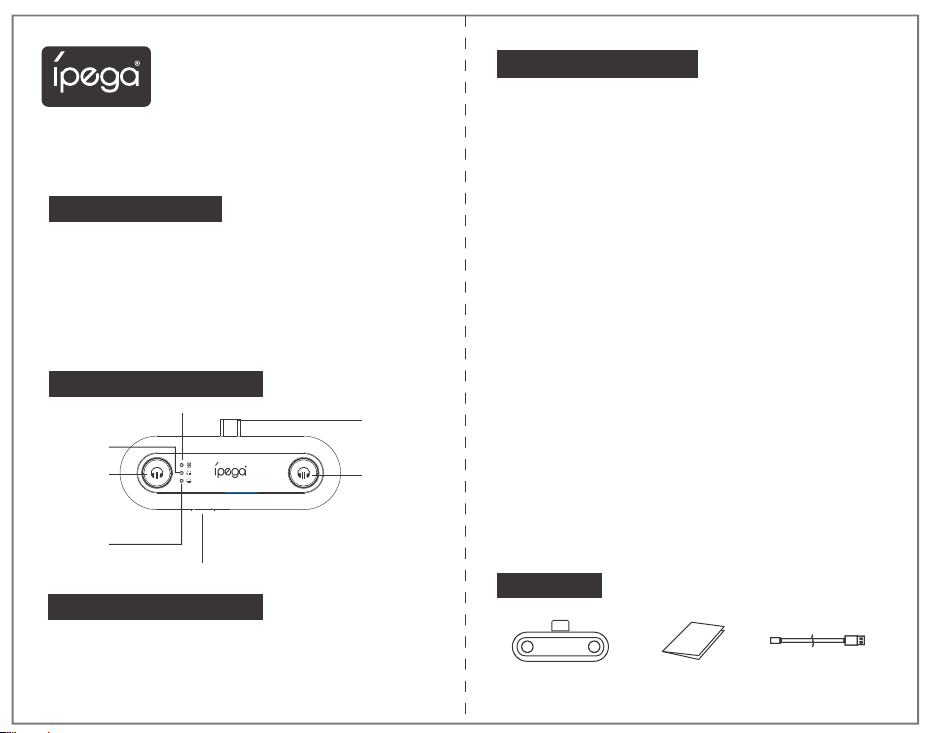

产品图示：
产品使用说明:
①打开BT耳机/音箱，使其进入被搜索连接状态；
②将产品直接接入N.S主机或者通过USB-TYPE_C转换线接入P4主机；
③搜索配对BTⅠ设备：
首次连接的BT耳机/音箱，需长按BTⅠ按键2秒，蓝灯Ⅰ快闪提示，产品自动
进行搜索配对，连接成功后，蓝灯Ⅰ常亮指示；
④搜索配对BTⅡ设备：
首次连接的BT耳机/音箱，需长按BTⅡ按键2秒，蓝灯Ⅱ快闪提示，产品自动
进行搜索配对，连接成功后，蓝灯Ⅱ常亮指示；
⑤回联BT设备：
已经被搜索配对过的BT耳机/音箱，只需将产品接入后自动回联即可。回联搜
索时，蓝灯慢闪，连接设备成功，蓝灯常亮；
⑥如果产品已经连接过某些设备，再连接其他新的设备时，需要长按BTⅠ按
键7秒以清除之前的连接信息，如此可以快速成功配对新设备；
⑦BTⅠ按键有开启/关闭BT功能，短按可开启/关闭产品BT；
⑧电源适配器或者移动电源可以通过本产品的TYPE-C接口为主机充电，兼
容TYPE-C/PD 协议，可以适用5V和15V快充充电，进行充电的同时产品也可
以工作，通过产品向游戏主机充电时 红灯亮；
注：同时连接两组BT时需要两组BT同解码率类型或者两个完全相同的BT音
箱、耳机）；
电性参数：
配件清单：
输入 5V/2.0A和15V/2.6A 输出 5V/1.5A和15V/1.0A
协议标准 TYPE-C/PD 协议 BT版本: 4.2 /CSR8670
频率范围 2.402GHZ - 2.480GHZ 传输距离: 无障碍传输10米
产品特点:
1.本产品适用于对N.S/ N-SL/ P4主机提取音频并通过无线连接到
无线耳机/音箱播放声音；
2.支持通过TYPE-C/PD 协议对N.S主机进行15V快速充电；
3.体积小，使用方便；
4.支持连接单个BT耳机或者同时连接两个BT耳机使用；
TYPE-C插头
TYPE-C接口
BT连接键2
BT连接
指示灯2
充电指示灯
BT连接
指示灯1
BT连接键1
USB-C to USB-A 线 x 1音频转换器 x 1 说明书 x 1

N.S Audio Converter
Product Manual (PG-SW035)
Product Features:
Product Diagram Show:
Electrical Parameters:
1. This product is suitable for extracting audio from N.S/N-SL/P4
console and playing sound through wireless connection to
wireless headsets/speakers;
2. Support 15V fast charging of N.S console through TYPE-C/PD
protocol;
3. Small size and easy to use;
4. Support to connect a single BT headset or connect two BT
headsets at the same time;
Charging indicator light
TYPE-C plug
BT connection
button 2
Audio Converter x 1 Manual x 1 USB-C to USB-A cable x 1
TYPE-C interface
BT connection
indicator light 1
BT connection
indicator light 2
BT connection
button 1
Input: 5V/2.0A and 15V/2.6A
Protocol standard: TYPE-C/PD protocol
Frequency range: 2.402GHZ-2.480GHZ
Output: 5V/1.5A and 15V/1.0A
BT version: 4.2 /CSR8670
Transmission distance: 10 meters
barrier-free transmission
Product Instructions:
1.Turn on the BT headset/speaker to enter the searched connection state;
2.Connect the product directly to the N.S console or connect to the P4
console through the USB-TYPE_C conversion cable;
3.Search for the paired BTⅠdevices:
For the first connected BT headset/speaker, press and hold the BTⅠbutton
for 2 seconds, the blue light 1 flashes quickly, and the product will automati-
cally search for pairing. After successful connection, the blue light 1 will
always be on;
4.Search for the paired BTⅡdevices:
For the first connected BT headset/speaker, press and hold BTⅡbutton for
2 seconds, the blue light 2 flashes quickly, and the product will automatically
search for pairing. After successful connection, the blue light 2 will always
be on;
5.Back connection BT devices:
For BT headsets/speakers that have been searched for and paired,
connect the product and automatically connect back. The blue light flashes
slowly during the back-connection search, and after the device is success-
fully connected, the blue light will always be on;
6.If the product has been connected to some devices, when connecting to
other new devices, press and hold the BTⅠbutton for 7 seconds to clear the
previous connection information, so that the new device can be successful-
ly paired quickly;
7.The BTⅠbutton has the function of turning on/off BT, short press to turn
on/off the product BT;
8.The power adapter or mobile power supply can charge the console
through the TYPE-C interface of this product, compatible with the
TYPE-C/PD protocol, and applicable for 5V and 15V fast charging. The
product can also work while charging, and the red light will be on when
game console is charged through the product;
Note: When two groups of BT are connected at the same time, two groups
of BT shall have the same decoding rate type or two identical BT speakers
and headsets are required);
Parts List:
