ipf electronic BA870100 User manual

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 1
BA870100
MEASURING TRANSDUCER
Manual

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 2
Table of contents
1. General Safety Information............................................................................................................. 3
2. Intended use.................................................................................................................................... 3
3. Technical Data ................................................................................................................................. 4
4. Installation....................................................................................................................................... 4
5. Connection ...................................................................................................................................... 5
6. Assembly.......................................................................................................................................... 6
7. Menu structure................................................................................................................................ 6
8. Configuration / Settings................................................................................................................... 7
8.1 Output ............................................................................................................................................. 8
8.1.1 Time function................................................................................................................................... 9
8.1.2 Switching points ............................................................................................................................ 10
8.1.3 Extended function ......................................................................................................................... 11
8.1.4 Assign inputs.................................................................................................................................. 12
8.2 Input .............................................................................................................................................. 13
8.2.1 Input selection............................................................................................................................... 13
8.2.2 Unit ................................................................................................................................................ 14
8.2.3 Factor............................................................................................................................................. 14
8.2.4 Offset ............................................................................................................................................. 15
8.3 Settings .......................................................................................................................................... 15
8.3.1 Language........................................................................................................................................ 16
8.3.2 Color selection ............................................................................................................................... 16
8.3.3 Display brightness.......................................................................................................................... 17
8.3.4 Shutdown timer............................................................................................................................. 17
8.3.5 Code............................................................................................................................................... 18
8.4 Mathematical function .................................................................................................................. 18
8.5 Analog output................................................................................................................................ 20
8.5.1 Assign input ................................................................................................................................... 20
8.5.2 Limit values.................................................................................................................................... 20
8.5.3 Current interface ........................................................................................................................... 21
8.6 Teach ............................................................................................................................................. 21
8.7 Factory setting............................................................................................................................... 22
9. Error messages .............................................................................................................................. 22
10. Cleaning, care and maintenance instructions ..........................Fehler! Textmarke nicht definiert.4

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 3
1. General Safety Information
This description is an essential part of the device and contains important information on installation, function
and operation. Non-observance may result in damage to or impairment of the safety of persons and systems!
Before using the device for the first time, please read this description carefully and observe all safety and
warning notices! Keep this description for future reference.
The prerequisite for using this device description is a corresponding qualification of the respective personnel.
The device may only be installed, configured, commissioned and serviced by a trained electrician.
Exclusion of liability: The manufacturer is not liable for any personal injury or damage to property that occurs
due to improper installation, commissioning, operation and maintenance as well as due to human
misinterpretation or errors in this device description. In addition, the manufacturer reserves the right to
make technical changes to the device or the description at any time - even without prior notice. Possible
deviations between the device and the description cannot therefore be ruled out.
The safety of the plant or the overall system in which this device is integrated is the responsibility of the
person setting up the plant or the overall system.
All general country-specific and application-specific safety regulations and standards must be observed and
followed during installation, operation and maintenance work.
If the device is used in processes in which a possible failure or incorrect operation can result in damage to
the system or personal injury, then appropriate precautions must be taken to safely avoid such
consequences.
2. Intended use
This device is intended exclusively for use in industrial machines and systems. Any other uses do not comply
with the provisions and are the sole responsibility of the user. The manufacturer is not liable for damage
caused by improper use. The device may only be properly installed and used and operated in a technically
perfect condition - in accordance with the technical data. The device is not suitable for explosion-proof areas
and areas of application that are excluded in DIN EN 61010-1.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 4
3. Technical data
Mechanical properties
Mounting type DIN rail mounting
Height 58mm
Width 53.5mm
Length 107mm
Housing fire-classified according to UL94V-0
Protection class (IP), front side IP20
Storagetemperature -25 - 70°C
Ambient temperature -20 - 60°C
Protection class (IP) IP20
Electrical properties
Rated control voltage Ubat DC 18 … 30V
Voltage type DC
No-load current 70mA
Max. current via the terminals (Uband GND) 1A
Execution of the electrical connection Screw terminal
Short-circuit proof yes
Reverse polarity proof yes
Number of switching outputs 4
Design of the switching output PNP/NPN
Execution of the switching function Programmable / configurable (PNP/NPN; no/nc)
Rated switching current 150mA
Voltage drop 2V
Execution of the analog inputs 0 …. 10 V / 4 … 20 mA / 0 … 20 mA
Resistance of the voltage input 20kΩ
Resistance of the current input 50Ω
Analog output design 0 … 10 V / 4 … 20 mA / 0 … 20 mA
Analog output, Voltage, min. load 10 … 75kΩ
Analog output, Current, max. load 100Ω
Accuracy of the analog output ± 3%
Relative measurement accuracy ± 2%
Setting procedure Parameterization
Response time 300ms
Display LCD, colour
Digital resolution 12-Bit
4. Installation
The device may only be installed and operated in an environment that corresponds to the permissible
temperature range. Ensure adequate ventilation and avoid direct contact of the device with hot or aggressive
gases or liquids.
The unit must be disconnected from all voltage sources before installation and maintenance work. It must
also be ensured that no danger can arise from contact with the disconnected voltage sources.
Devices that are supplied with AC voltage may only be connected to the low-voltage network via switches or
circuit breakers. This switch must be placed near the device and be labeled as a disconnecting device.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 5
Incoming and outgoing lines for extra-low voltages must be separated from dangerous, current-carrying lines
by double or reinforced insulation.
All cables and their insulation must be selected so that they correspond to the intended voltage and
temperature range. In addition, the device-specific and country-specific standards that apply to the cables in
terms of structure, form and quality of the cables must be observed.
Before commissioning, all connections respectively cables must be checked to ensure that they are firmly
seated in the screw terminals. All screw terminals (also unused) must be turned to the right as far as they will
go and thus securely fastened so that they cannot come loose in the event of shocks and vibrations.
About the installation situation, wiring, ambient conditions as well as shielding and earthing of supply
lines, the general standards for control cabinet construction in the machine industry apply.
5. Connection
Screw terminal designations
Connection diagram
1
+Ub
9
+Ub
2
Teach input
10
GND
3
GND
11
Analog output I
4
GND
12
Analog output U
5
Input I2
13
Switching output 1
6
Input I1
14
Switching output 2
7
Input U2
15
Switching output 3
8
Input U1
16
Switching output 4
PNP NO / NC switchable
PNP NO / NC switchable
PNP NO / NC switchable
PNP NO / NC switchable

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 6
6. Assembly
The BA870100 can be mounted on a top-hat rail using two spring clip holders on the rear.
7. Menu structure
OUTPUT
START MENU
Output function
Time function
Switching points
Advanced function
Assign inputs
Input
Input 1
Settings
Language
Display brightness
MATHEMATICAL
FUNCTION
ANALOG OUTPUT
TEACH
FACTORY SETTING
Color selection
Input 2
Shutdown Timer
Code

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 7

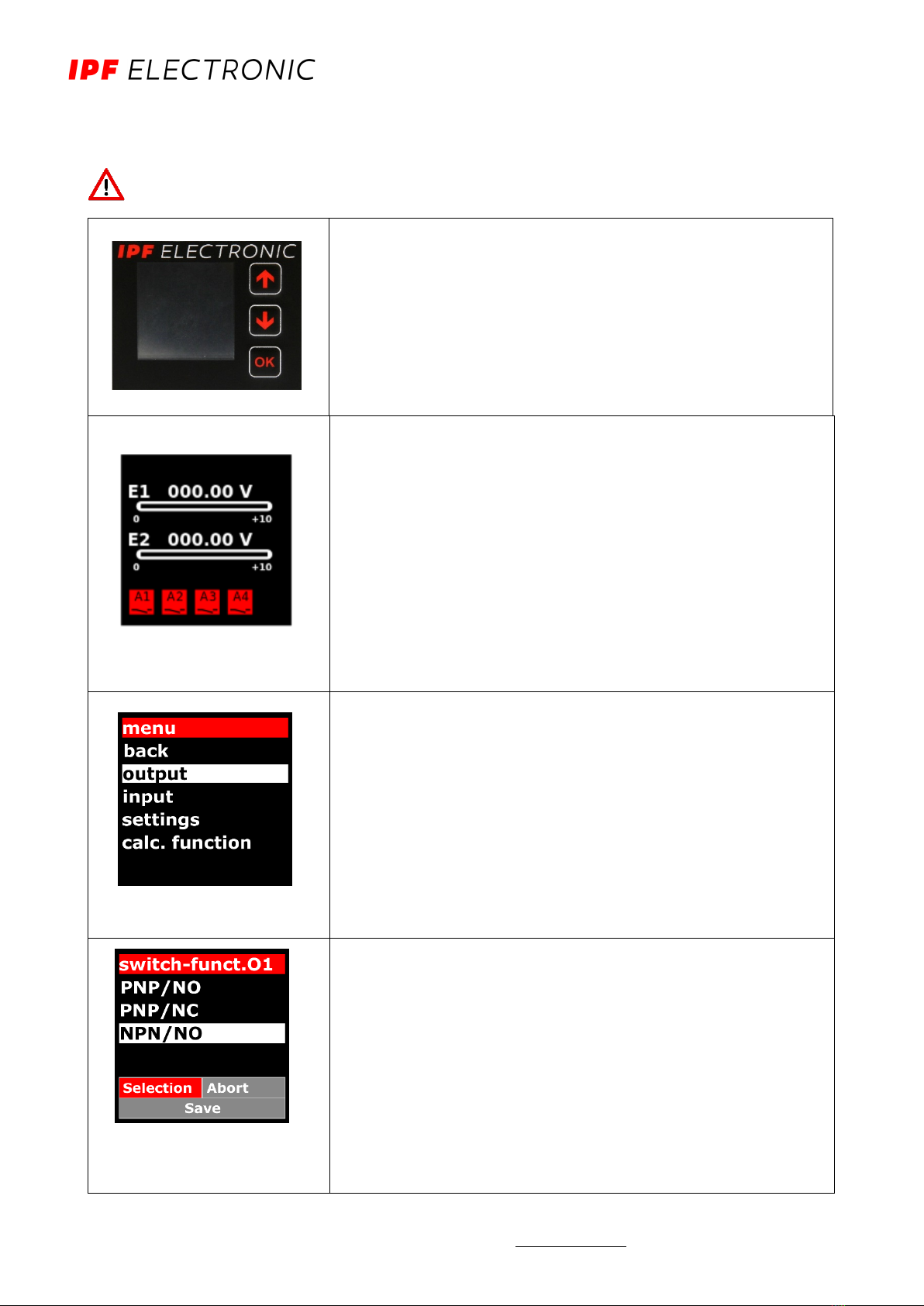

8. Configuration / Settings
Always return to the start display after configuration and saving has been completed!
Otherwise, the changed values are not completely adopted.
The BA870100 is operated using 3 push buttons on the front foil.
An up and a down arrow key (up / down) to scroll through the menu
items and an "OK" key to confirm changes to the settings and as a
return key to jump back to previous menu levels.
The start display shows the graphic opposite with the current input
values and the 4 outputs E1 to E4, which are highlighted separately in
color (red, yellow, green, blue) depending on the programmed
presetting.
Whether a teach function (see 8.6) is activated is indicated by a "T" in
the lower display line on the right. To the right of the lowered line, the
feature that has been taught is also displayed, e.g. E1 for input 1 (TE1).
The configured unit (here V) is displayed both numerically and as a
graphic level (see figure).
By pressing the "OK" button, you enter
the basic menu of the
programming area.
Selection menu 1
In such a selection menu, you select the feature to be programmed.
Use the arrow keys to scroll down or up, the current line is highlighted
in white. By pressing "OK" takes you to the next menu level. Due to the
compact display size, some features are hidden and only become
visible by scrolling up or down.
The first line of a selection menu is always "Back". If this is highlighted
in white, press "OK" to switch back one level at the time until the start
display appears again.
Selection menu 2
In this menu type you change the programming. First, the current
setting is displayed. With the arrow keys you can only select the fields
below.
To change the function, make sure that "Selection" is highlighted in
white. Press "OK" - the background color changes from white to red.
Now you can use the arrow keys to select the desired function. Only
three functions are displayed at the same time. If further functions are
available, these can be viewed by scrolling up or down.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 8
The function you selected is now highlighted in white; when you press
"OK", the background color of "Selection" changes back to white. Now
scroll with the arrow buttons to "Save" and press "OK". The selected
function is saved.
If you "Cancel", the original function remains active.
Input menu
You are expected to enter numbers in an input menu. Here, too, the
current setting is initially displayed. With the arrow keys you can only
select the fields below.
If "Input" is highlighted in white, press "OK" - the background color
changes from white to red. At the same ti
me, the first field is
highlighted in red and the numerical value it contains can be changed
using the arrow keys. The next position is selected by pressing "OK". If
all the numbers have been changed as required, press "OK" and the
background color of "Input" changes back to white.
Using the same procedure, you can change the sign by selecting "+/-"
or set and move a decimal point by selecting "Dec. point".
If you scroll to "Save" after making the entry and press "OK", the new
numerical value is saved. If you press "Cancel", the original value
remains active.
8.1 Output
To configure the outputs, select "output" in the basic menu and
confirm with "OK".
The functions of the switching outputs can be individually adjusted in
the "output function" menu.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 9
Select the desired switching output here. After pressing "OK" the
following display appears:
The functions PNP / NPN and no / nc (normally open / normally closed)
are available for each switching output.
The programming is carried out as described under "Selection menu 2".
8.1.1 Time function
In the "time function" menu, a switch-off or switch-on delay can be
programmed for each switching output.
Switch-on and switch-off times in the range from 0.1 to 99.9s can be
programmed for each output. The current settings are visible on the
display.
off -> no time delay
off-d -> switch-off delay
on-d -> switch-on delay
Select the desired switching output and press "OK". The following
window will appears.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 10
Select the desired function as described under "Input menu 2".
After saving, the following display appears:
Enter the desired delay time as described under "input menu".
8.1.2 Switching points
In the "switching points" menu, switch-on and switch-off points can be
set for each switch output. These refer to the values of the assigned
input.
Select the desired switching output.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 11
This selection menu depends on the selection made under "Extended
function".
Either "switch-on point / hysteresis" or "switch-on point / switch-off
point" appears.
Enter the values for the switch-on point and hysteresis or the switch-
on point and switch-off point, if necessary also change the sign and the
decimal point as described under "input menu".
8.1.3 Extended function
In the "Extended function" menu, you specify how the switching output
should react to the assigned input.
The current function and the assigned input are displayed.
Select the desired switching output and confirm with "OK", the
following input menu appears.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 12
In this menu field, one of the 3 adjacent functions can be assigned for
the selected output:
Limit value: Measured value that should not be exceeded.
The switching output above this switching point
is active.
Two-point: Enter a switch-on and a switch-off point here. The
value of the switch-on point must be greater than
that of the switch-off point. If the actual value rises
above the switch-on point, the switching output is
active. If the actual value falls below the switch-off
point, the switching output is deactivated.
Window function: Definition of a switching window with switching
point and hysteresis. If the current measured value
is within the "switching point plus hysteresis" range,
the switching output is active.
Select the desired function as described under "input menu 2".
8.1.4 Assign inputs
Under "assign input" you specify the analog input to which a switching
output should react.
The current function and the assigned input are displayed.
Select the desired switching output and confirm with "OK", the
following input menu appears.
In this menu field, input 1, input 2, or the calculated value of both
inputs (see math. function) can be assigned for the selected output.
Select the desired input as described under "input menu".

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 13
8.2 Input
The analog inputs are configured in the "input" menu. Select "input" in
the basic menu and confirm with "OK".
In the menu level "input" select "input1" or "input2" for the respective
programming.
The following example shows the other programming levels for input
1.
Input 2 is programmed in the same way.
8.2.1 Input selection
In the input 1 menu, select "input selection 1"
Select the analog voltage or current input range here as described
under "input menu 2".
The unit displayed in the start menu is initially determined
automatically by this selection:
Input 0-10V: unit "V"
Input 0-20mA: unit "mA"
Input 4-20mA: unit "%"

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 14
8.2.2 Unit
You can customize the displayed unit in the start display. Press "OK" to
select or configure the unit.
Either select one of the predefined units (mA, V, %) or program a freely
selected unit designation via "input unit". A defined number of ASCI
characters is used as a default selection.
The unit is selected as described under "Selection menu 2".
If you select "input unit", the following input field appears immediately
after saving.
The currently programmed unit is displayed.
Enter the desired unit here as described under "input menu".
8.2.3 Factor
For an improved representation of the display values, a multiplier
value can be set via the menu item "factor".
The possible range of values is between -5 and +5.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 15
Enter the desired factor, if necessary also change the sign and the
decimal point as described under "input menu".
8.2.4 Offset
In the menu item "offset", any necessary zero point adjustment
between the input and output voltage can be made. The possible range
of values is from -20 to +20.
Enter the desired value, if necessary also change the sign and the
decimal point as described under "input menu".
8.3 Settings
The BA870100 can be adjusted according to your requirements under
"settings".

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 16
8.3.1 Language
In addition to German, English, French and Spanish are available as
menu languages.
Select the desired language as described in "Selection menu 2".
8.3.2 Color selection
In the "color selection" menu, background
colors can be assigned for the fields of the
switching outputs in the start display (see
page 6).
Select the desired color as described under "Selection menu 2".
The colors for "output off" and "timer" can be programmed in the same
way.
Note: A different color must be programmed for each function
(on, off, timer) within a switching output.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 17
8.3.3 Display brightness
The display brightness can be set in this menu item.
There are 3 display brightness levels available.
Select the desired brightness as described under "Selection menu 2".
8.3.4 Shutdown timer
This option is used to ensure that the display does not remain switched
on unnecessarily after programming / operation has been completed.
The function is therefore only active in normal operation (start display).
The three times indicated are available. If you want the display to be
constantly active, select "off".
The selection is made as described under "Selection menu 2".

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 18
8.3.5 Code
To protect the programming against unauthorized access, the
transducer can be locked with a freely selectable code.
After pressing "OK", "Selection" changes from white to red and the
code lock can be activated or deactivated.
Select the desired function as described under "Selection menu 2".
If you select "code on", the following input menu appears after saving.
Enter the desired number sequence as described under "input menu".
Important note: When the code is on, you can only access the
programming levels from the start display by entering
the code. If this is no longer known, you must reset
the device to the factory settings.
8.4 Mathematical function
In the "calc. function" menu, you can perform a calculation for both
analog inputs and display them in the start display.
The requirement
for this is that both inputs have the same
configuration.

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 19
To select the function, press "OK".
There are 3 mathematical functions available for the input signals:
Sum function
•Addition of Input 1 and Input 2
Difference function
•Subtraction Input 1 from Input 2
•Subtraction Input 2 from Input 1
After activation, the mathematical function is also shown in the start
display.
Make your selection as described under "Selection menu 2".
As for the inputs, you can also customize the unit displayed in the start
display for the selected calc. function. Press "OK" to select or configure
the unit.
The further input is made as described in Chapter 8.2 or under
"Selection menu 2".

MANUAL • Subject to alteration! Version: November 2021
ipf electronic gmbh │ Rosmarter Allee 14 • 58762 Altena • Germany │ Tel [phone] • [e-mail] •www.ipf-electronic.com 20
8.5 Analog output
The analog output can be configured in the menu level "analog output".
8.5.1 Assign input
In this menu field, input 1, input 2, or the calc. function (the calculated
value of both inputs) can be assigned for the analog output.
The input is made as described in chapter 8.1.4 (Assigning inputs) or
under "input 2".
8.5.2 Limit values
The measuring range of the assigned input can be limited in the menu
items "limit min" and "limit max".
If, for example, a sensor with 4-20mA is connected to input 1, this is
shown in the start display with 0-100%. The analog output of the
BA870100 is programmed as a voltage output 0-10V. If the value 5 is
entered for "limit min" and the value 75 for "limit max", the value 5%
of the input corresponds to 0V at the output and the value 75% at the
input 10V at the output.
The entry is made as described in chapter 8.1.2 (switching points).
