IQ Power Tools iQ426HEPA User manual

iQ426HEPA US
Parts Manual

M-iQ426HEPA-001-PM032020

iQ426HEPA
Parts Manual
888-274-7744
www.iqpowertools.com 1
See page 4
See page 6
FRONT ANGLED VIEW
See page 12
See page 10

iQ426HEPA
Parts Manual
2

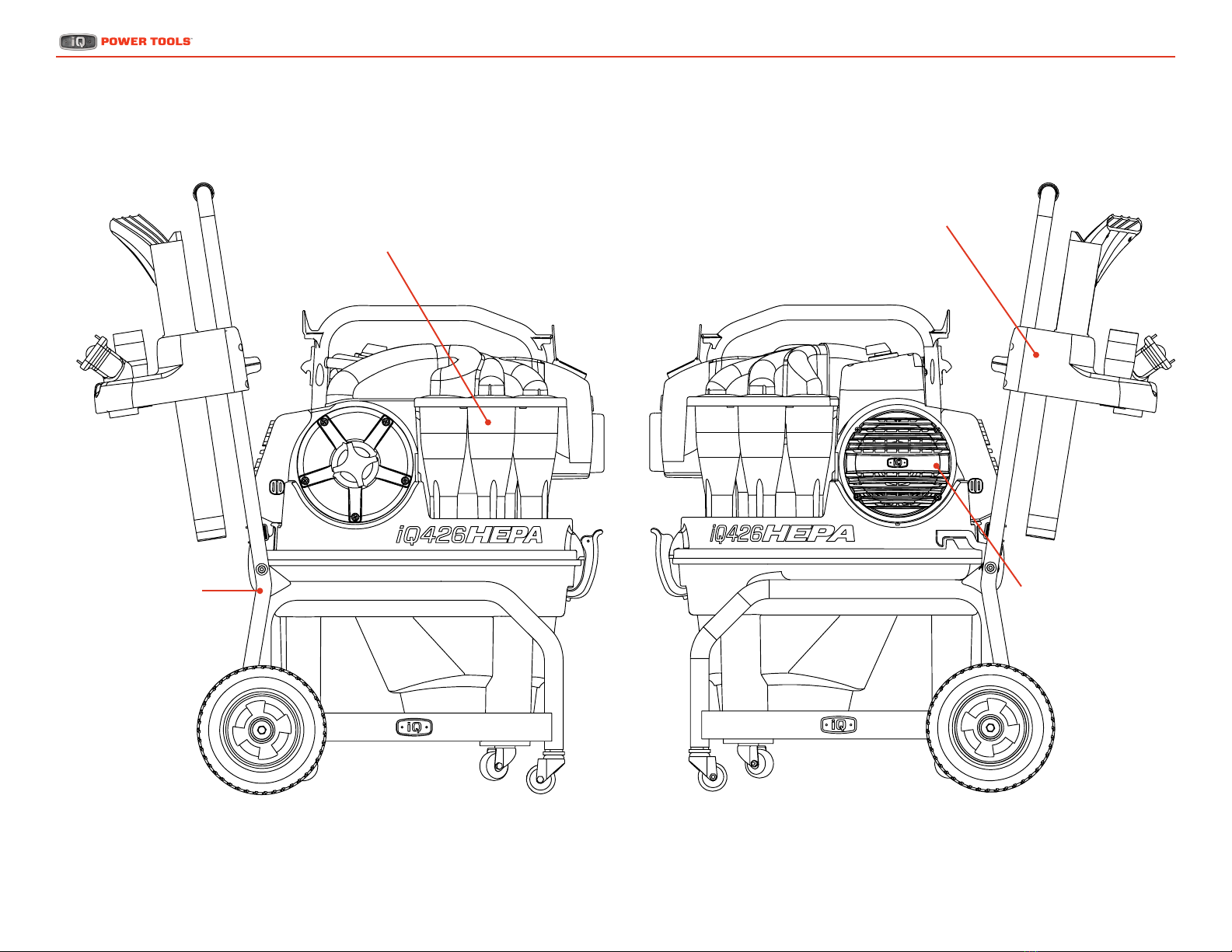

SIDE VIEWS VACUUM SYSTEM VIEW
See page 14
See page 8
See page 12
See page 6

iQ426HEPA
Parts Manual
888-274-7744
www.iqpowertools.com 3
VACUUM SYSTEM VIEW
See page 12
See page 4
See page 10

66 (2)
65 (2)
64 (2)
62
63
16 (2)
15 (3)
14(6)
13
12
11 (2)
10.1
10
8 (6)
9
7
6
110
26 (2)
27
28
29
30
31
101
21
810
22
809
32 (4)
23
25
24
96
20
19 (2)
18 (2)
iQ426HEPA
Parts Manual

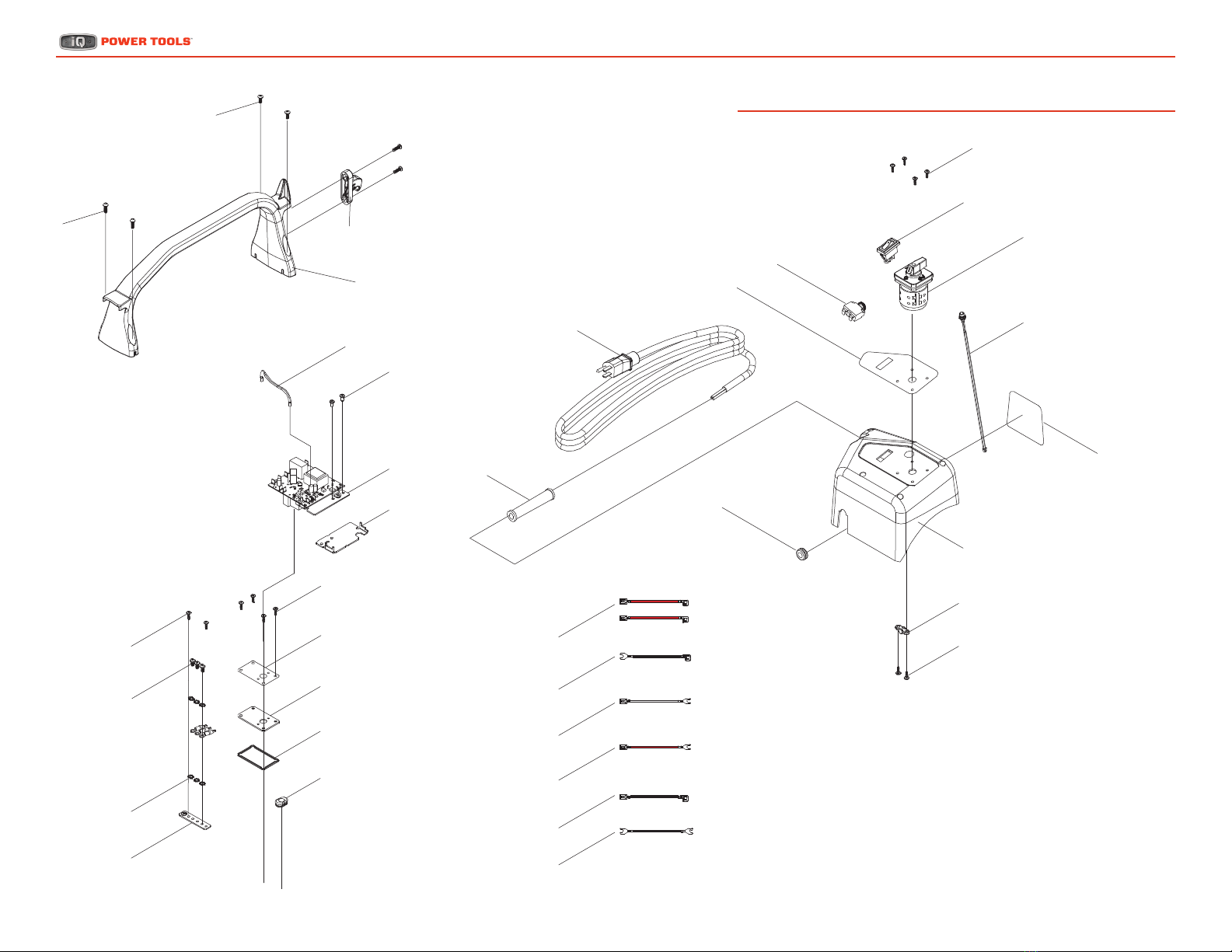

HANDLE AND CONTROL BOX
4

iQ426HEPA
Parts Manual
888-274-7744
www.iqpowertools.com
HANDLE AND CONTROL BOX
5
ASSEMBLY
KIT / SET ITEM NO QTY PART NO DESCRIPTION
K1
K1 1
0426-90001-01
Handle Kit
62 1 Main Top Housing Handle
65 1 Screw, M5x15mm
66 1 Screw, M5x16mm
K2
K2 1
0426-90014-01
Handle Hook Kit
63 1 Handle Hook
64 1 Screw, M5x16mm
22 1 0426-00022-01 Over Load Protector 15A
23 1 0426-00023-01 Mode Switch
24 1 0426-00024-01 On/O Switch
SET 32 4 0426-90041-01 Screw, M4 x 12mm
(Set of 4pc)
K9
K9 1
0426-90019-01
Power Cord Kit (120V)
21 1 Power Cord 10'
96 1 Wire Clip
101 1 Wire Sleeve
K11
K11 1
0426-90021-01
Control Box Kit
18 1 Screw, Pan Head, M4 x 12L
19 1 Wire Clamp
20 1 Control Box
25 1 HEPA Filter LED Indicator
K10
K10 1
0426-90020-01
PCB Wire Kit
26 2 Jumper Wire, Red
27 1 Jumper Wire, Black
28 1 Jumper Wire, White
29 1 Jumper Wire, Red
30 1 Jumper Wire, Black
31 1 Jumper Wire, Black
ASSEMBLY
KIT / SET ITEM NO QTY PART NO DESCRIPTION
K8
K8 1
0426-90018-01
PCB Board Kit
6 1 Gasket
7 1 PCB Heat Sink
8 1 Screw, M4 x 12mm
9 1 SIL-PAD 400
10 1 PCB Module (120v)
11 1 Tapping Screw, M4x8mm
12 1 Silicon Hose
110 1 Plug
K12
K12 1
0426-90022-01
PCB Screw Kit
13 1 Grounding Plate
14 6 Tooth Lock Washer
15 3 Tapping Screw
16 2 Screw, M4x12mm
17 1 Seal

47
46 (5)811 (3)
812
813
45 44
104
43 5
4 (5)
808
K5
804
806
805
1
807
814
36 (2)
39 (2)
37 (2)
38 (2)
2
58 (2)
57 (3)
56
53
54
59 (4)
60 61
55 (4)
314
40
41
42
3
A1
A2
iQ426HEPA
Parts Manual
VACUUM SYSTEM
6

iQ426HEPA
Parts Manual
888-274-7744
www.iqpowertools.com
VACUUM SYSTEM
7
ASSEMBLY
KIT / SET ITEM NO QTY PART NO DESCRIPTION
A1 A1 1 0426-25008-01 Vacuum Cyclone Assembly
K3
K3 1
0426-90015-01
Vacuum Inlet Kit
53 1 Vacuum Inlet
54 1 Vacuum Inlet Front Cover
55 4 Screw, M4x12mm
56 1 Vacuum Inlet Lower Cover
57 3 Screw, M4x12mm
58 2 Screw, M4x25mm
59 4 Screw, M4x12mm
60 1 Receptacle
61 1 Vacuum Inlet Top Cover
A2 A2 1 0426-25003-01 Vacuum Body Assembly
42 1 0426-00042-01 HEPA Door
41 1 0426-25002-01 Replacement HEPA Filter
K6
K6 1
0426-90017-01
Tub Latch Kit
34 2 Tub Latch Mount
35 2 Shaft
36 2 Handle Linkage
37 2 Tub Latch Shaft
38 2 Spring
39 2 Tub Latch
47 1 0244-00355-01 Filter Spin Handle
SET 46 1 0426-90043-01 Screw M5x15mm (Pack of 5)
K7
K7 1
0426-90038-01
Filter Cover Kit
44 1 Bushing
45 1 Filter Housing Cover
43 1 0426-25001-01 Replacement Vacuum Filter Kit, 8 x 6 Durabond Filter
70 1 0426-00070-01 Filter Tab
K5 K5
1
0426-90016-01
Valve Assembly
2 Valve Plate
8 Rivet
4 Valve Rib
2 Valve Door
1 Valve Board
6 Screw, M4 x 12mm
8 Flat Washer

230
226
223
218 (2) A
117 (5)
116 (5)
48 (5)
51 (4)
231
229
228
225
224
219 (2)
217
222
221
220
216
214
232 (2)
215
213
212 (4)
211 (4)
209
206 (2)
210 (4)
208 (2)
207 (2)
205 (2)
204 (4)
203
202
201
49
50
52 (4)
222
iQ426HEPA
Parts Manual
VACUUM MOTOR
8
A5
A7
