IQue Trinidad2200 User manual

Developed and Designed in Sweden by
IQue Sweden AB Grustagsgatan 13
254 64 Helsingborg Sweden
Here is your manual, please read and follow the instructions carefully
Diamond Version
www.iquehottubs.com
Ver.14.0 December 2013
Thank You for Choosing an IQUE Spa

Model2310 Ver.14.0
1
Table of Content
1. SAFETY INSTRUCTIONS___________________________________________2
2 WARNING!________________________________________________________4
3. HYPERTHERMIA__________________________________________________4
4. PRECAUTIONS____________________________________________________4
5. INSTALLATION DIAMOND GOLD FAMILY & SILVER SERIES __________6
6. ELECTRICAL SERVICE CONFIGURATION ___________________________8
7. INITIAL START UP& SPA COVER BASKET LIFTER___________________33
8. START UP & CARE________________________________________________35
9. WATER CHEMISTRY______________________________________________38
10. SPA MAINTENANCE_____________________________________________42
11.TROUBLESHOOTING ____________________________________________44
12. WINTER AND SUMMER INSULATION _____________________________45
13. IMPORTANT additional information_________________________________ 47
14. ADJUST THE DRAINAGE VALVE FOR BLOWER____________________50
15. HOW TO REPLACE THE JETS PUMPS AND CIRCULATION PUMP____51
Picture shows Model Trinidad2200

Model2310 Ver.14.0
2
PLEASE FILL IN THE INFORMATION BELOWAND KEEP FOR FUTURE REFERENCE
Do remember to study the warranty form sign it and give it to your dealer, warranty null and void if not the
warranty form has been signed.
Name of Purchaser
Date of Purchase
Address
City
State/Prov
Zip/Code
Spa model
Spa color
Spa serial #
Store Name
Telephone
Store Address
City
State/Prov
Zip/Code
Every effort has been made to ensure the accuracy of this manual. However, we reserve the right to modify and
improve our spa products without prior notice. This may result in minor variations between this manual and your
spa. Thank you.
SAVE THESE INSTRUCTIONS
1. SAFETY INSTRUCTIONS
IMPORTANT - READ, FOLLOWAND SAVE THESE INSTRUCTIONS
Read the entire manual and safety instruction before operating your Spa.
Follow these basic safety precautions when installing your spa.
(a) WARNING: Do not permit children to use this spa without close supervision at all times by an adult.
(b) DANGER: RISK OF ACCIDENTAL DROWINNG:
Exercise extreme caution when children using the spa. To avoid accidents or risk of drowning, ensure
children do not use this spa unless under direct and close supervision at all times by an adult.
!

Model2310 Ver.14.0
3
(c) DANGER: RISK OF INJURY:
The suction fittings included in this spa are designed to match the water flow of the pump. To ensure safety
and compatible flow rates, install the same model suction fitting or pump, in the event a replacement is
required.
CAUTION: NEVER OPERATE THE SPA IF THE SUCTION FITTINGS ARE BROKEN OR MISSING.
NEVER REPLACE A SUCTION FITTING WITH ONE RATED LESS THAN THE FLOW RATE MARKED ON THE ORIGINAL SUCTION
FITTINGS.
(d) DANGER: RISK OF INJURY:
When the spa jets are in use, suction through drains and skimmers are powerful. Do not remove the suction
grate. A damaged suction grate can be hazardous to children and adults with long hair. As a precaution,
restrict long hair from floating freely in the spa. If any part of the body or hair is drawn into or stuck in the
fittings, turn the spa off immediately.
(e) DANGER: RISK OF ELECTRIC SHOCK.
Install the spa at least 5 feet (1.5M) from all metal surfaces. In accordance with your country electrical Code,
a spa may be installed within 5 feet (1.5M) of metal surfaces only if each metal surface is permanently
connected to the wire connector on the terminal box provided, by a minimum NO.8 AWG(8.4mm2) solid
copper conductor.
(f) DANGER: RISK OF ELECTRIC SHOCK. Never operate any electrical appliances from inside the spa or if
you are wet. Do not permit any electric appliance, such as a hair dryer, light, radio, telephone or television,
within 5 feet (1.5m) of the spa.
(g) WARNING - To reduce the risk of injury:
iWater temperatures between 38'C (100' F) and 40'C (104'F) are considered safe for a healthy adult.
Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
Never allow the spa water temperature to exceed 40'C (104'F).
ii Spa water temperatures for pregnant women should be limited to 38'C (100'F). Higher water
temperatures may have a high potential for causing fetal damage in the early stages of pregnancy.
Limit time is no longer then10 minutes
iii Individual tolerance of water temperature can vary and regulating devices may not reflect the proper
temperature. Check the water temperature with an accurate thermometer before entering a spa.
iv The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the
possibility of drowning and is strictly prohibited.
vThose people with a history of heart disease, low or high blood pressure, circulatory system problems,
diabetes or obesity should consult a physician before using a spa.
vi Some medication may induce drowsiness; affect heart rate, blood pressure, and circulation. Those
people using any medication should consult a physician before using a spa.
(h) Do not use the spa immediately after any strenuous exercise.
(i) Maintain water chemistry as recommended.

Model2310 Ver.14.0
4
2 WARNING!
During pregnancy, soaking in hot water may cause damage to the fetus.
Limit use to 10 minutes at a time.
Prevent drowning:
Prevent child drowning:
Spa heat speeds up effects of alcohol,
drugs or medicine and can cause
unconsciousness
Water attracts children.
Always attach a spa cover after each use.
Immediately leave spa if uncomfortable or
sleepy.
3. HYPERTHERMIA
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal
body temperature of 98.6'F or 37'C.
THE SYMPTOMS OF HYPERTHERMIA INCLUDE:
Dizziness
Fainting
Drowsiness
Lethargy
Increase in internal body temperature
WARNING: THE USE OF ALCOHOL OR DRUGS CAN GREATLY INCREASE THE RISK OF FATAL HYPERTHERMIA IN HOT TUBS AND
SPAS
4. PRECAUTIONS
a) Always enter and exit the spa slowly.
b) Never use the spa alone.
c) Always measure the water temperature with an accurate thermometer before entering the spa. Tolerance of
water temperature may vary and regulating devices may differ as much as ±5’F (3'C).
d) Spa water temperatures for pregnant women should be limited to 38'C (100'F). Higher water temperatures
may have a high potential for causing fetal damage in the early stages of pregnancy. Always consult your
doctor prior to using a spa.
e) Children's body temperature can increase more rapidly than adults in water temperatures above 99'F or 37.4'
C. Limit use by children in water above body temperature.
f) The use of alcohol, drugs, and /or medication before or during spa use may result in hyperthermia, serious
injury, unconsciousness or drowning.
g) Those people with a history of heart disease, low or high blood pressure, circulatory system problems,
diabetes or obesity should consult a physician before using a spa.
h) Some medication may induce drowsiness; affect heart rate, blood pressure, and circulation. Those people
using any medication should consult a physician before using a spa.
!
!

Model2310 Ver.14.0
5
i) People with infections, sores, or skin abrasions should not use the spa. Warm temperatures may allow the
growth of infectious bacteria if not properly disinfected.
j) Test the GFCI (Ground Fault Circuit Interrupter) unit before each use. (Refer to instructions provided by
GFCI manufacturer.)
k) Only service or repair any equipment if the circuit breaker and/or all power to the spa are off.
l) When not it use and/or if children are present, the spa must be locked and the protective cover securely in
place at all times.
CAUTION
a) The following people should consult with a physician before using the spa. Those suffering from heart
disease, diabetes, high or low blood pressure, any condition requiring medical treatment, pregnant women,
the elderly and infants.
b) The consumer product safety commission recommends the water temperature in a spa should not exceed
104'F or 40'C. Complete immersion under water, in excess of 104'F or 40'C, can be hazardous to your health.
c) Long exposure in water at higher temperatures can cause high body temperature. Symptoms may include
dizziness, drowsiness, fainting, and nausea and reduced awareness and could lead to drowning. Limit
exposure when using the spa under these conditions.
d) Do not use the spa under influence of alcohol, narcotics, or other drugs. The use of the sap under these
conditions may lead to serious consequences.
e) Always test the spa water temperature before entering the spa. Enter and exit the spa slowly. Wet surfaces
can be very slippery.
f) Never bring any electrical appliance into or near the spa. Never operate any electrical appliance from inside
the spa or when you are wet.
g) Proper chemical maintenance of spa water is necessary to maintain safe water and prevent possible damage
to spa components.
h) Use the spa straps and clip tie downs to secure the cover when not in use. This will help to discourage
unsupervised children from entering the spa and keep the spa cover secure in high wind conditions. There is
no representation that the cover, clip tie downs, or actual locks will prevent access to the spa.

Model2310 Ver.14.0
6
SAFETY DEVICES
Your spa is equipped with the following safety features:
Over Heat Protection-- An electronic high limit switch is located under water. It shuts off the heater, pumps and
accessories when the water temperature exceeds 112'F or 44'C. This function automatically resets when the spa
water temperature drops below 109'F or 43'C.
Heater High Limit Protection--An electronic high limit switch is located on the heater barrel. It turns off the
heater and low speed pump if it senses a temperature of 118'F (44'C) or greater. To reset this safety device, power
to the spa must be interrupted.
Heater Dry Run Protection--A water flow sensor is also part of the design. It prevents the heater from turning
on until there is sufficient water flow.
Freeze Protection System-- This function will activate the jet pumps for 1 minute every 2 hours or less when
the temperature in the equipment compartment drops to 55'F or 13'C or below. Once the freeze protection system
is initiated, it will remain active for a 24- hour period.
Automatic Pump and Light Time Out-- The automatic, built-in timer turns off the spa jet pump(s) and air
blower (optional on some models) after 15 minutes of operation.
5. INSTALLATION INSTRUCTION GOLD & SILVER SERIES
Read all instructions in this manual prior to having your spa installed indoors or outdoors.
IMPROPER INSTALLATION MAY RESULT IN EQUIPMENT DAMAGEAND VOID THE
WARRANTY
Surface and Pad Requirements:
Place your new Spa on a 4‖ (10cm) thick reinforced CONCRETE PAD. Ensure the concrete has cured for at least
one week before setting the spa in place. A typical spa, filled with water, could weigh as much as 2.5tons.The
concrete could crack if it is not fully cured when placing the spa.
TO ENSURE YOU DO NOT VOID THE WARRANTY ON YOUR SPA, RESTRICT THE USE OF SHIMS OF
ANY KIND OR PLACING THE SPA ON AN UNEVEN OR CRACKED PAD. THIS WILLLALSO REDUCE
THE RISK OF CAUSING THE SPA TO BUCKLE .DISTORTAND/OR CRACK.
1) If your spa is located near water sprinklers, adjust of cap to ensure the water does not affect the wood cabinet
of the spa.
2) Build balconies and decks to meet current state and local codes to safely support the maximum load of your
filled spa including the number of people during use, Check with your construction contractor for safety
standards in your area.
3) Gates must be self- closing and self-locking. Check your local codes for regulations.
4) Ensure installation and the chosen location allows unobstructed access to the spa. It is the responsibility of
the spa owner to provide clear access on all sides of the spa for service. Failure to meet these guidelines may
result in additional service charges during maintenance or repairs to your spa.
5) To restrict water from entering the equipment compartment and away from all electrical components, ensure
all water drains away from the spa.

Model2310 Ver.14.0
7
Electrical installation requirements:
IMPROPER INSTALLATION MAY RESULT IN EQUIPMENT DAMAGEAND VOID THE WARRANTY
NOTE：DO not turn on electrical power to your spa until instructed in the owner manual.
1) Improper electrical connections may damage the equipment, cause injury, a fire, and void your spa warranty.
We strongly recommend that only a licensed and bonded electrician perform the electrical installation.
2) Installation must be in accordance with the National Electrical Code; local and state electrical codes; and the
manufacturer’s instructions. It is the responsibility of the spa owner to ensure a qualified electrician performs
the electrical installation.
3) This equipment has been designed to operate on 230 or 380 volts, 50HZ alternating current.
4) The spa must be connected to a dedicated branch circuit.
5) IMPORTANT Note: Europe –R.C.D. Installation –circuit breaker, including ampere size and
selection of the conductor size and type must be performed by qualified electricians in accordance
with national Regional and Local codes and regulations in effect at the time of installation.
6) As required, the electrical circuit to the spa must include a Class A type Ground R.C.D Interrupter.
7) All supply wires must be copper and rated at a minimum 90.C

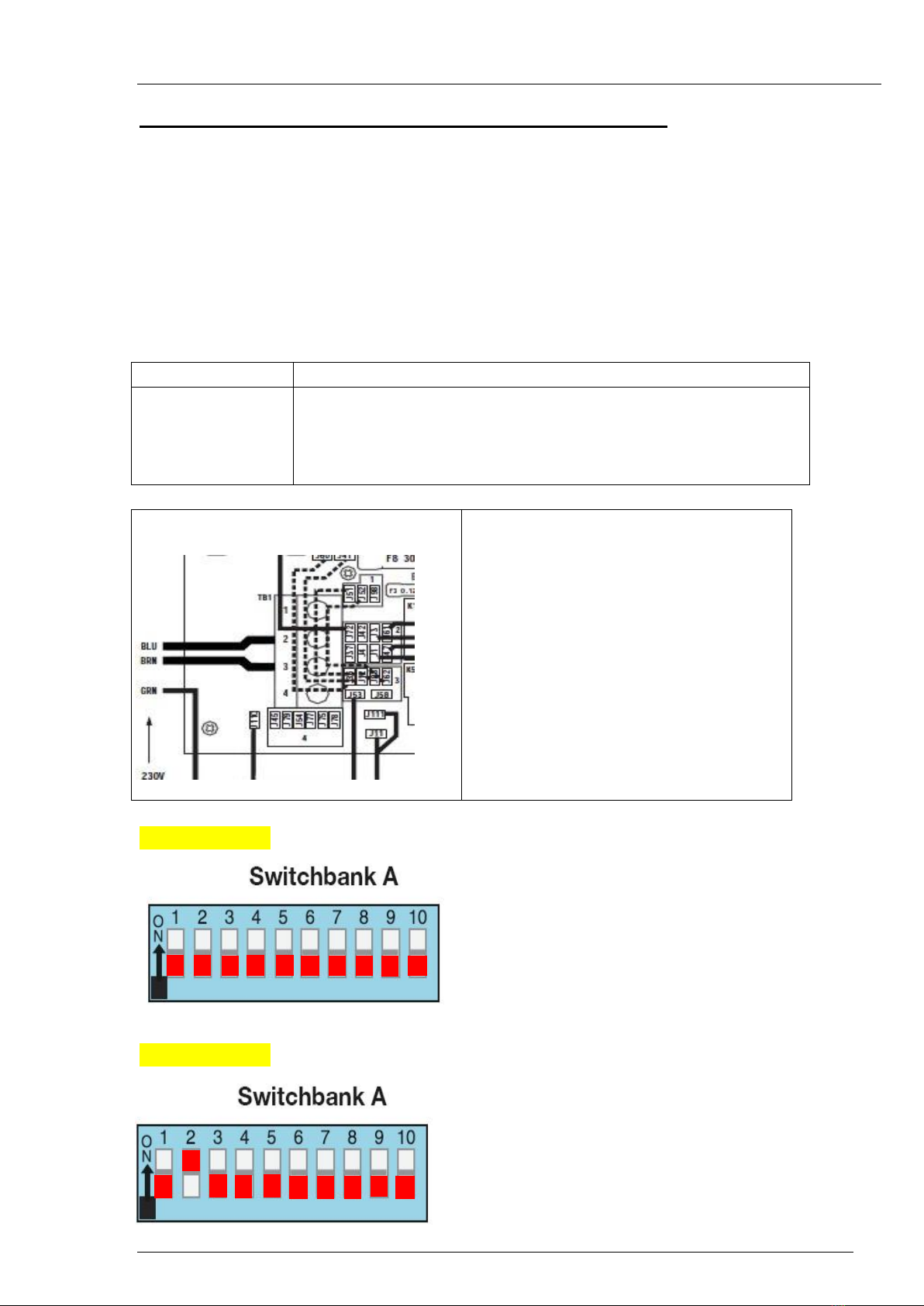

8) Input Power Wiring and Circuit Breaker Selection
The Equipment Type column does not include the circulation pump for Silver series.
A jumper in the equipment control box configures the mode. In the HC 32 AMP 230 V or 2 and 3 phases Mode
the heater will operate with everything on in the spa. In the LC 16 AMP Mode the heater turns off if either pump
is in high speed or if the blower is turned on.
To hook-up your spa, follow these instructions:
1) Remove the screws holding the equipment access panel to the front of the spa cabinet. Set the panel aside.
Instructions how to open see page 26.
2) Loosen the 2 screws on the top of the front equipment control enclosure.
3) Use- ―flexible, non-metallic conduit for a spa requiring #10 AWG or #8 AWG wire or 1‖ flexible
non-metallic conduit for a spa requiring #6AWG wire. Run the conduit from the power source through the
hole in the left or right front corner of the enclosure into the equipment control box to the spa and secure /
seal with PG so no water can enter into the box.
4) After pulling all wires through the conduit and into the equipment control box, connect them to the proper
terminals as indicated by the wiring diagram see Electrical service configuration for each system
Diamond/Gold or Silver versions.
5) Configure the jumpers to the correct position as indicated by the Electrical service configuration. Ensure
the wires are properly tightened.
6) Close the lid on the equipment control box and secure with the 2 screws.
7) Electrical hook-up is now complete. Do not replace the equipment door at this point.

Model2310 Ver.14.0
8
6. ELECTRICAL SERVICE CONFIGURATION
The settings made from factory as default is usually 1 x 32Amp or 3 x16Amp
If not the setting had been agreed to change for a specific country, check with the
Distributor/Retailer
6.1 MAINS CONNECTIONS
(a) Services Configuration Options 1, or 3 phases
Balboa System BP2001G1 PN: 56389-01
Configuration
Setting
2x 2-speed pump
1x Circ Pump
1x Blower
The default is ―FILTER 1‖ is 6:00AM to 10:00AM, ―FILTER 2‖ is
6:00PM to 10:00PM
Celsius Temp Display
BRN –Live
BLU –Neutral
230V, 1X25AMP(when any jets pump or blower working, the heater disable)
230V, 1X32AMP (when one jets pump or blower working the heater enable)

Model2310 Ver.14.0
9
400V, 3X16AMP （when any/all high-speed pumps or blower is running, the heater enable）
1, 2, 3 BRN –Live
BLU –Neutral
Remove the black wire J51-J88
Remove the black wire J52-J62
Relocate the Black wire from J60-J36 to
J60-J45
Relocate the Black wire from J41-J12 to
J41-J79
(b) Dip Switch Reference
A1 Test mode (normally Off)
A2 In ―ON‖position, add one high-speed pump (or blower) with heater
A3 In ―ON‖position, add Two high-speed pump (or1HS Pump and blower) with heater
A4 In ―ON‖position, add Four high-speed pump (or3HS Pump and blower) with heater
A5 In ―ON‖position, enables Special Amperage Rule B, 1phase Two pumps
In ―OFF‖position, enables Amperage RuleA, Three phases 3*16A / 1*32A: two pumps+1blower
A6 Persistent memory reset (Used when the spa is power up to restore factory settings as determined by
software configuration)
software configuration)
A2,A3,and A4 work in combination to determine the number of high-speed devices and blowers that can run
before the heat is disabled, I.e. A2 and A3 in the On position and A4 in the OFF position will allow the heater to
operate with up to 3 high-speed ( or two HS pumps and Blower) running at the same time. Heat is disabled when
the fourth high-speed pump or blower is turned on.
Note: A2/A3/A4All off = No heat with any high-speed pump or blower.
Assignable Dip Switches
A7 In ―ON‖position, enables a 5-minute cool down for same gas heaters( Cooling Time B)
In ―Off‖position, enables a 1-minute cool down for electric heaters (Cooling TimeA)
A8,A9,A10 Undesignated switches are not assigned a function.

Model2310 Ver.14.0
10
WARNING
Main Power to system should be turned OFF BEFORE adjusting DIP SWITCH
Persistent Memory (A6) must be RESET to allow new DIP switch settings to take effect
To reset Persistent Memory:
1. Power down.
2. Set A6 ON
3. Power up.
4. Wait until ―Pr‖is displayed on your panel.
Note: If ―CFE ‖appears means DIP switch configuration is wrong!.
5. Power down and then set A6 OFF.
6. Power up again

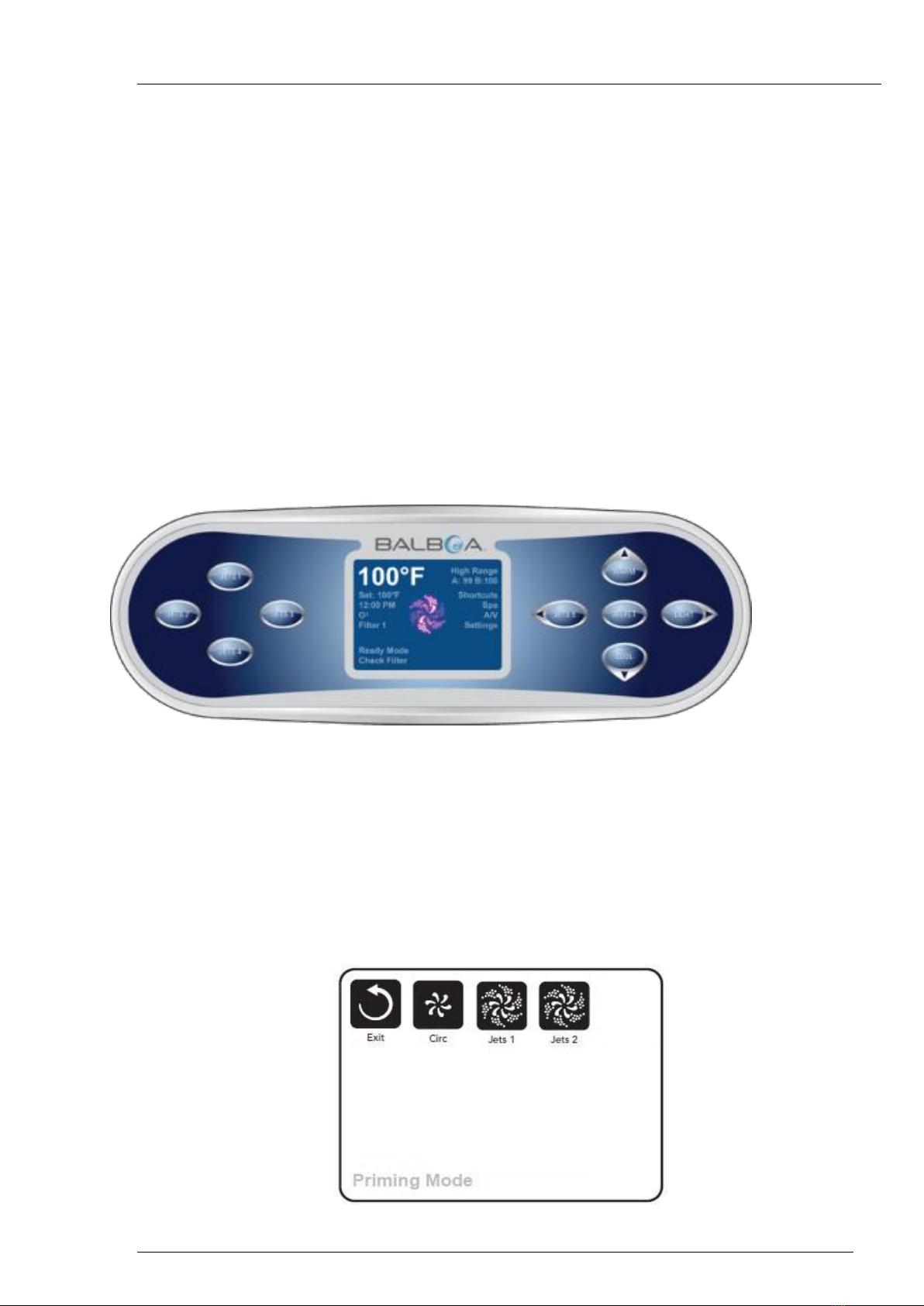

(c)Configuration
Control Panel TP800
Priming Mode
After the power up and the initial start-up sequence, the control will enter Priming Mode and display a
Priming Mode screen. Only pump icons appear on the priming mode screen. The system will
automatically return to normal heating and filtering at the end of the priming mode, which lasts 4-5
minutes. During the priming mode, the heater is disabled to allow the priming process to be completed
without the possibility of energizing the heater under low-flow or no-flow conditions. Nothing comes on
automatically, but the pump(s) can be energized by selecting the “Jet” buttons. it can be turned on and
off by pressing the “Circ Pump” button during Priming Mode Manually exit Priming Mode by pressing
the “Exit” Button.

Model2310 Ver.14.0
11

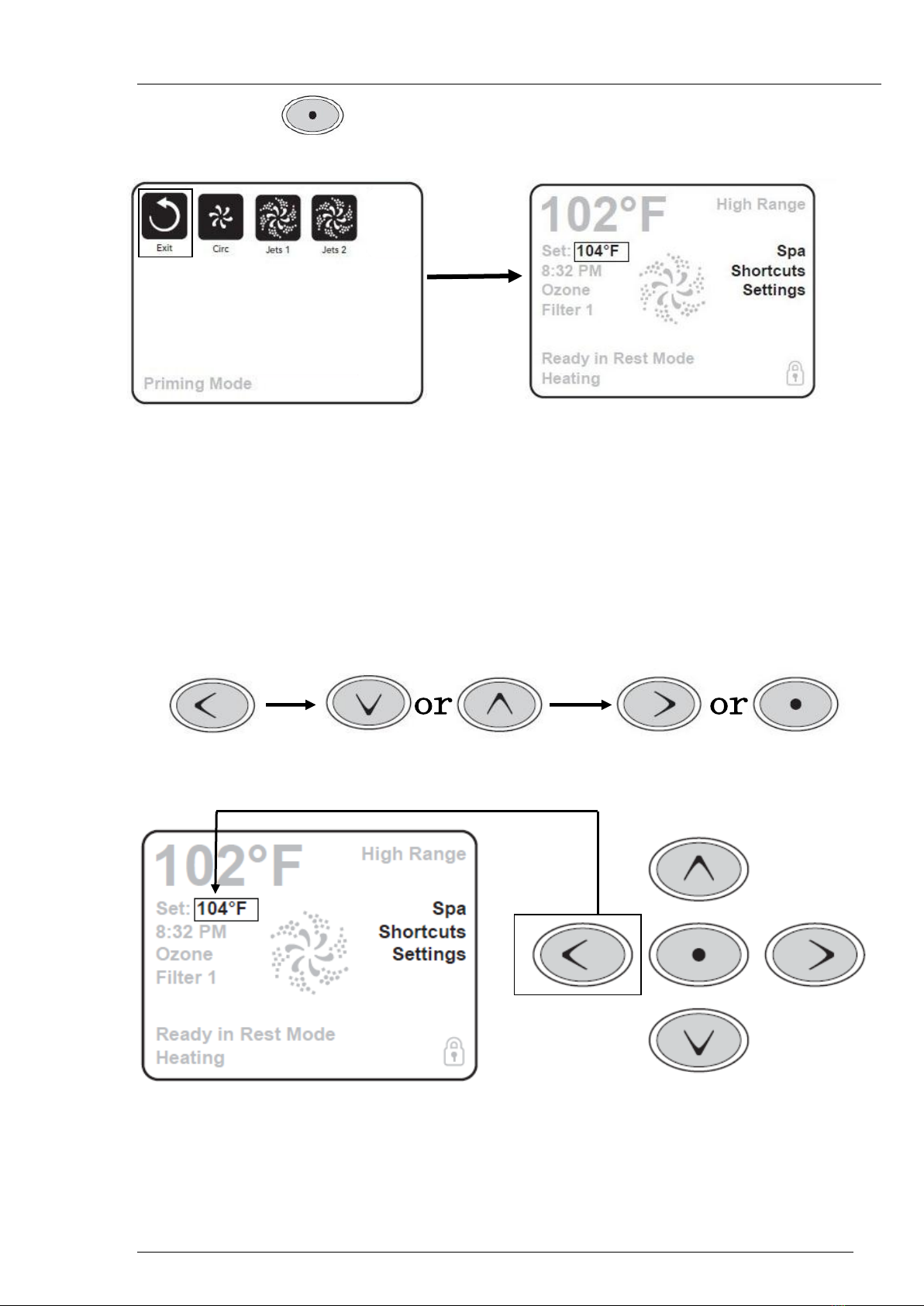

Press Select bottom to choose the ―Exit‖ icon to exit priming mode and go inside the spa working
menu screen.
Temperature Setting
The last measured temperature is constantly displayed on the LCD. Note that the last measured spa temperature
displayed is current only when the pump has been running for at least 2 minutes.
The only item that can be changed on the left side of the Main Screen is the Set Temperature. Press the Left
Arrow button to change the Set Temperature number to white. The Set Temperature can then be adjusted with
the UP and Down buttons. Pressing the Select button or the Right Arrow button will save the new set
temperature.

Model2310 Ver.14.0
12
On the right side of the screen, the menu selections can be selected with the Up and Down buttons. Use the
Select Button to choose an Item. Selecting one of these items will change to a different screen with additional
controls.
Temperature setting continue.
Go inside the Settings menu into the Settings screen.
Dual temperature Ranges (High vs. Low)
AThis system incorporate two temperature range settings with independent set temperatures. The specific range can be
selected on the settings screen and is visible on the main screen in the upper right corner of the display
These ranges can be used for various reasons, with a common use being a ready to use setting vs. a vacation setting
heat to the set temperature associated with that range.
High range can be set between 80°F and 104 °F (26℃and 40℃)
Low range can be set between 50°Fand 99°F(10℃and 37℃)
Temperature for °F and ℃
Select the Preference icon, go inside the Preferences screen, the press the Select button to change the
temperature between Fahrenheit and Celsius.

Model2310 Ver.14.0
13
Heat Mode-Ready vs. Rest
Press the Select button to adjust the heat mode. Then press the select button to confirm the
selection.
Ready mode: the heater circulation pump runs continuously, Since the heater circ pump is always running, the
spa will maintain set temperature and heat as needed in Ready mode.
Out of the Filtration & Heating time but the circ pump starts automatically when sensors detected a 05. Degree ℃
drop from the setting temperature and stops once it has reached the set temperature.
Rest mode: the spa will only heat to set temperature during programmed filter times even though the water is
being filtered constantly when in the circulation mode.
Both mode If the circ pump is out of Filtration time &Heating, every time when any of jets pumps or the
blower’s button is pressed to activate, no matter the jets pumps work in low speed or high speed, at the same
time the circ pump will start to work with the pumps or blower, when the pumps or blower turn off the circ pump
will keep working for up to 1 minute then stop.

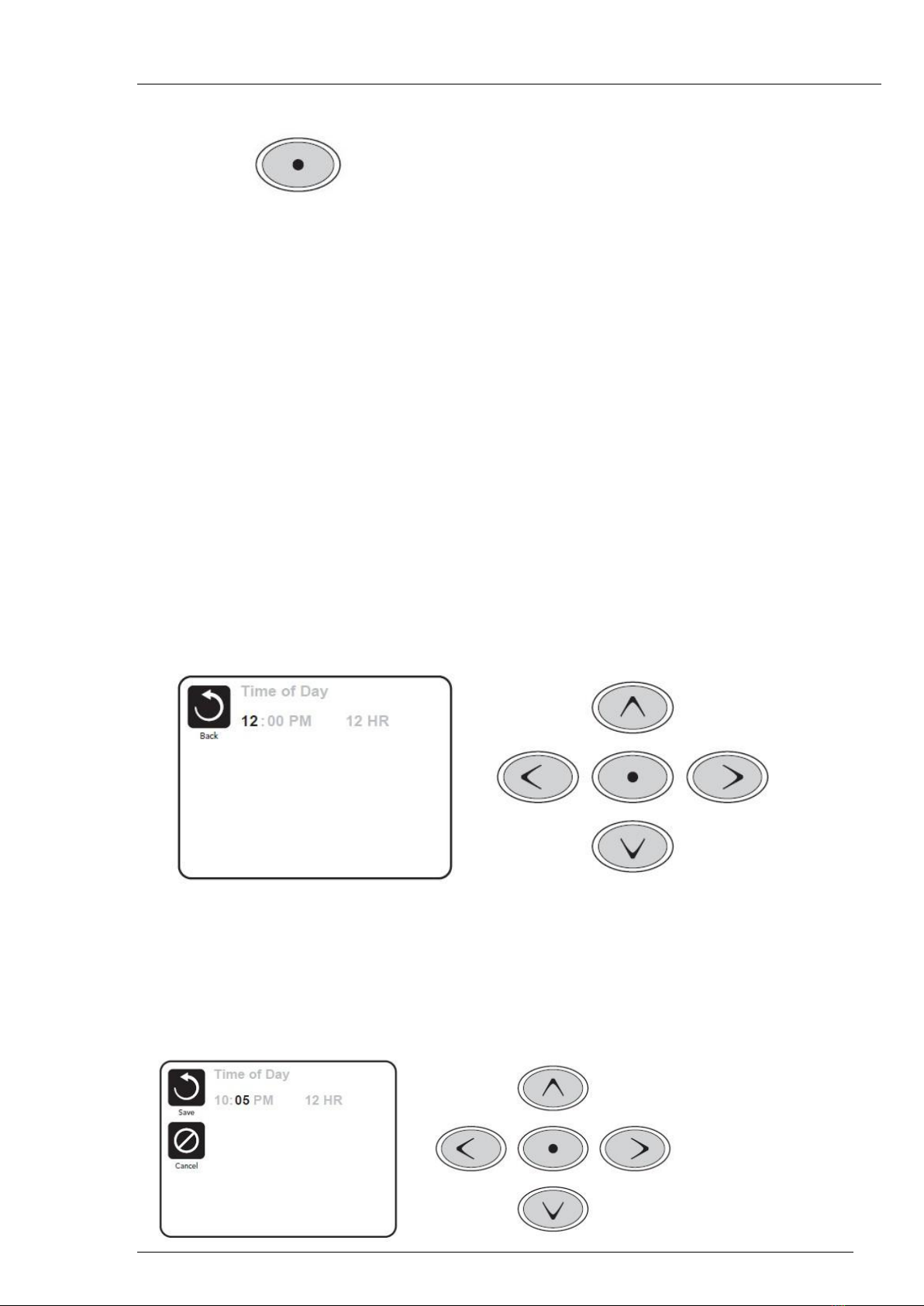

Time of day
Setting the time-of-day is important for determining filtration times and other background features.―Set Time‖
will appear on the display if no time-of-day is set in the memory.
On the Settings Screen, select the Time-of-Day line. On the Time-of-Day screen, simply navigate right and left
to select the Hour, Minutes, AM/PM and 12/24 Hour segments. Use the Up and Down Buttons to make changes
Saving Settings
The Time-of-Day screen is a simple, editable screen that illustrates a feature of the control that applies to all
other editable screens as well. When changes are made, the icon to go ―Back‖ changes to ―Save‖ and a new
icon for ―Cancel‖ appears under the Save icon. Navigating to the left will highlight the Save icon, and
navigating down from there will allow the user to cancel the pending change. Pressing the ―Select‖ button
will save or cancel the changes and go back to the previous screen.

Model2310 Ver.14.0
14
Note: If power is interrupted to the system, Time-of-Day will be maintained for several days.
Main Filtration
Using the same navigation and adjustment as Setting the Time, Filter Cycles are set using a start time and a
duration. Each setting can be adjusted in 15-minute increments. The panel calculates the end time and displays it
automatically.
Filter Cycle 2 - Optional Filtration
Filter Cycle 2 is OFF by default.
Simply navigate to the Filter Cycle 2 line by pressing the Right Navigation Button, and when ―NO‖ is
highlighted, press Up or Down to toggle Filter Cycle 2 on and off. When Filter Cycle 2 is ON, it can be
adjusted in the same manner as Filter Cycle1 by navigating to the right. It is possible to overlap Filter Cycle
1 and Filter Cycle 2, which will shorten overall filtration by the overlap amount.
Note: our factory delivered setting is the Filter cycle 2 is on, and the filter cycle time is Filter cycle1
The default is “FILTER 1” is 6:00AM to 10:00AM, “FILTER 2” is 6:00PM to 10:00PM)
Purge Cycles
In order to maintain sanitary conditions, as well as protect against freezing, secondary water devices will purge
water from their respective plumbing by running briefly at the beginning of each filter cycle. If the Filter Cycle 1
duration is set for 24 hours, enabling Filter Cycle 2 will initiate a purge when Filter Cycle 2 is programmed to
begin.
Invert Panel
Selecting Invert Panel will flip the display and the buttons so the panel can be easily operated from inside or
outside the hot tub.
Lock setting
The control can be restricted to prevent unwanted use or temperature adjustments. Locking the Panel prevents
the controller from being used, but all automatic functions are still active. Locking the Settings allows Jets and
other features to be used, but the Set Temperature and other programmed settings cannot be adjusted. Settings
Lock allows access to a reduced selection of menu items. These include Set Temperature, Invert, Lock, Utilities,
Information and Fault Log. They can be seen, but not changed or edited.

Model2310 Ver.14.0
15

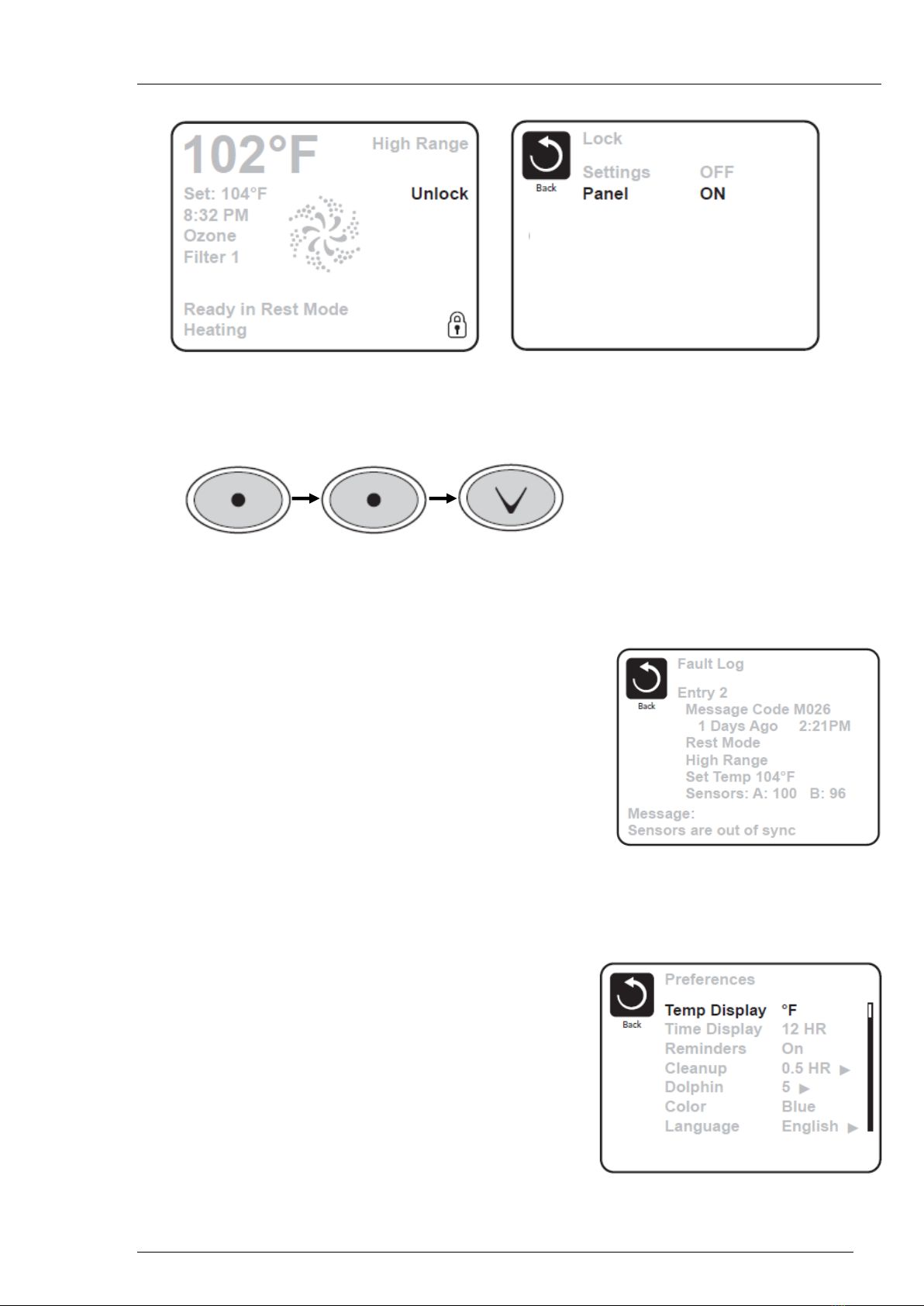

An Unlock Sequence using the navigation buttons can be used from the Lock Screen. The Unlock Sequence
is the same for both Panel Lock and Settings Lock.
To unlock the set temperature, press double times ―Select‖button then press the ―Down‖ arrow Button
Hold Mode
Hold Mode is used to disable the pumps during service functions like cleaning or replacing the filter. Hold Mode
will last for 1 hour unless the mode is exited manually. If spa service will require more than an hour, it may be
best to simply shutdown power to the spa.
Utilities
The Utilities Menu contains the following:
A/B Temps
When this is set to On, the temperature display will alternate to
display temperature from Sensor A and Sensor B in the heater.
Fault Log
The Fault Log is a record of the last 24 faults that can be reviewed by a service tech.
Preferences
The Preferences Menu allows the user to change certain parameters based on personal preference.
Temp Display
Change the temperature between Fahrenheit and Celsius.
Time Display
Change the clock between 12 hr and 24 hr display.
Reminders
Turn the reminder messages (like “Clean Filter”) On or Off.

Model2310 Ver.14.0
16
Cleanup
Cleanup Cycle Duration is not always enabled, so it may not appear. When it is available, set the length of
time Pump1 will run after each use. 0-4 hours are available.
Dolphin II and Dolphin III (Applies to RF Dolphin only)
When set to 0, no addressing is used. Use this setting for a Dolphin II or Dolphin III which is factory set for no
address by default. When set between 1 and 7, the number is the address. (See the Dolphin manual for
details.)
Color
Pressing the Select Button when Color is highlighted will cycle through 5 background colors available in the
control. They are Blue, Red, Purple,Grey,Green.
Language
Change the language displayed on the panel. Four language are available in the control they are English, French,
Spanish, German.
Information
System Information
The System Information Menu displays various settings and identification of the particular system. As each item
in the menu is highlighted, the detail for that item is displayed at the bottom of the screen.
Software ID (SSID)
Displays the software ID number for the System.
System Model
Displays the Model Number of the System.
Current Setup
Displays the currently selected Configuration Setup Number.
Configuration Signature
Displays the checksum for the system configuration file.
Heater Voltage (Feature not used on CE rated systems.)
Displays the operating voltage configured for the heater.
Heater Wattage as Configured in Software (CE Systems Only.)
Displays a heater kilowatt rating as programmed into the control system software (1-3 or 3-6).
Heater Type
Displays a heater type ID number.
Dip Switch Settings
Displays a number that represents the DIP switch positions of S1 on the main circuit board.
Panel Version
Displays a number of the software in the topside control panel
Jets
Jet1 To start pump1 (two speed) press ―Jet1‖one time, the pump1 will work at low speed,
then press ―Jet1‖again, the pump1 will work at high speed. The low speed will turn off
automatically after 15 minutes, and the high speed will turn off automatically after 15minutes.
Press the third time ―Jet1‖the pump1 will stop.
Jet2 To start pump2 (two speed) press ―Jet2‖one time, the pump2 will work at low speed,

Model2310 Ver.14.0
17
then press ―Jet2‖again, the pump2 will work at high speed. The low speed will turn off
automatically after 30minutes, and the high speed will turn off automatically after 15minutes. Press
the third time ―Jet2‖the pump2 will stop.
Blower
To start blower press ―Blower‖one time, to stop it press again, if left on, the blower will
automatically turn off after 15 minutes.
Light
Color light Press the ―Light‖button to turn on the lights, again to turn off it, keep pressing
the ―Light‖ button turn on and turn off the lights, the color will be different each time, just one time, the
color can change automatically. they can working 8 status , the first status is changing the color
automatically , then you press the lights button, turn off it then turn on it stay red color, then you keep
turning off and turn on they will stay different colors every time and after 7 times they get back to the first
status change the color automatically. stop pressing the ―Light‖button. The lights will automatically turn off
after 4 hours.
Note:the Jets1, Jets2, Blower, Light also can be controlled in the middle screen, go inside the spa screen.
Then press the Left or Right arrow button to chose the Pumps, blower, Light and the Invert icons, then press
the Select button to control it.
Also another way to control the pumps and lights is go inside the Shortcut screen
The Shortcut Screen requires no navigation. Each button is fixed on a specific function and can be used as a
very simple user interface for the spa, The left Each Control button function is illustrated in the display, For

Model2310 Ver.14.0
18
example, the Left arrow button is matched the Jets2 Icon. Directly press the Left Arrow button to control the
pump2, The control way is same to the left control buttons on the panel.
(c )General Messages
Most messages and alerts will appear at the bottom of the normally used screens. Several alerts and messages
may be displayed in a sequence.
Some messages can be reset from the panel. Messages that can be reset will appear with a ―right arrow‖ at
the end of the message. This message can be selected by navigating to it at pressing the Select button.
The water is too hot –M029
The system has detected a spa water temp of 110°F (43.3°C) or more, and spa functions are disabled. System
will auto reset when the spa water temp is below 108°F (42.2°C). Check for extended pump operation or
high ambient temp. This message can be reset from the topside panel.
Possible freezing condition
A potential freeze condition has been detected, or the Aux Freeze Switch has closed. All water devices are
activated. In some cases, pumps may turn on and off and the heater may operate during Freeze Protection.
This is an operational message, not an error indication.
–––°F –––°C
Water Temperature is Unknown
After the pump has been running for 1 minute, the temperature will be displayed.
Heater-Related Messages
The water flow is low –M016
There may not be enough water flow through the heater to carry the heat away from the heating element. Heater
start up will begin again after about 1 min. See ―Flow Related Checks‖ below.
The water flow has failed* –M017
There is not enough water flow through the heater to carry the heat away from the heating element and the heater
has been disabled. See ―Flow Related Checks‖ below. After the problem has been resolved, you must press any
button to reset and begin heater start up.
The heater may be dry* –M028
Possible dry heat, or not enough water in the heater to start it. The spa is shut down for 15 min. Press any button
to reset the heater start-up. See ―Flow Related Checks‖ below.

Model2310 Ver.14.0
19
The heater is dry* –M027
There is not enough water in the heater to start it. The spa is shut down. After the problem has been resolved, you
must clear the message to restart heater start up. See ―Flow Related Checks‖ below.
The heater is too hot* –M030
One of the water temp sensors has detected 118°f (47.8°C) in the heater and the spa is shut down. You must clear
the
message when water is below 108°f (42.2°C). See ―Flow Related Checks‖ below.
Sensor-Related Messages
Sensors are out of sync –M015
The temperature sensors MAY be out of sync by 2°F or 3°F. Call for Service.
Sensors are out of sync -- Call for service* –M026
The temperature sensors ARE out of sync. The fault above has been established for at least 1 hour.
Call for Service.
Sensor A Fault, Senor B Fault –Sensor A: M031, Sensor B: M032
A temperature sensor or sensor circuit has failed. Call for Service.
Miscellaneous Messages
Communications error
The control panel is not receiving communication from the System. Call for Service.
Test software installed
The Control System is operating with test software. Call for Service.
°F or °C is replaced by °T
The Control System is in Test Mode. Call for Service.
System-Related Messages
Program memory failure* –M022
At Power-Up, the system has failed the Program Checksum Test. This indicates a problem with the firmware
(operation program) and requires a service call.
The clock has failed* –M020
Contact your dealer or service organization.
Hot fault –M035
A Pump Appears to have been Stuck ON when spa was last powered
POWER DOWN THE SPA. DO NOT ENTER THE WATER. Contact your dealer or service organization.
A pump may be stuck on –M034
Water may be overheated. POWER DOWN THE SPA. DO NOT ENTER THE WATER. Contact your dealer
or service organization.
Configuration error (Spa will not Start Up)
Contact your dealer or service organization.
The settings have been reset (Persistent Memory Error)* –M021
Contact your dealer or service organization if this message appears on more than one power-up.
* This message can be reset from the topside panel.
