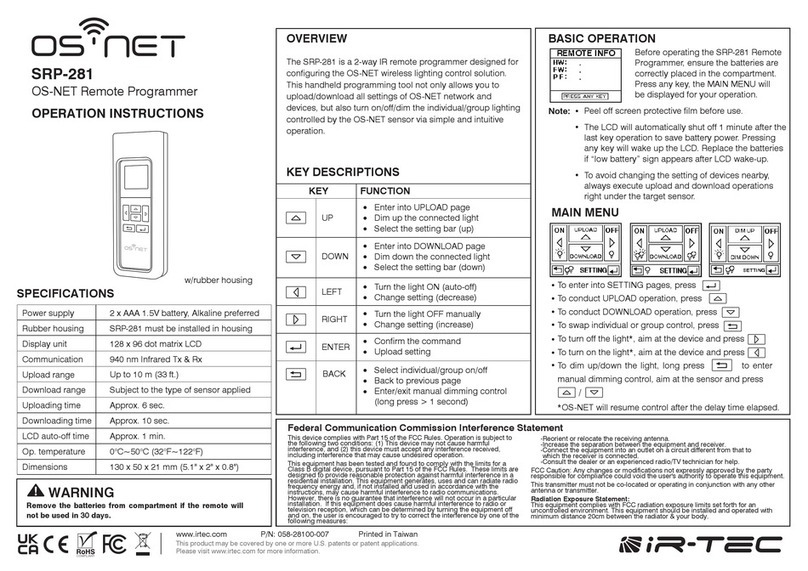

IR-Tec OS-NET SRP-281 User manual

OVERVIEW
The SRP-281 is a 2-way IR remote programmer designed for
configuring the OS-NET wireless lighting control solution.
This handheld programming tool not only allows you to
upload/download all settings of OS-NET network and
devices, but also turn on/off the individual/group lighting
controlled by the OS-NET sensor and controller via simple
and intuitive operation.
OS-NET Remote Programmer
SRP-281
OPERATION INSTRUCTIONS
SPECIFICATIONS
w/rubber housing
Remove the batteries from compartment if the remote will
not be used in 30 days.
WARNING
KEY DESCRIPTIONS
KEY FUNCTION
UP
DOWN
LEFT
RIGHT
ENTER
BACK
Enter into UPLOAD page
Select the setting bar (up)
Enter into DOWNLOAD page
Select the setting bar (down)
Turn the light ON (auto-off)
Change setting (decrease)
Turn the light OFF manually
Change setting (increase)
Confirm the command
Upload setting to device
Select individual/group on/off
Back to previous page
P/N: 058-28100-002 Printed in Taiwanwww.irtec.com
This product may be covered by one or more U.S. patents or patent applications.
Please visit www.irtec.com for more information.
This document provides only brief introduction of
SRP-281 operation, for more detailed operation about
device setting, please refer to the OS-NET
Programming Guide available from www.irtec.com.
BASIC OPERATION
MAIN MENU
Before operating the SRP-281 Remote
Programmer, ensure the batteries are
correctly placed in the compartment.
Press any key, the MAIN MENU will
be displayed for your operation.
To enter into SETTING pages, press
To conduct UPLOAD operation, press
To conduct DOWNLOAD operation, press
To swop individual or group control, press
To turn off the light, aim at the device and press
To turn on the light*, aim at the device and press
*OS-NET will resume control after the delay time elapsed.
Note:
Peel off screen protective film before use.
The LCD will automatically shut off 1 minute after the
last key operation to save battery power. Pressing any
key will wake up the LCD. Replace the batteries if “low
battery” sign appears after LCD wake-up.
To avoid changing the setting of devices nearby,
always execute upload and download operations right
under the target sensor.
Note:
Power supply
Rubber housing
Display unit
Communication
Upload range
Download range
Uploading time
Downloading time
LCD auto-off time
Op. temperature
Dimensions
2 x AAA 1.5V battery, Alkaline preferred
SRP-281 must be installed in housing
128 x 96 dot matrix LCD
940 nm Infrared Tx & Rx
Up to 10 m (33 ft.)
Subject to the type of sensor applied
Approx. 6 sec.
Approx. 10 sec.
Approx. 1 min.
0°C~50°C (32°F~122°F)
130 x 50 x 21 mm (5.1" x 2" x 0.8")
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
Federal Communication Commission Interference Statement
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.

SETTING
www.irtec.com
The SETTING pages allow you to setup group link, device
control, save/recall and lock/unlock the settings of OS-NET
devices.
UPLOAD
The UPLOAD function allows you to configure all settings
of the devices via simple button operation. You may select
CURRENT SETTING or any EZ-SET profile for uploading.
Select CURRENT SETTING means to upload the current
settings of all available setting items.
DOWNLOAD
The DOWNLOAD function allows you to read the group
assigned, device setting, current dim, and current lux from
an installed sensor/controller, while you can also obtain
basic product information of the remote, device, and
network.
ON/OFF CONTROL
Press the LEFT/RIGHT key while aiming the remote toward
an OS-NET device will allow the user to turn the controlled
lighting ON/OFF in individual or group basis. Pressing the
BACK key will swop the control in individual (one lamp) or
group (two lamps) basis.
Programming Guide
SETTING ITEMS
The table below highlights all setting items and options available on the SRP-281. Due to different functionality, certain
settings and options may not be applicable on specific OS-NET device. N/A will be displayed to indicate
not-applicable settings and options. For available settings of specific device, please refer to the respective installation
instruction.
NOTE: For OS-NET Button, only the setting items under GROUP-LINK are applicable.
Setting Item Description Options
GROUP
LINK
EZ-GROUP An easy group assignment to all OS-NET devices. 4 x MBR OF GROUP
ADVANCED Setting specific device as transmitting/receiving only. TRANSMITTING, RECEIVING
UNGROUP Disengage the device from the connected network.
DEVICE INDIV-SET To setup an individual device.
GROUP-SET To setup all devices of the group with same settings.
CONTROL Control modes available for OS-NET sensor and controller. ON/OFF, OSO, OSLA, OSLATO, DSVM, DSC, VSC,
OFF
AMBIENT LUX Thresholds of ambient light level for OS-NET sensor and controller
to execute the control.
10/20/40/60/80/200/400/600/1000/2000/DISABLE/
CURRENT
DELAY Delay time that sensor/controller will turn off or dim the light down. 1/3/5/10/15/20/30/60 min.
TIME OFF Delay time that sensor/controller will keep the light at low dim level
after the OFF delay time elapsed.
10 sec.3/5/10/15/20/30/45/60 min.
HIGH DIM High dim is the output level set to control the light during
occupancy, or when ambient light is lower than the threshold if
daylight sensing control is selected.
50/55/60/65/70/80/90/100%
SmartDIM
LOW DIM/
SmartDIM
Low dim is the output level set to dim the light when space is
vacant. Low dim setting will become SmartDIM bar if SmartDIM
control is selected.
0/5/10/15/20/25/30/40%
RAMP UP Speed of lighting output will increase. INSTANT/SOFT/SLOW
FADE DOWN Speed of lighting output will decrease. INSTANT/SOFT/SLOW
VM-TB Duration BEFORE Virtual Midnight.
Only available if DSVM is selected.
0.5/1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6 hour
VM-TA Duration AFTER Virtual Midnight.
Only available if DSVM is selected.
0.5/1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6 hour
SENSITIVITY Sensitivity of occupancy sensor.
Not available on ONC and ONB.
HIGH/NORMAL/LOW
ON DELAY Delay time to turn on the load after detecting the presence of
occupant. N/A for lighting control.
N/A
BURN-IN Time duration for burn-in test. To conduct the burn-in test with
uncertain duration, select MANUAL.
STOP/12/24/48/72/96HR/
MANUAL
TEST (10-MIN) Sensor/controller will control the light as the mode set, but with
10 seconds delay for function test purpose. Sensor/controller will
resume to its normal control after 10 minutes or whenever the
STOP command is given.
STOP/START
DEFAULT Resume factory default settings of the REMOTE or DEVICE. REMOTE, DEVICE
SAVE/
RECALL
SAVE AS Save the settings as an EZ-SET profile for future use. EZ-SET 1, 2, 3, 4
RECALL Recall the EZ-SET profile saved. DEFAULT, EZ-SET 1, 2, 3, 4
LOCK/
UNLOCK
LOCK Disable OS-NET setting change.
UNLOCK Enable OS-NET setting change.
