Unicorn Computer ENDAT-K1001 User manual

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
1
ENDAT-K1001
User’s Manual
For ENDAT-K1001 PCB ver. A3
Aug 10, 2011
Document version: A3

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
2
Copyright Notice
The content of this manual has been checked for accuracy. The manufacturer
assumes no responsibility for any inaccuracies that may be contained in this
manual. The manufacturer reserves the right to make improvements or
modification to this document and/or the product at any time without prior
notice. No part of this document may be reproduced, transmitted, photocopied or
translated into any language, in any form or by any means, electronic, mechanical,
magnetic, optical or chemical, without the prior written permission of the
manufacturer.
AMD is registered trademark of AMD Technology Incorporation
GEODE LX is registered trademark of AMD Technology Incorporation
Realtek is registered trademark of Realtek Technologies Inc.
Multiscan is a trademark of Sony Corp of America
IBM, EGA, VGA, PC/XT, PC/AT, OS/2 and PS/2 are registered trademarks of
International Business Machines Corporation
Intel is a registered trademark of Intel Corporation
VIA is registered trademark of VIA Technology Incorporation
Plug and Play is registered trademarks of Intel Corporation
Microsoft, Windows and MS-DOS are trademarks of Microsoft Corporation
Award is a trademark of Phoenix Software Inc.
PCI is a registered trademark of PCI Special Interest Group
Other product names mentioned herein are used for identification purpose only and
may be trademarks and/or registered trademarks of their respective companies.
Installation Notice
The manufacturer recommends using a grounded plug to ensure proper
motherboard operation. Care should be used in proper conjunction with a
grounded power receptacle to avoid possible electrical shock. All integrated circuits
on this motherboard are sensitive to static electricity. To avoid damaging
components from electrostatic discharge, please do not remove the board from the
anti-static packing before discharging any static electricity to your body, by wearing
a wrist-grounding strap. The manufacturer is not responsible for any damage to the
motherboard due to improper operation.

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
3
Specification:
Model ENDAT-K1001
System Chipset AMD RS780E+SB710 (TDP 15+4.5 Watt)
CPU Supporting Support AMD SEMPRON / ATHLON / ATHLON X2 /
PHENOM X3 / PHENOM X4 AM2/AM2+/AM3 socket CPU
Memory - 2 x SODIMM sockets
- Support DDR2-800/667/533/400 up to 8GB
Ethernet 2 x REALTEK RTL8111B Gigabit Ethernet Controllers
Graphic Chip
- Integrated ATI Radeon™ HD 3200 GPU
- Support onboard 128MB Side-port Memory (optional)
- Support Microsoft® DirectX 10, Shader Model 4.0,
OpenGL 2.0
- Hardware Decode Acceleration for H.264, VC-1, and
MPEG-2
CRT interface Up to 2048x1536 (4:3) or 2560x1440 (16:9)
DVI interface Dual link DVI port support up to 2560x1600
LVDS panel
interface Support 18/24/36/48 bit LVDS (Up to 1920 x 1200 with 2 channels) with backlight control
Duo View CRT+LVDS, CRT+DVI, DVI+LVDS
Serial Ports 2 x Serial Ports (2.0mm Box Header)
Watch Dog Timer ITE IT8718F-S on-chip support 1 to 255 seconds / minutes
Digital I/O 8 bit bi-direction un-buffer GPIO
SATA 6 x SATA II (5 x SATA + 1 x eSATA) ports
with AHCI (hot plug) support
RAID Support RAID 0, 1, 10 by 4 SATA II devices
USB 8 x USB2.0 (6 x connector + 4 x header)
AUDIO REALTEK ALC888 7.1+2 Channel High Definition Audio
Codec with 6 HD AUDIO jack + 2 front panel AUDIO jack
Expansion 1 x PCIe 2.0 x16 slot
1 x Mini PCIe (single lane) socket
1 x PS/2 KB/MS connector
1 x DVI-D + VGA double deck connector
2 x LAN + USB double deck connectors
1 x eSATA + USB double deck connector
I/O Ports
6 x HD AUDIO phone jack
Power Supply Single +12~24V DC / ATX power
Form Factor MINI-ITX (170mm x 170mm) with 8 Layers PCB

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
4
TABLE OF CONTENTS
CHAPTER 1. INTRODUCTION.......................................................6
1-1. FEATURES .............................................................................................. 7
1-2. UNPACKING ............................................................................................ 8
1-3. ELECTROSTATIC DISCHARGE PRECAUTIONS ................................... 8
1-4. MOTHERBOARD LAYOUT ...................................................................... 9
CHAPTER 2. SETTING UP THE MOTHERBOARD.....................10
2-1. JUMPERS AND CONNECTORS............................................................ 10
2-2. INSTALLING MEMORY .......................................................................... 22
2-3. GRAPHIC MEMORY .............................................................................. 22
2-4.WATCH DOG TIMER............................................................................... 22
2-5. DIGITAL I/O…………………………………………………………………….24
2-6. LCD Backlight ON/OFF Control ……………………………………………..25
2-7. LCD Brightness Control ……………………..………………………………..26
CHAPTER 3. AMI BIOS SETUP...................................................27
3-1. Main........................................................................................................ 28
3-2. Advanced................................................................................................ 28
3-3. Boot ........................................................................................................ 33
3-4. Security .................................................................................................. 34
3-5. Chip........................................................................................................ 35
3-6. Power ..................................................................................................... 38
3-7. Exit ......................................................................................................... 39

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
5
CHPATER 4. VGA, LCD AND DRIVERS......................................40
4-1. VGA FEATURE....................................................................................... 40
4-2. DRIVER UTILITY INSTALLATION GUIDE.............................................. 41
APPENDIX A: FLASH MEMORY UTILITY...................................42
APPENDIX B: LIMITED WARRANTY..........................................43

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
6
Chapter 1. Introduction
In order to optimize the overall system and graphics performance of embedded system in
diverse application, ENDAT-K1001 system board provides the ultimate solution by
integrating with ATI Radeon
™ HD 3200 DirectX® 10 GFX engine in AMD RS780E
system chipset
. The ATI Radeon ™ HD 3200 ( M72-based) graphics core employs a
unified shader architecture to deliver optimal 3D performance across the whole spectrum of
3D applications. This future-proof core ensures compatibility with both current and upcoming
3D applications. ENDAT-K1001 not only provide the ideal solution for Hi-End Gaming
system, but also can be adapted in various applications such as digital signage, POS, kiosks,
networking systems, control terminals and other embedded systems.
ENDAT-K1001 is designed with AMD AM2/AM2+/AM3 high performance
multi-core CPU. The memory sub-system supports two DDR2-400/533/667/800
MHz SODIMM socket up to 8GB of DDR2 chips. Memory controller is integrated by
AMD CPU to optimize the system performance and stability.
ENDAT-K1001 reserved 128MB local graphics memory (Side-Port memory) by
optional feature and it improve the graphic performance up to 10% to 15% (with
UMA + Side-Port mode). Graphic engine support Shader Model 4.0, OpenGL 2.0,
Dedicated UVD hardware for H.264, VC-1, and MPEG-2 decode.
ENDAT-K1001 provides the CRT, dual channels DVI, LVDS panel as standard
display interface to offer a cost effective platform for customer. Also, ENDAT-K1001
reserved the interface to extend the 2nd CRT, 2nd DVI and 2nd LVDS by sharing the
16 lanes PCIE slot.
ENDAT-K1001 provides the standard ATX power supply or single DC input by
optional (+12V to +24V) feature. The single DC input will optimize the whole
system cost, assembly and cable distribution.
The ideal solutions of ENDAT-K1001
-POS system
-KIOSK
-Vehicle system
-Interactive system
-Gaming system
-Embedded system equipment

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
7
1-1. Features
Basic Feature:
High performance CPU and GFX with cost effective platform.
Support AMD AM2/AM2+/AM3 socket CPU.
Two DDR2 SODIMM sockets support DDR2-400/533/667/800 up to
8GB system memory.

ATI Radeon ™ HD 3200 DirectX® 10 GFX engine with 128MB local
memory (optional feature) and UMA mode (shares system memory
up to 1GB)
7.1 channels + front panel HD AUDIO
6 x SATA II (5 x SATA + 1 x eSATA) ports with AHCI compliant
RAID 0, 1, 10 support by 4 SATA II devices
1 x PCIe 2.0 x16 slot and 1 x single lane mini PCIe socket
10 x USB 2.0 support
ATX power input (Standard version), or Wide range (+12V to +24V)
DC input (optional feature).
1 x LVDS connector support brightness control
Software Support
Drivers for major embedded operating systems: Linux, Windows XP,
Windows XP embedded, Windows7 and Windows CE 6.0.
Ordering information:
1. ENDAT-K1001: Standard version. (ATX)
2. ENDAT-K1001W: Wide range DC input. (+12V~+24V)

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
8
1-2. Unpacking
The motherboard comes securely packaged in a sturdy cardboard shipping carton. In
addition to the User's Manual, the motherboard package includes the following items:
 ENDAT-K1001 System Board
 SATA Cables
 LCD cable (Optional)
 CD with Driver utilities for on-board VGA and LAN adapter
If any of these items are missing or damage, please contact the dealer from whom you
purchase the motherboard. Save the shipping material and carton in the event that you want
to ship or store the board in the future.
Note: Leave the motherboard in its original package until you are ready to install it!
1-3. Electrostatic Discharge Precautions
Make sure you properly ground yourself before handling the motherboard, or other system
components. Electrostatic discharge can easily damage the components. Note: You must
take special precaution when handling the motherboard in dry or air-conditioned
environments.

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
9
1-4.MOTHERBOARD LAYOUT.

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
10
Chapter 2. Setting up the Motherboard
2-1. Jumpers and Connectors
Connectors Overview:
Function Connectors
ATX Power Connector ATX1
DC Power Supply Connector DC-IN1
HDD Power Connector HDDPWR1
CPU Socket U7
DDR2 SO-DIMM Socket DDR-A1, DDR-B1
PCIE 16X Slot PCIE1
Mini PCIE Socket MPCIE1
PS/2 KB/MS Connector CN1
CRT/DVI Connector DVIVGA1
LVDS Connector LVDS1
LAN1/USB Connector CN2
LAN2/USB Connector CN3
eSATA/USB Connector USBSATA1
HD AUDIO jack AUDIO1
Cooling Fan Connectors NBFAN1, CPUFAN2
SATA Connectors SATA1,2,3,4,5

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
11
Box Headers, Pin Headers Overview:
Function Connectors
PS/2 KB/MS Header KBMS1
External PS/2 Device Header (KB) JKB1
COM-A1 (COM1)
COM1 / 2 Box Header COM-A2 (COM2)
USB Ports Header JUSB1, JUSB2
AUDIO Headers JAUD1
SPDIF Header SPDIF1
SMBus Header SMB1
Header for Case Panel JP1
Digital I/O Header GPIO1
Reserved Power for LCD (+3.3V) AUXPWR1
Inverter Header (with brightness control) LCDBK1
Jumpers Overview:
Function Connectors
LCD Voltage Select LCDPWR1
Backlight Voltage Select I-PWR1(Pin2,4,6)
Inverter ON/OFF Level Select I-PWR1(Pin1,3,5)
LVDS
LCD Brightness Select GPIO2 (HW Control)

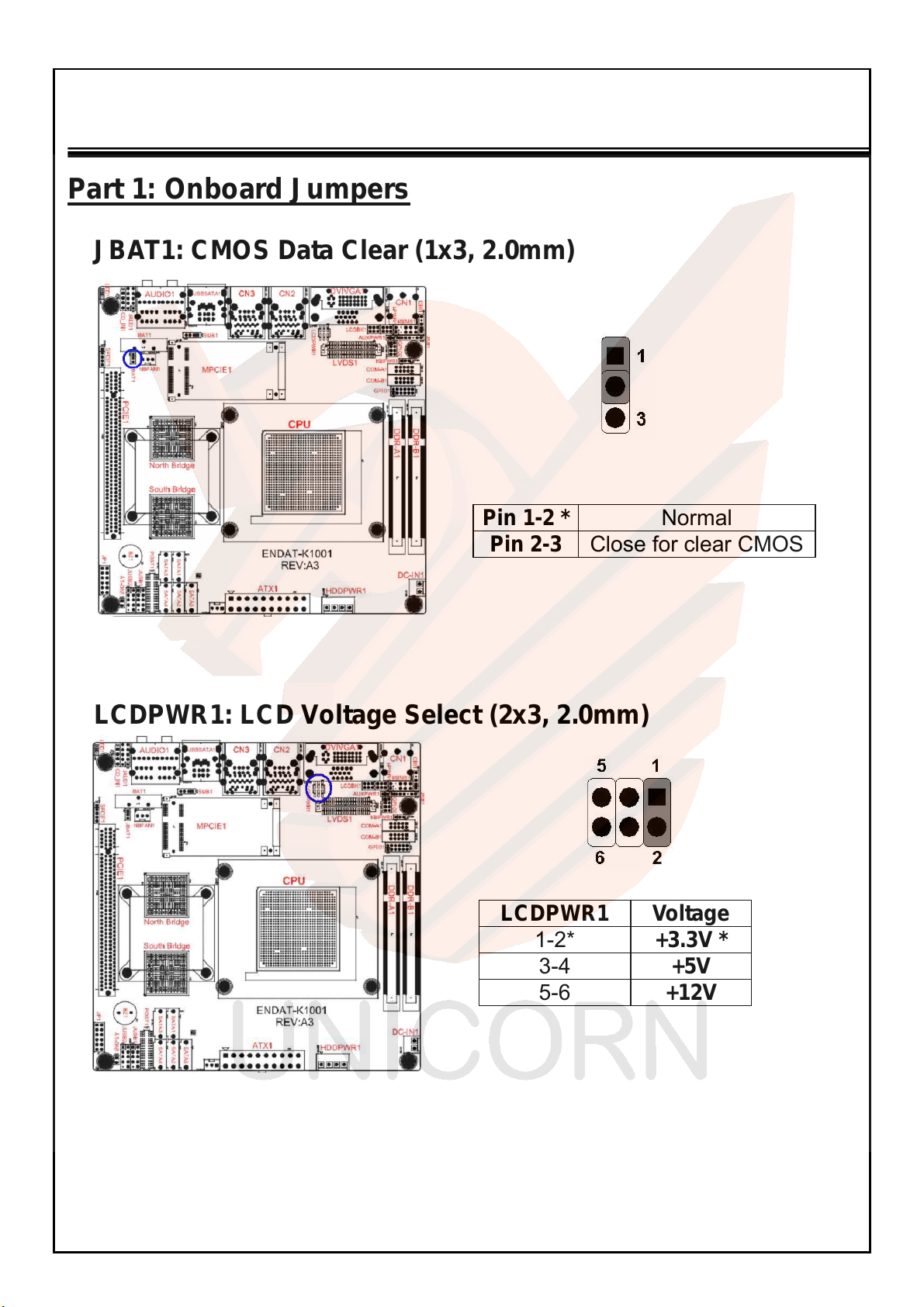

Clear CMOS JBAT1
Header for Case Panel JP1
HDD LED JP1: Pin 1(-), Pin 2(+)
External Speaker JP1: Pin 5(+), Pin 11(-)
Buzzer On/Off JP1: Pin 7, Pin 9
Hardware Reset Switch JP1: Pin 6, Pin 8
ATX Power Supply On/Off Switch JP1: Pin 10, Pin 12
Power LED JP1: Pin 1(+), Pin 2(-)
Keyboard Power Select KBPWR1
Please double-check the insertion and orientation of the LCD cable before
applying power. Improper installation will result in permanent damage LCD
panel.

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
12
Part 1: Onboard Jumpers
JBAT1: CMOS Data Clear (1x3, 2.0mm)
LCDPWR1: LCD Voltage Select (2x3, 2.0mm)
Pin 1-2 * Normal
Pin 2-3 Close for clear CMOS
LCDPWR1 Voltage
1-2* +3.3V *
3-4 +5V
5-6 +12V

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
13
I-PWR1: Inverter ON/OFF Level Select (2x3 with 2.0mm)
I-PWR1: LCD Backlight Voltage Select (2x3 with 2.0mm)
Inverter ON/OFF Level Select
LCD Backlight Voltage Select
GPIO2: LCD Brightness Select (2x4 with 2.0mm)
Notice1: The above voltage will effect to the pin-3 of LCDBK1 only
Notice2: GPIO2 must open all jumpers for S/W control
I-PWR1 Voltage
1-3 +3.3V*
3-5 +5V
I-PWR1 Voltage
2-4 +12V*
4-6 +5V
Pin No. Voltage (V)
1-2 +2.5V
3-4 +1.70V
5-6 +1.10V
1-2, 3-4 +1.25V
1-2, 5-6 +0.85V
3-4, 5-6 +0.72V
Close All +0.63V
Open all +5.0V
7-8 0V

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
14
KBPWR1: Keyboard Power Select
Part 2: Onboard Connectors and Headers
KBMS1: PS/2 Keyboard / Mouse Header (2x5 with 2.54mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 KB Data 2 MS Data
3 KEY 4 KEY
5 GND 6 GND
7 +5V(DC) 8 +5V(DC)
9 KB_CLK 10 MS_CLK
I-PWR1 Voltage
1-2 +5V Standby *
2-3 +5V

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
15
JKB1: External PS/2 Device Header (1x7 with 2.0mm)
Pin No. Signal (KB) Pin No. Signal (MS)
1 KB Data Out 2 KB Data In
3 KB Clk Out 4 KB Clk In
5 Key 6 +5V(DC)
7 GND
COM-A1 (COM1) / COM-B1 (COM2):
COM port Box Headers (2x5 with 2.0mm)
Pin No. Function Pin No. Function
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND 10 N.C.

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
16
JUSB1, JUSB2: Pin Header for USB port (2x5 with 2.54mm)
Pin
No. Function Pin No. Function
1 USB_VCC 2 USB_VCC
3 USBD4/6- 4 USBD5/7-
5 USBD4/6+ 6 USBD5/7+
7 USB_GND 8 USB_GND
9 KEY 10 USB_GND
AUDIO1: 6 Ports Audio Jack
CEN/LFE LINE IN1
SURR FRONT
SIDE MIC1

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
17
JAUD1: AUDIO Headers for Front panel (2x5 with 2.54mm)
Pin No. Function Pin No. Function
1 MIC2-L 2 GND_AUD
3 MIC2-R 4 NA
5 LINE2-R 6 MIC2-Detect
7 Front Panel Detect 8 NA
9 LINE2-L 10 LINE2-Detece
SMB1: SM Bus Pin Header Connector (1x4 with 2.0mm)
Pin No. Function
1 SMBCK
2 SMBDT
3 +3.3V
4 GND

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
18
GPIO1: DIGITAL I/O Pin Header Connector (2x6 with 2.0mm)
Notice: The DIO-P36 (pin-9 of GPIO1) is an alternate pin of chipsets. It’ll output a
low frequency clock till the BIOS finished the boot operation.
SPDIF1: SPDIF Header (1 x 5 with 2.0mm)
Pin
No. Function Pin No. Function
1 +5V 2 +3.3V
3 DIO-P30 4 DIO-P31
5 DIO-P32 6 DIO-P33
7 DIO-P34 8 DIO-P35
9 DIO-P36 * 10 DIO-P37
11 GND 12 GND
Pin No. Signal (KB)
1 +5V
2 N.C
3 SPDIF-OUT
4 GND
5 SPDIF-IN

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
19
LCDBK1: Inverter Header (2x3 with 2.0mm)
Notice1: The pin-3 of LCDBK1 voltage will change by GPIO2 or S/W control
Notice2: The pin-4 of LCDBK1 voltage will change by I-PWR1 (pin-1, 3, 5)
AUXPWR1: Reserved Power for LCD (1x2 with 2.0mm)
Pin
No. Function Pin
No. Function
1 VBL 2 VBL
3 INV-BRT 4 BKL ON/OFF
5 GND 6 GND
AUXPWR1 Voltage
Pin 1, 2 +3.3V

ENDAT-K1001 USERS MANUAL
UNICORN COMPUTER CORP.
20
LVDS1: Dual Channel LVDS (1.25mm)
Pin No. Signal Pin No. Signal
1 VBL (+12V) 2 VBL (+12V)
3 GND 4 GND
5 DISP.ON/OFF 6 GND
7 LCD Power 8 LCD Power
9 GND 10 GND
11 TxO0+ 12 TxO0-
13 TxO1+ 14 TxO1-
15 TxO2+ 16 TxO2-
17 TxO3+ 18 TxO3-
19 TxOC+ 20 TxOC-
21 GND 22 GND
23 TxE0+ 24 TxE0-
25 TxE1+ 26 TxE1-
27 TxE2+ 28 TxE2-
29 TxE3+ 30 TxE3-
31 TxEC+ 32 TxEC-
33 LCD Power 34 LCD Power
35 GND 36 GND
37 GND 38 GND
39 VBL (+12V) 40 VBL (+12V)
