iRhythm Zio User manual

5
5WEARING
YOUR ZIO
Flip for PRESS BUTTON LOG
Record any events during your wear
period here, the myZio app or at myzio.com.
Return this booklet, your Zio AT patch and
Zio AT gateway after your wear period:
MANUAL

1
Congratulations on applying
and activating your Zio AT patch
and gateway.

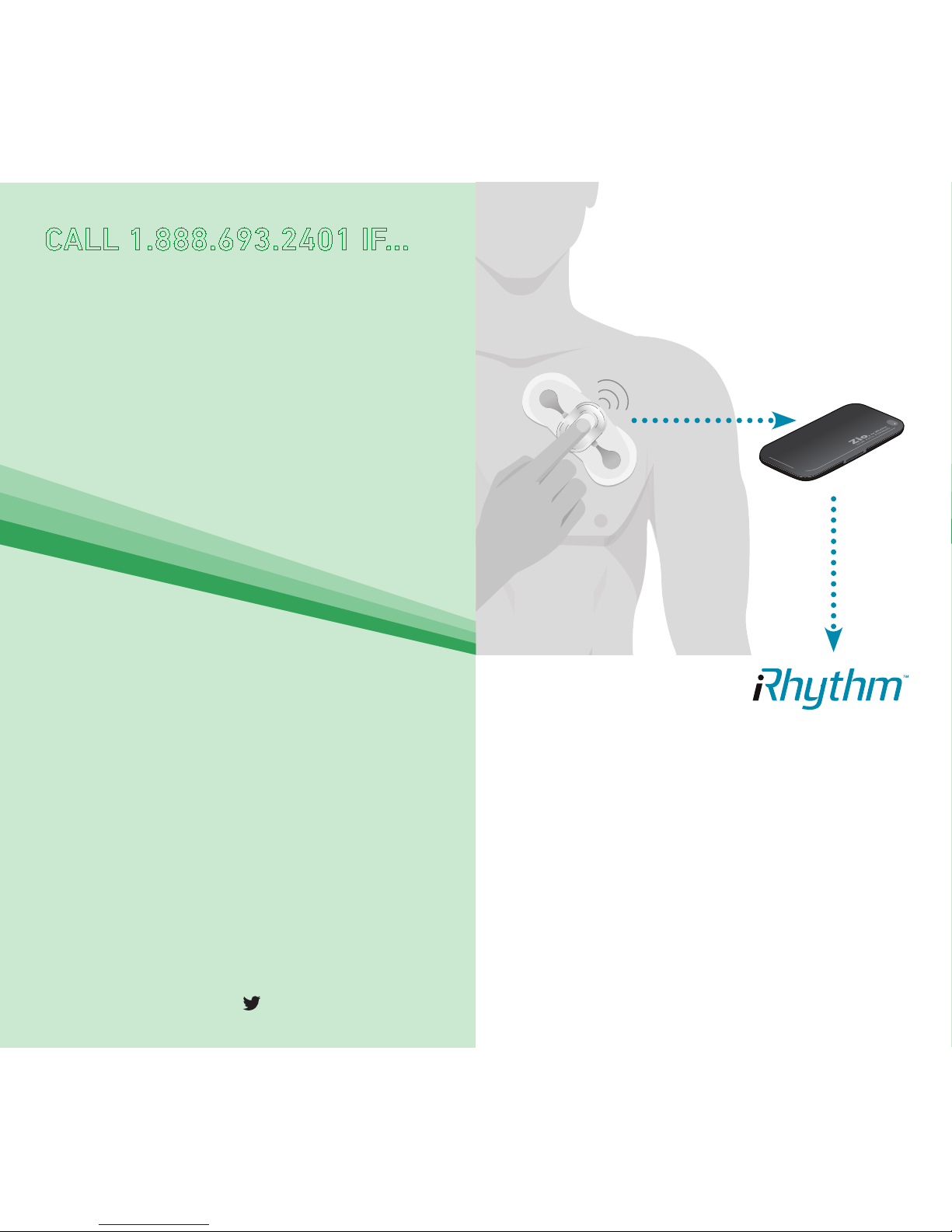

The patch records every heartbeat
and the gateway sends important
information from your patch to keep
your doctor updated during your
wear period.
iRhythm Technologies, Inc. — Clinical Centers
650 Townsend St., Suite 500
San Francisco, CA 94103 U.S.A.
2 Marriott Drive
Lincolnshire, IL 60069 U.S.A.
363 N. Sam Houston Parkway East, Suite 125
Houston, TX 77060 U.S.A.
1.888.693.2401 | irhythmtech.com | @iRhythmTech
Patch
Gateway
CALL 1.888.693.2401 IF…
 •TheZioATpatchfallso.
• You experience severe itching or
irritation.
For all other information please see the
Troubleshooting and Frequently Asked
Questions section of this booklet.
If you feel the need for immediate medical
care at any time, call 911. The Zio AT device
will not provide any medical assistance and
cannot contact medical personnel for you.
Please take your gateway with you to the
emergency room.
For use in the United States only.
A100A4007.02 • 2017-06-12

3
TROUBLESHOOTINGFAQsPATCH REMOVAL TRAVELING
2
USING YOUR ZIO AT
With the Zio AT, you can sleep,
shower and go through your
normal daily activities.
Your patch needs time to fully stick to your
skin. For the rst 24 hours after application,
please avoid:
• Showering or bathing
• Any activity that will cause sweating
After 24 hours, you can go back to these
normal activities, including moderate
exercise.
USING ZIO
Remember:
1Press the button on your patch any time you feel a symptom, then log your
symptom in the myZio app. You may also
enter your symptoms on myzio.com or in
the Button Press Log on the ip side of this
manual
2Keep the gateway nearby
as much as possible
including when
you’re on the move.
Keep in mind that
data sending
may be stalled if the
gateway is more
than 10 feet from
the patch. Once
back in range, data
transfer will resume
and no data will
be lost.
3
The patch and
gateway will not ash or make noise if
they are working properly. A ashing patch
or gateway does NOT signal a problem with
your heart. One of the devices may have
lost connection. Review the Troubleshooting
section or call 1.888.693.2401 for assistance.

5
TROUBLESHOOTINGFAQsPATCH REMOVAL TRAVELING
4
USING ZIO
Additional Tips:
You may start to feel itchy under the
patch, but please keep the patch on
unless the itching becomes severe.
If the patch starts to peel o, press
evenly on the wings of the patch for
3 to 5 minutes.
Too much sweating can cause the
patch to loosen or fall o.
Protect the gateway from water at all
times. Do not submerge the patch in
water. Keep showers brief and avoid
swimming or hot tubs.
Try not to place the gateway within
six feet of transmitting devices, such
as wireless routers, baby monitors
and TV senders/ transmitters. These
devices may cause interference
between the patch and the gateway.
Use myZio to enter your symptoms and
check symptomatic transmissions sent
from your gateway. You’ll also have access
to instructions and support videos.
Note: transmissions may take time to
appear online.
iPhone® users
1. Search for ‘myZio’ in the App StoreSM
2. Download app
3. Register before entering symptoms
Android™users
1. Search for ‘myZio’ in the Google Play™
Store
2. Download app
3. Register before entering symptoms
Computer users
1. Open your web browser
2. Navigate to www.myZio.com
3. Register before entering symptoms
Supported on iPhone 5 or later (iOS 9+).
Supported on Android 4.4+
iPhone, App Store and the Apple logo are registered trademarks of
Apple Inc.

7
USING ZIOPATCH REMOVAL TRAVELING
6
FAQs

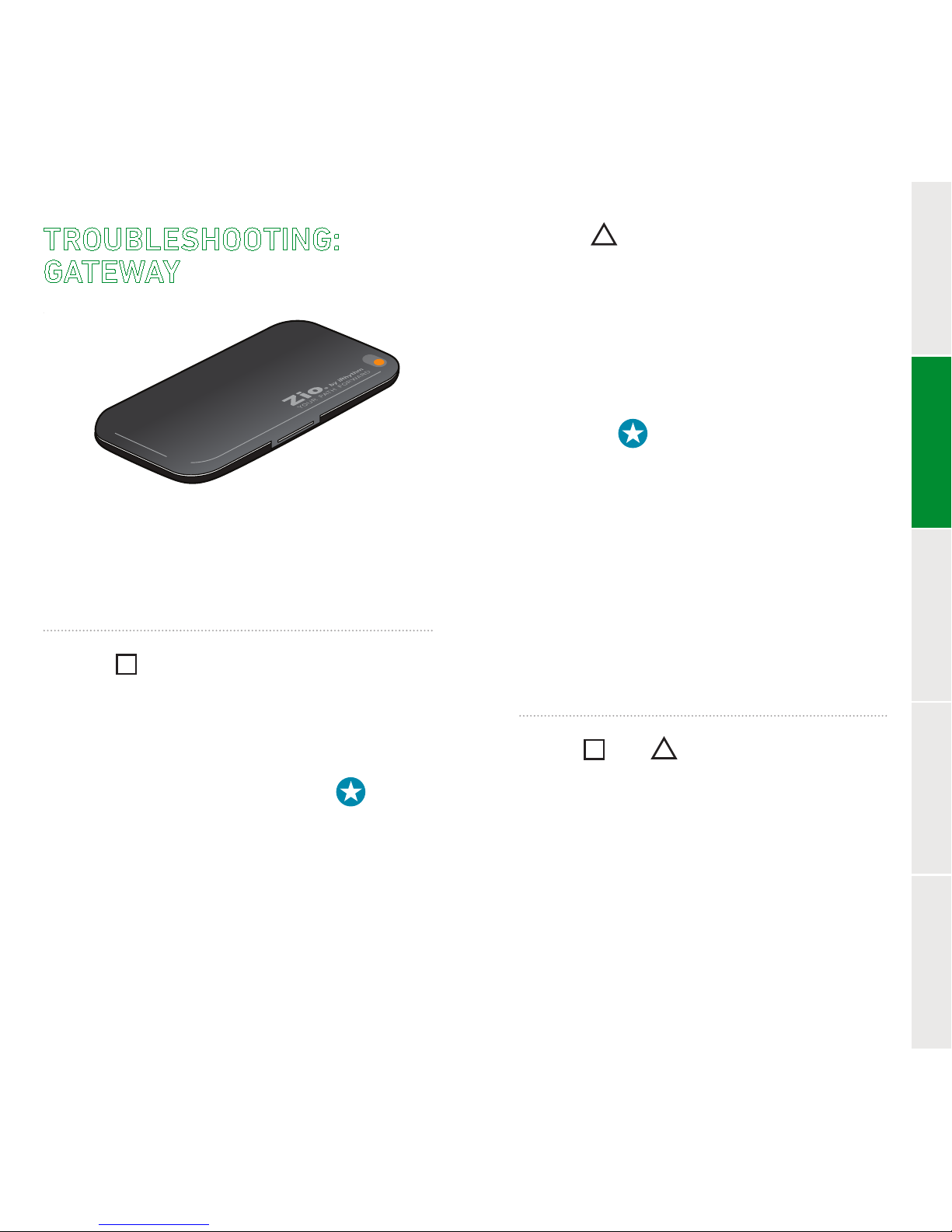

TROUBLESHOOTING:
GATEWAY
If the light on the outside of your
gatewayisashing,checkinside.
SLOW FLASHING
(once every 3 seconds):
Indicates that the gateway has lost the
connection to your patch.
To reconnect, hold the star button for
3 seconds until the orange light stays on.
If the light ashes green, the gateway has
reconnected to the patch.
Iforangeashingcontinues, call Customer
Service at 1.888.693.2401.
SLOW FLASHING
(once every 3 seconds):
Indicates that the gateway does not have a
cellular connection.
To reconnect, move the gateway to a
place with a good cellular connection
(near a window or outside) and hold the
star button for 3 seconds until the
orange light stays on.
If the light ashes green, the gateway has
reconnected. Do not move the gateway until
the green ashing stops.
If it does not ash green, move to a new
location and try again.
Iforangeashingcontinues, call Customer
Service at 1.888.693.2401.
FAST OR FLASHING
(3 times per second):
Fastashingindicatesthatyourgateway
is not working. Call Customer Service at
1.888.693.2401.
TROUBLESHOOTING

9
USING ZIOPATCH REMOVAL TRAVELING
8
FAQsTROUBLESHOOTING

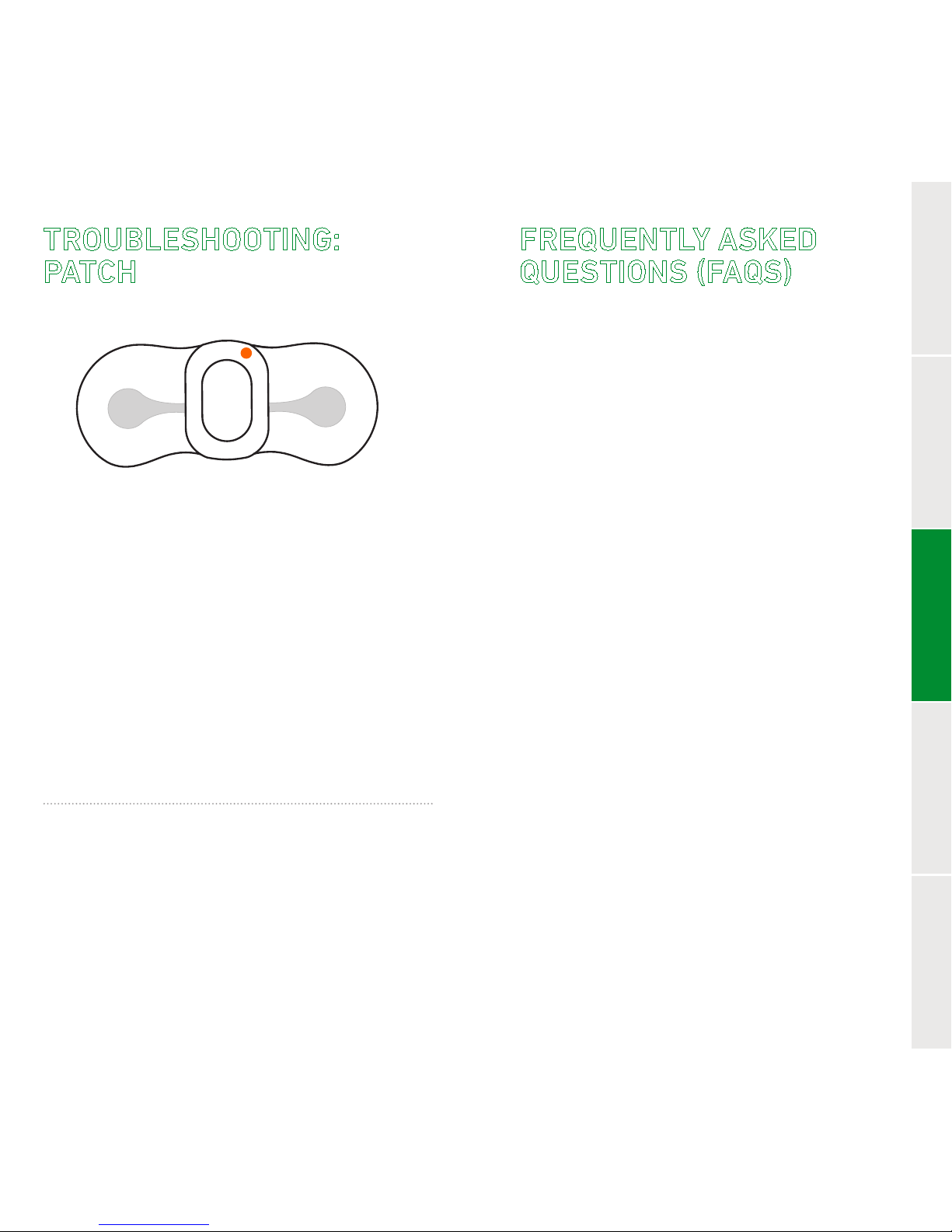

TROUBLESHOOTING:
PATCH
SLOW FLASHING
(once every 3 seconds):
Indicates that your patch is not making good
contact with your skin.
To correct this, press evenly on the wings of
the patch for 3 to 5 minutes.
Iforangeashingcontinues, call Customer
Service at 1.888.693.2401.
FAST FLASHING
(3 times per second):
Indicates that your patch is not recording. Call
Customer Service at 1.888.693.2401.
FREQUENTLY ASKED
QUESTIONS (FAQS)
The Zio® AT Monitoring System
What is the patch doing?
The patch is recording every heartbeat.
Your doctor will use the heart rhythm
data from the patch to determine the
right course of action.
What is the gateway doing?
The gateway wirelessly sends heart rhythm
data recorded by your patch to iRhythm.
iRhythm analyzes the data and provides a
report to your doctor.
How do I know the patch and the gateway
are working?
If you saw green ashes after turning on
the patch and gateway, both devices are
working. When they are working normally,
the patch and gateway do not ash or
make noise.
Do I need to do anything after pressing the
patch button to send heart rhythm data
wirelessly?
Do your best to keep the gateway in front of
you and within 10 feet as much as possible.
The gateway should also be kept in a place
with good cellular connection.

11
TROUBLESHOOTING USING ZIOPATCH REMOVAL TRAVELING
10
FAQs
Can I carry the gateway in a purse, bag or
pocket?
Yes. However, the gateway will need to be in
front of your body and within 10 feet of the
patch. You may also use the provided belt clip to
carry the gateway.
What can aect wireless connection between
the patch and the gateway?
Wireless devices that use 2.4 GHz signals
such as baby monitors, TV senders,
and wireless routers can interrupt
communication between the patch and
gateway if used within 6 feet. Objects
placed inside the gateway can also cause
communication problems.
Your Activities
Can I exercise while wearing the patch?
Yes, you may exercise moderately, but
excessive sweating may shorten wear time.
Can I shower with the patch on?
After 24 hours following application, you
may take brief showers. Try to keep your
back faced toward the shower. Hold the
patch down while towel drying to prevent
accidental removal. Avoid getting the
gateway wet.
Can I take a bath?
Yes, but keep the patch above water. Keep
the gateway away from all water.
Can I go into a pool or a hot tub?
No. The patch should not be submerged
under water. Keep the gateway away from
all water.
Can I travel with the patch on?
Yes. If questioned during airport security
screening, show the statement in the
Traveling section. Note that the gateway
will not have cellular connection outside
the United States.

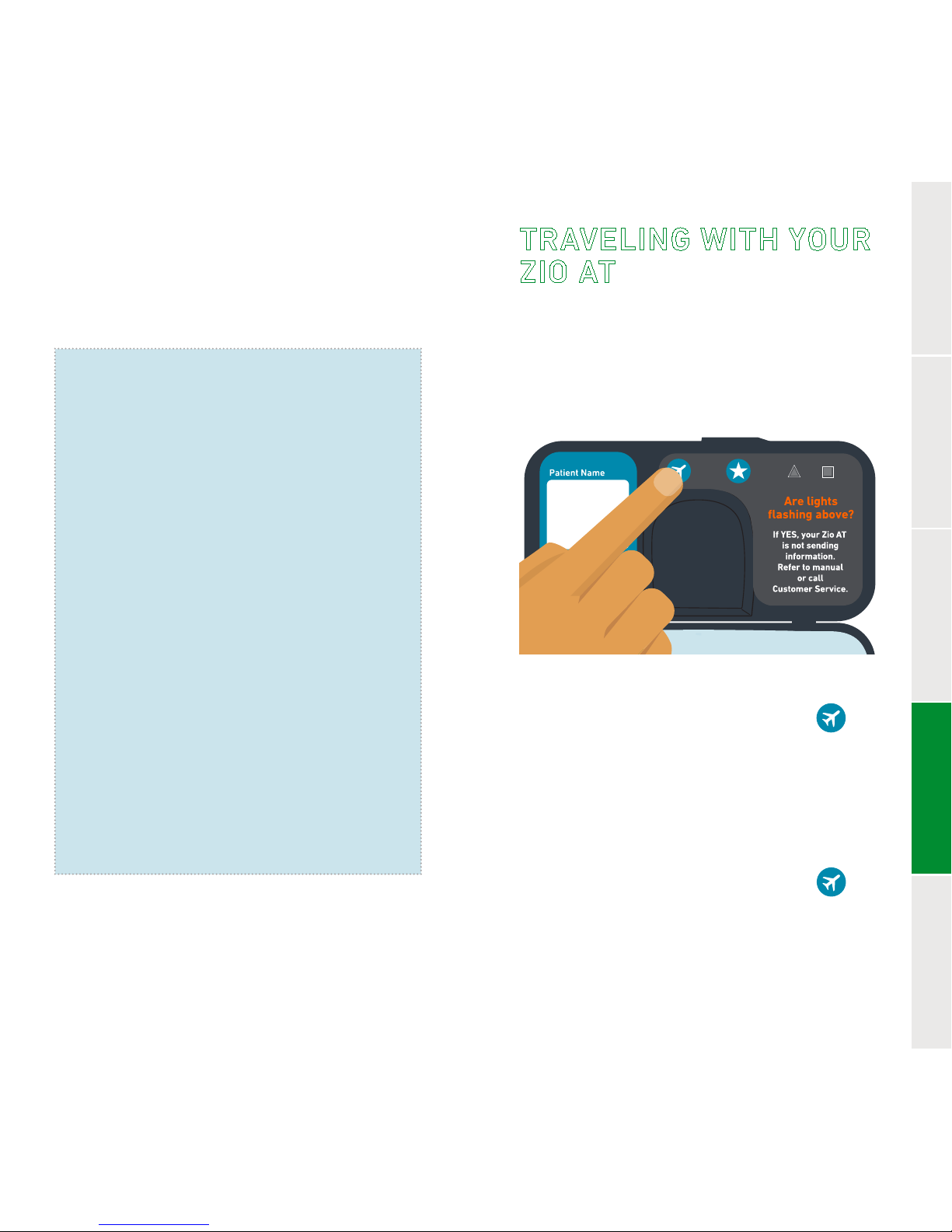

Can I y with the gateway?
Yes, the gateway should be placed in
“airplane mode.” See Traveling section.
What activities should I avoid?
Avoid activities that cause heavy sweating.
Sweat can cause the patch to slide,
become loose or fall o. Activities that
may submerge the patch in water should
also be avoided.

13
TROUBLESHOOTING USING ZIOPATCH REMOVAL TRAVELING
12
FAQs
Recording Symptoms
What should I do if I feel a symptom?
First, press the button on your patch. Then
enter your symptoms in the myZio app or in
myzio.com. You may also ll out a page of
the Button Press Log in this manual. Please
choose only one option for recording your
symptoms.
What if I forget to press the button when I feel
a symptom?
The patch will still record your heartbeat and
the gateway will send any information that is
important for your doctor to know.
What if I press the button but forget to write
down the symptom?
Recording your symptoms and activity gives
your physician additional information about
what may have caused the symptom. While
this is useful, it is most important to press
the button.
What if I press the patch button while the
gateway is not within 10 feet and in line of
sight of the patch?
The patch will store the data until the gateway is
in range, then the data will be sent.
What happens if I press the patch button while
the gateway doesn’t have cell signal?
The gateway will store the data until it has
cell signal, then the data will be sent.
The Patch
What should I do if the patch peels or lifts at
the edges?
Press evenly on the wings of the patch for
3 to 5 minutes to re-stick.
What should I do if the patch falls o?
Call Customer Service at 1.888.693.2401.
I think I see blood under my patch. What
should I do?
Call Customer Service at 1.888.693.2401.
It is probably due to a small shaving cut
when the patch was applied to your chest.
Is it normal for the Zio® AT patch wings to
become cloudy?
Yes. The patch may move slightly from its
original position. A blue gel may be seen
under the wings of the patch.
Is it normal for the patch to move slightly
from its original position?
Yes. The patch may move slightly from its
original position. A blue gel may be seen
under the wings of the patch.

15
TROUBLESHOOTING USING ZIOPATCH REMOVAL TRAVELING
14
FAQs
Is it normal to experience skin irritation or
itchiness in the area of the patch?
Many patients do not experience skin irritation or
itchiness. However, some patients report minor
skin irritation and/or itching while wearing the
patch. If the irritation or itching is severe or hives
or blisters develop, remove the patch and then
call Customer Service at 1.888.693.2401.
Flashing Lights
Will the gateway show any lights or make any
sounds?
No. As long as it is able to send data, the
gateway will not ash or make noise.
What if the patch ashes orange while I am
wearing it?
If you see the patch ashing orange, this
does not mean there is a problem with your
heart; it just means that the patch is not
well attached. Press evenly on the wings of
the patch for 3 to 5 minutes. If the ashing
continues or comes back, call Customer
Service at 1.888.693.2401
What should I do if my gateway is ashing
orange?
If you see the gateway ashing orange, this
does not mean there is a problem with your
heart; it just means that the patch cannot
send information wirelessly. Turn to
Troubleshooting or call Customer Service at
1.888.693.2401.
End of the Wear Period
How long am I supposed to wear the patch?
Wear the patch for as long as your doctor
prescribed but no longer than 14 days. NOTE:
Each person’s wear experience is dierent
and actual wear time may be shorter than
prescribed.
I have removed the Patch and it is ashing
orange. Is this okay?
The patch may ash orange after removal.
It is okay to mail the device while it is
ashing. Turn to Patch Removal for return
instructions.

17
TROUBLESHOOTINGFAQsUSING ZIOPATCH REMOVAL
16
TRAVELING
TRAVELING WITH YOUR
ZIO AT
You can y while wearing a Zio AT. Simply
show the security statement (opposite
page) during screening, and remember to
put the gateway in Airplane Mode.
4
3
2
1
Quick Reference
Patient Instructions
Using the ZIO® SR p.2
Troubleshooting p.6
FAQs p.9
Patch Removal p.18
Zio®Patch Return Instructions
Lift below to remove return envelope
Remove Patch from skin
Place Patch inside
Gateway as shown
Place Patient booklet
and Gateway in
return envelope
Lift for
Return
Envelope
To turn Airplane Mode ON
Press and hold the airplane button
inside the gateway for 3 seconds, until the
lights ash orange. The airplane light on
the outside of the gateway will ash as
long as it is in “Airplane Mode.”
To turn Airplane Mode OFF
Press and hold the airplane button
inside the gateway for 3 seconds, until the
lights ash green. The outside airplane
light will stop ashing.
SECURITY SCREENING
STATEMENT
This person is wearing an iRhythm
Zio AT patch prescribed by their
physician. This device is currently
adhered to the patient’s chest and is
monitoring their heart. It can only be
removed under the
direction of their physician.
If you have any questions, please
contact the iRhythm Clinical Center at
1.888.693.2401
24 hours/day, 7 days/week.

19
TROUBLESHOOTINGFAQsUSING ZIOTRAVELING
18

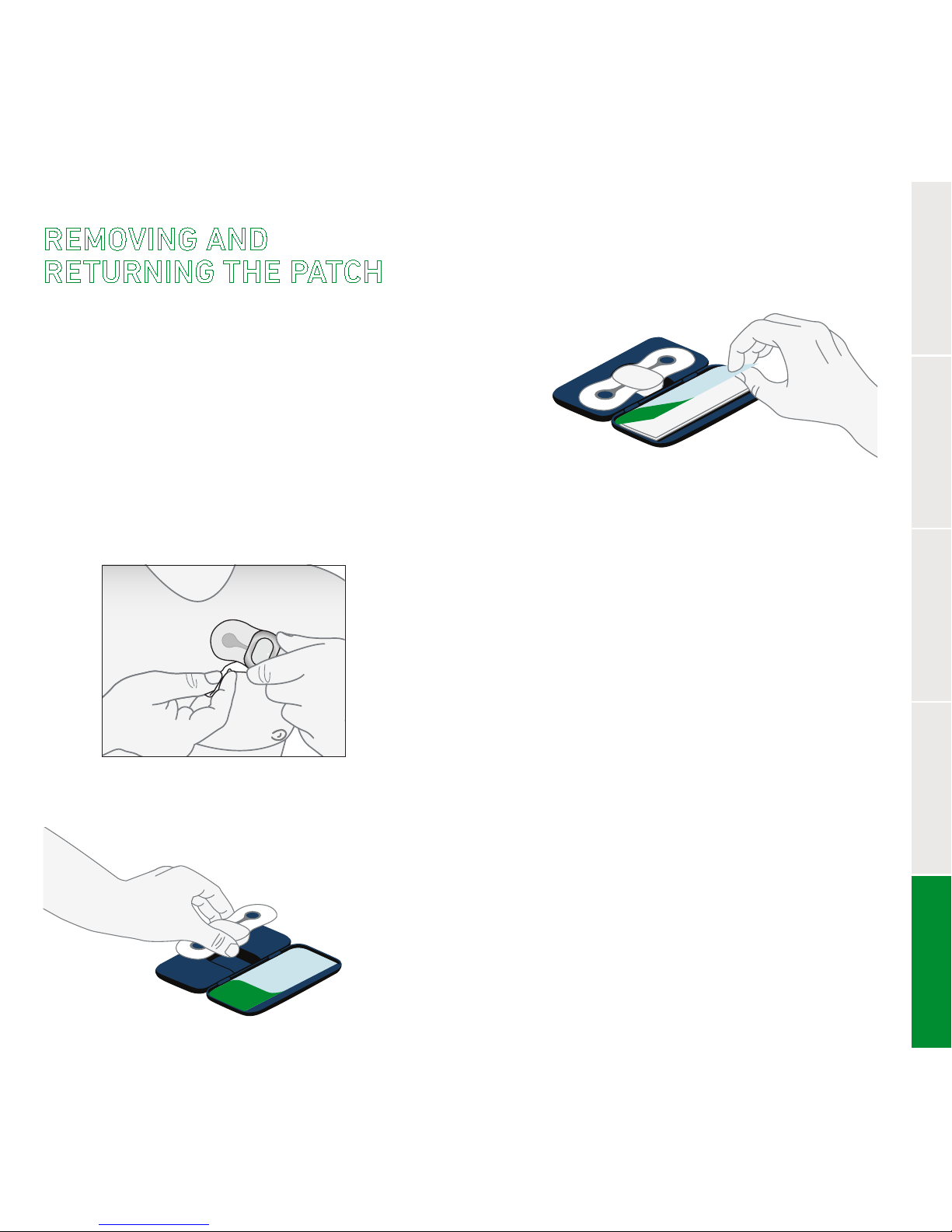

PATCH REMOVAL
REMOVING AND
RETURNING THE PATCH
When you have worn the patch for the time
prescribed by your doctor, follow these steps:
1Using the adhesive remover from the opposite page, tilt the center of the patch
up and sweep between your skin and the
patch – while lifting one side from the center
out. Repeat for the other side, lifting from
the center out. Wash the skin with mild soap,
rinse with water and pat dry.
2
Place the patch inside the gateway as
shown.
3
Lift panel in the gateway to remove the
return envelope.
4
Place the patch, gateway and this
manual inside the envelope. Please
include your completed Patient Consent
form and Feedback Survey.
5
Mail it back via the U.S. Postal Service
as soon as possible.
You will be held responsible for the cost
of the device if either the patch or gateway
are not returned.
ADHESIVE
REMOVER

20 21
PATIENT CONSENT FORM FEEDBACK SURVEY
PATIENT
CONSENT
FORM
FEEDBACK
SURVEY

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe

because I felt…
I pressed the button on:
while I was…
for this duration…
:
m d y mhm d y mh
AM
PM
describe
activity
1 minute or less
10 minutes or less
1 hour or less
More than 1 hour
anxious
arm or neck pain/tingling
chest pain or pressure
dizziness
faint
light headed
pounding
uttering or racing
short of breath
skipped or irregular beat(s)
other:
describe
SAMPLE
Enter your symptoms as shown
on the sample page, or enter
them using the myZio™app or the
myZio.com website and enjoy
these additional features:
• Review and edit your symptom history
• Have easy access to help instructions
and videos
• View gateway transmissions
• Access and edit your patient prole
See page 5 in the Wearing
Your Zio manual to get started
with myZio
