Contents:
Page
3Warnings and Regulatory Information
4Introduction
Installation:
5Installation Instructions
7Power and Data Connections
Operation:
8 UTC Controller
9 Functions

V
ersion
1.0
1
.
Nov
2016
.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
3
/
20
Warnings & Regulatory Information
Do not use harsh chemicals or cleaning solvents to clean the device.
Do not attempt to open the device.
Unauthorized modifications or attachments could damage the device and may violate regulations
governing radio devices.
Avoid dropping, knocking or shaking the device. Rough handling can break internal circuit boards and fine
mechanics.
Observe correct polarity when connecting power and data. Failure to do so could result in damage to the
unit.
Disposal of Waste Equipment by Users in Private Household in the European Union.
This symbol on the product or its packaging indicates that it must not be disposed of with your
other household waste. Instead, it is your responsibility to dispose of your waste equipment
by handing it over to a designated collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio or television reception.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause interference to radio and television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures: Re-orientate or relocate the receiving antenna; Increase the
separation between the equipment and the receiver, connect the equipment to an outlet on a different circuit
from that to which the receiver is connected; consult the dealer or an experienced radio / TV technician for
help.
We hereby declare that the product is in compliance with the essential requirements and
other relevant provisions of European Directive 1999/5/EC (Radio and telecommunications
terminal equipment Directive).

V
ersion
1.0
1
.
Nov
2016
.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
4
/
20
Introduction
The IRIS066 is a high resolution fixed mini-dome camera and features:
•A316 Marine Grade Stainless Steel Housing
•High Resolution 700TVL Sony Super HAD II Camera Module
•24 Infra Red LED's for Night Visibility - IR Range around 45~50 feet
•2.3mm Lens provides 124˚ HFOV
•Day / Night Operation - Camera switches to mono in low light for improved image clarity
•OSD Menu Driven Setup
•Dynamic Noise Reduction
•Wide Dynamic Range Settings
•Standard / Mirror Switchable
•Compatible with Garmin, Raymarine, Furuno, Simrad, Hummingbird
•Compact Form Factor: ø49mm x 114mm
•IP68 Waterproof
•Available in NTSC & PAL Video Systems

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
5
/
20
Installation Instructions

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
6
/
20
The IRIS090-IR is designed to be ceiling, floor or wall / bulk-head mounted and is affixed
using the supplied mounting screws to the required surface.
Please use suitable cutting tools and appropriately sized drill bits for the mounting holes
1. Adjust then horizontal viewing angle using the slotted holes in the bracket before the
mounting screws are fixed.
2. Loosen up the screws attaching the camera to the bracket to adjust the viewing angle and
then tighten up all screws to fix the camera in position and secure the bracket to the wall or
ceiling.
.

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
7
/
20

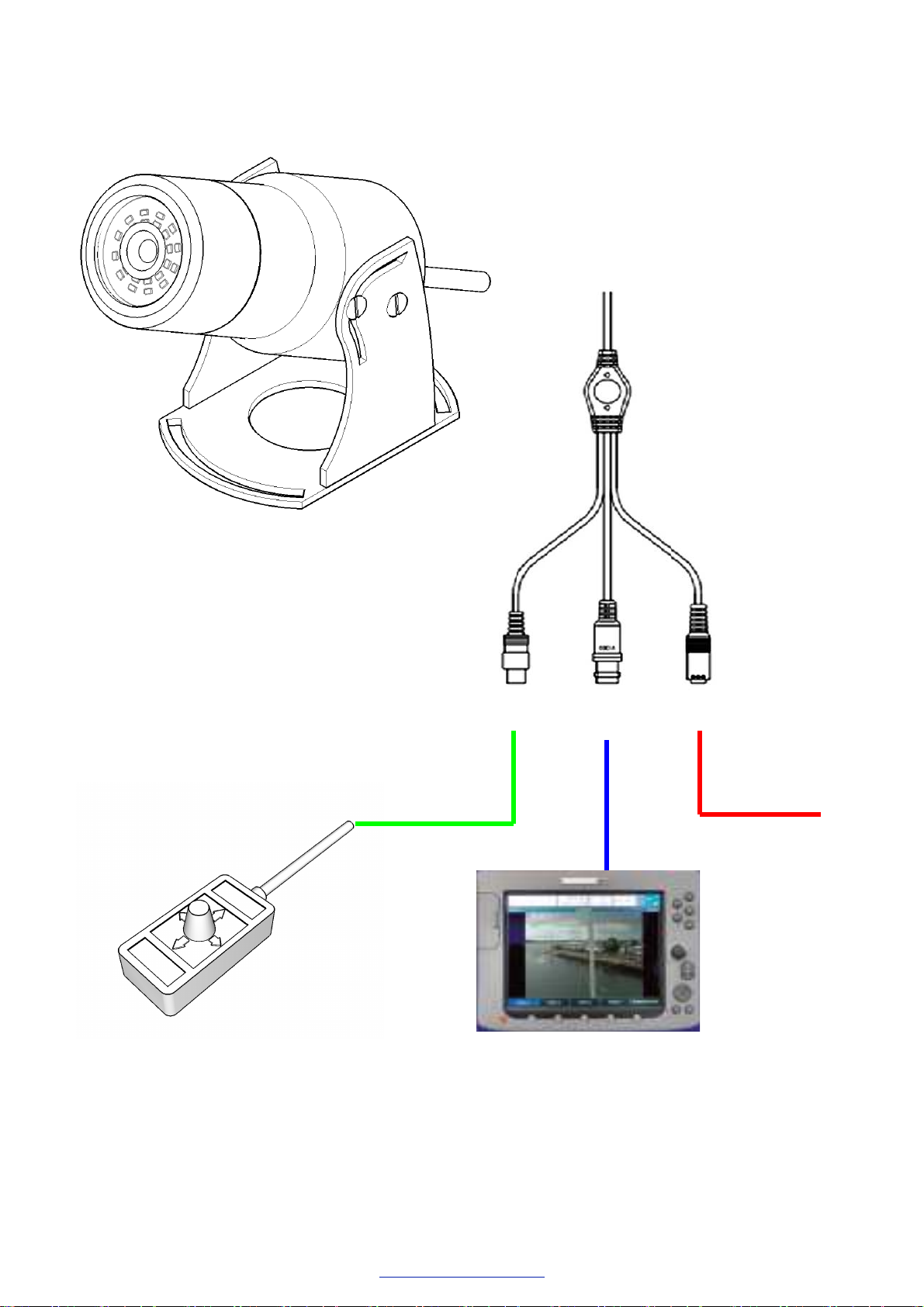

Power and Data Connections
Power your unit from a dedicated fuse / breaker rated at 12VDC / 500mA. The unit
operates when power to the breaker / fuse is applied. Ensure suitably rated cable is used
to handle the required current and voltage.
The IRIS090-IR camera is fitted with a cable tail which has a 2.1mm DC Jack for the
power and a female BNC connector for the video signal. The polarity of the power connection
is centre pin = +12V, connector body = Ground.
Use a suitable coaxial cable with an impedance of 75Ωfor the video signal (RG59 or
URM 70 for example) or a suitable Video Balun if using Cat 5 cable.
Ready made power, video and combination cables are available from Iris Innovations.
UTC Controller:
During commissioning, you can use the included UTC controller device to modify the video
settings of the camera as required.
The controller is fitted with a RCA Phono style connector on the end of the fitted cable, so this
simply connects to the matching RCA socket on the breakout tail cable from the camera.
Once powered up, pressing the joystick button down brings up a comprehensive On Screen
Menu system through which you can navigate using the controllers direction in order to set
the various aspects of the camera, including video to Standard or Mirror image, set colour,
contrast, brightness levels, specify Dynamic Noise Reduction (DNR) and Wide Dynamic
Range (WDR) levels to achieve the best possible video signal.
Video (1v P~P Composite 75Ω)
12VDC 120mA
Connect to boats distribution panel and
ensure suitable isolation is in place.

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
8
/
20
12VDC 300mA
Power
Video
UTC

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
9
/
20
Functions:
Main Menu:-
Immediately from power up then pressing the centre joystick button, the Main Menu
screen shown below will be displayed:
The menu can be navigated using the joystick up, down, left and right, and by clicking the
joystick in its centre position to select an item. Any item with an arrow at the end of the text
indicates that there is a sub-menu available by clicking the joystick, and anything without
the arrow can have it’s options changed by simply moving the joystick left or right.
The Return option at the bottom of each menu returns to the previous menu.
The lens feature allows setting of the method for automatic light/brightness and Iris control.
The Manual and Video options allow an additional level of fine tuning.
Feature Options
Lens Manual (default)
DC (not applicable on this model)
Video

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
10
/
20
The Exposure feature displays a sub menu and allows fine adjustment of image gain and
shutter controls.
The Backlight feature allows adjustment of apparent image brightness when multiple
varying light levels are present.
Each of the options for BLC (Backlight compensation) and WDR (Wide Dynamic Range)
have additional levels of fine tuning. Details for these are outside the scope of this
document,
Backlight compensation (BLC) will improve the image when it is required to view something
in the foreground that is naturally much darker than the background image by effectively
artificially lightening the darker foreground.
Digital Wide Dynamic Range (DWDR) will try to provide the most balanced possible of
images even in the presence of large bright areas alongside large dark areas.
Feature Options
SHUTTER AUTO/FLK/MANUAL/1/50 (AUTO default)
AGC HIGH/OFF/LOW/MIDDLE (HIGH default)
SENSUP AUTO/OFF (AUTO default)
Feature Options
Backlight OFF (default)
DWDR
BLC
HSBLC

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
11
/
20
The White Balance feature allows fine adjustment of colour “temperatures”.
The Manual option allows separate adjustment for Red and Blue levels within the image.
The Day/Night feature allows control of the image at different light levels.
The Auto option will automatically switch to a clearer black and white image after dusk, and
has an adjustable delay threshold for when to switch to and from a colour or black and white
image.
.
Feature Options
White Bal ATW (default)
AWB
AWC->SET
MANUAL
Feature Options
Day/Night Auto (default)
Ext ( not applicable on this model)
B/W
Color

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
12
/
20
The Smart 3DNR feature provides the ability of reducing apparent ‘noise’ and artefacts on
the video image by processing changes over a short period of time.
A submenu from the ‘ON’ Setting allows fine tuning of these values.
The F-DNR feature provides additional functionality and fine tuning options relating to
advanced digital noise reduction.
Feature Options
Day/Night ON (default)
OFF
Feature Options
F-DNR OFF (default)
MANUAL
AUTO

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
13
/
20
The Functions Sub-menu offers the facility to set some video specific features of the
camera as well as language options.
Please note the Image Adjust and Comm Adjust options are not applicable to this model).
The Motion feature (via the ON submenu) allows adjustment of the areas in which to detect
motion within. Details for this are out of the scope of this document.
The Privacy feature offers the facility to set some video specific features of the camera.
This ON submenu allows adjustment of the areas which are to be marked “private” and
blanked from the displayed video image. Details for this are beyond the scope of this
document.
Feature Options
Motion OFF (default)
ON
Feature Options
Privacy OFF (default)
ON

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
14
/
20
The D-Effect option offers the facility to manipulate the image layout, which are all set to off
as default.
These features include:
•Digital Zoom and Smart Digital Zoom
•Digital Image Stabilisation (DIS) (reduces effects of motion within the image)
•Image Freeze
•Negative Image
•Image Mirror:
Feature Options
Mirror OFF (default)
MIRROR
V-FLIP
ROTATE

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
15
/
20
Selecting “Ret” on any of the menus will return back to the previous menu.
Once any of the above settings have been altered, selecting “Save” from the Exit menu
item will save these settings permanently onto the cameras memory and apply them.
The camera may then be powered down and the UTC controller removed.
At any time, all of the camera settings may be restored to their factory default settings by
simply selecting “Reset” from the Exit menu item.

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
16
/
20
Specifications:
TV System NTSC PAL
Image Sensor 1/3” Sony Super HAD II CCD (960H)
Number of Pixels (Horizontal) 976 976
Number of Pixels (Vertical) 494 582
Scanning Frequency (Horizontal) 15.734kHz 15.625kHz
Scanning Frequency (Vertical) 59.94Hz 50Hz
Resolution Colour: 700 TV Lines
Scanning System 2:1 Interlace
Sync System Internal
Video Output VBS 1.0V P~P 75Ω
S/N Ratio More than 52dB
Minimum Illumination 0.0001 Lux (Sens-Up On)
Electronic Shutter 1/60~1/100,000 1/50~1/100,000
Power Source DC12V ±10%
Power Consumption Max 2.5W (300mA)
Operating Temperature -20˚C ~ +60˚C
Operating Humidity 30%~90%
Lens Fixed 2.3mm (124˚ HFOV)
Dimensions ø49mm x 114mm
Weight 0.6kg

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
17
/
20

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
18
/
20
Notes:

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
19
/
20
Notes:

V
ersion
1.01.
Nov
2016.
©Iris
Innovations
Limited.
ww
w
.boat
-
cameras.com
.
info@boat
-
cameras.com
20
/
20
UK
Address: UK Head Office
Unit 15 Fareham Innovation Centre
Meteor Way
Lee-on-Solent
PO13 9FU
Phone: Tel: [phone]
E-Mail: [e-mail]
Web: boat-cameras.com
USA
Address: USA Office
2821 SW 23rd Terrace, Unit 5
Fort Lauderdale
Florida
33312
Phone: [phone]
