Portable LP Gas Griil
Owner's Manual
Modei No.: O-Grill 3000
FOR OUTDOOR USE ONLY.
Read this manual caretully before assembling, using or servi<in9 this gas grill.
lmportaltt:
CO SUMER/ USER:
Tftis instruction manual contains important information necessary for the prop€r assembty and safe use o{
the appliance. Read and tollow all warnlng5 and instructions before asjembting and using th€ applian.e.
Keep this manual for future reference.
AN51 221.89 a'2005 / CSA 1.18a-2006

Portable LP Gas Grill Owner's Manual
Contents:
'General Safety lnformation
-P1
'Operating lnstructions
-P3
. Gas lnstrucfions
. Leak Check
. Cooking
-P6
'Cleaning and Maintenance -P6
. Storage .-- ---P8
'Troubleshooting -.-Pg
. Parts List -=---P9
'Warranty-P10
General Safety lnformation
lf you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. lf odor continues, keep away from the appliance and
immediately call your fire department.
Failure to follow these instructions could result in fire
or explosion, which could cause property damage,
personal inlury or death.
l.Never operate this appliance unattended.
2.Never operate this appliance within 10 ft (3 m) of any
structure, combustible material or other gas cylinder.
3.Never operate this appliance within 25 ft (7.5 m) of
any flammable liquid,
4.Do not fill cooking vessel beyond maximum fill line.
S.Never allow oil or grease to get hotter than 4OO.F or
200'C. If the temperature exceeds 400.F (2OO"C), or if
oil begins to smoke, immediately turn the burner or
gas supply OFF.
6.Heated liquids remain at scalding temperatures long
after the cooking process. Never touch cooking
appliance until liquids have cooled to 1 15.F (45.C) or
less,
7.lf a fire should occur, keep away from the appliance
and immediately call your fire department.
Do not attempt to extinguish an oil or grease fire
Failure to follow these instructions could result in fire.
explosion or burn hazard. which could cause property
damage, personal injury or death.
. The use of alcohol, prescription or non-prescription
drugs may impair the consumer,s ability to properly
assemble or safely operate the appliance.
. When cooking with oil or grease, have a type BC or
ABC fire extinguisher readily available. In the event
of an oil or grease fire do not attempt to extinguish
with water. lmmediately call the fire department.
A Type BC or ABC fire extinguisher may, in some
circumstances contain the fire.
. ln the event of rain, snow, hail, sleet or other forms
of precipitation while cooking with oil or grease,
cover the cooking vessel immediately and turn off
the appliance burners and gas supply.
Do not attempt to move the appliance or cooking
vessel.
. When cooking, the appliance fryerlboiler must be on
a level, stable noncombustible surface in an area
clear of combustible material. An asphalt surface
(blacktop) may not be acceptable for this purpose.
. Do not leave the appliance unattended_
Keep children and pets away from the appliance at
all times.
. Do not place empty cooking vessel on the appliance
while in operation. Use caution when placing
anything in cooking vessel while the appliance is in
operation.
. Do not move the appliance when in use. Allow the
cooking vessel to cool to 115.F(45.C) before moving
or storing.
. This appliance is not intended for and should never
be used as a heater.
The following symbols shown below are used extensively
throughout these instructions. Always heed
these precautions, as they are essential when using
any mechanical or propane fueled equipment_
Itr
DANGER indicates an imminently hazardous situation
which, if not avoided. will result in death or serious
inju ry.

Portable LP Gas Grill Owner's Manual
WARNING indicates a potentially hazardous situation
which, if not avdided, could result in death or serious
injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided. may result in minor or moderate
personal injury or property damage.
The installation must conform with local codes or. in
the absence of local codes, with either the National
Fuel Gas Code, ANSI 2223.1/NFPA54, or CAN/CGA-
8149.1. Natural Gas tnstallation Code or CAN/CGA-
B149. 1 ,Natural Gas and Propane lnstallation Code.
A lmproper "trembly may be dangerous.
Please carefully follow the assembly instructions
in this manual.
A Do not store a spare or disconnected propane
cylinder under or near the O-Grill.
A Do not operate the O-crill if there is a gas leak
present.
A Do not use a flame to check for gas leaks.
I Combustible materials should never be within 24
inches of the top, bottom, back or sides of your
O-Grill.
A Do not use charcoal or lava rock in your O-Grill.
A the O-Crill should never be used by children.
Accessible parts of the grill may be very hot.
Keep children away while it is in use.
[, You should exercise reasonable care when
operating your O-Grill. tt will be hot during
cooking or cleaning and should never be left
unattended. or moved while in operation.
I Should the burner go out while in operation,
turn the gas valve off. Open the lid and wait 5
minutes before attempting to relight, usjng the
Iighting instructions.
{ Never lean over an open grill or place hands or
fingers on the front edge of the cooking box.
[, Do not enlarge valve orifice or burner ports when
cleaning the valve or burner.
A Should a grease fire occur. turn off the burner and
leave lid closed until fire is out.
A th" O-Crill should be thoroughly cleaned on a
regular basis.
A Aft", " period of storage, and/or nonuse, the O-Grill
should be checked for gas leaks and burner
obstructions before use. See instructions in this
manual for correct procedures.
Propane gas is not natural gis. The conversion or
attempted use of natural gas in a propane unit or
propane gas in a natural gas unit is dangerous and
will void your warranty.
A Do not attempt to disionnect any gas fitting while
the O-Grill is in operation.
[, Use heat-resistant BBQ mitts or gloves when
operating the O-Grill.
A Keep any electrical supply cord away from any
heated surfaces.
A Combustion byproducts produced when using this
product contain chemicals known to the state of
California to cause cancer, birth defects, or other
reproductive harm.
[, Do not use the O-crill unless all parts are in place.
The unit must be properly assembled according to
the instructions outlined in the,,Cleaning and
Maintenance" section of the Owner's Guide.
A Do not use the O-grill in a vehicle trunk. station
wagon, mini-van, sport utility vehicle (SUV),
recreational vehicle (RV), or Boat.
A Use the regulator that is supplied with your O-Grill.
A Do not attempt to disconnect the gas regulator or
any gas fitting while the grill is in operation.
I This appliance is not intended for commercjal use.
O-GRILL IS DESIGNED FOR OUTDOOR USE ONLY
NOTICE
These instructions must be left with the owner and
the owner should keep them for future use.
Do not try to light this appliance without reading
the "Lighting lnstructjons" section of this manual.
Follow all leak-check procedures carefully in this
manual prior to barbecue operation. Do this even
if the O-Grill was dealer-assembled.

Portable LP Gas Grill Owner's Manual
Operating lnstructions
Getting Started
lnspect all packing and remove all parts (Fiq.j)
Stretch out the fohing legs (Fig.2)
Release the lock switch then open the lid (Fig.3)
Take out the storage case (Fig.4)
Gas lnstructions
Attach Propane Cylinder
.Only use this grill outdoors in a well-ventilated area
Do not us€ in a garage, building, breezeway or any
other enclosed area.
. O-Grill shall not be used under an unprotected
combustible roof or overhang.
.O-Grill is not intended to be installed in or on
recreational vehicles and/or boats.
. Do not use O-Grill within 24 inches of combustible
materials, bottom, back or side of the 9rill.
.The entire cooking box gets hot when in use.
. Do not leave unattended.
. Keep.the cooking area clear of flammable vapors
and liquids such as gasoline, alcohol, etc., and
combustible materials.
. Never store an extra (spare) propane cylinder under
or near O-Grill
.U_se liquid propane cylinder with capacity 14.1 oz
(Fig.5)or 16 oz (Fig.6) or less. Use t b oz iiquid
propane cylinders that are approximately 4" inches
(100mm) in diameter and 8,, inches (200mm) in
length OR '14.1 oz liquid propane cylinder that is
approximately 3' inches (75mm) in diameter and
1f inches (270mm) in length.
You can find these liquid propane cylinders in the
camprng, hardware, and plumblng section of the
hardware stores or sporting qoodi stores.
Use cylinders that are marked,'propane Fuel" only.
Be careful not to cross thread when installing cylinder.
Do not use a wrench to tighten the connection.
Using a wrench could damage the regulator
coupling and could cause a leak.

Portable LP Gas Grill Owner's Manual
To Light
1)Open the lid.
2)Make sure the control knob is turned OFF.
(Push control knob in and turn clockwise to ensure
that it is in the OFF position.)
3)Push burner control knob down and turn to
Hr i srARr f /l Gtg.tl
4)Push the red ignition button several times, so it
clicks each time (Fig.8)
5)Check that the burner is lit by looking down
through the cooking grid. You should see a
flame.
Do not lean over the open grill. Keep your face and
body at least one foot away from the grill when
lighting the grill.
lf the burner does not light, turn the burner control
knob to OFF and wait 5 minutes to let the gas clear
before you try again.
Failure to open the lid while igniting the grill's burner,
or not waiting 5 minutes to allow the gas to clear if
the grill does not light, may result in an explosive
flame-up which can cause serious bodily injury or
death.
6) The burner may be match lighted if there is no
ignition.
(a) First, remove the match extension stick from the
storage compartment (Fi9.9)
(b) Push the match into the clip of extension stick
(Fis.1 0)
(c) Hold extension stick close to Burner and turn
control knob slowly (Fiq.1j)
(d) Adjust flame to desired heat level.

Portable LP Gas Grill Owner's Manual
To Extinguish
Push in and turn burner control knob ciockwise to
the OFF position lFig.12)
Leak Check
Check:
1) Regulator to propane cylinder connection.
When leak checks are complete, turn gas supply OFF
at the source and rinse connections with water.
lf there is a leak at connection (Fig.l3),
remove propane cylinder Do not operate grill. Use a
different propane cylinder and recheck for leaks with
soap and water solution. lf a leak persists after
retightening the propane cylinder, turn OFF the gas.
lf there is a leak at connection turn OFF the gas.
DO NOT OPERATE THE GRILL.
Contact the Customer Service Representative in
your area.
Do not use an open flame to check for gas leak.
Be sure there are no sparks or open flames in the
area while you check for leaks. Sparks or flames will
result in a fire or explosion which can cause serious
bodily injury or death, and damage to property.
Do not store a spare Lp-Gas cylinder under or near
O-Grill. Never fill the cylinder beyond 80% full. tf the
instructions are not followed exactly, a fire causing
death or serious injury may occur.
2) Check for gas leaks periodically:
After a period of nonuse you should perform the
following maintenance procedures for your safety.
1. lnspect the burner for correct flame pattern.(Fig.15)
Clean if necessary, following the procedures outlined
in the "N/laintenance" section of this manual.
2. Check all gas fittings for leaks.
You should check for gas leaks every time you
disconnect and reconnect a gas fitting.
All factory-made connections have been thoroughly
checked for gas leaks. The burners have been flame
tested. As a safety precaution howevet you should
recheck all fittings for leaks before using your O-Grill.
Shipping and handling may have loosened or
damaged a gas fitting,
Perform these leak checks even if your grill was
dealer or store assembled.
You will need soap and water solution and a rag or
brush to apply it. To perform leak checks make sure
the Burner is in the off position and turn on gas
supply.

Portable tP Gas Grill Owner's Manual
Do not ignite burner while leak checking.
Check for leaks by wetting the connections with the
soap and water solution and watching for bubbles.
lf bubbles form, or if a bubble grows. there is a leak.
Notei Since some leak test solutions, including soap
and water, may be slightly corrosive, all connections
should be rinsed with water after checking for leaks.
Cooking
Getting started:
Refer to "Operating lnstructions" in this owner's
man ua l.
To light the qrill:
Refer to the 'Lighting lnstructions" in this owner's
manual.
To Preheat the grill:
Light the O-Grill according the "Lighting lnstructions'
in this owner's manual. Close the lid and turn the
Burner Control Knob to HI/START ( /) position.
Preheat the grill for 5-10 minutes (depending on
conditions such as air temperature and wind).
Once the grill is preheated. set the Burner Control
Knob to the low setting.
Note: Wind and weather may require adjustment
of the Burner Control Knob to obtain the correct
cooking temperatu re.
lf the burner goes out during cooking, open the lid,
turn off the burner, and wait 5 minutes before
relighting.
Dripping and grease:
Excess drippings and grease will collect in the Catch
Pan located on the underside of the grill. Disposable
O-Grill drip pans are available that fit the catch Pan.
Check the catch Pan and the Base Pan of the grill
for grease build-up before each use.
Remove excess grease to avoid a fire in the bottom
of the grill.
Do not move the O-Grill when operating or while
the qrill is hot.
Turn your gas grill OFF and wait for it to cool before
cleaning.
Cleaning
Outside surfaces
Use a warm soapy water solution to clean, then rinse
with water.
Cooking grid
Clean with a suitable brass bristle brush. As needed,
remove from grill and wash with warm soapy water,
then rinse with water
Catch Pan
Disposable foil trays are available, or you can line the
catch pan with aluminum foil.
To clean the Catch Pan, wash with warm soapy water,
then rinse.
lnside Base Pan
Brush any debris off o{ burner tubes.
DO NOT ENLARGE BURNER PORTS (OPENINGS).
Wash inside of Base Pan with warm soapy water and
a water rinse.
lnside Lid
While lid is warm, wipe inside with paper towel to
prevent grease build-up. Built-up grease resembles
paint flakes.
Do not use cleaners that contain acid, mineral spirits
or xylene. Rinse well after cleaning.
Maintenance
To enjoy years of outstanding performance from your
O-Grill, perform the following maintenance activities
on a regular basis:
. Keep exterior surfaces clean.
. Use warm soapy water for cleaning.
Never use flammable or abrasive cleaning agents.
.Air lnlet (Fig.14) must be unobstructed. Keep controls,
burner and circulating air passages clean. Signs of
possible blockage include:
1. The smell of gas in conjunction with burner flames
appearing yellow and lazy.
2. Grill does not reach temperature.
3. Grill heats unevenly.
4. Burner does not iqnite.
I
Failure to correct the above mentioned symptoms
may result in a fire, which cause serious bodily injury
or death, and cause damaqe to property.
Do not use oven cleaner,
cleansers) cleaners that contain citrus products, or
abrasive cleaning pads on grill surfaces.
. Do not touch or attempt any maintenance on
O-Grill for at least one hour after use.
. Make sure all controls are off and propane tank
has been removed before doing maintenance.

Portable tP Gas Grill Owner's Manual

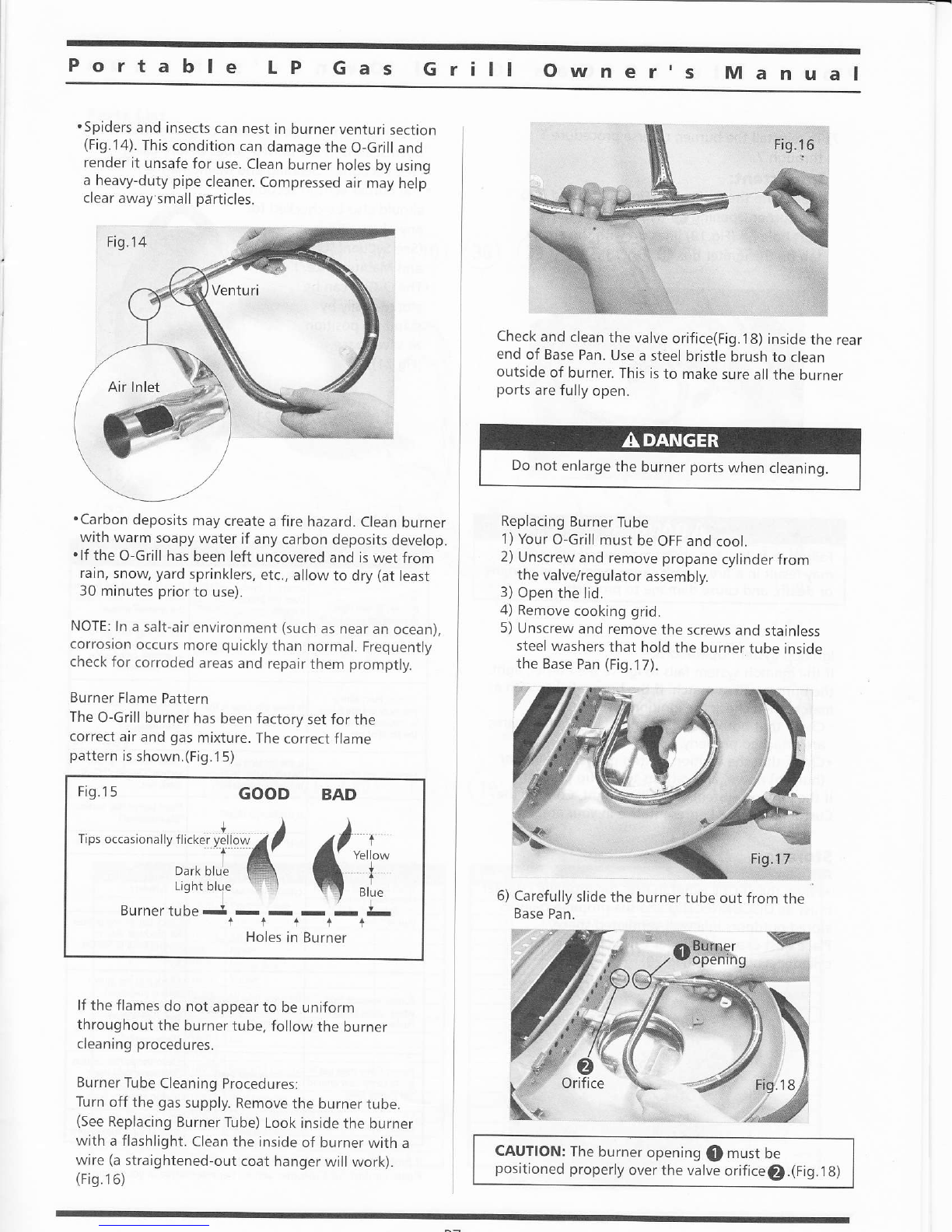

.Spiders and insects can nest in burner venturi section
(Fi9.14). This condition can damage the O-Grill and
render it unsafe for use. Clean burner holes by using
a heavy-duty pipe cleaner Compressed air may help
clear away small perticles.
. Carbon deposits may create a fire hazard. Clean burner
with warm soapy water if any carbon deposits develop.
.lf the O-Grill has been left uncovered and is wet from
rain, snow, yard sprinklers, etc., allow to dry (at least
30 minutes prior to use).
NOTE: ln a salt-air environment (such as near an ocean),
corrosion occurs more quickly than normal. Frequently
check for corroded areas and repair them promptly.
Burner Flame Pattern
The O-Grill burner has been factory set for the
correct air and gas mixture. The correct flame
pattern is shown.(Fig. 1 5)
lf the flames do not appear to be uniform
throughout the burner tube, follow the burner
cleaning procedu res.
Bu rner Tube Cleaninq Procedures:
Turn off the gas supply. Remove the burner tube.
(See Replacing Burner Tube) Look inside the burner
with a flashlight. Clean the inside of burner with a
wire (a straightened-out coat hanger will work).
(Fi9.1 6)
Check and clean the valve orifice(Fig.18) inside the rear
end of Base Pan. Use a steel bristle brush to clean
outside of burner. This is to make sure all the burner
ports are fully open.
Replacing Burner Tube
1) Your O-Grill must be OFF and cool.
2) Unscrew and remove propane cylinder from
the valve/regulator assembly.
3) Open the Iid.
4) Remove cooking grid.
5) Unscrew and remove the screws and stainless
steel washers that hold the burner tube inside
the Base Pan (Fig.17).
6) Carefully slide the burner tube out from the
CAUTION: The burner opening @ must be
positioned properly over the valve orificeO.(Fig.1B)
Do not enlarge the burner ports when cleaning.
Fi9.1s GOOD BAD
,'0. ".."r'."",V O*tfa(
Blue
I
t
Burner tube j1lt1
Holes in Bu rner
l;r.*
Base Pan.

Portable LP Gas Grill 0wner's Manual

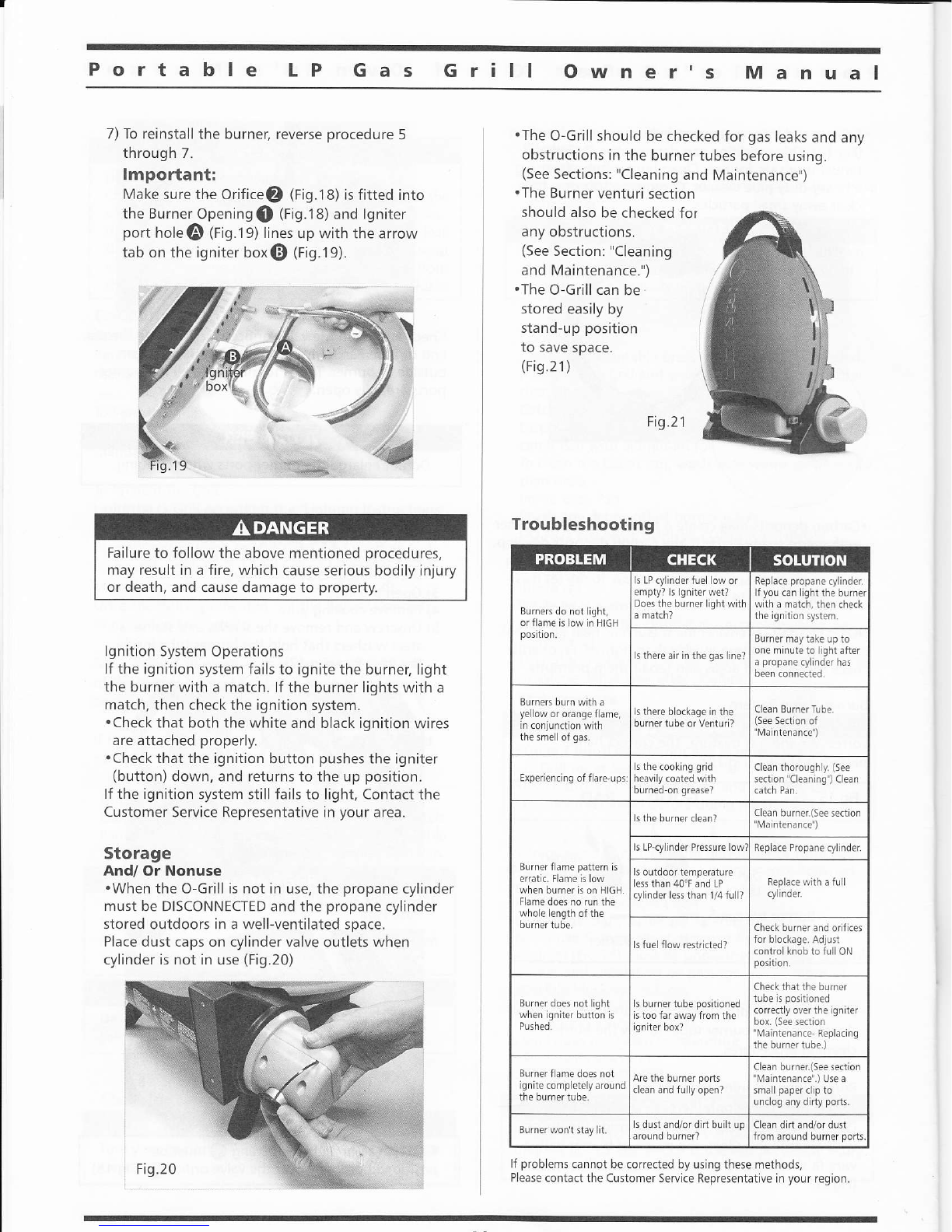

7) To reinstall the burner, reverse procedure 5
through 7.
lmportant:
lvlake sureth€ orificela (Fig.18) is fitted into
the Burner Openinq lO (Fig.1B) and lgniter
port hole @ (Fig.19) lines up with the arrow
tab on the jgniter box(O (Fig.19).
lgnition System Operations
lf the ignition system fails to ignite the burner, light
the burner with a match. lf the burner lights with a
match, then check the ignition system.
.Check that both the white and black ignition wires
are attached properly.
. Check that the ignition button pushes the igniter
(button) down, and returns to the up position.
lf the ignition system still fails to li9ht, Contact the
Customer Service Representative in your area.
Storage
And/ Or Nonuse
.When the O-Grill is not in use, the propane cylinder
must be DISCONNECTED and the propane cylinder
stored outdoors in a well-ventilated space.
Place dust caps on cylinder valve outlets when
cylinder is not in use (Fig.20)
.The O-Grill should be checked for gas leaks and any
obstructions in the burner tubes before using.
(See Sections: "Cleaninq and Maintenance )
.The Burner venturi section
should also be checked for
any obstructions.
(See Section:'Cleaning
and Maintenance. ')
.The O-Grill can be
stored easily by
stand-up position
to save space.
(Fig.21)
Fiq.21
lf problems cannot be corrected by using these methods,
P ease Lonrdrl rhe Cu\lome. Service Rep'eseltaUve tn your regton.
Failure to follow the above mentioned procedures,
may result in a fire, which cause serious bodily injury
or death, and cause damage to property.
Troubleshooting
orflame s low ii HlcH
s LP cy inder fue ow or
Does the burner lighl with
Replace propane cylinder
lf yor can lghl the burner
wlh a match, then check
ls ther€ air in the gas ne?
Burner rnay take up to
one m nule to ght afte.
a propane cy nder has
ye low or orange farne, ls th€re blockage in the
burnertubeorvennrr)
Exp€i€n.inq of fare upsl s the cooking qrid Clean thoroughy (see
secton 'c ean n9 )clean
Burner fame patlern is
when burner is on HlcH.
Flame does no run the
cledn burn€r(se€ sect on
ls LP cy nder Pre$ur€ lowi Rep ace Propane cyl nde(
ls outdoor tempeGturc
cy inder less lhan 1/4 fu 7
che.k b!rner and orif ces
co.trolknob to full0N
Burner does not ght
when gniter brtlon Bs burnertrbe pos tioned
s too far awayfrom the correct y over lhe igfiter
'Mainlenance Replacing
Burner fanre does not
gn te completely around
clean burner(5ee seciion
unclog any dirty poirs.
s dust and/or d rt b! h up frorn around burner ports

Portable LP Gas Grill Owner's Manual

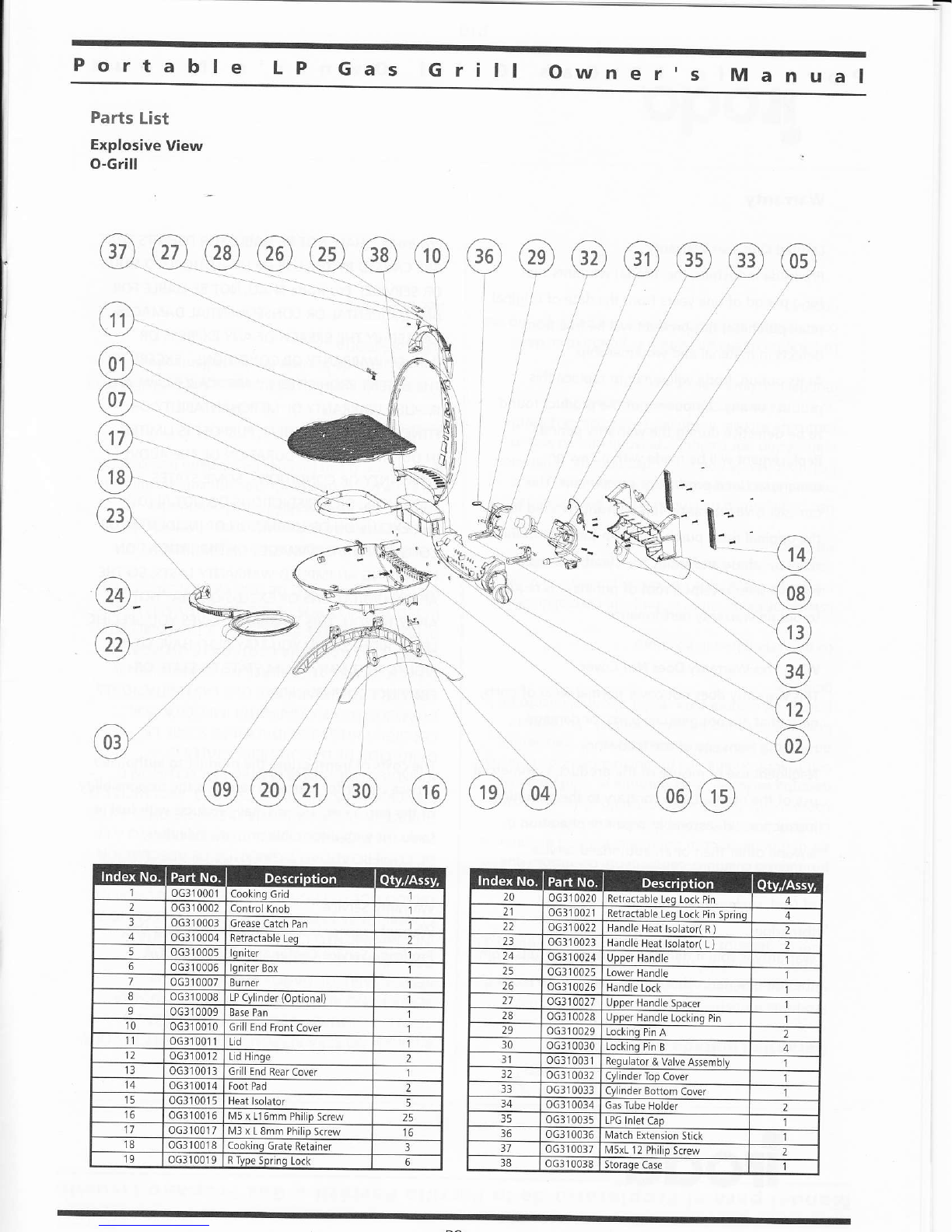

Parts List
Explosive View
O-Grill
@
(10 )@
oG310001 cooklnq Grid
?oG31000, Control Knob
3oG310003 Grease Catch Pan
4oG310004 Retractabl€ Leg 2
5oG310005 lgniter
6oG310005 lqniter Box
1oG310007 Eumer 1
8oG310008 LP cylinder (0ptional)
90G310009 1
10 oG3100r0 G ll End Front cover l
I1 oG310011 Lid 1
12 oG3',I001, Lid Hinqe 2
13 oG310013 Gill End Rear Cover 1
14 0G310014 2
15 oG310015 H€at lsolator
16 oG310015 M5 r LI6mm Philip Screw 25
17 oG3100t 7M3 x L 8mm Philip Screw 16
t8 0G310018 Cooking Grate Retainer 3
'19 oG310019 R Tvpe SDrino Lock 6
20 oG110020 Retractable Leq Lock Pin
21 oG310021 Retractable teg rock Pin sprinq 4
22 oG310022 H.ndle Heat lsolato( R )2
23 0G110023 Handl€ Heat kolato L
24 oG310024 Upper Handle
25 oG310025
26 ocil0026 Handl€ Lock
27 oG310027 Upper Handle Spacer
2a oG310028 Upper Handle Loclinq Prn
29 oG3l0029 Lo(tinq Pin A2
l0 oG3t 0030 Lock nq Prn B4
31 oG310031 Regu dtor & ValveAssembty 1
3) oG310032 Cylinder Top Cover
33 oG3r 0033 Cylnder Bortom Cover
34 oGt10034 Gas Tube Holder 2
35 oG310035 LPG lnlet Cap I
l5 oG310036 [,4atd Extension Stick 1
37 oG310037 M5xL l2 Philip Screw 2
38 oG310038 Sioraqe Case

Portable LP Gas Grill Owner's Manual

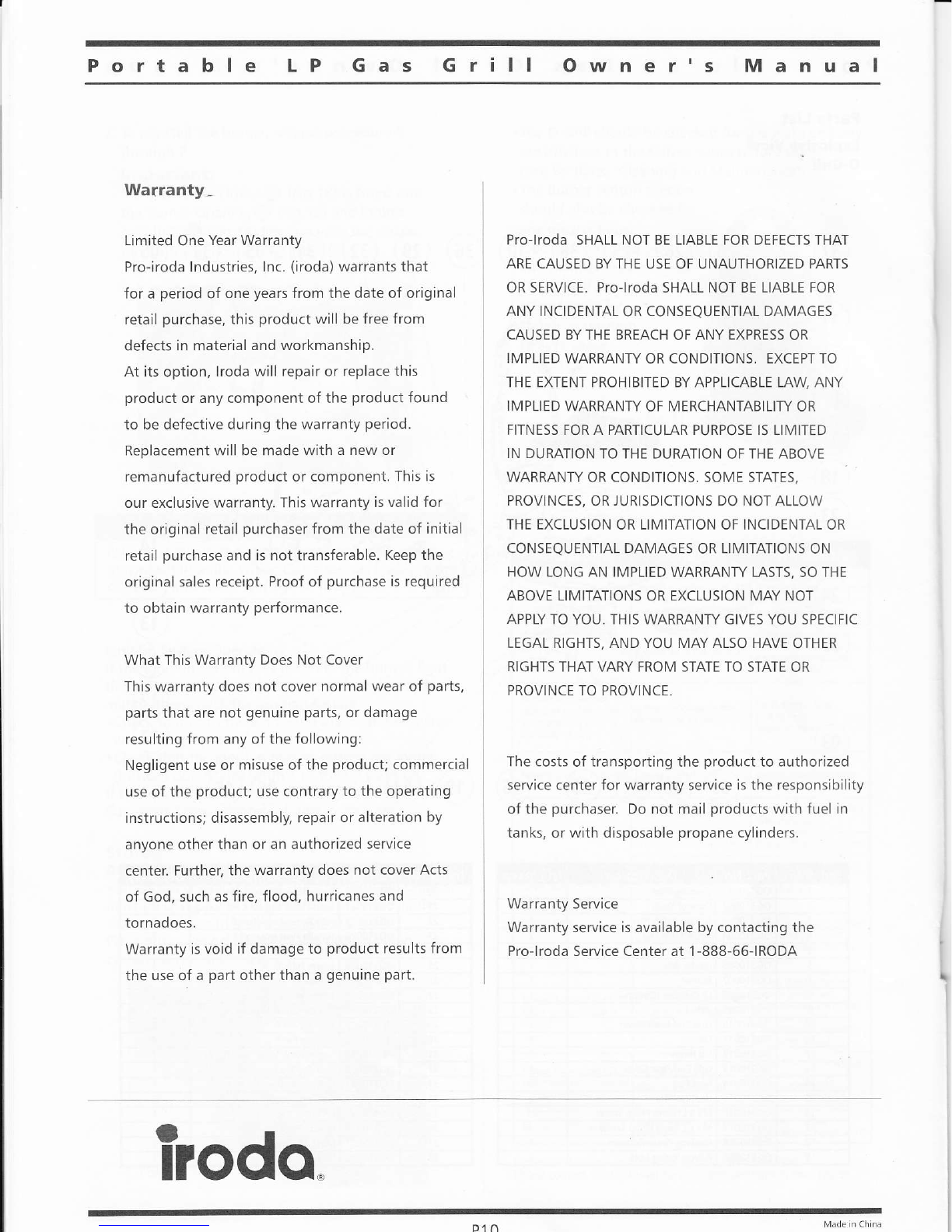

Warranty-
Limited One Year Warranty
Pro-iroda lndustries, lnc. (iroda) warrants that
for a period of one years from the date of original
retail purchase, this product will be free from
defects in material and workmanship.
At its option, lroda will repair or replace this
product or any component of the product found
to be defective during the warranty period.
Replacement will be made with a new or
remanufactured product or component. This is
our exclusive warranty. This warranty is valid for
the original retail purchaser from the date of initial
retail purchase and is not transferable. Keep the
original sales receipt. Proof of purchase is required
to obtain warranty performance.
What This Warranty Does Not cover
This warranty does not cover normal wear of parts,
parts that are not genuine parts, or damage
resulting from any of the following:
Negligent use or misuse of the product; commercial
use of the product; use contrary to the operating
instructions; disassembly, repair or alteration by
anyone other than or an authorized service
center. Further. the warranty does not cover Acts
of God. such as fire, flood, hurricanes and
tornadoes.
Warranty is void if damage to product results from
the use of a part other than a genuine part.
irodo.
D1n
Pro-lroda SHALL NOT BE LIABLE FOR DEFECTS THAT
ARE CAUSED BY THE USE OF UNAUTHORIZED PARTS
OR SERVICE. Pro-lroda SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY OR CONDITIONS. EXCEPT TO
THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY
IMPLIED WARRANry OF MERCHANTABILIry OR
FITNESS FOR A PARTICULAR PURPOSE IS LIMITED
IN DURATION TO THE DURATION OF THE ABOVE
WARRANry OR CONDITIONS, SOME S TAIIS,
PROVINCES, OR JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONsEQUENTIAL DAIV]AGES OR LIMITATIONS ON
HOW LONG AN IMPLIED WARRANry LASTS, SO THE
ABOVE LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANry GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROI\,I STATE TO STATE OR
PROVINCE TO PROVINCE
The costs of transporting the product to authorized
service center for warranty service is the responsibility
of the purchaser. Do not mail products with fuel in
tanks, or with disposable propane cylinders.
Warranty Service
Warranty service is available by contacting the
Pro-lroda Service center at 1-888-66-IRODA
