Iron-A-Way NE-42 User manual

Installation
Manual
MODEL NE-42

9
Tools Needed: Supplied Parts:
Recessed Mounting:
- Four #10 x 11/2” wood screws for top
portion of cabinet
- Two #14 x 21/2” Phillips screws for top
side brackets
Surface Mounting:
- Two #14 x 4” wood screws
GET TO KNOW YOUR UNIT
1. CROSS BRACES
- Stud Finder
- 12-14” Level
- Tape Measure
- Small Flathead
Screwdriver
- Electric Drill
(with 1/4” & 1/8” drill bit)
- 1/4” Nut Driver
(optional)
- Safety Glasses
- Utility Knife
1

PRE-INSTALLATION
2. LOCATE STUDS & UTILITIES
Using a stud nder, locate the wall
studs to be used for mounting.
Locate the existing wiring or other
utilities in the wall to prevent drilling
into/severing a wire and/or other utility
during installation.
1. DETERMINE MOUNTING HEIGHT
Using the charts provided, determine
the mounting height above oor (the
distance between the oor and the
bottom of the cabinet). First choose
your desired ironing board height
from the left column, then locate the
corresponding mounting height in the
right column.
Mounting
Height
Above Floor
Desired Ironing
Board Height
Desired Ironing
Board Height
Mounting
Height Above
Floor
29”
28”
27”
26”
36”
35”
34”
33”

Refer to provided chart to ensure adequate
clearance for ironing. The cabinet door opens at
180 degrees; allow 16” from side of cabinet for door
to fully open.
3. ENSURE ADEQUATE SPACE
NE42
Distance from wall to tip of ironing board 42”
Standing area clearance (not shown)
The suggested distance from the side of the ironing
where the user typically stands to ensure adequate
space for ironing.
24”

RECESSED INSTALLATION
Cut an opening into wall using the
unit dimensions below:
143/8” x 511/4 x 37/8”
Attach a 2” x 4” cross support cleat
between the studs, level with the
bottom of the opening. This will
give support to the dry wall during
installation and to the cabinet once
installed in the wall.
Your unit will be attached to the studs
by screws in the upper and lower sides
of the cabinet.
To prepare the cabinet, pre-drill holes
with 1/8” bit into the sides of the top of
the cabinet, 14” from the top and 21/2”
from the back. Then pre-drill holes in
the sides of the bottom of the cabinet,
14” from bottom, 21/2” from back.
1. CUT WALL OPENING
2. ATTACH CLEATS
3. PRE-DRILL HOLES
Example shown with exposed
studs & unit to illustrate mounting.
14” from bottom of cabinet
21/2” from back
of cabinet
14” from top of cabinet
CLEAT
Note: Instructions based on installation between 16” on-center studs.

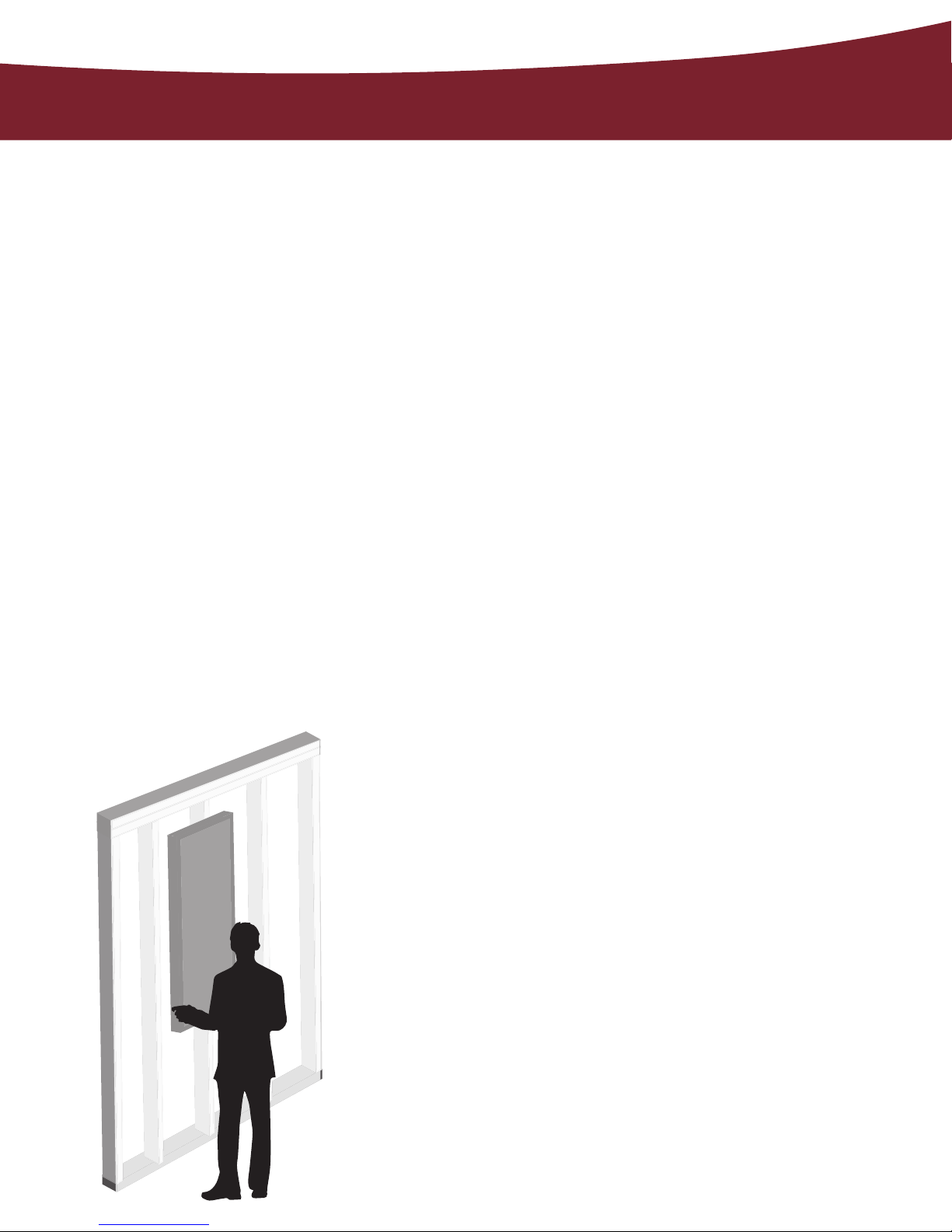

4. INSTALL UNIT INTO WALL
Begin installation by carefully lifting
unit into the wall opening.
Make sure the cabinet is plumb and
level. If needed, add shims to help
unit t space.
5. ATTACH CABINET TO STUDS
Using the pre-drilled holes in top of
cabinet, attach unit to studs with two
#10 x 11/2” screws for top installation.
Finish installation by inserting the
#14 x 21/2” screws in bottom
pre-drilled holes.
6. FINISH INSTALLATION
7. INSTALLATION COMPLETE!
Cabinet is now fully installed! If desired,
decorative trim or molding may be
added to cover any irregularities in the
wall.
Example shown with studs
to illustrate mounting.

Surface Mount Installation
2. PRE-DRILL HOLES
Using a 1/4” drill bit, pre-drill holes in
the upper and lower cross braces
inside the cabinet as determined in
previous step. Ensure that the holes
in both braces are drilled to the
same measurement.
1. PREPARE CABINET
Screws will be drilled through the
upper and lower cross braces inside
the cabinet. Determine location of
screws, ensuring that the location of
the mounting screw is as close to the
center of the cabinet as possible.
Partially insert one #14 x 4”
screw in the upper cross brace.
4. PARTIALLY INSERT SCREW
3. LOCATE & MARK STUD
Using a stud nder, locate desired
stud in wall and mark the wall
according to the pre-drilled holes in
cabinet. Setting cabinet aside,
pre-drill holes in stud using a 1/4” drill
bit. Do not attempt to mount only
through hardboard of cabinet.
Example shown
with studs & unit to
illustrate mounting.
5. INSTALL UNIT
Begin installation by carefully lifting unit
into position. Then attach the cabinet
to the wall by fully inserting the screw in
the upper cross brace into the wall stud.
Make sure the unit is plumb and
level. Shim if necessary. Fully tighten
installation screw.
6. INSERT SECOND SCREW
Insert the second #14 x 4” screw into
the pre-drilled hole in the bottom brace
of the cabinet and attach to wall
making sure cabinet remains square
and level.
8. INSTALLATION COMPLETE
Cabinet is now fully installed!
7. ADD TRIM
Add decorative trim or molding to
make cabinet sides ush with the face
frame.
