Ironton Arc 200 User manual

Arc 200
OWNER’S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item# 45432

Page of 19
2
Thank you very much for choosing a IRONTON product! For future reference, please complete
the owner’s record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible for
issues arising from modification. We strongly recommend this machine not be modified and/or
used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the machine until you have first contacted the
distributor to determine if it can or should be performed on the product.
For technical questions please call the Northern Tool Welder Help Line at 1-877-304-0294.
INTENDED USE
The ARC 200 is a AC only stick welder. It is intended for use for welding steel, stainless steel,
cast iron and hard surfacing using electrodes from 1/16 inch to 5/32 inch. For best performance
on steel, we highly recommend an 1/8 inch 6013 electrode.
Stick welding gives the operator the flexibility to use this welder for mobile applications,
including outdoor applications. Stick electrodes contain a flux, making welding easy and does
not require the use of a separate shielding gas which can be blown away by the wind in outdoor
applications. Since this welder does not use shielding gas, the operator will not require to have
or maintain shielding gas bottles, a regulator or gas hose.
This unit is intended to be used on a 50 amp 230V AC circuit without the use of an extension
cord. If an extension cord is necessary for your application, please use the appropriate size and
length of extension cord that will handle 50 amps the entire length of the extension. We highly
recommend talking with a qualified electrician for cord size recommendations. This unit is
supplied with a NEMA Class 6-50P plug and will require a NEMA Class 6-50R receptacle. Do
not remove the power plug!

Page of 19
3
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all instructions listed
below may result in serious injury.
CAUTION: Do not allow persons to operate or assemble this Arc 200 until they have
read this manual and have developed a thorough understanding of how the Arc 200 works.
WARNING: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could occur. It must be
understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY CONSIDERATIONS
1.1 Your Welding Environment
-Keep the environment you will be welding in free from flammable materials.
-Always keep a fire extinguisher accessible to your welding environment.
-Always have a qualified person install and operate this equipment.
-Make sure the area is clean, dry and ventilated. Do not operate the welder in humid, wet or poorly
ventilated areas.
-Always have your welder maintained by a qualified technician in accordance with local, state and
national codes.
-Always be aware of your work environment. Be sure to keep other people, especially children,
away from you while welding.
-Keep harmful arc rays shielded from the view of others.
-Mount the welder on a secure bench
or cart that will keep the welder secure and prevent it from tipping over or falling.
1.2 Your Welder’s Condition
-Check ground cable, power cord and welding cable to be sure the insulation is not damaged.
Always replace or repair damaged components before using the welder.
-Check all components to ensure they are clean and in good operating condition before use.

Page of 19
4
1.3 Use of Your Welder
Do not operate the welder if the output cable, electrode, torch, wire or wire feed system is wet. Do
not immerse them in water. These components and the welder must be completely dry before
attempting to use them.
-Follow the instructions in this manual.
-Keep welder in the off position when not in use.
-Connect ground lead as close to the area being welded as possible to ensure a good ground.
-Do not allow any body part to come in contact with the welding wire if you are in contact with the
material being welded, ground or electrode from another welder.
-Do not weld if you are in an awkward position. Always have a secure stance while welding to
prevent accidents. Wear a safety harness if working above ground.
-Do not drape cables over or around your body.
-Wear a full coverage helmet with appropriate shade (see ANSI Z87.1 safety standard) and safety
glasses while welding.
-Wear proper gloves and protective clothing to prevent your skin from being exposed to hot metals,
UV and IR rays.
-Do not overuse or overheat your welder. Allow proper cooling time between duty cycles.
-Keep hands and fingers away from moving parts and stay away from the drive rolls.
-Do not point torch at any body part of yourself or anyone else.
-Always use this welder in the rated duty cycle to prevent excessive heat and failure.
1.4 Specific Areas of Danger, Caution or Warning
Electrical Shock
Electric arc welders can produce a shock that can cause injury or death. Touching
electrically live parts can cause fatal shocks and severe burns. While welding, all metal
components connected to the wire are electrically hot. Poor ground connections are a hazard, so
secure the ground lead before welding.
-Wear dry protective apparel: coat, shirt, gloves and insulated footwear.
-Insulate yourself from the work piece.Avoid contacting the work piece or ground.
- Do not attempt to repair or maintain the welder while the power is on.
-Inspect all cables and cords for any exposed wire and replace immediately if found.
-Use only recommended replacement cables and cords.
-Always attach ground clamp to the work piece or work table as close to the weld area as possible.
-Do not touch the welding wire and the ground or grounded work piece at the same time.
-Do not use a welder to thaw frozen pipes.

Page of 19
5
Fumes and Gases
-Fumes emitted from the welding process displace clean air and can result in injury or
death.
-Do not breathe in fumes emitted by the welding process. Make sure your breathing air is clean and
safe.
-Work only in a well-ventilated area or use a ventilation device to remove welding fumes from the
environment where you will be working.
-Do not weld on coated materials (galvanized, cadmium plated or containing zinc, mercury or
barium). They will emit harmful fumes that are dangerous to breathe. If necessary use a ventilator,
respirator with air supply or remove the coating from the material in the weld area.
-The fumes emitted from some metals when heated are extremely toxic. Refer to the material safety
data sheet for the manufacturer’s instructions.
-Do not weld near materials that will emit toxic fumes when heated. Vapors from cleaners, sprays
and degreasers can be highly toxic when heated.
UV and IR Arc Rays
The welding arc produces ultraviolet (UV) and infrared (IR) rays that can cause injury to
your eyes and skin. Do not look at the welding arc without proper eye protection.
-Always use a helmet that covers your full face from the neck to top of head and to the back of each
ear.
-Use a lens that meets ANSI standards and safety glasses. For welders under 160 Amps output,
use a shade 10 lens; for above 160 Amps, use a shade 12. Refer to the ANSI standard Z87.1 for
more information.
-Cover all bare skin areas exposed to the arc with protective clothing and shoes. Flame-retardant
cloth or leather shirts, coats, pants or coveralls are available for protection.
-Use screens or other barriers to protect other people from the arc rays emitted from your welding.
-Warn people in your welding area when you are going to strike an arc so they can protect
themselves.
Fire Hazards
Do not weld on containers or pipes that contain or have had flammable, gaseous or liquid
combustibles in them. Welding creates sparks and heat that can ignite flammable and
explosive materials.
-Do not operate any electric arc welder in areas where flammable or explosive materials are
present.
-Remove all flammable materials within 35 feet of the welding arc. If removal is not possible, tightly
cover them with fireproof covers.
-Take precautions to ensure that flying sparks do not cause fires or explosions in hidden areas,
cracks or areas you cannot see.
-Keep a fire extinguisher close in the case of fire.
-Wear garments that are oil-free with no pockets or cuffs that will collect sparks.
-Do not have on your person any items that are combustible, such as lighters or matches.
-Keep work lead connected as close to the weld area as possible to prevent any unknown,
unintended paths of electrical current from causing electrical shock and fire hazards.
-To prevent any unintended arcs, cut wire back to ¼" stick out after welding.

Page of 19
6
Hot Materials
Welded materials are hot and can cause severe burns if handled improperly.
-Do not touch welded materials with bare hands.
-Do not touch MIG gun nozzle after welding until it has had time to cool down.
Sparks/Flying Debris
Welding creates hot sparks that can cause injury. Chipping slag off welds creates flying
debris.
-Wear protective apparel at all times: ANSI-approved safety glasses or shield, welder’s hat and ear
plugs to keep sparks out of ears and hair.
Electromagnetic Field
-Electromagnetic fields can interfere with various electrical and electronic devices such as
pacemakers.
-Consult your doctor before using any electric arc welder or cutting device
-Keep people with pacemakers away from your welding area when welding.
-Do not wrap cable around your body while welding.
-Wrap MIG gun and ground cable together whenever possible.
-Keep MIG gun and ground cables on the same side of your body.
Shielding Gas Cylinders Can Explode
High pressure cylinders can explode if damaged, so treat them carefully.
-Never expose cylinders to high heat, sparks, open flames, mechanical shocks or arcs.
-Do not touch cylinder with MIG gun.
-Do not weld on the cylinder
-Always secure cylinder upright to a cart or stationary object.
-Keep cylinders away from welding or electrical circuits.
-Use the proper regulators, gas hose and fittings for the specific application.
-Do not look into the valve when opening it.
-Use protective cylinder cap whenever possible
1.5 Proper Care, Maintenance and Repair
-Always have power disconnected when working on internal components.
- Do not touch or handle PC board without being properly grounded with a wrist strap. Put PC board
in static proof bag to move or ship.
-Do not put hands or fingers near moving parts such as drive rolls of fan

Page of 19
7
Arc 200 USE AND CARE
Do not modify the Arc 200 in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the equipment. There are specific applications for which
the Arc 200 was designed.
Always check of damaged or worn out parts before using the Arc 200. Broken parts will
affect the Arc 200 operation. Replace or repair damaged or worn parts immediately.
Store idle Arc 200. When Arc 200 is not in use, store it in a secure place out of the reach of
children. Inspect it for good working condition prior to storage and before re-use.
TECHNICAL SPECIFICATIONS
Item
Description
Power Supply
230V, 50A, 60 HZ, Single Phase
No-Load Voltage
50 Volts AC
Output Range
65 - 200 Amp AC
Duty Cycle
10% @ 180A
Suggested Electrode
E6013
Electrode Diameter
1/16 inch to 5/32 inch
Dimensions
17.3" x 14.8" x 28.1"
Weight
57 lbs.
KNOW YOUR WELDER
Description
The IRONTON ARC 200 is an AC Arc Welder and comes complete with a handle and wheels for
portability. It operates on 230V AC Single phase 60 Hz power and requires a 50 amp circuit breaker.
This unit features attached weld cables and is equipped with thermal overload protection. It is
designed to weld mild steel and alloys with electrodes up to 5/32" on materials up to 3/8" thick. This
unit is great for farm and light industrial applications.
On/Off switch
Welding Cable And
Electrode Holder
Indicator
Lights
Ground Cable
And Clamp
Current
Adjustment

Page of 19
8
ON/OFF Switch
In the “OFF” position no power is being supplied to the electrode holder. In the “ON” position
power is supplied to the main transformer and control circuit.
Indicator Lights
There are two indicator lights: 1) Power and 2) Thermal Overload. When the machine is turned on,
the power indicator will be on. When the thermal overload indicator is on, it indicates the machine
has exceeded the duty cycle and the internal temperature is too high. The machine automatically
turn off welding output but the fan will remain on to cool down the internal components. When the
internal temperature had decreased, the machine will automatically turn welding output back on.
Ground Cable and Clamp
The ground cable and clamp are attached to the work piece to complete the circuit allowing the flow
of current needed to weld.
Welding Cable and Electrode Holder
One end of the cable is connected to the output connector of the welder. The electrode is held in the
electrode holder for welding.
Current Adjustment
Current adjustment is on the front panel of the machine. It has infinite current output adjustment
from 60 to 200Amps as indicated on the amperage indicator window on the top of the machine.
Power Cord
The power cord connects the welder to the 230 volt power supply. Plug the 50 amp NEMA 6-50P
plug into a NEMA 6-50R receptacle to supply power to the welder.
ASSEMBLY
1. Tools required for assembly: Open-end wrenches 8 and 10mm.
2. 1. Lay the machine side panel on a flat surface. Install the metal bracket support on the bottom
using two sets of screws and washers from the hardware bag. See following image.

Page of 19
9
2.2. Install the axle tube/bracket for the axles and wheels on the axle. See following image. Stand
the machine up and install the axle tube/bracket onto the back of panel using the screws and
washers provided. (You may want to use a wooded block to hold the welder up for this step.)
2.3. Finally, install the handle using four sets of screw and washers as following:
- Make sure the welder is disconnected to the power supply when assembling
- When machine is laid on its side do it gently or the impact could damage internal components.
- During installation use caution not to do personal injury from lifting.

Page of 19
10
INSTALLATION
1. POWER REQUIREMENT - AC single phase 230V, 60 HZ with a 50 amp circuit breaker is
required. DO NOT OPERATE THIS UNIT if the ACTUAL power source voltage is less than 207 volts
AC or greater than 253 volts AC.
High voltage danger from power source! Consult a qualified electrician for proper
installation of receptacle. This welder must be grounded while in use to protect the
operator from electrical shock.
Do not remove grounding prong or alter the plug in any way. Do not use any adapters
between the welder's power cord and the power source receptacle. Make sure the
POWER switch is OFF when connecting your welder's power cord to a properly
grounded 230 VAC, 60 HZ, Single Phase, 50 Amp input power supply.
2. EXTENSION CORD - We do not recommend an extension cord because of the voltage drop they
produce. This drop in voltage can affect the performance of the welder. If you need to use an
extension cord, we recommend you check with a qualified electrician and your local electrical codes
for your specific area. Do not use an extension cord over 25 ft. in length.
OPERATION
High voltage danger from power source! Consult a qualified electrician for proper
installation of receptacle at the power source. This welder must be grounded while in use to
protect the operator from electrical shock. If you are not sure if your outlet is properly
grounded, have it checked by a qualified electrician. Do not cut off the grounding prong or
alter the plug in any way and do not use any adapter between the welder's power cord and
the power source receptacle. Make sure the POWER switch is OFF then connect your
welder's power cord to a properly grounded 230 VAC, 60 HZ, single phase, 50 amp power
source.
3. SETTING UP THE WORK PIECE
3.1 Welding positions
There are two basic positions, for welding: Flat and Horizontal. Flat welding is generally easier,
faster, and allows for better penetration. If possible, the work piece should be positioned so that the
bead will run on a flat surface.
3.2 Preparing the Joint
Before welding, the surface of work piece needs to be free of dirt, rust, scale, oil or paint or it will
create brittle and porous welds. If the base metal pieces to be joined are thick or heavy, it may be
necessary to bevel the edges with a metal grinder, the correct bevel should be around 60 degree.
See following picture:

Page of 19
11
Based on different welding position, there are different welding joint, see following images for more
information.
4. GROUND CLAMP CONNECTION
Clear any dirt, rust, scale, oil or paint on the ground clamp. Make certain you have a good solid
ground connection. A poor connection at the ground clamp will waste power and heat. Make sure
the ground clamp touches the metal.
5. ELECTRODE
The welding electrode is a rod coated with a layer of flux. When welding, electrical current flows
between the electrode (rod) and the grounded metal work piece. The intense heat of the arc
between the rod and the grounded metal melts the electrode and the flux. For best performance on
this unit, we suggest the use of 6013 electrodes.

Page of 19
12
6. SELECTING THE PROPER ELECTRODE
There is no golden rule that determine the exact rod or heat setting required for every situation. The
type and thickness of metal and the position of the work piece determine the electrode type and the
amount of heat needed in the welding process. Heavier and thicker metals required more
amperage. It is best to practice your welds on scrap metal which matches the metal you intend to
work with to determine correct heat setting and electrode choice. See the following helpful trouble
shooting tips to determine if you are using a correct electrode.

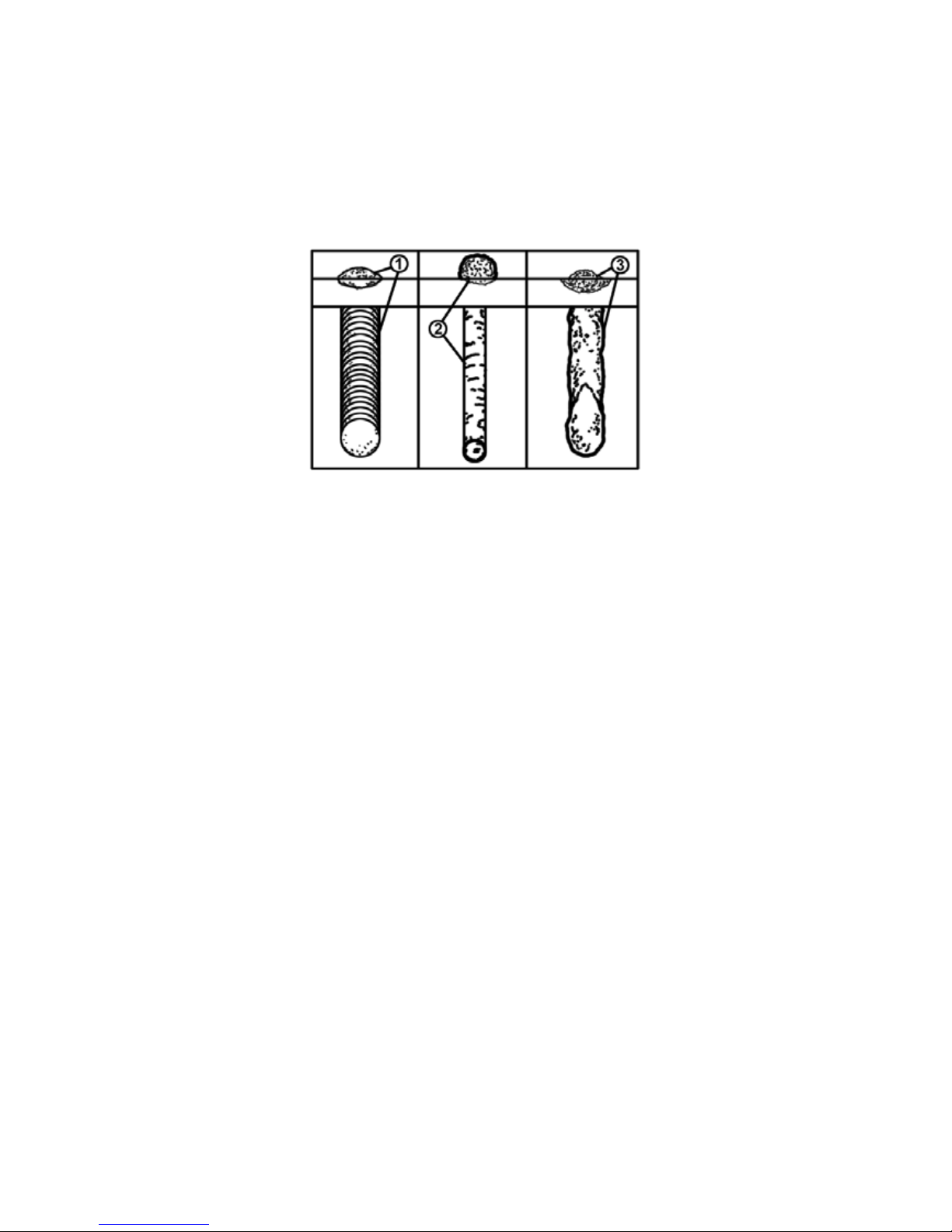

6.1. When proper rod is used:
6.1.a. The bead will lay smoothly over the work without ragged edges
6.1.b. The base metal puddle will be as deep as the bead that rises above it
6.1.c. The welding operation will make a crackling sound similar to the sound of eggs frying
6.2. When a rod too small is used;
6.2. a. The bead will be high and irregular
6.2. b. The arc will be difficult to maintain
6.3. When the rod is too large
6.3. a. The arc will burn through light metals
6.3. b. The bead will undercut the work
6.3. c. The bead will be flat and porous
6.3. d. Rod may be freeze or stick to work piece
Note: Rate of travel over the work also affects the weld. To ensure proper penetration and enough
deposit of rod, the arc must be moved slowly and evenly along the weld seam.
7. SETTING THE AMPERAGE CONTROL
The welder has an infinite current control. It is capable of welding with electrodes up to 5/32”
diameter. There is no golden rule that determines the exact amperage required for every situation. It
is best to practice your welds on scrap metal which matches the metals you intend to work with to
determine correct setting for your job. The electrode type and the thickness of the work piece metal
determine the amount of heat needed in the welding process. Heavier and thicker metals require
more voltage (amperage), whereas lighter and thinner metals require less voltage (amperage).
Consult the welding electrode packaging for recommended welding amperage range.

Page of 19
13
8. WELDING TECHNIQUES
The best way to teach yourself how to weld is with short periods of practice at regular intervals. All
practice welds should be done on scrap metal that can be discarded. Do not attempt to make any
repairs on valuable equipment until you have satisfied yourself that your practice welds are of good
appearance and free of slag or gas inclusions.
8.1 Holding the electrode
The best way to grip the electrode holder is the way that feels most comfortable to you. Position the
Electrode to the work piece when striking the initial arc it may be necessary to hold the electrode
perpendicular to the work piece. Once the arc is started the angle of the electrode in relation to the
work piece should be between 10 and 30 degrees. This will allow for good penetration, with minimal
spatter.
8.2 Striking the arc
EXPOSURE TO A WELDING ARC IS EXTREMELY HARMFUL TO THE EYES AND SKIN!
Prolonged exposure to the welding arc can cause blindness and burns. Never strike an arc
or begin welding until you are adequately protected. Wear flame-proof welding gloves, a
heavy long sleeved shirt, trousers without cuffs, high topped shoes, and an ANSI approved
welding helmet.

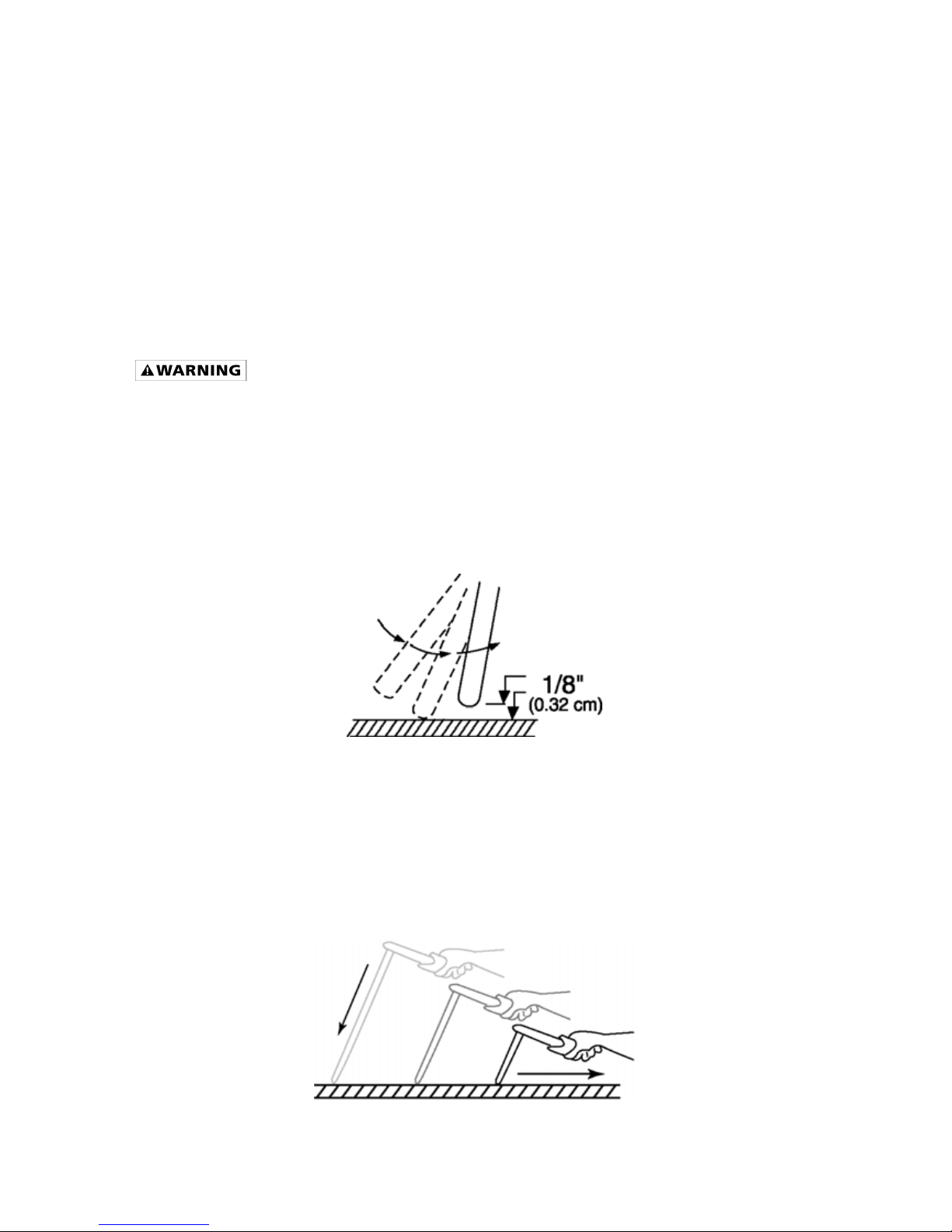

Scratch the work piece with the end of electrode to start arc and then raise it quickly about 1/8 inch
gap between the rod and the work piece, see following picture
It is important that the gap be maintained during the welding process and it should be neither too
wide or too narrow. If too narrow, the rod will stick to the work piece. If too wide, the arc will be
extinguished. It needs much practice to maintain the gap. The beginners may usually get sticker or
arc extinguishing. When the rod is stuck to the work piece, gently rock it back and forth to make
them separate. If not, a short circuit will occur and it will break the welder. A good arc is
accompanied by a crisp, cracking sound. The sound is similar to that made by eggs frying. To lay a
weld bead, only 2 movements are required; downward (as the electrode is consumed) and in the
direction the weld is to be laid, as in following figure:

Page of 19
14

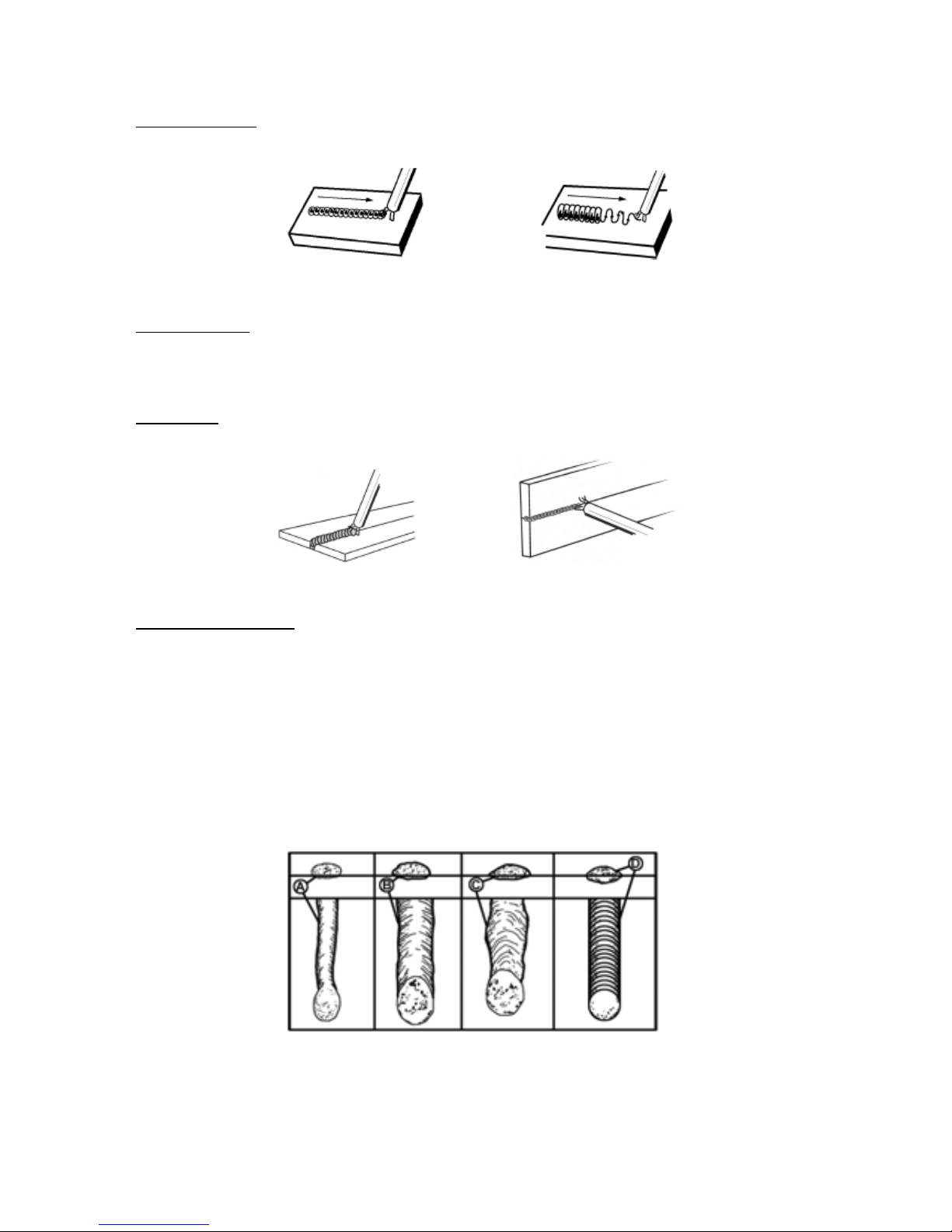

8.3 Types of weld bead
The following paragraphs discuss the most commonly used arc welding beads.
The stringer bead Formed by traveling with the electrode in a straight line while keeping the
electrode centered over the weld joint.
The weave bead Used when you want to deposit metal over a wider space than would be possible
with a stringer bead. It is made by weaving from side to side while moving with the electrode. It is
best to hesitate momentarily at each side before weaving back the other way.
8.4 Welding position
Flat position It is easiest of the welding positions and is most commonly used. It is best if you can
weld in the flat position if at all possible as good results are easier to achieve.
The horizontal position it is performed very much the same as the flat weld except that the angle is
different such that the electrode, and therefore the arc force, is directed more toward the metal
above the weld joint. This more direct angle helps prevent the weld puddle from running downward
while still allowing slow enough travel speed to achieve good penetration. A good starting point for
your electrode angle is about 30 degrees DOWN from being perpendicular to the work piece.
8.5 Judge the good weld bead
When the trick of establishing and holding an arc has been learned, the next step is learning how to
run a good bead. The first attempts in practice will probably fall short of acceptable weld beads. Too
long of an arc will be held or the travel speed will vary from slow to fast (see following)
A. Weld speed is too fast.
B. Weld speed is too slow.
C. Arc is too long.
D. Ideal weld.
Stringer Bead
Weave Bead
Flat Position
Horizontal Position

Page of 19
15
A solid weld bead requires that the electrode be moved slowly and steadily along the weld seam.
Moving the electrode rapidly or erratically will prevent proper fusion or create a lumpy, uneven bead.
ELECTRIC SHOCK CAN KILL! To prevent ELECTRIC SHOCK, do not perform any welding
while standing, kneeling, or lying directly on the grounded workpiece.
8.6 Finish the bead
As the coating on the outside of the electrode burns off, it forms an envelope of protective gases
around the weld. This prevents air from reaching the molten metal and creating an undesirable
chemical reaction. The burning coating, however, forms slag. The slag formation appears as an
accumulation of dirty metal scale on the finished weld. Slag should be removed by using a chipping
hammer.
PEENING THE SLAG FROM A WELD JOINT CUASES SMALL CHIPS OF METAL TO FLY
THROUGH THE AIR! Metallic chips flying through the air can cause eye injury or injury to
other parts of the head, hands or exposed portions of the body. Wear goggles or safety
glasses with side shields and protect the hands and other exposed parts of the body with
protective garments, or if possible, work with a shield between the body and the work piece.
The intense heat produced at the arc sets up strains in the metal joined by welding. Peening the
weld not only removes the scale left behind in the welding but relieves the internal strains developed
by the heating and cooling process.
MAINTENANCE
•Maintain your IRONTON Arc 200. It is recommended that the general condition of any
IRONTON Arc 200 be examined before it is used. Keep your IRONTON Arc 200 in good repair
by adopting a program of conscientious repair and maintenance. Have necessary repairs made
by qualified service personnel.
•Periodically clean dust, dirt, grease, etc. from your welder.
•Every six months, or as necessary, remove the cover panel from the welder and air-blow any
dust and dirt that may have accumulated inside the welder.
•Replace power cord, ground cable, ground clamp, or electrode assembly when damaged or
worn.

Page of 19
16
TROUBLESHOOTING
SYMPTOM
POSSIBLE CAUSE
CORRECTIVE ACTION
Unit Does Not Power Up
Unit Is Not Plugged In
Plug In Unit
Input Power Circuit Breaker Not On
Reset Input Power Circuit Breaker
The Main Power Switch Is Not Working
Replace Main Power Switch
Can Not CreateAn Arc
Work Piece is Painted Or Rusty
Remove All Paint And Rust
Ground Clamp Is Connected Where
There Is Paint Or Rust
Remove All Paint And Rust So Ground
Clamp Is Connected To Bare Metal
Ground Clamp Is Not Electrically
Connected To The Work Piece
Make Certain The Ground Clamp Is
Connected To The Work Piece
Amperage Too Low for Electrode
Consult the electrode packaging for
correct amperage settings.
Not using recommended electrodes
This is an AC unit. Only use AC
electrodes. For best results we suggest
using 6013 electrodes.
Poor Welding Performance, excessive
spatter
Damp Electrode
Use fresh and dry electrodes.
Electrode Sticks
The electrode is kept in contact with the
work piece for too long while striking an
arc.
This will take practice. Keep trying.
Welding Bead Is Too Thin
The welding travel speed is too fast
Reduce the welding travel speed. Maybe
incorporate a slight weave over the joint.
Welding Bead Is Too Thick
The welding travel speed is to slow
Increase the welding travel speed.
For Assistance, Contact The Welder Help Line At 877-304-0294

Page of 19
17

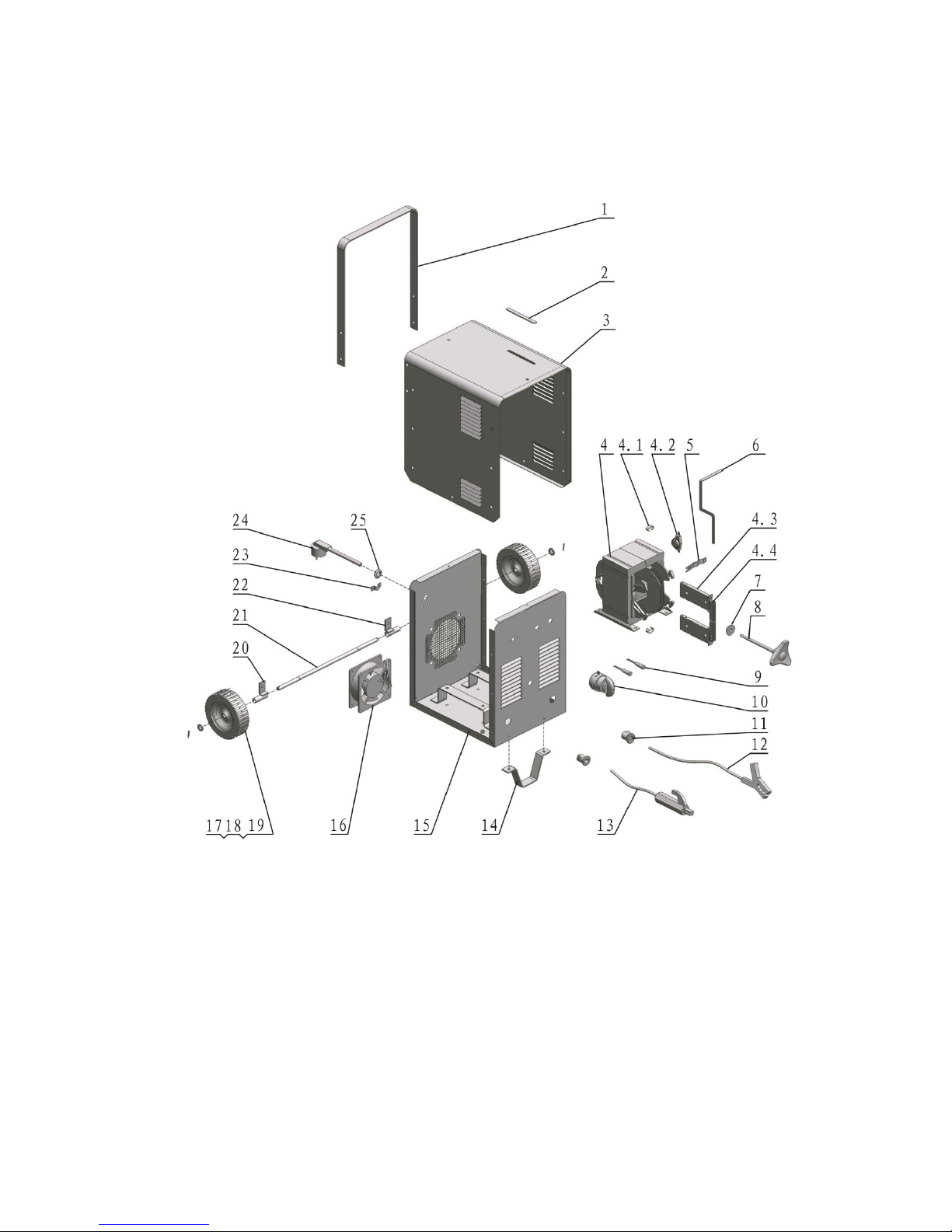

DIAGRAM & PARTS LIST

Page of 19
18
Reference #
Part#
Description
Qty.
1
1.1.01.05.0010
HANDLE
1
2
2.05.18.007
INDEX PANEL
1
3
1.1.01.01.0066
ENCLOSURE
1
4
1.1.02.03.0391
TRANSFORMER
1
4.1
2.06.29.051
CLIP CLUTH
2
4.2
2.07.36.739
THERMO-RELAY
1
4.3
1.1.02.03.0003
MOVABLE IRON CORE
2
4.4
2.01.29.052
MOVABLE IRON CORE SUPPORTER
1
5
2.06.29.221
SPRING
1
6
2.01.29.920
AMPERAGE INDICATOR
1
7
2.04.31.205
RUBBER RING
1
8
2.05.08.002
AMPERAGE ADJUSTMENT KNOB
1
9
1.2.07.02.0009
INDICATOR LIGHT WIRING
1
10
2.07.80.721
POWER SWITCH
1
11
2.05.05.201
CABLE HOLDER
2
12
1.2.08.02.0556
GROUND CABLE WITH CLAMP
1
13
1.2.08.01.0036
WELDING CABLE WITH ELECTRODE HOLDER
1
14
1.1.01.05.0016
BRAKE
1
15
1.1.01.04.0046
FRAME PLATE
1
16
2.07.89.004
FAN
1
17
2.06.21.104
COTTER PIN
2
18
2.06.17.019
FLAT WASHER
2
19
1.3.07.02.0841
WHEEL
2
20
1.1.03.01.0005
AXLE BRACKET(left)
1
21
2.01.29.958
AXLE
1
22
1.1.03.01.0006
AXLE BRACKET(right)
1
23
1.1.02.01.0011
CABLE CLAMP
1
24
1.2.07.01.0046
POWER CORD
1
25
2.04.31.104
COIL OUTER
1
For replacement parts please call 1-800-222-5381. For technical questions contact our welder
help line at 1-877-304-0294

Page of 19
19
WARRANTY
EFFECTIVE JULY 1, 2014
LIMITED WARRANTY
This warranty applies to the original purchaser and is subject to the terms and conditions listed below. This Limited Warranty is for
new equipment sold after the above date, providing coverage for defects in material and workmanship at the time it is shipped from
the factory.
Limited to the warranty periods below, Northern Tool + Equipment will repair or replace the item under warranty that fails due to
defects in material and workmanship. Northern Tool + Equipment must be notified within 30 days of the failure, so as to provide
instructions on how to proceed with the repair of your welder and warranty claim processing. Warranty period begins at the time the
welder is purchased from Northern Tool + Equipment. Keep your receipt as proof of purchase.
Warranty Periods
Limited Warranty is divided into four categories. No Warranty, 90 days, 1 year and 3 year.
No Warranty
Normal wear items, MIG gun parts (contact tips, nozzle, contact tip adapter, MIG gun liner), drive roll, electrode holder, ground
clamps, Plasma torch parts (nozzle, electrode, diffuser, cover) are considered consumable items and are not covered under
warranty.
90 days
Parts for Northern Tool + Equipment welding carts and welding cabinets. This warranty covers the absence of or defective parts.
1 year
Parts and Labor on MIG gun parts (except those listed under normal wear items), cables, regulator, plasma torch (except those
listed under normal wear items).Any shipping related to warranty repair is the responsibility of the customer.
1 year/3 year
Please see your product information to determine if your product has a 1 year or 3 year warranty. This warranty covers parts and
Labor on items such as: transformer, reactor, rectifier, solenoid valve, PC Board, switches, controls, gas valve, drive motor, drive
system other than drive roll and any other component that requires the removal of the sheet metal to access. Any shipping related
to warranty repair is the responsibility of the customer.
Voiding Warranty
Warranty does not apply to: Shipping Damage, Misuse and abuse of the unit, alteration of the unit in any way.
Warranty Claim
This is a parts and labor warranty. Do not return your unit. Retain your receipt in the case a warranty claim is needed. No warranty
will be provided without the original receipt from Northern Tool + Equipment. To make a warranty claim, call our welder help line at
877-304-0294, M-F 8:00 am to 5:00 PM Central time or email [e-mail].
Distributed by
Northern Tool + Equipment Co., Inc.
Burnsville, Minnesota 55306
NorthernTool.com
Made in China
