IRT Electronics DDA-4010 User manual

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 1 of 21 Revision 01
Single 1 In, Out / Dual 1 In, 4 Out 3G/HD/SD/ASI Reclocking/Non-Reclocking Distribution Amplifier
User Manual

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 2 of 21 Revision 01
Single 1 In, 8 Out / Dual 1 In, 4 Out 3G/HD/SD/ASI Recloc ing/Non-Recloc ing Distribution Amplifier
Revision History:
Revision Date By Change Description Applicable to:
00 03/01/2013 AL Original Issue.
Issue 3 PCB units
fitted with
firmware version ≥ 2.1
01 03/06/2013 AL DIP switch designators changed to SW1 and SW2,
links LK1 and LK2 added for rear assembly alarm
output NO/NC operation, front panel monitor BNC
outputs slew rate matches that of individual inputs
as opposed to current output.
Issue 4 PCB units
fitted with
firmware version ≥ 2.1

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 3 of 21 Revision 01
USER MANUAL
Table of Contents:
Section Page
Revision History 2
Operational Safety 4
General Description 5
Technical Specifications 6
Configuration 7
DDA-4010 DIP Switch Settings 7
DDA-4010 Alarm Link Settings
Single 1 In, Out Quick Set-up Guide
Dual 1 In, 4 Out Quick Set-up Guide9
Installation 10
Signal Inputs & Outputs 10
Alarm Outputs 11
Front and Rear Layouts 12
Operation 13
Single 1 In, Out Mode 13
ChAx : Input A to all Outputs 13
ChBx : Input B to all Outputs 13
Automatic Changeover Mode 13
Non-Reclocking Mode 14
Front Panel Monitor Outputs 14
Relay Bypass Option 14
Dual 1 In, 4 Out Mode 15
Input A to 4 Output A, and Input B to 4 x Output B 15
Automatic Changeover Mode 15
Non-Reclocking Mode 16
Front Panel Monitor Outputs 16
Relay Bypass Option 16
SNMP – What Is It? 17
DDA-4010 SNMP Functions 19
Maintenance & Storage 21
Warranty & Service 21
This instruction book applies to Issue 4 PCB units fitted with firmware version ≥ 2.1

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 4 of 21 Revision 01
OPERATIONAL SAFETY
WARNING
Operation of electronic equipment involves the use of voltages and currents that
may be dangerous to human life. Note that under certain conditions dangerous
potentials may exist in some circuits when power controls are in the OFF position.
Maintenance personnel should observe all safety regulations.
Do not make any adjustments inside equipment with power ON unless proper
precautions are observed. All internal adjustments should only be made by suitably
qualified personnel. All operational adjustments are available externally without
the need for removing covers or use of extender cards.

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 5 of 21 Revision 01
GENERAL DESCRIPTION
Th e DD A - 4010 s er ial di g i t al d at a dis tr ibution a m plifi er p r o v id e s t h e us er w i t h a sin g l e m odul e t o cover a w id e r an ge
of dis tr ibution and m oni t o r in g fun c tions fo r 3G /HD/ SD-SD I or A S I si g nals.
T wo quad ou t pu t rec lo ck in g / non- rec lo ck in g dis tr ibution a m plifi er s a re p r o v id e d on t h e on e car d. On boa r d s w i tc h
s e tti n g s allo w e i t h er of t h e inpu t s t o f ee d all ou t pu t s t o create a on e in , e i ght ou t dis tr ibution a m plifi er .
W h ere non- rec lo ck in g is re qui re d , on-boa r d s w i tc h s e tti n g s s e l ect b etwee n rec lo ck in g and non- rec lo ck in g m od e s.
Th e DD A - 4010 w ill au t o m ati c all y rec lo ck t o matc h t h e inpu t at e i t h er 3G -SD I, HD-SD I, SD-SD I or A S I rate s , o r ca n b e
fix e d t o op erate at an y on e of t h e s e rate s. B o t h sid e s of t h e DD A - 4010 ca n b e r un ind e p e nd ent l y allo w in g a m ix t u re
of si g nal ty p e s t o b e us e d.
The DDA-4010 is also configurable for Automatic Changeover from one input to the other on loss of input signal
allowing for an input Main/Standby scenario.
Due to the nature of ASI signals being phase sensitive, signal inversion is also possible for situations where an
inverted ASI signal needs to be corrected.
F r o nt pan e l LEDs indi cate w h e n inpu t si g nals a re p re s ent and w h et h er t h e ou t pu t s a re lo cke d t o t h e inpu t s.
An o ptional re la y b y pass re a r ass em bl y is a v ailabl e t o s w i tc h t h e I npu t s t o on e of t h eir respective Ou t pu t s in t h e
event of a po wer failu re .
Si m pl e Netw o rk M ana gement Pr o t o c ol (S NMP ) is a v ailabl e fo r rem o te s et up and m oni t o r in g of inpu t s tat us and
ala rm s tate s w h e n us e d in an IR T f r a me fi tt e d w i t h S NMP c apabili ty .
Th e DD A - 4010 is d e si g n e d t o fi t IR T ’ s 4000 s er i e s 3RU f r a me fo r us e w i t h IR T ’ s S NMP s y s tem as we ll as b e in g
sui t abl e w i t h IR T ’ s 1000 s er i e s 1RU Eu r o car d f r a me s and m a y b e us e d alon g sid e an y o t h er of IR T ’ s Eu r o c a r ds.
Standard features:
• S w it c h s e l ec tabl e f o r 1 in, 8 out sin g l e dist r ibu ti on a m pli fier op er a ti on .
• In - phas e rec lo c e d / non -rec lo c e d outputs on e a c h a m pli fier.
• S e l ec tabl e f o r e ith er 3 G /H D /S D- S D I or ASI appli
c a ti ons .
• Auto m a tic output m u ti n g on no input .
• F r ont pan e l monitoring outputs.
• Front panel indi c ato r s p r o v id e m onito r ing o f p re s e n ce o f inputs and lo c status .
• Automatic changeover to second input on loss of primary input (selectable).
• O p ti onal re lay bypass on loss o f po wer.
• SN MP m onito r in g and c ont r ol .
BLOCK DIAGRAM DDA-4010 SIGNAL PATH
SINGLE / DUAL MODE DATA RATE RECLOCK / NON-RECLOCK I/P INVERT (x2) AUTO CHANGEOVER
OUT 2A
OUT 3A
OUT 4A
OUT 4B
OUT 3B
OUT 2B
OUT 1B
IN B
EQUALISER
EQUALISER
SNMP
Optional Relay Bypass on loss of power
In Dual 1 In, 4 Out mode:
IN 1 & IN 2 independently either 3G/HD/SD-SDI or ASI
OUT 1A
IN A
MON B
MON A
ALARM A
ALARM B
RECLOCKER

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 6 of 21 Revision 01
TECHNICAL SPECIFICATIONS
Data Inputs:
Number 2
Impedance 75 Ω, BNC.
Type 3G-SDI, HD-SDI, SD-SDI or ASI (to SMPTE 424M, 292M and 259M-C standards; and
DVB-ASI standard).
Return loss 15dB 5 MHz to 1.4 5 GHz,
10dB from 1.4 5 GHz to2.97 GHz
1
.
Equalisation Automatic 100 m at 3G-SDI rate with Belden 1694A
2
;
200 m at HD-SDI rate with Belden 1694
2,3
, 120 m with Belden 2 1
2,3
;
400 m at SD-SDI/ASI rate with Belden 1694
3
, 300 m with Belden 2 1
3,4
.
Data Outputs:
Number (1 in, out; or (2x) 1 in, 4 out), plus 2 front panel monitoring.
Type Reclocked or non-reclocked, switch selectable.
Level 00 mV ± 10%.
Impedance 75 Ω, BNC.
Return loss 15dB 5 MHz to 1.4 5 GHz,
10dB from 1.4 5 GHz to 2.97 GHz
1
.
Performance:
Recloc ing Automatic or selectable for 3G-SDI, HD-SDI or SD-SDI / ASI operation.
Rise Time 3G/HD < 135 ps at 2.97 Gb/s and 1.4 5 Gb/s;
SD > 0.4 ns and < 1.5 ns at 270 Mb/s.
Intrinsic Jitter < 0.3 UI at 2.97 Gb/s reclocked;
< 0.2 UI at 1.4 5 Gb/s reclocked;
< 0.1 UI at 270 Mb/s reclocked.
Indicators:
DC LED (green) for module power.
INPUT A LED (green) when signal present on channel A input (LED flashes if present but not active
5
).
INPUT B LED (green) when signal present on channel B input (LED flashes if present but not active
5
).
SD LED (green) x2 when SD-SDI or ASI signal present and locked to selected input on
either A or B outputs.
HD LED (green) x2 when HD-SDI signal present and locked to selected input on either A or
B outputs.
3G LED (green) x2 when 3G-SDI signal present and locked to selected input on either A or
B outputs.
Alarm Outputs:
Alarm A A alarm switches to either open circuit or ground (link selectable) via MOSFET relays
on either loss of signal or incorrect signal rate on I/P A.
Alarm B B alarm switches to either open circuit or ground (link selectable) via MOSFET relays
on either loss of signal or incorrect signal rate on I/P B.
Power requirement:
Voltage 2 Vac CT (14-0-14) or ±16 Vdc.
Power consumption < 6 VA.
Other:
Temperature 0 - 50°C ambient.
Mechanical Suitable for mounting in IRT 19" rack chassis with input, output and power
connections on the rear panel.
Finish Front panel Grey background, black lettering & red IRT logo.
Rear assembly Detachable silk-screened PCB with direct mount connectors to Eurocard and external signals.
Dimensions 6 HP x 3 U x 220 mm IRT Eurocard.
Standard Rear connector assembly with matching connector for alarm output.
Optional ZDA-4010RL relay bypass rear assembly suitable for 3G-SDI
1
, HD-SDI and SD-SDI/ASI signals.
NOTE: 1 Return loss reduced by a couple of dB at 3G rate with optional bypass relay.
2 Reduces to ~ 50m with optional bypass relay rear assembly.
3 If two inputs are being inputted, cable equalisation is limited to that of the higher rate.
4 Reduces to ~ 70m when SW1-4 (I/P A), SW2-4 (I/P B) is ON.
5 When automatic change-over function has been set.
Due to our policy of continuing development, these specifications are subject to change without notice.

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 7 of 21 Revision 01
CONFIGURATION
The DDA-4010 may be configured as a Dual 1 In, 4 Out or a Single 1 In, Out distribution amplifier either locally via
on board DIP switch settings, or remotely via SNMP.
To configure DDA-4010 via SNMP, DIP switch Sw2-7 must be set to ON.
DDA-4010 DIP Switch Settings:
Input A signal type (rate set) SW1-1 SW1-2
Auto Detect (3G/HD/SD/ASI rates) OFF OFF
SD-SDI / ASI only ON OFF
HD-SDI only OFF ON
3G-SDI only ON ON
SW1-3 OFF Reclocking mode. DA behaves as a Reclocking DA.
ON Non-Reclocking mode (Reclocker bypassed). DA behaves as a Non-Reclocking DA.
SW1-4 OFF I/P A Normal cable equalisation.
ON I/P A Reduced cable equalisation to ~ 70m for shorter cable for use in a noisy environment.
SW1-5 OFF Single 1 In, Out DA mode.
ON Dual 1 In, 4 Out DA mode (IN A → ‘A’ Outputs (OUT 1A, OUT 2A, OUT 3A & OUT 4A);
(IN B → ‘B’ Outputs (OUT 1B, OUT 2B, OUT 3B & OUT 4B).
SW1-6 OFF Non-invert I/P A (Default position).
ON Invert
6
I/P A.
SW1-7 OFF Auto Changeover Function disabled.
ON Auto Changeover Function enabled.
SW1-8 Not Used.
Input B signal type (rate set) SW2-1 SW2-2
Auto Detect (3G/HD/SD/ASI rates) OFF OFF
SD-SDI / ASI only ON OFF
HD-SDI only OFF ON
3G-SDI only ON ON
SW2-3 OFF I/P B Reclocking mode. DA behaves as a Reclocking DA.
ON I/P B Non-Reclocking mode (Reclocker bypassed). DA behaves as a Non-Reclocking DA.
SW2-4 OFF I/P B Normal cable equalisation.
ON I/P B Reduced cable equalisation to ~ 70m for shorter cable for use in a noisy environment.
SW2-5 OFF I/P A primary I/P of single 1 in, out DA (IN A → All Outputs).
ON I/P B primary I/P of single 1 in, out DA (IN B → All Outputs).
SW2-6 OFF Non-invert I/P B (Default position).
ON Invert
6
I/P B.
SW2-7 OFF DIP Switch control. Settings as per DIP switch settings.
ON SNMP control. Settings as per SNMP settings.
SW2-8 OFF Enable major and minor SNMP alarms to the frame Agent (CDM card)
7
.
ON Disable major and minor SNMP alarms to the frame Agent (CDM card)
7
.
NOTE: 6 Due to the nature of ASI signals being phase sensitive, signal inversion is possible with this
switch for situations where an inverted ASI signal needs to be corrected.
7 When using TRAPS via SNMP, depending on how system is set up, in order to avoid double
reporting of alarms via the DDA-4010 card itself and the CDM card (SNMP Agent) of the
frame, major and minor SNMP alarms that are reported to the CDM card of the frame can be
disabled.
Not applicable to Dual mode.

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page of 21 Revision 01
DDA-4010 Alarm Lin Settings:
LK 1
8
1-2 A alarm switches to open circuit on either loss of signal or incorrect signal rate on A I/P.
2-3 A alarm switches to closed circuit on either loss of signal or incorrect signal rate on A I/P.
LK 2
8
1-2 B alarm switches to open circuit on either loss of signal or incorrect signal rate on B I/P.
2-3 B alarm switches to open circuit on either loss of signal or incorrect signal rate on B I/P.
NOTE: 8 Alarm O/P non-active with link not plugged into either 1-2 or 2-3 (permanently open circuited).
Single 1 In, 8 Out Quic Set-up Guide:
ChAx8 - Input A to all 8 Outputs (4 x Output A and 4 x Output B) Recloc ing DA:
Sw1-5 = OFF (Single 1 In, Out DA mode).
Sw2-5 = OFF (Input A primary input).
Note that it is also possible to set Input B to all Outputs, if desired.
ChBx8 - Input B to all 8 Outputs (4 x Output A and 4 x Output B):
Sw1-5 = OFF (Single 1 In, Out DA mode).
Sw2-5 = ON (Input B primary input).
Data Rate:
For automatic detection of signal type so that DDA-4010 will pass 3G-SDI, HD-SDI and SD-SDI/ASI
automatically:
Sw1-1 = OFF.
Sw1-2 = OFF.
For 3G-SDI only, HD-SDI only or SD-SDI/ASI only, see Sw1-1 and SW1-2 settings on page .
Note that Sw2-1 and Sw2-2 have no effect when being run in the Single 1 In, Out mode.
Recloc ing DA Mode:
Sw1-3 = OFF (Input reclocked. DA behaves as a reclocking DA).
Sw2-3 = Not Applicable.
Non-Recloc ing DA Mode:
Sw1-3 = ON (Input non-reclocked. DA behaves as a non-reclocking DA).
Sw2-3 = Not Applicable.
Reduced equalisation in a noisy environment:
Sw1-4 = ON (Input A cable equalisation reduced).
Sw2-4 = ON (Input B cable equalisation reduced. Relevant only if Automatic Changeover
enabled).
Automatic Changeover Mode:
On loss of primary input, secondary input will switch to all outputs. See Operation section for complete
description.
Sw1-7 = OFF (Auto Changeover disabled).
Sw1-7 = ON (Auto Changeover enabled).

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 9 of 21 Revision 01
Dual 1 In, 4 Out Quic Set-up Guide:
Note that in Dual 1 In, 4 Out mode, each half of the DDA-4010 behaves as an independent DA, which means that
each input can be set with different (or the same) data rate and Reclock/Non-Reclock mode settings.
Input A to 4 x Output A, and Input B to 4 x Output B:
Sw1-5 = ON (Dual 1 In, 4 Out mode).
Sw2-5 = Not Applicable.
Recloc ing Mode:
Sw1-3 = OFF (Input A reclocked. A input behaves as a reclocking DA).
Sw2-3 = OFF (Input B reclocked. B input behaves as a reclocking DA).
Non-Recloc ing Mode:
Sw1-3 = ON (Input A non-reclocked. A input behaves as a non-reclocking DA).
Sw2-3 = ON (Input B non-reclocked. B input behaves as a non-reclocking DA).
Reduced equalisation in a noisy environment:
Sw1-4 = ON (Input A cable equalisation reduced).
Sw2-4 = ON (Input B cable equalisation reduced).
Automatic Changeover Mode:
On loss of one input, other input will switch to all outputs. See Operation section for complete description.
Sw1-7 = OFF (Auto Changeover disabled).
Sw1-7 = ON (Auto Changeover enabled).

DDA-4010
IR T El ectr oni c s Pty L t d | www .i rte l ectr oni c s. c o m
Page 10 of 21 Revision 01
INSTALLATION
Pre-installation:
Handling:
This equipment may contain or be connected to static sensitive devices and proper static free handling precautions
should be observed.
Where individual circuit cards are stored, they should be placed in antistatic bags. Proper antistatic procedures
should be followed when inserting or removing cards from these bags.
Power:
AC mains supply: Ensure that operating voltage of unit and local supply voltage match and that correct rating
fuse is installed for local supply.
DC supply: Ensure that the correct polarity is observed and that DC supply voltage is maintained within
the operating range specified.
Earthing:
The earth path is dependent on the type of frame selected. In every case particular care should be taken to ensure
that the frame is connected to earth for safety reasons. See frame manual for details.
Signal earth: For safety reasons a connection is made between signal earth and chassis earth.
No attempt should be made to break this connection.
Installation in frame or chassis:
See details in separate manual for selected frame type.
Signal Inputs & Outputs:
For use with supplied standard rear assembly (ZDA-4010) or optional relay bypass rear assembly (ZDA-4010RL).
The DDA-4010 can be configured as a single 1 IN, OUT distribution amplifier, or as a dual 1 IN, 4 OUT distribution
amplifiers as described in the Configuration section of this handbook. If set up for a 1 IN, OUT distribution
amplifier, either input can be configured as the primary input. The other input is not used except when the
automatic changeover function is enabled, in which case this becomes the secondary input. See the Operation
section of this manual for a complete description.

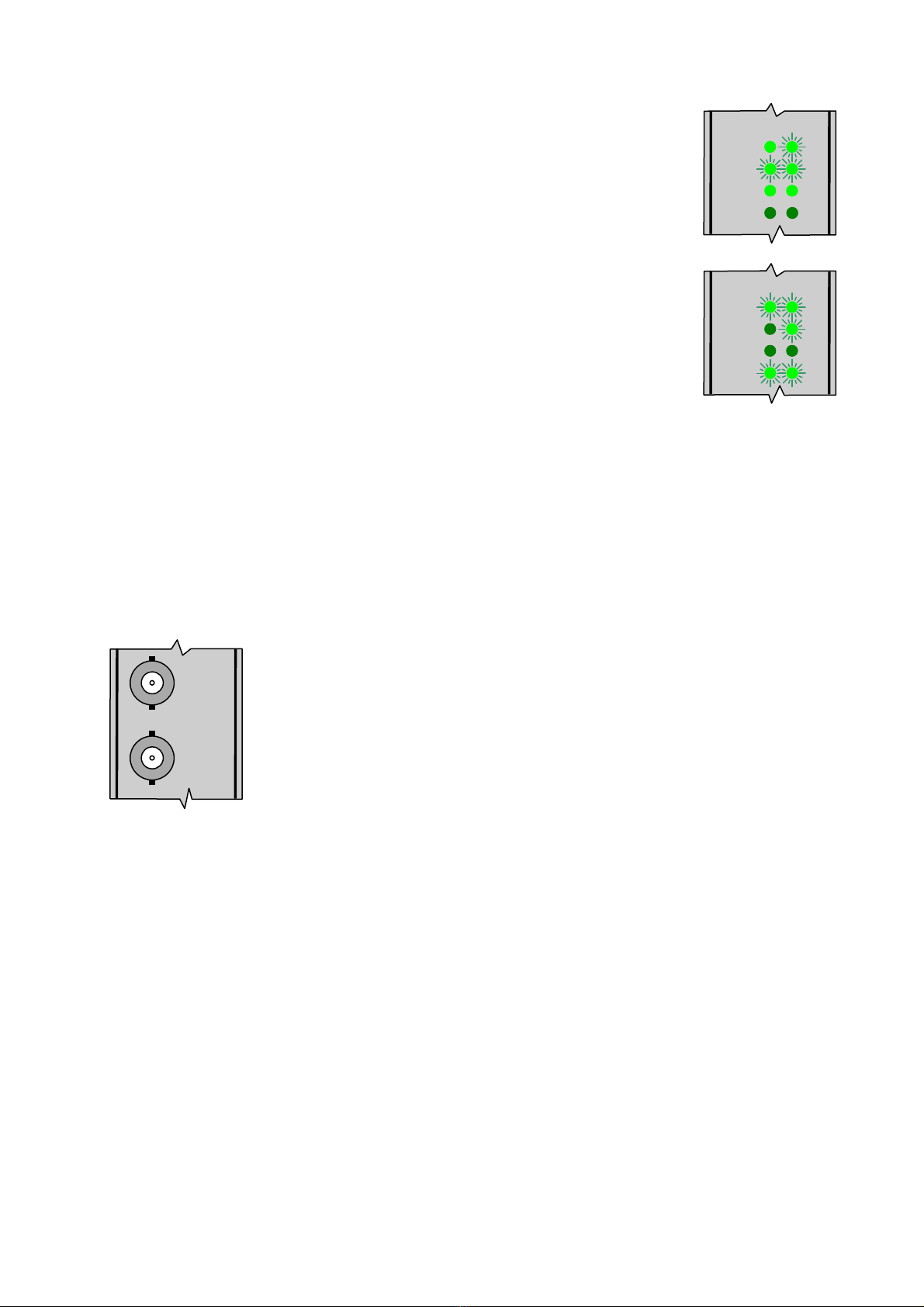

Inputs, Outputs and front panel monitoring ports are 75 Ω BNC type for connection with high quality 75 Ω coaxial
cable. Inputs are self-terminating.
An optional relay bypass rear assembly (ZDA-4010RL) is available where the inputs are outputted to one of the
respective outputs (OUT 1A for Input A, and OUT 1B for Input B) on loss of power or removal of the card from the
rear assembly itself. The bypass relay is suitable for all specified signals up to 3G-SDI. Note however that the cable
equalisation at the 3G/HD-SDI rates and the return loss at the 3G-SDI rates are reduced through these relays. Note
also that if operating in the 1x mode, if anything is connected to the secondary input this too will be switched to
one of the outputs on loss of power or removal of card.
