Irving IRFSDV24 Assembly instructions

1
Irving Oil
10004000
Installation Instructions and
Homeowner’s Manual
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
Freestanding
Direct Vent
Fireplaces
IRFSDV24
IRFSDV34
10004000
0102 Rev. 0
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE.
INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
Installation and service must
be performed by a qualified in-
staller, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from your neighbor's phone. Follow
the gas suppliers instructions.
• If you cannot reach your gas
supplier call the fire department.
410 Admiral Blvd. Mississauga,
Ontario, Canada. L5T2N6
www.majesticproducts.com / www.vermontcastings.com
The VermontCastings,
Majestic Products Company

2
Irving Oil
10004000
Installation Instructions ................................................................................................................3
Important Curing/Burn Information.....................................................................................3
Locating Your Fireplace .................................................................................................... 3
Clearance to Combustibles ................................................................................................3
Fireplace Dimensions.........................................................................................................4
Gas Specifications .............................................................................................................5
Preparation......................................................................................................................... 5
Gas Line Installation...........................................................................................................5
Installation of Remote Switch for RN/RP gas valve ...........................................................6
General Venting Information.........................................................................................................7
Termination Clearance.......................................................................................................8
General Information on Assembling Vent Pipes ................................................................9
Vertical Sidewall Installations...........................................................................................10
Vertical Sidewall Applications ..........................................................................................10
Sidewall Venting Graph....................................................................................................11
Vent Pipe Assembly .........................................................................................................12
Below Grade Installations (Snorkel).................................................................................13
Vertical Through-the-Roof Applications ...........................................................................14
Venting Components...................................................................................................................16
Crimped End ....................................................................................................................16
Twist Lock ........................................................................................................................17
Operating Instructions ................................................................................................................18
General Glass Information ...............................................................................................18
Window Frame Assembly Removal .................................................................................18
Glass Cleaning.................................................................................................................18
Log Set & Lava Rock Material Installation .......................................................................18
Maintenance.....................................................................................................................19
Cleaning Procedures........................................................................................................19
Flame Adjustment & Characteristics ................................................................................19
Fan FK24 .........................................................................................................................20
Optional Remote Control..................................................................................................21
Optional Gold Trim Kit......................................................................................................21
Optional Frame Window Trim Kits ...................................................................................21
Lighting Instructions .........................................................................................................22
RFN/RFP Remote Control Instructions ..............................................................................23
Trouble Shooting the Gas Control System.........................................................................25
Replacement Parts.......................................................................................................................26
Replacement Parts Pictorial............................................................................................ 28
PLEASE READ
THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.
Thank you and congratulations on your purchase of a Irving Oil fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible fire hazard and will void the warranty.
TABLE OF CONTENTS

3
Irving Oil
10004000

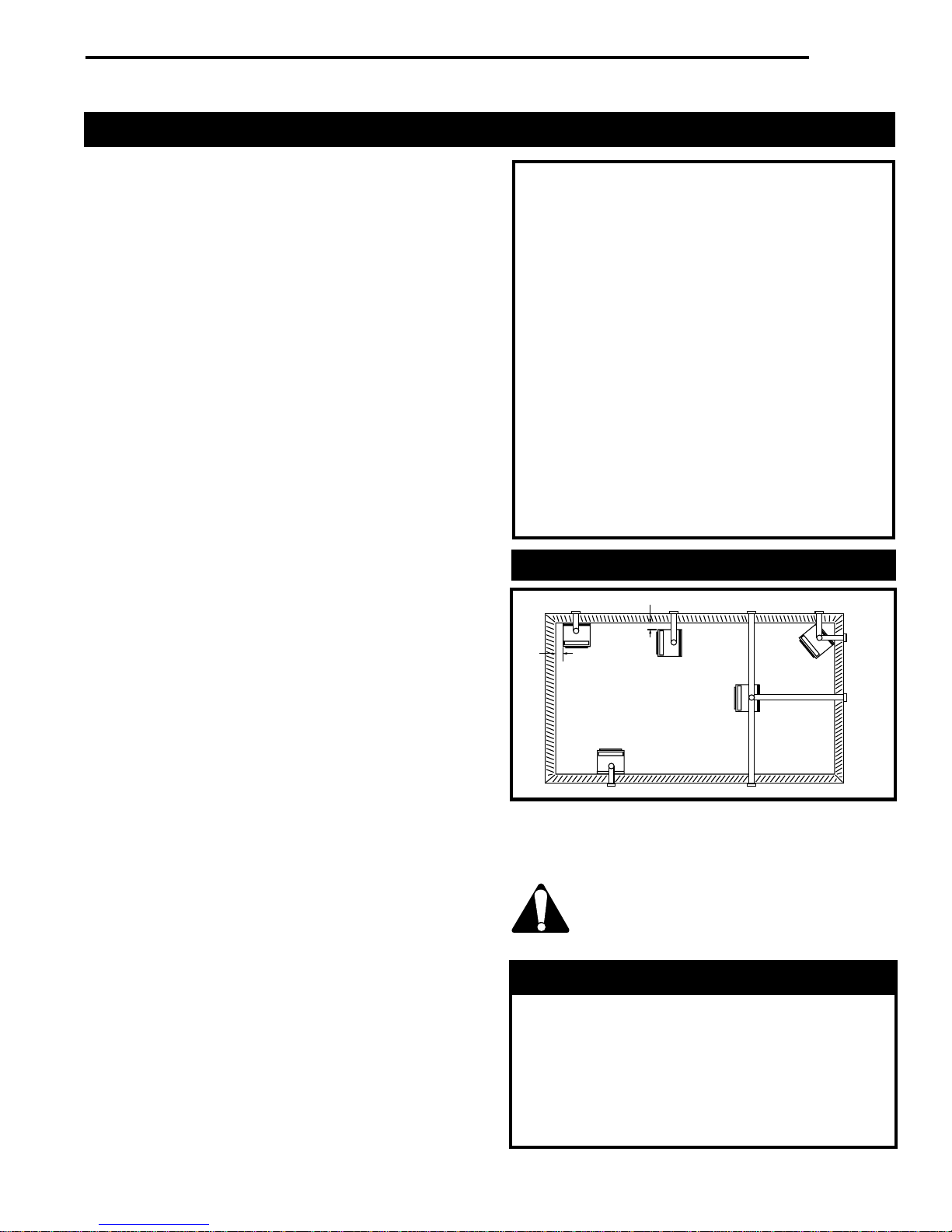

A - *Flat on wall B - *Room divider C - Island
D - Cross corner E - Flat on wall corner
* A & B must maintain a 12” (305 mm) clearance between the wall and
side glass of fireplace.
There is a minimum vertical rise required for the
venting which varies depending on the application.
The maximum horizontal run also has restrictions.
Becomefamiliarwiththeventinginstructionsstarting
on page 9, before starting the installation.
This gas fireplace should be installed by a qualified
installer in accordance with local building codes and with
current CSA-B149 (.1 or .2) Installation codes for Gas
Burning Appliances and Equipment. For USA Installations
follow local codes and/or the current National Fuel Gas
Code. ANSI Z223.1. If the unit is being installed in a
mobile home the installation should comply with the
current CAN/USA Z240.4 Code.
FOR SAFE INSTALLATION AND OPERATION PLEASE
NOTE THE FOLLOWING:
1 . This fireplace gives off high temperatures and should
be located out of high traffic areas and away from
furniture and draperies.
2. Children and adults should be alerted to the hazards
of fireplace high surface temperatures and should
stay away to avoid burns or ignition of clothing.
3. CAUTION: Due to high glass surface temperature
children should be carefully supervised when in
the same room as fireplace.
4. Under no circumstances should this fireplace be
modified. Parts removed for servicing should be
replaced prior to operating this fireplace again.
5. Installation and any repairs to fireplace must be
performed by qualified installer, service agency or gas
supplier. A professional service person should be
contacted to inspect fireplace annually. More frequent
cleaning may be required due to excess lint and dust
from carpeting, bedding material, etc.
6. Control compartments, burners and air passages in
this fireplace should be kept clean and free of dust
and lint. Make sure that the gas valve and pilot light
are turned off before you attempt to clean this
fireplace.
7. The venting system (chimney) of this fireplace should
be checked at least once a year and if needed your
venting system should be cleaned.
8. Keep the area around your fireplace clear of combusti-
ble materials, gasoline and other flammable vapour
and liquids. This fireplace should not be used as a
drying rack for clothing, nor should Christmas stockings
or decorations be hung on or around the fireplace.
9. Under no circumstances should any solid fuels (wood,
coal, paper or cardboard etc.) be used in this
fireplace.
10. The flow of combustion and ventilation air must not be
obstructed in any way.
11. When the fireplace is installed directly on carpeting,
vinyl tile or any combustible material other than wood,
this fireplace must be installed on a metal or wood panel
extending the full width and depth of the fireplace.
12. This fireplace requires adequate ventilation and
combustion air to operate properly.
13. This fireplace must not be connected to a chimney flue
serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended
that the gas control valve be left in the OFF position.
IMPORTANT:
PLEASE REVIEW THE FOLLOWING CAREFULLY
Remove any plastic from parts before turning the
fireplace ON.
It is normal for fireplaces fabricated of steel to give
off some expansion and/or contraction noises
during the start up or cool down cycle. Similar
noises are found with your furnace heat exchanger
or car engine. It is not unusual for your gas fireplace
to give off some odor the first time it is burned. This
is due to the curing of the paint and any undetected
oil from the manufacturing process.
Please ensure that your room is well ventilated-
open all windows.
It is recommended that you burn your fireplace for
at least ten (10) hours the first time you use it. If the
optional fan kit has been installed, place the fan
switch in the “OFF” position during this time.
INSTALLATION & OPERATING INSTRUCTIONS
LOCATING YOUR FIREPLACE
Fig. 1
Adequate clearances as listed below must be main-
tained for servicing and proper operation.
Back.................................... 0”
Side..................................... 12”
Floor.................................... 0”
Top...................................... 36”
Corner................................ 0” to Back Edges
Vent Pipe............................ 1”
CLEARANCE TO COMBUSTIBLES
12" (305mm)
12" (305mm)
A
B
C
E
D
F

4
Irving Oil
10004000
IRFSDV24 IRFSDV34
A 23 in (584 mm) A 26-14 in (667 mm)
B 28-3/4 in (730 mm) B 31-1/2 in (800 mm)
C 16-5/8 in (422 mm) C 19-3/8 in (492 mm)
D 27-3/8 in (695 mm) D 30 in (762 mm)
E 9-1/2 in (241 mm) E 10 in (254 mm)
F 13-7/8 in (352 mm) F 15-1/2 in (394 mm)
G 4 in (102 mm) G 4-1/2 in (114 mm)
H 23 in (584 mm) H 26-1/4” (667 mm)
I 11-1/2 in (292 mm) I 13-1/8 “ (334 mm)
J 16-5/8 in (422 mm) J 19-1/2” (495 mm)
K 6” (152 mm) K 6-3/8 in (162 mm)
FIREPLACE DIMENSIONS

5
Irving Oil
10004000
Max. Max.
Input Input
Model Fuel Gas Control BTU/h BTU/h
IRFSDV24RN Nat Millivolt Hi/Lo 20,000 14,000
IRFSDV24RP Prop Millivolt Hi/Lo 20,000 15,000
IRFSDV34RFN Nat Radio Frequency 30,000 21,000
IRFSDV34RFP Prop Radio Frequency 30,000 22,500
Natural LP (Propane)
Input Minimum 5.5” wc 11” wc
Input Maximum 14” wc 13” wc
Manifold Pressure 3.5” wc 10” wc
1/2" Gas Supply
1/2" X 3/8" Reducer
3/8" Nipple
3/8" Nipple
3/8" Nipple
3/8" X 3/8" Shut Off Valve
3/8" Union
TYPICAL GAS LINE CONNECTION
GAS SPECIFICATIONS
IRFSDV24/IRFSDV34
CERTIFIED TO
ANSI Z21.88b-1999 / CSA 2.33b-M99
Vented Gas Fireplace Heaters
GAS INLET AND MANIFOLD PRESSURES
PREPARATION
GAS LINE INSTALLATION
The use of wall paper adjacent to this
fireplace is not recommended, as the
high heat given off by this fireplace may
adversely affect the binders in the
adhesive used to apply the wallpaper.
Before beginning, remove the window frame assembly
from the fireplace. Also check to make sure there is not
hidden damage to the fireplace. Take a minute and
plan out the gas, vent and electrical supply. See
Window Frame Assembly Section.
When purging the gas line, the front
glass must be removed.
The gas pipeline can be brought in through the rear of
the fireplace as well as the bottom. Opening is provided
on the bottom behind the valve to allow for the gas pipe
installation and testing of any gas connecion. It is most
convenient to bring the gas line in from the rear right
side of the valve, as this allows fan installation or
removal without disconnecting the gas line.
The gas line connection can be made
with properly tinned 3/8” copper tubing,
3/8” rigid pipe or an approved flex con-
nector. Since some municipalities have
some additional local codes, it is always
best to consult your local authority and
the CSA-B149 (.1 or .2) installation code.
For USA Installations consult the current
National Fuel Gas Code, ANSI Z223.1.
Always check for gas leaks with a mild
soap and water solution. Do not use an
open flame for leak testing.
The gas control is equipped with a
captured screw type pressure test point,
therefore it is not necessary to provide a
1/8” test point up stream of the control.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a
certified kit is available and used.
Fig. 2
Input ratings are shown in BTU per hour and
are certified without deration for elevations up
to 4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in
USA, installations must be in accordance with
the current ANSI Z223.1 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or
local authorities having jurisdiction for install-
ations at elevations above 4,500 feet (1,370 m).
CFM186

6
Irving Oil
10004000
The remote ON/OFF switch can not be fitted to units
using the Honeywell Radio Frequency control valve.
If the fireplace has been fitted with the Radio
Frequency Control Valve, the ON/OFF function is
controlled by the remote handset. (See the Comfort
Control Valve Operating Instruction Section).
Install on/off switch assembly on either the rear right or
left side of the Fireplace.
1. Remove the screw at the back of the cabinet top
either on the left or the right side of the fireplace.
2. Position switch assembly onto the back of the
fireplace, then fasten two screws as shown in Fig. 5.
3. Attach wiring under the clips on the rear casing
(Fig. 5) and install wiring through the rear opening
of the fireplace before connecting to the valve as
shown in Fig. 4.
When using copper or flex connector use only ap-
proved fittings. Always provide a union when using
black iron pipe so that gas line can be easily
disconnected for burner or fan servicing (see Fig. 2)
See gas specification for pressure details and ratings.
The fireplace valve must not be
subjected to any test pressures
exceeding 1/2 psi. Isolate or disconnect
this or any other gas appliance control
from the gas line when pressure testing.
INSTALLATION OF REMOTE
SWITCH FOR RN/RP GAS VALVE
Fig. 4
PILOT
ADJ
TH
TP
TP TH
Screw
(through existing hole)
Screw
On/off switch
assembly
Clips
Wiring for milli-volt
gas valves
Fig. 5
P
I
L
O
T
TPTH TP TH
ON/OFF SWITCH OR
MILLIVOLT THERMOSTAT
VALVE
THERMOPILE

7
Irving Oil
10004000
Canadian Installations US Installations
A = Clearance above grade, veranda, porch, 12 inches (30cm) 12 inches (30 cm)
deck, or balcony
B = Clearance to window/door that may be opened 6 in (15cm) for appliances<10,000 Btuh 6 in (15cm) for appliances < 10,000
(3kW), 12 in (30cm) for appliances >
Btuh (3kW), 9 in (23cm) for appliances
10,000 Btuh (3kW) and < 100,000 Btuh > 10,000 Btuh (3kW) and < 50,000
(30kW), 36 in (91cm) for appliances > Btuh (15kW), 12 in (30cm) for appli-
100,000 Btuh (30 kW) ances > 50,000 Btuh (15kW)
C = Clearance to permanently closed window
D = Vertical clearance to ventilated soffit
located above the terminal within a hori- 18” (458 mm) 18” (458 mm)
zontal distance of 2 feet (610mm) from the
center line of the terminal
E = Clearance to unventilated soffit 12” (305 mm) 12” (305 mm)
F = Clearance to outside corner see next page see next page
G = Clearance to inside corner see next page see next page
H = Clearance to each inside of center line
extended above meter/regulator assembly
I = Clearance to service regulator vent outlet 3 feet (91cm) 3 feet (91cm)
J = Clearance to non-mechanical air supply 6 in (15cm) for appliances <10,000 6 in (15cm) for appliances < 10,000
inlet to building or the combustion air inlet Btuh (3kW), 12 in (30cm) for appli-
Btuh (3kW), 9 in (23cm) for appliances
to any other appliance ances > 10,000 Btuh (3kW) and < > 10,000 Btuh (3kW) and < 50,000 Btuh
100,000 Btuh (30kW), 36 in (91cm) for (15kW), 12 in (30cm) for appliances >
appliances > 100,000 Btuh (30 kW) 50,000 Btuh (15 kW)
K = Clearance to a mechanical air supply inlet 6 feet (1.83m) * 3 feet (91 cm) above if within
10 feet (3 m) horizontally
L = Clearance above paved sidewalk or a 7 feet (2.13m)† 7 feet (2.13m)†
paved driveway located on public property
M = Clearance under veranda, porch, deck 12 inches (30cm) ‡ 12 inches (30cm) ‡
or balcony
N= Clearance above a roof shall extend a minimum of 24” (610mm) above the highest point when it passes through the roof surface,
and any other obstruction within a horizontal distance of 18” (450mm).
1 In accordance with the current CSA-B149 Instalation Codes.
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes.
† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single
family dwellings and serves both dwellings.
‡ Only permitted if veranda, porch, deck, is fully open on a minimum 2 sides beneath the floor.
Note: 1. Local codes or regulations may require different clearances.
2. The special venting system used on Vermont Castings Majestic Products Company’s Direct Vent Fireplaces
are certified as part of the appliance, with clearances tested and approved by the listing agency.
GENERAL VENTING INFORMATION–TERMINATION LOCATION
12
3 feet (91cm) within a height of 15
feet above the meter/regulator
assembly
3 feet (91cm) within a height of 15
feet above the meter/regulator
assembly
12 inches (305 mm) recommended to
prevent window condensation 12 inches (305 mm) recommended to prevent window condensation
V
V
V
V
V
V
V
X
X
X
D
E
B
B
B
C
B
M
B
AJK
F
L
VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED
H
I
Fixed
Closed
Fixed
Closed
Operable
Operable Fixed
Closed
V
B
INSIDE
CORNER DETAIL
V
A
G
V
NN
V
V
G
G
A
CFM145a

8
Irving Oil
10004000
584-15
Outside Corner
Inside Corner
Termination Clearances
Termination clearances for buildings with combustible and noncombustible exteriors.
A =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
B =
Combustible
6"(152mm)
Noncombustible
2"(50mm)
A
Balcony -
with no side wall
G =
Combustible
24"(610mm)
Non-Combustible
18"(457mm)
G
Balcony -
with perpendicular side wall
H = 24"(610mm)
J = 20"(508mm)
H
J
B
Recessed Location
C = Maximum depth of 48"
(1219mm) for recessed
location.
D = Minimum width for back wall
of a recessed location.
Combustible 38"(965mm)
Noncombustible 24"(610mm)
E = Clearance from corner in
recessed location.
Combustible 6"(152mm)
Noncombustible 2"(50mm)
CDC
E
V
V
Combustible &
Non-Combustible
VV
V
Fig. 8 Fig. 9 Fig. 10
Fig. 6 Fig. 7

9
Irving Oil
10004000
Before joining elbows and pipes apply a bead of high
temperature sealant to the crimped end of the elbow or
pipe. Join the pipes using a 2” (50mm) overlap and
secure the joints with three (3) sheet metal screws
(Fig. 11). Wipe off excess sealant.
There are polished brass decorative
rings available to hide the exposed
piping joints. Wrap the brass ring over
the joint fitting the stud into the notch
and tighten down the 3/8” nut.
GENERAL INFORMATION ON ASSEMBLING
THE VENT PIPES IN DIRECT VENT APPLICATIONS
CANADIAN INSTALLATIONS:
The venting system must be installed in accordance
with the current CSA-B149 (.1 or .2) installation code.
USA INSTALLATIONS:
The venting system must conform with local codes
and/or the current National Fuel Gas code ANSI
Z223.1.
Fig. 11
Screw Holes
Fig. 12
CRIMPED END PIPES TWIST LOCK PIPES
When using twist-lock pipe it is not necessary to use
sealant on the twist lock joints.
The only areas of the venting system that need to be
sealed with high temperature silicone sealant are the
collars on the fireplace and termination, and the sliding
joint of any telescopic vent section used in the system.
To join the twist lock pipes together, simply align the
beads of the male end with the grooves of the female
end, twisting the pipe until the flange on the female
end contacts the external flange on the male end.
It is recommended that you secure the joints with three
(3) sheet metal screws, however this is not mandatory
with twist lock pipe.
To make it easier to assemble the joints we suggest
putting a lubricant (Vaseline or similar) on the male
end of the twist lock pipe.
BEAD LOCATION
1" FROM CRIMPED END OF PIPE
1''
Screw Holes
NOTE: Only venting components manufactured by The Vermont Castings Majestic Products Company may be used.

10
Irving Oil
10004000
VERTICAL SIDEWALL APPLICATIONS
Since it is very important that the venting system
maintain its balance between the combustion air intake
and the flue gas exhaust, certain limitations as to vent
configurations apply and must be strictly adhered to.
The graph, on page 11, showing the relationship
between vertical and horizontal side wall venting will
help to determine the various lengths allowable.
Minimum clearance between vent pipes and
combustible materials is one 1” (25mm) on top, bottom
and sides unless otherwise noted.
When the vent termination exits through
foundations less than 20” below siding outcrop,
the vent pipe must flush up with the siding.
It is always best to locate the fireplace in such a
way that minimizes the number of offsets and
horizontal vent length.
The horizontal vent run refers to the total length of
vent pipe from the flue collar of the fireplace to the
face of the outer wall.
Horizontal plane means no vertical rise exists on
this portion of the vent assembly.
VERTICAL SIDEWALL INSTALLATIONS
• The maximum number of 90°elbows per side wall
installations is three (3).
• For IRFSDV24 and IRFSDV34 models the
maximum horizontal run off a minimum 12” vertical
rise is 3’ (see Fig. 15).
• If a 90˚ elbow is used in the horizontal vent run
(level height maintained) the maximum horizontal vent
length is reduced by 36 inches, (Fig. 14). This does not
apply if the 90˚ elbows are used to increase or redirect
a vertical rise (Fig. 16).
Example: According to the chart the maximum
horizontal vent length is 20’ and if a 90˚ elbow
is required in the horizontal vent it must be
reduced to 17’.
In Fig. 14, Dimension A plus B must not be
greater than 17’ (5.2m).
• The maximum number of 45°elbows permitted per
side wall installation is two (2). These elbows can be
installed in either the vertical or horizontal run.
• For each 45°elbow installed in the horizontal run,
the length of the horizontal run MUST be reduced by
18” (45cm). This does not apply if the 45°elbows are
installed on the vertical part of the vent system.
• The maximum number of elbow degrees in a system
is 270°(Fig. 13).
Example: In Figure 13
Elbow 1 = 90°
Elbow 2 = 45°
Elbow 3 = 45°
Elbow 4 = 90°
Total angular variation = 270°
Fig. 14
7.5 ft.
2286mm
A + B = 17 ft.
Fig. 16
20 FT
(610cm)
7.5FT (2286m)
PIPE STRAPS
EVERY 3'
(92cm)
PIPE STRAPS
EVERY 3'
(92cm)
FIRESTOP/ZERO
CLEARANCE SLEEVE
Fig. 13
Fig. 15
3 FT
(92cm)
x
IRFSDV24
IRFSDV24
x = 12”

11
Irving Oil
10004000
Horizontal Dimension From The Outside Face Of The
Wall To The Center Of The Fireplace Vent Flange
Vertical Dimension From The Floor Of The Fireplace
To The Center Of The Horizontal Vent Pipe
TO USE THE VENT GRAPH
SIDEWALL VENTING GRAPH
(Dimensions In Feet)
1. Determine the height of the center of the horizontal
vent pipe exiting through the outer wall. Using this
dimension on the Sidewall Vent Graph below, locate
the point it intersects with the slanted graph line.
2. From the point of this intersection, draw a vertical
line to the bottom of the graph.
3. Select the indicated dimension, and position the
fireplace in accordance with same.
Example A:
If the vertical dimension from the floor of the
fireplace is 11’ (3.4m) the horizontal run to the face
of the outer wall must not exceed 14’ (4.3m).
Example B:
If the vertical dimension from the floor of the unit is
7’ (2.14m), the horizontal run to the face of the
outer wall must not exceed 8-1/2 (215mm).
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
eg: A
eg: B

12
Irving Oil
10004000
STEP 1
Locate vent opening on the wall. It may be necessary to
first position the fireplace and measure to obtain hole
location. Depending on whether the wall is combustible or
noncombustible, cut opening to size (Fig. 17).
(For combustible walls first frame in opening. Fig. 17)
COMBUSTIBLE WALLS: Cut a 9-3/8”H x 9-3/8” W (240
mm x 240 mm) hole through the exterior wall and frame
as shown Fig. 14.
NONCOMBUSTIBLE WALLS: Hole opening must be 7.5”
(190 mm) in diameter.
STEP 2
Measure wall thickness and cut zero clearance sleeve
parts to proper length (MAXIMUM 12”/305 mm). Assem-
ble sleeve and attach to firestop with #8 sheet metal
screws (supplied). Install firestop assembly (Fig. 18).
Zero clearance sleeve is only required for
combustible walls.
STEP 3
Place fireplace into position (Fig. 19). Measure the
vertical height (X) required from the base of the flue
collars to the center of the wall opening.
STEP 4
Apply a bead of silicone to the inner and outer flue
collars of the fireplace (Fig. 20) and using appropriate
length of pipe section(s) attach to fireplace with three (3)
screws. Follow with the installation of the inner and outer
elbow, again secure joints as described on page 9.
Fig. 17
Fig. 20
VENT PIPE ASSEMBLY
Fig. 18
Fig. 19
X
BEAD OF SEALANT
(240mm)
9-
3/8 "
9-
3/8 "
(240mm)
7-
1/2 "
(190mm)
Vent Opening
Combustible Wall
Vent Opening
Noncombustible Wall
(framing detail)
Adjustable
Zero Clearance
Sleeve
Firestop
#8 Screws (2)
#8 Screws (2)
Maximum Length
12" (305mm)
Adjustable Zero
Clearance Sleeve
#8 Screws (2)

13
Irving Oil
10004000
When it is not possible to meet the required vent
terminal clearances of 12 inches (305mm) above grade
level a snorkel vent kit is recommended. It allows
installation depth of down to 7 “ (178mm) below grade
level. The 7 “ is measured from the center of the
horizontal vent pipe as it penetrates through the wall.
If venting system is installed below
ground, we recommend a window well
with adequate and proper drainage.
Ensure sidewall venting clearances are observed.
Support horizontal pipes every 3’ (91 cm)
with metal pipe straps.
Check fireplace to make sure it is lev-
elled and properly positioned.
BELOW GRADE INSTALLATIONS
STEP 5
Measure the horizontal length requirement including a
2” (50 mm) overlap, i.e. from the elbow to the outside
wall face plus 2” (or the distance required if installing a
second 90°elbow (Fig. 21).
Fig. 21
X
,,
,,
,,
,,
,,
,,
,
,
Always install horizontal venting on a
level plane.
STEP 6
Note: If using the charcoal wall plate, Part #52202-CG,
and collar, Part #52203-CG, put them in place before
putting the pipe sections through the wall.
Use appropriate length of pipe sections - telescopic or
fixed - and install. The sections which go through the
wall are packaged with the starter kit, and can be cut to
suit if necessary (Fig. 22).
Fig. 22
Sealing vent pipe and firestop gaps with
high temperature sealant will restrict
cold air being drawn in around fireplace.
STEP 7
Apply high temperature sealant to 4” (100 mm) and 7”
(175 mm) collars or the termination one inch away from
crimped end. Guide the vent terminations 4” and 7”
collars into their respective vent pipes. Double check
that the vent pipes overlap the collars by 2” (50mm).
Secure the termination to the wall with screws provided
and caulk around the wall plate to weatherproof.
,
,
,
,
,
Fig. 23
,







,
,
,








,
,
,











14
Irving Oil
10004000
If the foundation is recessed, use recess brackets (not
supplied) for securing lower portion of the snorkel.
Fasten brackets to wall first, then secure to snorkel
with self drilling #8 x 1/2 sheet metal screws. It will be
necessary to extend vent pipes out as far as protruding
wall face (Fig. 25).
This Gas Fireplace has been approved for,
• Vertical installations up to 40’ (12m) in height. Up
to a 10’ horizontal vent run can be installed within
the vent system using a maximum of two 90°
elbows (Fig. 26).
• Up to two 45°elbows may be used within the
horizontal run. For each 45°elbow used on the
horizontal level the maximum horizontal length
must be reduced by 18”.
Example: Maximum horizontal length
0x 45°elbows = 10’
1x 45°elbows = 8.5’
2x 45°elbows = 7’
• A minimum of an 8’ vertical rise.
• Two sets of 45°elbows offsets within these vertical
If installing a snorkel a minimum 24” vertical rise is
necessary. The maximum horizontal run with the 24”
vertical pipe is 36” (915 mm). This measurement is
taken from the collar of the fireplace to the face of the
exterior wall. See the Vent Chart on page 11 for
extended horizontal run if the vertical rise exceeds 24”.
1. Establish vent hole through the wall (Fig. 17).
2. Remove soil to a depth of approximately 16"
(406mm) below base of snorkel. Install drain pipe.
Install window well (not supplied). Refill hole with
12" (305mm) of coarse gravel leaving a clearance
of approximately 4" (100mm) below snorkel (Fig.
24).
3. Install vent system.
4. Ensure a watertight seal is made around the vent
pipe coming through the wall.
5. Apply high temperature sealant caulking (supplied)
around the 4” and 7 “ snorkel collars.
6. Slide the snorkel into the vent pipes and secure to
the wall.
7. Level the soil to maintain a 4" (100mm) clearance
below snorkel (Fig. 24).
VERTICAL THROUGH-THE-ROOF
APPLICATIONS
Do not back fill around snorkel. A
clearance of at least 4” must be main-
tained between snorkel and the soil.
Fig. 24
GRAVEL
DRAIN
FIRESTOP
FOUNDATION WALL
WINDOW WELL
SNORKEL
GROUND
24"/608mm
MINIMUM*
A minimum of 24"/608mm
vertical pipe must be installed
when using the snorkel kit.
The 22" vertical rise (center to
center) of the snorkel may be
included for calculation of max.
horizontal run.
*
7" PIPE SCREWS 4" CLEARANCE
*
Fig. 25
FOUNDATION
RECESS SNORKEL
SCREWS
WALL
SCREWS
SHEET METAL
WATERTIGHT
SEAL
AROUND
PIPE
Fig. 26
MAXIMUM
10 FT
(305cm)
PIPE STRAPS
EVERY 3’
(92cm)
MINIMUM
7.5 FT./
MAXIMUM
40 FT.
VERTICAL
RISE

15
Irving Oil
10004000
installations. From 0 to a maximum of 8’ of vent
pipe can be used between elbows (Fig. 25).
• 7DVCS must be used to support offsets (Fig.
26). This application will require that you first
determine the roof pitch and use the appropriate
starter kit. (See Venting Components List)
The minimum height of the vent above the highest
point of penetration through the roof is 2 feet (Fig. 28).
Fig. 27
45°
45°
2.44m
MAX.
8 FEET
2.44m
MAX.
8 FEET
40'(12m)
TYPICAL OFFSET INSTALLATION
TYPICAL 7DVCS
APPLICATION
TYPICAL ROOF
SUPPORT
APPLICATION
Fig. 28
1. Locate your fireplace.
2. Plumb to center of the (4”) flue collar from ceiling
above and mark position.
3. Cut opening equal to 9-3/8” x 9-3/8” (240 mm x
240 mm).
4. Proceed to plumb for additional openings through
the roof. In all cases, the opening must provide a
minimum of 1 inch clearance to the vent pipe, i.e.,
the hole must be at least 9-3/8” x 9-3/8” (240 mm x
240 mm).
5. Place fireplace into position.
6. Place firestop(s) #7DVFS or Attic Insulation Shield
#7DVAIS into position and secure (Fig. 29).
7. Install roof support (Fig. 27) and roof flashing,
making sure upper flange of flashing is below the
shingles (Fig. 30).
8. Install appropriate pipe sections until above the
flashing (Fig. 30).
9. Install storm collar and seal around the pipe.
10. Add additional vent lengths for proper height (Fig. 28).
11. Apply high temperature sealant to 4” and 7” collars
of vertical vent termination and install.
TO INSTALL VERTICAL VENTING
Fig. 29 If there is a room above ceiling
level, firestop spacer must be installed
on both the bottom and the top side of
the ceiling joists. If an attic is above
ceiling level a 7DVAIS (Attic Insulation
Shield) must be installed.
The enlarged ends of the vent section
always face downward (Fig. 30).
Fig. 29
JOIST
11"
11"
Attic
Insulation
Shield
Ceiling
Installation
JOIST
NAILS (4)
FIRESTOP
SPACER
11"
11"
UPPER FLOOR
SEALANT
SHEETMETAL
SCREWS (#5) —
3 PER JOINT
STORM
COLLAR
SEALANT
SHEETMETAL
SCREWS (#5) —
3 PER JOINT
STORM
COLLAR
Fig. 30
TYPICAL STRAIGHT-UP INSTALLATION
40 FEET
(12.2m)
ATTIC INSULATION
SHIELD
JOISTS
CEILING JIOSTS
ROOF
VENT TERMINATION
ATTIC INSULATION
ROOF SUPPORT
STORM COLLAR
ROOF FLASHING
2' Min.

16
Irving Oil
10004000
CRIMPED END VENTING COMPONENTS
Starter Kit-Model 7FSDVSK-Sidewall Venting
Starter Kit-Model 7TDVSKV-Vertical Venting
for 7DVSKV-A order 1/12 to 6/12 roof pitch
for 7DVSKV-B order 7/12 to 12/12 roof pitch
for 7DVSKV-F order flat roof
Starter Kit-Model 7FSDVSKS-Snorkel Kit
for Below Grade Installation
45˚ elbow kit
7FSDVT45G for Vertical Installation Offsets
90˚ Transition elbow kit
7DVRT90 for Vertical Sidewall Applications
or through-the-roof.
Telescopic vent sections
7DVP610 -6” to 10” adjustable length
7DVP1018 -10” to 18” adjustable length
7DVP1834 -18” to 34” adjustable length
7DVP3466 -34” to 66” adjustable length
Pipe sections for vertical or horizontal venting
Model 7DVP8” - 4 per box
Model 7DVP12” - 4 per box
Model 7FSDVP24G
Model 7DVP36”
Model 7FSDVP48G
Firestop Spacer
Model 7DVFS
Attic Insulation Shield
Model 7DVAIS
Vertical/Horizontal Combination Offset Support
Model 7DVCS

17
Irving Oil
10004000
Starter Kit - Model 7TFSMSK
Starter Kit-Model 7TFSDVSK-Sidewall Venting
Starter Kit-Model 7TDVSKV - Vertical Venting
for 7TDVSKV-A order 1/12 to 6/12 roof pitch
for 7TDVSKV-B order 7/12 to 12/12 roof pitch
for 7TDVSK-F order flat roof
Starter Kit-Model 7TFSDVSKS-Snorkel Kit
for Below Grade Installation
45˚ elbow kit
7TFSDV45 for Vertical Installation Offsets
90˚ Transition elbow kit
7TFSDV90 for Vertical Sidewall Applications
or through-the-roof.
Telescopic vent sections
7TDVP1218- 12” to 18” adjustable length
7TDVP3564- 35” to 64” adjustable length
Pipe sections for vertical or horizontal venting
Model 7TDVP8” - 4 per box
Model 7TDVP12” - 4 per box
Model 7TFSDVP24”
Model 7TDVP36”
Model 7TFSDVP48”
Firestop Spacer
Model 7DVFS
Attic Insulation Shield
Model 7DVAIS
Vertical/Horizontal Combination Offset Support
Model 7DVCS
TWIST LOCK VENTING COMPONENTS

18
Irving Oil
10004000
Only glass approved by the Vermont
Castings, Majestic Products Company
may be used for replacement.
1. Shut off gas (See Lighting Instructions).
2. Let the unit cool if it has been operating.
3. Open two side doors
4. Open the clamps on two sides.
5. Pull the frame forward.
6. To reinstall window frame assembly follow the
above procedure in reverse.
Model: IRFSDV34
Refer Figure 32.
1. Remove window frame assembly (See “Window
Frame Assembly” section).
2. Remove logs from packaging.
As with all plastic - these are not toys
and should be kept away from children
and infants.
3. Place rear log (KR10) on rear bracket (ensure
log is seated properly, leveled and centered to
the unit), so it will not move from side to side
and it is firmly positioned on the bracket.
4. Slip front ember log (KR7) down behind the
front deflector.
5. Place front left log (KR8) on top of burner, left
side. Use log’s bottom holes to locate it into the
left bracket log locator studs.
6. Place front right log (KR9) on top of burner, right
side. Use log’s bottom holes to locate it into the
right bracket log locator studs.
7. Place burner lava rock on top of burner
between the ember log and the two front logs.
8. Place top left log (KR11) onto locator notches.
Ensure log is secure.
9. Place top right log (KR12) onto locator notches.
Ensure log is secure.
It will be necessary to clean the glass periodically.
During start-up condensation, which is normal, forms
on the inside of the glass. This condensation causes
lint, dust and other airborne particles to cling to the
glass surface. Also initial paint curing may deposit a
slight film on the glass. It is therefore recommended
that the glass be cleaned two or three times with a
non-ammonia based household cleaner and warm
water (We recommend gas fireplace glass cleaner).
After the initial cleaning process the glass should be
cleaned two or three times during each operating
season depending on the environment.
• The use of substitute glass will void all pro-
duct warranties.
• Care must be taken to avoid breakage of the glass.
Under no circumstances should this
fireplace be operated without the front
glass or with a broken glass.
Replacement of the glass (with gasket)
as supplied by the manufacturer should
be done by a licensed qualified
service person.
Clean glass after first two weeks
of operation.
OPERATING INSTRUCTIONS
GENERAL GLASS INFORMATION INSTALLATION OF LOGS & BURNER
LAVA ROCK MATERIAL
WINDOW FRAME REMOVAL
GLASS CLEANING
Fig. 31
Release clips
(2 per side)
Fig. 32
KR11 KR12
KR10
KR7
KR8 KR9

19
Irving Oil
10004000
1. It is important to keep the burner and the burner
compartment clean. This must be done
periodically, at least once per season (See
Cleaning Procedure).
2. Clean the brass trim using a soft clean cloth,
slightly dampened with lemon oil and buff with a
soft clean cloth. Do NOT use brass polish or
household cleaners as these products will damage
the brass trim. Lemon oil can be obtained at
supermarkets or hardware stores.
3. The FK24 Fan requires periodic cleaning. Check
the fan and the area around the fan assembly and
wipe or vacuum at least once per month during the
operating season.
4. Contact your local representative to arrange an
annual service program
INSTALLATION OF LOGS & BURNER
LAVA ROCK MATERIAL (Cont.)
Model: IRFSDV24
Refer Figure 33.
1. Remove window frame assembly (See Window Frame
Assembly section).
2. Remove logs from packaging.
As with all plastic - these are not toys
and should be kept away from children
and infants.
3. Place rear left log (KR15) with one end onto the
left rear bracket while the rest of the log sets on
the center of the rear log support.
4. Fit the rear right log (KR16) onto the right side of
the rear log support. Ensure the log’s bottom holes
are located on the two studs of the support.
5. Place front left log (KR13) onto the left cut out of
the rear log while the front left end of this log will
set against the back wall of the front grate.
6. Place the front right log (KR14) in position by
resting the holes under one end of this log located
over the knob on the rear left log while the other
end of the log sets against the right end of the front
grate (See Fig. 33).
7. Place burner lava rock over the front area of the burner.
Fig. 33
Burner Lava Rock
KR14
KR13
KR15 KR16
MAINTENANCE
1. Turn off pilot light at gas valve.
2. Remove window frame assembly.
3. Remove logs.
CAUTION: LOGS MAY BE HOT
4. Vacuum burner compartment especially around
orifice/primary air openings.
5. Reinstall logs.
6. Check pilot and main burner operation.
7. Reinstall window frame assembly.
8. Recheck pilot and main burner operation.
9. Check visually the flame pattern and compare
with Figs. 34, 35, & 36.
CLEANING PROCEDURE
FLAME & TEMPERATURE
ADJUSTMENT RFN/RFP
All adjustments on units fitted with the Honeywell
Radio Frequency control valve are performed with
the remote transmitter. See instructions packaged
with the transmitter, or page 23 in this manual for
operating details.

20
Irving Oil
10004000
RN/RP Models
For units equipped with ‘HI/LO’ valves the flame
adjustment is accomplished by rotating the ‘HI/LO’
knob located near the center of the gas control valve
(See Fig. below).
It is important to periodically perform a visual
check of the pilot and burner flames. Compare
them to the pictorials illustrated below (Fig. 34, 35,
& 36). If any of the flames appear abnormal call a
service person.
FLAME CHARACTERISTICS
FLAME & TEMPERATURE ADJUSTMENT
IRFSDV34 Fig. 36
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
Honeywell Valve
Fig. 34
3/8" - 1/2"
IRFSDV24 Fig. 35
FAN - FK24
This fan assembly comes completely
wired to eliminate the need for elec-
tricians. This electrical device must be
electrically connected and grounded in
accordance with local codes. In the
absence of local codes, with the current
CSA C22.1 CANADIAN ELECTRICAL CODE.
For USA installation: Follow local codes and the
NATIONAL ELECTRICAL CODE ANSI/NFPA No.
70-1984.
Should this fan require servicing, the power supply
must be disconnected. For rewiring of any
replacement components see Fig. below.
C
B
A
Black
White
Ground
A: SPEED CONTROL
B: TEMPERATURE SENSOR
C: FAN
