iSolution ACME User manual

1A
TABLE OF CONTENTS
1. Safety Instruction
2. Technical Specification
2.1 Description of the fixture
3. Lamp
4. How to Set the Unit
4.1 Control Panel
4.2 Main Function
5.How to Control the Unit
5.1 DMX Controller
5.2 DMX 512 Configuration
5.3 DMX 512 Connection
6. Troubleshooting
7. Fixture Cleaning

2
A
1. Safety Instruction
WARNING
 Please keep this manual for future consultation.
 Unpack and check carefully there is no transportation damage before using the unit.
 Before operating, be ensure that the voltage and frequency of power supply match the
power requirements of the unit.
 The unit is designed for MSI 1200W/S, HMI 1200/S or HMQ 1200/S lamp (SFc10-4). Do
not use any other type of lamps.
 It’s important to ground the yellow/green conductor to earth to avoiding electric shock.
 The unit is for indoors use in dry location.
 The unit must be installed in a location with adequate ventilation, at least 50 cm from
adjacent surfaces. Be sure that no ventilation slots are blocked.
 Disconnect main power before fuse/lamp replacement or servicing.
 Replace fuse/lamp only with the same type.
 Make sure there are no flammable materials close to the unit while operating, as it is fire
hazard.
 Use safety chain when fixing this unit. Don’t handle the unit by taking its head only, but
always by it’s base.
 Maximum ambient temperature is TA : 40℃. Don’t operate it where the temperature is
higher than 40℃.
 Unit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand
during its operation, and waiting for 15 minutes to cool down before replacing bulb or
serving, as the unit could be very hot.
 Stop using the unit immediately when malfunction. Never try to repair the unit by yourself.
Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type
spare parts.
 Don’t connect the device to any dimmer pack.
 Do not touch any wires during operation, as it might be a hazard of electric shock.
Please read carefully the instruction which include important
information about the installation
,
usa
g
e and maintenance.
3A
Warning
 To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
 Never touch bulb with bare fingers, as it is very hot after using.
 Hot lamp explosion hazard. Do not open the unit within five minutes after switching off.
 Do not start on the unit without bulb enclosure or when housing is damaged.
 The housing, lenses or the ultraviolet filter must be replaced if they are visibly damaged.
 The light beam will damage your retina, please do not look the light directly.
Caution
 There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs by yourself. If the unit need any require service, please contact your nearest
dealer.
Installation
The unit should be mounted via its mounting system on the bottom of the base. Use clamps to
fix the unit to truss. Always ensure that the unit is firmly fixed to avoid vibration and slipping
while operating. Always ensure that the structure to which you are attaching the unit is secure
and is able to support a weight of 50 kg for each unit.
1. Clamp
2. Safety cable
3. Quick-lock fastener
4. Omega holder

4
A
2. Technical Specification
Power supply
- AC 208V/230V/240V/250V ~50Hz
Lamp
-MSI 1200W/S / HMI 1200/S / HMQ 1200/S SFc10-4
Optical system
- High efficiency optical system
- High quality optical lens and dichroic colors
- Beam angle: 11°~22°
Shutter/Dimmer
- Blackout, 0~100% smooth dimming and strobe speed variable
(1~10 flashes/second)
Color wheel
-Independent color wheel with 6 dichroic colors plus white
- Color wheel rotates with variable speed and display rainbow effect.
CMY Mixing system
-CMY color and 3200k color lens mixing system
Effect Wheel
- Frost filter and diagonal lens
Movement
- Pan: 540° in 2.8 second.
- Tilt: 270° in 1.6 second.
- Pan/Tilt resolution: 8/16-bit.
- Automatic Pan/Tilt correction.
- Automatic Pan/Tilt home positioning.
- Pan/Tilt position lock for transporting protection.
Zoom
- Automatic zoom by DMX controls.
Luminous intensity:
5A
DMX Channels : (control by any universal DMX controller)
22 Channels Mode 16 Channels Mode
Channel 1 = pan Channel 1 = pan
Channel 2 =Tilt Channel 2 =Tilt
Channel 3 =pan/Tilt speed Channel 3 =pan/Tilt speed
Channel 4 =Dimmer Channel 4 =Dimmer
Channel 5 =Shutter Channel 5 =Shutter
Channel 6 =Color wheel Channel 6 =Color wheel
Channel 7 =Cyan Channel 7 =Cyan
Channel 8 =Magenta Channel 8 =Magenta
Channel 9 =Yellow Channel 9 =Yellow
Channel 10 =3200K filter Channel 10 =3200K filter
Channel 11 =Color-mix preset Channel 11 =Color-mix preset
Channel 12 =Color macro Channel 12 =Color macro
Channel 13 =Color macro speed Channel 13 =Color macro speed
Channel 14 =Zoom Channel 14 =Zoom
Channel 15 =Effect Channel 15 =Effect
Channel 16 =Lamp on/off/Reset Channel 16 =Lamp on/off/Reset
Channel 17 =pan movement fine
Channel 18 =Tilt movement fine
Channel 19 =pan/Tilt macro
Channel 20 =pan/Tilt macro speed
Channel 21 =Dimmer fine
Channel 22 =Dimmer fine speed
Weight: 44.2 kg
Dimension: 517x 704 x 480 mm

6
A

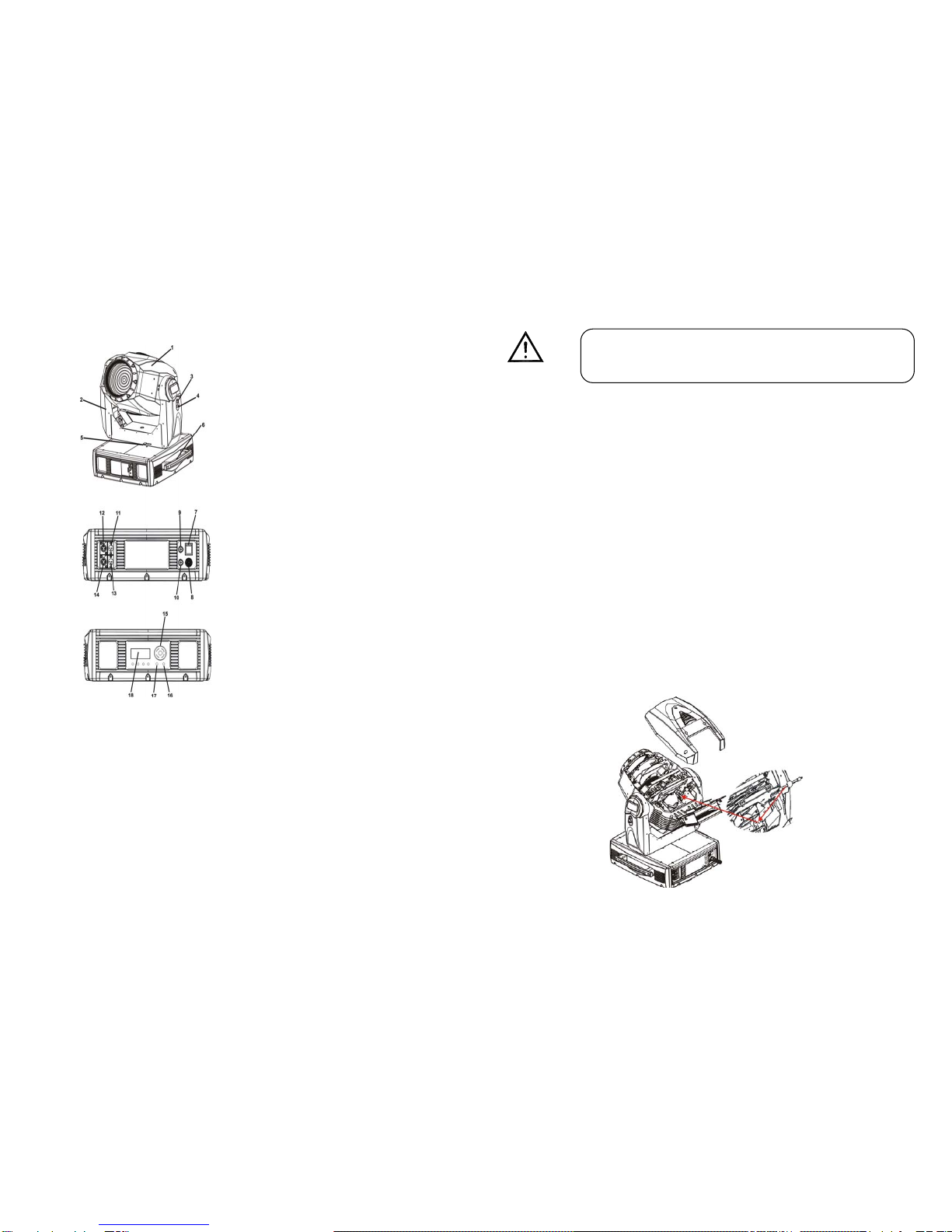

2.1. Description of the fixture
1. Moving head
2. Yoke
3. Tilt lock button (red)
4. Tilt unlock button (green)
5. Pan lock/unlock lever
6. Handle
7. Power switch
8. Power cord
9. Lamp fuse
10. Power cord EL Fuse
11. DMX In 3-Pin XLR
12. DMX Out 3-Pin XLR
13. DMX In 5-Pin XLR
14. DMX Out 5-Pin XLR
15. Jog wheel
16. Enter button
17. Esc button
18. LCD display
7A
2. Lamp
WARNING
Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the
eyes and skin. The high luminance of the arc can cause severe damage to the retina if
looks directly at the lamp.
MSI 1200W/S, HMI 1200/S, HMQ 1200/S K SFc 10-4
1.Always switch off the main supply and never handle the lamp when it
is hot.
2.Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
3.The lamp generates UV radiations Never operate the lamp without appropriate shielding.
4.When power on the unit, the lamp is during high pressure and there is a slight risk of arc
tube rupture. The risk increases with age, temperature and improper handling of the lamp.
Do not use the lamp any longer than its lifespan.
5.Make sure the lamp is located in the center of the reflector for the best spot.
In case of replacement of the lamp or maintenance, do not open the
fixture when power off it within 15 minutes.

8
A
6. If changing the lamp, remove old lamp from lamp socket. Hold the new lamp only by its
ceramic base. Never touch the glass bulb. Insert the new lamp in the lamp socket.
7. Please turn the head in horizontal position. Hinge must be on the upper side of the head.
Turn screws left and remove plastic cover. Loosen head screw and open the lamp cover
8. With the nipple of the lamp facing the back insert one end of the lamp into the socket. Pull
up the spring of the other side of the socket and snap the other end of the lamp into place.
Make sure it fits correctly into the socket. Please refer to the diagram to know how to put the
lamp in correct position.
9A
4. How To Set The Unit
4.1 Control Panel
LCD monitor To show the various menus .
DMX LED DMX input present
ESC Button To go back to the previous functions
ENTER Button To confirm the selected functions
Jog wheel To select the given functions
On/Off switch Turns On/Off the power
Fuse To replace the fuse
Power cord To connect the power plug
3-pin XLR DMX input/output For DMX 512 operation, use 3-pin XLR plug cable to link
the unit together
5-pin XLR DMX input/output For DMX 512 operation, use 5-pin XLR plug cable to link
the unit together

10A
4.2 Main Function
To select any of the pre-set functions, press the ENTER button and turn jog wheel until the
required one is shown on the monitor. Select the function by ENTER button. Use the jog wheel
to change the mode. Once the required mode has been selected, press the ENTER button to
setup or it will automatically return to the main functions without any change after idling 10
seconds. To go back to the previous functions without any change press the ESC button. The
main functions are shown below:
DMX 512 Address Setting
Press the ENTER button and turn jog wheel until the DMX Address is shown on the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to change the DMX
512 address. Once the address has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
11A
Channel Mode
Press the ENTER button and turn jog wheel until the Channel Mode is shown on the monitor.
Pressing ENTER button and the display will blink. Use jog wheel to select the (16 Channel ) or
(22 Channel) mode. Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
Pan Inversion
Press the ENTER button and turn jog wheel until the Pan Inversion is shown
on the monitor. Pressing ENTER button and the display will blink. Use jog wheel
to select the (Normal) or (Inversion) mode. Once the mode has been selected,
press the ENTER button to setup or automatically return to the main functions
without any change after 10 seconds. To go back to the previous functions
without any change press the ESC button.
Tilt Inversion
Press the ENTER button and turn jog wheel until the Tilt Inversion is shown on the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Normal)
or (Inversion) mode. Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
Auto Test
Press the ENTER button and turn jog wheel until the Auto Test is shown on the monitor.
Pressing ENTER button and the display will blink. select option and the unit will run self-test by
built-in program. To go back to the main functions press the ESC button twice.
Manual Test
Press the ENTER button and turn jog wheel until the Manual Test is shown on the monitor.
Pressing ENTER button and the display will blink. Use jog wheel to select the (Pan) or (Tilt) or
(Dimmer)or ……mode. Once the mode has been selected, press the ENTER button and use
jog wheel to select the 0~255 value. Once the value has been selected, press the ENTER
button to setup or automatically return to the main functions without any change after 10
seconds.To go back to the previous functions without any change press the ESC button.

12A
Lamp Temperature
Press the ENTER button and turn jog wheel until the Lamp Temperature is shown on the
monitor. Pressing ENTER button and the ambient temperature of lamp will show on the
monitor. To go back to the main functions press the ESC button twice.
Lamp Hours
Press the ENTER button and turn jog wheel until the Lamp Hours is shown on the monitor.
Pressing ENTER button and the monitor will show the number of working hours of the unit. To
go back to the main functions press the ESC button twice.
Lamp On/Off
Press the ENTER button and turn jog wheel until the Lamp On/Off is shown on the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (Lamp
on) or (Lamp off) mode. Once the mode has been selected, press the ENTER button to setup
or automatically return to the main functions without any change after 10 seconds. To go back
to the previous functions without any change press the ESC button.
Lamp On/Power On
Press the ENTER button and turn jog wheel until the Lamp On/Power On is shown on the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (on) or
(off ) mode. Once the mode has been selected, press the ENTER button to setup or
automatically return to the main functions without any change after 10 seconds. To go back to
the previous functions without any change press the ESC button.
Software Version
Press the ENTER button and turn jog wheel until the Software Version is shown on the
monitor. Pressing ENTER button and the display will blink. Use jog wheel to select the (A) or
(B) or (C) or (D) mode. Once the mode has been selected, press the ENTER button to setup
or automatically return to the main functions without any change after 10 seconds. To go back
to the previous functions without any change press the ESC button.
Reset
Press the ENTER button and turn jog wheel until the Reset is shown on the monitor.
Pressing ENTER button and the display will blink. Use jog wheel to select the (Yes) or (No)
13A
mode. select (Yes) option and all channels of the unit will return to their standard position. To
go back to the main functions press the ESC button twice.
4.3. Home Position Adjustment
Press the ENTER button for at least 5 seconds into offset mode, turn jog wheel until the
function is shown on the monitor pressing ENTER button again into the next function. Once
the function has been selected, use jog wheel to adjust this settings only for offset mode to
adjust home position. To go back to the previous functions without any change press ESC
button. The functions are shown below:

14A
5. How To Control The Unit
The unit can be operating by any universal DMX controllers.
No need to turn the unit off when you change the DMX address, as new DMX address
setting will be effected at once. Every time you turn the unit on, it will show “e-2510
resetting…” on the monitor and move all the motors to their ‘home’ position and you may hear
some noises for about 20 seconds. After that the unit will be ready to receive DMX signal.
5.1 DMX Controller
If you use a universal DMX controller to control the units, you have to set DMX address from
1 to 512 so that the units can receive DMX signal.
Press the ENTER button until the DMX address is shown on the monitor. Pressing
ENTER button and the monitor will blink. Use jog wheel to change the DMX512 address. Once
the address has been selected, press the ENTER button to setup or automatically return to the
main functions without any change after 10 seconds. To go back to the previous functions
without any change press the ESC button.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
Mode Fixture 1 Fixture 2 Fixture 3 Fixture 4
16 CH 1 17 33 49
22 CH 1 23 45 67
15A
5.2 DMX 512 Configuration

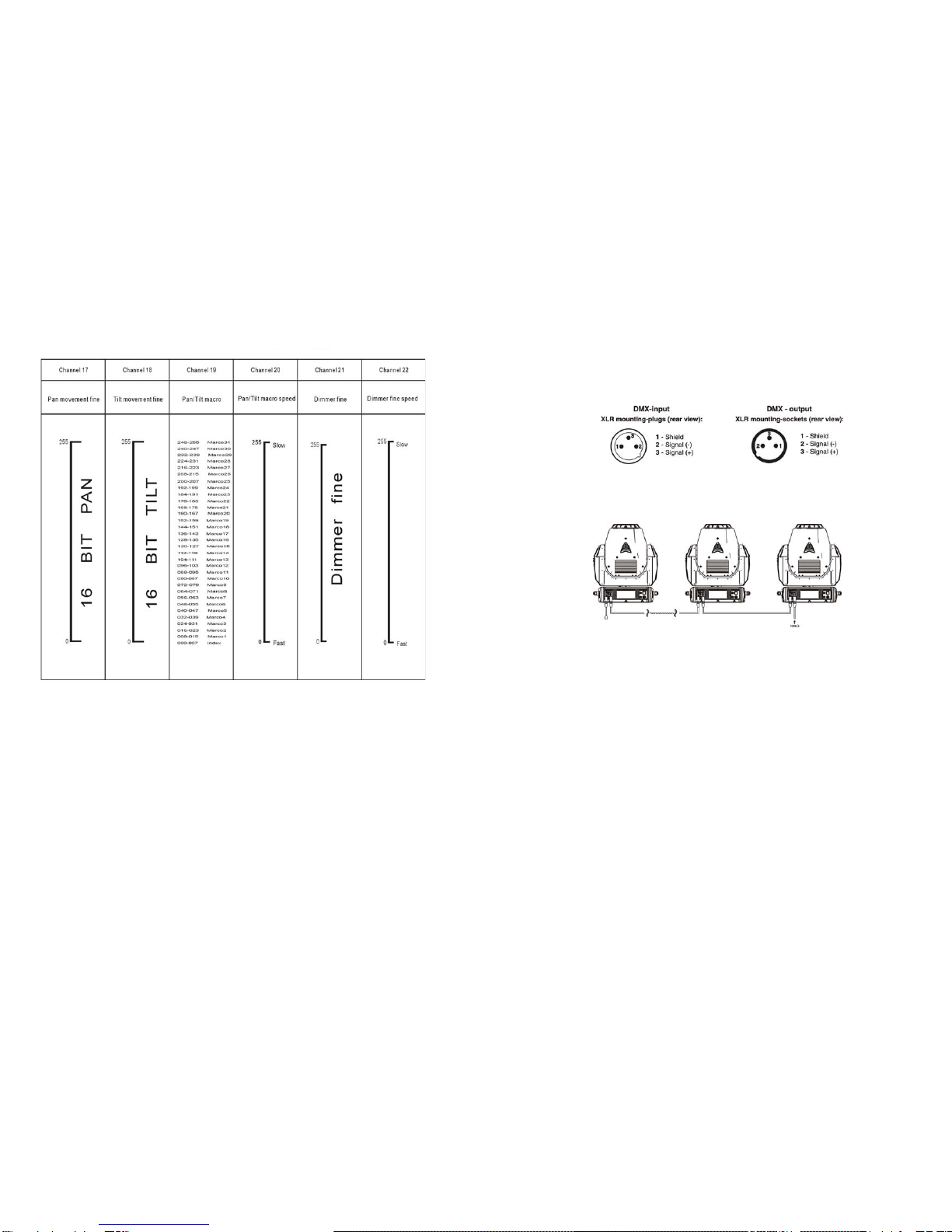

16 Channel Mode
Note: CH-16 functions such as lamp reset, the unit need at laest 5 seconds to action..

16A
22 Channel Mode : (Same configuration as ch. 1 to 16 of 16 channel mode)
17A
5.3. DMX512 Connection
The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and
3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture
with another.
If you are using the standard DMX controllers, you can connect the DMX output of the
controller directly with the DMX input of the first fixture in the DMX-chain. If you wish to
connect .DMX-controllers with other XLR-outputs, you need to use adapter-cables.
1. If you use a controller with 5 pins DMX connector, you need to use a 5 to 3 pin adapter.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm
1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in
the DMX-output of the last unit.
3. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit
to the input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX
512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or
corroded connectors can easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit,
when power is disconnected to the unit.
5. Each lighting unit needs to have a DMX address to receive the data by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
7. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

18A
6. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings
and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB
of the unit or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage cables that
may cause damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the main voltage either too high or too low.
2. Internal temperature may be too high. Check and if necessary replace the fan on the
head.
19A

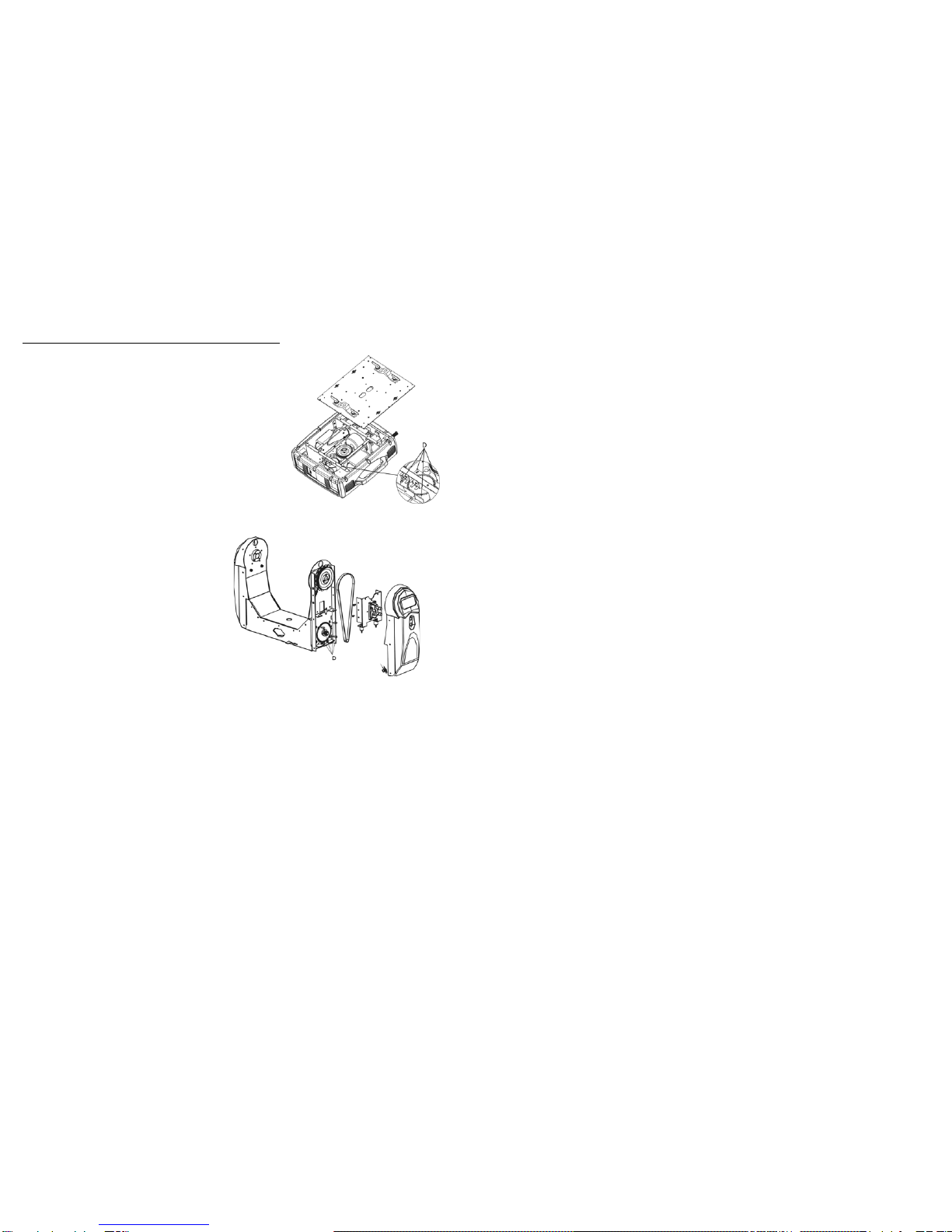

E. If The pan belt is broken
1. Turn off the main power.
2. Unscrew all the screws (A) and open the
base-housing cover (B).
3. Unplug all the connect wires that upon belt.
4. Loose the screws (D).
5. Change a new belt (C) , put the belt around
the axis gear and motor gear.
6. Screwed the screws (D), install the new belt
and adjust the belt tension properly.
7. Note: do not fix the belt too tight as it is easy
to rupture.
8. Plug all the connect wires back that upon belt.
9. Screw all the screws (A) .
F. If The tilt belt is broken
1. Turn off the main power.
2. Unscrew all the screws (A) and open the right arm cover (B).
3. Unscrew the screws (C) that fix the bridge.
4. Loose the screws (D).
5. Change a new belt (E). Please adjust the tension of the belt properly. Note: do not fix the
belt too tight as it is easy to rupture.
6. Reverse the procedures from point 3
to 2 .

20A
Pay attention to the belt tension when install the belt.
Please refer to the photos below:
Photo 1 : Adjust belt tension through loose this screws (D)
Photo 2 : Adjust belt tension through loose this screws (D)
7. Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out
periodically to optimize light output. Cleaning frequency depends on the environment in which
the fixture operates: damp, smoky or particularly dirty surrounding can cause greater
accumulation of dirt on the unit’s optics.
 Clean with soft cloth using normal glass cleaning fluid.
 Always dry the parts carefully.
 Clean the external optics at least every 20 days. Clean the internal optics at least every
30/60 days.
21A
Professional, Performance, Technology
