ISYnet V1-10-400 User manual

1
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
V1-10-400
Article no. 80101031
1-10V Sink Current Converter
Technical Data / Instruction Manual

2
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
1. Notes on documentation
These instructions are intended for qualified personnel who
are familiar with the assembly, installation and operation of ligh-
ting control systems. It is essential that you read these operating
instructions through before commissioning and keep them acces-
sible for further use.
SEEBACHER cannot accept any liability for damage or malfunc-
tions resulting from failure to observe these instructions.
1.1. Retention of documents
These instructions and all other applicable documents are part
of the product. They must be handed over to the device opera-
tor. The operator will store the documents so that they can be
made available if necessary.
1.2. Symbols used
Observe the following safety and other instructions in the
manual:
Handling instruction
The hand indicates that you should carry out an act.
Danger!
Immediate danger to life!
Attention!
General notes, useful information and special features
Directory of Content
1. Notes on documentation
1.1. Retention of documents
1.2. Symbols used
2. Safety instructions
2.1. Intended usage
2.2. Predictable mishandling
2.3. Safe handling
2.4. Qualification of staff
2.5. Changes to the product
2.6. Use of spare parts and additional equipment
2.7. Liability notes
3. Warranty
4. Declaration of Conformity
5. Service address
6. Maintenance / Care / Disposal
7. Storage
8. Assembly
9. Product description
10. Technical Data
10.1. Pin assignment
11. Wiring diagram

3
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
The module is designed for cabinet installation on a 35mm DIN
rail according to EN 60715 in corresponding standard housings.
Extreme environmental conditions impair the function of the pro-
duct.
• Protect module from shocks
• Use module indoors only
• Protect module from humidity
In addition to these safety instructions, you must also observe
the special safety instructions listed in the individual chapters for
the individual acts.
2.4. Qualification of staff
Assembly, commissioning, operation, maintenance, decommis-
sioning and disposal may only be carried out by qualified staff.
Work on electrical parts may only be carried out by a trained
electrician in accordance with the applicable regulations and
directives. Other activities in connection with the ISYnet module,
such as assembly and installation of system components with
tested standard plug connections, as well as operation and
configuration of the ISYnet module may only be carried out by
trained staff.
2.5. Changes to the product
Unauthorized modifications to the ISYnet module which are not
described in this or the other applicable instructions can lead to
malfunctions and are prohibited for safety reasons.
2.6. Use of spare parts and additional equipment
The module may be damaged if unsuitable spare parts and
additional equipment are used. Only use original spare parts and
additional equipment from the manufacturer.
2.7. Liability notes
SEEBACHER accepts no liability or warranty whatsoever for
damage and consequential damage caused by non-compliance
with the technical regulations, instructions and recommendati-
ons. SEEBACHER shall not be liable for any costs or damage
incurred by the user or third parties as a result of the use of this
equipment, in particular improper use of the equipment, misuse
or malfunction of the connection, malfunction of the equipment
or connected devices.
SEEBACHER accepts no liability for printing errors.
2. Safety instructions
Observe the following general safety instructions when installing
and commissioning the device:
Assembly and installation of the ISYnet module may only be carried
out by a qualified electrician. Other activities in connection with the
ISYnet module, such as assembly and installation of system com-
ponents with tested standard plug connections, as well as opera-
tion and configuration of the ISYnet module may only be carried out
by trained staff.
Observe the electrical installation regulations of the country in
which the device is installed and operated as well as its national
accident prevention regulations. In addition, observe internal com-
pany regulations (work, operating and safety regulations).
Before working on the ISYnet module system, it must be
disconnected from the power supply and secured against
being switched on again. After completion of the assembly,
installation and maintenance work, an electrical check must
be carried out! Check all protective conductor connections
and the voltages at all connection plugs as well as at each
individual module slot.
2.1. Intended usage
The module is only suitable for converting a 0-10V signal into
a 1-10V signal. Any other use is not intended. The limit values
stated in the technical data must not be exceeded under any cir-
cumstances. This applies in particular to the permissible ambi-
ent temperature range and the permissible IP protection type.
For applications with a higher required IP protection type, the
ISYnet module must be installed in a housing or a cabinet with a
higher IP protection type.
2.2. Predictable mishandling
The module must not be used in the following cases in parti-
cular:
•explosive area
When operating in explosive areas, sparking can lead to defla-
gration, fire or explosions.
2.3. Safe handling
This module corresponds to the state of the art and the recog-
nised safety regulations. Each device is tested for function and
safety before delivery.
Only operate this module in perfect condition in accordance with
the operating instructions, the applicable regulations and direc-
tives of the country in which the device is installed and operated,
and the applicable safety and accident prevention regulations.

4
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
6. Maintenance / Care / Disposal
The product is maintenance-free. It is sufficient from time to time to
remove any dust deposits. This may only be done in a power-free
state.
Disposal (European Union)
Do not dispose of product in household waste! Products with this
symbol
7. Storage
The product must be stored in a dry place, protected from dirt
and mechanical stress. After damp or dirty storage, the product
may only be operated after a condition check by an authorised
electrician.
8. Assembly
(Only by certified electrician!)
Mount the product only when it is in a power-free state!
Switch off the power supply, check that there is no voltage, secure
against being switched on again!
The device may only be operated at voltages according to the tech-
nical data and loaded with the currents defined therein. Only use
suitable equipment (system modules).
Check that there are no loose parts in the product. If this is the case
and the presence of such parts is not explicitly described, do not
install or commission the product.
Only use suitable cables and fixing screws.
Assembly site
• The product can be installed in any position in a casing to be
determined by the electrician (switch cabinet). Observe maximum
ambient temperature!
• Keep sufficient distance from flammable materials.
Assembly steps
(Read completely before assembly!)
• Mount the device in a suitable casing.
• Make the electrical connections according to the wiring diagram.
• Only after a complete connection and a visual test by a qualified
electrician, the system may be put under voltage.
Seebacher GmbH
Marktstrasse 57
83646 Bad Tölz
GERMANY
Phone: [phone] / 77 77 6
Fax: [phone] / 77 77 2
www.seebacher.de
[e-mail]
5. Service address
4. Declaration of Conformity
The valid declaration of conformity for the module can be requested
from us free of charge by stating type and article no. as follows:
By phone: [phone]
By fax: [phone]
By mail: [e-mail]
3. Warranty
We provide warranty within the framework of the statutory provisi-
ons. These are limited to the intended use of the module and refer
to the repair or replacement of the ISYGLT module. Please send the
device with an attached error description to our company address
given below.
must be disposed of according to the EU directive WEEE 2012/19/
EU on waste electrical and electronic equipment at the local collec-
tion points for waste electrical and electronic equipment!

5
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
9. Product description
The V1-10-400 sink current converter (voltage/current converter) was
developed so that 1-10V controllable ECGs can also be controlled with
an external control voltage of 0-10V (maximum cable length 700m). It
can receive the ECG sink current up to a maximum of 400mA.
Inputs / Outputs
• Control: 0-10V (source)
• Output: 1-10V (sink current)
Function displays
• None
Connections
• 1 connection for 0-10V
• 1 connection for 1-10V
Design
• Plastic housing light grey, snap-on on 35mm DIN rail 1 HP
Type designation V1-10-400
Article no. 80101031
Operating voltage 10V DC
Current consumption max. 0.400A
Mounting DIN rail mounting
Dimensions WxHxD 17.5x90x59mm (1 HP DIN rail mounting)
Weight 36g
Connection screw terminals 2.5mm² (supply voltage)
Ambient temperature max. +50°C
Storage temperature -25°C to +70°C
Humidity max. 95% r. h. non-condensing
Protection class IP30
CE mark yes
10. Technical data

6
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2

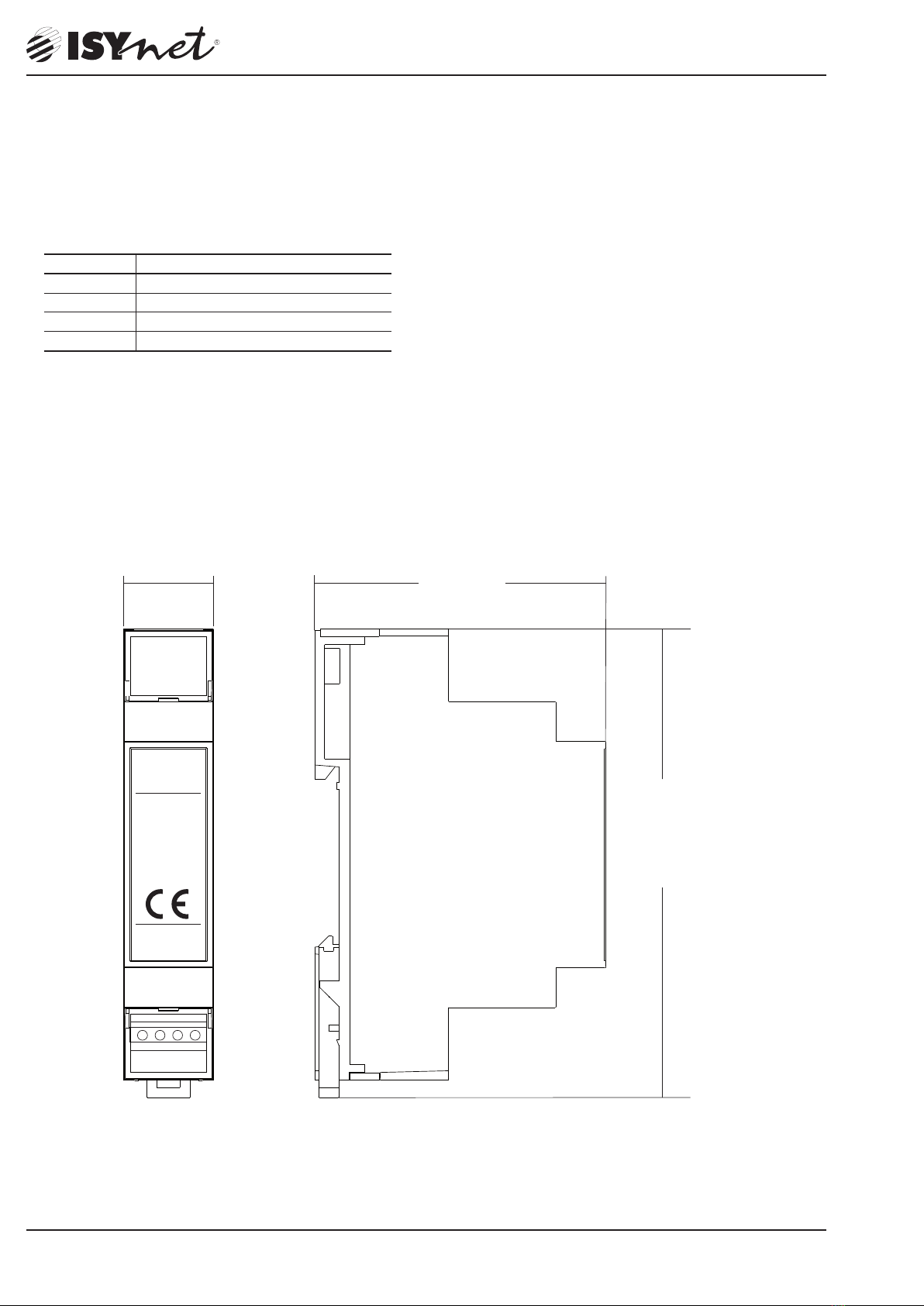

10.1. Pin assignment
View
Terminal Function
IN Input connection (+) 0-10V
0V Input connection (-) 0-10V
0V Output connection (-) 1-10V
OUT Output connection (+) 1-10V
Seebacher GmbH
83646 Bad Tölz
www.seebacher.de
Spannung-/
Strom-Umsetzer
Eingang: 0-10V
Ausgang: 1-10V
max. 400mA
Art.Nr.: 80101031
V1-10-400
IN 0V 0V OUT
17,7mm 58mm
93,5mm
Misprints and technical changes reserved.

7
Seebacher GmbH www.seebacher.de Phone: [phone] / 77 77 6
Marktstrasse 57, 83646 Bad Tölz [e-mail] Fax: [phone] / 77 77 2
11. Wiring diagram
B16A
N
.
PE
1
.
In 0V
0VOut
V1-10V-400
L N PE
EVG 1-10V
+
-
+ 0-10V
0V
Steuerspannung
Control voltage
0-10V
Elektronisches Vorschaltgerät
Electronic ballast
230V AC
Misprints and technical changes reserved.
