USER MANUAL
EKSEL compact
071015
PROGRAMMABLE DIGITAL AMPLIFIER
V01

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
EKSEL compact USER MANUAL
TABLE OF CONTENTS
INTRODUCTION:..................................................................................................................................................................................................................... 3
Descripction: ......................................................................................................................................................................................................................... 3
Main Features:..................................................................................................................................................................................................................... 3
Packaging Contents: ...................................................................................................................................................................................................... 3
CONNECTIONS AND INTERFACES:...................................................................................................................................................................... 4
INSTALLATION RECOMMENDATIONS: ............................................................................................................................................................. 4
EKSEL compact CONFIGURATION:....................................................................................................................................................................... 4
Keyboard operation explanation:........................................................................................................................................................................ 4
Menu Overview:................................................................................................................................................................................................................. 5
Equipment Configuration: ......................................................................................................................................................................................... 5
1.-Filter Menu:.......................................................................................................................................................................................................................6
2.-Power Supply Menu: .............................................................................................................................................................................................10
3.-Miscellaneous Menu: ............................................................................................................................................................................................10

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
3
EKSEL compact USER MANUAL
INTRODUCTION:
Descripction:
DIGITAL PROGRAMMABLE AMPLIFIERS: EK presents the new range of EKSEL programmable amplifiers
developed with state-of-the-art digital filtering technology. EKSEL models incorporate 32 ultra-selective
digital filters which enable the selection, filtering and amplification of each digital multiplex,
guaranteeing the optimal output level for each type of installation - whether individual or collective -
and a very high quality output. The amplifiers likewise incorporate an automatic search system for fast
and efficient auto-programming of the DTT multiplexes of the UHF inputs. The EKSEL range complies
with the requirements for header equipment stipulated by the Regulatory Regulations on Common
Telecommunications Infrastructures (ICT2) on common infrastructure in buildings for access to
telecommunications services, approved by Royal Decree 346/2011, of 11 March, given that it
incorporates very high selectivity single-channel filters to guarantee a difference less than 3dB between
channels of the same band.
Main Features:
•4 inputs (1 x FM, 1 x VHF + DAB + VHF selectable)
•2 x VHF/UHF selectable)
•2 outputs (TER/TEST -30dB)
•32 ultra-selective digital filters
•Gain >55dB
•Output level 120dBuV (45004B)/131dBuV (IMD3-36dB)
•Automatic digital multiplex search
•Buttons and display programming. User-friendly menu navigation
•Processing functionality for channel conversion
•Digital multiplex input level measurement
•Automatic real-time gain control
•Automatic detection of the required LTE1 (4G)/LTE2 (5G) filter
•Preamplifier power option
•Power supply via output connector option
Packaging Contents:
1.- EKSEL compact, code 071015.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
4
EKSEL compact USER MANUAL

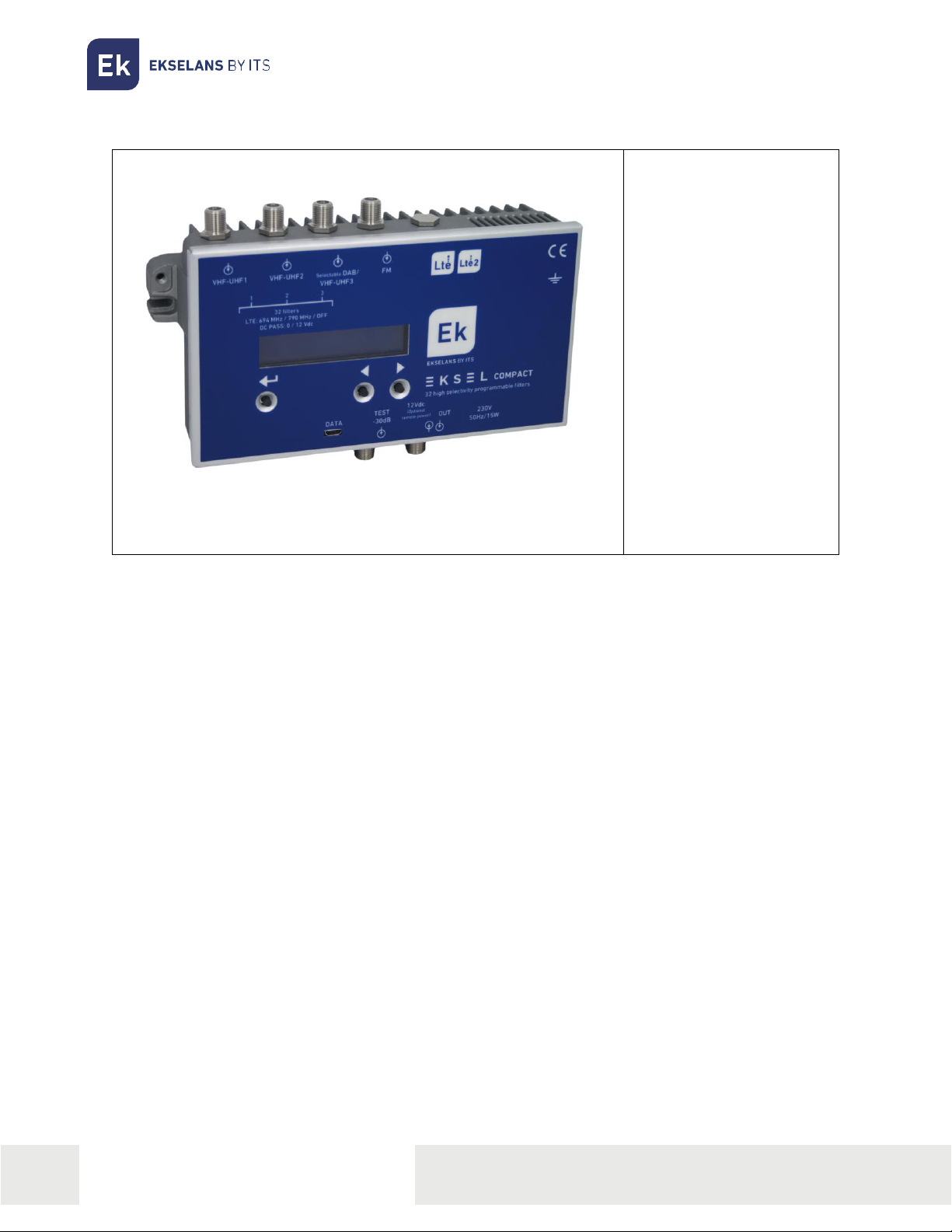

CONNECTIONS AND INTERFACES:
5 1 2 3 4 5
6 13 7 8 9 10 11 12
1.-VHF-UHF 1
2.-VHF-UHF 2
3.-DAB or VHF- UHF3,
input, selectable
4.- FM input
5.-Earthing connection
points
6.- ENTER button
7.-Data
8.- LEFT button
9.-Test output -30dB
10.- RIGHT button
11.-TV output
12.-Vac 230V input
13.-2x16 character display
INSTALLATION RECOMMENDATIONS:
1.- Install the equipment vertically in a well-ventilated location, ensuring not to exceed the maximum
recommended operating temperature.
2.- Leave a space between 15 cm and 20 cm, free of obstacles, around the equipment which ensures
compliance with Point no.1.
3.- Connect a suitable earth cable to the equipment ground screw. 4.- Connect the equipment's input
and output cables.
5.- Connect the power cable to the equipment. 6.- Configure.
EKSEL compact CONFIGURATION:
Keyboard operation explanation:
The keyboard of this equipment consists of three buttons: ENTER, LEFT and RIGHT.
INTRO:
Enables the menu.
As this is the start menu, pressing the button will display the FW version. The different menu selections
will be validated.
In certain menus it is necessary to hold the button down in order to vary values.
LEFT:
Allows navigating to the left in the menus.
Decreasing values where required.
RIGHT:

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
5
EKSEL compact USER MANUAL
Allows navigating to the left in the menus.
Increasing values where required.
Menu Overview:
Pressing any key will access the main menu:
EKSEL
COMPACT>
Note: The arrows to the right or left indicate that there are menu options in that direction. The main
menu options are:
COMPACT> <FILTER MENU> <POWER SUPPLY MENU> <MISCELLANEOUS MENU
Using ◀▶ to scroll through the first menu line, pressing ENTER for accessing that submenu.
Equipment Configuration:
COMPACT>
FW version of the system.
Press ENTER. [V2.1]
<FILTERS MENU>
Filter configuration.
Press ENTER to enter, ◀▶ to move between options and ENTER
to enter the option.
AUTOSEARCH> <ADD FILTER> <EDIT FILTER><CANCEL FILTER>
<CANCEL ALL> <D.A.B.> <BACK
<POWER MENU>
Configuration of input voltages and output power.
Press ENTER to enter, ◀▶ to move between options and ENTER
to enter the option.
POWER SUPPLY. ENT. 1> <POWER SUPPLY ENT. 2> <POWER
SUPPLY ENT. 3> <FM GAIN> <OUTPUT LEVEL> <SLOPE> <BACK
<MISCELLANEOUS MENU
Miscellaneous configuration.
Press ENTER to enter, ◀▶ to move between options and ENTER
to enter the option.
LANGUAGE> <DEFAULT VAL. > <BACK

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
6
EKSEL compact USER MANUAL
1.-Filter Menu:
<FILTER MENU>
AUTOSEARCH>
Automatic MUX search and automatic filter configuration.
Press ENTER, and press and hold down; select [NO]> <YES] using
◀▶. When ENTER is released, the selected option is
automatically selected. [YES] accesses the menu, [NO] remains in
<FILTER MENU>
AUTOSEARCH
INPUT>
Input selection.
Press ENTER, and press and hold down; select [1]> <[2]> <[3]> <[1&2]>
<[1&3]> <[2&3]> <[1&2&3] using ◀▶. When ENTER is released, the
selected option is automatically selected.
AUTOSEARCH
<START CHANNEL>
Autosearch start channel selection
Press ENTER, and press and hold down; select the Autosearch
channel start [5] [6] [7]…[12] [21] [22]… using ◀▶. When ENTER is
released, the selected option is automatically selected.
AUTOSEARCH
<END CHANNEL>
Autosearch end channel selection
Press ENTER, and press and hold down; select the Autosearch end
channel [69] [68] [67]… using ◀▶. When ENTER is released, the
selected option is automatically selected.
AUTOSEARCH
<SEARCH
Automatic channel search run
Press ENTER, and press and hold down; select option: [ ]>
<[DELETE & SEARCH]> <[SEARCH]> <[BACK] Using ◀▶. When
ENTER is released, the selected option will be automatically
selected.
[ ]> nothing occurs
[DELETE & SEARCH]> deletes any prior search and runs a search.
<[SEARCH]> runs a search.
<[ATRAS] Goes back without running a search.
It is a sequential search for the various selected entries. The
channel level found and their number is displayed.
1: 45>45 51dB
3 additions
Once the search is complete, the total number of channels found
will be displayed:
PRESS KEY
10 additions

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
7
EKSEL compact USER MANUAL
<FILTER MENU>
<ADD FILTER>
Allows the manual addition of filters and/or output channel
change (Channel Conversion).
Press ENTER, and press and hold down; select [YES]> <NO] using
◀▶. When ENTER is released, the selected option is
automatically selected. [SI] accesses the menu, [NO] remains in
<ADD FILTERS>
ADD FILTER
INPUT>
INPUT selection.
Press ENTER, and press and hold down; select [1]> <[2]> <[3]> using
◀▶. When ENTER is released, the selected option is
automatically selected.
ADD FILTER
<INPUT CHANNEL>
Manual channel search selection
Press ENTER, and press and hold down; select the searched
channel [5] [6] [7]…[12] [21] [22]… using ◀▶. When ENTER is
released, the selected option is automatically selected.
Every time the channel number is changed, if it is valid, power
supply will be displayed, and if not, the 0dB will be displayed.
[INPUT CHANNEL]
[23 61dB]
ADD FILTER
<OUTPUT CHANNEL>
Manual output channel selection
Press ENTER, and press and hold down; select the desired output
channel [5] [6]... [21]… using ◀▶ When ENTER is released, the
selected option is automatically selected.
In the event of not requiring a channel conversion, the output
channel must match the input channel. (*)
An already existing output channel cannot be selected.
ADD FILTER
<SAVE
Saving an added channel.
Press ENTER, and press and hold down; select the desired option
[NO]> <[YES]> <[BACK]... using ◀▶. When ENTER is released, the
selected option is automatically selected.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
8
EKSEL compact USER MANUAL
<FILTER MENU>
<EDIT FILTER>
Allows for a manual filter edit
Press ENTER, and press and hold down; select [BACK]> <[1:5>5]>…
using ◀▶. When ENTER is released, the selected option is
automatically selected. [BACK]> remains in <EDIT FILTER> if not,
select the filter to be changed.
EDIT FILTER
INPUT>
Modify Input.
Press ENTER, and press and hold down, select [1]> <[2]> <[3]> using
◀▶. When ENTER is released, the selected option is
automatically selected.
EDIT FILTER
<INPUT CHANNEL>
Manual input channel selection
Press ENTER, and press and hold down; select the searched
channel [5] [6] [7]…[12] [21] [22]… using ◀▶. When ENTER is
released, the selected option is automatically selected.
Every time the channel number is changed, if it is valid, the voltage
will be displayed, and if not, the 0dB will be displayed.
[INPUT CHANNEL]
[23 61dB]
EDIT FILTER
<OUTPUT CHANNEL>
Manual output channel selection
Press ENTER, and press and hold down; select the desired output
channel [5] [6]... [21]… con ◀▶. When ENTER is released, the
selected option is automatically selected.
In the event of not requiring a channel conversion, the output
channel must match the input channel. (*) (***)
An already existing output channel cannot be selected.
EDIT FILTER
<SAVE
Saving an added channel.
Press ENTER, and press and hold down; select the desired option
[NO]> <[YES]> <[BACK]... using ◀▶. When ENTER is released, the
selected option is automatically selected.
<FILTER MENU>
<CANCEL. FILTER>
Allows deleting a specific filter
Press ENTER, and press and hold down; select [BACK]> <[1:5>5]>…
using ◀▶. When ENTER is released, the selected option is
automatically selected. [BACK]> remains in <CANCEL FILTER> if not,
select the filter to be deleted.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
9
EKSEL compact USER MANUAL
<FILTER MENU>
<CANCEL ALL>
Allows to delete all filters
Press ENTER, and press and hold down; select [NO]> <YES]
using◀▶. When ENTER is released, the selected option is
automatically selected.
<FILTER MENU>
<D.A.B.>
Activate/deactivate D.A.B.
Press ENTER, and press and hold down; select [OFF]> <[ON] using
◀▶ When ENTER is released, the selected option will be
automatically selected.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
10
EKSEL compact USER MANUAL
2.-Power Supply Menu:
<POWER SUPPLY MENU>
POWER SUPPLY INPUT 1>
Enable/disable input 1 power supply
Press ENTER, and press and hold down; select [OFF]> <[ON] using
◀▶ When ENTER is released, the selected option is
automatically selected.
<POWER SUPPLY INPUT 2>
Enable/disable input 2 power supply
Press ENTER, and press and hold down; select [OFF]> <[ON] using
◀▶ When ENTER is released, the selected option is
automatically selected.
<POWER SUPPLY INPUT 3>
Enable/disable input 3 power supply
Press ENTER, and press and hold down; select [OFF]> <[ON] using
◀▶ When ENTER is released, the selected option is
automatically selected.
<FM GAIN>
Allows FM gain variance between 8dB and 28dB
Press ENTER, and press and hold down; using ◀▶the gain can
be increased or decreased.
<OUTPUT LEVEL>
Allows to adjust output level Vo (**)
Press ENTER, and press and hold down; using ◀▶ the gain can
be increased or decreased.
<SLOPE>
Allows adjusting equalisation level in pass band
Press ENTER, and press and hold down; using ◀▶ to increase or
decrease the slope in a range of 0dB to 10dB.
3.-Miscellaneous Menu:
<MISCELLANEOUS MENU>
LANGUAGE>
Change language
Press ENTER, and press and hold down; select [ENGLISH]>
<[FRENCH]> <SPANISH> <ITALIAN> using ◀▶. When ENTER is
released, the selected option will be automatically selected.
<DEFAULT VA.>
Default values reset
Press ENTER, and press and hold down; select [CANCEL]>
<[EUROPE]> <BRAZIL> <THAILAND> <NEW ZEALAND>
<AUSTRALIA> <MEXICO> using ◀▶. When ENTER is released, the
selected option is automatically selected.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
11
EKSEL compact USER MANUAL
(*) An already existing output channel cannot be selected.
(***) The same input channel can be selected ONLY if it is from a different input.
(**) The equipment calculates the maximum output level available according to the number of channels.
The introduced level can only be decreased.
