USER MANUAL
IPC M300
250019
Internet by coaxial
V03

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
USER MANUAL IPC M300
TABLE OF CONTENTS
IPC M300....................................................................................................................................................................................................................................... 3
Installation Diagram ............................................................................................................................................................................................................. 3
Connection to the IPC M300 ........................................................................................................................................................................................ 4
Interface......................................................................................................................................................................................................................................... 5
EoC Manage............................................................................................................................................................................................................................... 5
Working channel...............................................................................................................................................................................................................6
Auto VID ...................................................................................................................................................................................................................................6
CNU list ..................................................................................................................................................................................................................................... 7
Slave template..................................................................................................................................................................................................................10
Template to be applied ............................................................................................................................................................................................10
Setup and Sync.................................................................................................................................................................................................................11
System management....................................................................................................................................................................................................... 12
Device management ........................................................................................................................................................................................................13
RF.......................................................................................................................................................................................................................................................13

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
3
USER MANUAL IPC M300
IPC M300
-LED: LEDs specify the following; LINK if any equipment is connected,
POWER if there is power, EOC if the RF chip is correct, SYSTEM the
system status. E1 and E2 displays the traffic status of the DATA IN 1 and
2.
-MGMT/DATA IN X: This port enables the internet traffic to proceed and
to be connected to the equipment via the IP - 192.168.1.254.
-RESET: Resets the equipment to factory default values.
-CONSOLE: Connection would be for link up to the computer.
-RF: Output to mix in coaxial installation.
Installation Diagram

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
4
USER MANUAL IPC M300
Connection to the IPC M300
For connection to the IPC M300, follow the steps specified below:
1. Connect to the IPC M300 using a network cable or wirelessly. Configure the PC's network
adapter using a static IP. In order to become easy the configuration, EK have the application
Ek NET Adapter, you will be able to configure the network adapter easily. You can download
from https:https://ek.plus/software/ you will find a new section "EK NET ADAPTER".
2. Open a web browser and go to the URL: http://192.168.1.254/
3. The username and password is admin / admin.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
5
USER MANUAL IPC M300

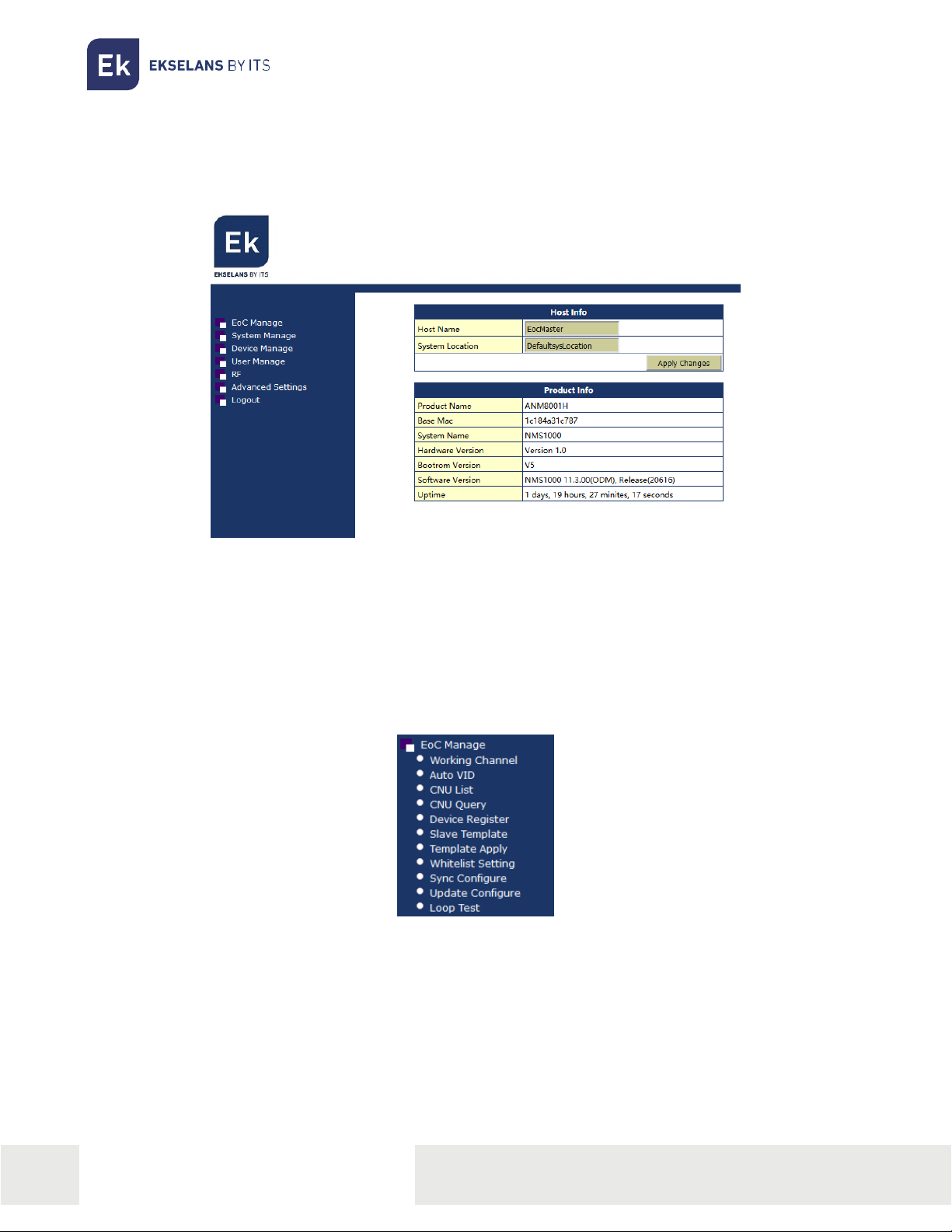

Interface
EoC Manage
In this menu everything related to the slaves/user equipment which is connected to the master unit
may be managed.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
6
USER MANUAL IPC M300
Working channel
Establishes the method of communication from master to slave. If there is a problem when linking the
slave with the master, no link may be made due to this option.
If there is any problem the following configuration may be installed:
Auto VID
The default VLAN for the different ports of the master can be automatically set here.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
7
USER MANUAL IPC M300
CNU list
Displays all the equipment connected to the master.
If any template is configured, the enable template option may be selected and then to apply the
template to the equipment that is wished to be configured.
Furthermore, if an individual configuration is wished to be made in the Action column, click on the "Mana"
button to go to the slave settings.
Slave configuration
By clicking on the "Mana" button, this accesses the slave. Various menus will be displayed where
different information may be obtained.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
8
USER MANUAL IPC M300
Signal
Displays the slave's RF signal levels
Edit
Enables to identify the slave and its basic information. Limits the equipment's overall bandwidth and in
the Interface section the desired interfaces can be added or configured.
The different menus - LAN, WLAN and if the equipment is AC - the WIFI 5G menu, then their respective
options can be configured.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
9
USER MANUAL IPC M300
WAN
More than one WAN may be added if it is required to make use of additional services otherwise the
existing WAN will be modified by establishing as to whether the equipment operates in Bridge or Router
mode. The WAN likewise enables establishing a VLAN as well as to select the ports which will be linked
to same in order to provide the service.
LAN

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
10
USER MANUAL IPC M300

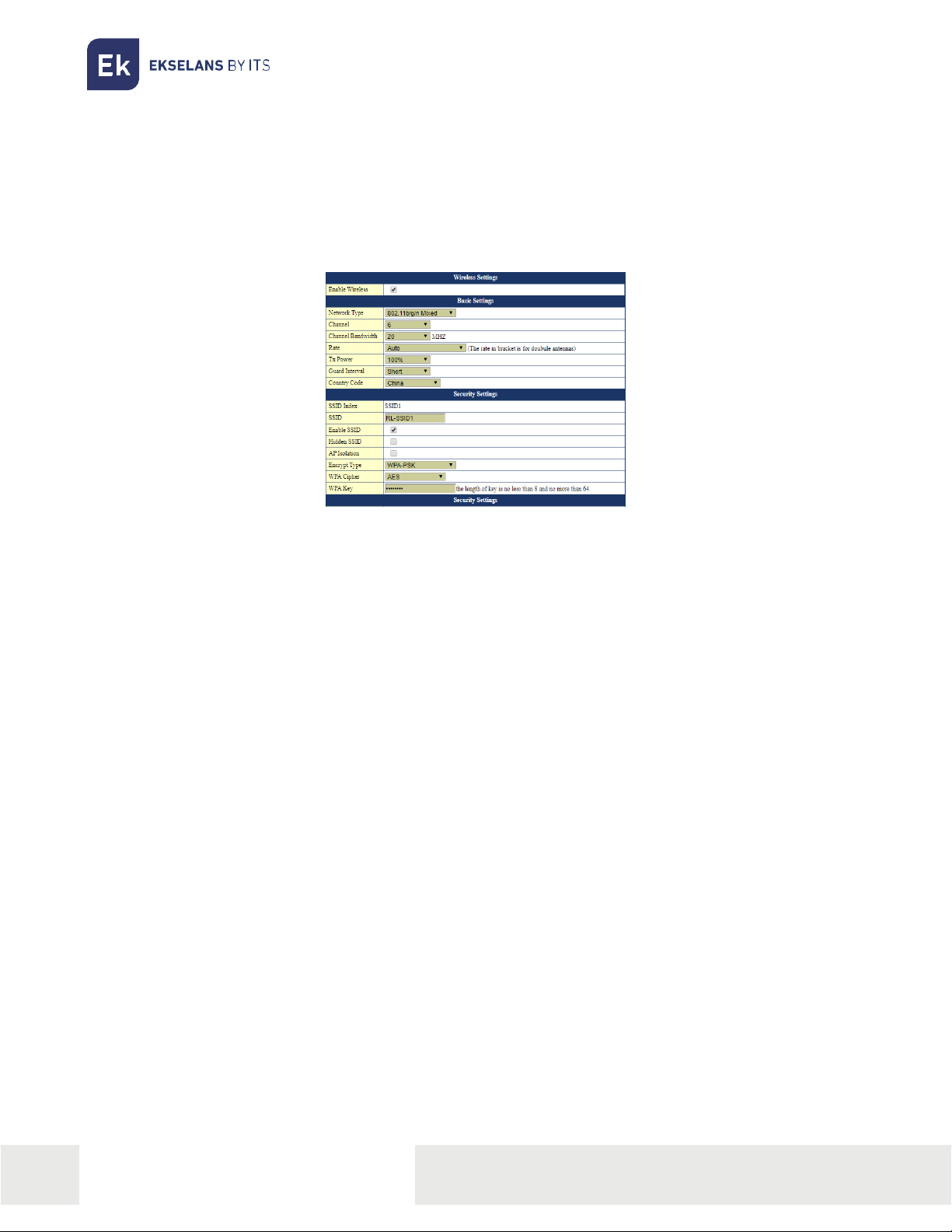

WLAN
In this section up to 4 SSID, with their respective parameters may be configured.
Once these changes are completed, the changes will be implemented.
Slave template
The general template may be configured here which can be applied to the equipment.
The previous section clearly describes how to implement a template and the different elements
comprising same.
Template to be applied
By default the template is deactivated as "close" and if wishing to use the template configure same as
"open".

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
11
USER MANUAL IPC M300
Setup and Sync
This option describes the configuration address.
From master to slave: As its name implies the configuration which will prevail is that of the master over
slave
From slave to master: The configuration which prevails here is that of the slave. This mode is used
when the master will not be utilised.
This option synchronises the slave configuration automatically every x minutes if enabled. Ideal to
prevent factory default resets in the equipment and which lose their configuration.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
12
USER MANUAL IPC M300

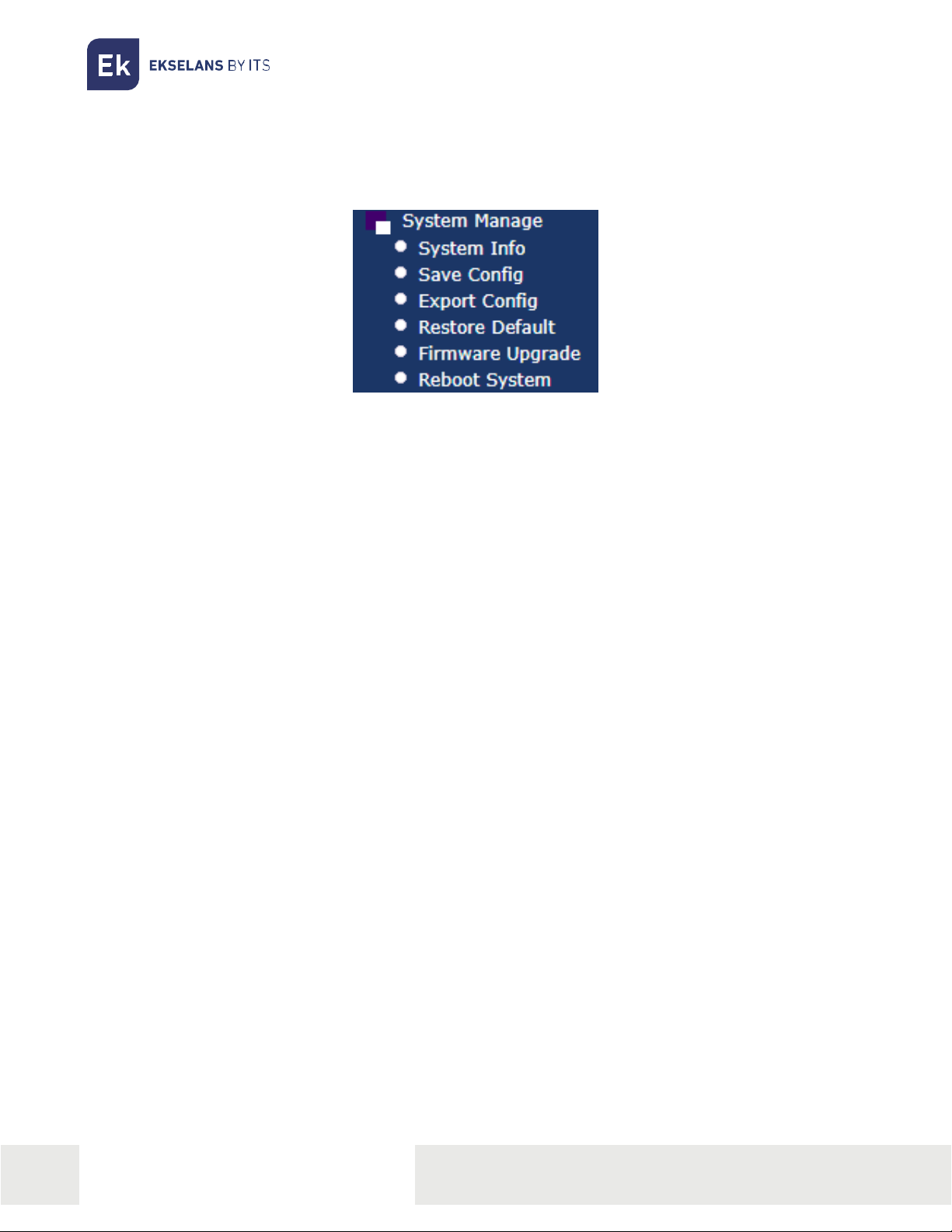

System management
•System information: Provides information as regards the system, identifies the equipment
with name and location.
•Save configuration: Menu for saving the latest settings.
•Export configuration: Exports the master's configuration.
•Restore default: Restores the master to factory default settings.
•Firmware update: Select the new firmware in order to update the master.
•System restart: System reboot.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
13
USER MANUAL IPC M300
Device management
The create button enables adding the VLANs that the Master will process. If the VLANs are not added
and linked to the ports, their traffic will not proceed.
An IP for the master in each VLAN may be assigned.
RF
The output signal level may be adjusted. It is advisable to increase the output level to 112.
