Introduction:
Description:
IPTV receiver with Android operating system. With EK DR-1 you can watch videos from Youtube and
other applications on your TV. We will be able to share images or videos from our USB on the DR-1 EK.
Key features:
•4K / HD.
•H264 / H265.
•WiFi 2.4GHz.
•CPU ARM Cortex-A53 / GPU Mali-450MP.
•RAM 2Gb / ROM 16Gb.
•2 x USB 2.0 ports.
•1 x HDMI connector.
•1 x RJ45 port.
•1 x AV connector.
•External accessory for infrared sensor.
•Wall mount accessory.
Packaging content:
1. 1 x EK DR-1
2. 1 x 1m HdMI Cable.
3. 1 x 1.5m external accessory for infrared sensor.
4. 1 x Remote control (AAA /IEC R03 batteries included).
5. 1 x Power supply.
6. 1 x Wall mount accessory.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
4
USER MANUAL EK DR-1
INTERFACES AND CONNECTION:
Interfaces:
1.-Power input.
2.-Ethernet port.
3.-HDMI output.
4.-Audio AV output.
5.-IR Extender port.
6.-2X USB 2.0 ports.
7.-TF (TransFlash)/Micro SD port.
Installation diagram:
1.-Connect power supply to 220v.
2.-Connect Ethernet port to the
Router.
3.-HDMI output to TELEVISION.
4.-Audio AV output to TV (Only if
you need).
5.-Connect to IR Extender (Only if
you need to).

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
5
USER MANUAL EK DR-1
Installation steps:
1. Position the equipment so that it receives as less heat as possible from other devices.
2. Before turning on, the connection must be performed as indicated in the installation diagram,
the AV and IR port are not compulsory for use, so connect only if it is necessary.
3. Adjust the TV channel to the HDMI input where we have connected the EK DR-1.
4. Turn on the EK DR-1 with the remote-control button .
5. Wait for all applications to load (only in case of first installation or return the product to its
factory settings). It should look like next image. The symbol indicate that I have the LAN
cable connected.

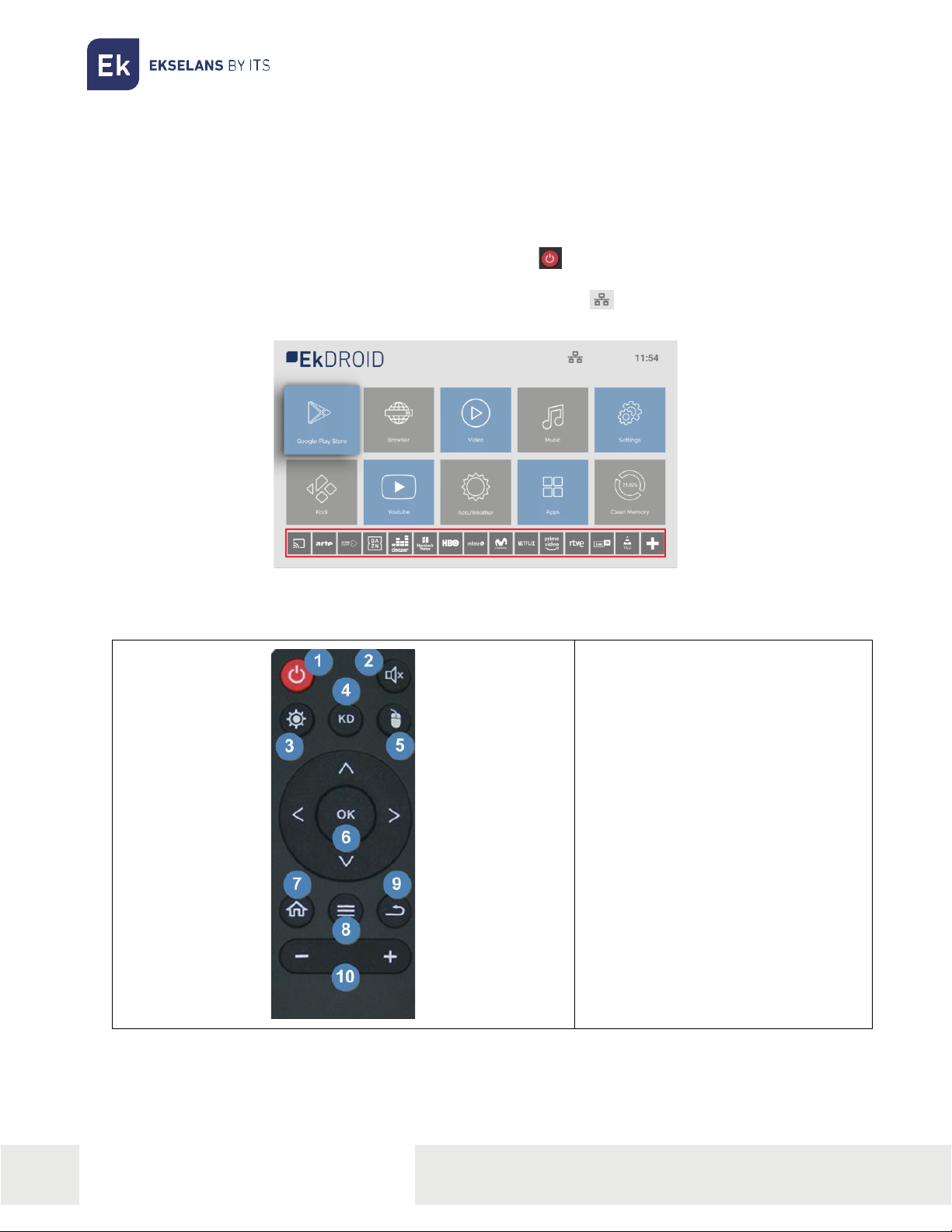

Controller buttons:
1.-Power button.
2.-Mute button.
3.-Button to access settings.
4.-Shortcut button to KD Player.
5.-Switch Mouse/Cursor mode. Press
once to bring up the mouse on the
screen, press again to scroll with the
crosshair.
6.-Address crossover and accept
button.
7.-Botón de Home, to go back to the
home screen if we're in another menu.
8.-Don't use.
9.-Button to go to the previous screen.
10.-Volume buttons.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
6
USER MANUAL EK DR-1
Language settings:
1. Access to ”Settings”.
2. Next “Device Preferences”.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
7
USER MANUAL EK DR-1
3. Select ”Language”.
4. Select the language.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
8
USER MANUAL EK DR-1
Steps to set up by WiFi:
1. Disconnect the Ethernet Cable. This step is necessary because, if we configure the WiFi with
Ethernet cable, it will not be configured.
2. Access Settings.
3. Then "Network and Internet"

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
9
USER MANUAL EK DR-1
1. Select WiFi network. We set the password.
2. In case you connect correctly it will appear on the Home with the WiFi icon.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
10
USER MANUAL EK DR-1
Download App:
1. Open Google Play Store.
2. Sign in to Google Play. Use account if you already have one, in case you do not have an
account you must create an account. For the convenience of the user it is possible to use a
keyboard and mouse (not included with the EK DR-1).
3. You can download Apps from Google Play Store.
