Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1 General
1.1 Intended use
The ThermoCooler HP cooling/heating pump is intended to be used to cool and
heat supply air in properties. The reversible heat pump is designed to be instal-
led together with IV Produkt AB air handling units.
The cooling/heating pump should not be used as a standalone unit.
When installed indoors, the air handling unit must be installed in an area that
maintains a temperature between +7 ando +30°C, and with a moisture content
of <3.5 g/kg in the fan room in winter. The unit can also be equipped for outdoor
installation.
Any other use and installation in other environments is prohibited unless specifi-
cally permitted by IV Produkt AB.
1.2 Safety regulations
For safety regulations relating to the reversible heat pump installed together with
the Envistar Flex air handling unit, see Operation and Maintenance for Envistar
Flex, under order-specific documentation at docs.ivprodukt.com.
1.3 Manufacturer
The ThermoCooler HP cooling/heating pump is manufactured by:
IV Produkt AB
Sjöuddevägen 7
SE-350 43 VÄXJÖ
1.4 Designations
The reversible heat pump comes with a model rating plate placed on the front.
The model type plate shows the series number and the requisite designations to
identify the unit.
Art. Nr. 19121-0009_00
Contains fluorinated greenhouse gases
covered by the Kyoto protocol.
Circuit 1
Circuit 2
Circuit 3
Refrigerant
charge
Ordernumber
Code Key
Model
Name of project
Date of manufacture
PS Max allowable press.
PT Test pressure
TS Temperature range
Protection level - low
Protection level - high
Refrigerant, Fluid group
GWP
Code
Reversible heat pump
ThermoCooler HP
Typical model identification label

Page 4
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1.5 CE marking and EU Declaration of Conformity
The reversible heat pump is CE-marked, which means that upon delivery, it
conforms to applicable provisions in EU Machinery Directive 2006/42/EC as well
as to the EU Directives applicable to the type of unit, e.g. Pressure Equipment
Directive (PED) 2014/68/EU.
As certification confirming that the requirements have been met, we pro-
vide an EU Declaration of Conformity, which is available under Documenta-
tion at ivprodukt.docfactory.com, or under Order Unique Documentation at
docs.ivprodukt.com.
0
1
Art. Nr. 19194-0001_01
12 3
180
s
Typical CE label for air handling units
1.6 Maintenance
Regular maintenance of the reversible heat pump should be performed by a
certified refrigeration technician.

Page 5
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1.7 Handling of refrigerant
The following information summarises the requirements and guidelines for hand-
ling the refrigerant used in cooling units. For further information, see the F-gas
Regulations (517/2014). The purpose of the regulations is to contribute to achie-
ving EU goals for reduced climate impact in accordance with the Kyoto Protocol.
Operator responsibilities
Generally speaking, the unit operator must:
• Minimise and prevent leakage
• Take corrective action to repair any leakage that arises
• Ensure that the service and repair of the refrigerant circuit is carried out by a
certified refrigeration technician
• Ensure that refrigerant is handled in an environmentally secure manner and
in accordance with national regulations.
By operator, we refer to the European Parliament’s definition: “...the natural or
legal person exercising actual power over the technical functioning of the equip-
ment and systems...”.
The levels for the various actions to be taken for a system are calculated using
carbon dioxide equivalents, CO₂ e(ton). This figure is calculated by multiplying
the refrigerant’s GWP value (Global Warming Potential) by the charge in kilos.
GWP for R410a is 2088. A charge of 5.0 kg R410a therefore corresponds to
(5.0×2088)/1000 = 10.44 CO₂ e(tons).
The unit is marked with refrigerant quantity and carbon dioxide equivalent.
Leakage inspection and registration
• Leakage inspection must be carried out by a certified refrigeration techni-
cian:
– when installing/commissioning the unit, size 190-980
– periodically at least once every 12 months,
i.e. no more than 12 months between inspections, size 190-980
– within one month of any work being performed (e.g. sealing a leak, repla-
cing a
component), size 190-980
• The operator must record events, such as the volume and type of refrigerant
topped up, recovered refrigerant, results of inspections and work done,
person and company who carried out service and maintenance, size 190-
980.
If a unit has been assembled on site, the rules for recording, installing and perio-
dic leakage inspection are applicable to size 100-150 as well.

Page 6
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
1.8 Extended warranty
In cases in which the equipment delivered falls under a 5-year warranty, in ac-
cordance with ABM 07 with supplement ABM-V 07 or in accordance with NL 09
with supplement VU13, the IV Produkt Service and Warranty Manual is supplied
with the product.
In order to lay claim to an extended warranty, a complete, documented and sig-
ned IV Produkt Service and Warranty Manual must be presented.
1.9 Spare parts
Spare parts and accessories for this unit are ordered from your nearest IV
Produkt sales representative. When ordering, state the order number and
designation. These are stated on a model type plate, affixed to each component.
There is a separate spare parts list for the unit, refer to Order Unique
Documentation at docs.ivprodukt.com.
1.10 Dismantling and decommissioning
When an air handling unit is to be dismantled, separate instructions must be fol-
lowed, see Dismantling and decommissioning the AHU under Documentation at
ivprodukt.docfactory.com.

Page 7
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
2 Technical description
2.1 Cooling/heating pump ThermoCooler HP
ThermoCooler HP is a series of integrated, speed controlled reversible heat
pumps with stepless cooling and heating power.
Cooling circuit function
The reversible heat pump has four basic components: evaporator, condenser,
expansion valve and compressor.
A 4-way valve is used to shift between cooling and heating.
For cooling, the 4-way valve is in cooling mode. For heating, the 4-way valve
is in heating mode. This means that the coil, which was a condenser in cooling
mode, becomes an evaporator in heating mode. Conversely, the evaporator
becomes a condenser.
8
3
9
11
13
14
10
16
18 19
17
4
1
5
6
2
12
15
7
Flowchart for cooling mode, reversible heat pump (size 100-240)
ThermoCooler HP
cooling/heating pump
RotorFan and filter section
(extract air fan)
Fan and filter section
(supply air fan)
1 Compressor
2 Suction gas sensor (temp after evaporator)
3 Pressure sensor, low pressure
4 Expansion valve
5 Frequency inverter
6 4-way valve
7 High pressure switch
8 Pressure sensor, high pressure
9 Temperature sensor, hot gas
10 Temperature sensor liquid line cooling
11 Temperature sensor liquid line heating
12 Temperature sensor sump
13 Extract air coil (condenser/evaporator)
14 Supply air coil (condenser/evaporator)
15 Suction gas separator
16 Exhaust air
17 Extract air
18 Outdoor air
19 Supply air

Page 8
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
Cooling mode
The compressor carries out the work required to run the cooling process. The
evaporator is located in the supply air for the unit. The heat from the outdoor air
is taken up in this coil, thereby cooling the supply air.
The energy supplied to the cooling system from the evaporator and the com-
pressor leaves the unit via the condenser in the extract air.
It is important to ensure that the air volumes are above the specified minimum
flow on both the outdoor air and extract air side. The process cannot work if
these air volumes are not available.
Heating mode
The heating pump function takes the heat content of the extract air and reuses
it, supplying the same heat to the air handling unit’s supply air.
The extract air is the heat pump’s energy source. When the extract air meets the
extract air coil, it is cooled since the coil functions as an evaporator. From the
evaporator, the refrigerant moves to the compressor, where it is compressed.
The refrigerant then moves to the supply air coil, where the energy from the
extract air and the compressor is released. The energy remaining in the extract
air downstream of the heat pump is then recovered in the rotor.
These two recovery systems give a very high degree of efficiency.
Since the rotor requires less energy to run than the compressor system, this will
be in the first instance. The compressor will only start when the rotor’s energy
recovery is insufficient to heat the supply air.
Compressor
The reversible heat pump is equipped with a speed-controlled PM scroll
compressor.
Depending on its size, the reversible heat pump may be equipped with another
fixed compressor that is step-linked to the speed-controlled compressor.
In the event of an increased power requirement, the frequency inverter will
increase the speed of the compressor.
If the reversible heat pump is equipped with two compressors, the fixed com-
pressor will engage in when the speed-controlled compressor has reached its
maximum speed. The speed-controlled compressor returns to its minimum
speed and can then adjust back up to maximum speed. This achieves infinitely
adjustable cooling power.
The function is reversed where less cooling is needed.

Page 9
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
Compressor protection
In the event of an alarm initiated by the control equipment or the safety circuit,
the compressor stops and an alarm indication is given. The alarm can be read
on the Climatix display or the Carel unit on the unit’s circuit board.
In the event of an alarm, correct the fault and then reset the alarm. If alarm trips
repeatedly, an authorised refrigeration service company must be called in.
The cooling/heating pump will primarily trip alarms for the following errors:
• High pressure in the system, manual reset on pressure control HP1
• Low pressure in the system
• Alarm from frequency inverter
• Incorrect phase sequence (size 600-980).
Function
The reversible heat pump is interlocked across the air handling unit. If any of the
fans stop, the cooling/heating pump will also stop. The reversible heat pump is
not permitted to start unless the minimum air flow has been achieved. The same
applies if a heater is fitted.
The interlock and demand signal is sent via Modbus.
Circuit board
The circuit board for the unit contains:
• Main switch
• Fuses
• Control unit
• Any control unit for expansion valve next to fixed compressor.
The circuit board is installed inside the unit and is internally prewired and tested
at the factory.

Page 10
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
3 Wiring instructions
3.1 Power supply
The reversible heat pump is powered separately as shown in the diagram below.
For the recommended fuse protection, see "7 Technical data" page 19.
L1
N
PE
L2
L3
8
2
4
6
7
MS1
1
3
5
POWER SUPPLY
3×400V~50Hz
NB!
A residual current circuit breaker should not be used since the unit has
a built-in frequency inverter.
In the event that the decision is nevertheless made to use a residual current
circuit breaker, we recommend a 300 mA, type B residual current circuit breaker
specially adapted for the frequency converter.
A 300 mA, type B residual current circuit breaker offers fire protection – not
personal protection.
3.2 Communication with Climatix
Communication with the air handling unit’s (Envistar Flex) Climatix control
system takes place via Modbus. The connection between Carel and Climatix is
made using a pre-installed quick connector.
Carel
J6 Modbus
Thermo-
Cooler HP
–
+
0GND
Climatix
RS485
B-
A+
REF
Envistar Flex
control cabinet
Green
Yellow
Grey
Basic diagram showing communication between Carel and Climatix via Modbus

Page 11
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.

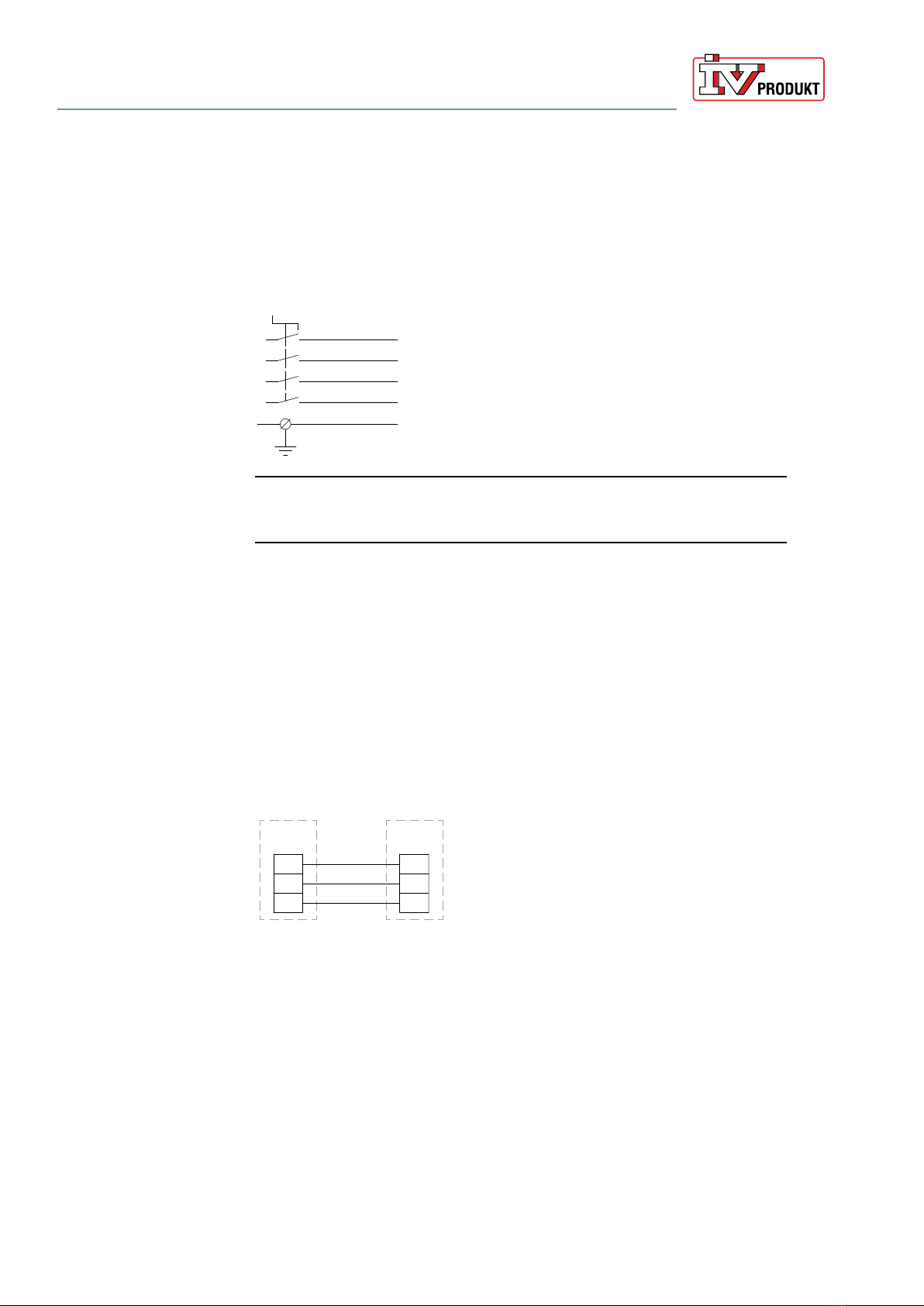

3.3 Heater (optional)
A heater is optional and supplied integrated and fully connected with quick con-
nectors if they have been selected when ordering the reversible heat pump.
The following wiring instructions apply if the heater is retrofitted.
All connections are made internally in the reversible heat pump.

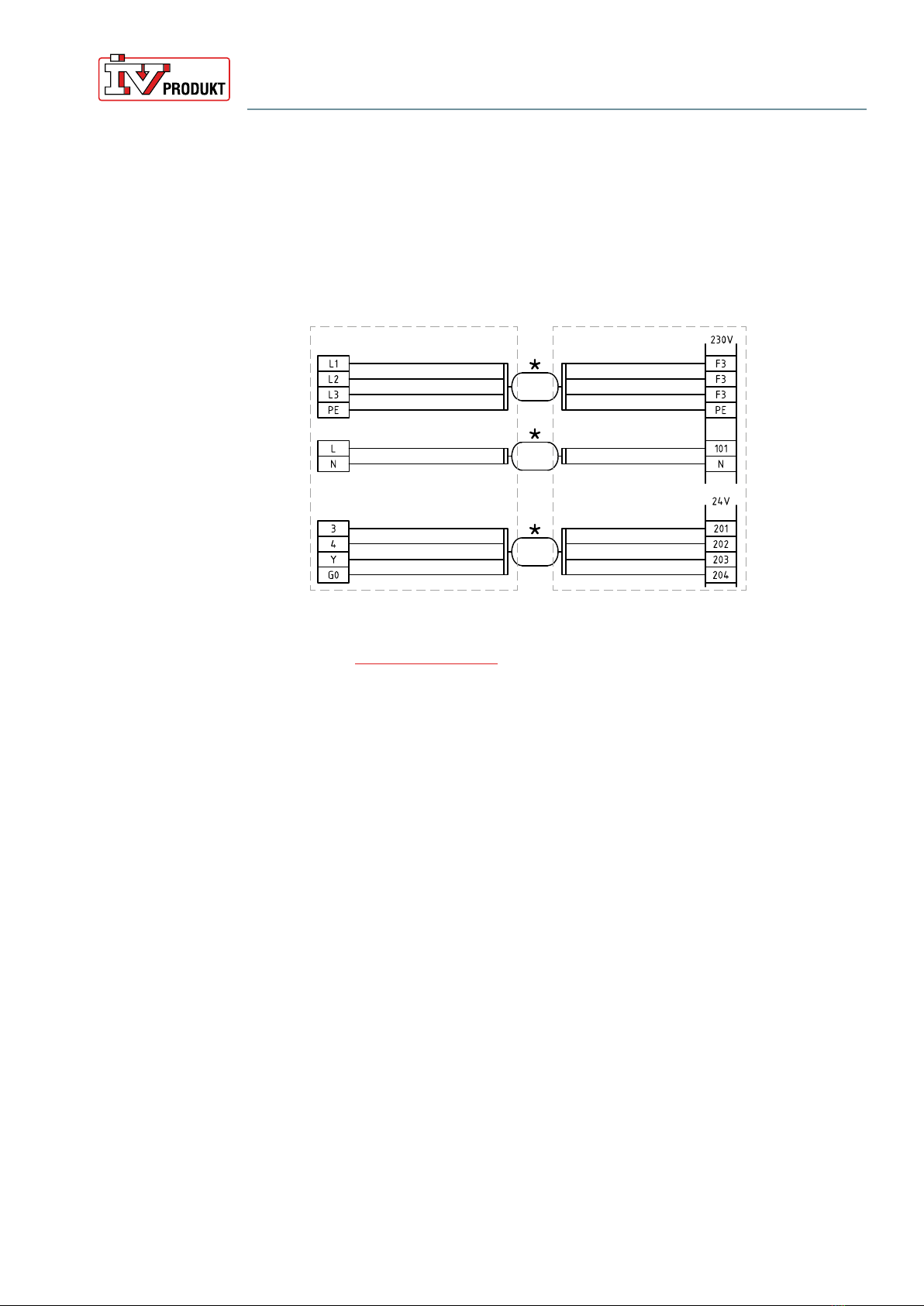

Quick
connect
Quick
connect
Quick
connect
White
Brown
Green
Yellow
Preinstalled from the factory,
3 quick connectors (male)
At site installation, to terminal
block, 3 quick connectors (female)
For maintenance instructions, see the section entitled “Air heater electric” in
Operation and Maintenance for Envistar Flex, under order-specific documenta-
tion at docs.ivprodukt.com.

Page 12
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
3.4 Envistar Flex unit parts
Quick connectors
Connection between unit parts in the air handling unit is carried out by connecting
the pre-installed quick connectors using the markings on the cables for guidance.
Setting Climatix
The following settings for Climatix are made at the factory.
Main menu / Configuration / Configuration 1
Heat recovery Rotor
Heating TCHP
Electric heater TCHP
Cooling TCHP
Main menu / Configuration / Configuration 2
Cooling recovery No
Support operation No
Support operation/Osstp block No
Freezing monitor No
Pump heating No
Pump alarm heating No
Main menu / Configuration / Integration
Type of cooling, Modbus Carel
No. of compressors 1 or 2
High pressure sensor Yes
Increased MB communication Yes
Main menu / Configuration / Basic data
Electric heater electrical power value dependent on output variant

Page 13
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
4 Operation
4.1 Commissioning
Commissioning of the unit must be carried out by competent personnel accor-
ding to the commissioning procedure, see
ThermoCooler HP, Commissioning record, which is available to download from
ivprodukt.docfactory.com.
The validity of the product warranty is conditional on the system having been
commissioned correctly. Working on the unit during the warranty period without
the approval of IV Produkt shall render the warranty void.
The unit was designed and manufactured based on given operation cases
that must comply with the unit’s use for optimal function and a good operating
economy.
External circumstances should not be changed without checking that such
changes are within the unit’s intended area of operation.
NB!
It is important that the oil is warm inside the speed controlled compres-
sor crankcase before starting the cooling unit. The crankcase heating
must be switched on long enough before the unit begins operating so
that the oil maintains a temperature of at least 30 ºC. The maximum
warm-up time is approximately 2–3 hours. The temperature can be
measured externally at the bottom of the compressor.
NB!
For units in size 600-980 (2-circuit), the compressor for the second
circuit is dependent on the correct phase sequence. Compressor 2
starts briefly 30 seconds after powering up the unit in order to check
the phase sequence. Check whether the alarm is displayed.
If necessary, switch two of the incoming phases.
Prior to commissioning, the contractor must:
NB!
Wiring of connections and other electrical work may only be carried out
by a qualified electrician or by service personnel recommended by IV
Produkt.
1. Connect the unit to the power supply via a lockable safety switch.
2. Connect all ducts.
WARNING!
Rotating fan impeller. The unit must not be energised until all
ducts have been connected.
Follow the troubleshooting instructions in the troubleshooting chart before
contacting a service representative for servicing a unit under warranty. This will
prevent any unnecessary service calls.

Page 14
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
4.2 Cooling status
Status information is read on the Climatix display.
Information Value Explanation
Cooling unit status UnitOn Status of cooling unit
Heating x% Heating requirement from Climatix coo-
ling regulator
Cooling x% Cooling requirement from Climatix coo-
ling regulator
Freq. inv. output x.x% Frequency to the compressor
Compr. no Comp1
Compr. Sum alarm Normal
Alarm management >The alarm is displayed if there is a fault
with the inverter or compressor. In the
event of an alarm, see "6.2 Alarm infor-
mation for inverter and compressor" page
17.
****************************************
Compressor C1 On/O Compressor operating mode
Suction gas temp C1 x.x°C Measured suction gas temp
Evaporation temp C1 x.x°C Calculated evaporating temp based on
low pressure
Low pressure C1 x.x bar Relative pressure from low pressure sen-
sor
Overheating C1 x.x K Measured superheating
High pressure C1 x.x bar Relative pressure from high pressure sen-
sor
Expansion valve 1 x.x% Expansion valve position
Condensation temp C x.x°C
Hot gas temperature x.x°C Temperature of output from compressor
Liquid line temperature x.x°C Temperature downstream of condenser
Supercooling x.x°C Measured supercooling

Page 15
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
5 Maintenance instructions
5.1 Service schedule
For a service schedule, see Operation and Maintenance for Envistar Flex, under
order-specific documentation at docs.ivprodukt.com.
5.2 Periodic inspection
The operation parameters for the reversible heat pump must not be changed
unless a check is first made to ascertain that the changes will be within the
unit’s operating range.
Leakage inspection and registration
For information on the operator’s responsibility with regards to leakage inspec-
tion and registration, see "1.7 Handling of refrigerant" page 5.
Visual check
Check:
1. The fins on the condenser/evaporator to detect mechanical deformations
2. The drip tray and drain with water trap (clean if necessary)
3. That the water trap (without non-return valve) is filled with water.
Cleaning
If the fins are fouled, they should be vacuumed from the inlet side. Alternatively,
you can blow them clean with compressed air from the outlet side. If they are
severely fouled, you can clean them with warm water mixed with dishwashing
detergent that will not corrode aluminium.
For more information, refer to Cooling coil, cleaning under Documentation at
ivprodukt.docfactory.com.
Check function
Check that the reversible heat pump in the air handing unit is operating as it
should by temporarily lowering/increasing the temperature setting (setpoint).

Page 16
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
6 Alarm management and troubleshooting
For units with control equipment (code MX), alarm information can be read on
the Climatix display.
For units without control equipment (code UC, MK, US), alarm information can
be read on the Carel display.
Press the alarm symbol to view alarms.
6.1 Troubleshooting in the event of an alarm
Inspection Possible cause Corrective action
Has the high pressure
switch tripped?
YES ⇒No or too low air flow across the
condenser
Check the air flow across the
condenser.
Rest the pressure switch
manually.
Defective high pressure switch Check/replace
NO ⇓
Is the alarm
“118 Compr 1,
Low evaporation pres-
sure” or
“176 Compr 2, LowEvap-
Pressure” displayed?
YES ⇒Insucient refrigerant volume Look for leakage, seal the leak
and top up with refrigerant
No or too low air flow across
evaporator
Check/adjust the flow
Defective expansion valve Check/replace
NO ⇓
Is the LED flashing red on
the frequency inverter?
YES ⇒Phase failure/voltage failure Check the 3-phase supply,
measure the incoming
voltage.
Reset the frequency inverter
by switching o the voltage
for 1 minute or more. Check
that the compressor is running
without dissonance.
Overload/defective stepless
compressor
Reset the frequency inverter
by switching o the voltage
for 1 minute or more. Check
that the compressor is running
without dissonance.
NO ⇓
Is the alarm
“189 Phase Rotation
order”displayed?
YES ⇒Incorrect phase sequence for
supply voltage on compressor 2
Shut o voltage and switch
two of the incoming phases
NO ⇓
Is the alarm
“94 Drive
oine”displayed?
YES ⇒ThermoCooler HP does not have
supply voltage 3×400V
Connect supply voltage

Page 17
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
6.2 Alarm information for inverter and compressor
Alarm Climatix Explanation and corrective action
Cooling unit
Sum alarm Sum alarm, check alarm in Carel, see table below.
Alarm C1 R. pressure switch High pressure switch tripped or alarm for frequency inverter.
Alarm C1 EEV motor fault Fault on electrical connection to expansion valve.
Alarm C1 low pressure sensor Power cut or short circuit to low pressure sensor. Check EVD, cabling and
sensor.
Alarm C1 suction gas sensor Power cut or short circuit to suction gas sensor. Check EVD, cabling and
sensor.
Alarm C1 high pressure sensor Power cut or short circuit to high pressure sensor. Check EVD, cabling and
sensor.
Alarm C1 low overheating Compressor stoppage caused by low overheating.
Alarm C1 LOP Compressor stoppage caused by low evaporation temperature.
Alarm C1 MOP Compressor stoppage caused by high evaporation temperature.
Alarm C1 communication EVD Fault on communication to EVD (expansion valve control).
Alarm C1 low suction gas temp Low suction gas temperature.
Alarm Carel Explanation and corrective action
76 Drive MainsPhaseLoss
Check that all three phases are connected to the frequency inverter.
81 Drive U_phaseLoss
82 Drive V_phaseLoss
83 Drive W_phaseLoss
94 Drive oine No communication with the frequency inverter. Check that the frequency
inverter is energised with 3-phase 400V.
118 Compr 1, Low evaporation pressure Circuit 1, low evaporation temp/pressure. Check leakage in cooling circuit.
121 Compr 1, High pressure switch Circuit 1, high pressure switch tripped. Check air flow and fire damper.
172 Compr 2, Motor protector Circuit 2, motor protection alarm
174 Compr 2, High pressure switch Circuit 2, high pressure switch tripped. Check air flow and fire damper.
176 Compr 2, LowEvapPressure Circuit 2, low evaporation temp/pressure. Check leakage in cooling circuit.
180 Compr 1, High pressure switch Circuit 1, high pressure switch tripped. Check air flow and fire damper.
189 Phase rotation order Incorrect phase sequence gives incorrect rotation direction. Switch two of
the incoming phases.

Page 18
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
6.3 Troubleshooting via symptoms
Symptom Possible cause Corrective action
Low cooling power - too
high temperature in the
cooled object
The power supply has been interrupted Check the control/safety switches and
fuses.
Separate supply not connected Connect supply
None or too low air flow across evapora-
tor
Check that nothing inhibits the air flow
The control equipment is incorrectly pre-
set/defective
Adjust the settings or replace the
equipment
Compressor is not ope-
rating
The power supply has been interrupted. Check the control/safety switches and
fuses
Incorrect phase sequence (compressor 2) Switch two of the incoming phases
Compressor has opened a safety circuit Check and reset, if needed
Defective compressor Check/replace
Frost on the evaporator
(heating application)
Expansion valve is defective Check/replace
Insucient refrigerant volume Look for leakage, seal the leak and top
up with refrigerant
Low return air flow Adjust the flow
6.4 Alarm reset
In the event of an alarm initiated by the frequency inverter or the safety circuit,
the compressor stops and the sum alarm relay is energised. The alarm is
displayed in the control unit menus “Operating information, compressors” and
“Status: Alarm”.
In the event of an alarm, take corrective action to correct the fault, and then
press the “Alarm reset” button on the control unit for at least 3 seconds. If the
safety circuit alarm trips repeatedly, an authorised refrigeration service company
must be called in.

Page 19
Operation and Maintenance
ThermoCooler HP
DSTCH.191101.01.EN
Continuous product development may give rise to specification changes without notice.
7 Technical data
Size 100 150 190 240 300 360 400 480 600 740 850 980
Air flow min (a) m3/s 0.25 0.38 0.50 0.58 0.68 0.85 0.92 1.07 1.34 1.71 1.98 2.38
Air flow max (a) m3/s 0.95 1.61 2.12 2.48 2.91 3.64 3.93 4.61 5.75 7.34 8.47 9,95
Max cooling power
(b) kW 13.2 21.3 27.1 29.1 40.1 48.3 51.0 65.1 81.7 99.5 113.3 129.1
No. of compressors units 1 1 1 1 1 1 1 1 2 2 2 2
Max operating
current A 7.6 11 15 15 21 24 26 33 44 52 63 65
External fuse protec-
tion (c) A 10 16 20 20 25 32 32 40 50 63 80 80
Refrigerant R410a kg 2.8 4.6 5.8 7.0 8.2 10.1 10.7 13.2 10.4 +
5.8
14.0 +
6.0
14.0 +
9.0
17.4 +
12.6
a) For units with dampers, ePM1-50% (F7) filter supply air, ePM10-60% ( M5) filter extract air, SFPv values with NP rotor,
supply air temp 20°C and duct pressure 200 Pa (170+30 Pa). Max. air flow calculated with a minimum 10% spare capa-
city for fans.
b) With outdoor temp 26°C, 50% RH and extract air temp 22°C.
c) Regarding cooling/heating pump at 3×400V+N 50 Hz. Fuses with type C characteristics. The air handling unit is fused
separately and the fuse protection size varies depending on selection of fan variants.

© IV Produkt AB DSTCH.191101.01.EN
You are welcome to contact us
Switchboard: + 46 (0)47 075 88 00
Control support: [phone] [e-mail]
Service: [phone] [e-mail]
Spare parts: [phone] [e-mail]
Visit us at: www.ivprodukt.com
Documentation for your unit: docs.ivprodukt.com
Technical documentation: [e-mail]
