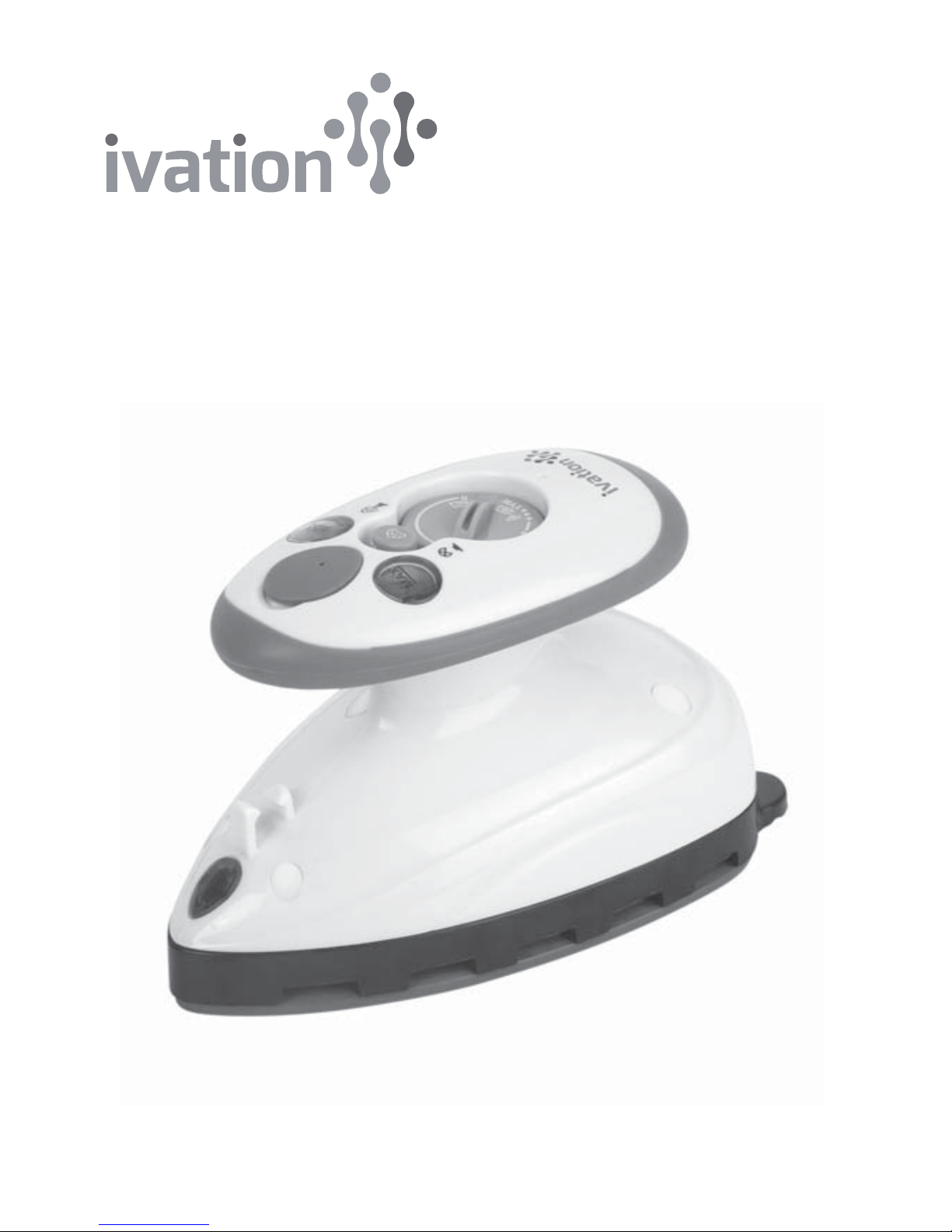

Ivation IVATI02 User manual

No-Drip Mini Steam Iron
User Guide
Distributed by
C & A Marketing
2 Bergen Turnpike
Ridgefield Park, NJ 07660
[email protected]
Made in China
Ivation is a trademark of
C&A IP Holdings, LLC
©2015 All rights reserved

Thank you for purchasing the Ivation Anti-Drip Mini Steam Iron. This User Guide is
intended to provide you with guidelines to ensure that operation of this product is
safe and does not pose risk to the user. Any use that does not conform to the
guidelines described in this User Guide may void the limited warranty.
Please read all directions before using the product and retain this guide for
reference. This product is intended for household use only.
This product is covered by a limited one-year warranty. Coverage is subject to
limits and exclusions. See warranty for details.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. READ ALL INSTRUCTIONS.
2. To protect against risk of electrical shock, do not place cord, plugs, or appliance
in water or other liquid.
3. Children should not operate this appliance and care should be taken when
used near children.
4. Unplug from outlet when not in use, before attaching or removing parts,
and before cleaning.
5. Avoid contact with moving parts.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or is dropped or damaged in any way. Return to the
nearest authorized service facility for examination, repair or electrical /
mechanical adjustment.
7. Do not use outdoors.
8. Do not hang cord over the edge of table or counter.
9. Keep cord away from hot surfaces, such as a stove.
10. Do not leave appliance unattended while operating.
11. Do not place this appliance on or near a hot gas or electric burner, or where it
could contact a heated oven.
12. Do not use this appliance for anything other than its intended use.
FOR HOUSEHOLD USE ONLY! SAVE THESE INSTRUCTIONS
IMPORTANT ADDITIONAL SAFEGUARDS
1. Users of this appliance must read and understand these instructions before
operating or cleaning this appliance.
2. The cord to this appliance should be attached to a 120 V AC electrical
outlet ONLY.
2

3. Do not use or attempt to repair a malfunctioning appliance.
4. If this appliance falls or accidentally is immersed in water, unplug it
immediately. Do not reach into the water!
5. Do not use this appliance after it has fallen into or becomes immersed in water.
6. To reduce the risk of injury to persons or property, never use this appliance in
an unstable position.
NOTES ON THE CORD
The short power-supply cord provided should be used in a way that reduces the
risk resulting from becoming entangled in or tripping over a longer cord. Do not use
an extension cord with this product.
NOTES ON THE PLUG
This appliance has a polarized plug (one blade is wider than the other). To reduce
the risk of electric shock, this plug will only fit in a polarized outlet one way. If the
plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. Do not modify the plug in any way.
ELECTRIC POWER
If the electrical circuit is overloaded with other appliances, your appliance may
not operate properly. It should be operated using a separate electrical circuit from
other appliances.
Specifications
VOLTAGE: 100-127V / 220-240V
WATTAGE: 260W - 420W / 343W - 408W
AMPERAGE: 3.0A
FREQUENCY: 60Hz
WATER CAPACITY: 1.1 OZ. (32 ML.)
HEATING TIME: 15 SEC. (APPROXIMATE)
TEMPERATURE RANGE: 140˚F - 428˚F (60˚C - 220˚C)
UNIT WEIGHT: 1.08 LBS. (0.49 KGS.)
UNIT SIZE: 5.3" (13.5 CM.) x 2.9" (7.6 CM.) x 3.1" (7.9 CM.)
3

Parts and Controls
Product may vary slightly from illustration
Preparing for Use
1. Unpack the Ivation Anti-Drip Mini Steam Iron carefully, removing all packaging
materials. Check the contents to ensure that all parts and accessories are
present, and are in good condition.
2. Set the Voltage
a. This Steam Iron features dual-voltage functionality, which allows it to
function correctly in regions with either 100-127V or 220-240V electrical
voltage standards. Voltage is set using the Voltage Selector.
12
3
4
12
13
5
7
161
8 9 10
1. Ceramic soleplate (Anti-Drip Design)
2. Main Unit
3. Heat Indicator Light
4. Power Cord Clip
5. Reservoir Cap
6. Reservoir Windows
7. Steam Button
8. Temperature Control Dial
9. Hand Grip
10. Internal Water Reservoir
11. Voltage Selector
12. Stands
13. Measuring Cup
4

IMPORTANT: By default, the Voltage Selector is set to the 100-127V setting.
Be sure to select the correct voltage for your location before plugging power
cord into an electrical outlet.
b. To change the voltage setting:
NOTE: These steps assume that Voltage Selector is still set to 100-127V default.
i.) Locate Voltage Selector, recessed inside slot at rear of Main Body. Note
the white open notch in middle of Voltage Selector.
ii.) Find a tool with a fine tip (i.e., a pen).
iii.) Carefully insert tip of pen into white notch. Slide Voltage Selector to the
right, towards 220-240V label.
IMPORTANT: Be sure that Voltage Selector is moved as far to the right as
possible for voltage setting to take effect correctly.
iv.) Unit is now ready for use in a 220V region. To set unit back to 100V,
reverse STEPS ii & iii, this time sliding Voltage Selector as far to the left
(towards 100-127V label) as possible.
3. Fill Water Reservoir (For Steam Ironing)
a. Ensure that the unit is both unplugged and turned off
b. Place unit (Soleplate down) on a flat, heat-resistant surface.
c. Fill Measuring Cup with water up to MAX (1.1 oz. / 32 ml.) mark.
NOTE: In order to extend the life of your unit and keep it functioning at its
maximum potential, it is highly recommended that distilled or de-mineralized
water be used in Water Tank.
d. Open Water Reservoir Cap. Pour water from Measuring Cup into reservoir.
e. Close Water Reservoir Cap
5

ARROW
General Operation
Dry Ironing
1. Plug power cord into wall outlet.
2. Turn Temperature Control Dial clockwise lining up
the small arrow on the Hand Grip with one of three
heat settings on the dial. The Heating Indicator Light
will illuminate.
NOTE: It is recommended to start with lower
temperatures, as high temperature settings designed
for heavy materials can damage delicate fabrics.
3. When the Heating Indicator Light turns off, the Soleplate is fully heated and
ready for use.
NOTE: During use, the Heating Indicator Light will cycle on and off as unit
adjusts to a constant temperature.
Steam Ironing
1. Plug power cord into wall outlet.
2. Turn Temperature Control Dial clockwise as far as possible setting unit to high
temperature (MAX •••). Heating Indicator Light will illuminate.
3. When Heating Indicator Light turns off, press Steam
Button. Button will lock into raised position, and unit
will emit steam from vents on Soleplate.
NOTE: Unit is designed to steam horizontally. Steam
flow will stop whenever unit is in vertical upright
position. The molding is specifically designed to be
anti-drip, reducing the occurrence of hot water
dripping on clothes (which can damage materials) or
skin (which can cause burns).
4. To stop steam flow, press Steam Button again to
lock into lowered position.
Once all ironing is finished, turn Temperature Control Dial counter-clockwise to
off (O) position. Be sure that Steam Button is locked in lowered position. Prop unit
upright on Stands to cool, and refer to the Care and Storage section of this user
guide for proper cleaning and storage.
6

Care and Storage
1. Turn Temperature Control Dial to "off" (O) position. Unplug power cord.
2. Position unit upright on Stands and allow Soleplate to cool for 30 minutes.
3. Open Water Reservoir Cap and drain any remaining water into a sink or tub.
Close Cap when finished.
4. Wipe Main Body and Soleplate with a soft cloth lightly moistened with water.
• DO NOT clean Soleplate with detergents.
• DO NOT clean Soleplate with abrasive or corrosive products.
• DO NOT submerge unit or hold unit under running water.

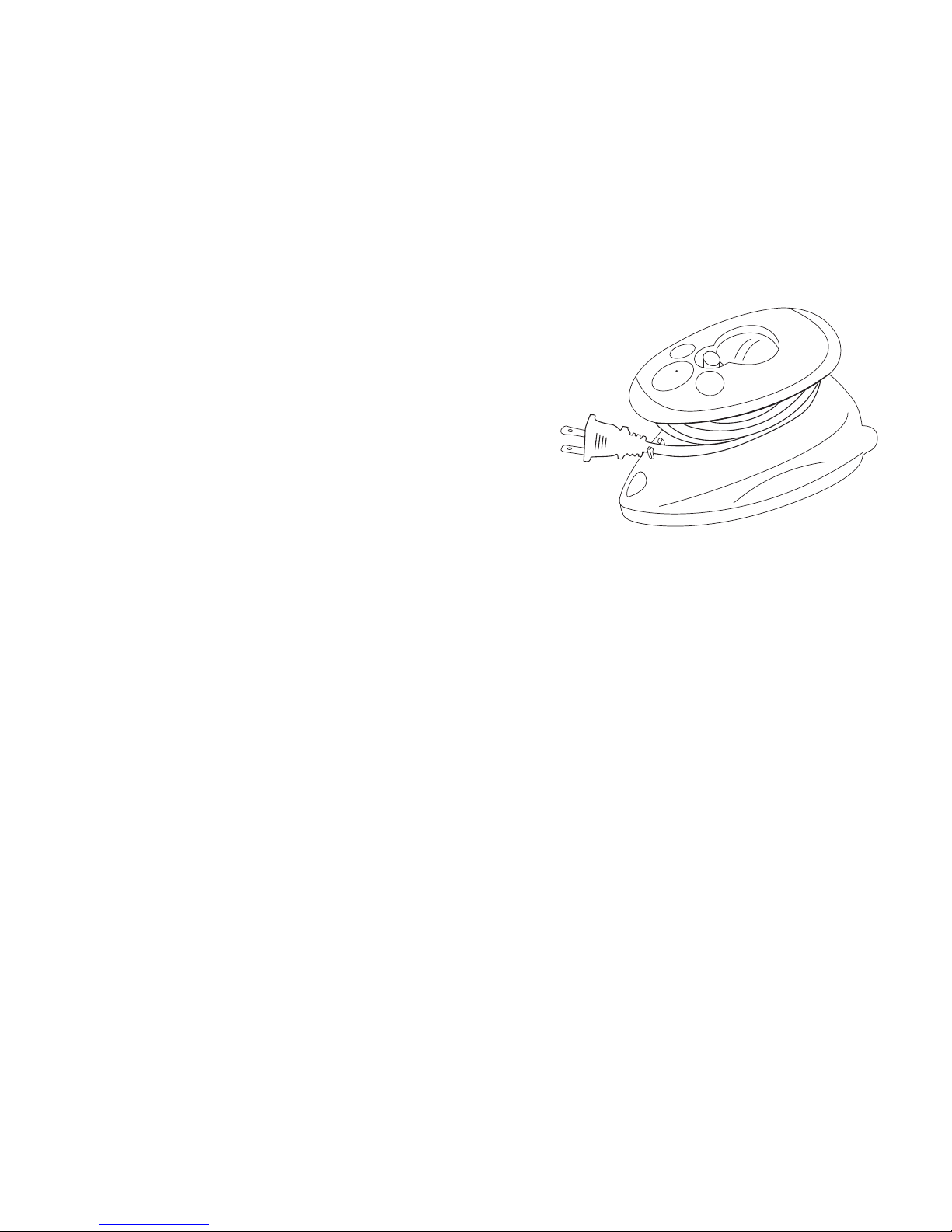

5. Wrap power cord around base of Hand Grip and
secure end in Power Cord Clip. Store unit and
Measuring Cup in a cool, dry location.
Mineral Build-Up
1. Follow STEPS 1-3 under Care and Storage section above; however, leave
Water Reservoir Cap open.
2. Make a mixture of 0.5 oz. distilled water and 0.5 oz. vinegar.
3. Using the Measuring Cup, pour water-vinegar solution into Water Reservoir.
Close Cap.
4. Follow normal steam ironing procedure, as outlined in the General Operation
Section of this user guide. Allow unit to steam out full contents of Water
Reservoir. When finished, lock Steam Button in lowered position and unplug unit.
5. Allow to cool for five (5) minutes, then refill Water Reservoir with fresh
distilled water. Repeat STEP 4 until vinegar odor dissipates.
6. Store unit as normal.
User Maintenance
This appliance requires little maintenance. It contains no user-serviceable parts.
Any servicing requiring disassembly other than cleaning must be performed by a
qualified appliance repair technician.
This product is covered by a limited one-year warranty. Coverage is subject to
limits and exclusions. See warranty for details.
Customer Service:
[email protected]
866-849-3049
