Iwata Tech Master R MA-01 User manual

Quick Start Guide
Model :

Ｍaster R、Portable package、USB Charging Cable、
Quick Start Guide.
Specifications

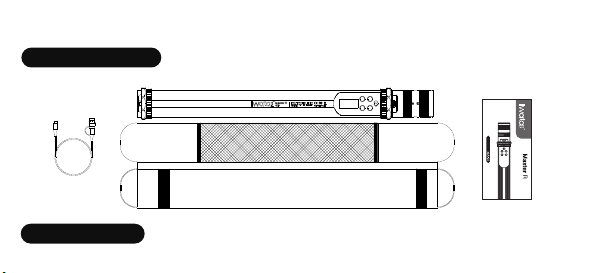

Package Contents
Thank you for purchasing iwata Master R photography light!
Please read this Quick Start Guide carefully before using the product and keep it for reference.
Model :
Qui ck Star t Guide
-1-

-2-
1. CCT Range：2000K~10000K（±200K）
2. CCT Color Rendering Index: CRI≥96，TLCI≥98
3. Maximum Power：16W
4. LED Beam Angle：120°
5. Adjustment Range of Beam Angle Limitator：0°- 170°
6. Illuminance (0.5 meter apart)：1200lx@8000K，1000lx@2600K
7. Operating Mode：CCT /HSI/Scene Effect
8. Internal Lithium Battery Capacity：14.8V/2200mAh 32.5Wh
9. Battery Life：about 2 hours at 100% power， about 64 hours at 1% power
10. Input Voltage and Current： 5V/1A 、5V/2.1A
9V/2.5A、 12V/2A（quick charge/work with a power source）
11. Display Screen：OLED screen
12. Dimensions：425mmxΦ38mm
13. Weight：680g
14. Bottom Screw Hole：1/4"

L ig ht But t on /FU NT I ON
Color
Brigh tness Adju sting Ri ng
Pow e r S w itch
US B Ch arg ing P or t
Di sp lay Scre en
Mode Butto n Adju sti ng Ri ng
Ring 2 of Beam Angel Limitator
Ring 1 of Beam Angel Limitator

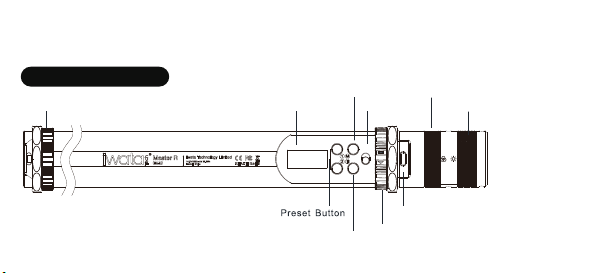

Layout of MA-01
15. Allowable Temperature Range：In use between -5~30℃
During charging between 0~30℃
Storage between -20~60℃
-3-

Description of Adjusting Rings
Description of Power Switch
Buttons
Brightness adjusting ring. Rotate the adjusting ring to switch the corresponding parameter
in the setting interface
Color adjusting ring. Rotate the adjusting ring to switch among color temperature, hue,
saturation,Scene effect or preset adjustment. In the setting interface, it’s used for the
columns in the list.
Slide the power switch to the "green"/"red" to turn on/off the power.
Preset Button, tap to load, press and hold to save.
Mode Button, press and hold to switch between CCT,HSI and Scene effect modes; tap to
switch among parameters in current mode.
Light Button/Funtion, press and hold to enter setting menu, tap to turn on/off the light.
-4-

Beam Angle Adjustment
Screen Icons

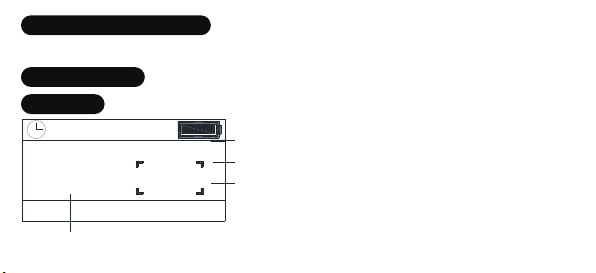

CCT Mode
Rotate the adjusting ring of beam angel limitator to narrow or enlarge the beam angle.
The adjusting angle range: 0 ° - 170 °.
Rotate the adjusting rings to adjust
brightness and color temperature.
Brightness range: 1%-100%,
Color temperature range: 2000k-10000k.
Current Intensity (Brightness)
2.0h
CCT(K)
100 9999
CCT
Current
Selected Item
Indicator
Current Color
Temperature
INT(%)
-5-

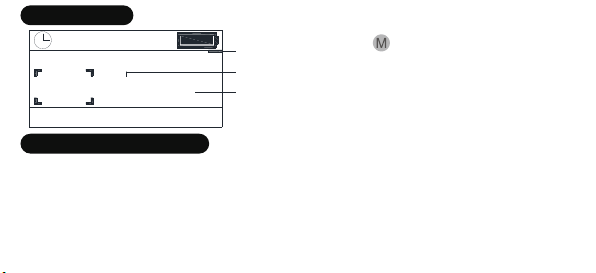

HSI ModeHSI Mode
Tap button to select between Hue (HUE|°) and Saturation (SAT|%) Adjustment, rotate
the color adjusting ring to change current parameters.
Hue range: 0°-360°,
Saturation range: 0%-100%.

INT(%)
1.6h Indicator
Current Hue
Current Saturation
HUE( ) SAT(%)
100 360 100
-6-

Scene Effect
Scene Effect Description
2.0h
EFFECT
100
Fire
A1
PRESET
INT(%)Current Effect
Current Preset
Indicator

Tap button to select between
effect（EFFECT）and preset
（PRESET）adjustment,rotate the
color adjusting ring to change current
parameters.
Effect Range: A-G.
A.Fire A1:Candle A2:Fireplace A3:Bonfire
B.Lightning B1:Intermittent Lightning
B2:Frequent Lightning
B3:Continuous Lightning
C.Firework C1:Short Fireworks C2:Continuous Fireworks C3:Fireworks Show
D.Warning Light D1:Police Car D2:Fire Truck D3:Ambulance
E.Color Chase E1:Slow E2:Medium E3:Fast
-7-

-8-

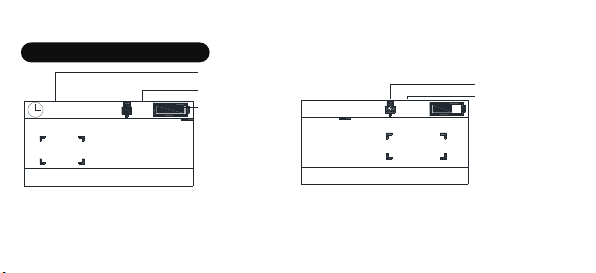

Power Icon Description
F.Party F1:Birthday Party
F2:Home Party
F3:Club
G.Photoflash G1:Product Launch G2:Press Conference
G3:Paparazzi
2.0h
CCT
1.Remaining Battery Time
3.Remaining Battery
Capacity
X
2.Insufficient Power Supply
CCT(K)
100 5500
INT(%)
56m
4.External Power
Connected
5.Remaining
Charging Time
CCT
CCT(K)
100 4300
INT(%)
1. Remaining Battery Time: "m" for minute and "h" for hour.
2. X icon comes out, When Master R works with insufficient power supply, for example,
connected to a 5V / 1A charger or a charging cable of low quality. It is recommended to
use a quick charger and the original charging cable.

-9-
Temperature Icon Description
3. Remaining Battery Capacity is shown in the display screen.
4. This icon is displayed when an external power supply is connected.
5. Remaining Charging Time: It shows the estimated remaining time for full charge, "m" for
minute and "h" for hour.
64h
CCT
Low temperature warning
CCT(K)
15500
INT(%)
High temperature warning The low temperature warning icon appears
when ambient temperature is below the
lowest allowable temperature. Master R may
not work properly under this circumstance.
The high temperature warning icon appears when ambient
temperature is above the highest allowable temperature. If
the temperature keeps rise, Master R will be automatically
switched off.
The high temperature warning icon will disappear when the
temperature of the product returns to normal.

Setting Interface Description
Adj. Rings Lock Off
Screen Lock Off
Standby Time 30m
Art-in  Off
Group  A
Factory Reset
10m/30m/60m/120m
Art-in System
Group A-Z
Adjusting Rings Lock
Screen Orientation Lock
Press and hold button to enter setting menu.


Rotate color adjusting ring to select setting option.

Rotate brightness adjusting ring to switch current parameters.
-10-

Adj. Rings Lock
Screen Lock
Standby Time
On-current screen orientation is fixed.
When the light is off and not operated,system will be
automatically standby.
Art-in On/Off
For group setting in Art-in system. "-" means ungrouped.
Factory Reset
Select "Yes" and tap button to reset default settings.

On-current parameters of the Adjusting rings are locked down.
Group
Press and hold button, then tap button to lock; do the same step to unlock.
󵽔
󵽔
Quick operation for locking adjusting rings
-11-

-12-
NOTE
Battery Use and Maintenance
2. Please do not charge the battery, when the ambient temperature is beyond the allowable
range, otherwise Master R can be damaged or battery life can be shortened.
3. The battery may gradually run down and not be switched on properly, if the product is
long-term unused. Please recharge the battery in this circumstance and recharge the
battery at least once three months.
4. If the battery capacity indicator has an error in displaying the actual capacity, please fully
discharge and recharge the battery to correct it.
5. The Rechargeable battery has a limited lifespan and should only be replaced by the
manufacture. When the performance of battery is obviously decreased after years, please
contact the local distributor.
1. When the battery of Master R is fully charged, please detach Master R from the USB cable.

-13-
Disposal Information
The left symbol indicates that your product and/or its battery must be treated
separately from household waste, in accordance with local laws and regulations.
When the service life of this product is at an end, please send it to the collection
point designated by the local management. When handling your products and/or
their batteries, separate collection and recycling will help conserve natural
resources and ensure recycling in a way that protects human health and the
environment.
（Waste electrical appliances and equipment）
3. Do not hit or hammer this product with hard objects.
4. Master R’s temperature may increase, when it works. Please make room for heat
dissipation.
5. Do not expose this product to the environments with drastic changes in temperature and
humidity.
1. Do not disassemble or modify this product.
2. Not immerse this product in water or put it into the fire.
