Iwatsu Omegatrek PS6 User manual

36'LJLWDO:LUHOHVV3RUWDEOH6WDWLRQ
2ZQHU·V0DQXDO

Omegatrek is a trademark of Iwatsu America, Inc.
Omega-Phone and ADIX are registered trademarks of Iwatsu America, Inc.
Iwatsu America, Inc., 430 Commerce Boulevard, Carlstadt, NJ 07072, [phone],
E-mail: in[email protected]om, Web: www.iwatsu.com
©2001 Iwatsu America, Inc.
All rights reserved.
First Edition January 2001
Printed in the United States of America
All rights are reserved. No part of this manual or accompanying software may be reproduced, in any form or
by any means, without the permission of Iwatsu America, Inc.
This manual was written for the Omegatrek system with version 7.0 software. In some cases, available feature
operations may differ from those listed in this manual, depending on the hardware, software and programmed
functions in your Omegatrek system. For more information, contact your Authorized Iwatsu Distributor.
Iwatsu America, Inc., has used its best effort to ensure that the information in this manual was accurate at the
time of printing. Iwatsu America, Inc., makes no warranty of any kind, expressed or implied, with regard to
the contents of this manual. This information is subject to change without notice. Iwatsu America, Inc. shall
not be held responsible for any representation made regarding this information by any individual.
IMPORTANT NOTE:
The instructions contained in this Owner’s Manual deal with features that are unique to the PS6 Digital
Wireless Portable Station. If you require additional information on ADIX feature operation, refer to the ADIX
Owner’s Manual.
SAFETY INFORMATION:
The PS6 Portable Station is a low power radio transmitter and receiver. When it is on, it receives and sends
out radio frequency (RF) signals. The design of the PS6 Portable Station complies with the FCC 96-326
guidelines for RF emissions from mobile and portable devices.
Part Number: 108500 (Iwatsu America); TML126611 (Iwatsu Electric)

i
Contents
Chapter 1 - Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
PS6 Di
g
ital Wireless Portable Station Feature Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter 2 - Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
You Cannot Use Your Portable Station When: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Batter
y
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Char
g
in
g
the Batter
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hand Strap Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operatin
g
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Searchin
g
Throu
g
h the Operatin
g
Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
PS6 Operatin
g
Menus Option Locator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Extension Number Displa
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Batter
y
Char
g
e Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Si
g
nal Stren
g
th . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Clock and Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Chapter 3 - Basic Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Additional Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Call Forwardin
g
(for Outside Line and Intercom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Forward Cancel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Call Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Conference Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Addin
g
Another Extension to an Outside Line Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Addin
g
Another Extension to an Intercom Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Exclusive Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Group Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hands-Free Answerback on Intercom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Idle State Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Intercom Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Placin
g
an Intercom Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Receivin
g
an Intercom Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Outside Line Callin
g
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Placin
g
an Outside Line Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Receivin
g
an Outside Line Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Prime Line to Optimized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Pa
g
in
g
Call (Station Ori
g
ination Onl
y
) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
PS6 Portable Station Ke
y
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Chapter 4 - Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Alarm Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
An
y
Ke
y
Answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Call Histor
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Dialin
g
Phone Numbers from the Call Histor
y
List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Deletin
g
an Item from the Call Histor
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Deletin
g
All Items from the Call Histor
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ii
Character Entr
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Char
g
er Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Dial Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Disablin
g
Dial Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Director
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Director
y
Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Makin
g
an Entr
y
in Director
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Editin
g
an Entr
y
in the Director
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Deletin
g
a Director
y
Entr
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Deletin
g
All Entries in a Director
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Director
y
Group Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Re
g
isterin
g
a Phone Number from the Call Histor
y
to the Director
y
. . . . . . . . . . . . . . . . . . . 43
Dialin
g
a Phone Number in the Director
y
with an Access Code . . . . . . . . . . . . . . . . . . . . . . . 43
Dialin
g
a Phone Number in the Director
y
with an Additional Number . . . . . . . . . . . . . . . . . . 43
Insertin
g
a Pause When Re
g
isterin
g
a Phone Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disablin
g
the Ome
g
atrek Ke
y
pad Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Headset Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Placin
g
a Call with the Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Help Displa
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Ke
y
Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Disablin
g
Ke
y
Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
PS6 Portable Station Rin
g
er . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Rin
g
in
g
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Vibrate Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Personal Rin
g
in
g
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Disablin
g
Personal Rin
g
in
g
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Personal Rin
g
in
g
Settin
g
s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Quick Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Placin
g
a Call Usin
g
the Quick Dial Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Re
g
isterin
g
a Quick Dial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Deletin
g
a Phone Number from a Quick Dial Ke
y
Combination . . . . . . . . . . . . . . . . . . . . . . . 51
Re
g
isterin
g
a Phone Number from Call Histor
y
to a Quick Dial Ke
y
Combination . . . . . . . . . 51
Re
g
isterin
g
a Phone Number from a Director
y
to a Quick Dial Ke
y
Combination . . . . . . . . . 52
Quick Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Quick Mode Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Ran
g
e Notif
y
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Speaker Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Station Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
S
y
stem Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
User Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Volume Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Omegatrek Owner’s Manual •1
Chapter 1
Introduction
PS6 Digital Wireless Portable Station
Feature Locator
The PS6 Digital Wireless Portable Station enables users to carry a
small, lightweight unit within a large service area, no longer confining
them to their desks to make or receive intercom or outside line calls.

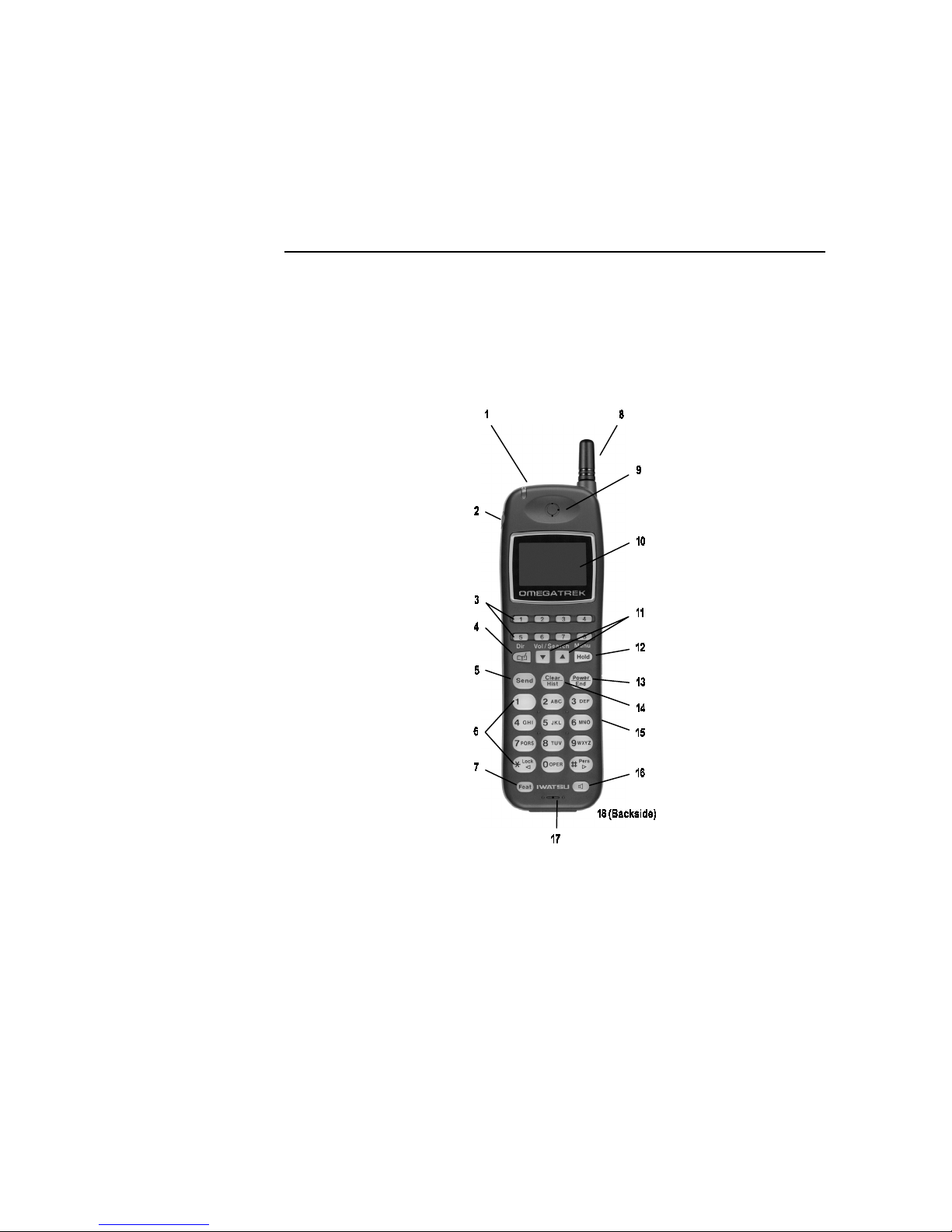

Figure 1. PS6 Digital Wireless Portable Station Features

•Introduction
2•Omegatrek Owner’s Manual
PS6 Digital Wireless Portable Station Features
# Feature Description
1 Dual Function
Lamp:
Incomin
g
Call
Indicator Lamp/
Batter
y
Char
g
in
g
Status Lamp
Incoming Call Indicator - This lamp flashes red
when a new call rin
g
s at
y
our PS6 portable
station.
Battery Charging Status - This lamp indicates
the char
g
in
g
status of the batter
y
when the
portable station is in the cradle. Red indicates
the batter
y
is char
g
in
g
, Green indicates the
batter
y
is full
y
char
g
ed.
2 Headset Jack Used to connect the IX-PSEM Headset for
hands-free conversation.
3 Multipurpose Ke
y
s These ke
y
s are pro
g
rammed with a specific
function durin
g
Ome
g
atrek s
y
stem setup.
Examples of multipurpose ke
y
functions include
outside line access, one-touch feature operation
and messa
g
e waitin
g
.
4Director
y
Ke
y
Press to access the PS6 Speed Dial Director
y
.
5 Send Ke
y
Press to answer an incomin
g
phone call or
initiate an out
g
oin
g
phone call.
6 Alphanumeric Ke
y
Pad
Use these ke
y
s to enter telephone numbers or
alphanumeric characters.
7 Feature Ke
y
Press this ke
y
to access ADIX and Ome
g
atrek
s
y
stem features.
8 Antenna Extend the antenna for optimal si
g
nal stren
g
th.
9 Receiver Hold to
y
our ear to listen durin
g
phone calls.

•Introduction
Omegatrek Owner’s Manual 3
# Feature Description
10 Alphanumeric
Displa
y
(LCD)
Provides visual indication of handset status, call
indication, pro
g
rammin
g
menus, director
y
lists,
and dia
g
nostic status.
11 Dual Function Ke
y
:
Volume Control/
Search and Scroll
Volume Control - Press the up or down ke
y
s to
adjust the Rin
g
er Volume when the telephone is
idle and the Receiver Volume while on a call.
Search and Scroll - When viewin
g
the call
histor
y
, director
y
, or pro
g
rammin
g
items, press
the up or down ke
y
s to scroll forward or back
throu
g
h lists such as Director
y
Names are
pro
g
rammin
g
menu options.
12 Dual Function Ke
y
:
Hold/Menu Access
Hold - Press while on a call to place a call on
Hold
Menu Access - Press while the portable station
is idle to access pro
g
rammin
g
menus.
13 Dual Function Ke
y
:
Power/End
Power - Press and hold for three seconds to turn
y
our PS6 Portable Station on or off.
End - While on a call press to end the phone call.
When accessin
g
a menu or director
y
press to
close the menu or director
y
.
14 Dual Function Ke
y
:
Clear/Histor
y
Clear - Use this ke
y
to correct alphanumeric
characters
y
ou have entered that appear on the
Alphanumeric Displa
y
.
History - When the PS6 Portable Station is idle
press to access the out
g
oin
g
and incomin
g
call
histor
y
list.
15 Cable Port Connect the PS6 to a PC usin
g
the IX-PSCB
Cable. Provides an interface to the ADIX
Director
y
Tool.
PS6 Di
g
ital Wireless Portable Station Features

•Introduction
4•Omegatrek Owner’s Manual
Figure 2. LCD Display Icon Map
# Feature Description
16 Speaker Ke
y
While on a call press to listen to audio throu
g
h
the PS6 portable station speaker (incomin
g
audio onl
y
). Press a second time to resume
audio feed throu
g
h the receiver.
17 Microphone Speak into the microphone durin
g
a
conversation.
18 Speaker Use the speaker to listen to voice
announcements and to hear station tones and
si
g
nals.
PS6 Di
g
ital Wireless Portable Station Features

•Introduction
Omegatrek Owner’s Manual 5
LCD Display Icon Map
#
Display
Information Description
19 Telephone
Icon
Flashes while the personal station is tr
y
in
g
to establish
a communication with a base station. Displa
y
s stead
y
once a communication channel is established and dur-
in
g
a call. Does not displa
y
when the PS6 is idle.
20 Speaker Indicates that the speaker is on.
21
&
22
Si
g
nal
Stren
g
th
Indicator
Shows the si
g
nal stren
g
th. Three bars indicate the
stron
g
est si
g
nal. Calls ma
y
not be sent or received in
weak si
g
nal areas.
23 Silent Mode Indicates that
y
our PS6 Portable Station is in Personal
Rin
g
in
g
mode and the rin
g
er is turned off. When “S” is
displa
y
ed,
y
our PS6 will not rin
g
when a new call is
received.
24 Vibrate Mode Indicates that the PS6 Vibrate Alert feature is active.
When “V” is displa
y
ed
y
our PS6 will vibrate when a
new call is received.
25 Alarm Indicates that the PS6 Alarm Clock feature is set.
26 Scroll Arrows Indicates that additional displa
y
information ma
y
be
viewed or selected b
y
pressin
g
an up or down scroll
ke
y
.
27 Feature Indicates that
y
ou are accessin
g
an Ome
g
atrek or
ADIX s
y
stem feature usin
g
the Feature Ke
y
.
28 Batter
y
Stren
g
th
Indicator
Shows the level of batter
y
char
g
e. Two bars shows a
full char
g
e. When
y
ou see onl
y
the outline of the Bat-
ter
y
icon, it is time to rechar
g
e the batter
y
. This indica-
tor flashes when there is less than one minute of talk
time remainin
g
.
29 Messa
g
e /
Forward
Indicates that
y
ou have a messa
g
e waitin
g
or that Sta-
tion Forwardin
g
is active on
y
our PS6 portable station.
30 Common Ke
y
s
Active
Indicates that “Common Ke
y
s” are available to use.
(Common Ke
y
s must be pro
g
rammed on
y
our PS6 b
y
y
our Iwatsu Authorized Distributor. If
y
our PS6 does not
use Common Ke
y
s, this indication will never appear.)
31 Alphanumeric
Displa
y
Area
View up to three lines (12 characters per line) of displa
y
information.

•Introduction
6•Omegatrek Owner’s Manual
LCD Display Icon Map
#
Display
Information Description
32 Personal
Rin
g
in
g
Mode
Indicates that Personal Rin
g
in
g
Mode is enabled on
y
our PS6 Portable Station.
33 Call Histor
y
List
Indicates there are new entries in
y
our Incomin
g
/Out-
g
oin
g
Call Histor
y
List.

Omegatrek Owner’s Manual •7
Chapter 2
Gettin
g
Started
You Cannot Use Your Portable Station
When:
1. You do not see the Antenna icon. (Refer to LCD Display).
When the Portable Station is outside the service area or receiving
a weak signal in the service area, you cannot place or receive
phone calls. Go to an area where the Portable Station receives a
stronger signal. The Antenna icon will appear when you enter an
area with a stronger signal.
2. You press a key and see KEY LOCK on the display. The Key
Lock feature is enabled to prevent unintentional key operations.
Disable the Key Lock feature.
3. You press a key and see DIAL LOCK on the display. The Dial
Lock feature is enabled to prevent unauthorized outgoing calls.
Disable the Dial Lock feature.
4. The outline of the Battery icon is blinking. The battery charge
has become too low. You will also hear a slow warning tone.
Place the Portable Station into the charger to recharge the battery.
Battery Installation
1. Plug the battery into the connector. The connector is a small, white input
device located on the back of the Portable Station within the battery com-
partment. You must gently slide the battery cover down and off to access
the compartment. The connector should be installed with the red (+) wire
to the left and the black (-) wire to the right (see diagram below).
2. Place the battery snugly into the compartment.

•Getting Started
8•Omegatrek Owner’s Manual
3. Replace the battery cover over the battery compartment.
CAUTION:
Replace the battery with an Iwatsu IX-PSBP only. Use of another battery may present a
risk of fire or explosion. There is a danger of explosion if battery is incorrectly
replaced. Dispose of used batteries according to the manufacturer’s instructions.
Now you are ready to begin charging your battery!
Figure 3. Battery Installation
Black (–)
Red (+)

•Getting Started
Omegatrek Owner’s Manual •9
Charging the Battery
Use the supplied IX-PSCG charger only.
1. Plug the charger into an AC outlet.
2. Place the Portable Station snugly into the charger. The Charge Lamp will light red
while charging. Leave the Portable Station in place for at least seven hours before
use.
3. Plug the charger directly into an electrical outlet. Do not plug the charger into an
extension cord.
Figure 4. Charging the Battery

•Getting Started
10 •Omegatrek Owner’s Manual
NOTES:
•When the battery is fully charged, the Battery Charging Status Lamp
changes from red to green.
•The Portable Station and the charger may feel warm to the touch. This is
normal.
•You cannot turn the power on while the battery is being charged. Pick up
the Portable Station from the charger before turning the power on.
•If you place the Portable Station in the charger while the power is still on,
charging the battery may take loner than usual.
•When you use the Portable Station for the first time, or if you have not
used it for a long time, leave the Portable Station in the charger for at least
seven hours.
•If the Portable Station or the charger is wet, wipe it with a dry cloth before
charging.
•The operating temperature is 41°F to 95°F. The battery may not be charged
properly if the temperature is outside the range.
•If the battery is not being charged properly, the Charge lamp flashes red.
Pick up the PS6 Portable Station and place it back in the charger. This
indication will also occur if the battery needs to be replaced.
•If the level of battery charge becomes too low, the Charge lamp may not
illuminate.
Hand Strap Installation
To attach the hand strap, follow these steps:
1. Put the thin string of the hand strap through the hole in the Portable Station
as shown in the following diagram.
2. Put the other end through the thin string and pull it tight.

•Getting Started
Omegatrek Owner’s Manual •11
Figure 5. Hand Strap Installation
Operatin
g
Menus
The PS6 has a number of menu options available that allow you to customize
the operation of your Portable Station. These options allow you to customize
the operation of your Portable Station. To access these menu items, press the
[Menu] key and the corresponding menu number. Some menu items have
sub-menu items within them for further customizing. Once you have accessed
the main menu number, the sub-menu’s are accessed by entering the
corresponding number listed in the table below or by scrolling to each
sub-menu using the up or down arrows. Each item is detailed individually in the
Advanced Features chapter of this manual.
1.
2.

•Getting Started
12 •Omegatrek Owner’s Manual
Searching Through the Operating Menus
1. Press [Menu].
2. Press the up or down arrow to select the first digit of the desired menu
number.
3. Press [Menu] when you have found your desired menu.
4. Press the up or down arrow to display the submenus within this main menu
number. A description of each menu will be displayed along with the
number of that menu. Quick Mode will be displayed when you scroll to
[2].
5. Press [Menu] to select the desired function. The setup menu for the
specific function is displayed.
6. When the setup is complete and your selection has been made, press
[Menu] to save your selection. The LCD displays your choice. You will
hear two short confirmation tones.
The Portable Station goes back to the idle state.
NOTES:
•Press [Clear] to go back to the previous menu screen.
•Press [End] to exit from any menu screen to the idle state.
PS6 Operating Menus Option Locator
The tables on the following pages list the function of each PS6 Menu Option.
For more information on each of the options described please reference the
associated feature description located in this manual.

•Getting Started
Omegatrek Owner’s Manual •13
Operating Menus Option Locator
Programming
Item
Menu
# Description
Default
Setting
Extension
Number
0Verif
y
y
our PS6 Portable Station
extension number.
-------
Alarm Clock 11 Set the PS6 Portable Station
Alarm Clock feature.
-------
S
y
stem Select 12 Allows the PS6 Portable Station
to operate in multiple ADIX
s
y
stems. This can be enabled
automaticall
y
b
y
the s
y
stem, or
manuall
y
b
y
the user usin
g
this
pro
g
rammin
g
item.
-------
Personal
Rin
g
in
g
Settin
g
s
14 Chan
g
e settin
g
s for the Personal
Rin
g
in
g
mode.
Rin
g
er: OFF
Confirmation
/Warnin
g
:
OFF
Vibration:
ON
Modem
Connection
15 Not Used. OFF
Dial Lock 21 Activate or deactivate the Dial
Lock feature.
OFF
Director
y
Lock 22 Activate or deactivate the
Director
y
Lock feature.
OFF
Delete All
Director
y
23 Delete all entries in the Director
y
. -------
Vibrate Alert 31 Enable or disable the Vibration
Alert feature.
OFF
Rin
g
Option 32 Select a tone t
y
pe. -------
Ke
y
pad Tone 41 Enable or disable the ke
y
pad
tone.
ON

•Getting Started
14 •Omegatrek Owner’s Manual
Ran
g
e Notif
y
42 Enable or disable the PS6
Portable Station capabilit
y
to
produce an audible indication
when
y
ou leave the service area
covered b
y
the s
y
stem.
OFF
Char
g
er Tone 43 Enable or disable the PS6
Portable Station capabilit
y
to
produce an audible indication
when
y
ou place the PS6 in the
Batter
y
Char
g
er.
ON
Time 51 Pro
g
ram time and calendar that
appears on the PS6
Alphanumeric Displa
y
.
-------
Quick Mode 52 Enable or disable the Quick
Mode feature.
OFF
Quick Mode
Guard
53 Enable or disable Quick Mode
Guard.
OFF
An
y
Ke
y
Answer
54 Enable or disable the An
y
Ke
y
Answer feature.
OFF
Re
g
isterin
g
Password
55 Use this menu option to re
g
ister
a password for
y
ou PS6 Portable
Station.
-------
User Name 57 Re
g
ister the alphanumeric name
that appears on
y
ou PS6 displa
y
when in the idle state.
-------
Director
y
Group Name
58 Pro
g
ram a Name for a Director
y
Group for use with the One
Touch Dialin
g
Feature.
-------
Operating Menus Option Locator
Programming
Item
Menu
# Description
Default
Setting

•Getting Started
Omegatrek Owner’s Manual •15
NOTES:
•If you do not press a key during an operation for 30 seconds, the Portable
Station will go back to the idle state. Start the operation over from the
beginning. Press [Clear] to go back to the previous menu screen.
•If you receive a call during an operation, the operation will be canceled
and the Portable Station will ring. Start the operation over from the
beginning after finishing the call.
Extension Number Display
You can verify your own extension number.
1. When the Portable Station is idle, press [Menu] [0]. The Display prompts
you to press [Menu] to confirm your action.
2. Press [Menu]. The display shows the extension number.
3. Press [End] to go back to the idle state.
Battery Charge Level
The Battery icon shows the approximate level of battery charge. The icon is
located in the upper right-hand side of your LCD display.
Quick Dial 7 Re
g
ister a phone number to a
Quick Dial Ke
y
Combination. Edit
or delete a phone number
assi
g
ned to a Quick Dial Ke
y
Combination.
-------
Help Displa
y
9 Browse a list of pro
g
rammin
g
items.
-------
Operating Menus Option Locator
Programming
Item
Menu
# Description
Default
Setting

•Getting Started
16 •Omegatrek Owner’s Manual
When the Battery icon is fully charged, the icon will display two bars within the
Battery icon. As the charge decreases, so will the number of visible bars within
the Battery icon.When your battery charge level has become too low, the
Battery icon will be empty. Place the Portable Station in the charger as soon as
possible.
Signal Strength
The Antenna icon indicates that the Portable Station can communicate with the
base station. The strength of the signal, which enables the Portable Station to
communicate, can vary with differing circumstances.
You can always determine your signal strength by the number of bars located
next to the Antenna icon on your LCD Display.
The maximum number of bars reflecting signal strength is three. When all three
bars are present, you have a strong signal and your Portable Station should
function normally both making and receiving calls. As the number of bars
decreases, so does your signal strength. If no bars are present, you may not be
able to place or receive calls. Try moving to a new location or extend the
antenna on your phone to increase your signal strength.
Clock and Calendar
The system clock information will automatically display on your Portable
Station. However, you can also program clock and calendar yourself:
1. When the Portable Station is idle, press [Menu] [5] [1]. Your LCD Display
(see LCD Display) will show TIME mode and prompt you to press
‘MENU TO PROG’.
2. Press [MENU] to begin programming the time into your portable unit.
3. Enter the correct information in the spaces provided, using the keypad.
Notice that to set the time you must also set the date. A cursor will blink
over the current digit to be modified. Enter digits to make changes. If you
do NOT wish to change the day, use the [*] key to move the cursor to the
left, and [#] key to move the cursor to the right. Move to the time prompt
