iBypass 40-10 Switch Content
This guide provides the initial steps to install and congure the iBypassTM 40-10
Switch.
Carefully unpack the contents and verify you have the following components:
• iBypass 40-10 Switch
• 3-meter RJ45, CAT 5e 4-pair (purple)
• RJ45 to DB9 Console Port to PC cable
• 4 Breakout cables, MTP-4LC, OM4
• Long Ear Extender and Short Ear Extender and eight Phillips screws (10-32 x
5/8) for rack mounting
• Two External Power Supplies (12VDC, 9A, 108W)
• iBypass 40-10 Switch Quick Install Guide (this document)
• iBypass 40-10 Switch User Guide (on CD)
• End User Agreement, Registration Card and Extended Warranty (if purchased)
QSFP+ transceivers are ordered and shipped separately.
Check the packing slip against parts received. If any component is missing or
damaged, contact our Order Management department via email at Order-
[email protected] or if this is a Demo unit, contact [email protected].

5
iBypass 40-10 Switch Overview

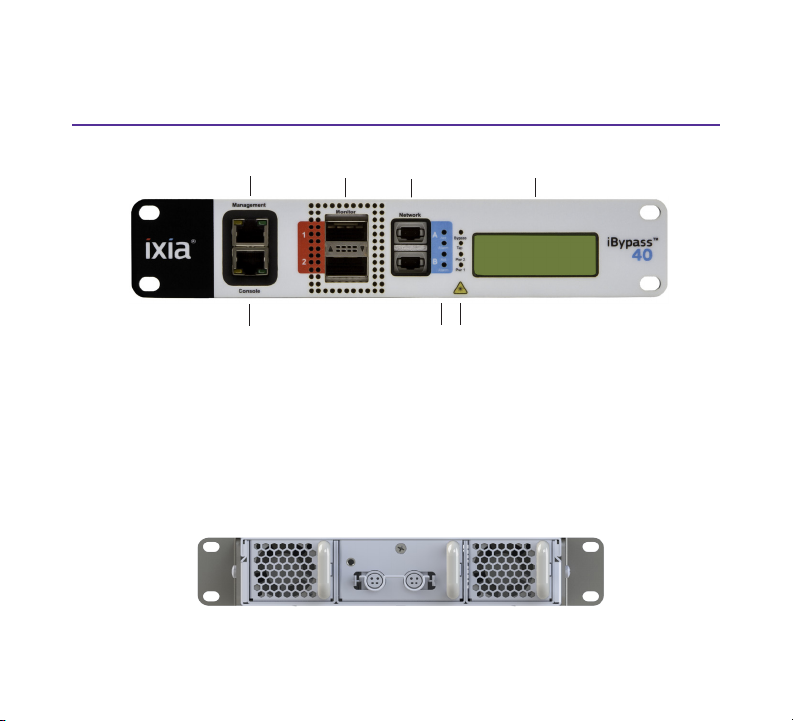

Figure 1 - Front View
• Console Port (RJ45) and Management Port (RJ45)
• 2 x 40G Monitor Ports (uses QSFP+ transceivers)
2 x 40G Network Ports (MTP Connectors)
• Hot swappable fans and replaceable power module
Figure 2 - Rear View
2x16 Character Display
Network
Ports
Monitor
Ports
Bypass, Tap, Power
LEDs
Activity & Alarm
LEDs
Management
Port
Console
Port

6
Step 1
Rack Mount iBypass 40-10 Switch
The switch is designed to occupy one rack unit height of a standard 19” rack. Do the
following to install the iBypass 40-10 Switch into an equipment rack:
1. Remove the Ear Extenders and screws from the shipping bag.
2. Attach the Long Ear Extender to the switch if you are only mounting one switch
or attach the Short Ear Extender between two switches if you are mounting two
switches. See Figure 3.
3. Slide the switches in place in the rack.
4. Fasten the switches in place at the front panel ears using the included Phillips
screws.

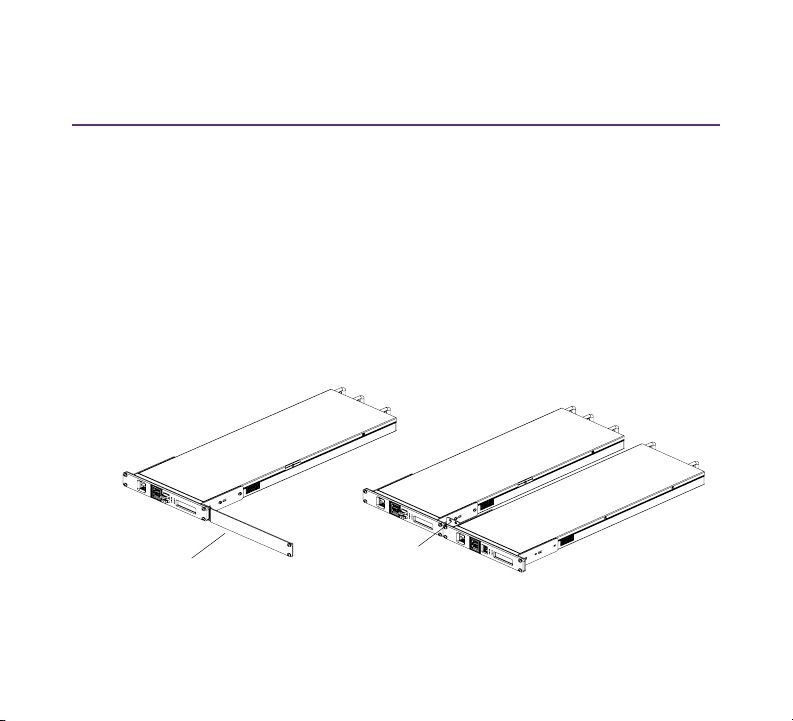

Figure 3 - Attach Ear Extenders for Rack Mount
Long Ear Extender
for one switch
Short Ear Extender
binds two switches

7
Step 2
Connect Power
Before connecting power, ground the switch to the rack by connecting a 14AWG
minimum ground wired with a #8 ring lug from the switch to a suitable ground
connection on the rack.
Do the following to connect and apply power to the iBypass 40-10 Switch:
1. Plug one of the supplied power cords to a power connector located at the rear
of the chassis. Plug the other end to a power source. See Figure 4.
2. For redundancy, plug the other power cord to the iBypass 40-10. Plug the
other end to a source independent from the rst power source.
The Power LEDs on the front illuminate.
Figure 4 - Power Connections

8
Step 3
Connect Options
Switch Default Settings
The iBypass 40-10 Switch ships with the following default system settings:
IP Address: 10.60.4.180 Monitor and Port Thresholds: 80%
Netmask: 255.0.0.0 Username: admin
Gateway: 10.0.0.1 Password: admin
You have two ways of logging into the iBypass 40-10 Switch.
Connect Option 1 - Connect PC to Management Port
1. Establish a PC you want to use to connect to the switch. Make sure it’s IP
address is on the same subnet as the iBypass switch. The default address
settings of the switch are shown above.
2. Connect one end of the included Cat 5e cable to the PC’s Ethernet port and
connect the other end to the iBypass Management port. See Figure 5.
3. Open a terminal window on the PC and ping 10.60.4.180 to conrm the
connection.
4. After you have conrmed that you have a connection, you can log in via SSH at
the terminal prompt, or enter the default address into the browser URL. Go to
the Assign IP in Web UI section if you want to log in through the Web UI. Go to
the next step if you want to log in to the CLI.

9
5. At the terminal window prompt, type ssh [email protected]. Enter
password admin. The prompt appears.
6. At the prompt, enter admin for the user and admin for the password.
7. Change the password for the admin account by entering the following
command at the prompt:
modify user password admin <new_passwd> <re-enter_passwd>
where <new_passwd> is the new password for the admin account and
<re-enter_passwd> is new password entered again.
8. Go to Congure the IP section and follow the instructions to set a new IP
address.
PC on the same subnet as
iBypass 4x10G switch
Connect Cat 5e cable
from Management port to
PC Ethernet
Figure 5 - PC to Management Port
For more information about using the iBypass 40-10 Switch CLI, enter help to display
command information or see the iBypass 40-10 Switch User Guide for more details.

10
Step 3 (cont.)
Option 2 - Connect PC to the Console Port
1. Connect a PC running terminal emulation software to the iBypass 40-10 Switch
Console port with the supplied RJ45-DB9 console cable. See Figure 6.
2. Launch the terminal emulation software, such as HyperTerminal or minicom,
and set the communication parameters to:
115200 baud 8 data bits no ow control
no parity 1 stop bit
3. At the prompt, enter admin for the user and admin for the password.
4. Change the password for the admin account by entering the following
command at the prompt:
modify user password admin <new_passwd> <re-enter_passwd>
where <new_passwd> is the new password for the admin account and
<re-enter_passwd> is the new password entered again.
5. Go to Congure the IP section and follow the instructions to set a new IP
address.
For more information about using the iBypass 40-10 Switch CLI, enter help to display
command information or see the iBypass 40-10 Switch User Guide for more details.

11
Computer with terminal
emulation software
RJ45 to DB9 console
cable
Figure 6 - PC to Console Port

12
Step 4
Congure the IP
The iBypass 40-10 Switch ships with a default address. You can decide to use the
default address, assign a static IPv4 IP address or use DHCP to assign an address.
To congure the system with a static IPv4 address, do the following:
1. At the CLI prompt, type the following to set the address mode to static:
set network mode static
2. Type the following to set the IPv4 address:
set network ipaddress <d.d.d.d> where <d.d.d.d> is the IPv4 address.
3. Type the following to set the network mask:
set network netmask <m.m.m.m> where <m.m.m.m> is the netmask.
4. Type the following to set the gateway:
set network gateway <g.g.g.g> where <g.g.g.g> is the gateway address.
Type reboot, to reboot the system. This is required for the new address to take effect.

13
To congure the system to use a DHCP address, do the following:
1. At the CLI prompt, type the following to set the address mode:
set network mode dhcp
2. At the next prompt, type the following to reboot the device:
reboot
3. After reboot, log into the iBypass via the PC connected to the Console port.
4. At the CLI prompt, enter show network. The screen will display the address
that was assigned to the switch.
After setting the IP address, connect the Management port to the network, if you
have not already done so, in order to access the device remotely over SSH or the
Web UI.

14
Assign IP in Web UI
If you want to change the IP address through the Web UI, do the following:
1. Open a browser on a PC connected to the iBypass switch and on the same
subnet, and enter the default IP address in the URL, https://10.60.4.180.
2. At the iBypass log in banner page, enter Username admin and Password
admin. The Home page displays. See Figure 7.
3. Click on the Admin tab. Under the Users List, enter a new password for the
admin user. Re-enter the new password and click Update. Remember the new
password. You must use the new password for subsequent log ins.
4. Click on the Conguration tab. The Conguration page displays. See Figure 8.
5. The IP Version eld displays IPv4. Do not use IPv6 at this time.
6. In the DHCP eld, select Static or Dhcp.
7. If you select Static, enter the IP address, netmask, and default gateway.
8. If you select Dhcp, your DHCP server will assign an IP address to the iBypass
switch.
9. Click the Apply button for the changes to take effect.
10. After the iBypass has rebooted, enter the new IP address at the URL. The
iBypass home page displays.

15
Figure 8 - Congure IP in Web UI
Figure 7 - Home Page

16
Step 5
Connect to Network
Each iBypass Network port operates with one MTP-4LC breakout cable.
Figure 9 - Cables to the Network
1. Plug into each Network port, an MTP-4LC breakout cable.
2. Connect the LC connectors to the network devices.
Each cable pair functions
as Network port A
Seg 1 port A
Seg 2 port A
Seg 4 port A
Seg 3 port A
Seg 1 port B
Seg 2 port B
Seg 4 port B
Seg 3 port B
t r t r t r t r t r t r t r t r
s4s3s2s1s4s3s2s1
Each cable pair functions
as Network port B

17
Step 6
Connect to Monitoring Tools
Each iBypass Monitor port requires a QSFP+ and one MTP-4LC breakout cable.

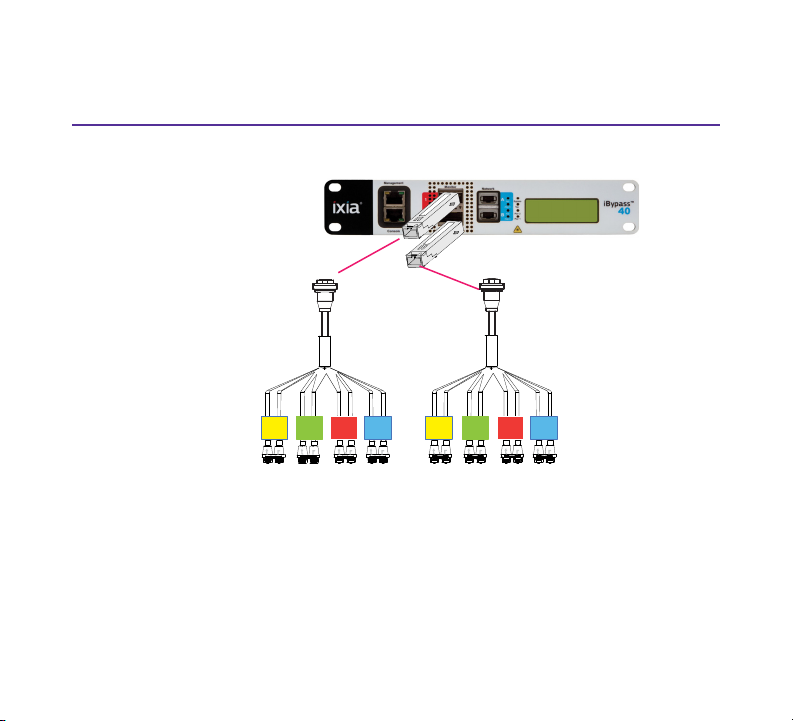

Figure 10 - Cables to the Monitoring Tools
1. Plug a QSFP+ into the upper and lower Monitor ports 1 and 2.
2. Plug an MTP-4LC breakout cable into each QSFP+.
3. Connect the LC connectors to the monitoring tools.
Each cable pair functions
as Monitor port 1
t r t r t r t r
Seg 1 port 1
Seg 2 port 1
Seg 4 port 1
Seg 3 port 1
t r t r t r t r
Seg 1 port 2
Seg 2 port 2
Seg 4 port 2
Seg 3 port 2
Each cable pair functions
as Monitor port 2
s 4 s 3 s 2 s 1 s 4 s 3 s 2 s 1

18
Multiple Segments
After you plug a breakout cable into each Monitor port and each Network port, you
have four 10G segments (SEG 1, 2, 3 and 4).
t r t r t r t r
t r t r t r t r t r t r t r t r
t r t r t r t r
s 4 s 3 s 2 s 1 s 4 s 3 s 2 s 1 s 4 s 3 s 2 s 1 s 4 s 3 s 2 s 1
Monitor 2
Monitor 1 Network BNetwork A

19
Step 7
Check for Recent Updates
We recommend that you check the Customer Portal for software or informational
updates. There might be recent updates that may affect the operation of your device.
1. Go to www.netoptics.com and click on the Customer Portal link.
2. If you have not already done so, create a new account.
Note, it might take up to 24 hours to get a password.
3. Sign in to your account with the password.
4. Go to Premium Software Updates > iBypass 40-10 link.
5. Review the Release Notes.
6. If a software update is available and installation is desired, follow the
instructions on the Release Notes.

20
Support
If you have questions while your product is under warranty or you are enrolled in
a support plan, please contact one of Ixia’s Technical Assistance Centers (TACs) by
phone or e-mail.
US: [phone] E-mail: [email protected]
EMEA: [phone] E-mail: [email protected]
India: [phone] E-mail: [email protected]
Japan: [phone] E-mail: [email protected]
APAC: [phone] E-mail: [email protected]
China: [phone] E-mail: [email protected]
Taiwan/Hong Kong:
[phone] E-mail: [email protected]
or visit www.ixiacom.com/support.
www.ixiacom.com
