Ixom Medora f8 User manual

O&M_F8_10335_20201026a

F8 Ventilation Blower

Owner's Manual

Table of Contents

About Ixom

Ixom combines knowledge and experience from across the water quality spectrum to help solve

real-world problems. Whether in Lakes, Stormwater Retention Ponds, Raw Drinking-Source Reservoirs, Water

Treatment Plants, Potable Storage Tanks, or Wastewater Treatment Processes, Ixom equipment continues to

be at the forefront as the #1 world leader for in-situ water body treatment.

Table of Contents

10014_20200528

F8 Ventilation Blower

Owner's Manual

Safety 1

Technical Specifications 4

Performance Curves 5

Exploded Parts Diagram 6

Placement 7

Startup and Operation 10

Maintenance 12

Warranty 13

Customer Service 14

O&M_F8_10335_20201026a

Carefully read safety information when you see

any safety symbols.

Be sure you have read all installation, operation, maintenance and safety instructions before

you install, service or begin to operate this unit.

Accidents occur every year because of careless use of industrial equipment. You can avoid hazards

by following these safety instructions, and applying some ordinary common sense when operating or

servicing this unit.

Keep in mind that full operator attention and alertness are required when operating or servicing

this unit.

USE COMMON SENSE!! Most accidents can be avoided by using common sense and

concentration on the job being done.

Safety

1949_10036_20200528 O&M_F8_10335_20201026a - 1

IMPORTANT!!!

Follow all federal and state laws in regards to

safety regulations of working at heights, conned

spaces, rescue, etc. as required by the U.S.

Department of Labor, Occupational Safety and

Health Administration. Use necessary PPE when

placing and servicing this unit.

Identify all possible hazards. Determine what

safeguards are needed and implement them.

Only you, the user, understand your product

and system characteristics fully. The ultimate

responsibility for safety is with you. Your

safety ultimately rests in your hands. Do

your part and you will enjoy safe, trouble free

operation for years to come. This instruction

manual is not intended to include a

comprehensive listing of all details for all

procedures required for placement, operation

and maintenance. If you have a question about

a procedure or are uncertain about any detail,

Do Not Proceed. Please contact Ixom

Customer Service at 866-437-8076 to speak

to a representative.

ELECTRICAL HAZARD

WARNING: THIS EQUIPMENT CONTAINS

HIGH VOLTAGE! ELECTRICAL SHOCK CAN

CAUSE SERIOUS OR FATAL INJURY. ONLY

QUALIFIED PERSONNEL SHOULD ATTEMPT

PLACEMENT, OPERATION AND MAINTENANCE

OF ELECTRICAL EQUIPMENT. REMOVE ALL

SOURCES OF ELECTRICAL POWER BEFORE

PERFORMING ANY SERVICE WORK TO THE

MACHINE. USE PROPER LOCKOUT TAGOUT

(LOTO) PROCEDURES TO ENSURE A SAFE

WORK ENVIRONMENT.

Rotating Hazard

CAUTION: KEEP BODY APPENANDAGES OR

LOOSE CLOTHING AWAY FROM EQUIPMENT

WHILE OPERATING. ENSURE EQUIPMENT IS

OFF BEFORE ATTEMPTING SERVICE.

Crush Hazard

WARNING: DO NOT REMOVE ANY FLOAT

ASSEMBLY BOLTS OR PINS WHILE EQUIPMENT

IS FLOATING IN WATER. EQUIPMENT MUST BE

SECURELY SUPPORTED BEFORE PERFORMING

SERVICE.

Laceration Hazard

CAUTION: EDGES MAY BE SHARP AND CAUSE

LACERATION IF PROPER CARE IS NOT USED.

Entanglement Hazard

WARNING: ENSURE THAT PERSONNEL ARE

CLEAR OF THE ELECTRIC CORD AND CHAIN TO

AVOID ENTANGLEMENT.

Thin Ice Hazard

WARNING: ICE SURROUNDING MACHINE MAY

NOT SUPPORT WEIGHT, KEEP CLEAR OF THIN

ICE.

Safety

1949_10036_20200528 O&M_F8_10335_20201026a - 2

Permit-Required

Conned Spaces

A conned space has limited openings for

entry or exit, is large enough for entering and

working, and is not designed for continuous

worker occupancy. Conned spaces include

underground reservoirs, ground storage tanks,

elevated tanks, silos, manholes, and pipelines.

Conned Space Tips

• Do not enter permit-required conned spaces

without being trained and without having a

permit to enter.

• Review, understand and follow employer’s

procedures before entering permit-required

conned spaces and know how and when

to exit.

• Before entry, identify any physical hazards.

• Before and during entry, test and monitor for

oxygen content, ammability, toxicity or

explosive hazards as necessary.

• Use fall protection, rescue, air monitoring,

ventilation, lighting and communication

equipment according to entry procedures.

• Maintain contact at all times with a trained

attendant either visually, via phone, or by

two-way radio. This monitoring system

enables the attendant and entry supervisor

to order you to evacuate and to alert

appropriately trained rescue personnel to

rescue entrants when needed.

Refer to 29 CFR 1910.146 for complete

regulations set by OSHA. Refer to your state's

regulations if your state established and operates

their own safety and health programs approved

by OSHA.

Protect Yourself

It is important that you comply with all relative

OSHA and local regulations while installing

and performing any maintenance to the mixer

circulation equipment.

Key OSHA Compliance Standards that must

be followed (and not limited to) are:

• 1910.146 Permit-required conned spaces

• 1910.147 Lockout/Tagout

• 1926.500 Fall Protection

Fall Protection Tips

• Identify all potential tripping and fall hazards

before work starts.

• Look for fall hazards such as unprotected

oor openings/edges, shafts, open hatches,

stairwells, and roof openings/edges.

• Inspect fall protection and rescue equipment

for defects before use.

• Select, wear, and use fall protection and

rescue equipment appropriate for the task.

• Secure and stabilize all ladders before

climbing.

• Never stand on the top rung/step of a ladder.

• Use handrails when you go up or down stairs.

• Practice good housekeeping. Keep cords,

welding leads and air hoses out of walkways

or adjacent work areas.

Refer to 29 CFR 1926.500 for complete

regulations set by OSHA. Refer to your state's

regulations if your state established and operates

their own safety and health programs approved by

OSHA.

Lockout Tagout

When the On/Off switch is in the "ON" position,

the mixer may start up at any time if not already

operating. The mixer's On/Off switch can be

locked out by placing a pad lock thru the door latch

of the controller after the switch has been turned

to the "OFF" position. The On/Off switch is to be

used as the emergency stop.

Safety

1949_10036_20200528 O&M_F8_10335_20201026a - 3

Technology Description- Centrifugal blower and lter housing assembly with electric motor. Filtered air intake, distributes

air inside tank for ventilation of tank head space, designed to evacuate volatilized THM’s, gases and other contaminants

from the head space.

Figure 1: F8 Blower

Electrical Requirements - Requires 480VAC three-phase, 60Hz power. Ixom recommends secondary disconnect

to be located near blower equipment. For three-phase motors, three-phase motor protection is recommended. All

conduit, conductors, switches, breakers, emergency stop buttons, control panels and other controls shall be installed in

accordance to all NEC, State, and local regulations. (Not supplied by Ixom.)

Subject to change without notice.

Maintenance / Warranty - Limited maintenance. Limited 2-year warranty. See GridBee THM Removal Systems Limited

Replacement Warranty for more details.

Air Filters - Six Filter Elements, 98%+ removal efciency to

10 micron, synthetic felt air lter. Each rated for 3000 CFM

(85 m3/min), 30ft2 surface area, washable, galvanized steel

reinforcement frame Dimensions: 24” X 24” X 2”

Replacement Filters PN: 20012066

Mounting - Ground mount or roof mount congurations available.

Wiring - 4-conductors required (L1, L2, L3, Gnd). Electrical TEFC motor wiring box for conduit connection and

electrical splicing. Multiple locations available for conduit entry through air lter housing.

Motor - 3HP Baldor TEFC, wash down duty induction motor, designed for continuous operation, low power

requirement, direct drive, no gearbox and no lubrication schedule required. No heater.

Materials of Construction - T316 stainless steel, with gray

epoxy or powder coating.

Air Flow Rate - 3000 cubic feet per minute (85 cubic meters

per minute) at 4” (10 cm) of H2O. Tank gravity vents must al-

low for 240 sq-inch (after screens and mesh) minimum open

surface area per blower.

Shipping Size / Weight

• Crate - 86in x 86in x 64in (2.2 m x 2.2 m x 1.6 m) / 1500 lbs (680 kg). Exact weight and dimensions may vary

dependent on blower and roof mount conguration.

Vibration Isolation - Secured to T316SS skid, separated by

rubber isolation pads properly sized for blower weight and

operation.

Coupling and Bearings - Double supported fan wheel using quality Baldor Dodge pillow block bearings and

coupling.

Part Number - 100716

Duct Sizing Requirement - Ø 18” minimum or equivalent

open space. (Ø 24” recommended.)

Technical Data Sheet

F8 Ventilation Blower

2030_10194_20200804 O&M_F8_10335_20201026a - 4

7.5 HP

3 HP

Blower Performance

F-SERIES BLOWER PERFORMANCE CURVES

2093_10330_20200402 O&M_F8_10335_20201026a - 5

Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | [email protected]

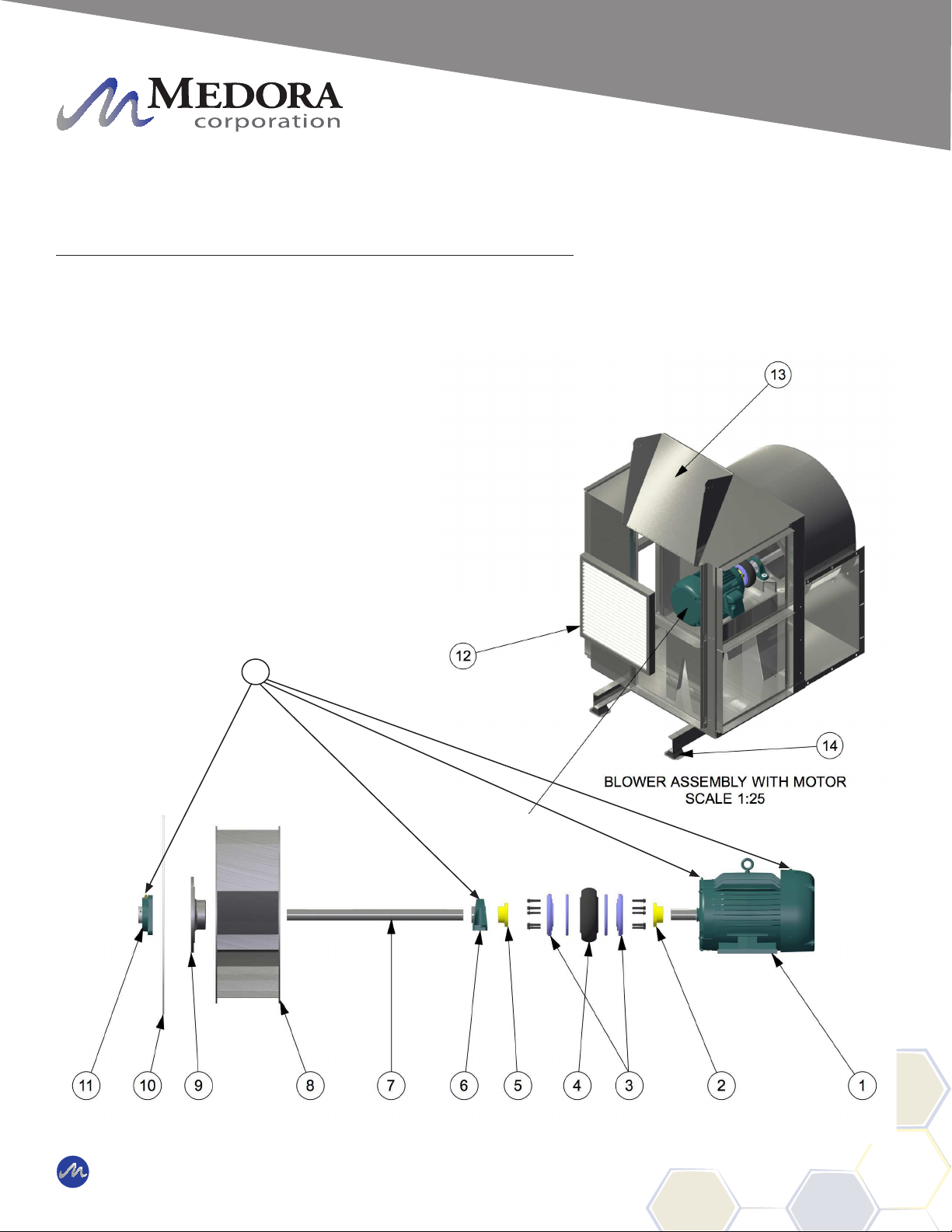

Exploded Parts Diagram

F8 BLOWER

Exploded Parts Diagram

General Notes:

ITEM QTY PART # DESCRIPTION

1 1 100631 Motor, 3 HP TEFC, Wash Down Duty , Blower Fan

2 1 100632 Coupling Bushing, 1.125”, Fan to 3 HP Motor Connection

3 2 100588 Coupling Flange, Fan to 7.5 HP Motor (With Bolts)

4 1 100587 Coupling Element, Fan to 7.5 HP Motor Connection

5 1 100590 Coupling Bushing, 1.5”, Fan to 7.5 HP Motor Connection

6 1 100592 Bearing, 1.5”, Pillow Block, Fan

7 1 100604 Shaft Blower Fan

8 1 100635 Fan Wheel Assembly, Blower

9 1 100603 Fan Wheel Hub, Blower

10 1 100615 Panel, Fan Access

11 1 100591 Bearing, 1.5”, Four Bolt Flange, Fan

12 6 20012066 Filter Element

13 6 100610 Filter Intake Covers

14 4 100159 Anti-Vibration Pads

15 4 ----------------- Bearing Grease Spots - See Maintenance Page

MOTOR EXPLODED DETAIL VIEW

2034_10200_20201026 O&M_F8_10335_20201026a - 6

UNIT WEIGHT

1400 LBS APPROX.

MINIMUM EIGHT (8) ANCHORS USED

3/8” THREADED ROD WITH SIMPSON

STRONG-TIE SET IN HIGH STRENGTH

EPOXY AT 3” EMBEDMENT DEPTH

3/8” REDHEAD CONCRETE WEDGE

ANCHOR BOLTS AT 3” OR GREATER

EMBEDMENT DEPTH

NOTE: 8’ L x 8’ W x 6” OR GREATER

PAD IS GENERALLY USED.

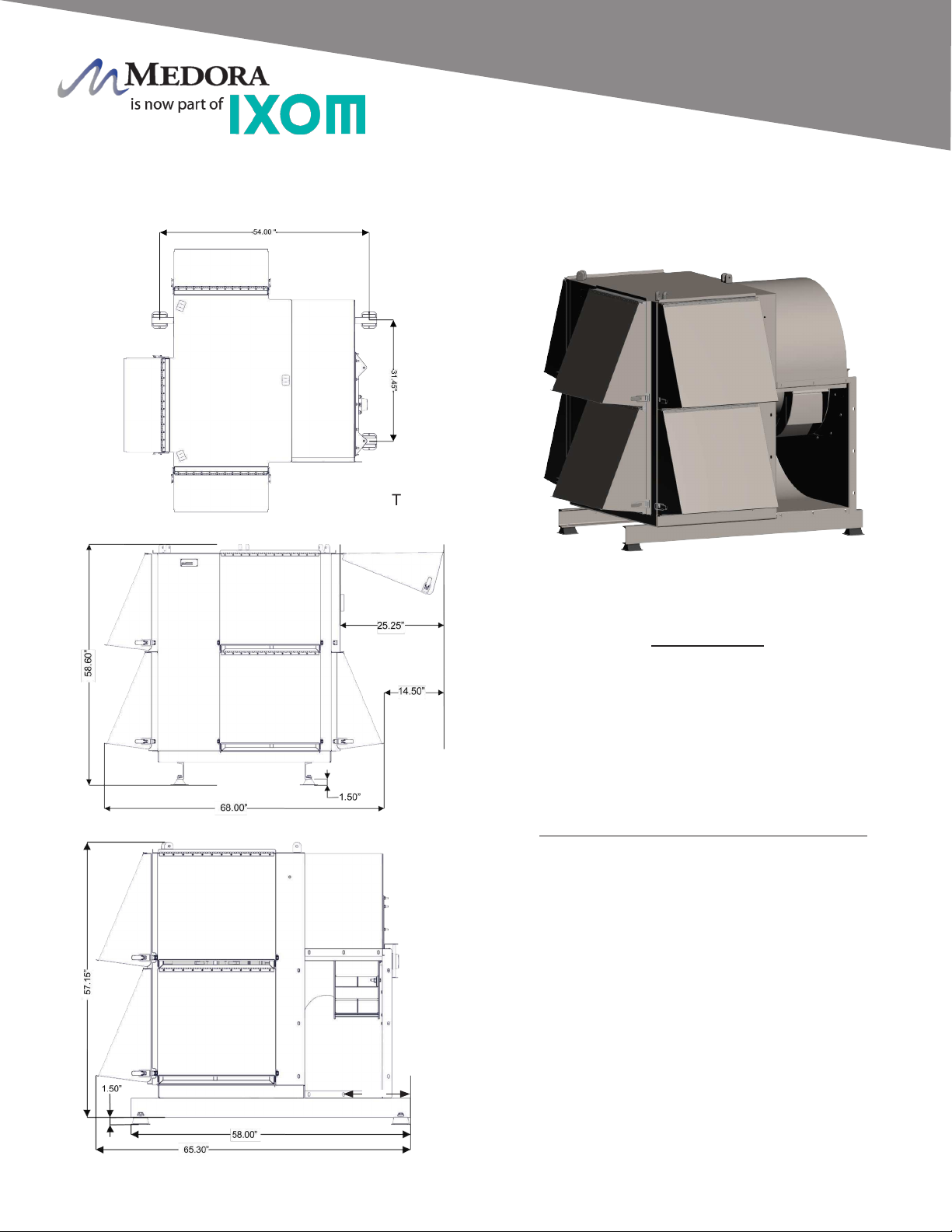

TOP VIEW

FRONT VIEW

SIDE VIEW

14.00”

F-SERIES BLOWER INTEGRATION

2033_10203_20201026 O&M_F8_10335_20201026a - 7

DISCHARGE DETAIL

VIBRATION PAD DETAIL

Concrete Pad *Vibration Pad may

compress 1/4” on

average

Ø.375 x 1.00” SLOT

12 PLCS

F-SERIES BLOWER INTEGRATION

2033_10203_20201026 O&M_F8_10335_20201026a - 8

ELBOW

27” x 16.5” RECTANGLE TO

24” ROUND ADAPTOR

EXAMPLE OF

CUSTOMER DUCTING

FOR GROUND MOUNT

DUCTING TO

TANK ROOF

MOISTURE

DRAIN

RUBBER FLEX JOINT

IXOM SUPPLIED

BLOWER UNIT

CUSTOMER SUPPLIED

DUCT WORK

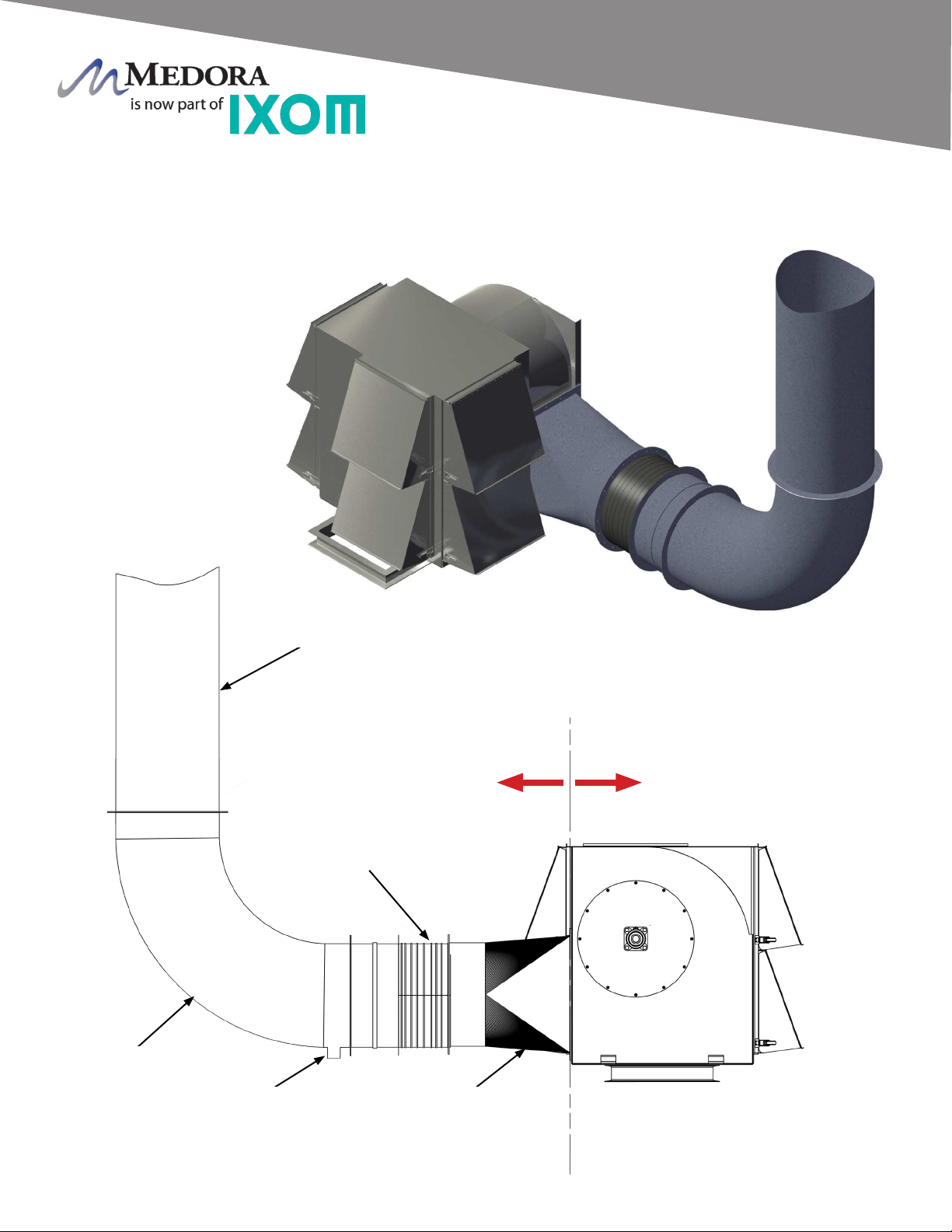

Blower Ducting

BLOWER DUCTING

F8 AND F11 BLOWER

2042_10213_20200529 O&M_F8_10335_20201026a - 9

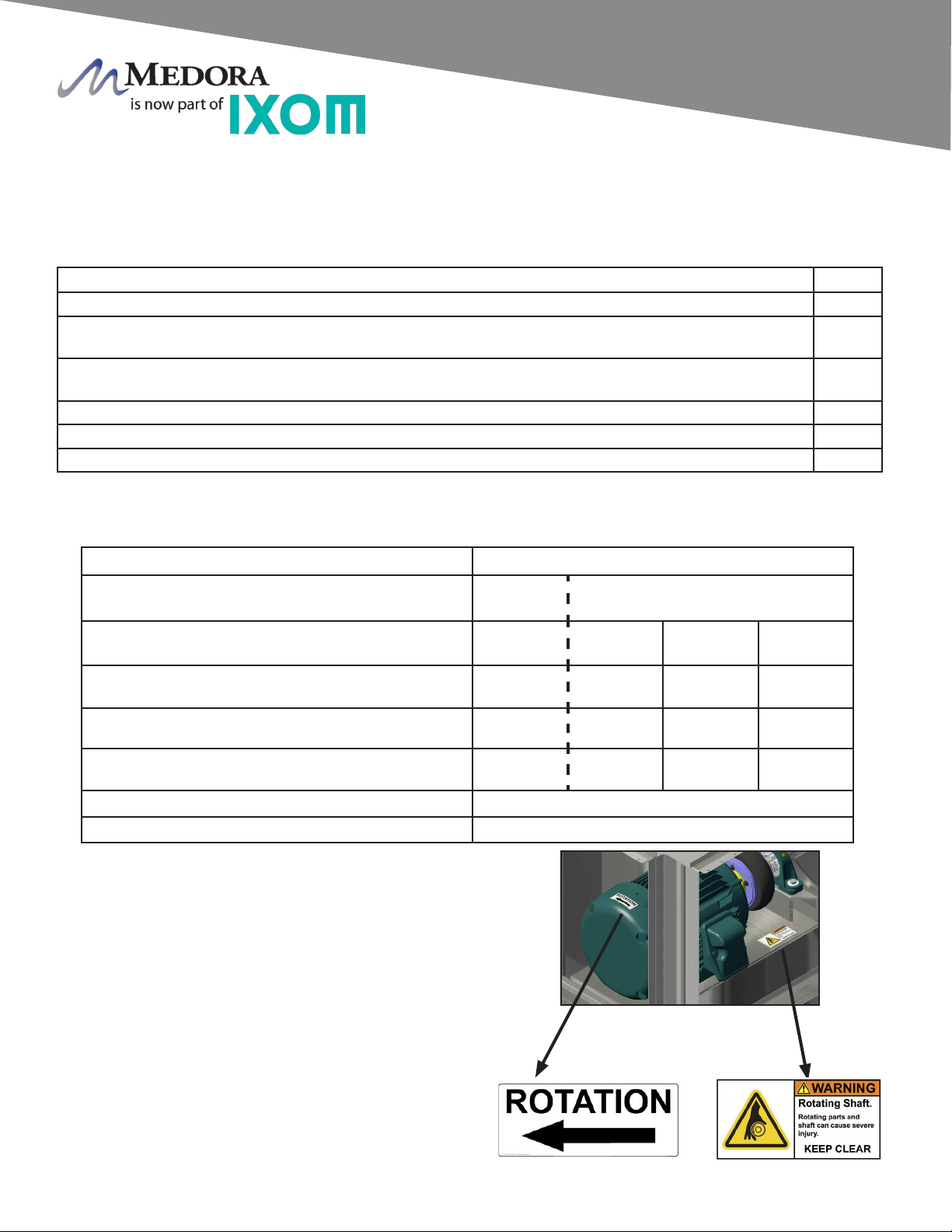

Placement Checks

Before starting the Blower Unit a few checks need to be done to conrm the placement is correct.

Placement Check Check

Is the blower properly secured to the isolation pads?

Is the motor wired properly to match the source voltage? Follow the motor wiring diagram on the motor

decals.

Does the blower have a local disconnect capable of being locked and tagged out for proper safety

precautions for blower maintenance and electrical adjustments? (i.e. checking bearings)

Is the control panel wired correctly? (Control Panel Diagram)

Is the blower ducting properly supported and airtight at all joints and connections?

Is the Motor rotating the correct direction? (See Rotation Check below)

Check Reading

Single

Phase

Three Phase

Continuity Check (Motor Windings + Splice + Wire)

Reference Wiring for Line to Line Ohms

L1:L2 L1:L2 L2:L3 L1:L3

Discontinuity Check (Power to Ground)

Should be Open to Ground

L1: GND L1: GND L2:GND L3:GND

Source Voltage Reading (while unit is running) L1:2 L1:2 L2:L3 L1:L3

Amperage Reading (while unit is running)

Reference Wiring Full Load / Max Load

L1 L1 L2 L3

Motor Rotational Check

Air Flow Check

Final Checks

Now that the install checks have been completed. Now to conrm the continuity and discontinuity and then

start the Blower Unit.

Rotation Check

Before nalizing the placement, the motor

rotation needs to be checked. With someone

observing the Blower Unit, briey turn the unit

on for several seconds and observe the motor

rotation, observing the motor cooling fan or

blower fan wheel. As the blower slows down,

observe that the drive assembly is rotating

the same direction as indicated on the blower

motor. If the motor direction needs to be

reversed; for three-phase motors, switch L1

and L2 at the motor or blower disconnect; for

single-phase motors, follow the instructions on

the motor wiring decal.

Safety and rotation

labels on motor

Startup and Operation

Large Ventilation Blower Startup and Operation

Wiring

2097_10337_20200402 O&M_F8_10335_20201026a - 10

INTERCHANGE ANY TWO LINE LEADS (1-3)

TO REVERSE ROTATION.

F8 BLOWER F11 BLOWER

7.8 Amps @ 230VAC / 60HZ / 3-Phase

Motor Resistance: 1.06 Ω

8.4 Amps @ 208VAC / 60HZ / 3-Phase

Motor Resistance: 1.06 Ω

Service Factor: 1.15

19.0 Amps @ 230VAC / 60HZ / 3-Phase

Motor Resistance: 0.42 Ω

9.5 Amps @ 460VAC / 60HZ / 3-Phase

Motor Resistance: 1.52 Ω

Service Factor: 1.15

INTERCHANGE ANY TWO LINE LEADS (1-3)

TO REVERSE ROTATION.

LOW

VOLTAGE

HIGH

VOLTAGE

LINE

64 5

7 8 9

1 2 3

LINE

64 5

7 8 9

1 2 3

3.9 Amps @ 460VAC / 60HZ / 3-Phase

Motor Resistance: 4.05 Ω

LOW

VOLTAGE

HIGH

VOLTAGE

LINE

64 5

7 8 9

1 2 3

LINE

64 5

7 8 9

1 2 3

Electrical

Wiring for Ixom Blower Unit

Wiring and Motor Data

2066_10304_20200422 O&M_F8_10335_20201026a - 11

Caution: Never attempt maintenance on a blower unless the electrical supply has been completely

disconnected, and lockout/tagout procedures are followed. The rotating assembly may also need to be

secured to eliminate the potential for wheel rotation due to other means such as wind milling or back

feeding from other blowers.

General Maintenance:

Blowers must be regularly inspected, the frequency being determined by the severity of the application. Routine

inspections should include the following checklist:

1. Check for wear, corrosion, and material build up on the blower wheel and/or housing and clean or replace as required.

2. Check the drive for proper alignment and lubrication.

3. Lubricate the bearings of the blower and motor. Never over lubricate.

4. Check for worn shaft seals and repair or replace as necessary.

5. Check all setscrews and bolts for tightness. Check isolation bases for freedom of movement, looking for broken or

deteriorated rubber elements.

Bearing Maintenance:

DODGE IP and ISAF bearings are pre-packed with NLGI #2 Lithium Complex grease. For re-lubrication select a grease

that is compatible with a #2 Lithium Complex grease.

High Speed Operation - in the higher speed ranges, too much grease will cause over-heating. The amount of grease that

the bearing will take for a particular high speed application can only be determined by experience. If excess grease in the

bearing causes overheating, it will be necessary to remove grease tting to permit excess grease to escape. The bearing

has been greased at the factory and is ready to run. When establishing a relubrication schedule, note that a small amount

of grease at frequent intervals is preferable to a large amount at infrequent intervals.

Ixom strongly cautions against over-greasing with too large of amounts per application as stated above. Only

personnel that understand using a very little amount of grease per application should be responsible for

lubrication of the bearings on the equipment we supply.

Air Filters:

The use of any type of lter requires that it be kept clean to prevent excessive pressure drop in the lines.

The dry element of the lter may be cleaned with soap & water and reused.

A total of six pleated lters occupy the lter housing. It is recommended the lters be cleaned periodically,

and especially leading into seasons of critical application.

Filter elements should be replaced when showing signs of wear which may be typical after several washes.

Filter element replacements should comply with the below requirements.

24” x 24” x 2” : 3,000cfm : 10 Micron : Pleated polyester.

Model: IFM P295 or Dollinger Al-187

Alternative: Graver Tech. GT-23106

Maintenance

Large Ventilation Blower

2095_10334_20200422 O&M_F8_10335_20201026a - 12

GridBee SN Spray Units. GridBee SN Spray Units and blowers are warranted to be free of defective

parts, materials, and workmanship for a period of two years from the date of purchase. The optional

control panels, by other manufactures, are covered by a manufacturer’s warranty of one year from

date of purchase. This warranty is valid only for use of the GridBee THM Removal System in

accordance with the owner’s manual and any initial and ongoing factory recommendations. This

warranty is limited to the repair or replacement of defective components only and does not apply to

normal wear and tear. If the factory’s service crews performed the original on-site placement and

startup, then this warranty also includes labor. Where labor is included, in lieu of sending a factory

service crew to the site for minor repairs, Ixom may choose to send the replacement parts to the

owner postage-paid and may pay the owner a reasonable labor allowance, as determined solely by

Ixom, to install the parts. There is no liability for consequential damages of any type. The warranty

that is submitted and provided with the purchased equipment is the valid warranty.

GridBee control panels, and any optional accessories. These items are considered “buyout”

items for Ixom, and as such include a warranty against defects in material and workmanship for one

year from the date of purchase. This warranty covers parts only, not labor. Parts that are determined

by Ixom to be defective in material or workmanship under normal use during the one year warranty

period will be repaired or replaced. Shipping charges are the responsibility of the customer.

Terms applicable to all equipment. This Limited Replacement Warranty is subject to the terms of

Ixom’s General Terms and Conditions of Sale. In the event of any inconsistency between the terms

of this Limited Replacement Warranty and Ixom’s General Terms and Conditions of Sale, the terms of

this Limited Replacement Warranty shall prevail to the extent of that inconsistency.

Warranty

GridBee THM Removal Systems Limited Replacement Warranty

1683_10035_20200420 O&M_F8_10335_20201026a - 13

Ixom employs qualied highly trained Service and Placement Technicians certied to perform the

necessary tasks required to install or remove SolarBee and GridBee circulation equipment

Ixom's specialized Service and Placement Technicians are trained in Conned Space, Fall Protection,

and other related subjects as required by OSHA to perform the necessary work to install or remove

SolarBee and GridBee equipment, and are knowlegeable in the regulations and standards of OSHA.

If you feel the need to service your SolarBee or GridBee circulation equipment, please contact Ixom's

Customer Service Department at:

+1 866 437 8076

Ixom Service & Support

Service & Support

1928_10001_20200420 O&M_F8_10335_20201026a - 14

Table of contents

Popular Blower manuals by other brands

Oriental motor

Oriental motor MB S Series operating manual

Dirt Devil

Dirt Devil M084450 instruction manual

Ebmpapst

Ebmpapst W2E200-HK38-01 operating instructions

Air King

Air King B1125 operating manual

Ebmpapst

Ebmpapst W4S200-HH16-05 operating instructions

FLORABEST

FLORABEST FLB 2500 A1 translation of original operation manual

SereneLife

SereneLife PSLHTM32 instruction manual

FLORABEST

FLORABEST FLB 3000 A1 translation of original operation manual

Ebmpapst

Ebmpapst S2D300-BP02-37 operating instructions

Sunco

Sunco Gardner Denver Sutorbilt Legend GAA P Series PARTS LIST OPERATING AND SERVICE MANUAL

Dirt Devil

Dirt Devil PD10005 owner's manual

XPower

XPower P-200AT owner's manual

Waterco

Waterco Airflo owner's manual

EarthWise

EarthWise LB20058 Operator's manual

Powersmart

Powersmart PS76101B instruction manual

Hidrotermal

Hidrotermal HIDRO-PB Manual instruction

Fieldmann

Fieldmann FZF 4030 E user manual

Makita

Makita DUB363 instruction manual

IXOM Medora F8 User manual

Popular Blower manuals by other brands
