J. Perkins YUN-2D User manual

YUN-2D
GIMBAL
7、GYRO
1、Data connector
Data connector
Tilt motor connector(PIT.MOT)
Rolling motor connector(ROLL.MOT)
Tilt scoket(PIT)
Rolling scoket(ROLL)
Power -
Gyro connector
4、Tilt scoket(pit)
5、Rolling scoket(roll)
6、Power -
Please connect with computer software when you need to set the parameter.
Connect with tilt motor
Connect with rolling motor
Used for receiver tilt connect
Used for receiver rolling connect
Receiver power -
Connect with gyro
2、Tilt motor connector(pit.mot) 3、Rolling motor connector(roll.mot)
1
2
3
4
5
6
7
Top carbon frame
Bottom carbon frame
Gyro
Control board
Rolling motor(roll.mot)
Tilt motor(pit.mot)
Gopro Hero3 camera
Vibration absorber*4
1. connection diagram of control board
2.component of gimbal
YUN-2D gimbal is tested by using Gopro Hero3 camera in factory before delivery. It can be perfectly compatible with
quadcopter and Hexacopter in the ready market. It help you to take wonderful aerial photography images and videos.

YUN-2D

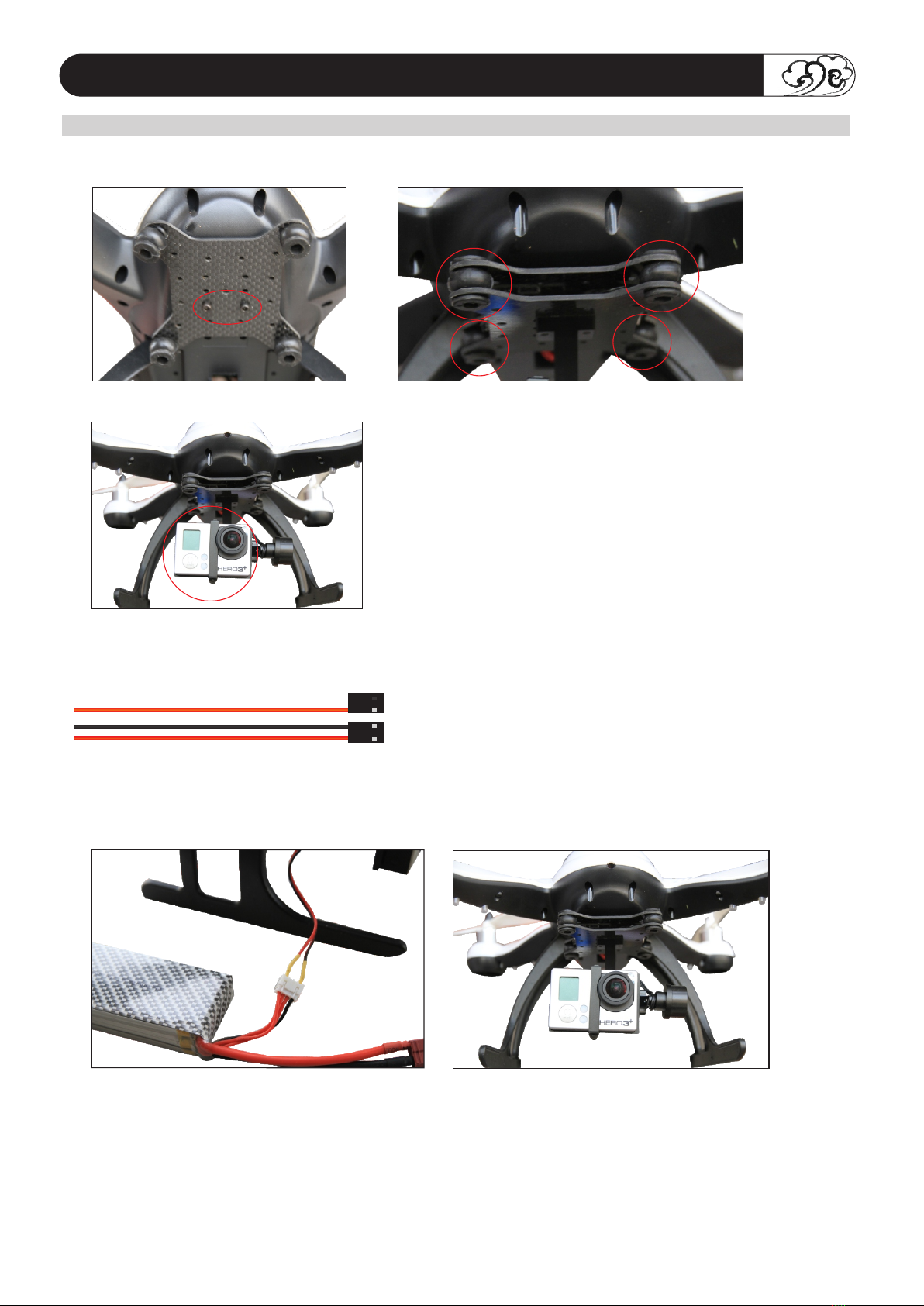

3.installation instruction：
1. Install the gimbal on the aircraft.
2、Mount Gopro Hero3 camera into the Gimbal frame.
3、Connect with receiver. We recommend to connect into the 7th and 8th channel( pleases do not take this recommendation if the
transmitter is or under 6 channel, use fixed-angle to take photography ).
4、Plug gimbal into battery. Please be noted that 11.1V Li-po battery is suitable for this gimbal. Please keep the gimbal in
horizontal position and wait for 10 seconds when connecting with power supply, the gimbal will automatically adjust the camera to
the horizontal position of the factory settings after Gryo initialization completed.
A. Fix the top carbon frame on the aircraft.
。
B. Put the vibration absorber into the hole of bottom carbon frame.
Used for receiver tilt connect
Used for receiver rolling connect
GIMBAL
