Jablue SH110 User manual

0
UserManual
WirelessSportyEarbuds
Tradename:Jablue
Model:SH110
FCCID:2ACQUSH110












1

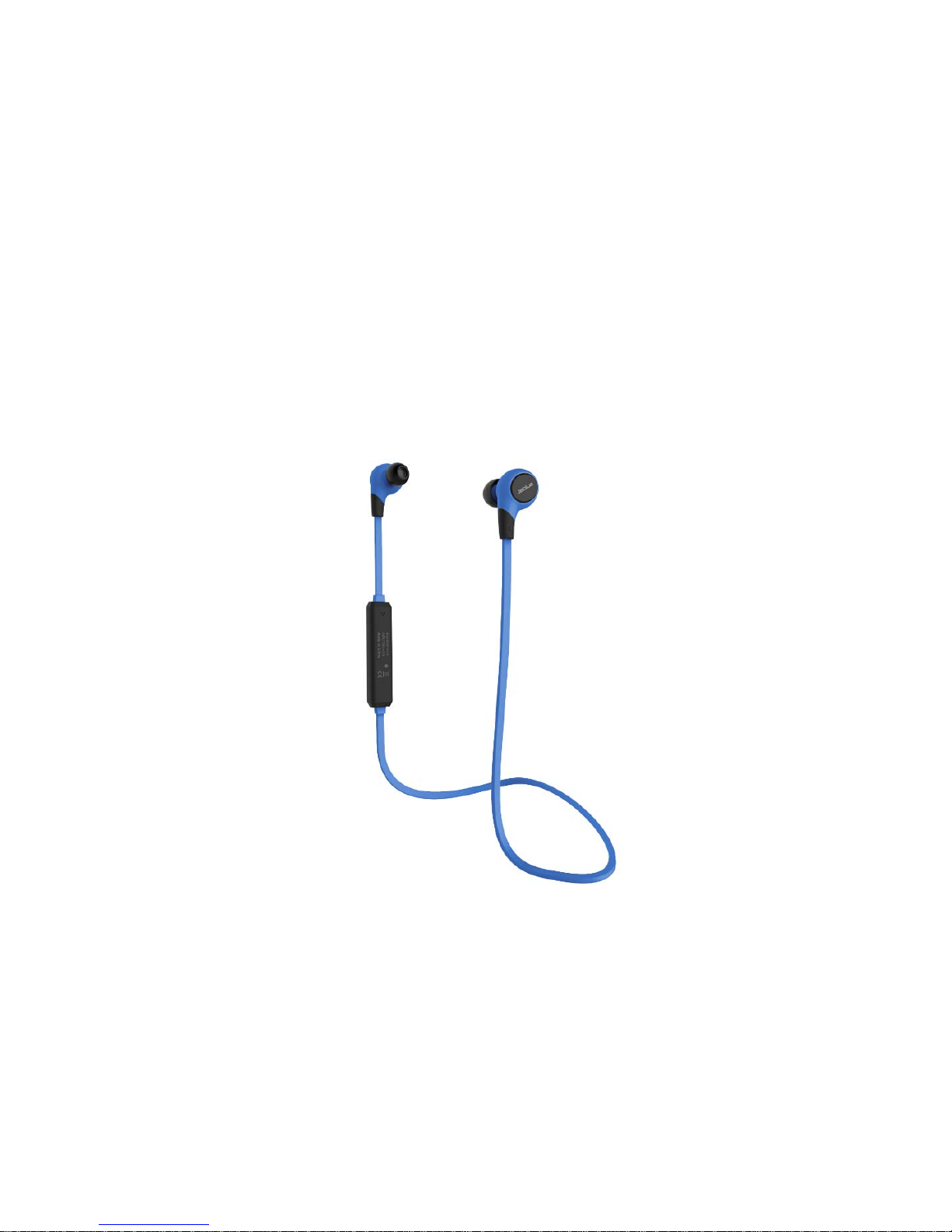

Introduction

ThankyouforpurchasingtheWirelessSportyEarbudsSH110.Thisproductisanin‐earWirelessSportyEarbuds,whichis
designedtoprovidestereowirelesssoundforyouriPad,iPhone,Smartphone,ComputerorotherBluetoothaudiodevice!

OverviewoftheMainUnit










zProductFeatures:
BluetoothChipset:CSR8635
BluetoothVersion:V4.1
BluetoothProfiles:A2DP/HFP/HSP/AVRC
TransmitPower:Class2
FrequencyRange:2.402~2.480GHz
AmbientNoise:≤90dB
TransmissionDistance:10M
TalkingTime:Around4.5hours
MusicTime:Around3.5hours
StandbyTime:Around120hours
ChargingTime:About2hours
Dimension:720X24.5X19.8mm
NetWeight: 15.8g

①RightChannel○ 5‐VolumeDown/LastTrack
②MicroUSBchargingjack○ 6LEDIndicationLight
③+VolumeUp/NextTrack○ 7Microphone
④Multi‐FunctionButton○ 8LeftChannel

2
zAccessoriesList

1x50cmUSBchargingcable
1xUserManual
2PairsofExtraEartips(medium/big）
1xPouchBag

zIndicationLight
PairingStatus:Thered&bluelightsflashalternately
PowerOn:Bluelightquicklyflashes3times
PowerOff:Redlightquicklyflashes3times
StandbyStatus:Bluelightflashestwiceinevery5seconds
IncomingCallsIndication:Bluelightquicklyflashes10timescontinuously
Charging:Redindicatorlightremainson
LowBattery:Redlightflashes2timesquickly
BatteryFullCharged:Theredlightisoffandbluelightisonafterwards


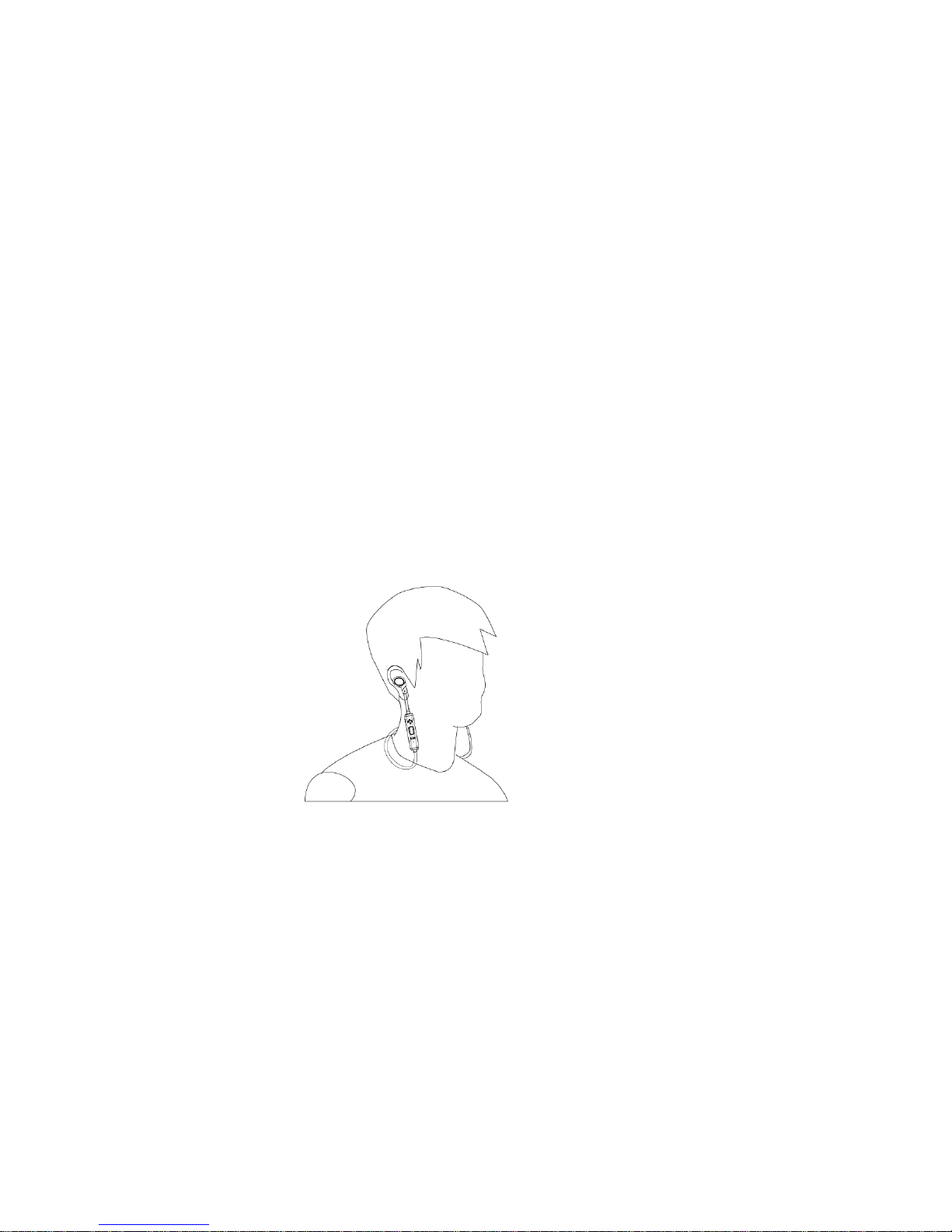

zWearingthe
Choosethesuitablesizeeartipsaccordingtoyourearandwearasfollowingshown:



Poweron/offtheSportyEarbuds

ToPowerOn:Pressandholdthemulti‐functionbuttonforabout3seconds,thevoicewillpromptpoweron,thenthebluelight
willflashinthestandbystatus
ToPowerOff:Pressandholdthemulti‐functionbuttonforabout5seconds,thevoicewillpromptpoweroff,thenthered
indicatorlightgoesoff


UsingBluetooth:Pairing/connecting

PairtheWirelessSportyEarbudswithonecellphone
1. PleasekindlyplaceyourwirelessSportyEarbudswithyourphoneorotherdevicewithin1meterwhenpairing,thecloserthe

3
better
2. Pressandholdthemulti‐functionbuttonfor5secondstodirectlybeginpairingtheunitwithyourdevice.Thevoicewill
promptpairing,andthered&bluelightwillflashalternately,thatmeanstheearbudsisinpairstatusnow
3. ActivatetheBluetoothFeatureonyourphoneorotherdevicetosearchtheEarbuds,SH110shouldappearonyourdevice
menu.Select“SH110”onthedevicetoconnect.Ifyourdeviceasksforapassword,pleaseenter0000onyourdevice.
4. YouwillhearaconfirmationtoneConnectedoncepairedwiththedevice,andtheblueindicatorlightwillflashtwiceevery5
seconds,nowyoucanlistentomusicorenjoyyourcallconversationbyBluetooth.

Note:
1) Thepairinggenerallytakesabout60seconds.IfthephoneorotherdeviceisfailedtopairwiththeSportyEarbuds,thered
indicatorlightwillflashslowly,andyouwillneedtorepair(seesteps1~4).
2) IftheSportyEarbudsstillfailstoconnectwiththeBluetoothdevicemorethan10minutes,thentheSportyEarbudswill
poweroffautomatically.
3) EverytimetheSportyEarbudsisturnedon,itwillconnecttolastconnecteddeviceautomatically.TheSportyEarbudscan
remember8paireddevices,whenthenumberofpaireddevicesexceeds8,thefirstonewillbereplaced.
4) Ifyouwanttodisconnectcurrentdevice,pleasepressandholdthe“+”&“‐“buttonsuntilthebluelightandredlightflashing
alternately.Itwillbereadyforparingagain.

PairingSportyEarbudswithtwodevices
1. Pleasefollowtheabovepairingsteps1~4toconnectyourfirstBluetoothdevicewiththeSportyEarbuds
2. TurnofftheBluetoothFeatureofthefirstBluetoothdevice
3. Repeatthesamepairingsteps1~4onthesecondBluetoothdevicewiththeSportyEarbuds
4. ThenturnontheBluetoothFeatureofthefirstBluetoothdevice,andconnectwiththeSportyEarbudsSH110.Nowthe
EarbudswillbeconnectedwithtwoBluetoothdevicesatthesametime,andyoucanlistentomusicorenjoyyourcall
conversationbyBluetooth

PlayingMusic
FunctionsStatusofthe Operation
VolumeupPlayingmusicShortpress+button
VolumedownPlayingmusicShortpress‐button
NextTrackPlayingmusicLongpress+button
LastTrackPlayingmusicLongpress‐button
PausePlayingmusicShortpress  once
PlayPause Shortpress  once


MakingCallsOperations


1) Basicoperation
FunctionsStatusofEarbudsOperation
CancelacallCallingShortpress  once

4
AnsweracallIncomingcallringingShortpress  once
RejectacallIncomingcallringingPressandhold  about1seconds
EndacallDuringacallShortpress  once
VolumeupDuringacallShortpress+button
VolumedownDuringacallShortpress‐button
VoicedialStandbymode&connecteddeviceLongpress  buttonabout1seconds
LastnumberredialStandbymode&connecteddeviceDoubleclick  button

Remark:AstheWirelessSportyEarbudsSH110havetheintelligentvoicealertfunction,soifthereisacallcoming,youcanalso
say“YES"toanswerthecall.Andsay“NO"torejectthecall.

Note:
1) Notallthemobilephonessupportallthefunctionslistedabove.Differentfunctionandprompttoneaccordingto
differentmobilephone.Pleaserefertoyourmobilephoneuser’smanual
2) Whenthevolumeisadjustedtomaxormin,youwillhearoneprompttone


ActivatingVoiceDialing

Pleasemakesureyourmobilephonesupportthevoicedialingfunctionandcomewiththevoicetag,inthisway,youcanusethe
voicedialingfunction.Firstofall,pleasepressandholdthemultifunctionbuttonfor1secondinstandbystatus,thenthevoice
dialingisactivated.Then,youcanspeakoutthevoicetag,suchasthenameornumberofthepersonyouwishtocall,orthe
musicyouwouldliketolistento,andtheBluetoothdevicewillmaketheresponseaccordingly.
Remark:Dependingonyourphonetype,theactualvoicedialingoperationmaybedifferent.


ChargingtheSH110

TheWirelessSportyEarbudsSH110comeswiththebuilt‐inrechargeablebattery.Pleasekindlychargethebatteryfullybefore
usingtheSportyEarbudsforthefirsttime.
1. OpenthecoverofUSBchargingjack,andpluggingthechargingcableintheUSBchargeport
2. Theredindicatorlightremainsonwhencharging
3. Thefullychargingtakesaround2hours
4. Theredindicatorlightgoesoutandtheblueindicatorlightremainsonafterwardswhenfullcharged

Remarks:
1)Thebatteryisrecyclable
2)Batteries(batterypackorbatteriesinstalled)shallnotbeexposedtoexcessiveheatplace,suchassunshine,fireandetc…


TroubleShooting

1. WhatdoesitmeanwhenredLEDflashesinsteadofblueLED?

5
Batteryislowpower,needtoberecharged

2.WhyistheredLEDoffwhencharging?
a)PleasemakesurethechargingdeviceconnectwithSportyEarbudswell
b)Thebatterymaydryup.Pleasechargethebatteryfor30minutes,andthentheredLEDwillbeON

3. Whymymobilephonecan’tsearchandfindtheSportyEarbuds?
PleasemakesuretheSportyEarbudsisunderthepairingmodeandintheeffectiveworkingrange,andthentheSporty
Earbudscanbepairedandconnected

4.Whycan’tIhearthesoundclearlyontheSportyEarbuds?
a)Makesurethemobilephoneisinthestrongsignalarea
b)MakesuretheSportyEarbudsisintheavailablerangeofthisproduct

5.Whythepause/play,last/nextsongnotfunctionwellwhenplayingmusic?
MakesureyourBluetoothDeviceandMusicPlayersupportsAVRCP(Audio/VideoRemoteControlprofile)


ImportantandNoted:

1. WaterandMoisture–Theunitshouldnotbeusednearwater.Forexample:nearabathtub,washbowl,kitchensink,laundry
tub,swimmingpoolorinawetbasement.
2. Heat‐Theunitcanworkat~20℃~65℃,anditshouldbesituatedawayfromheatsourcessuchasradiators,heatregisters,
stovesorotherappliances(includingamplifiers)thatproduceheat.
3. PowerSources–TheunitshouldbeconnectedtoaUSBpowersupplyonlyofthetypedescribedintheoperating
instructionsorasmarkedontheappliance.
4. Cleaning–Theunitshouldbecleanedonlyusingawarmdampcloth.Donotusesolvents,etc.
5. ObjectsandLiquidEntry–Careshouldbetakensothatobjectsdonotfallandliquidsarenotspilledintoanyopeningsor
ventslocatedontheproduct.
6. Theproductshallnotbeexposedtodrippingorsplashingandshouldnotbeplacednearobjectsfilledwithliquidssuchas
vasetoavoidanydamage.
7. Topreventfireorelectricshock,pleasecheckifthevoltageofthepoweroutletisthesamewiththespecifiedsupplyvoltage
ofthisunit.



This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
