Jabra GN9120 Flex User manual

JABRA GN9120
JABRA®IS A REGISTERED TRADEMARK OF GN NETCOM A/S
WWW.JABRA.COM
VERIFY THAT YOU HAVE RECEIVED A CORRECT REPLACEMENT BATTERY
INSTRUCTIONS

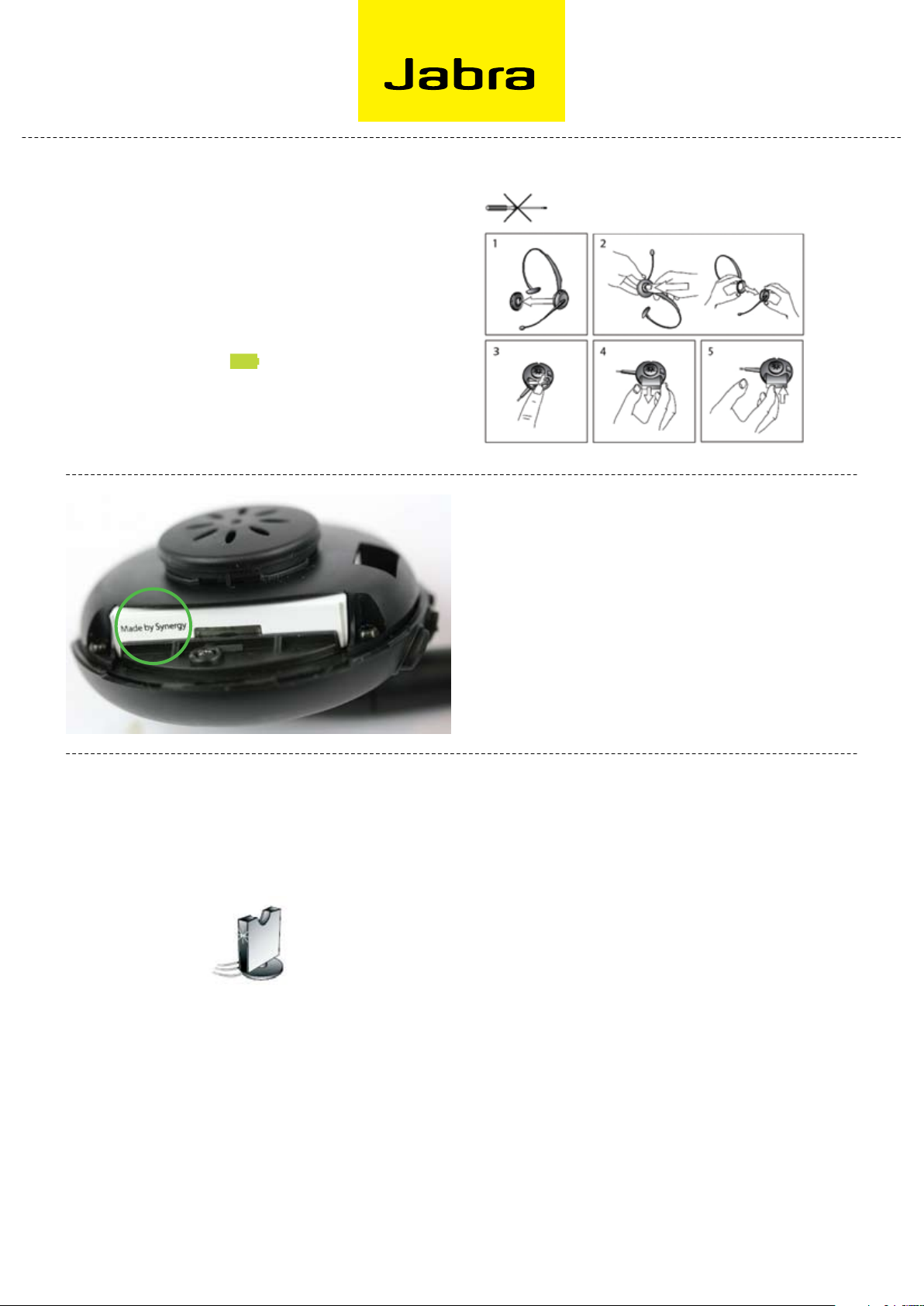

How to replace battery in Jabra Gn9120
usinG tHe battery replacement kit
THIS IS WHAT YOU DO:
- Lift the headset from the base and take off the ear-cushion (1)
- Separate the boom-arm and speaker part from wearing style
(headband/ear hook) (2)
- The battery becomes visible
- The battery is either locked by a screw (A) or by a plastic clip (B)
A. IF THE BATTERY IS LOCKED BY A SCREW
- Use the screwdriver in the replacement kit to unscrew the lock
(3-4)
- Slide the battery out of the headset (5)
- Insert the battery from the replacement kit into the headset (6)
- Use the screwdriver in the replacement kit to screw lock back on
(7-8)
- Put boom-arm and speaker part back together
- Put ear-cushion back on the headset
- Charge the headset for 2 hours until the base station battery
indicator goes solid green
If this does not happen within 2 hours, make sure that the battery
is inserted correctly as shown on next page – or visit Jabra.com
- When fully charged the headset is ready to use
Batteries “Made by ATL” must be replaced by a Synergy battery
with sticker.
The replacement battery carries a “Made by Synergy” mark and
sticker. THIS BATTERY IS SAFE TO USE.
1
(3-4) Only one screw
needs to be unscrewed.

JABRA GN9120 INSTRUCTIONS
B. IF THE BATTERY IS LOCKED BY A PLASTIC CLIP
- Press down the plastic clip until the battery clicks out of its
position (3)
- Slide the battery out of the headset (4)
- Insert the battery from the replacement kit into the headset (5)
- Press in the battery until the plastic clip clicks into place
- Put boom-arm and headband part back together
- Put ear-cushion back on the headset
- Charge the headset for 2 hours until the base station battery
indicator goes solid green
If this does not happen within 2 hours, make sure that the battery
is inserted correctly as shown below – or visit Jabra.com
- When fully charged the headset is ready to use
TROUBLESHOOTING:
What if my headset does not establish a link to the base?
If your headset has no link to the base station (if the green link-up
indicator does not appear when removing the headset from the
base station) after changing and charging the battery, please do
the following:
1. Unplug the power adapter for a couple of seconds
2. Place the headset into the base unit
3. Plug the power adapter back to the power socket
4. All ligths in base station flash for app. 4 seconds.
After this only the battery indicator will be lit
5. To verify that link is established, remove headset from base and
ensure that the link-up indicator appears (as shown on illustra-
tion). If this doesnt happen repeat all steps
If you have any difficulty performing this function or would like to
see a more detailed diagram, please visit us on the web at
www.jabra.com/battery
Please note that when the battery is removed or the power adapter
is unplugged (for at least a few seconds), all customised headset
settings are returned to factory-set default settings.
CHECK PLACEMENT OF STICKER WHEN BATTERY IS INSERTED
CORRECTLY INTO HEADSET
If the sticker faces same direction as illustration to the left, the
battery is correctly inserted.
DISPOSAL OF REPLACED BATTERY
Dispose of battery according to local regulations. Do not keep the
recalled battery as a spare or give it to anyone else for them to use.
2
