JABSCO 35440 Series User manual

Model 35440-Ser es
Model 35440-Ser es
OPERATION
See following warning placard statement:
THE “WARNING” PLACARD SUPPLIED WITH
BLOWER MUST BE MOUNTED AD ACENT TO
ENGINE IGNITION SWITCHES (ALL LOCATIONS) TO
COMPLY WITH TITLE 33, PART 183; SUBPART K,
USCG VENTILATION REGULATIONS.*
WI ING: Use stranded copper wire. For lengths up to 25
feet (7.6 m) from power source: Use 12 gauge wire for
12 volt, 14 gauge wire for 24 volt and 16 gauge wire for
32 volt model models. Use larger wire for longer lengths.
Use a 10 amp rated on-off switch in positive side of
circuit (Model 44960-0002 or 44960-0003). Circuit must
be protected with a fuse. Suggested fuse sizes are
listed in the specification table.
*Additional warning placards are available from factory by requesting
form 43003-0418.
To Discharge
Vent
4" Ducting
No. 34959-0200
Inlet Ducting
Bulkhead
INSTALLATION DRAWING
FLANGEMOUNT 4"BLOWER
FEATURES
• Tough Reinforced Plastic Housing
• Universal Flexmount Bracket Permits Outlet to Face
• Slip-On Inlet Ducting Connection
• Efficient High Volume Air Flow
• Low-Current Draw
• Corrosion-Resistant Materials Throughout
• Complies with ISO 9097 MARINE
• N.M.M.A. Type Accepted
• Meets USCG Regulations 183.410 and ISO 8846
MARINE for Ignition Protection.
SPECIFICATIONS
Air Fuse Weight
Model Flow Voltage Amps Size lb
35440-0000 250 CFM 12 Vdc 12.0 15A 6
(7.0 m3/min) (2.7 kg)
35440-0010 250 CFM 24 Vdc 5.3 7-1/2A 6
(7.0 m3/min) (2.7 kg)
absco blowers are primarily intended for intermittent duty
cycles such as evacuating fuel vapors from bilge areas.
If desired, they also may be used for other general air
circulation applications with longer duty cycles. It should
be noted that the maximum motor life is approximately
1000 hours. Therefore, the blower should only be used
for applications if this length of service is acceptable.
INSTALLATION
INSTALLATIONS MUST MEET APPLICABLE
SECTIONS OF TITLE 33, PA T 183; SUBPA T K,
USCG VENTILATION EGULATIONS.
MOUNTING: Mount blower on flat bulkhead surface in
highest part of compartment free from spray or deck
wash. Blower may be rotated in mounting bracket to
facilitate the shortest route of ducting. Use a suitable
discharge fitting so that static pressure of blower will not
be affected by change in wind direction. Route inlet
ducting with as few bends as possible to lower 1/3 of the
bilge compartment where vapors are likely to
accumulate. Be sure ducting is positioned below top of
engine stringers but not so low as to become submerged
in bilge water. Locate pickup to take advantage of
natural air flow direction.
NOTICE: Blower should be mounted away from extreme
heat (more than 130°F) to prevent distortion of blower
wheel or housing.
This pdf was downloaded from MarineSupplyDock.com

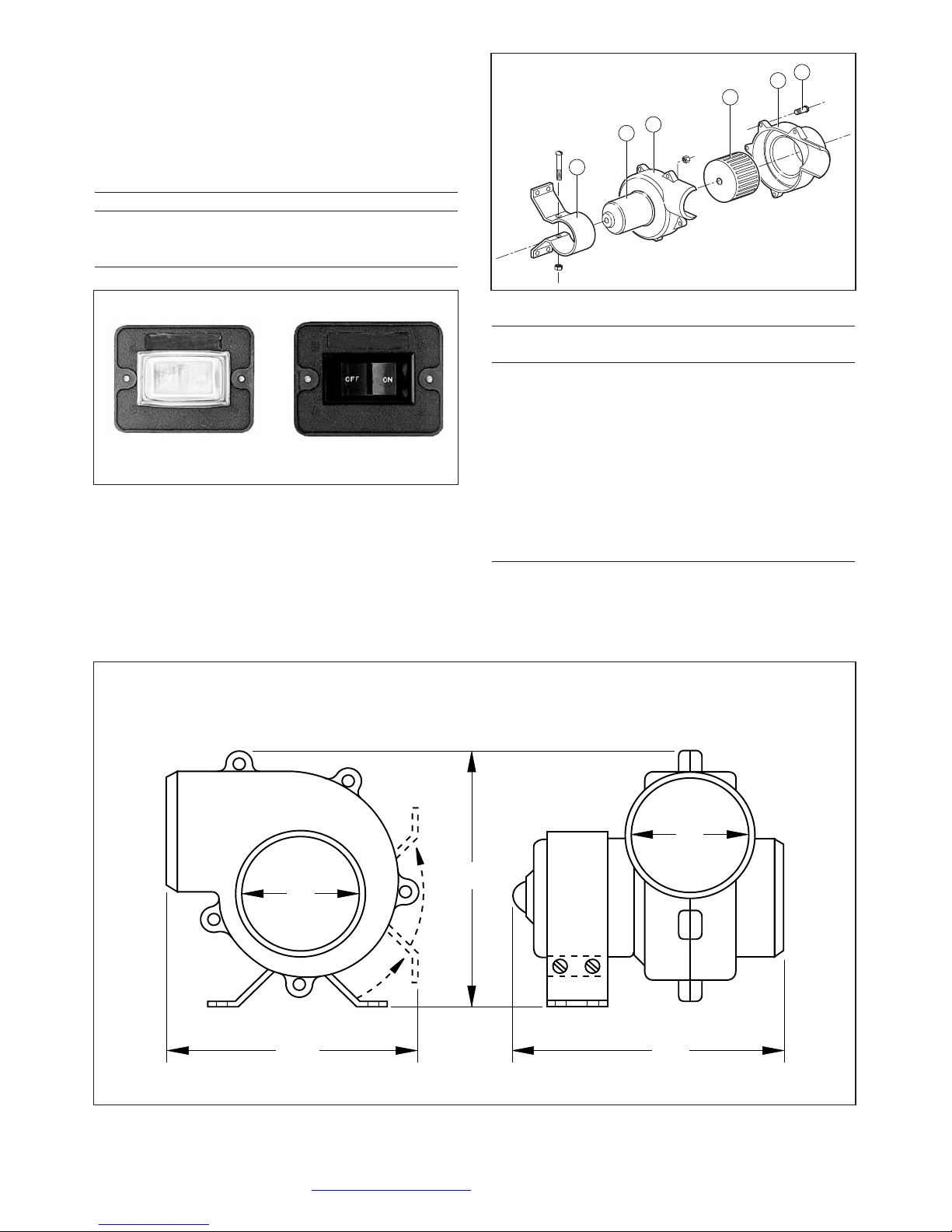

DIMENSIONAL DRAWING
Inches (M ll meters)
MARINE SWITCH PANELS
These rocker switch panels are available in an attractive
black textured finish. Select between two models with or
without illumination. All lighted models are complete with
silicon seal boot.
44960-0002 and 44960-0003 include durable stick-on
labels for all popular screws.
Model # Position Elec. ating
44960-0002 2 (on, off lighted) 10 amps/12 Vdc
44960-0003 2 (on, off unlighted) 10 amps.6-32 Vdc
10 amps/110 Vdc
PARTS LIST
Part
Key Description Qty. Number
1 Bracket Assembly 1 43899-0000
(includes screw & nut)
2 Motor Kit 1
(includes mounting nuts)
12 VDC 18753-0320
24 VDC 18753-0321
3 Blower Housing 1 35645-0000
4 Blower Wheel 1 35714-0000
5 Blower Housing 1 35644-0000
6 Screw 8 x 5/8 SS Self 5 35508-0000
Tapping Pan Head
PAR MARINE SWITCH PANELS
1
5
4
6
3
2
PARTS VIEW
44960-0002
Lighted Switch with Boot
SPST
44960-0003
Unlighted SPST
9-3/16"
(233)
4"
(102)
9-5/8"
(245)
9-1/8"
(232)
4"
(102)
This pdf was downloaded from MarineSupplyDock.com


10.0
8.0
6.0
4.0
2.0

4.5
4.0
3.5
3.0
2.5
0 50 100 150 200 250 300
AIRFLOW (ft /min)
3
AMPERS
RPM (1000)
MODEL 35440-0000
12 VDC
AIRFLOW VS AMPERS
AIRFLOW VS RPM
5.5
5.0
4.5
4.0
3.5
3.0
5.0
4.5
4.0
3.5
3.0
2.5
0 50 100 150 200 250 300
AIRFLOW (ft /min)
3
AMPERS
RPM (1000)
MODEL 35440-0010
24 VDC
AIRFLOW VS AMPERS
AIRFLOW VS RPM
This pdf was downloaded from MarineSupplyDock.com

© 2011 Xylem Inc All Rights Reserved Form: 43000-0403 Rev B 11/2012
A. LIMITED WARRANTY:
absco warrants that at the time of shipment, the
products manufactured by absco and sold hereunder
shall be in conformity with applicable written
specifications and descriptions referred to or set
forth herein, free from defects in material and,
merchantable, and suitable for a particular purpose,
provided such is implied by State law under the
circumstances of this sale.
B. WARRANTY ADJUSTMENT:
1. absco agrees to repair or furnish a replacement for,
but not to remove or install, any product or
component thereof which, within one (1) year from
date of purchase, shall upon test and examination
by absco prove defective within the above
warranty. Receipt verifying purchase date is required
to obtain adjustment.
2. Buyer shall notify absco of any defect within this
warranty no later than ninety (90) days after the
defect is discovered.
C. EXCLUSIONS FROM WARRANTY AND
LIMITATION OF LIABILITY:
1. The foregoing warranty is limited solely as set
forth herein and applies only for the period
designated above.
2. ABSCO SHALL NOT BE LIABLE FOR ANY LOSS,
DAMAGE, SPECIAL OR CONSEQUENTIAL
DAMAGE OF ANY KIND, WHETHER BASED
UPON WARRANTY, CONTRACT, NEGLIGENCE,
OR STRICT LIABILITY ARISING IN CONNECTION
WITH THE SALE, USE, OR REPAIR OF THE
PRODUCT.
3. THE MAXIMUM LIABILITY OF ABSCO IN
CONNECTION WITH THIS WARRANTY SHALL
NOT IN ANY CASE EXCEED THE CONTRACT
PRICE FOR THE PRODUCT CLAIMED TO BE
DEFECTIVE OR UNSUITABLE.
4. This warranty does not extend to any product
manufactured by absco which has been subjected
to misuse, neglect, accident, improper installation, or
use in violation of instructions furnished by absco.
5. This warranty does not extend to or apply to any unit
which has been repaired or altered at any place
other than absco’s factory, or by persons not
expressly approved by absco, nor to any unit the
serial number, model number, or identification of
which has been removed, defaced or changed.
6. Components manufactured by any supplier other
than absco shall bear only that warranty made by
the manufacturer of that product.
7. This warranty applies to products defined as
“consumer products” by the Consumer Product
Warranties Act as from time to time amended.
D. CONSUMER RIGHTS:
This warranty gives you specific legal rights, and you
may have other rights which vary from state to state.
Some states do not allow exclusion or limitation
of damages.
STANDA D WA ANTY: If the products manufactured
and sold hereunder are not Consumer Products, the
warranty extended to Buyer shall be as set forth in
subparagraphs (A), (B), and (C), EXCEPT THAT ALL
EXP ESS O IMPLIED WA ANTIES O
ME CHANTABILITY O SUITABILITY FO ANY
PA TICULA PU POSE A E EXCLUDED.
ONE YEAR LIMITED WARRANTY
THE PRODUCTS DESCRIBED HEREIN ARE
SUB ECT TO THE ABSCO ONE YEAR LIMITED
WARRANTY, WHICH IS AVAILABLE FOR YOUR
INSPECTION UPON REQUEST.
