Jacuzzi Riva 5.5 User manual

Riva®5.5
WHIRLPOOL PLUS
MODEL NUMBER:
FX05 – Right-hand
FX00 – Left-hand
EXTERIOR DIMENSIONS:
66" long x 38" wide x
19½" high
# OF JETS/TYPE OF JETS:
4 TheraPro™ Jets
4 AccuPro™ Jets
OPERATING GALLONS:
50 gallons
Evoking the breathtaking beauty and ancient maritime tradition of the northern
Italian town for which it is named, the Riva®is true to form—an elegant classic. And
truly versatile—at home in both traditional and more contemporary interior design.
WHIRLPOOL BATH FEATURES:
• Contoured backrest
• 4 Fully adjustable TheraPro™ jets
• 2 Directionally adjustable AccuPro™ lumbar jets
• 2 Directionally-adjustable AccuPro™ foot jets
• 256-color chromatherapy underwater lighting
• Exclusive Tru-Level™ base system
• Slip-resistant bottom
• Patented Fixed Silent Air™ Induction system
• RapidHeat™ inline heater
Riva®5.5 |WHIRLPOOL PLUS

Riva®5.5
WHIRLPOOL PLUS
Technical Specifications
EXTERIOR DIMENSIONS
66" L x 38" W x 191⁄2" H
(1676 mm) L x (965 mm) W x (495 mm) H
INTERIOR DIMENSIONS
45" L x 25" W x 16" H
(1143 mm) L x (635 mm) W x (406 mm) H
DRAIN/OVERFLOW
A: 143⁄4" (375 mm) B: 91⁄2" (241 mm)
CUTOUT
Template Provided Part Number:
FX40000 Drop-in/Undermount
TOTAL WEIGHT
760 lb (344 kg) / 55 lb/sq. ft. (29 kg/m2)
OPERATING GALLONAGE
50 U.S. Gal. (189 Liters)
Min. 44 U.S. Gal. (166 Liters)
Max. 56 U.S. Gal. (211 Liters)
PRODUCT WEIGHT
93 lb (42 kg)
SKIRT MOUNTING
Not Available
ELECTRICAL SPECIFICATIONS
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
HEATER
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
© 2008 Jacuzzi Whirlpool Bath • 14525 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
INSTALLATION NOTES
Refer to installation instructions included with xture before
beginning installation. Please conrm product availability and
specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#GN83-000 05/08
FX05
Riva™ 5.5 Whirlpool Plus, Right Hand
FX00
Riva™ 5.5 Whirlpool Plus, Left Hand
• Left and Right Hand Drain Location
• Accessories / Hardware:
Rotary Drain Kit, 26” Cable #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze

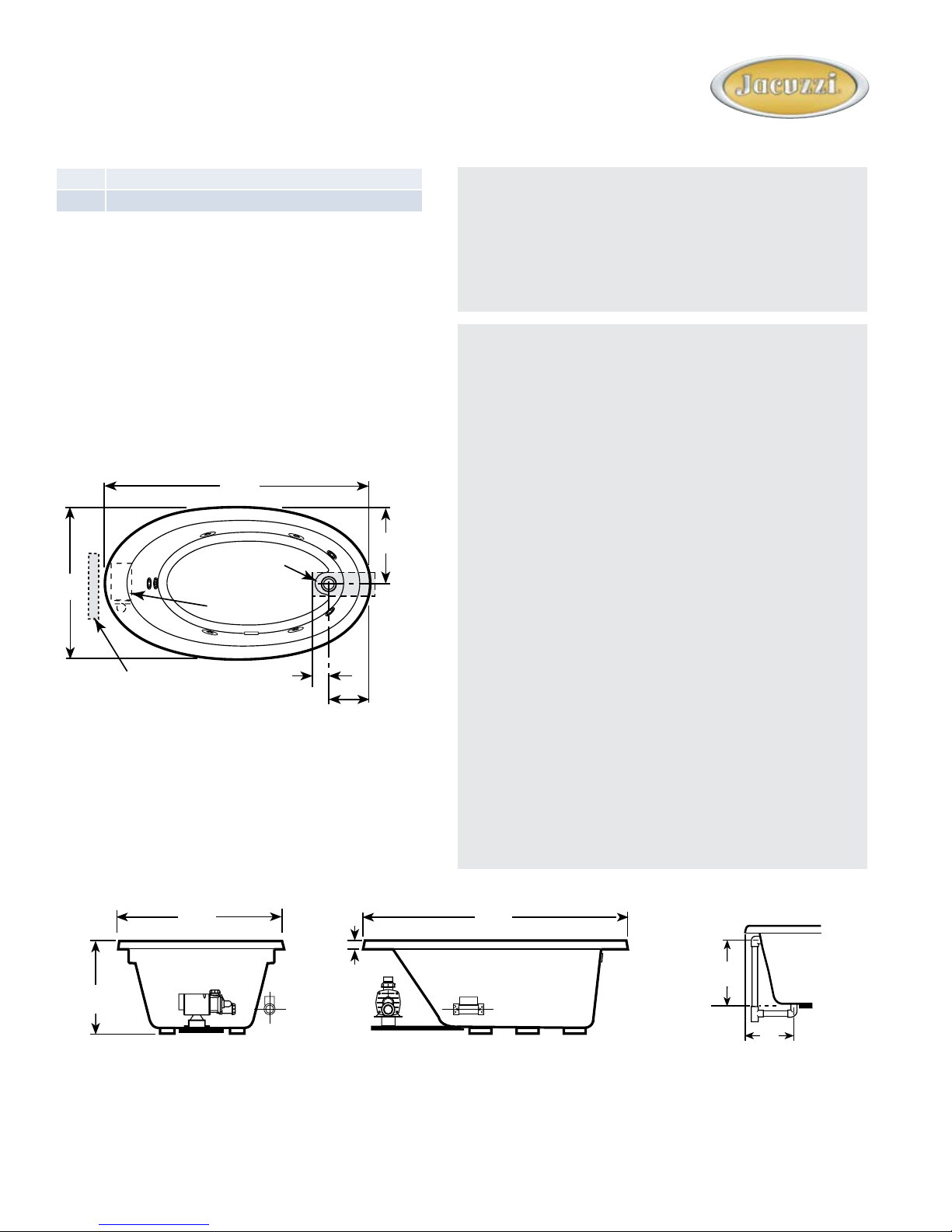

RIVA™ 5.5, Right Hand
66"
19"
38"
2"
14" x 4"
9-1/2"
Motor
12" H x 18" L
Service Access
END VIEW
19 1/2"
38"
SIDE VIEW
66"
2"
(51 mm) (Heater)
DRAIN/OVERFLOW
A
B
Product Shown: Riva® 5.5 Whirlpool Plus
Right Hand Shown Model: FX05
* Measurements inside unit represent cutout
in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
