English Metric
Outer Dimensions 66” L x 36” W x 26” H 1676 mm L x 914 mm W x 660 mm H
Interior Dimensions
(bottom of bath) L x W (Mid) x W (End) 44” L x 21 1/2” W x 21 1/2” W 1118 mm L x 546 mm W x 546 mm W
Drain/Pump Configuration Center drain/Right end pump Center drain/Right end pump
Bath Weight (empty) 136 lbs 62 kg
Total Weight/Floor Loading 1,044 lbs 63.3 lbs/ft2475 kg 309 kg/m2
Operating Gallonage (min-max) 75 (min) 79 (max) U.S. Gals 284 (min) 299 (max) L

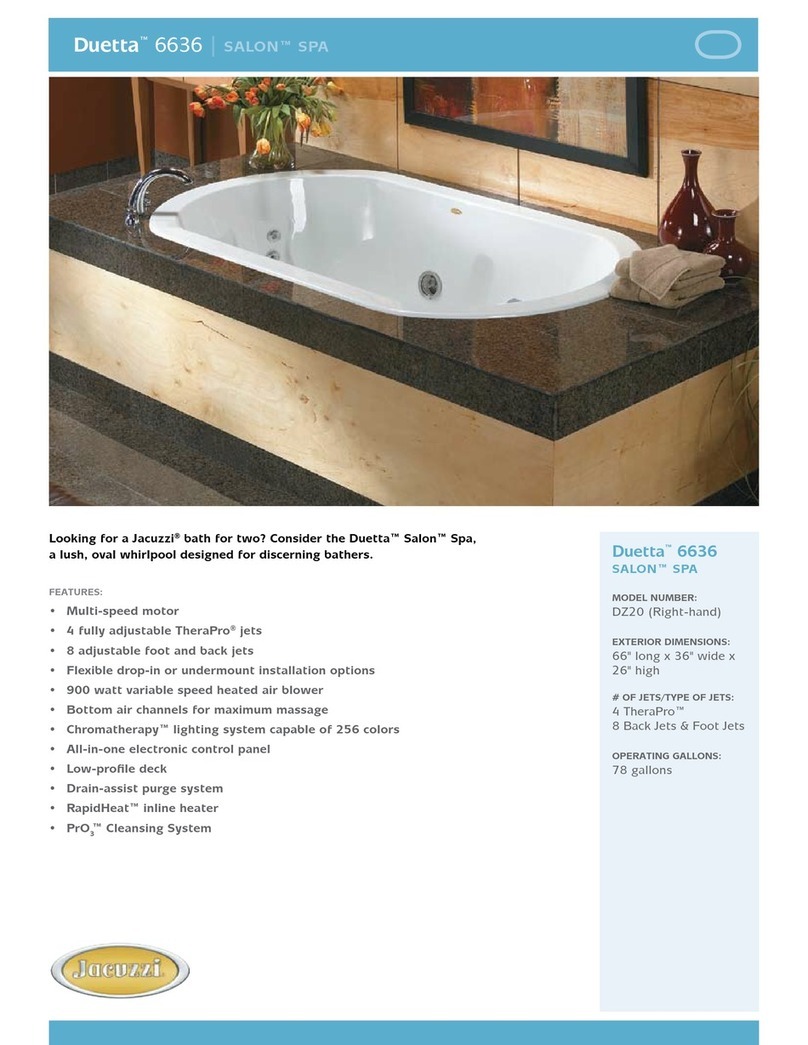

Duetta 6636 Whirlpool
Material Type: High-Gloss Acrylic
Install Type: Drop-in or Undermount
Available Colors: White (W), Almond (A), Oyster (Y), Black (B)
Cut-out Template: DA08000
Standard (Included) Features:
16 jets, In-line Heater,
Chromatherapy lighting
Available Control Systems:
J4 Luxury Control Panel (standard)
J5 Luxury LCD Control Panel
© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/technicalspecs
HC86000 REL 02/10
Letter Description English Metric
L Outer Length 66” 1676 mm
W Outer Width 36” 914 mm
H Overall Height 26” 660 mm
A Overflow Height 18 3/8” 467 mm
B Long Edge to Drain Center 11” 279mm
C Short Edge to Drain Center 33” 838 mm
D Drain Shoe Length 7 1/4” 183 mm
E Deck Height 1/2” 13 mm
F Deck Width* 3 7/8” 98 mm
G ServiceAccess Dimensions 12” H x 18” L 305 mm x 457 mm
I Floor Cut-out for Drain 13” x 4” 330 mm x 102 mm
Refer to installation instructions included with fixture before beginning installation. Please confirm product availability and specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS ANDAVAILABILITYARE SUBJECT TO CHANGE WITHOUT NOTICE.
Electrical Specifications Each component requires a separate, dedicated GCFI protected circuit
Motor/Pump 120V 20A 60HZ
Heater 120V 15A 60HZ
Available Upgrades:
Whisper Quiet Technology,
Illumatherapy Lighting
Available Accessories:
DA34 Rotary Drain Kit PVC (specify metal finish)
D095 TheraPro Jet Trim Kit (specify metal finish)
827: Chrome, 826: Brushed Nickel, 845: Oil Rubbed Bronze
*Note: D095 (Chrome) is standard on Illumatherapy jets.
C263 Curved Pillow (specify color) 959: White, 958: Almond, 969: Oyster
GQ88 Light Chromatherapy Add-on Kit
NOTE: Graphics May Not be to Scale
Product Codes beginning with: DUE6636WCR
Also applies to products sold under part numbers: JR10, JR15, EE15, JR25, JR30, JR35, JR40, JR45
KEY DIMENSIONS
FEATURES, UPGRADES & ACCESSORIES
TECHNICAL SPECIFICATIONS
Drain/Overflow
*Deck width reflects only area indicated on detail.
Side View End View
(Heater)
(Motor)
L
E
(Motor)
(Heater)
W
HA
D
B
Motor Extends
3” Beyond Lip
Control
Panel
Heater
I
3”
Overflow
Suction Fitting
C
L
W
Motor
(G) Service
Access
F
Note: Drain installation is
non-standard. Vertical overflow
connection requires offset.
