Jacuzzi Steam Generator SteamPro 120 User manual

STEAMPRO™
120
Steam Generator
Installation and Operating Manual
4211-122 02-08-02
Jacu zii.

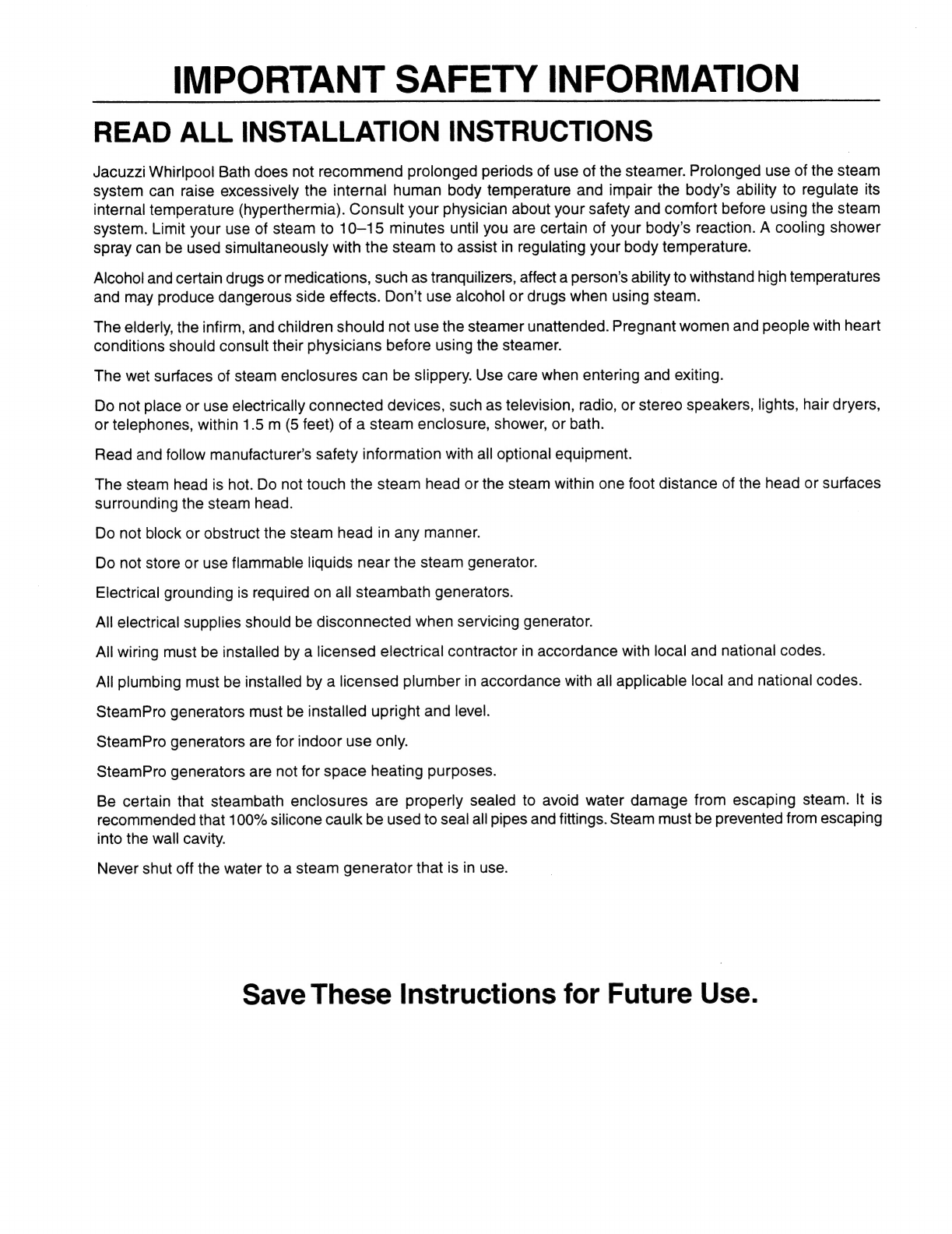

IMPORTANT SAFETY INFORMATION
READ ALL INSTALLATION INSTRUCTIONS
Jacuzzi Whirlpool Bath does not recommend prolonged periods of use of the steamer. Prolonged use of the steam
system can raise excessively the internal human body temperature and impair the body’s ability to regulate its
internal temperature (hyperthermia). Consult your physician about your safety and comfort before using the steam
system. Limit your use of steam to 10—15 minutes until you are certain of your body’s reaction. A cooling shower
spray can be used simultaneously with the steam to assist in regulating your body temperature.
Alcohol and certain drugs or medications, such as tranquilizers, affect a person's ability to withstand high temperatures
and may produce dangerous side effects. Don’t use alcohol or drugs when using steam.
The elderly, the infirm, and children should not use the steamer unattended. Pregnant women and people with heart
conditions should consult their physicians before using the steamer.
The wet surfaces of steam enclosures can be slippery. Use care when entering and exiting.
Do not place or use electrically connected devices, such as television, radio, or stereo speakers, lights, hair dryers,
or telephones, within 1.5 m (5 feet) of a steam enclosure, shower, or bath.
Read and follow manufacturer’s safety information with all optional equipment.
The steam head is hot. Do not touch the steam head or the steam within one foot distance of the head or surfaces
surrounding the steam head.
Do not block or obstruct the steam head in any manner.
Do not store or use flammable liquids near the steam generator.
Electrical grounding is required on all steambath generators.
All electrical supplies should be disconnected when servicing generator.
All wiring must be installed by a licensed electrical contractor in accordance with local and national codes.
All plumbing must be installed by a licensed plumber in accordance with all applicable local and national codes.
SteamPro generators must be installed upright and level.
SteamPro generators are for indoor use only.
SteamPro generators are not for space heating purposes.
Be certain that steambath enclosures are properly sealed to avoid water damage from escaping steam. It is
recommended that 100% silicone caulk be used to seal all pipes and fittings. Steam must be prevented from escaping
into the wall cavity.
Never shut off the water to a steam generator that is in use.
Save These Instructions for Future Use.

Inspection and Shipping Claim
Check for shipping damage upon receipt of the product. Jacuzzi Whirlpool Bath is not responsible for damage to the
product sustained during shipping. If damage is evident before unpacking, see instructions regarding shipping claims
on the outside of the carton and immediately file a claim with the carrier.
Once the product has been removed from the carton and before it is permanently installed, check the parts completely
for damage resulting from shipping or handling. All Jacuzzi Whirlpool Bath products are factory tested for proper
operation and watertight connections prior to shipping. If problems are detected, immediately notify your Jacuzzi
Whirlpool Bath dealer or Authorized Service Agent, or call Jacuzzi Whirlpool Bath, 800-363-0251, for Warranty
Service.
NOTE: Damage or defects which could have been discovered and repaired prior to installation and which are claimed
after final installation of the product are excluded from our warranty.
Owner’s Record
Date Purchased
Purchased From
Installed By
Serial Number Model #
(The serial number is located on the end of the steam generator)

Contents
Installation of Steam Generator
Electrical Requirements
Locating the Steam Generator
Room Construction and Ventilation
Plumbing Instructions and Cautionary Notes on Installation
Control Installation
Service
Trouble Shooting
Wiring Diagram
OMOOnfrWW NM -b
GENERAL DESCRIPTION
The SteamProm120 steam generator from Jacuzzi Whirlpool Bath is designed in an ultra compact size for easy
installation
and
provides
instant
steam
for
convenient
steam
bathing.
The
SteamPro
120
must
be
supplied
with
115V
20A
electrical
service.
The
generator
is
designed
to
be
manually
drained.
For
residential
use
only
in
Acrylic
or
Fiberglass enclosures, rated for Steam.
PIPE INSULATION
RECOMMENDED
STEAM PIPE: 1/2 INCH
MINIMUM SIZE COPPER
(NOT PROVIDED). 25 FOOT
TOTAL MAXIMUM RUN. DO / STEAM HEAD
NOT PLACE ANY VALVES
4" ‘ "
OR
DIPS
IN
LINE.
i
3/4"
DIA.
TUBING
(6"
LONG)
|
WATER
SUPPLY
WITH
ee SHUT OFF VALVE, 3/8
UNION
(NOT
|
OR
1/2
INCH
COPPER
\/
SS
‘
PROVIDED)
ioe
(NOT
PROVIDED)
AL UNION (NOT
E PROVIDED)
3/8 NPT WATER VALVE INLET
1/2 NPT STEAM
DELIVERY TUBE
8 psig PRESSURE
RELIEF VALVE
FACTORY
INSTALLED N, f
/ LOW VOLTAGE CONTROL
INSTANT STEAM
©
DRAIN ACCESS —————~
3/8 NPT PLUG FACTORY INSTALLED
SPECIFICATIONS
MAX. CAPACITY AVAILABLE MODEL DIMENSIONS DRY WEIGHT FILLED PACKAGED
RATING SIZES NUMBER LxWxH WEIGHT WITH WATER SHIPPING WEIGHT
(cubic feet)
80 2kW T632000 9-1/4” x 4”x 7-1\2” 2.5 Ibs. 3 Ibs. 3 Ibs.
(1.1 kg) (1.4 kg) (1.4 kg)

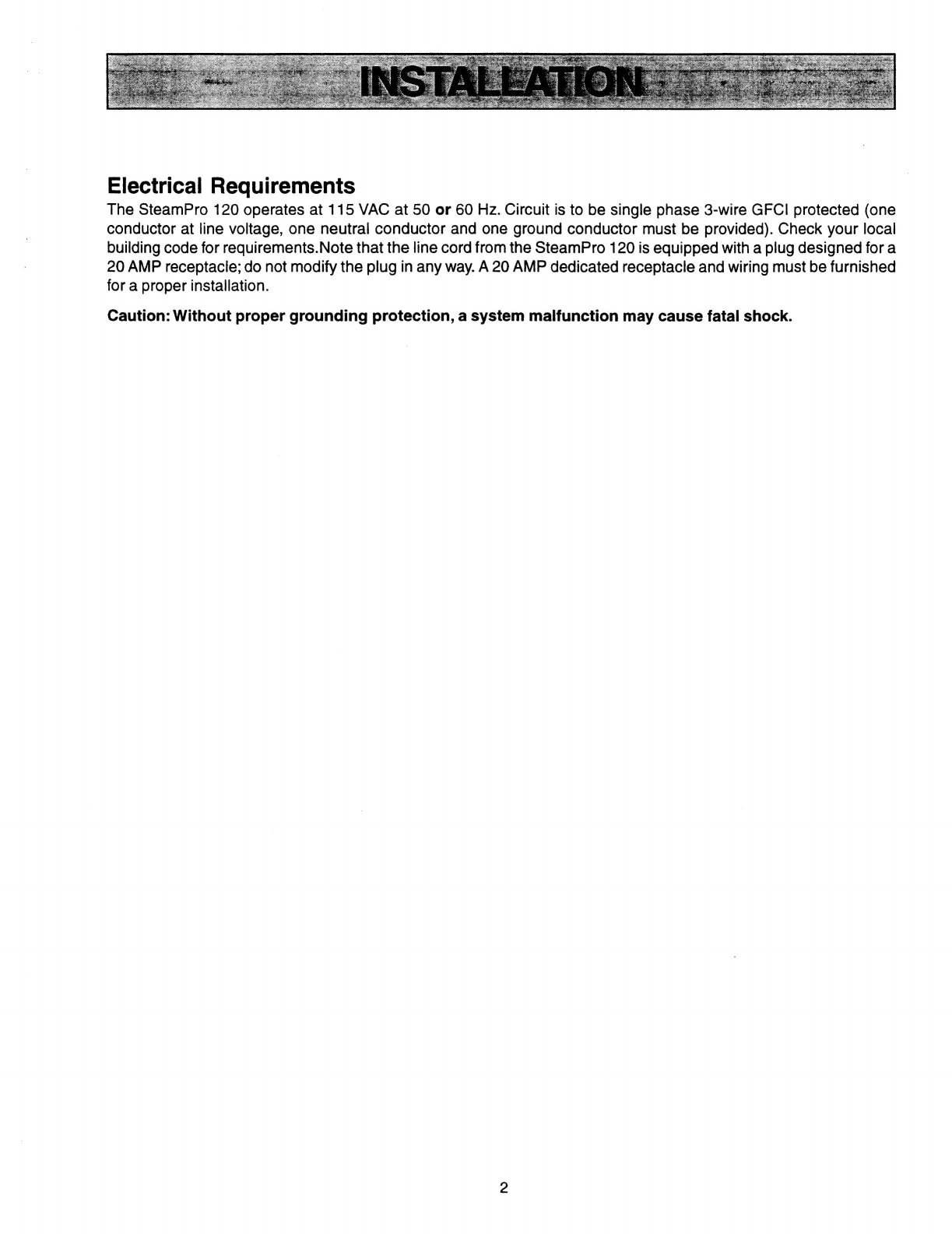

Electrical Requirements
The SteamPro 120 operates at 115 VAC at 50 or 60 Hz. Circuit is to be single phase 3-wire GFCI protected (one
conductor at line voltage, one neutral conductor and one ground conductor must be provided). Check your local
building code for requirements.Note that the line cord from the SteamPro 120 is equipped with a plug designed fora
20 AMP receptacle; do not modify the plug in any way. A 20 AMP dedicated receptacle and wiring must be furnished
for a proper installation.
Caution: Without proper grounding protection, a system malfunction may cause fatal shock.

Locating the Steam Generator
The
steam
generator
must
be
installed
upright
and
level.
The
steam
generator
must
be
located
within
a
12
foot
maximum
steam
line
run
to
the
steam
head
AND
within
the
25
foot
control
wire
length
to
the
control.
It
may
stand
attached
to
a
horizontal
base
or
to
a
wall.
Provide
for
draining
from
the
drain
located
at
the
bottom
of
the
generator.
For
wall
mounting,
use
slots
on
cabinet
and
install
a
wood
cleat
or
shelf
to
the
wall
at
the
bottom
of
the
unit
to
help
support
the
bottom.
Install
the
steam
generator
indoors
only
and
in
a
dry
location
that
will
not
be
subject
to
freezing.
lf
exposure
to
freezing
can
not
be
avoided
(e.g.,
seasonal-use
homes)
turn
off
the
water
supply
to
the
unit
and
drain
the
tank.
Turn
off
the
water
supply
to
the
unit
if
it
will
not
be
used
for
an
extended
period
of
time.
Room Construction and Ventilation: Important
The
steam
room
must
be
constructed
of
Acrylic
or
Fiberglass
rated
for
steam
that
can
withstand
excessive
amounts
of
moisture
and
condensation.
Large
amounts
of
steam
can
be
released
into
the
room
when
the
enclosure
door
is
opened.
Providing
natural
or
forced
ventilation
outside
of
the
enclosure
will
help
minimize
moisture
damage
to
the
building.
Jacuzzi
Whirlpool
Bath
is
not
responsible
for
damage
resulting
from
excessive
moisture.
Consult
an
architect
or
engineer for
aid
in
designing
the
structure
of
your
room.
HEATED ATTIC oe
INSIDE VANITY
OR CABINET
BASEMENT

Plumbing Instructions and Cautionary Notes on Installation
Minerals in the water or poor water quality can shorten the life of the steam generator or cause erratic operation if
the tank is not drained regularly. Drain the tank frequently.
Guard against possible contact with hot steam pipes and other plumbing.
Maximum run of the steam pipe is 12 feet. The steam pipe should be insulated. This will reduce condensation in
the steam line and will increase efficiency. Use copper and brass pipe and fittings, 1/2 inch minimum, or 3/4”
silicone hose with protective cover.
Install a water supply shutoff valve where it is easily accessible.
The water supply pipe should be attached to cold supply. Do not use a saddle or piercing type connection for the
steam unit water supply.
Apply thread compound sparingly to fitting threads such that excess compound does not dislodge and restrict the
copper pipes or water valve. Flush lines before making connections to the generator.
When tightening or loosening fittings, always use a backup wrench to hold the adjacent fitting.
Caution: Do not install any valves or create restrictions in the steam line. Do not construct any dips or valleys
in the steam line as condensation will accumulate in these and block the pipe with water. Pitch the steam line
such that condensation will run to the steam generator (preferable) or to the steam head.

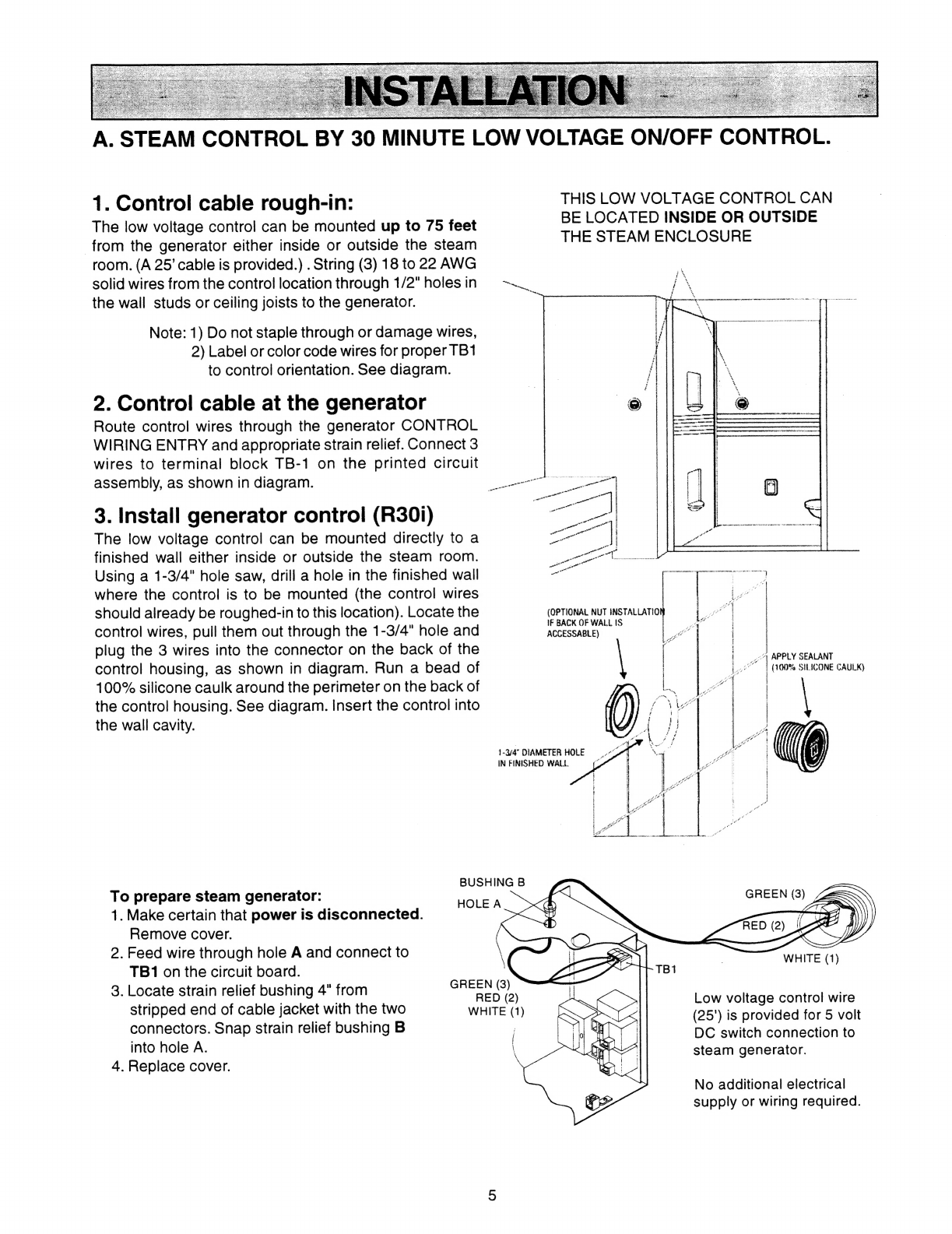

A. STEAM CONTROL BY 30 MINUTE LOW VOLTAGE ON/OFF CONTROL.
1. Control cable rough-in:
The low voltage control can be mounted up to 75 feet
from the generator either inside or outside the steam
room. (A 25’ cable is provided.) . String (3) 18 to 22 AWG
solid wires from the control location through 1/2" holes in
the wall studs or ceiling joists to the generator.
Note: 1) Do not staple through or damage wires,
2) Label or color code wires for proper TB1
to control orientation. See diagram.
2. Control cable at the generator
Route control wires through the generator CONTROL
WIRING ENTRY and appropriate strain relief. Connect 3
wires to terminal block TB-1 on the printed circuit
assembly, as shown in diagram.
3. Install generator control (R30i)
The low voltage control can be mounted directly to a
finished wall either inside or outside the steam room.
Using a 1-3/4" hole saw, drill a hole in the finished wall
where the control is to be mounted (the control wires
should already be roughed-in to this location). Locate the
control wires, pull them out through the 1-3/4" hole and
plug the 3 wires into the connector on the back of the
control housing, as shown in diagram. Run a bead of
100% silicone caulk around the perimeter on the back of
the control housing. See diagram. Insert the control into
the wall cavity.
1-3/4" DIAMETER HOLE
IN FINISHED WALL g
THIS LOW VOLTAGE CONTROL CAN
BE LOCATED INSIDE OR OUTSIDE
THE STEAM ENCLOSURE
N
~~ i y
y
eel 4
(OPTIONAL NUT INSTALLATIO
IF BACK OF WALL IS
ACCESSABLE)
oo) APPLY SEALANT
(100% SILICONE CAULK)
|
Nj
ee %
iD. MRT OTK TR ARIS jea.
A, N,
? N, o
NS
~,
$ $ can
wA,
H D, wo. es z Ne YR a
PREI o EE PIRRE 4 s
` arininn nine tt A AREE RRR, oe a, aliai
N, i vee, v4
wA : tSean lew +
i A, i y ż AA Ay, 7 $ sA INRA asses, we
rs A i,
AN, NS.
$ ` `
; e, N
A OA
BUSHING B
To prepare steam generator:
1. Make certain that power is disconnected.
Remove cover.
2. Feed wire through hole A and connect to
HOLE A
5 WHITE (1
TB1 on the circuit board. LD a
3. Locate strain relief bushing 4" from one) |
l l l RED (2) Low voltage control wire
stripped end of cable jacket with the two WHITE (1) (25') is provided for 5 volt
connectors. Snap strain relief bushing B
into hole A.
4. Replace cover.
DC switch connection to
steam generator.
No additional electrical
supply or wiring required.

Description of SteamPro Steam Generator
The SteamPro series generator is the latest in modern steam generator design. The SteamPro steam generator uses a
printed circuit assembly to monitor and control all the equipment needed to produce steam. The system has three functions:
a timer that controls the length of the steam bath; the operating water level is monitored and controlled; and the heating
element is protected by a minimum water level sensor. The element can be removed by removing the tank and unscrewing
the element.
Maintenance of SteamPro Generators
Maintenance of the SteamPro generator includes flushing the unit periodically and visually inspecting for water leaks.
Whenever the generator is opened all wiring should be inspected for any signs of overheating. All electrical connections
should be checked for tightness.
Repair of SteamPro Generators
A. ELEMENT REPLACEMENT: Disconnect power from the unit. Drain the tank. Open the front ACCESS cover.
Note the wire connections. See diagram. Loosen the tank and remove the element wires. Using a hot water
element socket, remove the element. To install a new element, clean the element port and add a light coat of
Rectorseal No. 5 pipe thread compound to the element threads. Insert and hand tighten the element. Notice the
element end orientation as shown in diagram. Tighten the element until the orientation is the same as diagram, +
15°. Reconnect the wiring. Test the unit. Check for leaks at the element. Replace the front cover.
|
|
|
—
T- F
B. PRINTED CIRCUIT REPLACEMENT: Disconnect power from the unit. Remove the front cover. Note where the
blue wire is connected to the water level probes. Disconnect the wires from the water level probe. Disconnect the
two black wires from the water solenoid and (3) wires connected to TB1. Note and tag the position of all wires that
plug into the printed circuit assembly (PCA) mounted relays. Remove and label all the wires from the relays. When
removing these wires pull on the connector and not the wire. Four screws through the right side of the unit hold the
board in place. Remove all four screws. The printed circuit assembly can now be removed. To install the board
reverse this procedure. Test the unit.
IMPORTANT
The blue wire connected to "L" on the PCA must be connected
to the highest of the level probes.

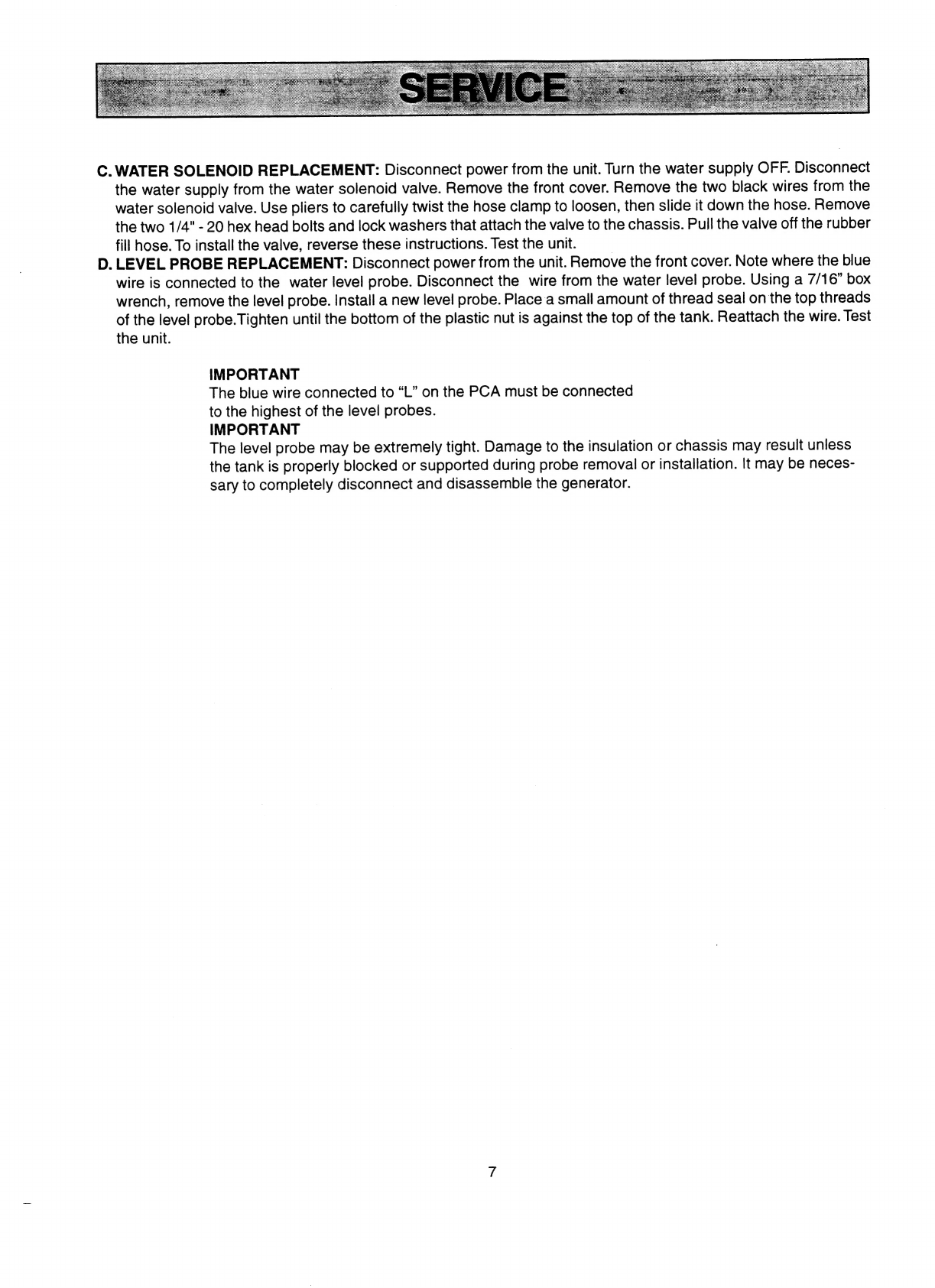

C.
WATER
SOLENOID
REPLACEMENT:
Disconnect
power
from
the
unit.
Turn
the
water
supply
OFF.
Disconnect
the
water
supply
from
the
water
solenoid
valve.
Remove
the
front
cover.
Remove
the
two
black
wires
from
the
water
solenoid
valve.
Use
pliers
to
carefully
twist
the
hose
clamp
to
loosen,
then
slide
it
down
the
hose.
Remove
the
two
1/4"
-
20
hex
head
bolts
and
lock
washers
that
attach
the
valve
to
the
chassis.
Pull
the
valve
off
the
rubber
fill
hose.
To
install
the
valve,
reverse
these
instructions.
Test
the
unit.
|
D.
LEVEL
PROBE
REPLACEMENT:
Disconnect
power
from
the
unit.
Remove
the
front
cover.
Note
where
the
blue
wire
is
connected
to
the
water
level
probe.
Disconnect
the
wire
from
the
water
level
probe.
Using
a
7/16"
box
wrench,
remove
the
level
probe.
Install
a
new
level
probe.
Place
a
small
amount
of
thread
seal
on
the
top
threads
of
the
level
probe.
Tighten
until
the
bottom
of
the
plastic
nut
is
against
the
top
of
the
tank.
Reattach
the
wire.
Test
the
unit.
IMPORTANT
The blue wire connected to “L” on the PCA must be connected
to the highest of the level probes.
IMPORTANT
The
level
probe
may
be
extremely
tight.
Damage
to
the
insulation
or
chassis
may
result
unless
the
tank
is
properly
blocked
or
supported
during
probe
removal
or
installation.
It
may
be
neces-
sary
to
completely
disconnect
and
disassemble
the
generator.

There
are
no
user
serviceable
parts
in
the
Generator.
All
repair
should
be
performed
by
a
qualified
service
person.
For
additional
assistance
or
the
factory
authorized
service
person
nearest
you
call
the
Service
Department
at
1-800-
363-0251.
The
Trouble
Shooting
Guide
below
is
meant
as
a
general
aid
only.
Follow
ACTION
TO
BE
TAKEN
in
order
until
the
problem
is
resolved.
Where
replacements
or
repairs
are
indicated,
see
the
appropriate
paragraph
of
SERVICE
SECTION.

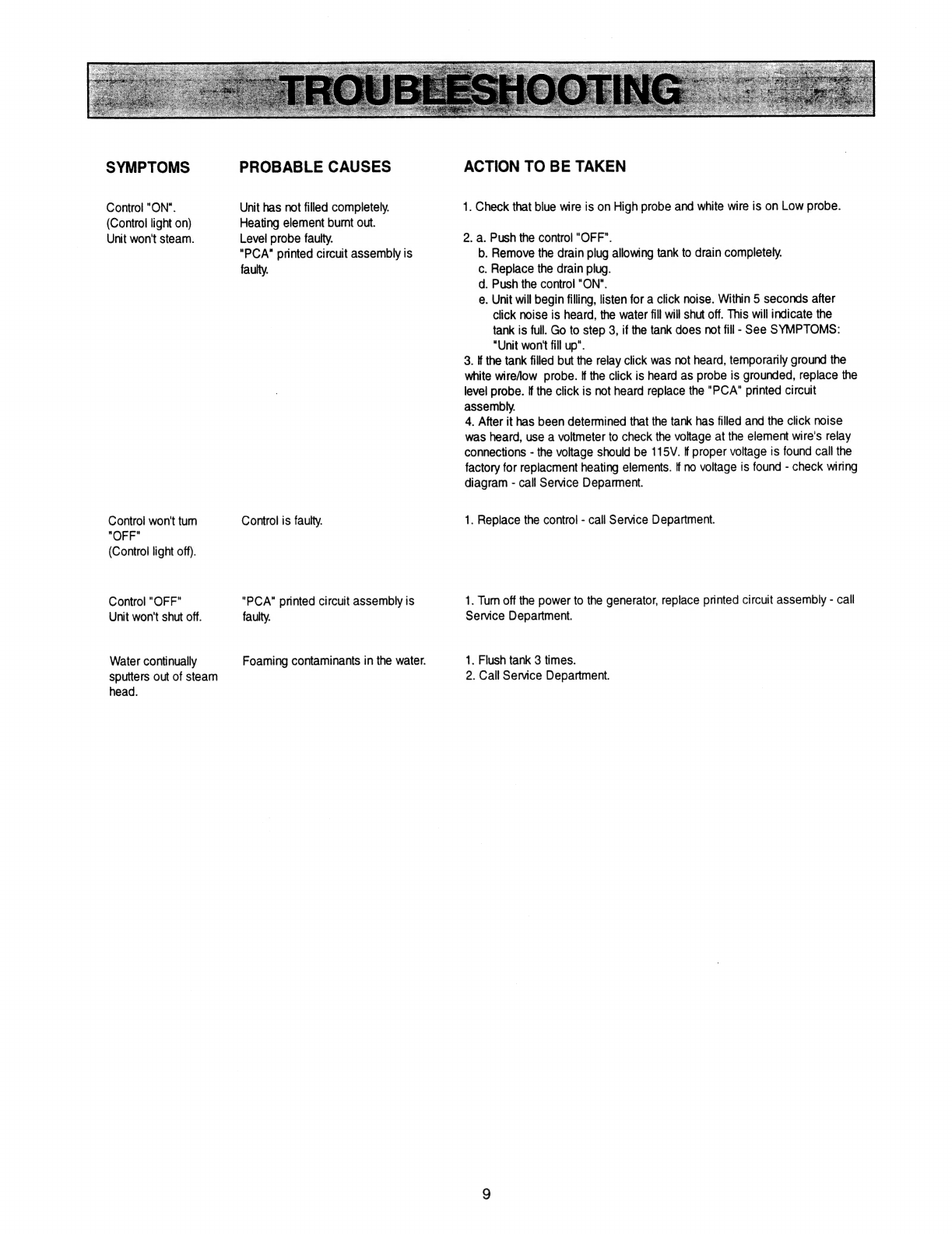

SYMPTOMS
Control won't
tum "ON"
(Control light
off).
Control "OFF".
(Control light off)
Water won't shut
off and runs out
of the steam
head.
Control "ON".
(Control light
on) Water won't
shut off and runs
out of the steam
head.
Control "ON"
(Control light
on), Tank
drained.
Unit won't fill.
PROBABLE CAUSES
Improper power supplied (no
power).
Control improperly conntected.
"PCA" printed circuit assembly
is faulty.
Control cable is faulty.
Contol is faulty.
Water solenoid valve is stuck
open.
"PCA" printed circuit assembly
is faulty.
"PCA" printed circuit assembly
is faulty.
Connection between the blue
wire and the water level probe
is faulty.
Unit improperly grounded.
Unit not level.
No water supplied (tumed off?)
Plugged water solenoid valve.
Water solenoid valve is faulty.
"PCA" printed circuit assembly
is faulty.
Level probe is faulty.
ACTION TO BE TAKEN
1.
QRWN
ooh,
a. Make sure circuit breaker is "ON".
b. Using a voltmeter, check the voltage across the two relays on the "PCA"
printed circuit assembly. Voltage should be 115V.
c. Check fuse on the PCA. If fuse is blown, replace with Buss#
MDL 63MA or equivalent fuse. If the fuse blows again - call
Service Department.
Check control installed per instructions.
Replace PCA printed circuit assembly - call Service Department.
. Replace control cable - call Service Department.
. Replace the control - call Service Department.
. Turn off power to the generator. If the water stops, go to step 3.
2. a. Remove the water solenoid valve, dissassemble, clean,
aOpan -
ok
re-assemble, and check for proper operation.
b. Replace valve - call Service Department.
. Replace the "PCA" printed circuit assembly - call Service Department.
. Check that the blue wire is properly attached to the water level probe.
. Check that the generator is properly grounded.
. Make sure unit is mounted level.
. Check the green ground wire to the "PCA" printed circuit assembly.
. Replace the "PCA" printed circuit assembly - call the Service Department.
. Check for proper water supply (Supply valve “on"). Check for closed drain.
. Remove the blue wire from the level probe. If the unit fills, clean or replace the
level probe.
. Reconnect the blue wire to the level probe. At the water valve solenoid, slide
back the wire connectors enough to get the voltmeter probes on the solenoid
terminals. Measure the voltage across the solenoid terminals. If it is not 115V
replace the printed circuit assembly. If 115V is found proceed
with steps 4 & 5.
. Remove water solenoid valve; disassemble, clean, reassemble, and check for
proper operation.
. Replace the water solenoid valve - call Service Department.

SYMPTOMS
Control "ON".
(Control light on)
Unit won't steam.
Control won't tum
"OFF"
(Control light off).
Control "OFF"
Unit won't shut off.
Water continually
sputters out of steam
head.
PROBABLE CAUSES
Unit has not filled completely.
Heating element burnt out.
Level probe faulty.
"PCA" printed circuit assembly is
faulty.
Control is faulty.
"PCA" printed circuit assembly is
faulty.
Foaming contaminants in the water.
ACTION TO BE TAKEN
1. Check that blue wire is on High probe and white wire is on Low probe.
2. a. Push the control "OFF".
b. Remove the drain plug allowing tank to drain completely.
c. Replace the drain plug.
d. Push the control "ON".
e. Unit will begin filling, listen for a click noise. Within 5 seconds after
Click noise is heard, the water fill will shut off. This will indicate the
tank is full. Go to step 3, if the tank does not fill - See SYMPTOMS:
"Unit won't fill up".
3. If the tank filled but the relay click was not heard, temporarily ground the
white wire/flow probe. ff the click is heard as probe is grounded, replace the
level probe. If the click is not heard replace the "PCA" printed circuit
assembly.
4. After it has been determined that the tank has filled and the click noise
was heard, use a voltmeter to check the voltage at the element wire's relay
connections - the voltage should be 115V. f proper voltage is found call the
factory for replacment heating elements. If no voltage is found - check wiring
diagram - call Service Deparment.
1. Replace the control - call Service Department.
1. Turn off the power to the generator, replace printed circuit assembly - call
Service Department.
1. Flush tank 3 times.
2. Call Service Department.

GREEN
BLUE
WHITE
GROUNDAT ~ T
TOP TANK | :
MOUNTING TAB
| |
HGH = L |
~ ILOW
PROBE PROBE |
—_. NEUTRAL
POWERIN =
120VAC 8
2?
GROUND
ELEMENT
4124-14
01/09/02
== por F1 1/16 A SLO-BLO
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
USE INSTALLATION INSTRUCTIONS SUPPLIED WITH PRODUCT.
Jacuzzi Whirlpool Bath has obtained applicable code (standards) listings generally available on a national basis for
products of this type. It is the responsibility of the installer/owner to determine specific local code compliance prior to
installation of the product. Jacuzzi Whirlpool Bath makes no representation or warranty regarding, and will not be
responsible for any code compliance.
JACUZZI WHIRLPOOL BATH
Jacuzzi Whirlpool Bath National Headquarters
P.O. Drawer J, Walnut Creek, CA 94596 [phone]
Service Support: Call [phone]
©2000 Jacuzzi Whirlpool Bath T985000 02/02
4211-122 02-08-02
10

Jacuzzi Whirlpool Bath, warrants that its Steam Generators (warranted products) are free of manufacturing defects
both as to workmanship and material for 5 years and it will replace or repair defective parts or equipment for the
period of time and in accordance with the conditions set forth below. The terms of the warranty will be administered
by Saunatec Inc. dba, AMEREC.
1. Applicability. This warranty applies when the warranted product (a) is installed in accordance with installation
instructions provided, (b) is properly and reasonably maintained, and (c) has not been subjected to damage, misuse,
or abuse.
2. Registration. This warranty becomes valid only after the Limited Warranty Registration form, provided with this
warranty, is completely filled in and signed by the original purchaser and mailed to AMEREC within sixty (60) days
from the date of original installation. This warranty is non-transferable and shall extend only to the original purchaser.
3. Duration of Warranty. AMEREC or its authorized representative will provide parts to replace those with manufacturing
or workmanship defects for a period of five (5) years from the date of original installation, except when the warranted
product is installed in commercial locations such as clubs, condominiums, apartments, spas or military facilities.
Additionally, for non-commercial locations in the United States AMEREC or its authorized representative will provide
reasonable labor to replace defective parts for a period of two (2) years from the date of original installation and three
(3) additional years if the product is returned to the factory.
4. Warranty Work. All warranty work must be (a) authorized by AMEREC before it is performed; and (b) performed
only by authorized AMEREC representatives. This warranty shall not apply to any charges for parts or labor incurred
before receiving approval by AMEREC.
5. Return Authorization Number. A return authorization number assigned by an AMEREC representative must
accompany all returned parts. Parts which are returned without a return authorization number may not be repaired
or replaced.
Jacuzzi Whirpool Bath
C/O AMEREC
P.O. Box 2258
Woodinville WA, 98072
11

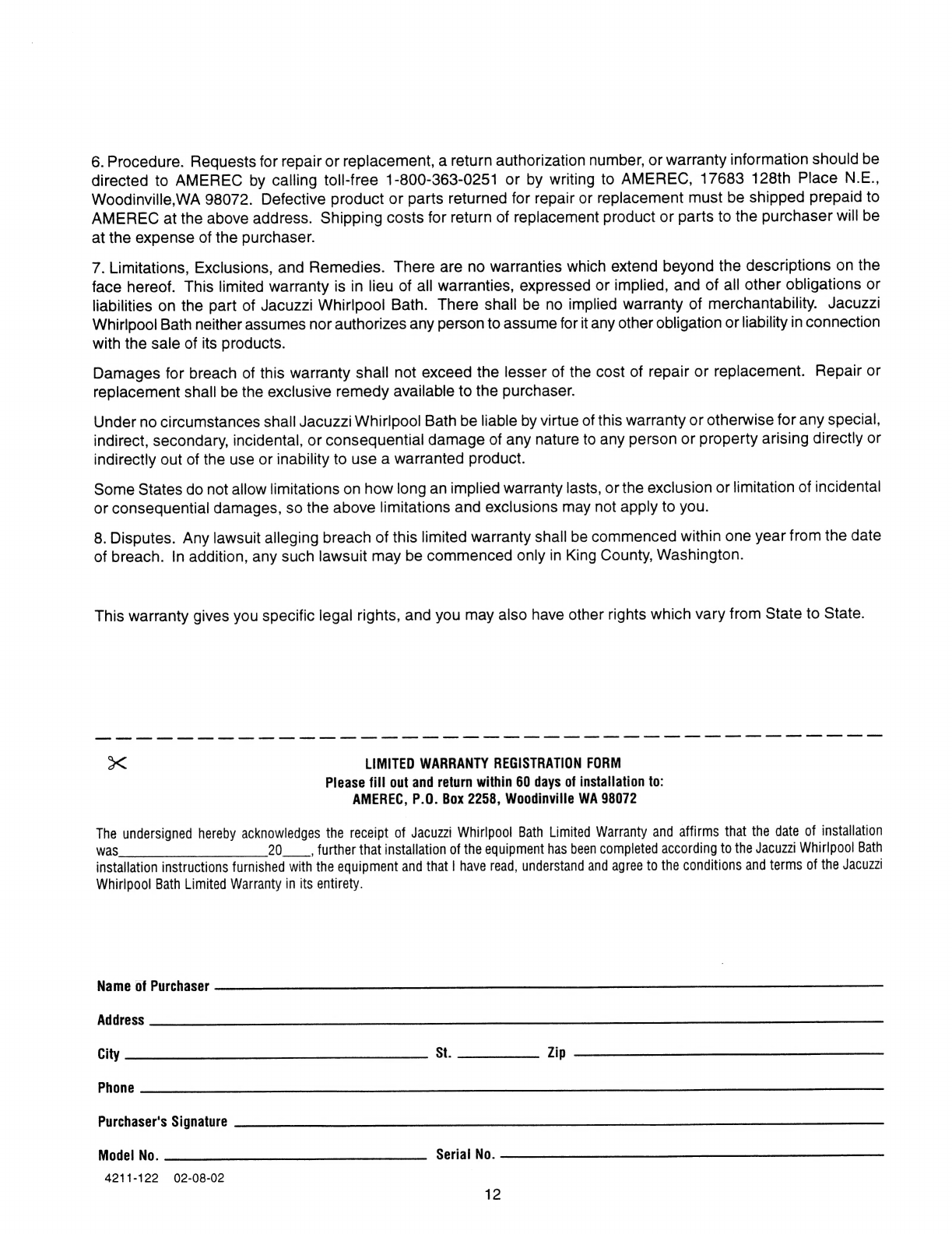

6.
Procedure.
Requests
for
repair
or
replacement,
a
return
authorization
number,
or
warranty
information
should
be
directed
to
AMEREC
by
calling
toll-free
1-800-363-0251
or
by
writing
to
AMEREC,
17683
128th
Place
N.E.,
Woodinville,
WA
98072.
Defective
product
or
parts
returned
for
repair
or
replacement
must
be
shipped
prepaid
to
AMEREC
at
the
above
address.
Shipping
costs
for
return
of
replacement
product
or
parts
to
the
purchaser
will
be
at
the
expense
of
the
purchaser.
7.
Limitations,
Exclusions,
and
Remedies.
There
are
no
warranties
which
extend
beyond
the
descriptions
on
the
face
hereof.
This
limited
warranty
is
in
lieu
of
all
warranties,
expressed
or
implied,
and
of
all
other
obligations
or
liabilities
on
the
part
of
Jacuzzi
Whirlpool
Bath.
There
shall
be
no
implied
warranty
of
merchantability.
Jacuzzi
Whirlpool
Bath
neither
assumes
nor
authorizes
any
person
to
assume
for
it
any
other
obligation
or
liability
in
connection
with
the
sale
of
its
products.
Damages
for
breach
of
this
warranty
shall
not
exceed
the
lesser
of
the
cost
of
repair
or
replacement.
Repair
or
replacement
shall
be
the
exclusive
remedy
available
to
the
purchaser.
Under
no
circumstances
shall
Jacuzzi
Whirlpool
Bath
be
liable
by
virtue
of
this
warranty
or
otherwise
for
any
special,
indirect,
secondary,
incidental,
or
consequential
damage
of
any
nature
to
any
person
or
property
arising
directly
or
indirectly
out
of
the
use
or
inability
to
use
a
warranted product.
Some
States
do
not
allow
limitations
on
how
long
an
implied
warranty
lasts,
or
the
exclusion
or
limitation
of
incidental
or
consequential
damages,
so
the
above
limitations
and
exclusions
may not
apply
to
you.
8.
Disputes.
Any
lawsuit
alleging
breach
of
this
limited
warranty
shall
be
commenced
within
one
year
from
the
date
of
breach. In
addition,
any
such lawsuit
may
be
commenced
only
in
King
County,
Washington.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
aN LIMITED WARRANTY REGISTRATION FORM
Please fill out and return within 60 days of installation to:
AMEREC, P.O. Box 2258, Woodinville WA 98072
The
undersigned
hereby
acknowledges
the
receipt
of
Jacuzzi
Whirlpool
Bath
Limited
Warranty
and
affirms
that
the
date
of
installation
was
20
_,
further
that
installation
of
the
equipment
has
been
completed
according
to
the
Jacuzzi
Whirlpool
Bath
installation
instructions
furnished
with
the
equipment
and
that
|
have
read,
understand
and
agree
to
the
conditions
and
terms
of
the
Jacuzzi
Whirlpool
Bath
Limited
Warranty
in
its
entirety.
Name of Purchaser
Address
Purchaser s Signature cc i ts eS
Model No. Ses eesesssssSCsCsC(Cssti(ssssSSSSCSCSsSSSerrrl NO.
4211-122 02-08-02
12
