JAE JN1 Series User manual

COMPONENTS PRODUCT INFORMATION
CONNECTOR
NEW
MB-0054-11
May 2018
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 1/24
JN1/JN2 Series
Small Circular Connector
Receptacle Angle Plug
Straight Plug
Individual Plug
The JN1/JN2 Series is a waterproof circular connector with one-touch locking mechanism
developed as an interface for industrial devices. It is available in an all-plastic type, JN1,
and a partially metal-reinforced robust type, JN2. Both are compact designs and suitable
for a variety of electronic devices. The 4-contact JN2 is TUV certified. (Patent and design
registration applications have been filed.)
[JN1] [JN2] [JN1] [JN2]
Wall Mount
Receptacle
Cable Connecting
Receptacle
RoHS Compliant
Cap Panel Mount Plug
Waterproof Cap
(for receptacle)

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 2/24
Item Specification and Performance
Number of Contacts 10 position 4 position
Rated Current 3A/pin (#22 size contact) 5A/pin (#20 size contact)
Rated Voltage 200VAC 200VAC
Withstanding Voltage 900VAC (per minute) 2000VAC (per minute)
Insulation Resistance 1000M ohm min.(DC500V energized ) 1000M ohm min.(DC500V energized )
Waterproof IP67 IP67
Airtightness
(Individually
Waterproofed)
2.9 x 104PA (per minute)
without leakage 2.9 x 104PA (per minute) without leakage
Operating Temperature -20 Deg. C to +125 Deg.C -20 Deg. C to +125 Deg.C
Specification of Wire
Connection
Receptacle: Through-hole, solder
connection 22AWG (0.3mm2) max.
Cable connecting receptacle:
Crimp connection 20 to 28AWG
Plug: Crimp connection 20 to 28AWG
Solder connection 20AWG max.
Receptacle: Solder connection
18 AWG (0.75mm2)max.
Cable connecting receptacle and plug:
Solder connection
16 AWG (1.25mm2) max.
Product Specification JACS-5111 JACS-5111-2
Instruction Manual JAHL-5111 JAHL-5111
Durability 500 mating cycles 500 mating cycles
•An all plastic lightweight connector.
•Easy and secure mating with push-and-twist type one-touch locking mechanism.
•Terminal specifications for receptacle and plug differ by series and number of contacts, please
refer to general specifications for each product. Socket contact for 10 position plug is available in
both crimp and solder terminations.
The 4-contact receptacle does not incorporate grounding in its shell. Properly grounding the shell
will be required in implementing the connector.
•Crimp terminated relay receptacle is available in cable-relay and wall-mount receptacle types
(both 4 and 10 positions).
•Plugs available in straight and angled back shell types and individual coupler only type (10
position only). The cable direction of the angle plug can be set in four orientations by rotating the
plug in 90 degree increments.
•Mating height of angle plug is 30.8mm from panel surface (both 4 and 10 positions). Individual
plug is low profile 16.9mm (10 position only).
•IP67 rated waterproof and dustproof.
•Superb environment-proof performance with vibration and oil resistance.
•Suitable for conduit mounting (except for individual coupler type plug).
•Mating compatibility to JN1, with considerably reinforced with metal material in part of the outer
shell (strength increased threefold over JN1).
•Uses same crimp contact as the JN1.
•Terminal specification for receptacle and plug differs by series and number of contacts, please
refer to general specification for each product. 4-contact receptacle body is grounded.
•4-contact type is TUV certified.
•Plug is available in straight and angle types. The cable direction of the angle plug can be set in
four orientations by rotating the plug in 90 degree increments.
•Contact variations: 4, 10 pos.
•Angle plug mating height is 31.3mm from cabinet surface (both 4 and 10 positions).
•IP67 rated waterproof and dustproof.
•Superb environment-proof performance with vibration and oil resistance.
•Suitable for conduit mounting.
[JN2]
[JN1]
[JN1]
Features
General Specifications

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 3/24
Item Specification and Performance
Number of Contacts 10 position 4 position
Rated Current 3A / pin (#22 size contact) 5A / pin (#20 size contact)
Rated Voltage 200VAC 400VAC (degree of pollution 2,
excess voltage category 3)
Withstanding
Voltage 900VAC (per minute) 2000VAC (per minute)
Insulation
Resistance
1000M ohm min.
(DC500V energized)
1000M ohm min.
(DC500V energized)
Waterproof IP67 IP67
Airtightness
(Individually
Waterproofed)
2.9 X 104PA (per minute)
without leakage
2.9 X 104PA (per minute)
without leakage
Operating
Temperature -20 Deg. C to +100 Deg.C -20 Deg. C to +100 Deg.C
Specification of Wire
Connection
Receptacle:
Through-hole, solder connection,
22AWG (0.3mm2) max.
Plug:
Crimp connection 20 to 28AWG
Solder connection 20AWG max.
Receptacle:
Solder connection,
18AWG (0.75mm2) max.
Plug:
Solder connection 16AWG (1.25mm2)
max.
Product
Specification JACS-5119 JACS-5119-2
Instruction Manual JAHL-5119 JAHL-5119
Durability 500 mating cycles 500 mating cycles
Please refer to individual drawings for detailed product information.
[JN2]

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 4/24
[JN1]
Component Material / Finish
Receptacle Pin insulator Synthetic resin
Pin contact Copper alloy / Au plating (10 pin), Silver plating (4 pin)
Insulator Synthetic resin
Assembly nut Synthetic resin
Sraight endbell Synthetic resin
O Ring Synthetic rubber
Bushing* Synthetic rubber (Color: black/gray/brick red/dark green)
Gland nut Synthetic resin
Pin contact (#22) Au plating
Pin contact (#20) Silver plating
Plug Front insulator Synthetic resin
Rear insulator Synthetic resin
Coupling nut Synthetic resin
Assembly nut Synthetic resin
Angle endbell Synthetic resin
Straight endbell Synthetic resin
O Ring Synthetic rubber
Bushing (*) Synthetic rubber (Color: black/gray/brick red/dark green)
Gland nut Synthetic resin
Spring Stainless steel
Spring pin Stainless steel
Socket contact Copper alloy / Au plating (10 pin), Silver plating (4 pin)
Waterproof Cap Cap Synthetic rubber
Relay
Recepatacle
*Color of bushing is determined by applicable wire size.
Color of Bushing Applicable Cable
Gray 6.5 to 8.0 Dia.
Black 5.7 to 7.3 Dia.
Dark Green 4.7 to 5.7 Dia.
Brick Red 3.5 to 5.0 Dia.
Materials and Finishes

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 5/24
[JN2]
Component Material / Finish
Receptacle Pin insulator Synthetic resin
Shell Zinc die-cast / Zinc plating
Pin contact Copper alloy / Au plating (10 pin),
Silver plating (4 pin)
Plug Front insulator Synthetic resin
Rear insulator Synthetic resin
Coupling nut Zinc die-cast / Zinc plating (Black)
Assembly nut Zinc die-cast / Zinc plating (Black)
Angle endbell Synthetic resin
Straight endbell Synthetic resin
O Ring Synthetic rubber
Bushing* Synthetic rubber
(Color: black/gray/brick red/dark green)
Gland nut Synthetic resin
Spring Stainless steel
Spring pin Stainless steel
Socket contact Copper alloy / Au plating (10 pin),
Silver plating (4 pin)
Waterproof Cap Cap Synthetic rubber
*Color of bushing is determined by applicable wire size.
Color of Bushing Applicable Cable
Gray 6.5 to 8.0 Dia.
Black 5.7 to 7.3 Dia.
Dark Green 4.7 to 5.7 Dia.
Brick Red 3.5 to 5.0 Dia.

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 6/24
Series
Connection Method
U: Through-hole pin (10 pin)
M: Pin with solder (4 pin, 10 pin)
Mating Key Type
None: Normal
X: Angle changed
product
Contact Size
K: #20 (4 pin)
L: #22 (10 pin)
Shell Size
S: Connection outer dia.
(10 dia. to 15 dia.)
Receptacle
Connector Type
A: Panel mount
receptacle
Modification Number (Note 1)
Plug
JN1 A S 10 U L * * - R
Number of Contacts
04: 4 pins
10:10 pins
[JN1]
Version Code
Series
Connection Method
S: Crimp socket (10 pin, sold separately)
F: Socket with solder (4 pin)
Mating Key Type
None: Normal
X: Angle changed
product
Contact Size
K: #20 (4 pin)
L: #22 (10 pin)
Shell Size
S: Connection outer dia.
(10 dia. to 15 dia.)
Connector Type
D: Straight plug
E: Individual plug
F: Angle plug
Modification Number (Note 1)
JN1 D S 10 S L * * - R
Number of Contacts
04: 4 pins
10:10 pins
Version Code
Note 1: Please refer to product drawings for Modification Number.
[JN1]
Note 1: Please refer to product drawings for Modification Number.
Ordering Information

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 7/24
JN1 H S 10 P L * S
Connection Method
P: Crimp pin (10 pin, sold separately)
M: Pin with solder (4 pin)
Cable Connecting Receptacle
Modification No. (Note 1)
Contact Size
K: #20 (4 pin)
L: #22 (10 pin)
Number of Contacts
04: 4 pins
10:10 pins
Series
Connector Type
H: For cable connection
(without flange)
K: For wall mounting
relay type (with flange)
Shell Size
S: Connection outer dia.
(10 dia. to 15 dia.)
Assembly Nut Shape
S: Slim
[JN1]
Note 1: Please refer to product drawings for Modification Number.

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 8/24
Series
Connection Method
U: Through-hole pin (10 pin)
M: Pin with solder (4 pin, 10 pin)
Mating Key Type
None: Normal
X: Angle changed
product
Contact Size
K: #20 (4 pin)
L: #22 (10 pin)
Shell Size
S: Connection outer dia.
(10 dia. to 15 dia.)
Note 1: Please refer to product drawings for Modification Number.
Receptacle
Connector Type
A: Panel mount
receptacle
Modification Number (Note 1)
JN2 A S 10 U L * * - R
Number of Contacts
04: 4 pins
10:10 pins
[JN2]
Version Code
Series
Connection Method
S: Crimp socket (10 pin, sold separately)
F: Socket with solder (4 pin)
Mating Key Type
None: Normal
X: Angle changed
product
Contact Size
K: #20 (4 pin)
L: #22 (10 pin)
Shell Size
S: Connection outer dia.
(10 dia. to 15 dia.)
Plug
Connector Type
D: Straight plug
E: Individual plug
F: Angle plug
M: Panel mount plug
Modification Number (Note 1)
JN2 D S 10 S L * * - R
Number of Contacts
04: 4 pins
10:10 pins
[JN2]
Version Code
Note 1: Please refer to product drawings for Modification Number.

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 9/24
Part Number List
Series
No.
of
Con
tacts
Connector
Type Part Number Drawing
Number Performance / Shape
JN1
4
Square Flange
Receptacle
JN1AS04MK1 SJ035649 Individually waterproofed, solder pin
JN1AS04MK1X SJ035649 Individually waterproofed, solder pin, X position
Cable
Connecting
Receptacle
JN1HS04MK1-
R
SJ105206 Waterproof (when mated), solder pin, cable dia. 5.7 to
7.3
JN1HS04MK2-
R
SJ105206 Waterproof (when mated), solder pin, cable dia. 6.5 to
8.0
JN1HS04MK4S SJ105841 Waterproof (when mated), solder pin, cable dia. 4.7 to
5.7, Outer diameter: 20 dia. max.
JN1HS04MKKS SJ107658 Waterproof (when mated), solder pin, cable dia. 20
max., kit type (with four types of rubber bushing)
Wall Mount
Receptacle
JN1KS04MK1-R SJ105207 Waterproof (when mated), solder pin, cable dia. 5.7 to
7.3
JN1KS04MK2-R SJ105207 Waterproof (when mated), solder pin, cable dia. 6.5 to
8.0
Straight Plug
JN1DS04FK1 SJ035666 Waterproof (when mated), solder socket
cable dia. 5.7 to 7.3
JN1DS04FK1X SJ035666 Waterproof (when mated), solder socket
cable dia. 5.7 to 7.3, X position
JN1DS04FK2 SJ035666 Waterproof (when mated), solder socket
cable dia. 6.5 to 8.0
JN1DS04FK2X SJ035666 Waterproof (when mated), solder socket
cable dia. 6.5 to 8.0, X position
JN1DS04FKK SJ035969 Waterproof (when mated), solder socket
kit type (with two types of rubber bushing)
JN1DS04FKKX SJ035969 Waterproof (when mated), solder socket
kit type (with two types of rubber bushing), X position
JN1DS04FKB SJ037181 Waterproof (when mated), solder socket, individual
wire type
90 Degree
Angle Plug
JN1FS04FK1 SJ035610 Waterproof (when mated), solder socket
cable dia. 5.7 to 7.3
JN1FS04FK1X SJ035610 Waterproof (when mated), solder socket
cable dia. 5.7 to 7.3, X position
JN1FS04FK2 SJ035610 Waterproof (when mated), solder socket
cable dia. 6.5 to 8.0
JN1FS04FK2X SJ035610 Waterproof (when mated), solder socket
cable dia. 6.5 to 8.0, X position
JN1FS04FKK SJ035968 Waterproof (when mated), solder socket
kit type (with two types of rubber bushing)
JN1FS04FKKX SJ035968 Waterproof (when mated), solder socket
kit type (with two types of rubber bushing), X position
Waterproof Cap J025-52209-RK SJ119896 JN1, 2 Receptacle (4, 10 pins) for waterproof, IP67

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 10/24
Series
No.
of
Con
tacts
Connector
Type Part Number Drawing Number Performance / Shape
JN1
10
Rectangular
Flange
Receptacle
JN1AS10UL1 SJ034676
Waterproof (when mated), through-hole pin
Square
Flange
Receptacle
JN1AS10ML1-R SJ105743 Waterproof (when mated), solder pin
JN1AS10ML2-R SJ105745 Individually waterproofed, solder pin
Cable
Connecting
Receptacle
JN1HS10PL1 SJ037293 Waterproof (when mated), crimp pin (sold
separately), cable dia. 5.7 to 7.3
JN1HS10PL2 SJ037293 Waterproof (when mated), crimp pin (sold
separately), cable dia. 6.5 to 8.0
JN1HS10PL3 SJ037293 Waterproof (when mated), crimp pin (sold
separately), cable dia. 3.5 to 5.0
JN1HS10PL3S SJ105842
Waterproof (when mated), crimp pin (sold
separately), cable dia. 3.5 to 5.0, outer
diameter: 20 dia. max.
JN1HS10PL4S SJ105842
Waterproof (when mated), crimp pin (sold
separately), cable dia. 4.7 to 5.7, outer
diameter: 20 dia. max.
JN1HS10PLKS1 SJ107656
Waterproof (when mated), crimp pin
cable dia. 5.7 to 7.3, kit type (with rubber
bushing and 10 contacts)
JN1HS10PLKS2 SJ107656
Waterproof (when mated), crimp pin
cable dia. 6.5 to 8.0, kit type (with rubber
bushing and 10 contacts)
JN1HS10PLKS3 SJ107656
Waterproof (when mated), crimp pin
cable dia. 3.5 to 5.0, kit type (with rubber
bushing and 10 contacts)
Wall Mount
Receptacle
JN1KS10PL1 SJ037294 Waterproof (when mated), crimp pin (sold
separately), cable dia. 5.7 to 7.3
JN1KS10PL2 SJ037294 Waterproof (when mated), crimp pin (sold
separately), cable dia. 6.5 to 8.0
Individual
Plug JN1ES10SL1 SJ034677 Non-waterproof, crimp socket, individual
block
Straight Plug
JN1DS10SL1 SJ034679 Waterproof (when mated),
crimp or solder socket (sold separately)
cable dia. 5.7 to 7.3
JN1DS10SL2 SJ034679 Waterproof (when mated),
crimp or solder socket (sold separately)
cable dia. 6.5 to 8.0
JN1DS10SL3 SJ034679 Waterproof (when mated),
crimp or solder socket (sold separately)
cable dia. 3.5 to 5.0
JN1DS10SLK SJ035967
Waterproof (when mated), crimp socket,
kit type (with 10 contacts and two types of
rubber bushing)
90 Degree
Angle Plug
JN1FS10SL1 SJ034678 Waterproof (when mated),
crimp or solder socket (sold separately)
cable dia. 5.7 to 7.3
JN1FS10SL2 SJ034678 Waterproof (when mated),
crimp or solder socket (sold separately)
cable dia. 6.5 to 8.0
JN1FS10SLK SJ034966 Waterproof (when mated), crimp socket, kit
type (with 10 contacts and two types of
rubber bushing)
Waterproof Cap J025-52209-RK SJ119896 JN1, 2 Receptacle (4, 10 pins) for
waterproof, IP67

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 11/24
* JN2 and JN1 utilizes common contact.
* Contact extraction tool (Part Number: ET-JN1) is available.
Please refer to the connector handling instructions concerning contact extraction.
Series
No.
of
Con
tacts
Contact
Type
Contact
Termination Packaging Part Number Drawing
Number
Performance /
Shape
JN1
JN2 10
Socket
Contact
Crimp
In pieces
(100pcs.)
JN1-22-20S-R-PKG100 SJ035503 20-21AWG
Outer Dia. 1.5 max.
JN1-22-22S-PKG100 SJ035503 21-25AWG
Outer Dia. 1.5 max.
JN1-22-26S-PKG100 SJ035503 26-28AWG
Outer Dia. 1.1 max.
In reels
(10,000
pcs.)
JN1-22-20S-R-10000 SJ035504 20-21AWG
Outer Dia. 1.5 max.
JN1-22-22S-10000 SJ035504 21-25AWG
Outer Dia. 1.5 max.
JN1-22-26S-10000 SJ035504 26-28AWG
Outer Dia. 1.1 max.
Solder In pieces
JN1-22-22F-PKG100 SJ109855
In pieces(100pcs.),
AWG#20 max.
Outer Dia. 1.5 max.
JN1-22-22F-PKG10 SJ109855
In pieces(10pcs.),
20AWG max.
Outer Dia. 1.5 max.
Pin
Contact Crimp
In pieces
(100pcs.)
JN1-22-20P-R-PKG100 SJ037430 20-21AWG
Outer Dia. 1.5 max.
JN1-22-22P-PKG100 SJ037430 21-25AWG
Outer Dia. 1.5 max.
JN1-22-26P-PKG100 SJ037430 26-28AWG
Outer Dia. 1.1 max.
In reels
(10,000
pcs.)
JN1-22-20P-R-10000 SJ037431 20-21AWG
Outer Dia. 1.5 max.
JN1-22-22P-10000 SJ037431 21-25AWG
Outer Dia. 1.5 max.
JN1-22-26P-10000 SJ037431 26-28AWG
Outer Dia. 1.1 max.

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 12/24
Series
No. of
Con
tacts
Connector
Type Part Number Drawing
Number Performance / Shape
JN2
4
Square
Flange
Receptacle
JN2AS04MK2-R SJ105530 Individually waterproofed, solder
pin, body earth structure
JN2AS04MK2X-R SJ105530 Individually waterproofed, solder
pin, body earth structure, X position
Straight
Plug
JN2DS04FK1-R SJ105532 Waterproof (when mated),
solder socket, cable dia. 5.7 to 7.3
JN2DS04FK1X-R SJ105532
Waterproof (when mated),
solder socket, cable dia. 5.7 to 7.3,
X position
JN2DS04FK2-R SJ105532 Waterproof (when mated),
solder socket, cable dia. 6.5 to 8.0
JN2DS04FK2X-R SJ105532
Waterproof (when mated), solder
socket, cable dia. 6.5 to 8.0,
X position
JN2DS04FKK-R SJ105536
Waterproof (when mated), solder
socket, kit type (with two types of
rubber bushing)
JN2DS04FKKX-R SJ105536
Waterproof (when mated), solder
socket, kit type (with two types of
rubber bushing), X position
Angle Plug
JN2FS04FK1X-R SJ105531 Waterproof (when mated), solder
socket, cable dia. 5.7 to 7.3
JN2FS04FK1X-R SJ105531
Waterproof (when mated), solder
socket, cable dia. 5.7 to 7.3,
X position
JN2FS04FK2-R SJ105531 Waterproof (when mated), solder
socket, cable dia. 6.5 to 8.0
JN2FS04FK2X-R SJ105531
Waterproof (when mated), solder
socket, cable dia. 6.5 to 8.0,
X position
JN2FS04FKK-R SJ105535
Waterproof (when mated), solder
socket, kit type (with two types of
rubber bushing)
JN2FS04FKKX-R SJ105535
Waterproof (when mated), solder
socket, kit type (with two types of
rubber bushing), X position
Waterproof Cap J025-52209-RK SJ119896 JN1, 2 Receptacle (4, 10 pins) for
waterproof, IP67
Part Number List

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 13/24
Series
No.
of
Con
tacts
Connector
Type Part Number Drawing
Number Performance / Shape
JN2
10
Square
Flange
Receptacle
JN2AS10ML1-R SJ105537 Waterproof (when mated), solder pin
JN2AS10ML2-R SJ105538 Individually waterproofed, solder pin
Panel
Mount Plug
JN2MS10SL1-R SJ105544 Waterproof (when mated), crimp or
solder socket (sold separately)
JN2MS10SLK-R SJ105996 Waterproof (when mated), crimp socket
kit type (with 10 contacts)
Rectangular
Flange
Receptacle
JN2AS10UL1-R SJ105527 Waterproof (when mated),
through-hole pin
Straight Plug
JN2DS10SL1-R SJ105529
Waterproof (when mated), crimp or
solder socket (sold separately), cable dia.
5.7 to 7.3
JN2DS10SL2-R SJ105529
Waterproof (when mated), crimp or
solder socket (sold separately), cable dia.
6.5 to 8.0
JN2DS10SL3-R SJ105529
Waterproof (when mated), crimp or
solder socket (sold separately), cable dia.
3.5 to 5.0
JN2DS10SLN-R SJ105529
Waterproof (when mated), crimp or
solder socket (sold separately), without
bushing Note*
JN2DS10SLK-R SJ105534
Waterproof (when mated), crimp socket,
kit type (with 10 contacts and two types
of rubber bushing)
Angle Plug
JN2FS10SL1-R SJ105528
Waterproof (when mated), crimp or
solder socket (sold separately),
cable dia. 5.7 to 7.3
JN2FS10SL2-R SJ105528
Waterproof (when mated), crimp or
solder socket (sold separately),
cable dia. 6.5 to 8.0
JN2FS10SL3-R SJ105528
Waterproof (when mated), crimp or
solder socket (sold separately), cable
dia. 3.5 to 5.0
JN2FS10SLN-R SJ105528
Waterproof (when mated), crimp or
solder socket (sold separately),
without bushing
JN2FS10SLK-R SJ105533
Waterproof (when mated), crimp socket,
kit type (with 10 contacts and two types
of rubber bushing)
Waterproof Cap J025-52209-RK SJ119896 JN1, 2 Receptacle (4, 10 pins.) for
waterproof, IP67
* Please contact us when considering size of bushing to use.

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 14/24
Receptacle JN1AS04MK1*
Termination Side Mating Side
Side View
Waterproof Cap J025-52209
Mating SideSide View

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 15/24
Receptacle JN1AS10ML1-R
Termination Side Side View
Mating Side
Receptacle JN1AS10ML2-R
Connection Side Side View Side View (cross section)

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 16/24
Receptacle JN1AS10UL1
Individual Plug JN1ES10SL1
Termination Side Side View
Mating Side
Side View
Mating Side
Drawing (when mated)

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 17/24

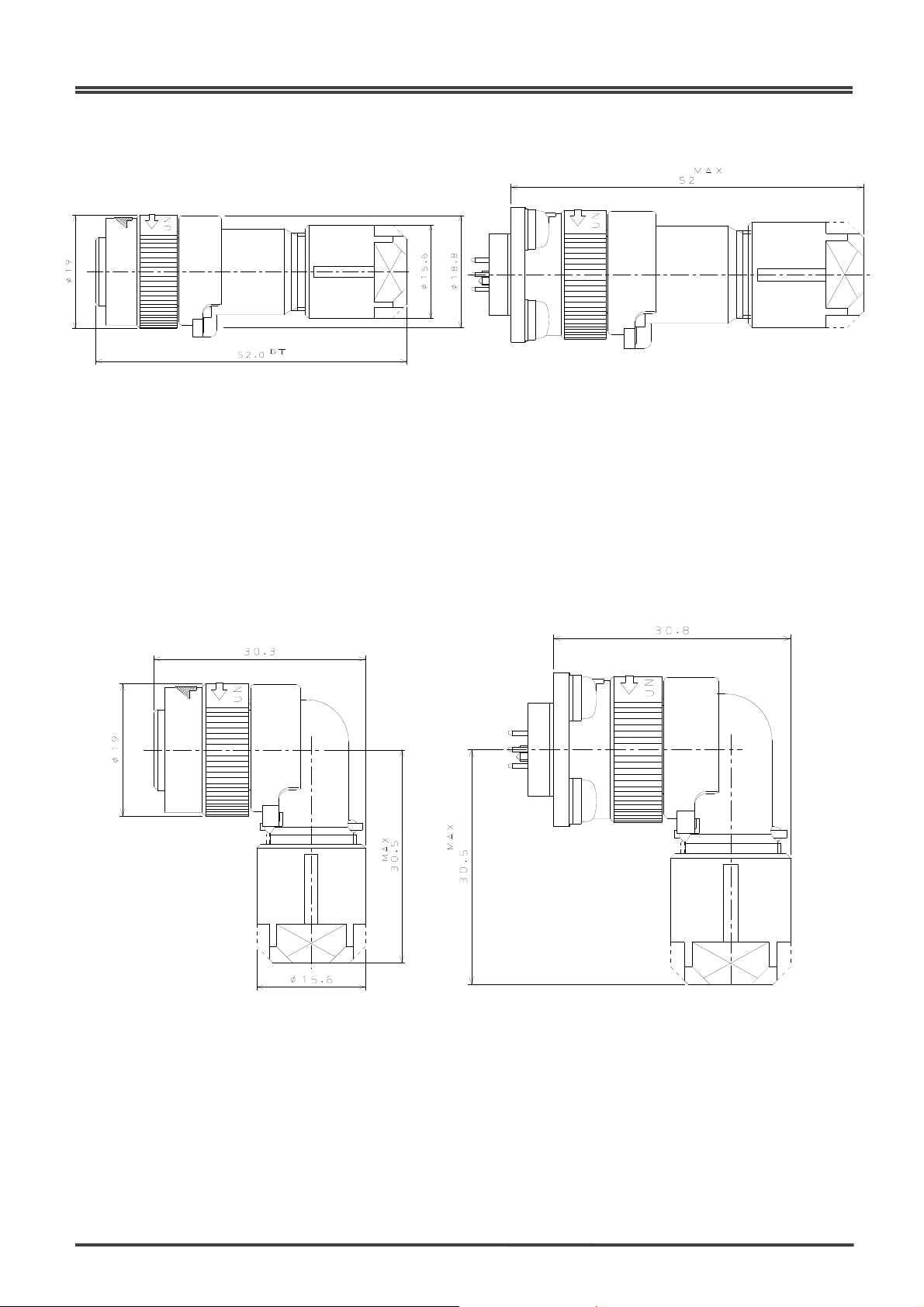

Angle Plug JN1FS10SL*
JN1FS04FK**
Straight Plug JN1DS10SL*
JN1DS04FK**
Drawing (when mated)
Drawing (when mated)

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 18/24

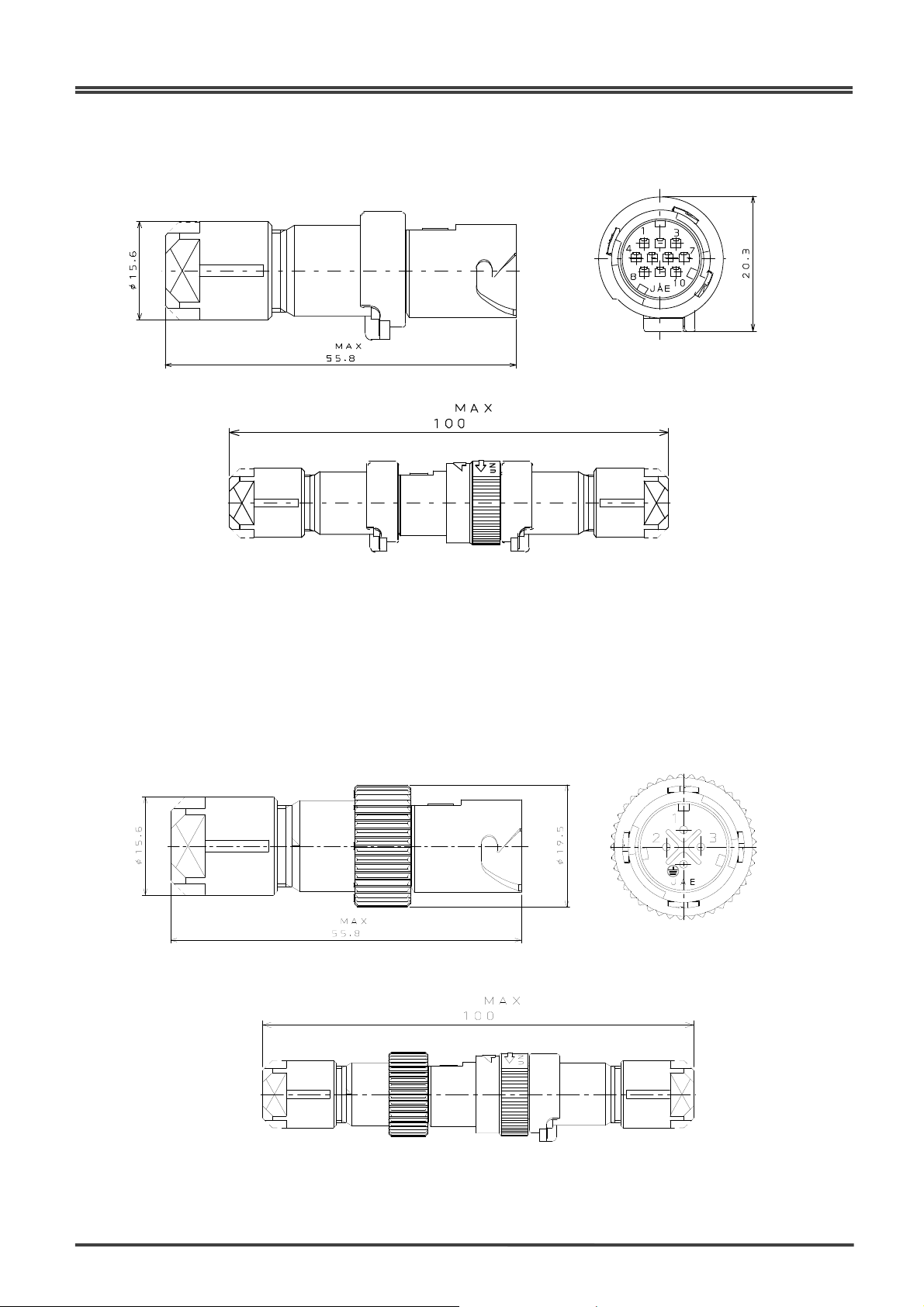

Cable Connecting Receptacle JN1HS04MK*-R
JN1HS10PL*
Cable Connecting Receptacle JN1HS04MK*S
(Slim Outer Diameter Type) JN1HS10PL*S
Drawing (when mated)
Drawing (when mated)

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 19/24

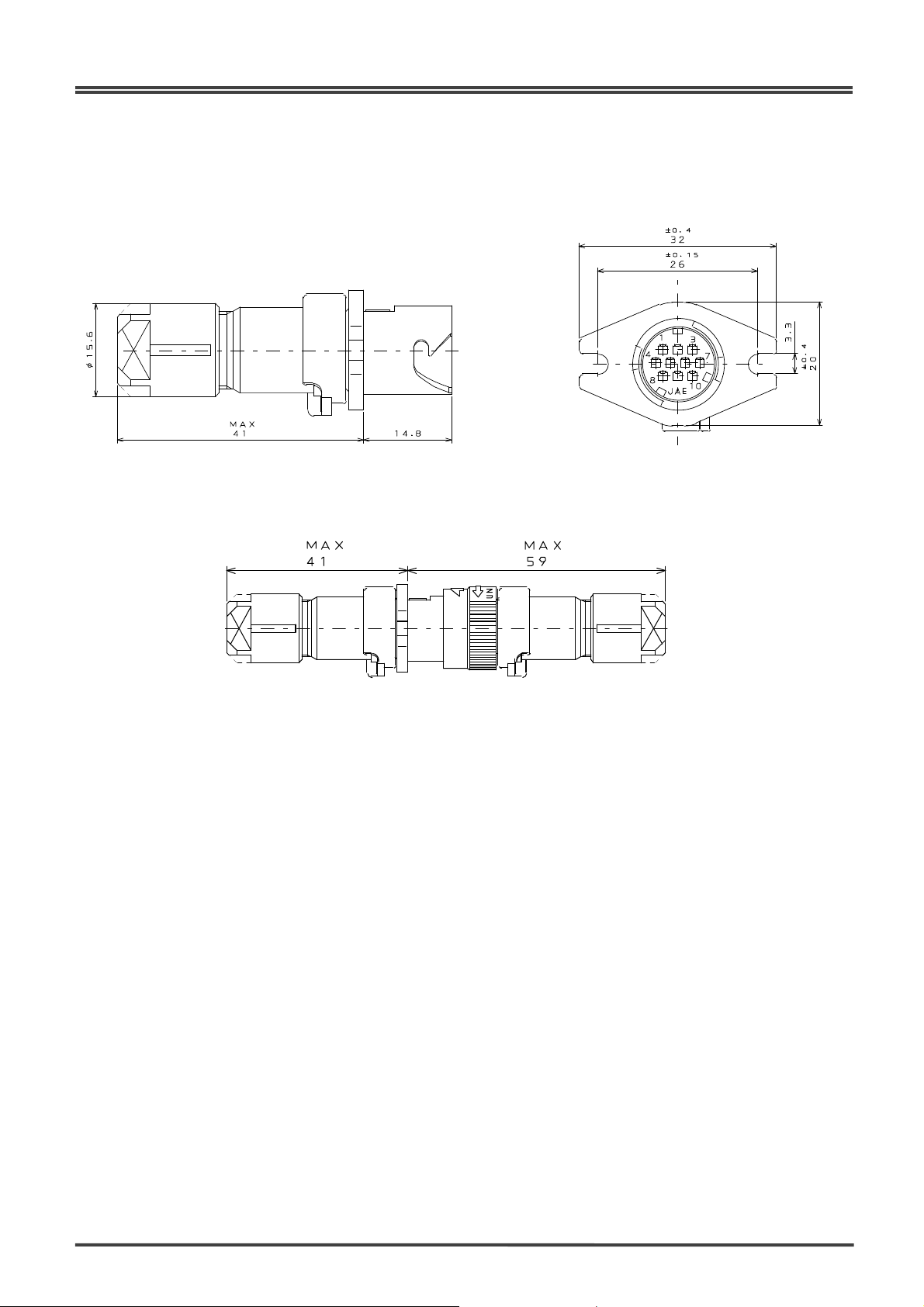

Wall Mounting Receptacle JN1KS04MK*-R
JN1KS10PL*
Drawing (when mated)

MB-0054-11
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 20/24

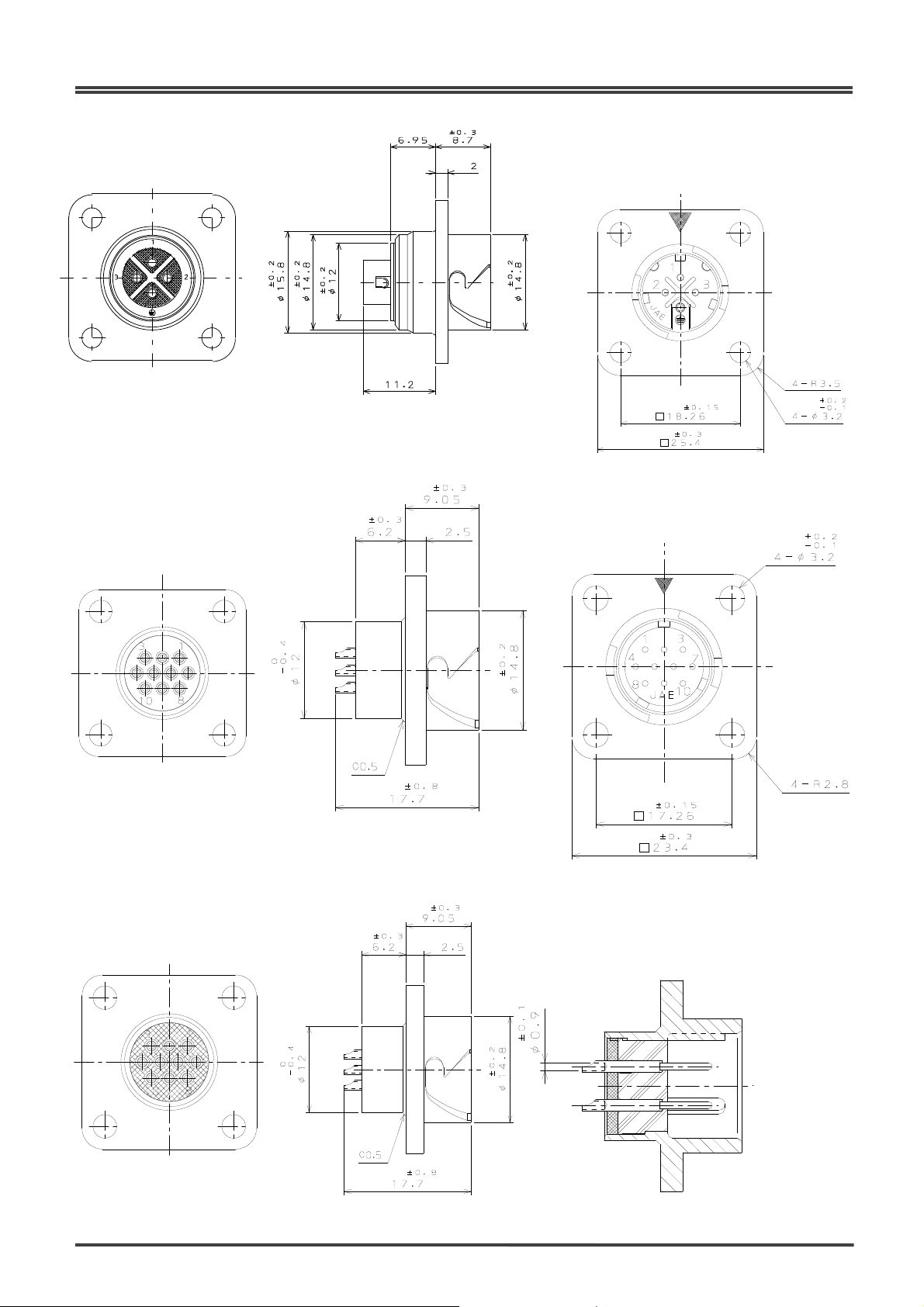

Receptacle JN2AS04MK2*-R
Termination Side
Mating Side
Side View
Receptacle JN2AS10ML2*-R
Termination Side
Mating Side
Side View
Termination Side Side View
Receptacle JN2AS10ML1*-R
Side View (cross section)
