JAE JN1W Series User manual

COMPONENTS PRODUCT INFORMATION
CONNECTOR
NEW
1/13
MB-0178-2
February 2008
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
JN1W/ JN2W Series
Small Circular Connector
Receptacle Angle Plug
Straight Plug
<<Overview>>
This product series has been developed primarily for industrial device applications. It is
available with either 5 contacts for power supply or 15 contacts for signal, and it is a larger
size than the existing 4-contact and 10-contact JN1/ JN2 Series. The 5-contact version is
for 13 Amp, and the 15-contact version utilizes the same contacts (crimp) as that of the 10-
contact version. This product series consists of waterproof circular connectors with a one-
touch locking mechanism. EN61984 will be obtained for the 5-contact version (Patent and
design registration applications have been filed).
[JN1W]
[JN2W] [JN2W]
[JN2W]
Flanged Cable Connecting Receptacle
Cable Connecting Receptacle
RoHS Compliant
[JN1W]
[JN2W]
[JN2W]
Dust Cap (for receptacle)

MB-0178-2
2/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
General Specifications
JAHL-5111Instruction Manual 500 mating cyclesDurability
Specifications and Performance
Item
JACS-5111Product Specification
Crimp connection (AWG #20 to 28)Specification of Wire Connection
IP67Waterproof 1000 M ohm min. (DC500V energized )Insulation Resistance 900 VAC (per minute)Dielectric Withstanding Voltage 200 VACRated Voltage 3A/ pos. (#22 size contact)Rated Current 15 pos. (cable connecting type, flanged cable connecting type)
Features
• 15-contact crimp type, available in cable connecting receptacle and flanged
cable connecting receptacle versions.
• Easy and sure mating with push-in/ twist-off type one-touch lock mechanism
• Waterproof and dustproof conforming to IP67 class.
• Superb environment resistant performance, such as vibration and oil
resistance.
• Applicable to conduit mounting (Attach O-ring to the connector to be
waterproof).
[JN2W]
[JN1W]
[JN1W]
• Compatible with JN1W (15-contact), the robustness is significantly improved
by using metal for the outer shell (breaking strength is tripled.)
• Uses the same crimp contacts as that of the JN1.
• 15-contact: All crimp connection.
5-contact: All solder connection.
Note that 5-contact receptacle adopts a body grounding structure.
• 5-contact is a TUV certified product (Application in process).
• Plug is available in straight and angle types. For angled type, the direction of
the cable leader of the plug can be set in one of four directions in 90 degrees
increments.
• For angled plug, 50.5 mm (5-contact) and 42.5 mm (15-contact) mating height
from the panel surface.
• Waterproof and dustproof that conforms to IP67 class.
• Superb environment resistant performance, such as vibration and oil resistance.
• Applicable to conduit mounting (Attach O-ring to the connector to be
waterproof).
• Mis-mating prevention key is equipped and it can be re-set in one of four
positions. (5-contact).

MB-0178-2
3/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
JAHL-5119JAHL-5119
Instruction
Manual
500 mating cycles500 mating cyclesDurability
Specifications and PerformanceItem
JACS-5119-4JACS-5119
Product
Specification
All Soldering connection (AWG #14 max.)Crimp connection (AWG #20 to 28)
Specification of
Wire
Connection
IP67IP67Waterproof
1000M ohm min.
(DC500V energized)
1000M ohm min.
(DC500V energized)
Insulation
Resistance
2000 VAC (per minute)900 VAC (per minute)
Dielectric
Withstanding
Voltage
400 VAC (pollution level 2,
over-voltage category II)
200 VACRated Voltage
13A/ pos. (#16 size contact)3A/ pos. (#22 size contact)Rated Current
5 Contact15 ContactNo. of Contacts
Please refer to the drawings for each product for further information.
[JN2W]

MB-0178-2
4/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
Materials and Finishes
[JN1W]
Component Material/ Finish
Insulator Synthetic resin
Assembly nut Synthetic resin
Sraight endbell Synthetic resin
O-Ring Synthetic rubber
Bushing (*) Synthetic rubber (Color: black)
Grand nut Synthetic resin
Pin contact (#22) Copper alloy/ Au plating
Cable Connecting
Receptacle
Flanged Cable
Connecting
Receptacle
Component Material/ Finish
Dust cap Synthetic rubber
Rope Stainless steel
Crimp terminal Copper alloy/ Snplating
DustCap
* Dust cap (for receptacle) in common with dust cap for JN1W and JN2W.

MB-0178-2
5/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
[JN2W]
Component Material/ Finish
Receptacle Insulator Synthetic resin
Shell Zinc spelter die-cast/ Zinc plating
Contact Copper alloy/ Auplating (15 pos.),
Silver plating (5 pos.)
O-Ring Synthetic rubber
Mis-mating
preventionkey Synthetic resin(5 pos.)
Plug Cover insulator Synthetic resin(15 pos.)
Insulator Synthetic resin
Coupling nut Zinc spelter die-cast/ Zinc plating
Assemblynut Zinc spelter die-cast/ Zinc plating (Angle endbell)
Synthetic resin(Straight endbell)
Angle endbell Synthetic resin
Straight endbell Synthetic resin
O-Ring Synthetic rubber
Bushing (*) Synthetic rubber (Color: black)
Grand nut Synthetic resin
Spring Stainless steel
Spring pin Copper alloy/ Ni plating (15 pos.)
Contact Copper alloy/ Auplating (15 pos.),
Silver plating (5 pos.)
Mis-mating
preventionkey Synthetic resin(5 pos.)
*The modification code shown on the part number stands for the applicable wire.
(JN1W, JN2W common use)
10 to 12 Dia.18 to 10 Dia.24 to 6 Dia.3
Applicable cable
5 pos., 15 pos.
Modification code

MB-0178-2
6/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
Ordering Information
Series
Connection method
M: Pin with solder
F: Soldering socket
P: Crimp pin
S: Crimp socket
Contact size
H:♯16
L:♯22
Shell size
W: connection outer dia.
(20 dia. to 25 dia.)
Connector type
A: Panel attached
receptacle
D: Straight plug
F: Angle plug
H: For cable connecting
(without flange)
K: For cable connecting
type(with flange)
Modification No.
(Note 1)
JN2 A W 15 U L *
No. of contacts
05: 5 pos.
15:15 pos.
[JN1W]
JN1 H W15 P L *
Connection method
P: Crimp pin
Modification No.(Note 1)
Contact size
L:♯22
No. of contacts
15: 15 pos.
Series
Connector type
H: For cable connecting
(without flange)
K: For cable connecting
type(with flange)
Shell size
W: Connection outer dia.
(20 dia. to 25 dia.)
[JN2W]
Note1 The meaning of modification code is different for each product.
Please refer to drawing of each product for details.

MB-0178-2
7/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
Ordering Information
Waterproof (when mated), crimp pin
cable dia. 8 to 10
107691JN1KW15PL1
Flange
Cable
Connecting
Receptacle
15
Performance/ ShapeSJ
Drawing
Part NumberTypeNo.
of
cont
acts
Waterproof Cap
JN1W
JN1, 2W-15 pos., JN2W-5 pos. for
receptacle, IP67, with rope
108228JN2-AWDC1
Waterproof (when mated), crimp pin
cable dia. 8 to 10
107690JN1HW15PL1
Cable
Connecting
Receptacle
[JN1W 15-Contact]
Waterproof (when mated), crimp socket
cable dia. 8 to 10
105328JN2FW15SL1Angle Plug
15
Performance/ Shape
SJ
Drawing
Part NumberType
No.
of
cont
acts
JN2W
JN1, 2W-15 pos., JN2W-5 pos. for
receptacle, IP67, with rope
108228JN2-AWDC1
Waterproof (when mated), crimp socket
cable dia. 8 to 10
105815JN2DW15SL1Straight Plug
Waterproof Cap
Waterproof (when mated), crimp pin105327JN2AW15PL1Receptacle
[JN2W 15-Contact]
* Contact in common with JN1

MB-0178-2
8/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
JN1, 2W-15 pos., JN2W-5 pos. for
receptacle, IP67, with rope
108228JN2-AWDC1
5
JN2W
Performance/ Shape
SJ
Drawing
Part NumberType
No.
of
cont
acts
Waterproof Cap
Waterproof (when mated), solder socket
cable dia. 8 to 10, body grounding structure
107969JN2KW05FH1
Flanged
Cable
Connecting
Receptacle
Waterproof (when mated), solder pin
cable dia. 8 to 10, body grounding structure
108152JN2HW05MH1
Waterproof (when mated), solder pin
cable dia. 8 to 10, body grounding structure
108151JN2KW05MH1
Waterproof (when mated), solder pin
cable dia. 8 to 10
107971JN2DW05MH1
Straight
Plug
Waterproof (when mated), solder socket
cable dia. 8 to 10
108154JN2FW05FH1
Waterproof (when mated), solder pin
body grounding structure
108150JN2AW05MH1
Waterproof (when mated), solder socket
cable dia. 8 to 10
108153JN2DW05FH1
Angle Plug
Cable
Connecting
Receptacle
Receptacle
Waterproof (when mated), solder socket
cable dia. 8 to 10, body grounding structure
107970JN2HW05FH1
Waterproof (when mated), solder socket
body grounding structure
107967JN2AW05FH1
107972 Waterproof (when mated), solder pin
cable dia. 8 to 10
JN2FW05MH1
[JN2W 5-Contact]
Ordering Information

MB-0178-2
9/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
Cable connecting receptacle JN1HW15PL1
Drawing (when mated)
Flanged cable connecting receptacle JN1KW15PL1
Drawing (when mated)
[JN1W 15-Contact]

MB-0178-2
10/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.

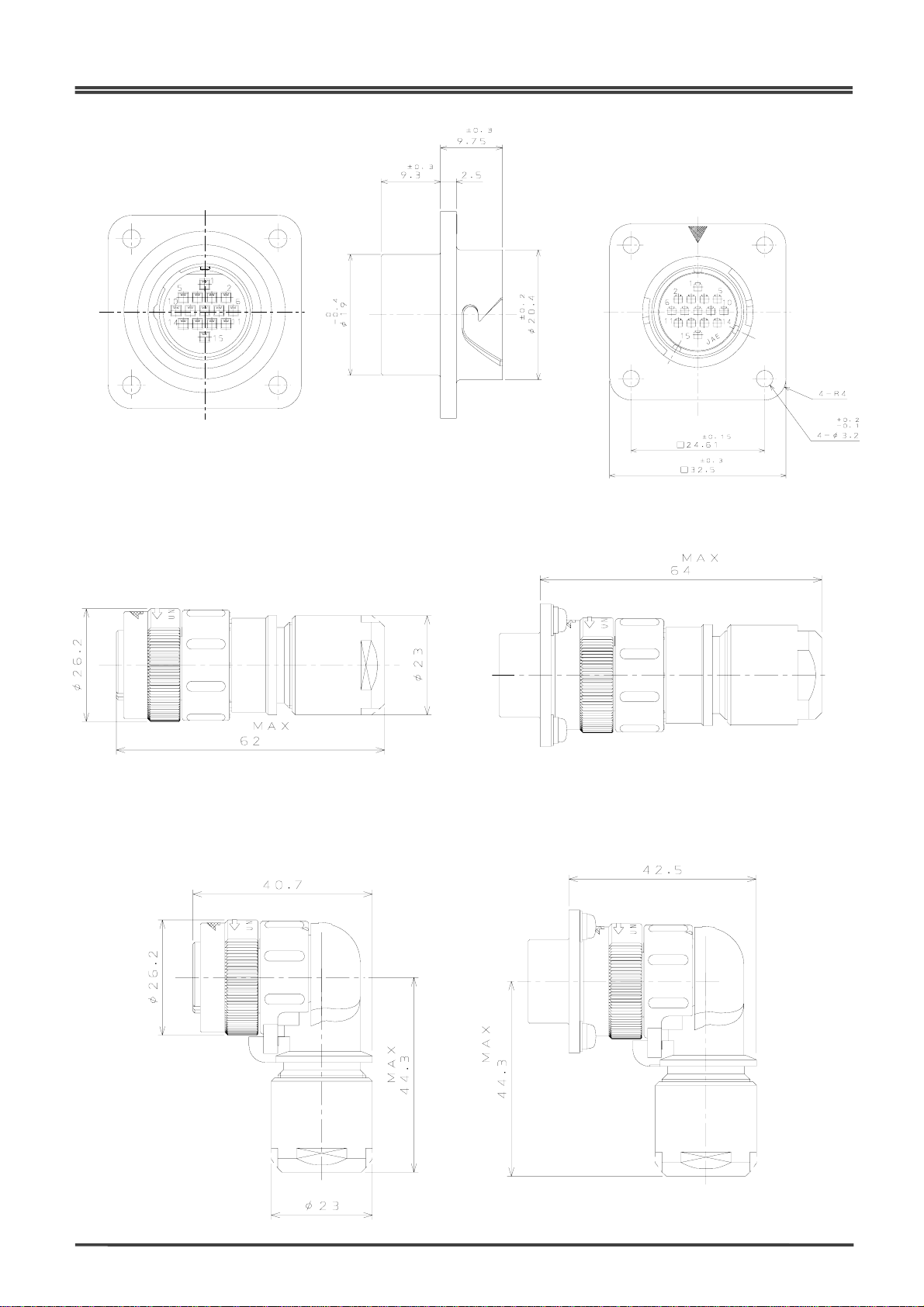

Receptacle JN2AW15PL*
Connection side
Drawing (when mated)
Rear side
Straight plug JN2DW15SL*
Angle plug JN2FW15SL*
Drawing (when mated)
Drawing (when mated)
[JN2W 15-Contact]

MB-0178-2
11/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.

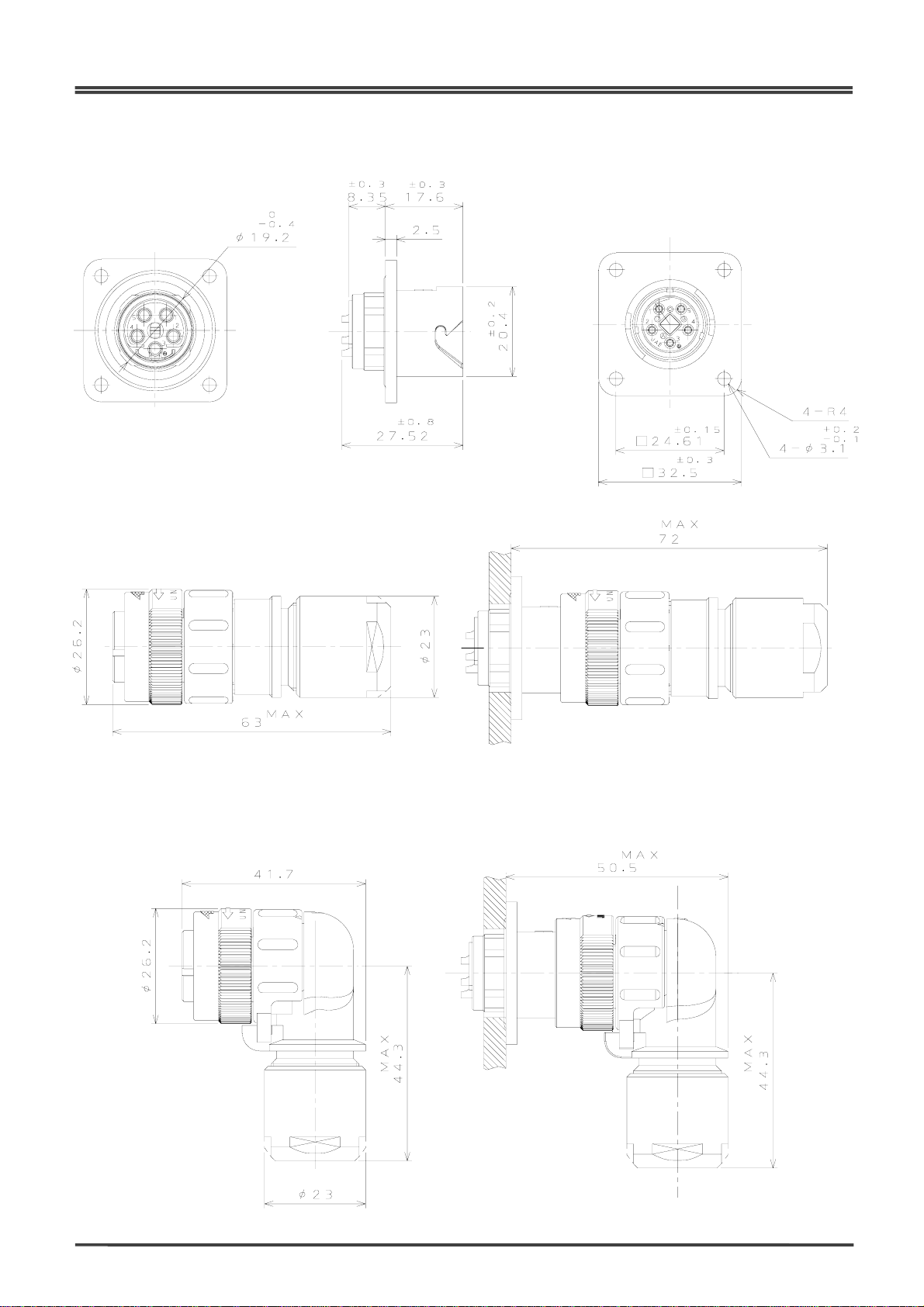

Receptacle JN2AW05FH1
Connection side Rear side
Straight plug JN2DW05FH*
Angle plug JN2FW05FH*
Drawing (when mated)
JN2DW05MH*
JN2FW05MH*
Drawing (when mated)
JN2AW05MH1
[JN2W 5-Contact]

MB-0178-2
12/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
Drawing
(when mated)
Flanged cable connecting receptacle JN2KW05FH*
Drawing
(when mated)
Cable connecting receptacle JN2HW05FH*
JN2HW05MH*
JN2KW05MH*
[JN2W 5-Contact]
[About The Mis-Mating Prevention Key]
Default setting of mis-mating
prevention key is “position A” for
the JN2W5 Series.
Please release the lock of the mis-
mating prevention key with a pair of
tweezers to change the position to
B, C or D.
(Refer to drawing on right side.)
Shaded area:
Mis-mating prevention key
Position A Lock area
Pinch with tweezers

MB-0178-2
13/13
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
JN1-22-26 * -PKG100
JN1-22-22 * -PKG100
JN1-22-20 * -R-PKG100 #20, #21, #25
CT150-2-JN1-D
#20
Press
#26~#28 #22~#24,
#26~#28
CT150-2-JN1-B
Hand#21~#25
In pieces
(100 pcs.) #21, #23, #25
CT150-2-JN1-E
Notice: Products shown in this leaflet are made
for the applications listed below. However, if the
above-mentioned products are to be used in
aerospace devices, marine cable-connection
devices, atomic power control systems, medical
equipment for life-support systems, or any other
specific application requiring extremely high
reliability, please contact JAE for further
information.
Recommended applications: Computers, Office
machines, Measuring devices,
Telecommunication devices (Terminals, Mobile
devices), AV devices, Household applications,
FA devices, etc.
Flexible metalKMKYP16-SP492 (for KEIFLEX)
Flexible resinN2KY20-SP491( for SANFLEKI ROBO)
ApplicationPart number
Please consult with Sankei Seisakusho regarding use of conduit.
Japan Aviation Electronics Industry, Limited
Product Marketing Division
Aobadai Building, 3-1-19, Aobadai, Meguro-ku,
Tokyo 153-8539
Phone: [phone] FAX: [phone]
* The specifications in this brochure are subject to change without notice. Please contact JAE for information.
［Chart of applicable wires and tooling］
Note1: P: Pin contact, S: Socket contact
Note2: Please contact us concerning connection tool, contact removal tool and the
RoHS correspondence of tools for the JN1W and 2W series
Suggested conduit
T700238
JN1-22-26*-10000
JN1-22-22 * -10000
JN1-22-20 * -R-10000
Applicable contact
Part Number
#21~#25
T700253
#22
T703294
#20~#28
350-JN1-2C
Semi-
auto
matic
#20
In reels
(10, 000
pcs.)
#26~#28
Applicable
Wire
AWG No.
ToolType of
Contact
Instruction
manual
for
tooling
Applicable tooling & wireTypeFiguration
