FOREWORD
This manual describes the various design features and operating procedures
of
your
motor
home
to
aid
you in understanding its capabilities.
Like all fine equipment,
your
motor
home will require
care
and
regular maintenance in or-
der
to
retain its maximum performance characteristics. This manual, along
with
the
Chassis
Operator's Manual
and
the information from other component manufacturers provided
for
your
use, defines the important
areas
of
maintenance you will want
to
follow.
The few
minutes spent reading and understanding
these
instructions
will
result in
your
having a good
working knowledge
of
the unit. Knowing
how
to
use
your
motor
home
and
how
to
keep
it
properly maintained will help you enjoy thousands
of
miles
of
motoring pleasure.
Your
motor
home
has
been
designed
to
conform
with
or exceed the American National
Standards Institute Code A119;2 and/or State
and
Federal
motor
vehicle standards
as
ap-
plicable.
These
Standards establish the plumbing, heating, electrical,
and
other requirements
for
quality
and safety. Compliance
with
this Standard
is
indicated by the
seal
installed just
outside the entry door. This
seal
is
~he
outward
sign
of
internal quality.
Should you
have
any questions regarding operation, maintenance or service,
please
contact
your
DEALER
immediately
so
he
can
be
of
assistance.
,
"
,
TABLE OF CONTENTS
PLANNING AND PREPARATION. . .
.VEHICLE LOAD CAPACITY -
WEIGHIN.G
READY TO LEAVE
Starting and Warmup
·Safety
Belts.
.
·ON THE ROAD
Driving and
Parking.
Overheating. .
Windshield Defrost-Comfort Control
12-Volt Fuse Replacement
Changing a Tire
SERVICING
Motor Home Chassis Operator's Manual
Engine Service
Battery Service
Main Vehicle Battery
Auxiliary Battery Service.
Generator Power Plant System Service
PLUMBING
Fresh
Water.
External Water Supply
Filling Fresh Water
Supply.
Troubleshooting Water System.
Sanitizing Water Tank
Waste Water
System.
Waste Water Draining
Winterizing
the
Water System ..
Do's and
Don'ts
-Waste Tanks
ELECTRICAL
115-Volt System Power Converter
12-Volt System.
12-Volt
Fuses.
Auxiliary
12Nolt
Battery.
Auxiliary Generator Power Plant
Roof Air Conditioner
Standard Automotive Air Conditioner
LIQUID PETROLEUM (LPI GAS SYSTEM
USi.ng
Your
LP
Gas System
at
Low Temperatures
Operation
of
LP
Gas System .
Filling
the
Removable
LP
Gas Tanks
Filling
the
Chassis-Mounted
LP
Gas Tank.
LP
Gas System Leak Checks .
ii
LP
Gas
Appliances ,
Range
Top
and
Oven
Radiant Heater
Forced
Air
Furnace
Water Heater,
LPG/Electric Refrigerator
EQUIPMENT AND FURNISHINGS
Cabinet Bunk ,
Pedestal
Dinette, Tables
Pull·Out (Gaucho)
Beds
Storage
CARE
AND
MAINTENANCE
Interior Cleaning
Draperies, Cushions
and
Upholstery Fabrics,
Wall Paneling
Carpeting
Fixtures
Windows,
Locksets
and
Latches
Plumbing,
Condensation
and
Ventilation,
Exterior
Care
,
Exterior Metal
and
Trim
Roof
,
Repairs
Fire Safety
WARRANTY
iii
16
16
'r
.16
16
16
17
18
,,
18
, , , , .
18
18
18
18
18
19
, .
19
19
19
19
19
19
19
19
19
20
Inside Back Cover
PLANNING
AND
PREPARATION
Plan
your
trip and organize, all preparations before you
leave. Proper preparation can be
the
key
to
getting the
most enjoyment from
your
motor home (see Figure 1).
The following suggestions are provided only
as
a guide.
Review them carefully before starting on
your
first trip.
Refer
to
the
list when
on
trips and make note of items
forgotten
to
make subsequent trips even more enjoyable.
• Plan
your
route carefully. Consult maps and guide·
books (available
at
most bookstands and newstands)
to
become aware beforehand of any road condi·
tions, campsite availability, and
other
circumstan·
ces.
•
BE
SURE ALL EQUIPMENT
IS
SERVICED
AND
READVFOR
TRAVEL.
'Check
the
:foil()wing
items.
a. Check
ali
fluids including:
Motor home engine crankcase oil
Transmission fluid '
Power steeri
ng
fl
u
id
Radiator recovery system reservoir
level
Master cylinder brake fluid
Electrolyte
level
of batteries
Windshield washer reservoir
level
•
.
b.
Inspect wheel lugs for tightness. Examine
all
tires for road damage, then inflate
to
the
pro·
per pressures as recommended
in
the Chassis
Operator's Manual.
In
using
your
Chassis Op·
erator's Manual, note
that
tire pressures are
given' for cold tires
which
are
to
be used un·
der normal driving and
I()ad
conditions, and
also for unusual operating
or
load conditions.
c.
Check
oil
level
in
the
generator power plant
(if installed). Refer
to
instructions and main·
tenance manual
provided
by the generator
manufacturer for
other
pre·use service require·
ments applicable
to
this equipment. Check
that
extra oil and other service supplies are
provided
for
the
generator power plant if the
motor home
is
to
be used
for
extended peri·
ods.
d.
C~eckthat
jack,jack
handle, and
lug
wrench
,are properly stowed. "
e. Check
that
the
115·volt power cord
is
pro·
perly'stowed in compartment. A power sup·
ply cord
adapter
will 'be required
in
some
camping areas. Be sure
to
use adapters which
provide pr()per electrical ground.
f.
Check
that
a serviceable fire extinguisher
is
secured
in
the
mounting bracket.
g.
Verify
that
all
items you pial,
to
take are on
board.
NOTE:,
Be
sure the weight of passengers,
equipment, and supplies does not
1
, cause your
motor
home
to
exceed
axle loads and overall vehicle loads
for which it was designed.
If
in
doubt,
weigh
the
vehicle
at
a pub·
lic scale. See paragraph on "WEIG
H·
ING".
~
h. Check
that
accessories, such as a plastic sewer
hose with
the
necessary fittings and a water
supply line (such
as
garden·hose
type
appro·
.ved for 125 psi) are
on
board. (It may be de·
sirable
to
check ahead with specific campsites
where you plan
to
stop for any special adap·
ters which may be required.)
Fill
fresh water tank, if required. (Refer
to
Plumbing Section.)
• Check to see
that
drain·line cap and hOlding·tank
knife valve(s) are ,closed and secured. Add a hold·
ing·tank chemical
to
a few gallons
of
water in
your
body·waste holding tank. (Refer
to
Plumbing Sec·
tion.) ,
• Check
all
stop lights, running lights, and
other
ve·
hicle safety items.
• Put motor home contents
in
"travel" condition.
a.
Secure any loose objects which could
shift while .traveling.
b. 'Secure refrigerator
contents
(place lids
on
all
containers holding liquids, for ex·
ample)
then
secure locking latch
on
·re·
frigerator door.
c.
Be
sure all cabinets have
the
contents
se·
cured and the doors latched.
d.
Be
sure
all
exterior doors are closed and
locked.
• Adjust the driver's seat
to
the
most c()mfortable
position, then adjust the side·view mirrors
for
max·
imum visibility.
• Fill
the
fuel tank. Your
motor
home
is
designed
to
use only
the
fuel recommended in
the
Chassis Op·
erator's Manual.
WARNING:
ALWAYS
EXTINGUISH PILOT LIGHTS AND
OPEN FLAMES
ON
APPLIANCES BEFORE
FI
LL·
ING
YOUR
GASOLINE TANK(S).
,'-i ,
Waste Water
Connection·
Knife Valve (below)
City Water Connection
Main
Fuel Tank
Fill
26 ft. 116·Volt
AC
Power
COrd
Storage Compartment
LPGas
Compartment ', ,
Auxiliary Battery
18. Back·up Lights
19. Tail,
Stop,
Turn and Emergency
F
lasher Lights
20.
Lockable Luggage Compartment
B
9
1.
Running Lights
2. Porch Light
3. Refrigerator Service·
.4. Water Heater Service
6. Water Tank Drain
6. FreSh Water'l"ank Fill
7..
Furnace Vent
14. Runn,ing Lights
• )6,. Engine.SeniicePoor, ...... .
..
'
16.Parkl~g,
Tuin
Signal and
Em~rge"cy
Flasher Lights
,17. Headlights
FIGURE 1 TYPICAL
MOTOR
HOME
LAYOUT
2
14
15
16
17
13
1. ,Lighter
2. Windshield Wipers/Washer
3. Shift Selector
4. Turn Signal Indicator
6. Hi·Beam Indicator
10. Temperature Control
, ;11. Defrost
12. Heater Blower and Pull Air
\3.
Ignition Switch
14. Radio Sound System
6. Instruments (See your Chassis Operator's
Manual)
16. ,Air Conditioner Controls
16. Parking Brake
7.
Turn
Signal
Lever
and Cruise Control
8.
Lights
9. FI90r Air 17;
Ash
Tray'
lB. Headlight Dimmer Switch
19. Transmission Fluid Low
Level
Light (Dodge)

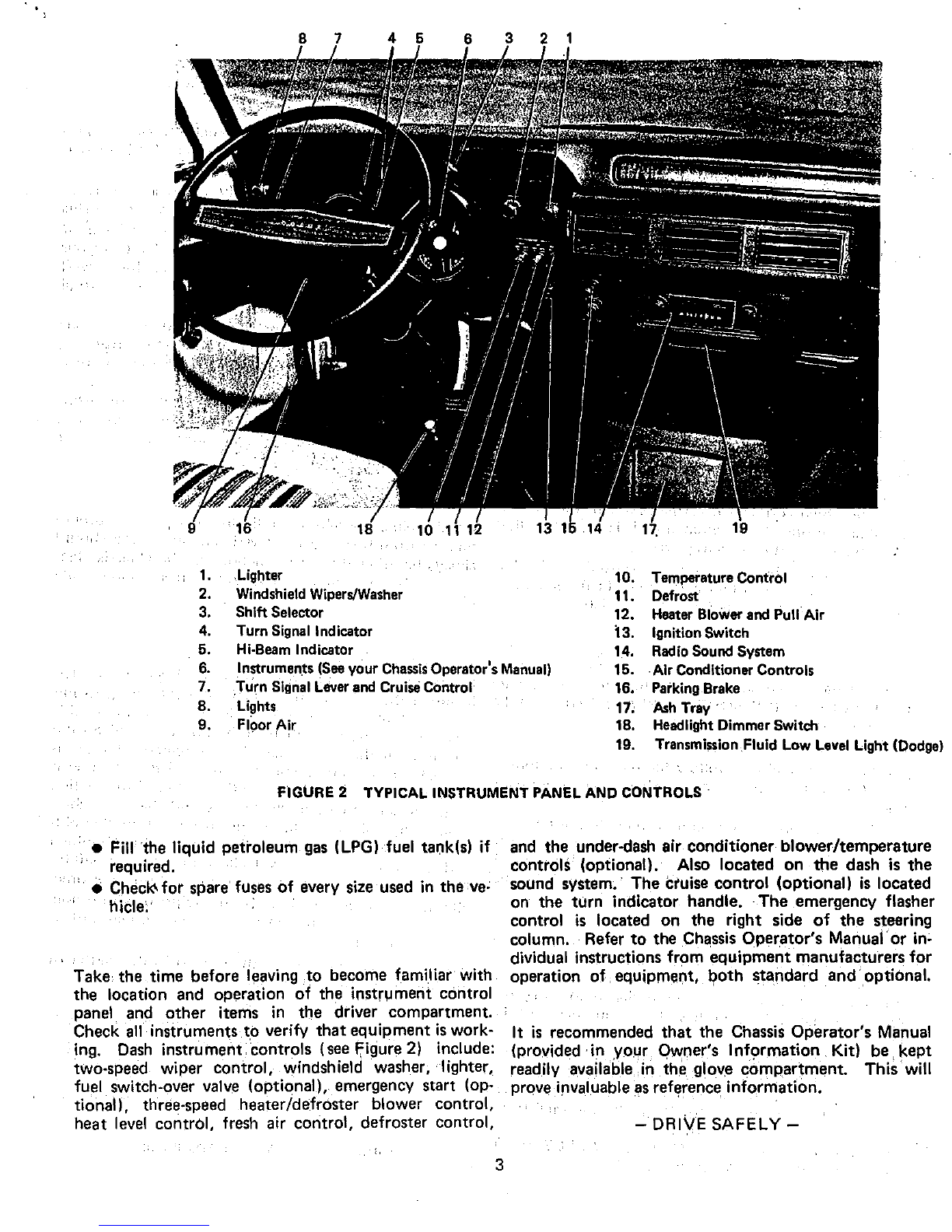

FIGURE 2 TYPICAL INSTRUMENT
PANEL
AND
CONTROLS
'.
Fill
the (jquid petroleum gas (LPG) fuel tank(s)
if
required. '
4.
Check\ for spare
fUses
of
every size used
in
theve·
hicle;'
Take the
tim~
before leaving
to
become familiar with
the location and oPllration of the instr\Jment control
panel and
other
items
in
the driver compartment.
Check all instruments
to
verify
that
equipment
is
work-
ing.
Dash
instrument controls (see
~igure
2)
include:
two·speed wiper control, windshield washer, lighter,
fuel switch·over valve (optional). emergency start (op·
tional!, three·speed heater/defroster blower control,
heat
level
contrOl, fresh air control, defroster control,
3
and
the,
under-dash air conditioner blower/temperature
controls (optional). Also located
on
the
dash is
the
sound system.' The cruise control (optional)
is
located
on the turn indicator handle.
The
emergency flasher
control
is
iocated
on
the right side
of
the
steering
column. Refer
to
the Chassis Operator's
Manualor
in-
dividual instructions from equipment manufacturers for
operation
of.
equipment, I?oth standard
and
optional.
It
is
recommended
that
the Chassis Operator's Manual
(provided'
in
your
O~ner's
Information Kit)
be,
kept
readily available
in
th,e
glove compartment. This will
prove invaluable
as
reference information.
-DRIVE
SAFELY-
VEHICLE

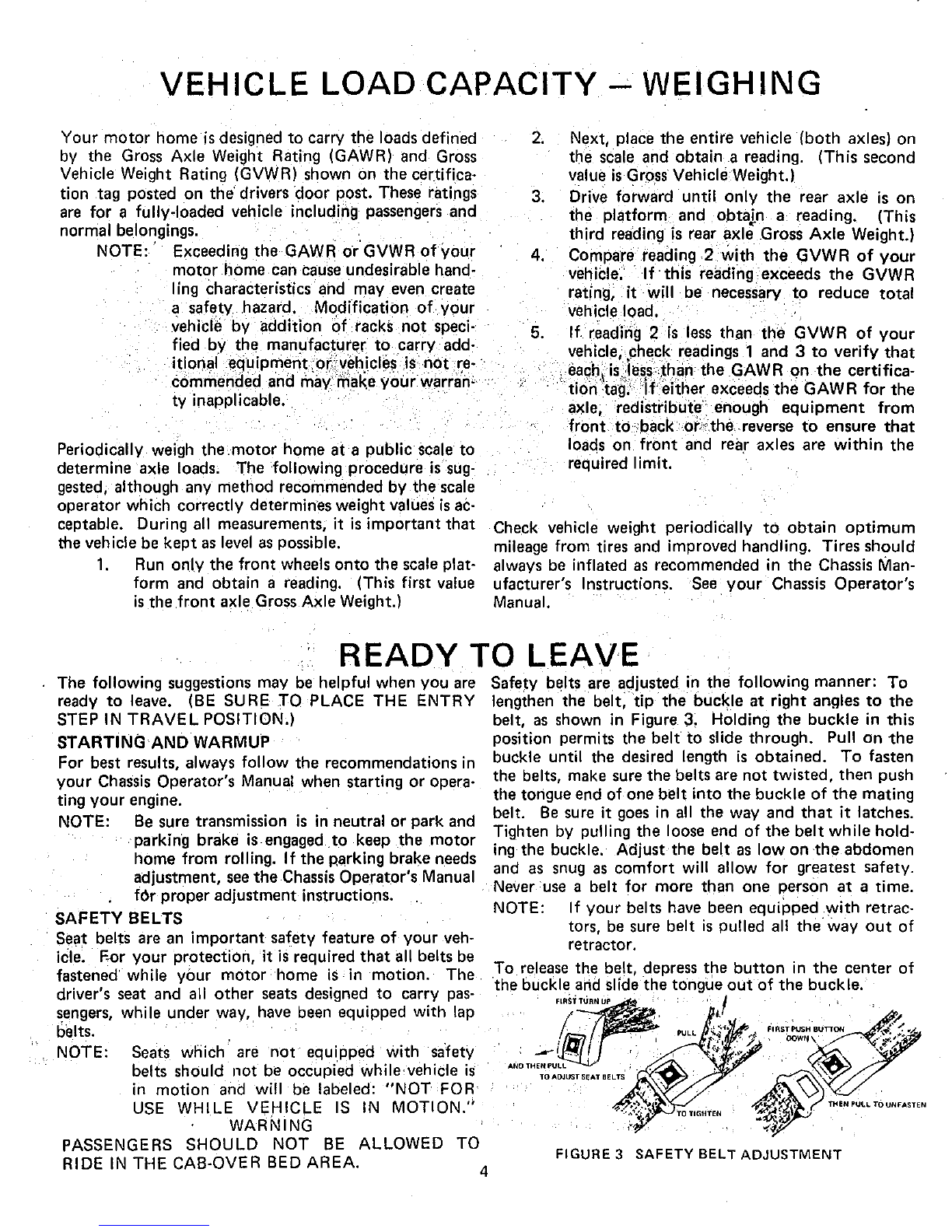

LOAD CAPACITY -
WEIGHING
Your
motor
home
is
designed
to
carry the loads defined
by
the Gross Axle Weight Rating (GAWR) and Gross
Vehicle Weight Rating (GVWR) shown on
the
certifica·
tion
tag
posted
on
the' drivers
door
post. These ratings
are for a fully·loaded vehicle including passengers and
normal belongings.
NOTE:'
Exceeding
theGAWR
or'GVWR
of
your
motor
home can cause undesirable hand·
I
ingcharacteristics
and
may even create
, a safety hazard. Modification
of
your
vehicle by addition
of
racks
notspeci·
fiedby
the manufacturer
to
carry add·
itlonalequipmerit
;o~,veh.icl~~isnotre.
"
commended
and li1aymake
your
warran'
ty inapplicable. , '
Periodically weigh the
motor
home
ata
public scale
to
determine axle loads.
The
following
procedureissug·
gested, although any method recommimded
by
the
scale
operator
which correctly determines weight values
is
ac·
cePtable. During
all
measurements, it
is
important
that
the vehicle be
kept
as
level
as
possible.
1.
Run only
the
front wheels
onto
the scale plat·
form and obtain a reading. (This first value
is
the
front
axle Gross Axle Weight.)
2.
Next, place
the
entire vehicle
(both
axles)
on
the scale and obtain a reading. (This second
value
is
Gross Vehicle Weight.)
3. Drive forward until only
the
rear axle
is
on
the
platform
and
obtain
a reading. (This
third reading
is
rear axle Gross Axle Weight.)
4. Compare reading 2
with
the
GVWR
of
your
vehide.
'If'this
reading exceeds
the
GVWR
rating, it will be necessary
to
reduce
total
vehicle load. "
'.
5. If reading 2
Is
less
than
the
GVWR
of
your
vehicle,.check readings 1 and 3
to
verify
that
iea9h\is,;le~rihanthe
,GAWR9n
the
certifica·
,
'tion
tag,'lfeither
exceeds
the
GAWR for
the
axle,
redistribute'enough
equipment
from
front,to',back'of".;the,reverse
to
ensure
that
loads
on
front
and rear axles
are
within
the
required limit.
Che,ck
vehicle weight periodically
to
obtain
optimum
mileage from tires and improved handling. Tires
should
always be inflated
as
recommended in
the
Chassis Man·
ufacturer's Instructions. See
your
Chassis
Operator's
Manual.
READY
TO LEAVE
The following suggestions may be helpful when you are
ready
to
leave.
(BE
SURE
TO
PLACE THE ENTRY
STEP
IN
TRAVEL POSITION.)
STARTING AND WARMUP
For
best
results, always follow
the
recommendations
in
your
Chassis Operator's Manual when starting
or
opera·
ting
your
engine.
NOTE:
Be
sure transmission
is
in
neutral
or
park and
parking brake
is
engaged
,to
keep
the
motor
home from rolling. If
the
l'1arking
brake needs
adjustment, see
the
Chassis Operator's Manual
for
proper
adjustment instructions.
, SAFETY BELTS
Seat belts are an
important
safety feature
of
your
veh·
icle.
F.or
your
protection, it
is
required
that
all belts be
fastened' while
your
motor
home
is
in motion.
The
driver's seat and
all
other
seats designed
to
carry pas·
sengers, whi
Ie
under way, have been equipped with lap
belts. '
NOTE: Seats which are
not
equipped with safety
belts should
not
be occupied while vehicle
is
in
motion and will be labeled:
"NOT
FOR
USE
WHI,LE
VEHICLE
IS
IN
MOTION."
WARNING
PASSENGERS SHOULD NOT
BE
ALLOWED TO
RIDE
IN
THE CAB·OVER
BED
AREA. 4
Safety belts
are
adjusted
in
the
following manner:
To
lengthen the belt, tip
the
buckle
at
right angles
to
the
belt, as shown
in
Figure 3. Holding
the
buckle
in this
position permits the
belt
to
slide
through.
Pull
on
the
buckle until the desired length
is
obtained.
To
fasten
the belts, make sure
the
belts are
not
twisted,
then
push
the toligue end of one
belt
into
the
buckle
of
the
mating
belt.
Be
sure it goes
in
all
the way
and
that
it
latches.
Tighten by pulling the loose end
of
the
belt
while
hold·
ing
the buckle. Adjust the belt
as
low
on
the
abdomen
and as snug
as
comfort
will allow
for
greatest safety.
Never use a belt for more
than
one
person
at
a time.
NOTE:
If
your
belts have been
equipped
with
retrac·
tors, be sure belt
is
pulled all
the
way
out
of
retractor.
To
release the belt, depress
the
button
in
the
center
of
the buckle and slide
the
tongue
out
of
the
buckle.
,
'.1
~~
PULL
,,":.f.
FIRSTf>USHBU~TTON
\..{~~/."
,{.;I . j
oow~.
~~~'
!"V'~
..•
~
'.
~
.
~~
"
lliEN
PULL TO UNFASTEN
v(.jF.
FIGURE 3
SAFETY
BELT
ADJUSTMENT

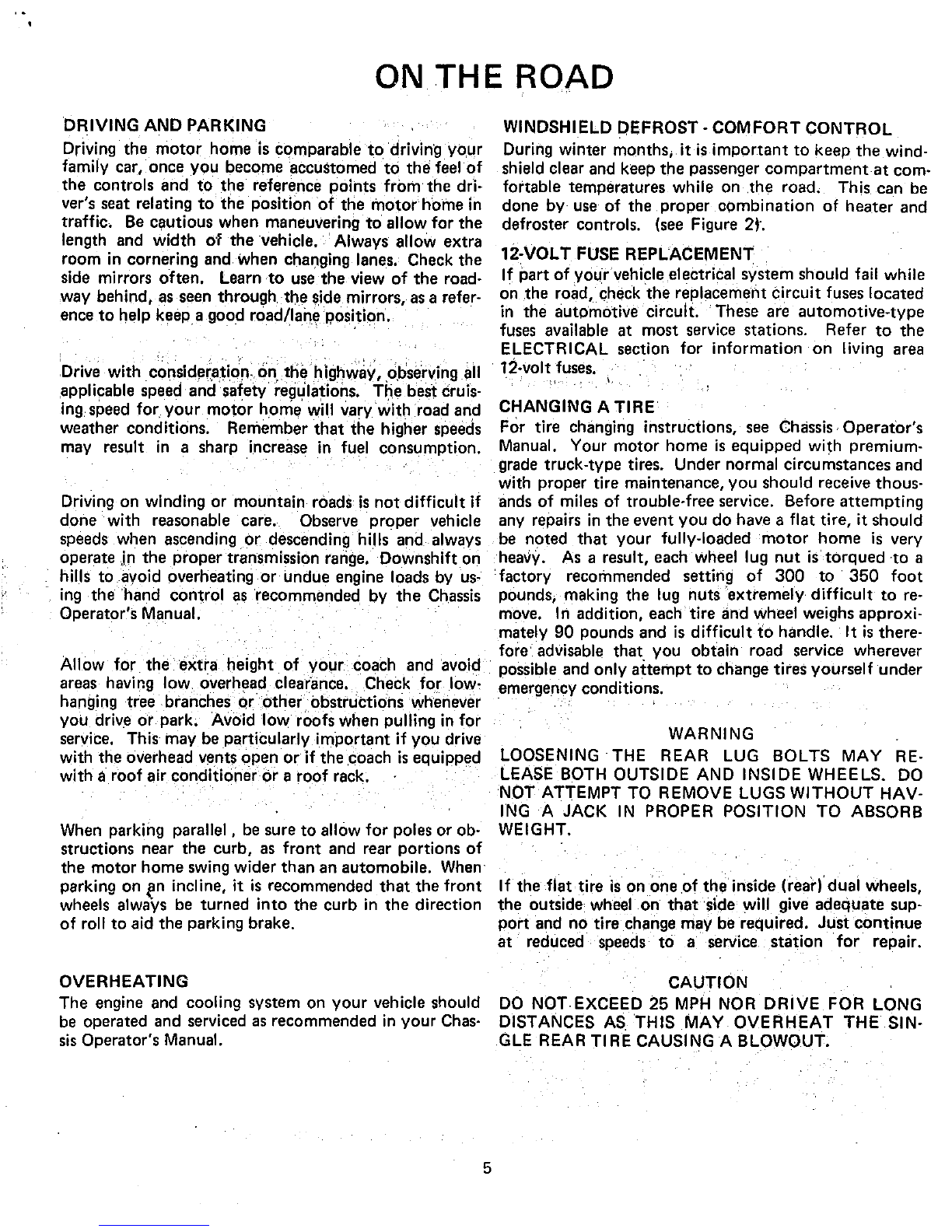

ON THE ROAD
DRIVING
AND
PARKING
Driving the
motor
home
is
comparable
todrivin'g
your
famiiy car, once you become accustomed
to
the feel
of
the controls and
to
the reference points
from
the dri-
ver's
seat
relating
to
the position
of
the
motor
home in
traffic.
Be
c~utious
when maneuvering
to
allow
for
the
length
and
width
0'1
the vehicle
..
'Always allow extra
room in cornering
and
when changing
lanes.
Check the
side mirrors orten. Learn
to
use'
the view
of
the road-
way behind,
as
seen
throughtl)e
side mirrors,
as
a refer-
ence
to
help keep a good road/lane position. .
,
,'.
,-
, >
Drive
with
consideration,
on,
tile
h ighwliy, obserVing all
,applicable
speed
and'safety regulations. The best cruis-
ing
speed
for
your
motor
home'
w'iII
vary
'with
road
and
weather conditions. Remember
that
the higher
speeds
may result in a sharp increase in fuel consumption.
Driving on winding or mountain roads
is
not
difficult
if
done with reasonable care.
Observe
proper vehicle
speeds
when ascending
or
descending hills and always
operate
,in
the proper transmission range.' Downshift
on
hills to avoid overheating
or
undue engine loads by
us-
ing
the hand control
as
recommended
by
the
Ch.assis
Operator's Manual.
Allow
for
the extra height
of
your
coach and avoid
areas
having
low
overhead clearance.
.Check
for
low-
hanging tree branches
or.other
obstructions whenever
YOll
drive
or
park.
AVOid
low
r()ofs when pulling in
for
service. This may
be
particularly important
if
you drive
with the overhead vents open
or
if
the
,coach
is
equipped
with
a roof air conditioner
or
a
roof
rack.
When
parking parallel,
be
sure
to
allow
for
poles or ob-
structions near the curb,
as
front
and
rear portions
of
the
motor
home swing wider than
an
automobile.
When
parking
on
en incline,
it
is
recommended
that
the
front
wheels always
be
turned
into
the curb in the direction
of
roll
to
aid the parking brake.
OVERHEATING
The engine
and
cooling system on
your
vehicle should
be
operated
and
serviced
as
recommended in
your
Chas-
sis
Operator's Manual.
5
WINDSHIELD DEFROST -
COMFORT
CONTROL
During winter months.
it
is
important
to
keep the wind-
shield clear
and
keep
the
passenger
compartment
at
com-
fortable temperatures while on ,the road.
This.
can
be
done
by
use
of
the proper oombination
of
heater
and
defroster controls.
(see
Figure
2t.
12-VOLT
FUSE
REPLACEMENt
If
part
of
your
vehicle electrical system should fail while
on
the road, check
the
replacement
circuit
fuses
located
in the automotive circuit.
These
are
automotive-type
fuses
available at most service stations. Refer
to
the
ELECTRICAL section
for
information
on living
area
12~volt
fuses.
CHANGING A TIRE
For tire changing instructions,
see
Chassis
Operator's
Manual. Your
motor
home
is
equipped
with
premium-
grade
truck-type tires. Under normal circumstances
and
with proper tire maintenance, you should receive thous-
ands
of
miles
of
trouble-free service. Before attempting
any repairs in the event you do have a
flat
tire,
it
should
be
noted
that
your
fully-loaded
motor
home
is
very
heavy.
As
a result,
each
wheel lug
nut
is'torqued ·to a
factory recommended setting
of
300
to
350
foot
pounds, making the lug nuts extremely
difficult
to
re-
move. In addition,
each
tire
and
wheel weighs approxi-
mately 90 pounds
and
is
difficult
to
handle.
It
is
there·
fore' advisable that you obtain road service wherever
possible
and
only attempt
to
change tires yourself under
emergency conditions.
WARNING
LOOSENING THE REAR LUG BOLTS
MAY
RE-
LEASE BOTH OUTSIDE
AND
INSIDE WHEELS. DO
NOT ATTEMPT TO REMOVE LUGS
WITHOUT
HAV-
INGA
JACK IN PROPER POSITION
TO
ABSORB
WEIGHT.
If
the
flat
tire
is
on
()ne
.of the inside (rear)'dual wheels,
the outside wheel on
that
'side
will
give adequ;lte sup-
port
and
no tire ch;lnge m;ly
be
required. Just continue
at reduced
speeds
to
a service station
for
repair.
CAUTION
DO
NOT EXCEED 25
MPH
NOR
DRIVE
FOR LONG
DISTANCES
AS.
THIS
IVIAY
OVERHEAT
THE
SIN-
GLE REAR TIRE CAUSING A BLOWOUT.
SERVICING
MOTOR
HOME
CHASSIS OPERATOR'S
MANUAL
Refer
to
your Chassis Operator's
Manual
for informa-
tion on chassis service recommendations.
As
a general
practice, ·you should have the coolant, the battery elect-
rolyte, and
the
engine oil levels checked each time when
refueling.
NOTE: Proper engine servicing and record
of
servic- .
ing
may be mandatory
to
ensure.chassis warr-
anty protection. Follow the 'manufacturer's
instructions on periodic maintenance checks.
ENGINE
~ERVICE
Items serviced from
the
exterior
of
the
coach are reached
through
the
front hood. This hood permitsservicing the
vehicle battery, radiator and coolant system,
the
engine
oil
level
and oil filler cap, windshield washer. brake
f1l1id
1. Engine Service Door
2. . Brake Cylinder Reservoir
3, Engine-Oil Filler Cap
4.,
. Windshield-Wiper Motor
6.
"Radiator and
Coolant
Fill
6., ,Engine-Oil Dipstick
,7;,
Windshield Washer Reservoir
8.'
Main Vehicle Battery
9.
Air Cleaner
10. Transmission Dipstick and Filler Cap
11. Hood
Support
reservoir, and power steering reservior. Refer
to
Figure
4 for location
of
these items and hood latch information.
More
extensive engine service, Including engine removal
if
required, can be accomplished through
the
exterior
section by removing
the
following iiems:
1.
Front bumper
~.
2. Front grille piece (center section)
3. Optional equipment (such as. air conditioner
and transmission cooling coils.
Access
will
then be provided
to
the
radiator and engine
for removal. Items serviced from inside
the
coach are
re-
ached through the engine compartment cover iocated
between the driver and.passenger seats. This gives access
to
the
transmission oil dipstick
andaifcleanet.
Refer
to
Figure 4'for location of thesll items. When
the
engine
is
being serviced from inside
the
coach, protect your car-
,
,:\
,,'
'<
' ,

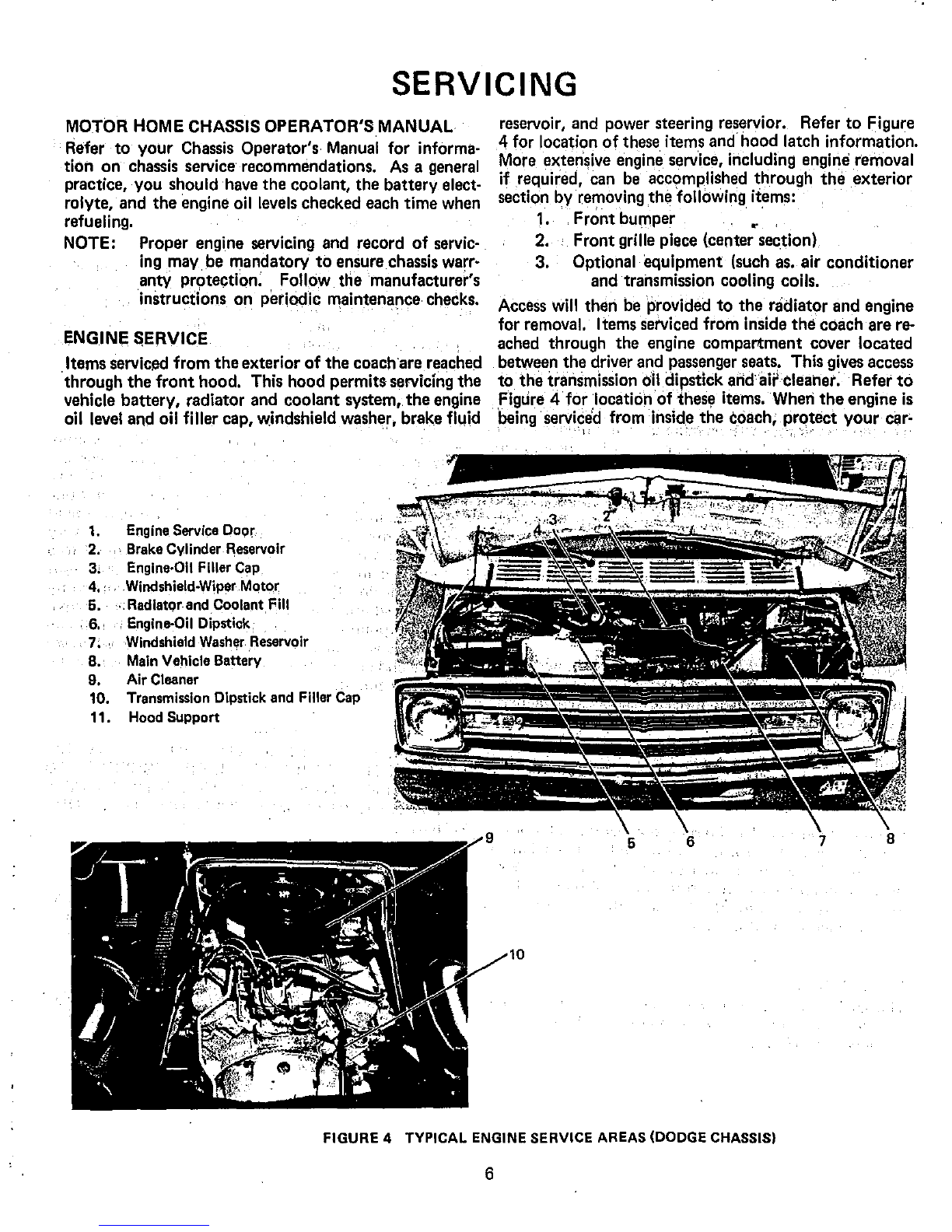

FIGURE 4 TYPICAL
ENGINE
SERVICE AREAS (DODGE CHASSIS)
6
pet and furnishings against oil and dirt. Your service·
man will be glad
to
use a protective cloth
if
you remind
him.
BATTERY SERVICE
Main
Vehicle Battery
Your
motor
homa has a 12·volt automotive battery
located under
the
front
hood
..
This battery provides
power for
air
vehicle requirements, including
the
radio
and/ortape
deck. Have this battery serviced when fuel·
ing
or
servicing other vehicle systems. .
i
There
Is
an auxiliary 12-volt battery
to
provide living·
area power requirements; It is located
in
a lockable vent-
ed compartment accessabhi from
the
exterior. Service
this
battery
when fueling
or
servicing
other
vehich! sys·
tems
..
'
, . .
When
operating properly, your vehicle
alternator
should
be able
to
handle normal vehclle driving requirements
and also recharge
the
battery.(or batteries) in a reason·
able ti
me
when on
the
road.
GENERATOR
POWER
PLANT SYSTEM SERVICE
Generator power plant service, recommended by the
Generator Manufacturer, should
I:le
performed
at
an au·
thorized
~rvice
cent~r
(listed in the. materi,al provided
in
your Owner's Information Kit). Routine or emer·
gency service, such
as
adding oil, changing filters
or
reo
placing spark plugs, could be accomplished
at
auto
ser·
vice
centers,
but
must be done
in
accordance with the
service instructions specified by
the
Generator Manu·
facturer.

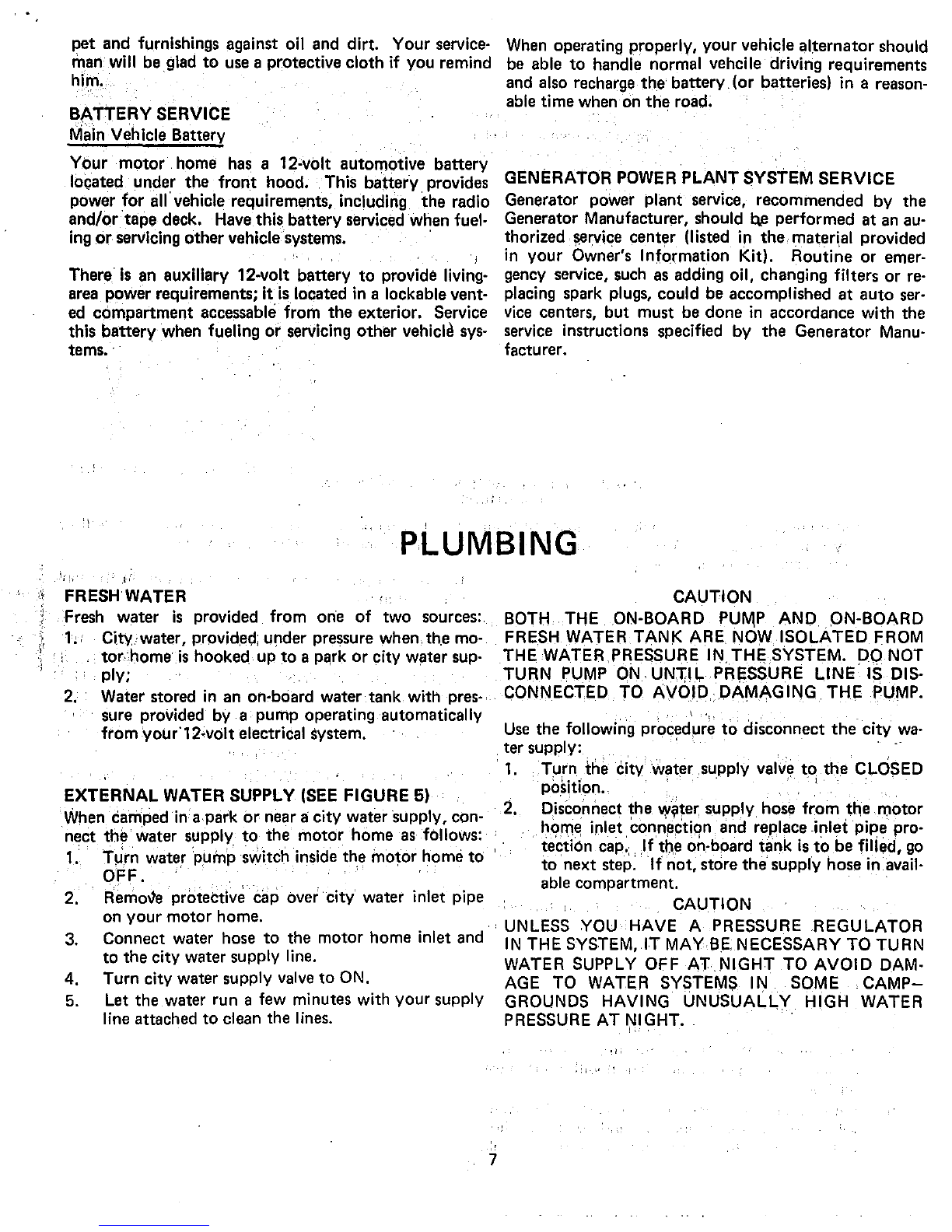

PLUMBING
FRESHWATER
Fresh water
is
provided from
on'e
of two sources:
1,! City·water, provid,ed; under pressure when
the
mo-
tor
home
is
hooked. up
to
a Park
or
city water sup·
ply;
2.
Water stored
in
an on·board water tank with pres·
sure provided by a pump operating automatically
from your'12-volt electrical system.
EXTERNAL WATER SUPPLY (SEE FIGURE 5)
When camped
in
a,park
or
near
Ii
city water supply, con-
nect
the
water supply
to
the motor home as follows:
1. Turn water
pulnpswitchinside
the motor home
to
OFF.
.'
. .
2. Remolla protective cap over city water inlet pipe
on
your
motor home.
3. Connect water hose
to
the motor home inlet and
to the city water supply line.
4. Turn city water supply valve
to
ON.
5. Let the
water
run a few minutes with your supply
line attached
to
clean the lines.
7
CAUTION
BOTH. THE .ON·BOARD
PUtvlP
AND ON-BOARD
FRESHWATER TANK
ARE
NOW
ISOLATED. FROM
THE WATER PRESSURE
IN,
THE SYSTEM.
DO
NOT
TURN
PUMP
ON,
UNTI
L PRESSURE LINE
IS
DIS·
CONNECTED TO AVOIDDAMAGING
THE
PUMP.
Use
the following
proc~dwe
to
di~connect
the
city wa·
ter supply:
1.
Turn
i:hecitywatersupply
valve
to
the
CLOSED
,
'.
.-
,-
. '
~
I .
Position..
'.
'
2. Disconnect the
w~ter
supply hose from tile motor
. horne inlet connection and replace .inlet
pipe
pro·
,
te'ctiOn
cap.:
If
the on·board tan.k
is
to
be filled,
go
to
next step: If not, store
the
supply hose inavail·
able compartment.
CAUTION
UNLESS
YOU
HAVE
A PRESSURE REGULATOR
IN
THE SYSTEM,IT MAYBE, NECESSARY TO TURN
WATER
SUPPLY OFF AT.NIGHT TO AVOID
DAM·
AGE
TO
WATER
SYSTEMS
IN
SOME
CAMP-
GROUNDS HAVING UNUSUALLY HIGH WATER
PRESSURE
AT
NIGHT.
,
'ii
(Keep switch in
OFF
position when tank
is
empty or city water
is
being used,)
FRESH WATER SYSTEM;
PUMP
SWITCH
(above galley cabinet) (Keep cap in place
when' city,water
is
not
being useq;)
FRESH WATER
FILL
LOCATION

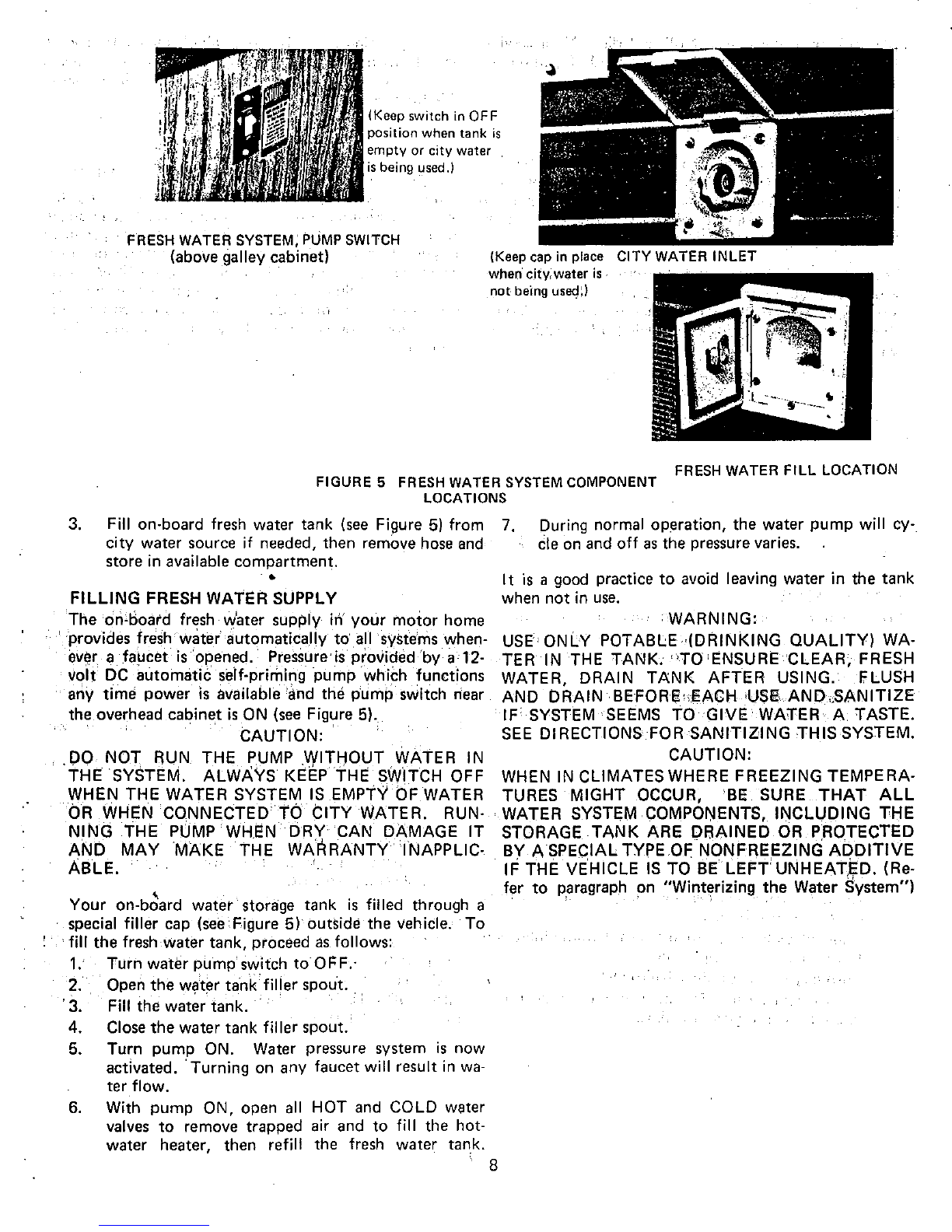

FIGURE 5 FRESH WATER SYSTEM COMPONENT
LOCATIONS
3.
Fill on·board
fresh
water tank
(see
Figure
5)
from
7.
city
water source
if
needed, then remove
hose
and
During normal op.eration, the water pump will cy-
cle
on
and
off
as
the
pressure
varies.
store in available compartment.
•
FILLING
FRESH WATER SUPPLY
Theon-board
fresh
w'ater supply in your
motor
home
provides fresh
Water'
automatically
to
all systems when-
evi1r
a faucet
is
opened. Pr'essure'isprovided
by
a12·
volt
DC
automatic self-priming pump
which
functions
any time power
is
available
'and
the pump switch
near
the overhead cabinet
is
ON
(see
Figure 5).
CAUTION:
~~ENS~~T~~~
~~~:~~~E1~T~~~~w1¢6~RO~~
WHEN THE WATER SYSTEM
IS
EMPTY
OF
WATER
OR
WHEN CONNECTED TO
CITY
WATER. RUN·
~tDG
~~~
P~~~E
W~~~~~~R~~~:~~:~pELIZ
ABLE.
Your on·b6ard water storage tank
is
filled through a
special filler
cap
(see
Figure 5) outside the vehicle. To
,
fill
the
fresh
water
tank, proceed
as
follows:
1.'
Turn water pump'switch
toOFF.·
2..
Open the water
tankfilier
spou't.
,
3.
Fill the water tank.
4.
Close
the water tank filler spout.'
5.
Turn pump ON. Water pressure system
is
now
activated. 'Turning on any faucet will result in
wa·
ter flow.
6.
With pump ON, open all HOT
and
COLD
w~ter
valves
to
remove trapped air
and
to
fill
the hot·
water heater, then refill the
fresh
water tank. S
It
is
a
good
practice
to
avoid leaving water in the tank
when not in
use.
.WARNING:
USE'ONLY
POTABLE
'(DRINKING
QUALITY)
WA-
TER IN THE
TANK.
"TO
ENSURE
CLEAR,
FRESH
WATER, DRAIN
TANK
AFTER USING.
fLUSH
AND
DRAINBEFORliLEACH
'USE,
AND,;SANITIZE
IF SYSTEM
SEEMS
TO GIVE
WM'ER
A.
TASTE.
SEE
DI
RECTIONSFORSANITIZING
THIS
SYSTEM.
CAUTION:
WHEN
IN CLIMATES WHERE FREEZING TEMPERA-
TURES MIGHT OCCUR, 'BE. SURE
THAT
ALL
WATER SYSTEM COMPONENTS, INCLUDING THE
STORAGE
TANK
ARE
DRAINED
OR
PROTECTED
BY A SPECIAL TYPE
OF
NONFREEZING
ADDITIVE
IF THE VEHICLE
IS
TO
BE LEFT' UNHEAT,i;D. (Re-
fer
to
paragraph
on "Winterizing the Water System")
TROUBLESHOOTING WATER SYSTEM
During normal use,
your
pump should operate automa·
tically (if power
is
provided and the pump switch
is
ON)
whenever a faucet
is
turned on. Should .your on·board
water supply fail
to
function when a faucet
is
opened,
check
to
,see
that
the
pump switch
is
ON.
If
the
switch
is
ON, check the fuse.
If
no pressure
is
available, al·
thougH
the
pump switch
is
ON, power
is
available, and
the pump fuse
is
intact, refer
to
the
information pro·
vided by
your
water pump manufacturer for instruc·
tions.
15.
If
the
system
is
to
be used,
fill
with fresh water.
If
not, the system
is
ready for storage.
WASTE-WATER SYSTEM
Your motor home has a self-contained drainage system
in
which body wastes (that
is,
residue from
the
toilet) go
directly
to
a holding tank.
All
of
the
plumbing com-
ponents
in
the
vehicle are usable even when
the
drain
is
capped.
WASTE-WATER DRAINING
. Body wastes enter
the
plastic holding
tank
to
be
reo
If
the
water pump continues
to
operate when no water tained until
the
tank
can be evacuated
into
a disposal
is
being used, there may be a leak in
the
system or
in
a area. Refer
to
the
information provided by
your
toilet
faucet.
If
no leak
is
found and
the
pump continues
to
system.
operate, refer
to
the
Information provided by
the
water
pump manufacturer
for
additional checks.
SANITIZING WATER TANK
It
is
suggested ,that
your
fresh. water tank be renewed
periodically using'a chlorine solution followed by clear
water rinses. .
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Prepare a chlorine solution by adding
1/4
cup of
liquid household chlorine-base bleach solution
to
one gallon
of
potable (drinking quality) water.
Add
at
the
rate of one gallon
of
this solution
to
the
empty supply
tank
for each 15 gallons
oftank
capacity.
Fill balance
of
tank with potable water.
With pump ON, open each faucet long enough for
water
to
run'
out;
to
remove all air from system and
I
iries.
Allow :thEi'system (now filled with chlorine solu-
tion)
to
stand for
at
least three hours. Before per·
,forming
the
,following
step,provisionsshould
be
made
to
allow for drainage
of
all
water from the
fresh water tank.
Flush
the
piping by running water
th~ough
faucets
for
at
least one minute each.
Turn pump OFF.
Drain tank and pipes by opening tank drain valve.
Open each faucet
to
permit water
to
drain from
each pipe.
When
the
tank
is
empty and each faucet has been
open~,
drained and closed, close the drain valve.
Fill
system with clear fresh water.
Repeat steps 6 through 9.
12.· 'Partly fill
the
system with fresh water and check
the tank and'system for taste and odor.
If
a chlo·
rine taste or
other
traces of impurity remain, ac·
complish step 13; If
the
system
is
clear, go
to
step
14.
13. Prepare a solution
of
l-quatt
vinegar
in
five gallons
of
water and place
in
tank.
Fill
the system com·
pletely. Agitate this solution by vehicle motion,
then repeat steps 4 and 5.
14. Repeat steps 6 through 9
to
empty
the
system.
9
The holding tank should be evacuated only
at
intervals
since
the
dumping a'ction
is
more effective in removing
solids when
the
tank
is
relatively full.
DO
NOT PULL
THE HOLDING TANK KNIFE VALVE OPEN WHEN
THE PROTECTIVE
CAP
ISIN
THE SECURED POSI-
TION. Always asSure
that
the
tank
is
evacuated into an
acceptable sewer inlet
or
dump station.
To
evacuate
wastes from
the
holding tank, proceed as follows:
1. Obtain a plastic or disposable sewer hose from
your
dealer or
RV
supply store.
2.
3.
4.
5.
Place sewer line over
the
termination fitting and
secure by tightening
the
hose clamp (see Figure 6).
\SECLAMP
~.~?
;""HACV<
,
'~TERMINATION
FITTING
FIGURE 6 TERMINATION FITTING
INSTALLATION
Place a container under
the
drain
outlet
to
catch
any water
in
the
drain if
required,then
remove'
the
. protective
cap
from
the
drain
outlet
by turning
it
firmly counterclockwise (see Figure
7).
Place
the
plastic terminatioh fitting over
the
motor
, home drain'
outlet
and secure by turning firmly
clockwise, being careful
that
the
clips catch firmly
to
hold
the
line in place.'
Insert
the
ground end 6f'
the
sewer line into a
ground sewer
or
dump station
outlet,
pressing
it
firmly far enough into
the
opening
to
be secure.
In
some cases, adapters may be required between
the
line and the inlet. Arrange sewer line between
motor home
outlet
and
dump
station so
that
it
is
free from dips.
~
1.
Grey-W.ater Holding Tank,
2..
Grey-Water Knife,Valve
3.
Drain -Line Y - Fitting
4.
Drain
Cap
5. Body;Waste Knife Valve
6. Body-Waste
Hol~ing
Tank
FIGURE 7
TYPICAL
WASTE WATER SYSTEM
DRAIN,
WITH
DUAL
TANKS
6. Unlatch body waste holding tank knife valve
by
re-
moving wire clip
or
unscrewing lock screw. Grasp
the
handle firmly and slide the valve open with a
quick steady pull.
7.
Allow sufficient time for
the
tank
to
be completely
drained. Rinse and flush tank if necessary,
or
if
the vehicle
is
to
h~
stored. When tan'k
is
empty,
push handle inward
to
close valve. Reset retaining
cI
ip
or replace cap. .
8.· The motor home
is
also equipped with. a dual (grey
. water) holding
tank
so repeat steps 6 and 7 for the
second knife valve. This tank
is
dumped
last
to
help
fll,lsh
outlets.
".
9. Remove
the
sewer hose by turning termination fit-
ting.counterclockwise.
10. Rinse
out
sewer hose with a Separate fresh water
hose or supply, then remove line from ground inlet.
11. Stow sewer hose and fitting and replace sewer
or
dump
station cover
if
applicable.
PLEASE
.....
USE
GOOD HOUSEKEEPING WHEN
DRAiNING WASTES AT A CAMPS.ITE OR DISPOS-
AL STATION. LEAVE THE SITE
IN
GOOD ORDER.
ABOVE ALL, AVOID POl,LUTIOf\i OF LAKES
AI\jD
STREAMS.
WINTERIZING THE WATER SYSTEM
If
the motor home
is
to
be.stored in temperatures be-
lowfreezing,
the fresh water and waste systems should
both be winterized as follows:
1.
Drain fresh water tank by opening
water
tank
drain on exterior sidewall spigot
..
2.
Op~r\the
drain
faucets on HOT and COLD wat-
er pipes.' (these are located under
the
floor
in
the
galley, gaucho
or
lavy
..
After all has been
draifledfrom
the
water pipes, close faucets.
, .
3.
Turn pump ON. Open a cold
water
faucet.
When flow
of
water has stopped,
turn
pump
OFF.
4. Drain water heater by opening drain plug
at
bot-
tom .of heater and safety valve.
Also,open
the
hot
water
faucets.
5.
Drain.
waste water system·by, following normal
procedure for emptying holding tank (refer
to
paragraph
.on
WasteW~ter
Draining)
..
6. Place a minimum
of
1-1
/2
gallons
of
approved
non-toxic 'afltifreezll solution for plastic piping,
drains, and
trapsinwater
tank.
Open all cold
water faucets, turn water
pump
,ON,
and
operate
until the. tank has emptied sO,lution
into
system.
7. Pour one-half cup
of
this solution
into
each
drain
to
ensure
that
traps are protected.
Have
automotive radiator. solution tested
to
ensure
that
vehicle
is
well
protected
to
any anticipated freezing level,
as
recommended ,inChassisOperator's Manual.
The above
is
a basic procedure designed to, be performed
by,
the Motor Home Owner. In areas
of
extreme
cold
extra freeze protection can be obtained by scheduling
a motor home
dealer
to
perform this winterization for
you.
He
has specialized equipment
that
will enable him
to
blow the. water and drqin lines clear.
)0
DO'S AND DON'TS -WASTE TANKS
DO
keep your holding tank clean using any clean-
er approved for recreational vehicle sanitation
systems.
DO
add.
a 'special deodorizer
or
chemical additive
approved for recreational vehicle systems
to
sanitize and improve
the
tank action.
DO
guard against freeze·up.
DO
keep
your
tank knife valve closed, permitting
the
tank,
to
get as full
as
convenient before
emptying.
'.
DO
DO
DO
DON'T
DOWT
keep both tank knife valve(s)
and
the
drain
cap(s) tightly
in
place when traveling
to
per-
mit use
of
the
system when
on
the
road.
use any soft (single-ply)
toilet
tissue.
open the bath vent
to
keep bathro,?m fresh.
put facial tissues, paper,
permanent
(automo·
tive) antifreeze, sanitary napkins,
or
house·
hold toilet cleaners
in
your
holding tank.
put
anything solid
irr
your
holding
tank
which can scratch
or
damage
the
plastic.
ELECTRICAL
Your
motor
home has
two
electrical systems. One pro-
vides 115-volt poWer
to
operate
all 115-volt living area
lights and appliances. This system
is
used when power
is
available from a ground power sp\lrce
or
from an on-
board generator power plant,
if
one
is
:installed. The
second system uses
on-bo~rd
batteries'
to
provide power
for
all
12-volt lighting, appliances, and accessories as well
as
normal vehicle needs (see Figure 8). '
115-VOLT SYSTEM POWER CONVER'TER (INSIDE)
A 25-foot, heavy-duty, power-supply c,qrd
is
provided in :
a special storage
compartment
(see Figure
1)~
This cord
is
pulled
out
and connected
to
any aqequate 115-volt
power source
to
activate all power circuits (see Figure
9). The connector
is
rated for 3D-amp capacity.
Use
. this power plug only with
the
proper mating connecto( .
and only with facilities having a 3D-amp capacity. Such
facilities lire available in most parks and campsites.
CAUTION
USING YOUR POWER CORD WITH POWER SUP-
PLIES
WHICH
HAVE LESS THAN
3D-AMP
CAPA·
CITY OR USING THE PLUG WITH RECEPTACLES
FOR
WHICH
IT
WAS
NOT DESIGNED,
MAY
DAM-
AGE YOUR APPLIANCES AND
MAKE'THEWAR-
RANTY INAPPLICABLE.
12:VOLTSYSTEM
When
,t~e
power supply cord
is
not
connected
to
a 115-
volt grou'ld source (or
to
the
generator power plant
re-
ceptacle) power for lights and appliances
is
automati-
cally
provided from your vehicle
battery
or
from an
aux.-
iliary
battery.
11
12-VOLT FUSES
The fuses for
the
12-volt electrical system (excluding
the
12-volt ,chassis circuit fuses) are located
within
the
Electrical control panel behind an access panel in
the
living area (see Figure
9),'
Certain models lIsing
the
-
...
---~
I
, I
FIGURE 9 ELECTRICAL
CONTROL
PANEL
TA!
~
'"
TA
LLIGHT
q
r-
n 0 16WHT.
.r.
I 16BRN. • J
t-
~
I rEl
~
.i'r"""
L-
~~
16WHT.·
16BRN.
~
G
TRUCKBATTERrY+
__
i
..
",
16BLK.
_\
I."l
) n
~
5;;;
..
~:::~.
(1'"
~
t.!J~
U
-16GRN. n
r7--~+-t------'---l-"--"-"==---r=~y.
CHASSIS
FUSE
BLOCK U
16
BLU~
GRND.LUGS.
TO
FUEL TANK fOl
~
..
~. ~.
OPT.
FURNA.CE.B.
LOWER
RANGEHOODFAN
WAT~MP
~-.
L::;.J
WI¥I
~
I
~ ~
.
DUAE~~l~~~
O=t-GROUNnWlliEJ
\1t1
~
~
.J
~
~
~
FL~ORESC~NT
.
IT
.
ICC
\
ri
%
~
0=
REAR
<\Ii
l'r'
..k:
f-rl
~
5
r-
CLEAR LTS.
a'
183
E~
..
.ALTERNATOR
....
1""\-'
~
:::i
t-=
z I
::It!
:::!
i
~
LIGHTS -
..
'
~
;:
..
,.,
115 V.A.C. 12 V.D
.•
C.
I(
HI
..
-'
():
-
-S
EPLtGHT
I'
~
!
t-
@'
H
G~D.ID~DOI
c=J
e.
~
~
BATH VENT FAN
'="J
~
·'SRE
~
0
!i:
(OPTIONAL)
PORCH
LlGHT~'
--=-
~_
- • TO
TV
~
-
-ELECTRICd]
~
..
120RG;
1
A~TENNA(OPTI.
NiTAL)
~
PANEL
A·'
12 YEt. I U
-
BOARD·
L2~-~=.~~-t~
;:
& CONV 14REO
AUXILIARY.
~
L....
.-
.-
..
14
GRN. C BATTERY
~
-,
~~
.
a::
- ,
GROUND
"'.
r . 115 V.A.C. SUPPLY ,
'-
~
- -
115V/12V
ELECTRICAL
PANEL
W/FUSE .BLOCK
E--
AUXILIARY-FUSE
PANEL-LOCATED
BEHIND
DR
IV
L LIGHT
lr
~.
-
VE_~.'.~~~
!.~"!:r.~~=~.O~~~~~~~':_~!l.?~~
••
_.
__
••
_
•.
_ _
~~!
..
______
_
i·
:;
w
~
'"
a:
.",
w
-'
o
l-
ii
a:
..
ERS
COMPARTMENT
ARY
BATTERy
COMPARTMENT
--40A
. 0 -
DUACCHARGE
CONTROL-LOCATED
,UNDER
HOOD
G CHASSIS FUSE
PANEL-SEE
CHASSIS OWNERS
MANUAL
,
FIGURE
8 ELECTRICAL
DIAGRAM
-
, .
optional 12-volt refrigerator may also have a fuse
in
the
line supplying power
to
the
appliance. Fuses for the
motor home chassis circuit are located on a panel under
the dash behind
the
steering column. See your Chassis
Operator's Manual for further information. Optional
equipment may have additional fuses installed; refer
to
the equipment instructions for information.
, NOTE:
If
fuse repalcement
is
necessary, replace with
fuses
of
the
same amperage.
AUXILIARY 12-VOL
T.
BATTERY
The motor home
is
equipped with an auxiliary 12-volt
battery. It will be installed in
the
location shown
in
Fig·
ure 1. The auxiliary battery
is
the
primary source for
normal living-area power needs. Sensing and switching
circuits permit
the
vehicle alternator
the
charge both bat-
tei'ies as required an'dprevent
the
iiving area 12'volt
reo
I
','
,
I
r
···~·~~l
c
,0;
n
-----,-~
c~:·--
• t
~
~
___
'J
f"
If-'
I
il:
" ,
.,'
-,
~
l
F-1
?i~';
-
~
~r·~~,~··~··~
l~J
":,:;
,~~~
.,:.
:,1
'"
eel
~.
"~I"~
1':' ,
"';........c
"'\~
\ . -" '-'L
~
' .............
c:>~
OUTSIDE
POWER
PLANT
'1.
quirements from depleting
the
vehicle battery.
2.
Remote Indicator'Light
Remote Start Switch
Hourmeter
, NOTE:
All
radio and
tape
decks draw from
the
vehicle
battery and extended usage may deplete it.
AUXILIARY GENERATOR
POWER
PLANT
(OP-
TIONAL)
'.
"The
engine'driven 115·volt generator power plant (if
in·
stalled)
is
looated
in
a special compartment. This
gen-
,erator
option has a self'starting system which includes
the auxiliary battery. Controls are
at
the
generator and
,at a remote control panel located inside the motor home.
Refer
to
Figure'
10
for
the
generator power system and
auxiliary control panel.
The 115-volt
output
of
the
generator
is
provided direct-
ly
to
a receptacle which
is
located inside
the
power cord
storage compartment for models with
the
generator pow-
1lr
plant option. With
the
generator power plant operat·
ing and
the
power cord plugged into this receptacle,
power
is
'conducted through the circuit breaker panel
to
supply
all
of the
115·voltpower
requirements
of
the
motor home, just
as
if
the
cord were connected
to
an ex·
ternal power source (see Figure 9). '
Gasoline for
the
generator
is
taken from the main fuel
tank
throu\l.h a special feeder tube which
is
higher
in
the
tank than the feeder
tube
to
the motor·home engine.
This
is
to
prevent immobilizing the motor home
by
ac·
cidentally permitting the generator
to
run
the
fuel tank
dry.
, NOTE: Refer
to
your Generator Power Plant Manu·
facturer's Instruction Manual (provided
in
your Owner's Information
Kit)
for service
in·
formation before starting the generator,
Do
not
start unit with a heavy power load.
AI·
ways wait at least,three minutes after starting
generator before turning on (or plugging
in)
heavy electrical loads. (Example:
When
op·
tional r'oof air conditioner
is
installed,)
3.
4., Start
Switch'
,
REMOTE START PANEL
FIGURE 10 GENERATOR
POWER
PLANT ENGINE
SERVICE AREA (Optionall
To start the generator, hold
the
switch
in
the
START
position ,until the unit starts, then release the switch.
If
unit
is
slow
to
start,DO
NOT
hold
the
switch in
the
START position for more than 10 seconds. Release
the
switch, wait 15 seconds, then repeat.
T\:1is
will help
a·
void overheating the generator starting inotor and may
prevent damage
to
the
starting system.
If
this system
fails
to
start, the generator manual starting in'structions
are described
in
the
General Power Plant Manufacturers
Instructions. To stop
the
unit, hold
swit<;h
to
the
STOP
position until
the
engine stops operating.
A,clock/meter
is
on
the
control panel located inside
the
, motor home. This meter indicates
the
hour,s
of running
time
on
the
generator. Operating-hours information
is
important
in
scheduling proper service maintenance for
the generator.
ROOF AIR CONDITIONER (OPTIONAL)
Your
motor
home may have one or
two
air conditioners
installed on the roof (see Figure
11),
which use 115·volt
power from the generator power plant or from
the
ex-
ternalpower
source,depending on system design. ' The
air conditioner has three controls
on
the
lower panel of
the air conditioner,
as
shown
in
Fi~ure
11. These are a
13
blower switch, a thermostat,
and
an
airflow direction
control. A removable
filter
is
located on the air con-
ditlontlr
panel
inside the vehicle. For best results,
care-
fuily,follow
all instructions provided by the air con-
ditioner manufacturer
with
regard
to
operation
and
maintenance. CAUTION
IF THE AIR CONDITIONER
IS
SWITCHED OFF FOR
ANY
REASON, WAIT A
FEW.
MINUTES BEFORE
STARTING
IT
AGAIN TO
AVOID
OVERLOADING
CIRCUIT BREAKERS.
SEE
THE MANUFACTUR-
ER'S INSTRUCTIONS. WHEN AIR CONDITIONER
IS
NOT BEING USED, ALWAYS
KEEP
CONTROLS IN
DEACTIVATED'POSITIONS (WARM-OFF) TO
RE-
DUCE UNNECESSARY CIRCULATION
OF
REFIRG-
ERANT.
Keep
'air
filter
screen
clean
and
working properly,
ex-
pebiallyln
dusty
or
dry
areas.
STAl\iDARDAUTOMOTIVE
AI,R
CONDITIONER
(OP-
TIONAL)
For specific instructions, refer
to
the information pro-
'vided by the air conditioner Manafacturer.
CAUTION
THE AUTOMOTIVE AI R CONDITIONER PLACES AN
ADDITIONAL
LOAD
ON
THE VEHICLE'S COOLING
SYSTEM. IF ENGINE RUNS
ABNORMALLY
HOT,
SHUT· OFF
AIR
CONDITIONER
UNTIL
ENGINE
COOLS DOWN.
1.
2.
Directional Louver Control
Removable
Air
Filter (under grill)
3,
4
3_
Blower
Sw
itch
.
4.
Thermostat
6.
Air
Flow Control
FIGURE
11'
TYPICAL
ROOF
AIR CONDITIONER
(OptionaU
5
LIQUID
PETROLEUM
GAS
SYSTEM
.'
Liquid Petroleum (LP)
gas
is
the energy source
for
your
range,
oven,
and
fJrnace.
It
is
also
an
alternate power
source
fQr
your
LP
gas/electric refrigerator.
.
LP
gas
is
acolorless
gas,
but
is
stored under
pressure
as
a
liquid. The tanks
are
located in one
of
the
compart-
ments
accessible
on the outside
of
the vehicle.
It
is
com-
merCially available under
such
mimes
as
Butane,
Propane
or other
br'and
names.
Though odorless In a natural
state,
LP
gas
is
always odorized
to
smell like garlic
for
easy
detection in the event
of
a leak. The
gas
'and
the
liquid tank in which
it
is
stored
are
safe
and convenient,
provided
sensible
precautions
are
followed.
CAUTION
LPGAS
IS
FLAMEABLE
AND
POTENTIALLY EX-
PLOSIVE.
USE
PROPER
HANDLING. LIGHTING
AND
VENTILATING
PROCEDURES.
AS
A GAS,
LP
GAS
IS
HEAVIER THAN AIR AND
WILL
DISSIPATE
.
'IF
VENTILATION
IS
PROVIDED TO PERMIT A
DOWNWARD FLOW.
USING
YOUR
LP
GAS SYSTEM
AT
LOW TEMPERA-
TURES
Your
gas
syst!lm
will
function well
at
low
temperatures,
provided the components
are
kept
at
a temperature
a-
.bout the boiling point
of
the
gas.
.
14
NOTE: Butane boils
or
turns
to
a
gas
about
32
deg-
rees
F
and
propane boils
at
about -40
degrees
F.
.
Thefollciwing
are
suggestions
to
keep
gas
appliances
working smoothly: .
1.
Ch06se
a type
of
LP
gas
which
has
a boiling
point lower than any temperature you expect
to encounter. Ask your
LP
gas
supplier
or
your mbtor'hOme dealer
for
information on
, products available in your
area.
2.
If
outside temperatures get below the boiling
point
of
the
LP
gas
in
your
system, keep ex-
posed
area
(such
as
the tank, regulator and
lines)
at
a higher temperature with a protec-
tive
cover.
Table of contents
Other Jamboree Motorhome manuals
