Jamboree Rallye 1981 User manual
Jamboree®
RALLYE
1981
INTRODUCTION
Welcome
to
the
recreational vehicle lifestyle and
the
grow-
ing
family
of
motor
home owners.
We
sincerely
thank
you
for choosing our product.
Your
motor
home has been designed
to
provide you with
many years
of
carefree, pleasant traveling and vacationing.
This manual describes many features of
your
motor
home
and provides a guide
to
operating procedures so t,hat
you
can
obtain optimum performance from those features. Like
all
finely crafted equipment,
your
motor
home will require care
and regular maintenance
in
order
to
retain its maximum
performance characteristics. This manual, along with
the
information provided
in
your Owner's Information Kit outlines
the
important areas
of
maintenance and provides a mainten-
ance schedule
that
you should follow
to
assure safe, trouble-free
service from
your
motor
home.
Study
these instructions care-
fully, A good working knowledge
of
your
motor
home
and
how
to
care for
it
will help you enjoy many miles
of
recreational pleasure.
Your
motor
home
has been designed to conform with, or
exceed
the
American National Standards Institute A119.2,
ANSI/NFPA 501C, Canadian CSA Standard Z-240
(Canadian-built,
or
units built for Canada),
and/or
applicable
motor home vehicle standards. These standards establish
the
plumbing, heating, electrical, and
other
requ irements for
quality and safety. Compliance with these standards
is
indicated by
the
seal attached just outside
the
entry
door.
This seal
is
the
outward sign
of
internal quality.
The
motor
home has been thoroughly inspected before ship-
ment. It
is
the
duty
of
your
dealer
to
inspect
the
motor
home
and
to
prepare
it
for you during
the
predelivery phase
of
the
sale.
He
will instruct you
in
its basic use; however, this should
be supplemented by
your
reading
all
instructional material
furnished with
the
motor
home.
If,
after taking delivery
of
your
new
motor
home,
you
'feel it requires additional
conditioning
or
adjustment, please return
it
to
your
dealer
as
soon as possible,
If
you have any questions regarding operation, maintenance,
or
service, please
contact
your
dealer immediately so he can
assist you, Your dealer's service or sales
department
will
promptly handle any normal problem which might occur.
Customer service
is
of
utmost importance
to
your
dealer,
as well
as
to
the
manufacturer. If, for some reason, a
problomisnot
hanrllerltoyoursatisfactionj
we make
the
following suggestions:
1.
Discuss
any
warranty-related problems directly with
the
General Manager
or
the Owner
of
the
dealership,
giving him an
opportunity
to
help his service depart-
ment resolve the
matter
for you.
2.
Should a problem arise
that
cannot be resolved
to
your
satisfaction by
your
local dealer,
contact
the
factory service supervisor. The back page
of
this
manual has a factory listing, Please
contact
the
one
'1earest you.

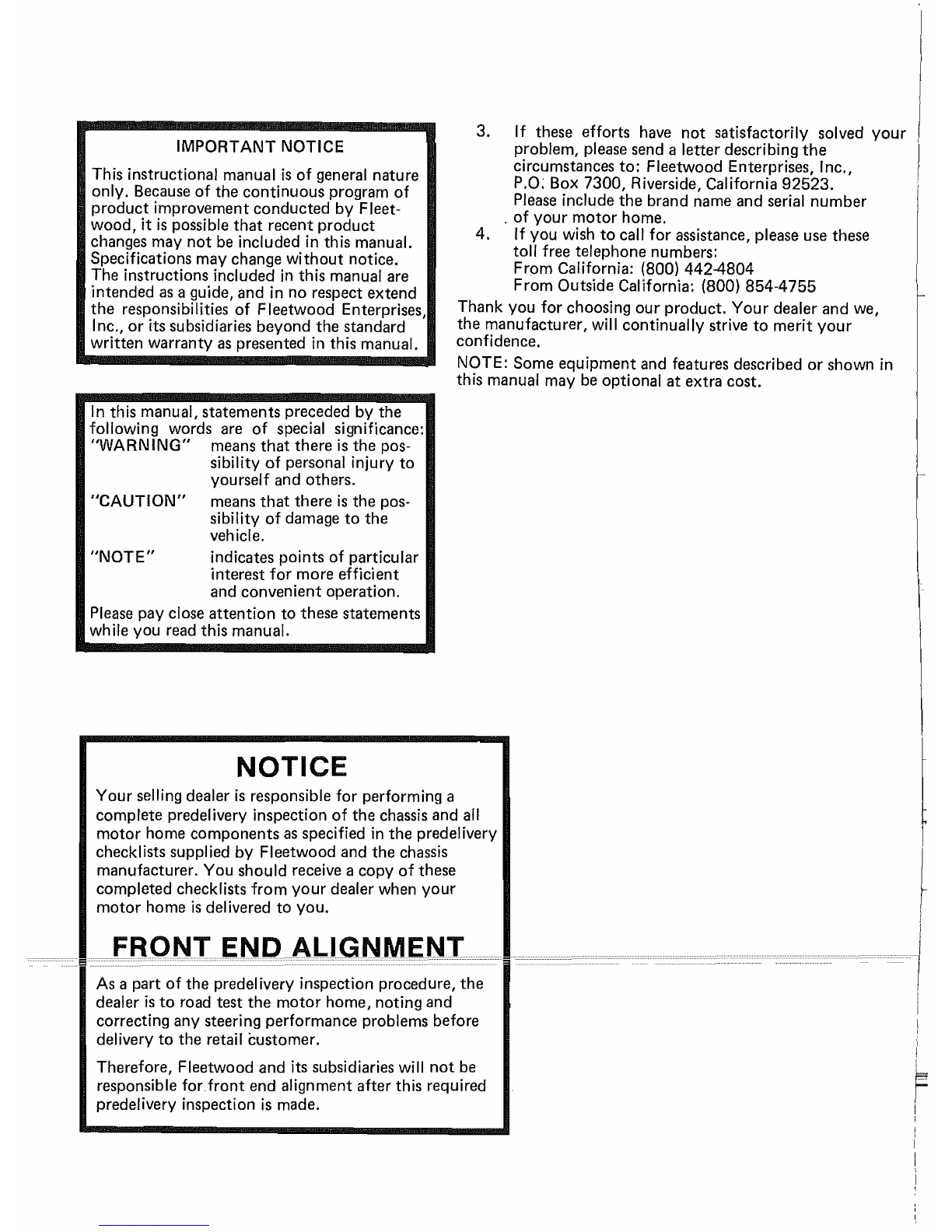

IMPORTANT NOTICE
This instructional manual
is
of
general nature
only. Because
of
the continuous program
of
product
improvement conducted by Fleet-
wood, it
is
possible
that
recent product
changes may
not
be included in this manual.
Specifications may change
without
notice.
The instructions included
in
this manual are
intended as a guide, and
in
no respect extend
the
responsibilities
of
Fleetwood Enterprises,
Inc.,
or
its subsidiaries beyond
the
standard
written warranty
as
presented
in
this manual.
3.
If
these efforts have not satisfactorily solved
your
problem, please send a letter describing
the
circumstances
to:
Fleetwood Enterprises, Inc.,
P.O: Box 7300, Riverside, California
92523.
Please include
the
brand name and serial
number
.
of
your
motor
home.
4.
If
you wish
to
call for assistance, please use these
toll free telephone numbers:
From California: (800)
4424804
From Outside California: (800)
854-4755
Thank you for choosing
our
product. Your dealer and we,
the
manufacturer, will continually strive
to
merit
your
confidence.
In
this manual, statements preceded by the
following words are
of
special significance:
"WARNING" means
that
there
is
the
pos-
sibility
of
personal injury
to
yourself and others.
"CAUTION" means
that
there
is
the
pos-
sibility
of
damage
to
the
vehicle.
"NOTE"
indicates points
of
particular
interest
for
more efficient
and convenient operation.
Please pay close
attention
to
these statements
wh
ile
you read this manual.
NOTICE
NOTE: Some equipment and features described
or
shown
in
this manual may be optional
at
extra cost.
Your selling dealer
is
responsible for performing a
complete predelivery inspection
of
the
chassis and
all
motor
home components
as
specified
in
the
predelivery
checklists supplied by Fleetwood and
the
chassis
manufacturer. You should receive a copy
of
these
completed checklists from
your
dealer when
your
motor
home
is
delivered
to
you.
FRONT END ALIGNMENT
As
a part
of
the
predelivery inspection procedure,
the
dealer
is
to
road test
the
motor
home, noting and
correcting any steering performance problems before
delivery
to
the retail customer.
Therefore, Fleetwood and its subsidiaries
will
not
be
responsible
for
front
end alignment after this required
predelivery inspection
is
made.
~
I

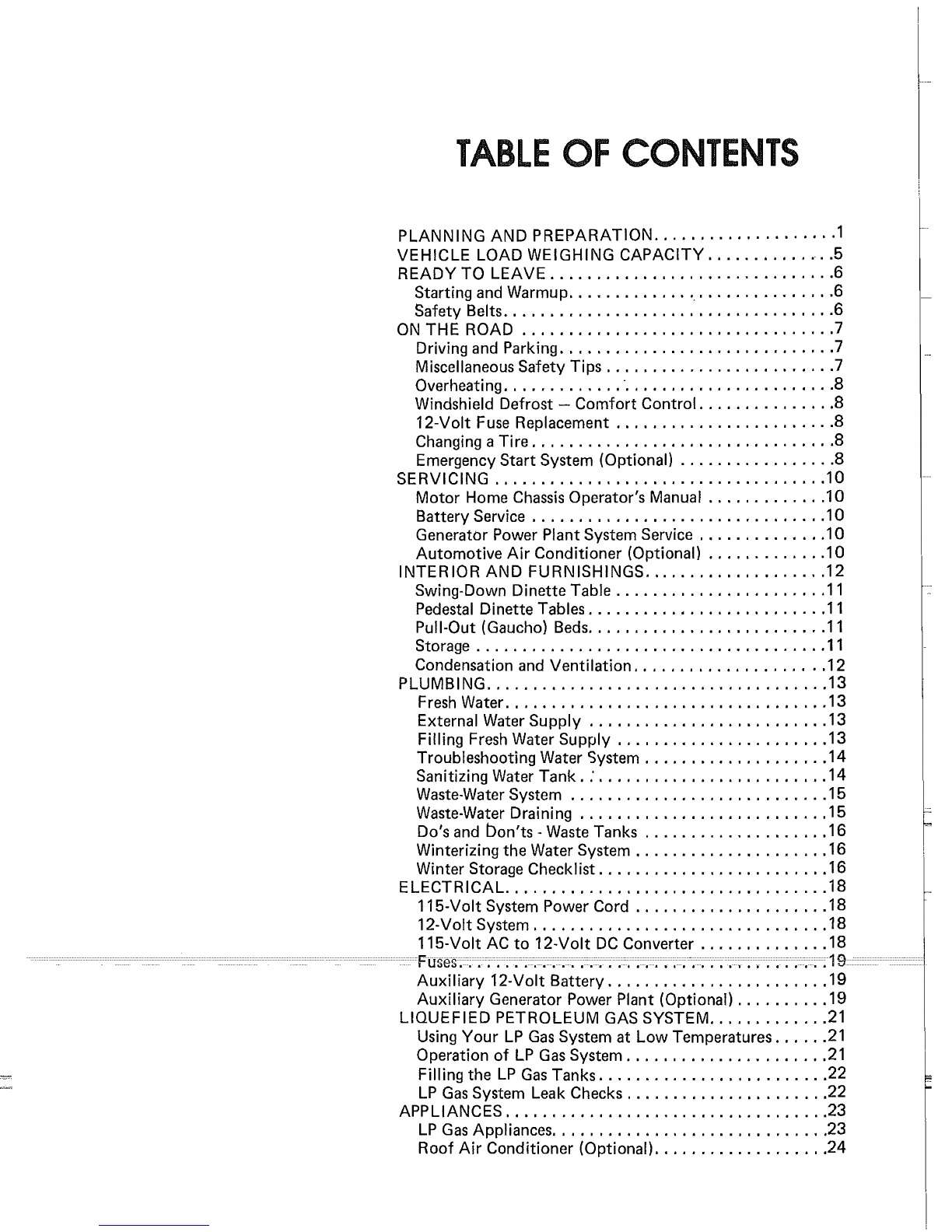

TABLE
