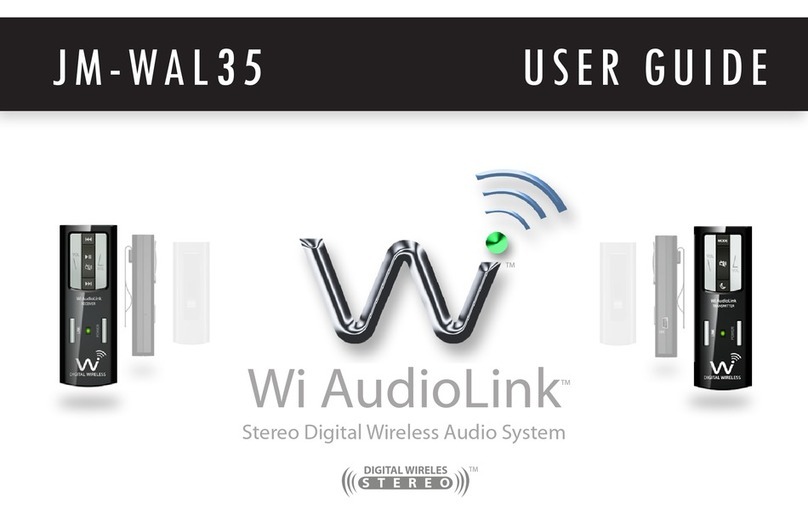

Jangus JM-WAL35 User manual

Wi AudioLink
USER GUIDEJM-WAL35
Professional Stereo Digital Wireless Audio Dongles
STEREO
DIGITAL WIRELES

CONGRATULATIONS!
Thank You For Choosing Jangus Music!
Congratulations on your purchase of the Wi-AudioLink Professional Stereo Digital Wireless Audio Dongles.
In this manual, you’ll nd information designed to help you understand the capability of your
Wi-AudioLink as well as step-by-step explanation on how to install and operate your
Wi-AudioLink professional stereo digital wireless audio dongles.
Wi-AudioLink
CONGRATULATIONS

Getting Answers!
We want you to get the most from your new Wi-AudioLink professional stereo digital wireless audio dongles!
Simply logon to www.jangusmusic.com and access the powerful resources available online including
instructional manuals and frequently asked questions.
Our customer service support staff are ready to assist you with any question you may have.
Your Wi-AudioLink comes with 90 days of telephone support and one year of service coverage.
There are may ways to contact Jangus Music customer service support.
E-Mail: [email protected]
Website: https://www.jangusmusic.com/support
Technical support: [phone] [949-JANGUS7]
Wi-AudioLink
3
TECHNICAL SUPPORT

Making Grate Instruments Better!
Jangus Music’s Wi-AudioLink JM-WAL35 professional stereo digital wireless audio dongles solution is the
smallest, most advanced cable replacement technology available today that ts on the palm of your hand!
This full function 2.4GHz point-to-point digital wireless audio solution provides up to 300 feet of secure,
simultaneous un-compressed stereo 48KHz/16bit CD quality wireless audio connectivity without radio
frequency (RF) interference with other wireless devices ,signal loss, crackle or AC hum making it the best
wireless solution for live performances and studio recording environments.
This Patents-Pending, plug-and-play digital wireless audio solution replaces the traditional audio wire cable
and provide easy and user friendly way to connect any professional musical instrument such as Digital
Pianos, Keyboards, Guitars, Effects Pedals, Electronic Drums and other analog audio devices to remote and
hard to reach equipment such as Mixers, Ampliers, Speakers, Samplers, Hard Disk Recorders, Computers
and more. Simply connect the dongle size transmitter to the audio output jacks on the musical instrument
then connect the dongle size receiver to the mixer, amplier, speaker, surround sound or computer audio
input jacks and you are done!...
INTRODUCTION
Wi-AudioLink
4

Meeting The Specs!
The Wi-AudioLink transmitter small and
rugged design, boasts three (3) different
power up modes to support the following
instruments connections:
• Line-in (Stereo)
• Active Guitars/Mono Line-in
• Passive Guitars /Electric Acoustic
Each of the power up modes are
congured to apply the appropriate
input impedance and input voltage
levels to best match the electrical
characteristics of the instrument
connected to the transmitter dongle.
INTRODUCTION
Wi-AudioLink
5
Transmitter
(Tx)
Receiver
(Rx)
Stereo System
MP3 Mixers
DJ Gear
Digital
Recorders
Computers
Ampliers
Mixers
Stereo System
Digital Recorders
In-ear Headphone Monitors
Pianos &
Keyboards
Electric
Acoustics
Electronic
Drums
Electronic
Wind instruments
Effects
Pedals
Effects Pedals
Flat Screen TV
Electric
Guitars
Computers
Professional Gear
Consumer
Smart Phone

Extreme Flexibility!
The Wi-AudioLink boasts an interchangeable
1/4” (6.35mm) TRS stereo connector jack, 1/8”
(3.5mm) stereo miniature jack, 2.5mm
subminiature jack and XLR connectors for
maximum connectivity with audio devices.
The Wi-AudioLink power source exible
design boasts an internal rechargeable battery
for 6.5 hours of battery operations, powerful
USB bus power connectivity to any USB
equipped devices and optional ON-THE-GO
AA battery power booster adapter for 19 hours
of extended battery operations.
INTRODUCTION
Wi-AudioLink
6
XLR Unbalanced
6.3mm TSR Stereo
6.3mm TSR Mono
3.5mm Stereo
3.5mm Mono
2.5mm Stereo
2.5mm Mono
RCA
Charger
USB
Bus Power
3.5mm Stereo
AA Battery
Power Booster

Creating Your Audio Matrix!
Jangus Music’s built-in digital wireless audio signal
patch routing feature allows users to re-rout the audio
output signal from their instruments to up to eight (8)
different digital wireless receivers including Jangus
Music’s JM-WHM01 digital wireless headphone audio
monitoring system for private listening and
performance monitoring with a simple press of the
Link button located on the transmitter dongle.
No more removing the patch-bay devices,
disconnecting cables, and ipping I/O circuit boards!
INTRODUCTION
Wi-AudioLink
7
Tx 1
Effects Pedals
Rx 1
Headphone
Rx 2
Mixer
Rx 4
Computer
Rx 5
Rx 7
Foot Pedals
Rx 8
Rx 3
Digital Recorder
Rx 6

What is included in the package?
Verify that you have received all of the items listed below.
Please visit our web site at www.jangusmsuic.com for additional accessories.
PACKING LIST
Wi-AudioLink
8
Wi-Transmitter Wi-Receiver Universal AC Charger
(QTY 2) 1/4” Mono Male to
1/8” Stereo Male Cable
(QTY 2) 1/4” Stereo Male to
1/8” Stereo Male Y-split Cable Carrying Bag
USB Y-Split Power Cable
User Manual
www.jangusmusic.com

1. Audio OUT Jack
2. Power ON/OFF
3. Link / Paring
4. Power/Status LED
5. Volume UP
6. Volume Down
7. Mute/ Play/Pause
8. Previous Track
9. Next Track
10. USB Charging Port
11. Belt Clip
11
~
s
ABOUT YOUR JM-WAL35
Wi-AudioLink
9
1. Audio IN Jack
2. Power ON/OFF
3. Link / Paring
4. Power/Status LED
5. Volume UP
6. Volume Down
7. Mute
8. Sleep
9. Mic Power Mode
10. USB Charging Port
11. Belt Clip
11
j
r
o
n
q
p
l
m
k
u
|
}
y
{
z
w
x
v
Wi Transmitter
Wi Receiver

Transmitter Dongle Controls and Connections
jAudio IN Jack: Provide a stereo connection for professional musical instruments, mixers
samplers and any analog devices such as MP3 players, cell phones, stereo
systems, computers, home entertainment systems and more...
kPower ON/OFF: Press and hold the Power button for 2 seconds to turn ON or OFF the transmitter
lPower/Status LED: The Power/Status LED display the status of six functions, ON/OFF, Battery
Charging, Paring, Microphone Power, Mute and Sleeping mode statuses
F Please refer to the “Tx Button Function Matrix” section of this manual for more details
mVolume UP: Press and hold the Volume UP for auto increments of the volume level
Press the Volume UP once for step increments of the volume level
nVolume DOWN: Press and hold the Volume DOWN for auto increments of the volume level
Press the Volume DOWN button once for step increments of the volume level
TRANSMITTER CONTROLS
Wi-AudioLink
10

oMute: Press and hold the Mute button for 3 seconds stop the audio transmission
F Please refer to the “Tx Button Function Matrix” section of this manual for more details
pLink/Pair: The Link button performs two functions Paring and Linking.
The Paring function allows the transmitter dongle to connect to up to 8 eight
different receivers to create you own wireless audio matrix. Press and hold the
Link button for 6 seconds until LED ash
F Please refer to the “Paring Procedures” section of this manual for detailed instructions
F Please refer to the “Audio Matrix Accessories” section of this manual for options listing
The Link function allows the transmitter dongle to reroute the audio signal
connect from the instrument to up to 8 eight different receivers previously
paired with the transmitter. Press the Link button once and the transmitter
will reroute the wireless connection to the next receiver.
F Please refer to the “ “Function Matrix Table” section of this manual for additional information
F Please refer to the “Audio Matrix Accessories” section of this manual for options listing
TRANSMITTER CONTROLS
Wi-AudioLink
11

Transmitter Dongle Controls and Connections
qSleep: The Sleep function button on the transmitter dongle is designed to prolong the
battery life operations of the transmitter dongle by 50% as well as the receiver
dongle battery life 35% when not in use.
When the Sleep function on the transmitter is activated, the transmitter dongles
sends a signal to the linked receiver dongle to go into a standby mode while
switching to full sleep mode. The Sleep mode preserves the audio levels
settings on both dongles as well as on the communications link between the
transmit and the linked dongle.
Press and hold the Sleep button for 3 seconds to switch the transmitter and
the receiver dongles onto standby power save mode
Press and hold the Sleep button for 3 seconds to wake-up the transmitter and
the receiver dongles.
F Please refer to the “Tx Button Function Matrix” section of this manual for more details
TRANSMITTER CONTROLS
Wi-AudioLink
12

rMode: The Mode multifunction button allows the user to choose between three different
power up modes to support Passive Guitars, Active Guitars or Stereo Line in
connection to the transmitter dongle. To select the desired operations mode, press
the Mode button for 2 seconds and until the blue LED change its ashing
sequence then release, To cycle between the three modes, simply press and
hold the Mode button and the transmitter will cycle between the three modes
along with the Blue LED ashing sequence to each of the modes. Release the
mode button once the desired mode setting is reached
F Please refer to the “Tx Button Function Matrix” section of this manual for detailed instructions .
sCharging Port: The transmitter dongle utilizes mini USB connection to power up and charge the
internal batteries. The transmitter dongle can be charged using the supplied
universal AC charger, via the instrument built-in USB port or the optional AA
battery power booster USB adapter.
Belt Clip: The transmitter dongle can be attached to guitar strap, belt, shirts and pants
pockets. The rigid small size light wight design is easy to ware without impeding
your movement.
TRANSMITTER CONTROLS
Wi-AudioLink
13
11

Receiver Dongle Controls and Connections
uAudio OUT Jack: Provide a stereo connection for professional Sound Systems, Monitors, Mixers,
Samplers, Computers Home Digital Theaters, Headphones and more...
vPower ON/OFF: Press and hold the Power button for 2 seconds to turn ON or OFF the transmitter
wPower/Status LED: The Power/Status LED display the status of ve functions, ON/OFF, Battery,
Charging, Paring, Mute and Sleeping mode statuses
F Please refer to the “Rx LED” Indicator Chart” section of this manual for more details
xVolume UP: Press and hold the Volume UP for auto increments of the volume level
Press the Volume UP once for step increments of the volume level
yVolume DOWN: Press and hold the Volume DOWN for auto increments of the volume level
Press the Volume DOWN button once for step increments of the volume level
RECEIVER CONTROLS
Wi-AudioLink
14

zLink/VoIP: The Link multifunction button performs three functions, Paring, Linking and VoIP
Mic activation. The VoIP function is covered in the VoIP Microphone on page 15.
The Paring function allows the Receiver dongle to discovered by the Transmitter
Dongle. Press and hold the Link button for 6 seconds until LED ash
F Please refer to the “Rx Button Function Matrix” section of this manual for detailed instructions
The Link function allows the transmitter dongle to reroute the audio signal
connect from the instrument to up to 8 eight different receivers previously
paired with the transmitter. Press the Link button once and the transmitter
will reroute the wireless connection to the next receiver.
F Please refer to the “Rx Button Function Matrix” section of this manual for additional information
{Next Track: The Next Track function button is used with optional PC/MAC USB Transmitter
dongle to remotely control the media player and sequencing software to jump to
the next audio track on the play list.
Press the Next Track button once to jump to the next audio track
F Please refer to the “Audio Matrix” section of this manual for more details
RECEIVER CONTROLS
Wi-AudioLink
15

Receiver Dongle Controls and Connections
|Previous Track: The Previous Track function button is used with optional PC/MAC USB
Transmitter dongle to remotely control the media player and sequencing
software to jump to the next audio track on the play list
Press the Previous Track button once to jump to the previous audio track.
F Please refer to the “Rx Button Function Matrix” section of this manual for more details
}Mute/Pause/Play: Press and hold this function button for 3 seconds stop the audio transmission
F Please refer to the “Rx Button Function Matrix” section of this manual for more details
When the Receiver dongle is used with optional PC/MAC USB Transmitter dongle,
the Mute/Pause/Play function will remotely control the media player and
sequencing software to mute, pause or play to the audio track
Press the Mute/Pause/Play button once to pause or play audio track.
Press and hold the Mute/Pause/Play button for 3 seconds to mute/un-mute audio
F Please refer to the “Rx Button Function Matrix” section of this manual for more details
RECEIVER CONTROLS
Wi-AudioLink
16

~Charging Port: The receiver dongle utilizes mini USB connection to power up and charge the
internal batteries. The transmitter dongle can be charged using the supplied
universal AC charger, via the instrument built-in USB port or the optional AA
battery power booster USB adapter.
Belt Clip: The receiver dongle can be attached to, belts, shirts and pants pockets when used
with in-ear professional personal monitors. The rigid small size light wight design
is easy to ware without impeding your movement.
RECEIVER CONTROLS
Wi-AudioLink
17
11

Ready, Charge, Go!
Before using your new Wi-AudioLink professional digital wireless dongles,
you need to fully charge the batteries on the dongles for approximately 2 hours.
Charging
1. Plug the AC Charger into a power socket
2. Connect the USB Y-Split power cable into the USB port on the AC charger
3. Connect one of the two mini USB connectors into the Transmitter USB port
4. Connect the second mini USB connector into the Receiver USB port
5. The Power/Status LED will turn to solid Red ON
6. When charging is complete the Red LED will turn OFF
7. Remove the charging cable and adapter and store into the carrying case
POWER
LINK
AC Charger
USB Port
Mini USB
Connector
USB Port
USB Connector
GETTING STARTED
Wi-AudioLink
18

Paring the Wi-AudioLink
Before using the Wi-AudioLink dongles with your instruments, you need to pair the transmitter dongle with the
receiver dongle. Pairing will create connection between the transmitter dongle and receiver dongle.
1. First turn ON the transmitter (Tx) and the receiver (Rx) dongles by pressing and
holding the POWER button , on each of the dongles for 2 seconds.
2. Press and hold the LINK button on the transmitter (Tx) dongle for 6 seconds.
The Power/Status LED on the Transmitter will start ashing. The transmitter
dongle is now in a Pairing mode and ready to search for receivers.
3. Press and hold the LINK button on the receiver (Rx) dongle for 6 seconds.
The Power/Status LED on the receiver will start ashing. The receiver dongle
is now in a Pairing mode and ready to be found by the transmitter dongle
4. Once the transmitter dongle pair with receiver dingle, the Power/Status LED
on both devices will turn to solid Green
5. The Wi-AudioLink transmitter and receiver dongles are now ready for use.
PARING
Wi-AudioLink
19
p
k
(Tx)
pk
z
v
zv
(Rx)

Connecting Electric Guitars & Electric Acoustics Instruments!
The Wi-AudioLink transmitter support passive and active
guitars including Lead, Bass and Acoustic electric guitars.
1. First Locate the 1/4” mono male to 1/8” stereo
male cable supplied with kit.
2. Connect the 1/8” stereo male end of the cable into
the “Audio Input” jack on the transmitter dongle.
3. Rout the audio cable beneath the belt clip as shown to
prevent accidental disconnection of cable.
4. Connect the 1/4” mono male end of the cable to the electric
guitar input located towards the right end of the electric guitar
if you’re a right handed player and the left end if you’re
left handed.
TRANSMITTER CONNECTION
Wi-AudioLink
20
Belt Clip
Audio Cable
Audio Input
Jack
1/4” Mono to 1/8’ Stereo Cable
1/4” mono male connector
Electric Guitar input
