Jarocells JARO-JRE Series User manual

We’ve got the power
NEXT GENERATION BATTERY PACKS
JAROCELLS B.V., Waldorpstraat 345, 2521 CJ Den Haag, The Netherlands. inf[email protected] / www.jarocells.nl
4
JAROCELLS.NL
SAFETY GUIDELINES
General safety
Attention should be paid to all safety instructions in this manual. Maintenance repair work should be carried out by qualifi ed
personnel. A damaged or abnormal functioning Range Extender should not be used. The Range Extender is intended to use
for the charging of JAROCELLS LiFePO4 batteries (24V or 36V range) by an outboard engine which is connected to a Lead Acid
starter battery or LiFePO4 battery.
Safety during installation
You have to connect the Range Extender to batteries under voltage. Make sure you switch o all the users of these batteries
before you make the connections. Prevent shortcut of the wiring during installation and fasten the ring terminals.
Installation and use
Mount the Range Extender close to the starter battery. Make sure the place is free of splashing and dripping water. Keep the
ventilators 5cm free from surfaces to enable optimal ventilation. Connect the 8mm ring terminals with the starter battery.
Connect the grey or red connector (24V is grey, 36V is red) with a contra connector (included in the package). From this
connector wires should be connected to the 24V or 36V battery. For a maximum of 2 meters you can use 2,5mm2 wires. For
wires from 2 to 6m length you have to use 4mm2 or more.
Use the push button to switch the Range Extender in Automatic mode or O . In O mode the Range Extender will not take
current from your starter circuit. In Automatic mode the Range Extender will look at the State of Charge of your starter
battery and whether the alternator is running. If the voltage is high enough the Range Extender will draw current from your
starter circuit and increase the voltage to the right charging voltage for your 24V or 36V battery. As soon as the voltage of
your starter circuit drops, the Range Extender will stop automatically to keep your starter battery full. As soon as you start
the engine again, the Range Extender will start simultaneously.
During normal use the circuit breakers will not switch O . In case a circuit breaker is O : check the wiring on short circuits.
WARRANTY
> The warranty period is two years for the Range Extender.
Warranty provision
> The warranty applies to normal use according to recommendations and within specifi cations of the product.
> Warranty is only given if the purchase invoice can be submitted.
> The warranty does not go beyond repair or replacement of the delivered goods. Consequential damage is expressly stated
excluded.
> In all cases where the warranty conditions are not clear, an attempt will be made to resolve the complaints within reason
unload. This within the provisions of liability.
Liability
> Besides the warranty provisions on the delivered goods, JAROCELLS B.V. will not accept any liability. JAROCELLS B.V. shall
not be liable for any direct, incidental or consequential damages of any nature, or losses or consequential damages or
losses or expenses resulting from the use of this product.
> The user of the product should take all precautions, required to prevent damage.
> In case JAROCELLS B.V. will be held responsible for damage or losses caused by the product, the compensation paid by
JAROCELLS B.V. will not exceed the payments of the assurance company. When the damage is not covered by the insurance,
the maximum payment will be equal to the total of the invoice.
> Liability and right to warranty is in any case excluded with:
• Damage due to external disasters such as lightning strike
• Incorrect installation or use
• Repairs have been carried out by third parties or changes have been made to the product.
MANUAL
RANGE EXTENDER
JARO-JRE SERIE
02 / 2022
> JARO-JRE 12/24-15A
> JARO-JRE 12/36-15A

SPECIFICATIONS JARO-JRE RANGE EXTENDERS
COMBINATION OF A LEAD ACID STARTER BATTERY
WITH LiFePO4 SERVICE BATTERY AND TROLLING BATTERY
COMBINATION OF TWO LiFePO4BATTERIES
Parameter JRE 12/24-15A JRE 12/36-15A
Voltage range input 9,0 – 14,4V 9,0 – 14,4V
Current draw from alternator 35 – 40A max. 45 – 55A max.
Battery type for input Lead Acid (wet, AGM or Gel) or LiFePO4 Lead Acid (wet, AGM or Gel) or LiFePO4
Input circuit breaker 60A 60A
Type input circuit breaker Thermal magnetic Thermal magnetic
Resettable Yes Yes
Button function Extender O or Automatic Extender O or Automatic
Automatic function On above 13,4V - 13,7V On above 26,8V - 27,4V
O below 13,2V - 13,3V O below 26,4V - 26,6V
Type of switch Voltage sensitive Relay 120A, electronically managed
Voltage output 28V +/- 0,2V 42V +/- 0,2V
Current output 15A max. depending on voltage in 24V or 36V battery
Output circuit breaker 30A 30A
Type output circuit breaker Thermal magnetic Thermal magnetic
Resettable Yes Yes
IP rating circuit breakers IP54 IP54
IP rating converter IP67 IP67
IP rating switch IP65 IP65
IP rating ventilators IP52 IP52
IP rating VSR IP54 IP54
Environment advised Inside boat, protected from direct water spray
Weight 2,1kg 2,2kg
Cable quality Tinned copper core with silicone heat resistant isolation
Connection ingoing 8mm ring terminals 8mm ring terminals
Connection outgoing Anderson Grey SB50 Anderson Red SB50

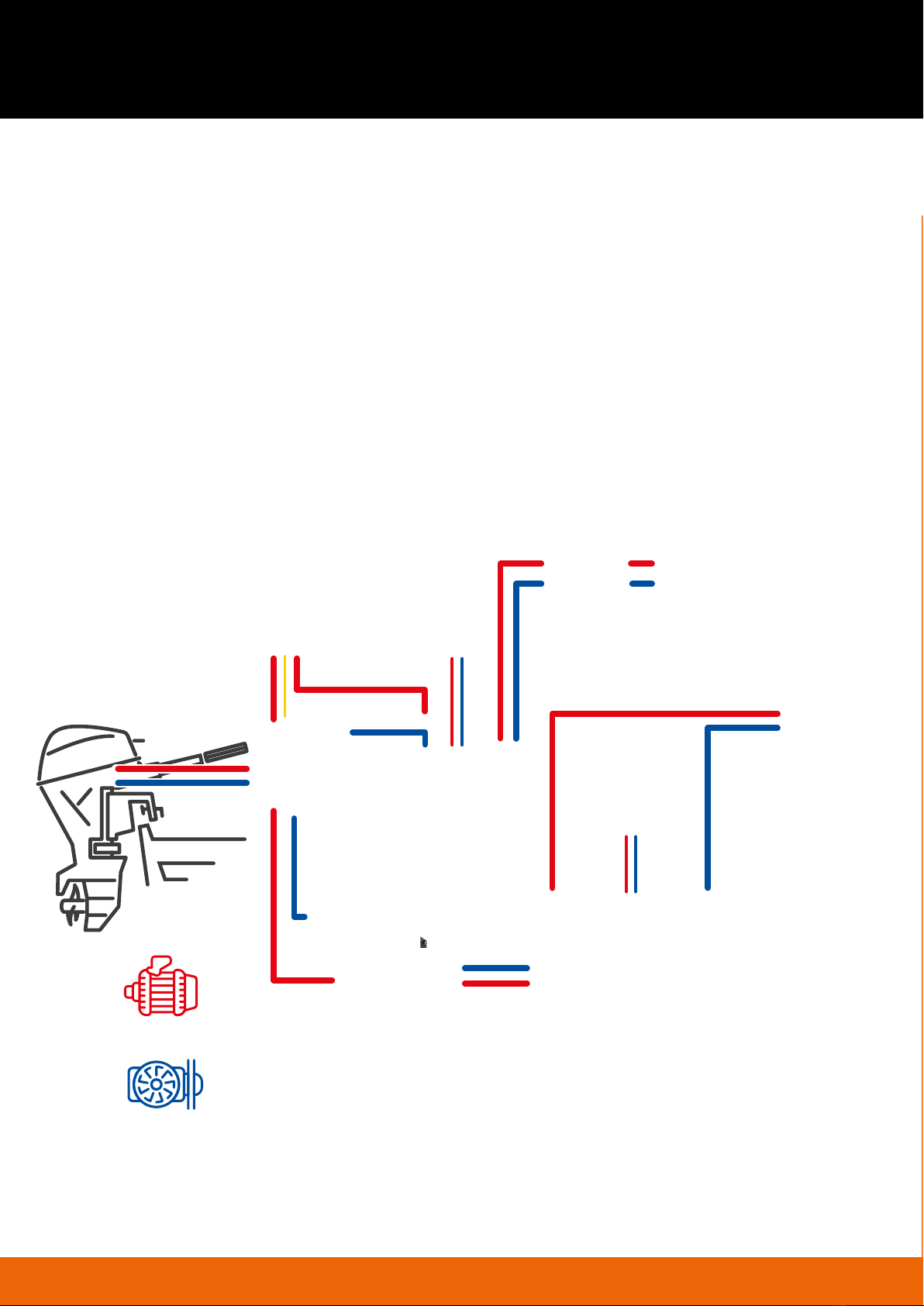

AlternatorAlternator
Charger 12V serie
and starter battery
Charger 12V for LiFePO4
starter/battery
Charger 24V or 36V serie Charger 24V or 36V
JAROCELLS Range Extender
JRE 12/24-15A or JRE 12/36-15A
JAROCELLS Range Extender
JRE 12/24-15A or JRE 12/36-15A
JAROCELLS BT100.24
or BT50.24 (2 pcs in parallel)
JAROCELLS BT100.36
or BT25.36 (2 or 3 pcs in parallel)
JAROCELLS BT100.24
or BT50.24 (2 pcs in parallel)
JAROCELLS BT100.36
or BT25.36 (2 or 3 pcs in parallel)
JAROCELLS BT125.12 JAROCELLS BT125.12
Starter motorStarter motor
JRE-12/24-15A JRE-12/36-15A
The most used combination is a Lead Acid starter battery and a 12v service battery, often
combined with a VSR (Voltage Sensitive Relay) so the alternator can charge the service battery
too. In this combination you can also use te Range Extender to charge your 24V or 36V trolling
battery by the alternator. When you stop the outboard engine, the Range Extender will switch
o to prevent that your starter battery will be drawn empty.
Relatively new is the combination of two LiFePO4 batteries. One LiFePO4 battery serves as
a starter and service battery. The other battery is the 24V or 36V trolling battery. By using a
Range Extender the alternator will automatically charge all the batteries without the risk that
the starter battery is drawn empty. When the outboard stops the Range Extender will stop too.
New feature is that all the connections between the service battery and the trolling motor are
disconnected preventing disturbance from the trolling motor to the depth sounder.
Service network 2x 6mm2
to fuse box

SPECIFICATIONS JARO-JRE RANGE EXTENDERS
COMBINATION OF A LEAD ACID STARTER BATTERY
WITH LiFePO4 SERVICE BATTERY AND TROLLING BATTERY
COMBINATION OF TWO LiFePO4BATTERIES
Parameter JRE 12/24-15A JRE 12/36-15A
Voltage range input 9,0 – 14,4V 9,0 – 14,4V
Current draw from alternator 35 – 40A max. 45 – 55A max.
Battery type for input Lead Acid (wet, AGM or Gel) or LiFePO4 Lead Acid (wet, AGM or Gel) or LiFePO4
Input circuit breaker 60A 60A
Type input circuit breaker Thermal magnetic Thermal magnetic
Resettable Yes Yes
Button function Extender O or Automatic Extender O or Automatic
Automatic function On above 13,4V - 13,7V On above 26,8V - 27,4V
O below 13,2V - 13,3V O below 26,4V - 26,6V
Type of switch Voltage sensitive Relay 120A, electronically managed
Voltage output 28V +/- 0,2V 42V +/- 0,2V
Current output 15A max. depending on voltage in 24V or 36V battery
Output circuit breaker 30A 30A
Type output circuit breaker Thermal magnetic Thermal magnetic
Resettable Yes Yes
IP rating circuit breakers IP54 IP54
IP rating converter IP67 IP67
IP rating switch IP65 IP65
IP rating ventilators IP52 IP52
IP rating VSR IP54 IP54
Environment advised Inside boat, protected from direct water spray
Weight 2,1kg 2,2kg
Cable quality Tinned copper core with silicone heat resistant isolation
Connection ingoing 8mm ring terminals 8mm ring terminals
Connection outgoing Anderson Grey SB50 Anderson Red SB50
Alternator
Alternator
Charger 12V serie
and starter battery
Charger 12V for LiFePO4
starter/battery
Charger 24V or 36V serie
Charger 24V or 36V
JAROCELLS Range Extender
JRE 12/24-15A or JRE 12/36-15A
JAROCELLS Range Extender
JRE 12/24-15A or JRE 12/36-15A
JAROCELLS BT100.24
or BT50.24 (2 pcs in parallel)
JAROCELLS BT100.36
or BT25.36 (2 or 3 pcs in parallel)
JAROCELLS BT100.24
or BT50.24 (2 pcs in parallel)
JAROCELLS BT100.36
or BT25.36 (2 or 3 pcs in parallel)
JAROCELLS BT125.12
JAROCELLS BT125.12
Starter motor
Starter motor
JRE-12/24-15A JRE-12/36-15A
The most used combination is a Lead Acid starter battery and a 12v service battery, often
combined with a VSR (Voltage Sensitive Relay) so the alternator can charge the service battery
too. In this combination you can also use te Range Extender to charge your 24V or 36V trolling
battery by the alternator. When you stop the outboard engine, the Range Extender will switch
o to prevent that your starter battery will be drawn empty.
Relatively new is the combination of two LiFePO4 batteries. One LiFePO4 battery serves as
a starter and service battery. The other battery is the 24V or 36V trolling battery. By using a
Range Extender the alternator will automatically charge all the batteries without the risk that
the starter battery is drawn empty. When the outboard stops the Range Extender will stop too.
New feature is that all the connections between the service battery and the trolling motor are
disconnected preventing disturbance from the trolling motor to the depth sounder.
Service network 2x 6mm2
to fuse box

SPECIFICATIONS JARO-JRE RANGE EXTENDERS
COMBINATION OF A LEAD ACID STARTER BATTERY
WITH LiFePO4 SERVICE BATTERY AND TROLLING BATTERY
COMBINATION OF TWO LiFePO4BATTERIES
Parameter JRE 12/24-15A JRE 12/36-15A
Voltage range input 9,0 – 14,4V 9,0 – 14,4V
Current draw from alternator 35 – 40A max. 45 – 55A max.
Battery type for input Lead Acid (wet, AGM or Gel) or LiFePO4 Lead Acid (wet, AGM or Gel) or LiFePO4
Input circuit breaker 60A 60A
Type input circuit breaker Thermal magnetic Thermal magnetic
Resettable Yes Yes
Button function Extender O or Automatic Extender O or Automatic
Automatic function On above 13,4V - 13,7V On above 26,8V - 27,4V
O below 13,2V - 13,3V O below 26,4V - 26,6V
Type of switch Voltage sensitive Relay 120A, electronically managed
Voltage output 28V +/- 0,2V 42V +/- 0,2V
Current output 15A max. depending on voltage in 24V or 36V battery
Output circuit breaker 30A 30A
Type output circuit breaker Thermal magnetic Thermal magnetic
Resettable Yes Yes
IP rating circuit breakers IP54 IP54
IP rating converter IP67 IP67
IP rating switch IP65 IP65
IP rating ventilators IP52 IP52
IP rating VSR IP54 IP54
Environment advised Inside boat, protected from direct water spray
Weight 2,1kg 2,2kg
Cable quality Tinned copper core with silicone heat resistant isolation
Connection ingoing 8mm ring terminals 8mm ring terminals
Connection outgoing Anderson Grey SB50 Anderson Red SB50
Alternator
Alternator
Charger 12V serie
and starter battery
Charger 12V for LiFePO4
starter/battery
Charger 24V or 36V serie
Charger 24V or 36V
JAROCELLS Range Extender
JRE 12/24-15A or JRE 12/36-15A
JAROCELLS Range Extender
JRE 12/24-15A or JRE 12/36-15A
JAROCELLS BT100.24
or BT50.24 (2 pcs in parallel)
JAROCELLS BT100.36
or BT25.36 (2 or 3 pcs in parallel)
JAROCELLS BT100.24
or BT50.24 (2 pcs in parallel)
JAROCELLS BT100.36
or BT25.36 (2 or 3 pcs in parallel)
JAROCELLS BT125.12
JAROCELLS BT125.12
Starter motor
Starter motor
JRE-12/24-15A JRE-12/36-15A
The most used combination is a Lead Acid starter battery and a 12v service battery, often
combined with a VSR (Voltage Sensitive Relay) so the alternator can charge the service battery
too. In this combination you can also use te Range Extender to charge your 24V or 36V trolling
battery by the alternator. When you stop the outboard engine, the Range Extender will switch
o to prevent that your starter battery will be drawn empty.
Relatively new is the combination of two LiFePO4 batteries. One LiFePO4 battery serves as
a starter and service battery. The other battery is the 24V or 36V trolling battery. By using a
Range Extender the alternator will automatically charge all the batteries without the risk that
the starter battery is drawn empty. When the outboard stops the Range Extender will stop too.
New feature is that all the connections between the service battery and the trolling motor are
disconnected preventing disturbance from the trolling motor to the depth sounder.
Service network 2x 6mm2
to fuse box

We’ve got the power
NEXT GENERATION BATTERY PACKS
JAROCELLS B.V., Waldorpstraat 345, 2521 CJ Den Haag, The Netherlands. [e-mail] / www.jarocells.nl
4
JAROCELLS.NL
SAFETY GUIDELINES
General safety
Attention should be paid to all safety instructions in this manual. Maintenance repair work should be carried out by qualifi ed
personnel. A damaged or abnormal functioning Range Extender should not be used. The Range Extender is intended to use
for the charging of JAROCELLS LiFePO4 batteries (24V or 36V range) by an outboard engine which is connected to a Lead Acid
starter battery or LiFePO4 battery.
Safety during installation
You have to connect the Range Extender to batteries under voltage. Make sure you switch o all the users of these batteries
before you make the connections. Prevent shortcut of the wiring during installation and fasten the ring terminals.
Installation and use
Mount the Range Extender close to the starter battery. Make sure the place is free of splashing and dripping water. Keep the
ventilators 5cm free from surfaces to enable optimal ventilation. Connect the 8mm ring terminals with the starter battery.
Connect the grey or red connector (24V is grey, 36V is red) with a contra connector (included in the package). From this
connector wires should be connected to the 24V or 36V battery. For a maximum of 2 meters you can use 2,5mm2 wires. For
wires from 2 to 6m length you have to use 4mm2 or more.
Use the push button to switch the Range Extender in Automatic mode or O . In O mode the Range Extender will not take
current from your starter circuit. In Automatic mode the Range Extender will look at the State of Charge of your starter
battery and whether the alternator is running. If the voltage is high enough the Range Extender will draw current from your
starter circuit and increase the voltage to the right charging voltage for your 24V or 36V battery. As soon as the voltage of
your starter circuit drops, the Range Extender will stop automatically to keep your starter battery full. As soon as you start
the engine again, the Range Extender will start simultaneously.
During normal use the circuit breakers will not switch O . In case a circuit breaker is O : check the wiring on short circuits.
WARRANTY
> The warranty period is two years for the Range Extender.
Warranty provision
> The warranty applies to normal use according to recommendations and within specifi cations of the product.
> Warranty is only given if the purchase invoice can be submitted.
> The warranty does not go beyond repair or replacement of the delivered goods. Consequential damage is expressly stated
excluded.
> In all cases where the warranty conditions are not clear, an attempt will be made to resolve the complaints within reason
unload. This within the provisions of liability.
Liability
> Besides the warranty provisions on the delivered goods, JAROCELLS B.V. will not accept any liability. JAROCELLS B.V. shall
not be liable for any direct, incidental or consequential damages of any nature, or losses or consequential damages or
losses or expenses resulting from the use of this product.
> The user of the product should take all precautions, required to prevent damage.
> In case JAROCELLS B.V. will be held responsible for damage or losses caused by the product, the compensation paid by
JAROCELLS B.V. will not exceed the payments of the assurance company. When the damage is not covered by the insurance,
the maximum payment will be equal to the total of the invoice.
> Liability and right to warranty is in any case excluded with:
• Damage due to external disasters such as lightning strike
• Incorrect installation or use
• Repairs have been carried out by third parties or changes have been made to the product.
MANUAL
RANGE EXTENDER
JARO-JRE SERIE
02 / 2022
> JARO-JRE 12/24-15A
> JARO-JRE 12/36-15A

We’ve got the power
NEXT GENERATION BATTERY PACKS
JAROCELLS B.V., Waldorpstraat 345, 2521 CJ Den Haag, The Netherlands. inf[email protected] / www.jarocells.nl
4JAROCELLS.NL
SAFETY GUIDELINES
General safety
Attention should be paid to all safety instructions in this manual. Maintenance repair work should be carried out by qualifi ed
personnel. A damaged or abnormal functioning Range Extender should not be used. The Range Extender is intended to use
for the charging of JAROCELLS LiFePO4 batteries (24V or 36V range) by an outboard engine which is connected to a Lead Acid
starter battery or LiFePO4 battery.
Safety during installation
You have to connect the Range Extender to batteries under voltage. Make sure you switch o all the users of these batteries
before you make the connections. Prevent shortcut of the wiring during installation and fasten the ring terminals.
Installation and use
Mount the Range Extender close to the starter battery. Make sure the place is free of splashing and dripping water. Keep the
ventilators 5cm free from surfaces to enable optimal ventilation. Connect the 8mm ring terminals with the starter battery.
Connect the grey or red connector (24V is grey, 36V is red) with a contra connector (included in the package). From this
connector wires should be connected to the 24V or 36V battery. For a maximum of 2 meters you can use 2,5mm2 wires. For
wires from 2 to 6m length you have to use 4mm2 or more.
Use the push button to switch the Range Extender in Automatic mode or O . In O mode the Range Extender will not take
current from your starter circuit. In Automatic mode the Range Extender will look at the State of Charge of your starter
battery and whether the alternator is running. If the voltage is high enough the Range Extender will draw current from your
starter circuit and increase the voltage to the right charging voltage for your 24V or 36V battery. As soon as the voltage of
your starter circuit drops, the Range Extender will stop automatically to keep your starter battery full. As soon as you start
the engine again, the Range Extender will start simultaneously.
During normal use the circuit breakers will not switch O . In case a circuit breaker is O : check the wiring on short circuits.
WARRANTY
> The warranty period is two years for the Range Extender.
Warranty provision
> The warranty applies to normal use according to recommendations and within specifi cations of the product.
> Warranty is only given if the purchase invoice can be submitted.
> The warranty does not go beyond repair or replacement of the delivered goods. Consequential damage is expressly stated
excluded.
> In all cases where the warranty conditions are not clear, an attempt will be made to resolve the complaints within reason
unload. This within the provisions of liability.
Liability
> Besides the warranty provisions on the delivered goods, JAROCELLS B.V. will not accept any liability. JAROCELLS B.V. shall
not be liable for any direct, incidental or consequential damages of any nature, or losses or consequential damages or
losses or expenses resulting from the use of this product.
> The user of the product should take all precautions, required to prevent damage.
> In case JAROCELLS B.V. will be held responsible for damage or losses caused by the product, the compensation paid by
JAROCELLS B.V. will not exceed the payments of the assurance company. When the damage is not covered by the insurance,
the maximum payment will be equal to the total of the invoice.
> Liability and right to warranty is in any case excluded with:
• Damage due to external disasters such as lightning strike
• Incorrect installation or use
• Repairs have been carried out by third parties or changes have been made to the product.
MANUAL
RANGE EXTENDER
JARO-JRE SERIE
02 / 2022
> JARO-JRE 12/24-15A
> JARO-JRE 12/36-15A
