Jay-tech D968 User manual

CONTENT
Preface............................................................................................ 1
Notice .............................................................................................. 1
Protection of Power Cable .............................................................. 2
Precautions and Maintenance ........................................................ 2
Instructions for Using the Built-in Battery........................................ 3
Precautions.................................................................................. 3
Methods of Using the Battery...................................................... 3
Appearance Instruction................................................................... 4
Function Keys on the Player ....................................................... 4
Right Side of the Player............................................................... 5
Rear Side of the Player............................................................... 5
Front side of the Panel ................................................................ 5
Remote Control Introduction........................................................... 6
Installation of Remote Control Battery ........................................ 6
Precautions.................................................................................. 6
Remote Control Appearance....................................................... 7
Connection with TVs....................................................................... 9
Basic Operation............................................................................. 10
Power On................................................................................... 10
System Setup ............................................................................ 10
Menu Setup....................................................................................11
CD Copy Function......................................................................... 12
Convert CD Tracks to MP3 Files............................................... 12
Play MP3/JPEG Disc................................................................. 12
Read USB disc and SD/MMC Cards......................................... 13
Playing Games.............................................................................. 13
Troubleshooting............................................................................. 14
Specifications ................................................................................ 15
DVD Technical Parameters ....................................................... 15
List of Accessories..................................................................... 15

1
Preface
Thank you for choosing our portable DVD player. Please read this instruction manual
carefully before use and keep it properly for later reference.
This is a new DVD player with perfect sound and display output. It is suitable to be used
in office(s), indoor, hotel(s), car(s), and so on.
Notice
Non-professional staff should not touch the laser lens. Please wash hands before
cleaning the laser lens or go to maintenance professionals, so as to avoid electrostatic
breakdown or damage the laser lens.
Safety Instruction
Please read this instruction manual carefully before using the DVD player, and
keep it properly for later reference.
In order to prevent fire or electrical shock, please do not expose this device to rain
or a damp environment!
Note: In order to prevent fire or
electrical shock, please do not open
the cover of the device; otherwise,
damage may occur.
The lightning mark in a black triangle warns the user to be
careful of electrical shock because of high voltage
contained inside.
The exclamation mark in a black triangle warns the user
that important instructions for operation and assistance
are provided.
Class-1 Laser Product
Laser product mark: This mark is on the rear panel of the
device, indicating that the class-1 laser beam is weak and
that there is no radiation hazard outside of the device.
RISK OF
ELECTRIC
SHOCK
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SHOCK

2
Protection of Power Cable
1. To disconnect the AC power cord, pull the plug out from the connector.
2. Please do not place theAC power cord close to any heat source.
3. Please do not place heavy objects on the AC power cord.
4. Please do not disassemble and repair the AC power cord by yourself.
5. This player is a class-I laser product and with a “Class-I” remark.
6. This product contains a low-power laser device. In case service or
internal-component adjustment is needed, please contact nearby distributors and
seek professional technical help.
Precautions and Maintenance
1. Please do not place the device in a sealed container to protect it from high
temperature.
2. Please do not place the device under direct sunlight or close to any heat sources.
3. Please do not place the device close to objects with magnetic field.
4. Please do not place the device near liquids. If liquid penetrates the device, please
remove the plug immediately and seek technical assistance.
5. Please place the device on a horizontal surface, and do not place heavy objects on
top of the device.
6. Please use standby mode when play is suspended. Please remove the AC power
cord or lithium battery if the DVD player will not be used for a long time.
7. Please do not put your fingers or other objects into the device.
8. The disk-drive read header will form condensation under the following conditions:
(1) The device has been open for a long time.
(2) In a room with steam or damp.
(3) Moving the device from a low to a high temperature environment.
9. In order to prevent fire, electrical shock, or device damage, do not use cleaning
fluid or spray.
10. There might be interference on the screen if you watch TV and the DVD is still
playing due to different TV types. For better image quality, please turn off the DVD
when you watch TV.
11. Please do not repair this DVD player by yourself.
12. The image quality might be reduced if there is muddiness or scratches on the LCD
screen.

3
Instructions for Using the Built-in Battery
Precautions
A high-capacity rechargeable lithium battery is built into this player; it is strictly
forbidden to take the battery apart on your own. Seek professional technical assistance
to replace the battery.
1. Please do not throw the battery into fire or any heat area; please do not store the
battery in any area with a high temperature.
2. Please do not remove the battery when it is in use or being charged.
3. Please do not connect the anode with the cathode of the battery directly as it may
cause serious battery damage.
4. Please do not immerse the battery into water or any other liquid; please keep the
battery away from damp when storing it.
5. Please do not stab, hammer, or step on the battery.
6. If you want to rest or sleep, or the player is not to be used for a long time, please
unplug the power adaptor of the player and turn off the power to prevent battery
damage, and any incident caused by overcharging.
7. When a lithium battery is being used on the device, it is advised to adjust the
volume to the middle (reduced volume will save battery power) to prolong the
usage time of the battery. This is also useful during a trip.
Methods of Using the Battery
1. For first-time use, the battery power should be used up before recharging and the
battery must be fully charged for about 4 to 5 hours.
2. It can be used under an ambient temperature between -5°C and 40°C.
3. The charging LED light indicates the charging status.
4. Charging operation procedures:
Plug in power.
The red LED light flashes after the power is connected, and the battery begins
to be charged.
When the yellow LED turns on, it indicates that the battery is fully charged.

4
Appearance Instruction
Function Keys on the Player
1. : Press this button to turn off the sound.
2. : Menu setup for displaying.
3. : Press this button to set the functions of the DVD player.
4. : Display the working status of DVD.
5. : Decrease the volume.
6. : Increase the volume.
7. : TV channel increase / Previous section
8. : TV channel decrease / Next section
9. : Fast reverse
10. : Fast forward
11. : NTSC/PAL
12. : Function mode switch (DVD/AV switch).
13. : USB/SD switch.
14. : LCD display switches on/off.

5
15. : Press this button to Play / Pause.
16. : Stop
17. : DVD Door Open /Close

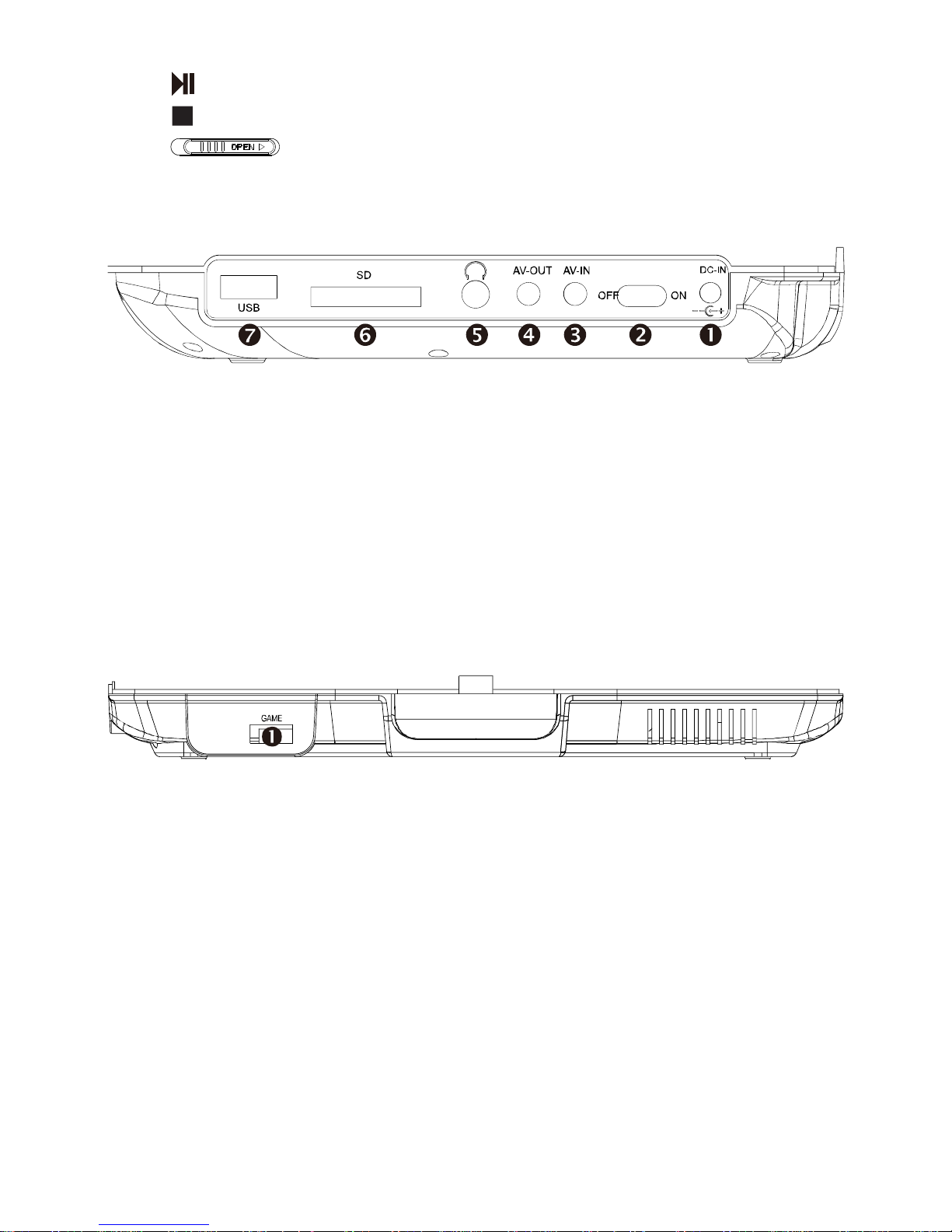

Right Side of the Player
1. DC-IN: DC IN 12V
2. POWER: Power On / Off
3. AV IN: External AUDIO / VIDEO input
4. AV OUT: AUDIO / VIDEO output
5. Earphone Port
6. CARD: SD Card slot
7. USB: USB socket
Rear Side of the Player
1. GAME: Game Control Pad socket
Front side of the Panel
1. Battery Charging Indicator
Red light: Charging
Yellow light: Full
2. Power Indicator
Blue light: On
3. Remote Control Sensor

6
Remote Control Introduction
Installation of Remote Control Battery
1. Flip to the back of the remote control and remove the lid.
2. According to the battery polarity position, correctly insert two sections of AAA
batteries.
3. Put back and close the lid accordingly.
Precautions
1. Do not use rechargeable batteries.
2. Do not mix different brands and types of batteries.
3. Do not use new and old batteries together.
4. When the remote control no longer works, replace the old batteries with new
batteries.
5. If you will not use the remote control for a long time, please remove the batteries to
avoid battery liquid leakage, which will result in battery corrosion and may
seriously cause damage to the device.
6. Do not place the remote control under high temperature or humid area.
7. Do not take the remote control apart.
8. The remote control can work best within 5 meters from the device and within a 30
degree angle.

7

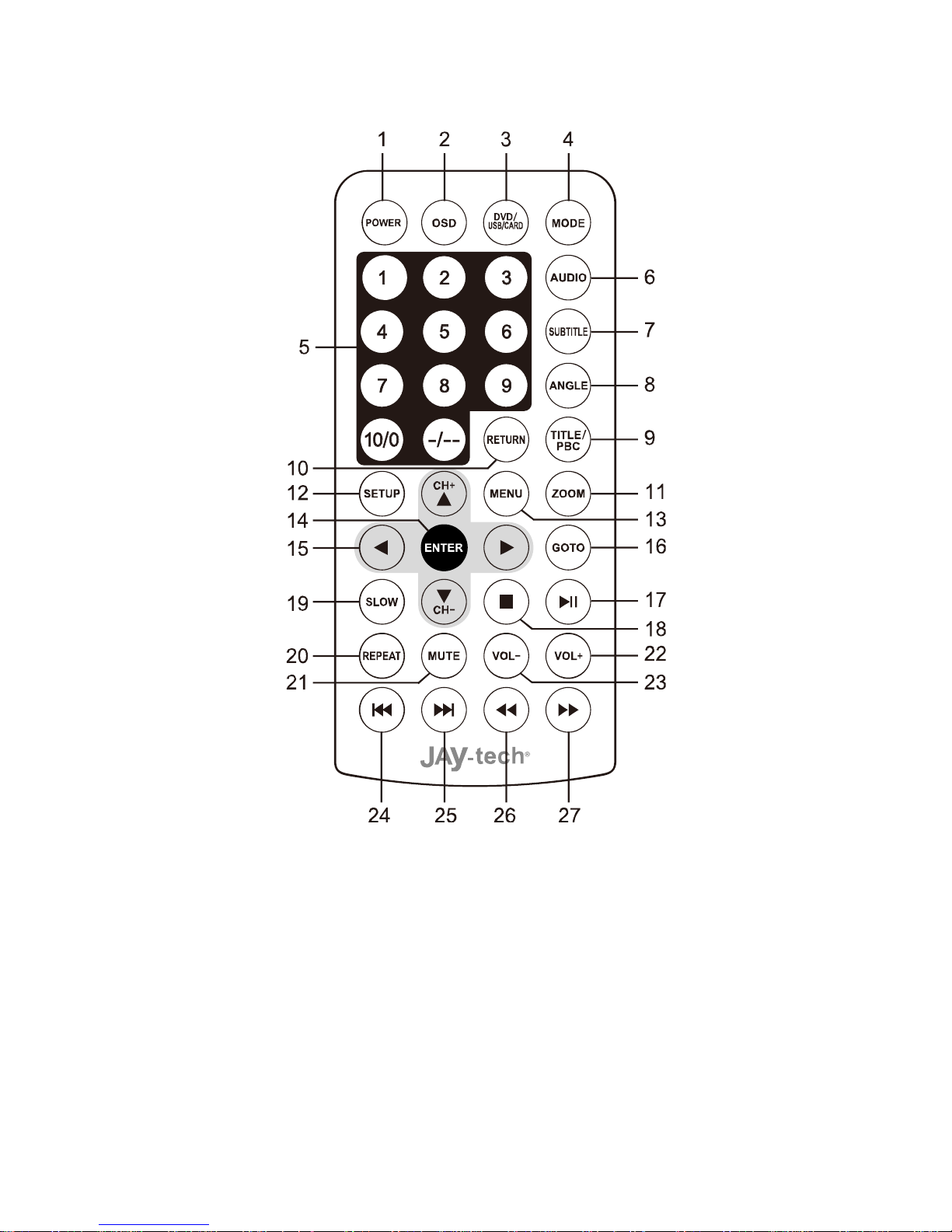

Remote Control Appearance
1
POWER
2
OSD
3
DVD/USB Card
4
MODE
5
Number Buttons
6
AUDIO
7
SUBTITLE
8
ABGLE
9
TITLE / PBC
10
RETURN
11
ZOOM
12
SETUP
13
MENU
14
ENTER
15
Direction Buttons
16
GOTO
17
Play/Pause
18
Stop
19
SLOW
20
REPEAT
21
MUTE
22
VOL+
23
VOL-
24
Previous
25
Next
26
Fast Reverse
27
Fast Forward

8
1. POWER: Power switch of DVD player.
2. OSD: Display the working status of DVD.
3. DVD/USB Card: Press this button to switch among DVD/USB/CARD interfaces
in the DVD mode.
4. MODE: Press this button to switch between the different functions of DVD/AV
modes.
5. Number Buttons: Number buttons can be used to select songs.
6. AUDIO: Press [Audio] to switch among multiple audio languages. This function
works only when the disc supports multiple audio languages.
7. SUBTITLE: When playing a DVD or SVCD disc with multilingual subtitles, use
this button to select the required language from the available subtitles languages.
The types and quantities of subtitles depend on the working process of the disc.
A DVD disc contains 32 languages at most while an SVCD disc contains four at
most.
8. ANGLE: Some DVD discs contain images taken from different viewing angles.
Press this button to select a different viewing angle.
9. TITLE/PBC: Press this button to stop play and return to the title menu of the disc.
Press Direction Buttons to select the menu, or press [Previous] / [Next] button
to turn the pages until you get the menu with title numbers you want to select,
and press the Number Buttons for selection.
Insert a disc with PBC function. When PBC is on, the screen shall display menu
(which differs from discs with different contents), and press [Previous] / [Next]
button to turn the pages until the page containing the title track serial number;
then press the Number Buttons for selection. When PCB is off, you can not
select a song from the menu interface, and disc songs will be played in sequence,
or you may make your selection with Number Buttons or [Previous] / [Next]
button. (PBC function only works for VCD 2.0)
10. RETURN: In the DVD mode, press this button to return to menu when playing
DVD/MP4.
11. ZOOM: Press this button in the state of DVD to enlarge the view by X2, X3, X4 in
order, or to minify the view by X1/2, X1/3, X1/4, OFF in order.
12. SETUP: To enter setup menu.
13.MENU: In the DVD / AV modes, press the button to enter the image, volume,
system, function and time settings.
14. ENTER: Press this button to confirm menu contents or to play disc.
15.Direction Buttons: Left, Right, ▲Up, ▼Down.
16. GOTO: Press [GOTO], according to different types and contents of discs, the
display on the screen is as the following:

9
Press [GOTO] once when the disc is being played back; the TV screen shall
display the disk type, the number of titles/sections (songs) in the disc, the title
number/section (song) number of the currently playing item, and play time of the
section (song).
Input a designated title, section (song), and time, and then press [Enter] to
activate the designated title, section (song) and play time directly.
17. Play/Pause: Press this button once, and the player shall temporarily stop playing,
image and sound shall stay at static state.Press [Play/Pause] again to resume
normal playing.
18. Stop: Press this button to stop in playing state.
19.Slow: Slow motion playing SLOW 1/2, SLOW 1/3, SLOW 1/4, SLOW 1/5, SLOW
1/6, SLOW 1/7.
20. REPEAT: Press this button to repeatedly play the selected titles/sections (DVD)
or a single song/whole disc (VCD). Press [REPEAT] once, the modes on the
screen is as the following:
For DVD - Repeat Off / Section Repeat / Title Repeat
For SVCD/VCD/CD - Repeat Off / Single Song Repeat / Whole Disc Repeat
21. MUTE: Press this button to turn off the audio and speaker outputs.
22. 23. VOL+/VOL-: Press these buttons to increase or decrease the volume.
24. 25. Previous/Next: Press these buttons during playback to switch to pervious
section or the next section.
26. 27. Fast Reverse/Fast Forward: Press these buttons to enter the mode of fast
reverse or fast forward. Press [PLAY] to resume normal playing mode directly.
Connection with TVs
Note: The AV cable with a yellow lotus is used for video signal, and the one with red
and white lotus plugs are for audio signal.
The top output or input signal plug indicates video output, while the lower part contains
two output/input signal plugs. The white one indicates the left sound channel and the
red one indicates the right sound channel. You can adjust the output device switches to
control the volume.

10
Basic Operation
Power On
Connect the power adapter with either 220V or 110V power supply, switch the [Power]
to ON, and wait for 3 seconds to turn on the device. The device displays the latest
shutdown status.
System Setup
Press “SETUP” key on the keypad of the device or remote control; you can do the
below setups:
General Setup Page:
1. TV Display: You can choose the TV display in 4:3 Pan Scan, Letter Box or 16:9
widescreen.
2. Angle Mark: On / Off
3. OSD Lang: There are eight options under this item for selection: English / Chinese
/ German / Spanish / French / Portuguese / Italian / Russian.
4. Captions: On / Off
5. Screen Saver: Select Screen Saver and press [Direction Button] to enter
screen saver setup menu, which can be set as On/Off. Start the screen saving
function to enable screen saver when the player is in stop/ open-cabinet/no-disc
status or the picture stays static for around 60 seconds.
6. Last Memory: On / Off.
7. MP3 Lyric Mode: On / Off.
Audio Setup Page
1. Speaker Setup: Dual channels (LT/RT), Stereo and Virtual Surround can be
selected in the mixed mode.
2. Equalizer: None / Rock / Pop / Live / Dance / Techno / Classic / Soft.
Dolby Digital Setup Page:
1. Dual Mono: Stereo / L-Mono / R-Mono / Mix-Mono
2. Dynamic: Off ~ Full
Video Setup Page:
Panel Quality: You can setup Sharpness / Brightness / Contrast / Hue / Saturation.

11
Preference Page:
TV Type: You can setup the TV system: PAL / AUTO / NTSC.
Audio Language: There are eight options under this item for selection: English /
Chinese / German / Spanish / French / Portuguese / Italian / Russian.
Subtitle: There are eight options under this item for selection: English / Chinese /
German / Spanish / French / Portuguese / Italian / Russian.
Disc Menu Language: There are eight options under this item for selection: English /
Chinese / German / Spanish / French / Portuguese / Italian / Russian.
Parental: When playing discs with lock function, you can select the appropriate age
level control according to disc level and your need. The control level is listed from high
to low. Level 1 is the lowest level, and level 8 is the highest. The function is only
applicable for discs with rating restrictions, which can only be set when the coded lock
is activated by setting a password, and the coded lock needs to be locked after setting
the password so that the disc can be played with rating restrictions.
Password:The initial setting for this item is Password lock mode; the Rating cannot
be selected in this mode and the password cannot be modified. If Rating needs to be
set up, you need to press [Number Buttons] to enter the initial password of this player:
0000, then press [Enter] to setting Rating. If you want to modify the password, enter
the old password first, then enter the new password before pressing [Enter] for
confirmation (the valid password shall be in four digits).
Default: If this item is selected, every function setting shall be recovered and returned
to their initial setting.
Menu Setup
1. Brightness: Press [Direction Button] to move the sliding bar to adjust the
brightness for video output.
2. Contrast: Press [Direction Button] to move the sliding bar to adjust the contrast
for video output.
3. HUE: Press [Direction Button] to move the sliding bar to set up the HUE for video
output.
4. Saturation: Press [Direction Button] to move the sliding bar to adjust the
saturation for video output.
Note: If the language you select is not a language recorded in the DVD disc,
the player will choose the default language recorded in the disc
automatically.

12
CD Copy Function
Convert CD Tracks to MP3 Files
Plug in an USB stick or memory card.
Insert the CD into the player.
Press [SUBTITLE] on the remote control.
The "CD RIP" menu appears. In this menu you can select:
1) Speed 2) Bit Rate 3) Create ID3 (Yes/No) 4) Device (SD/USB)
Use the arrows on the remote control to select the desired tracks. Use the button
"SelectAll" to highlight all tracks on the CD.
Press START button on the screen to start the conversion.
Play MP3/JPEG Disc
Play MP3 Disc
Put in the MP3 disc; the DVD player will automatically search all the directories in the
MP3 disc. When finishing searching, it will play the first directory in the MP3 disc (if
the directories in the same type are not placed in order, it will play the first directory),
and then play the first song in the directory (the cursor stops at “01”). Press [Up /
Down] to select any directory in the directory menu on the left side, and press [Enter]
for confirmation. The device will play the song of the directory selected in order. At
this time, you can press [Number Buttons] to select the song you want to play
directly.
Press [Right] to enter the directory play menu, then Press [Up / Down] to select the
song and press [Enter] for confirmation. You can also press [Number Buttons] to
select the song you want to play.
Play JPEG disc
Put in the JPEG disc; the DVD player will automatically search all the directories in
the JPEG disc. When the search is finished, the cursor will stop at the first picture.
Press [Up / Down] to select picture file and press [Play] to start playing.
Press [Up / Down] to select picture file and press [Enter] to see the picture in full
screen. At this moment, the picture is static. You can press [Zoom] continuously to
enlarge the picture at different sizes and press [Direction Button] to make the
screen move in different directions.
When the picture is static, you can press [Fast Forward Button] to rotate the picture
clockwise and press [Fast Reverse Button] to rotate the picture counter-clockwise.

13
Play MP3/JPEG Disc
When playing a disc with both MP3 files and JPEG files, you can press [Right] to
move the cursor to the mark of browsing pictures and press [Enter] to enter
picture-browsing mode while playing MP3 files.
Press [Right] again to enter the JPEG play menu and then press [Right] for the third
time to select the picture-play mark on the lower right corner. Here, you can select
either MP3-play or JPEG-play directly.
Select a picture in the JPEG directory menu and press [Play] to play pictures in
order.
Read USB disc and SD/MMC Cards
1. Insert the USB disc into the USB interface on the upper right corner or insert the
card (SD/MMC) into the card slot of the player.
2. Turn on the power - play.
3. You can download MP4 / MP3 / JPG / VCD files into a USB disc to play them
back.
Playing Games
1. Please copy game files from the CD to an SD card or USB disk (not included). Insert
the memory card or plug the USB disk into the USB slot to play games.
2. Connect the control pad to the Game Control Pad Socket.
3. Turn on the power, select a game, and start playing.
Note:1) USB disc and SD/MMC Cards must be played at no disc state so that
the device can detect the USB disc or SD/MMC cards and then play
them.
2) Supports USB 1.1 to 2.0 standards.
3) DVD can not be played because the DVD format is not supported.
Note:1) For first-time use, you should use the remote control to enter the
game.
2) [Number Buttons] and [Previous/Next] on the remote control can be
used for page turning and selecting games. Press and hold [Start] on
the game control pad and press [Select Button] at the same time to
return to the main menu.

14
Troubleshooting
Problem
Possible solution
No power/not charging
1. Check if the power plug is correctly connected to the power socket.
2. Check if the power switch is on.
Disk cannot be read
1. Check if the power switch is on.
2. Check if the disc is being inserted properly; the disc side with label should
be face up.
3. Check if the disc is being placed upside down.
4. Please change or clean the disc if it is damaged or dirty.
5. If the player is contaminated with damp, take out the disc and switch the
power on for 1 to 2 hours.
6. The area code of the disc is different from that of the player.
7. The disc is not in a correct format.
No image
1. Make sure that the TV is switched on and connected to the player in AV
mode.
2. Check whether the video output setting of the VIDEO SETUP in the menu
setup is correct.
3. Check whether the connection cable is good.
4. Clean the disc.
5. Make sure the screen switch is popped up, i.e. it is not pressed down.
blurring/distortion
1. It indicates that the disc is damaged or dirty.
2. Reset the output system of the TV or DVD player.
Bad disc label appears
It indicates that the disc is damaged or dirty; please change or clean the disc.
Images cannot be
displayed completely
Reset the TV system.
Select a corresponding screen format from the setup menu of the DVD disc.
Remote control does
not work
1. Check whether there is an obstacle between the remote control and the
player.
2. Check whether the remote control is pointed to the sensor of the player.
3. Check whether the batteries of the remote control are correctly connected.
4. Check whether the batteries are in good condition.
No sound, or audio
output is incomplete
1. Make sure that the TV and amplifier are switched on and with correct
settings.
2. Check if there is a system connection shield for TV and amplifier.
3. Check if the system is in mute mode.
4. Press [Audio Channel] or [Language].
5. Output is silent in the following modes: Pause/Single Step/
Slow Forward/Slow Reverse/Fast Forward/Fast Reverse, etc.
6. Output volume of TV is too low.

15
Specifications
DVD Technical Parameters
Supported formats
DVD/SVCD/VCD/CD/CD-R/RW/JPEG/DVD+R/-R/MP3/MP4/DIVX
Other supported media
USB/SD/MMC Card
Shockproof function
DVD: 3: seconds VCD/CD: 10 seconds MP3: 90 seconds
AUDIO output level
AUDIO: 2.0V±0.2 Speaker: 8ohm/1.5W
Earphone output is less than 15mw
Frequency response
20HZ~20KHZ
Audio signal ratio (S/N)
≥50dB
Dynamic range
≥50dB
Video output level
1.0V±0.2Vp-p (75ΩLoad Impedance)
Video system
PAL / NTSC / Auto
Menu languages
English / Chinese / Russian / Italian / German / Spanish / French /
Portuguese
List of Accessories
1. AC adapter 5. User manual
2. Video cable 6. Game disc
3. Remote control 7. Game control pad
4. AAA batteries for remote control 8. Car charger
EC Declaration of Conformity
The product complies with the protective requirements of European
Directives 2004/108/EC.
The conformity declaration for this product is available under
www.jay-tech.de.
Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE)
This symbol on the product or in the instructions means that your electrical
and electronic equipment should be disposed at the end of its life
separately from your household waste. There are separate collection
systems for recycling in the EU. For more information, please contact the
local authority or your retailer where you purchased the product.
