Mini IP Dome Camera User’s Manual
Version 3.5.0

i
Welcome
Thank you for purchasing our IP camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!

ii
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5．Environment
This series IP camera should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.

iii
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name Amount
IPC Unit 1
Accessories bag 1
Quick Start Guide 1
CD 1

iv
Table of Contents
1General Introduction ..................................................................................................................1
1.1 Overview........................................................................................................................1
1.2 Features.........................................................................................................................1
1.3 Specifications................................................................................................................2
1.3.1 Performance...........................................................................................................2
1.3.2 Factory Default Setup...........................................................................................3
2Framework...................................................................................................................................9
2.1 Dimensions....................................................................................................................9
2.2 Structure ......................................................................................................................10
3Installation .................................................................................................................................12
3.1 Device Installation ......................................................................................................12
3.2 SD Card Installation ...................................................................................................13
4Quick Configuration Tool.........................................................................................................15
4.1 Overview......................................................................................................................15
4.2 Operation .....................................................................................................................15
5Web Operation..........................................................................................................................18
5.1 Network Connection...................................................................................................18
5.2 Login and Main Interface...........................................................................................18
6FAQ ............................................................................................................................................21
Appendix Toxic or Hazardous Materials or Elements ...............................................................22

1
1 General Introduction
1.1 Overview
This series IP camera integrates the traditional camera and network video technology. It adopts audio
and video data collection, transmission together. It can connect to the network directly without any
auxiliary device.
This series IPC uses standard H.264 video compression technology and MJPEG audio compression
technology, which maximally guarantee the audio and video quality.
This series IPC enclosure has the strong resistance capacity, which can guarantee the proper work
performance under heavy strike. It supports real-time monitor and motion detect function.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its multiple functions and various uses, this series
IPC is widely used in many environments such office, bank, road monitor and etc.
1.2 Features
User
Management
zDifferent user rights for each group, one user belongs to one group.
zThe user right shall not exceed the group right.
Storage
Function
zSupport central server backup function in accordance with your configuration
and setup in schedule setting
zSupport record via Web and the recorded file are storage in the client-end
PC.
zSupport built-in Micro SD card. Support short-time storage when encounter
disconnection. (For some series only.)
zSupport network storage such as FTP.
Alarm
Function
zReal-time respond to video detect as user pre-defined activation setup and
exert corresponding message in screen and audio prompt(allow user to pre-
record audio file)
zReal-time video detect: motion detect, camera masking.
zCan generate an alarm when network abnormal, SD card abnormal event
occurred.
Network
Monitor
zIPC supports one-channel video data transmit to network terminal and then
decode. Delay is within 270ms (network bandwidth support needed)
zMax supports 20 connections.
zAdopt the following audio and video transmission protocol: HTTP, TCP, UDP,
RTP/RTCP, RTSP and etc.
zSupport web access, widely used in WAN.
Network
Management
zRealize IPC configuration and management via Ethernet.
zSupport device management via web or client-end.
zSupport various network protocols.
Power
zExternal power adapter DC12V
zSupport PoE.
Assistant
Function
zLog function
zSupport PAL/NTSC
zSupport system resource information and running status real-time display.
zDay/Night mode auto switch.
zBacklight compensation: screen auto split to realize backlight compensation
to adjust the bright.
zSupport electronic shutter and gain setup.

2
zSupport video watermark function to avoid vicious video modification.
1.3 Specifications
1.3.1 Performance
Please refer to the following sheet for IPC performance specification.
Model
Parameter Series
Main
Processor
TI Davinci high performance DSP
OS Embedded LINUX
System
Resources
Support real-time network, local record, and remote operation at the
same time.
User Interface Remote operation interface such as WEB, DSS, PSS
System
System Status SD card status, bit stream statistics, log, and software version.
Image Sensor 1/2.9-inch CMOS
Pixel 1920(H)*1080(V)
Day/Night
Mode Support day/night mode switch.
Gain Control Fixed/Auto
White Balance Manual/Auto
BLC On/off
Electronic
Shutter
Manual/Auto
PAL: It ranges from 1/3 to 1/10000.
NTSC: It ranges from 1/4 to 1/10000.
Video
Compression
Standard
H264/ H.264B /MJPEG
Video Frame
Rate
PAL:
Main stream（1920*1080@25fps）
extra stream（704*576@25fps）
NTSC：
Main stream (1920*1080@30fps)
Extra stream (704*480@30fps)
Video Bit Rate
H.264: 56Kbps-8192Kbps.
ＭJPEG: 128-20480Kbps.The bit rate is adjustable. 
Support customized setup.
Video Flip Support mirror function.
Support flip function.
Snapshot Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask Supports max 4 privacy mask zones
Video Setup Support parameter setup such as bright, contrast.
Video
Information Channel title, time title, motion detect, privacy mask.
Lens 2.8mm/3.6mm/6mm/8mm MP
Video Parameter
Lens Interface M12. Lens is the default accessories
Video
Motion Detect
396 (18*22) detection zones；sensitivity level ranges from 1 to 6 (The
6th level has the highest sensitivity)
Activation event: Video storage, image snapshot, log, email SMTP
function and etc.

3
Video Loss Activation event: Video storage, image snapshot, log, email SMTP
function and etc.
Record
Priority Manual> Video detect>Schedule
Record and Backup
Local Storage Support Micro SD card storage
Wire Network 1-channel wire Ethernet port, 10/100 Base-T Ethernet
Network
Protocol
Standard HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP,
UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,
SNMP.
Platform
interface
Standard
ONVIF
Network
Remote
Operation Monitor, system setup, log information, maintenance , upgrade and etc
AUX Interf ace
Reset Built-in RESET button
Power Support DC12V and PoE
Power
Consumption 2.5W MAX
Working
Temperature -10℃~+60℃
Working
Humidify 10%~90%
Dimensions(m
m) ¢110×54
Weight 0.25Kg
General Parameter
Installation Installed in the places such as wall or the ceiling
1.3.2 Factory Default Setup
Please refer to the following sheet for factory default setup information.
Default setup
Function
Setup Type Item
Brightness 50
Contrast 50
Hue 50
Saturation 50
Exposure mode Auto
Gain Scope 0~80
Profile Auto
Day&Night Auto
Backlight Off
Mirror Off
Conditions
Flip Off
Bit stream
type General
Camera Setup
Video
Video bit
stream
Main
stream
Encode
mode H.264B

4
Default setup
Function
Setup Type Item Series
Resolution 1080P（1920*1080）
Frame rate
（FPS）
PAL: 25
NTSC:30
Bit stream
type CBR
Reference
bit rate 3584-6144 Kb/S
Bit rate 8192
I frame
interval 50
Watermark
settings Enable
Watermark
character DigitalCCTV
Enable Enable
Bit stream
type General
Encode
mode H.264B
Resolution CIF(352×288/352×240)
Frame rate
（FPS）
PAL: 25
NTSC:30
Bit rate type CBR
Reference
bit rate 192-1024Kb/S
Bit rate 1024
Extra
stream
I frame
interval 50
Snap type General snap
Image size 1080P（1920*1080）
Quality Better
Snapshot
Interval 1picture/s
Privacy
mask Disable
Channel title Enable
Overlay
Time title Enable
Snapshot
path C:\PictureDownload
Path
Record path C:\RecordDownload
Host name IPC
Ethernet
card Wire(Default)
Mode Static
Network setup TCP/IP

5
Default setup
Function
Setup Type Item
MAC
address
Depends on the device
IP version IPV4
IP address 192.168.1.168
Subnet
mask 255.255.255.0
Default
gateway 192.168.1.1
Preferred
DNS 8.8.8.8
Alternate
DNS 8.8.8.8
Enable
ARP/Pingto
to set IP
address
service
Enable
Max
connection 10
TCP port 37777
UDP port 37778
HTTP port 80
Connection
RTSP port 554
Enable Disable
User name N/A
PPPoE
Password N/A
Server type Disable, CN99 DDNS
Server IP none
Port 80
Domain
name none
User name none
Password N/A
DDNS
Update
period 10m
IP filter Trusted
sites Disable
SMTP
server none
Port 25
Anonymity Disable
User name anonymity
Password N/A
Sender none
SMTP（email）

6
Default setup
Function
Setup Type Item
Authenticati
on (Encrypt
mode)
N/A
Title
(Subject) IPC Message
Attachment Enable
Main
Receiver N/A
Interval 0s
Health email Disable ，interval=60m
UPnP Enable
UPnP Disable
SNMP v1 Disable
SNMP v2 Disable
SNMP v3 Disable
SNMP port 161
Read
community public
Write
community private
Trap
address N/A
SNMP
Trap port 162
Enable Enable
Bonjour Server
name
“Device name+SN”.
Depends on the device.
Multicast
address 239.255.42.42
Multicast
Port 36666
Real-time
monitor 0
QoS
Command 0
Enable Disable
Anti-dither 5 seconds
Sensitivity 3
Record
Channel Enable
Record
Delay 10 seconds
Send email Disable
Motion detect
Snapshot Disable
Enable Disable
Event
management
Video detect
(Ca mer a)

7
Default setup
Function
Setup Type Item Series
Record
Channel
Enable
Record
Delay 10 seconds
Send email Disable
Snapshot Disable
Enable
No SD card
Send email
Enable
Capacity limit (Space threshold)
Capacit y warning
Send email
Enable
SD card error
Send email
Enable Disable
Record Enable
Disconnec tion
Record
delay 10s
Enable Disable
Record Enable
Abnormity
IP conflict
Record
delay 10s
FTP enable Disable
Server IP N/A
Port 21
User name anonymity
Password N/A
Remote
storage path share
Destination(Stora
ge ) FTP
Emergency
storage to
local path
Disable
Pack
duration 8m
Pre-record 5s
Disk full Overwrite
Record
mode Auto
Storage
management
Conditions (Record
control)
Record
Stream Main Stream
System
management General setup
Lo cal set up
Device
name Device factory SN

8
Default setup
Function
Setup Type Item Series
Language English
Video
standard NTSC
Date format Y-M-D
Time format 24H
Time zone GMT+08:00
Current
time Sync PC
DST Disable
DTS type Week
Start time 00:00:00 of the first Sunday of the
month
End time 00:00:00 of the second Monday of the
month
Synchronize
with NTP Disable
NTP server clock.isc.org
Port 37
Date and time
Update
period 10m
Auto reboot Enable
Auto maintenance Auto delete
old files Disable

9
2 Framework
2.1 Dimensions
Please refer to the following figure for the dimension information. The unit is mm. See Figure 2-1
through Figure 2-3.
Figure 2-1
Figure 2-2

10

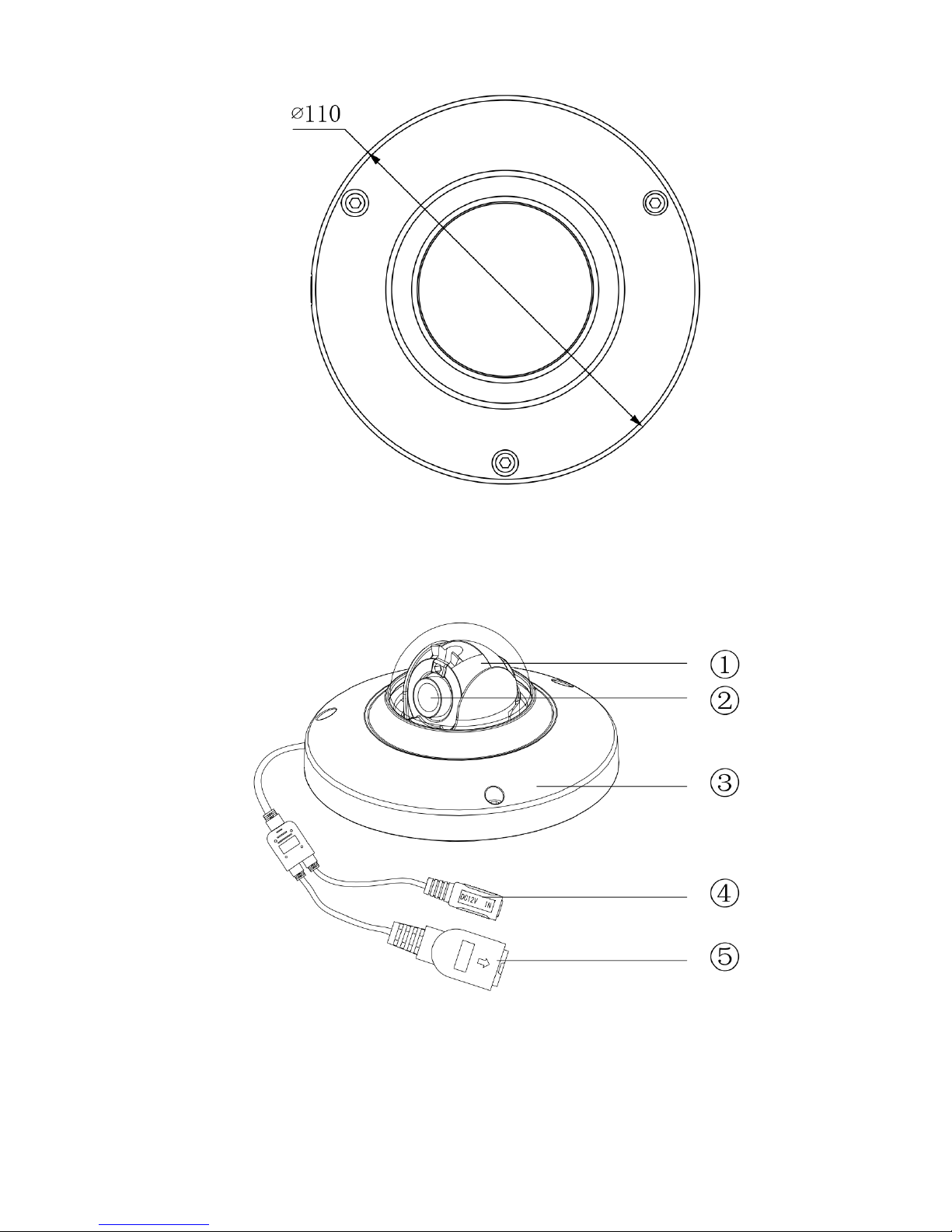

Figure 2-3
2.2 Structure
Please refer to the following figure for detailed information. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.

11
SN Name
1 X-Y-Z rotation module
2 Device lens
3 Dome camera enclosure
SN Name Function
4 Power input port Connect to the DC 12+ power to
input the power.
5 Network port Network data input, output and
PoE.

12
3 Installation
3.1 Device Installation
This series IPC can be put on the table to realize surveillance. Or you can use the bracket or the in-
ceiling installation to realize the hang function. Please refer to the steps listed below.
Figure 3-1
Figure 3-2
Step1
Use the inner hexagonal wrench (provided) to loose the three inner hexagon screws in the dome cover
and then open the cover.
Step 2
Please take the installation position map in the accessories bag, and then paste it on the ceiling or the
wall according to your monitor area requirements. Draw and then dig three plastic expansion bolts
holes in the installation surface and then insert three expansion bolts in the holes. Secure these three
bolts firmly. Please dig a “cable exit hole” in the surface according to the installation position map if
you want to draw out the cable from the top of the installation surface. You need to use the proper tool
to open up the side port of the U-cable channel of the dome camera pedestal if you want to draw out

13
the cable from the side port of the cable channel when you are installing the device cable. And then
you can draw out the cable from the cable channel of the pedestal.
Step 3
Adjust the device installation pedestal to the proper position and then draw the cable through the cable
exit you just dug in the ceiling (wall). Line up the TOP direction of the device to the installation position
map and then line up the three screw holes in the device pedestal to the three plastic expansion bolt
holes in the installation position. Put the three self-tapping screws in the three plastic expansion bolts
firmly. Now the dome camera is secure in the installation surface.
Step 4
Loosen the two M3 secure screws of the lens rotation structure (Do not remove, loosen a little bit will
be OK.). Use the inner hexagonal wrench to insert them to the inner hexagonal holes and then use the
wrench to turn the lens. Adjust the lens to the proper monitor angle and then secure the screws of the
lens rotation structure. The lens adjust angle ranges are: flip (0°~+75°),video pan rotation (-15°
~+15°) , video rotation angle(-15°~+15°).
Step 5
Line up the dome camera cover to the cable exits and put the cover back. Use the inner hexagonal
wrench to secure the three inner hexagonal screws firmly. Now the installation completed.
Note:
The device GND cable can effectively enhance the device reliability. The GND hole is near the cable
exit of the back of the enclosure. The GND screw specification is M3. See Figure 3-3.
Figure 3-3
3.2 SD Card Installation
Important
Some series product do not support the SD card storage function.
Please shut down the power and then turn off the device before you install the SD card.

14
Step 1
Please refer to the step 1 in chapter 2.1 to open the device.
Step 2
Find the “SD CARD” indicator in the enclosure. Adjust the SD card to the proper direction and then
install. See Figure 3-4.
Step 3
Please refer to the step 5 in chapter 2.1 to complete the installation.
Figure 3-4

15
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe’” icon, you can see an interface is shown as in Figure 4-1.
In the device list interface, you can view device IP address, port number, subnet mask, default
gateway, MAC address and etc.
Figure 4-1
Select one IP address and then right click mouse, you can see an interface is shown as in Figure 4-2.
Figure 4-2
