jbc PHXLE-K User manual

INSTRUCTION MANUAL
PHXLEK
Preheater Set for PCBs
up to 51x61cm/20x24”

2
Console ........................... 1 unit
Ref. ACE-A
Packing List
The following items are included:
Thermocouple ............ 3 units
Ref. PH218
Kapton Tape .................. 1 unit
Ref. PH217
Manual ............................ 1 unit
Ref. 0026951
PHXLS Support.............................................1 unit
Ref. PHXL-SA
PHXLE Preheater Unit ........................... 1 unit
RJ45 Cable .................... 1 unit
Ref. 0019914
Metallic Supports for PCB
Ref. PH204*...................... 1 unit
Ref. PH205*.......................1 unit
Ref. PH206*.......................1 unit
*Each reference includes 3 supports.
This manual corresponds to the following references:
PHXLE-1K A(120V )
PHXLE-2KA (230V)
PHXLE-9KA (100V)
PH206*
PH205*
PH204*

www.jbctools.com
3
Features and Connections
Pedal Connector
Heating Areas
(6 independent heating areas)
Main Switch
Fixing brackets for
PHXLS Support
Preheater Unit
Zone A1
USB-B Connector
RJ45 Connector
to Console
RJ12 Connector
to Robot
Thermocouple
Connectors
x8 (Type K)
Console
2,8” Color
TFT Screen
Start / Stop
USB-B Connector
RJ45 Connector
to Preheater Unit
USB-A Connector
Foot for Vertical Set Up
Button for Foot
Folding and
Unfolding
Support
Slot Clamps
Height Adjusting
System
Guide Knobs
Sliding
Guides
For Electrical
Power Supply
Connection
Clamp
Knobs
Rubber
Caps
Zone B1
Zone A2
Zone B2
Zone A3
Zone B3
Max. PCB dimension (between clamps):
51x61cm / 20x24 in. Thickness 6mm / 0.236in
Allen Key
Ref. 0013754

4
Connection to Power Supply
Peak Current Cable Connection Wire Section
Ref. Single-phase Three-phase Single-phase Three-phase
PHXLE-9KA (100V)
PHXLE-1KA (120V) 60 A 20 A 10 mm22.5 mm2
PHXLE-2KA (230V) 30 A 10 A 4 mm21 mm2
PHXLEK can be connected to single-phase or three-phase networks. A power supply cable is
required. Use the following table to determine the cable size and connection:
Connection to
Power Supply
RJ45 Cable
Ref. 0019914

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
www.jbctools.com
5
To conect your power supply cable to the Heater Unit do as follows:
1. Unscrew the four screws and remove the
cover. The cable can be inserted through the
front or the side part of the Preheater Unit,
all you have to do is replace the cap with the
cable grommet.
2. Insert the cable through the cable grommet
and the flange and fix it with the Allen screws.
(Image shows single phase connection).
3. Connect the cables as the scheme and
reassemble them.
Cable
grommet Cap

Height Adjustment
The support allows changing the height between the PCB and the preheater heating area. It can
be chosen between 3 positions for working height adjustment. To change the height, do as follows:
To raise the support, hold the base and pull up. To lower the support, press the button and
move down.
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Hot
Zone B
Zone A
Zone A
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20 ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20 ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20 ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Hot
Zone B
Zone A
Zone A
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Hot
Zone B
Zone A
Zone A
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
6
It is also possible to use JBC´s metallic supports to stabilize the PCB to avoid PCB deformation.
Depending on the working height, Ref. PH204*, PH205* or PH206* can be used. Arrange them
between the PCB and the Preheater as shown below.
Low level
High level
Medium level
24 mm
34 mm
44 mm
Ref. PH204*
Ref. PH205*
Ref. PH206*
* not included, sold separately

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20 ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
1
2
3
4
5
www.jbctools.com
7
Spring-loaded slot clamps
allow PCB fixation and easy PCB
replacement
Push the PCB towards you
and against the spring-loaded
slot clamps (2).
Then remove the opposite
side of the PCB from the
clamps on the rear sliding
guide (3).
Fast PCB Replacement
PHXLS Support lets you replace PCBs of the same batch fast and easily thanks to the spring-
loaded clamps, located at the frontal sliding guide. To do this, there is no need to open the sliding
guide knob (1) and nor to move the sliding guides.
Spring-loaded
Slot Clamp
Frontal
Sliding Guide
Fit the new PCB into the spring-
loaded clamps at the frontal
sliding guide, push the PCB
towards you (4) to gain enough
space to fit the opossite side of
the PCB into the clamps on the
rear sliding guide (5).
The PCB will be automatically
held in place by the force of the
spring-loaded clamps.
Rear Sliding
Guide
Sliding Guide
Knob
Removing the PCB
Placing another PCB

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s

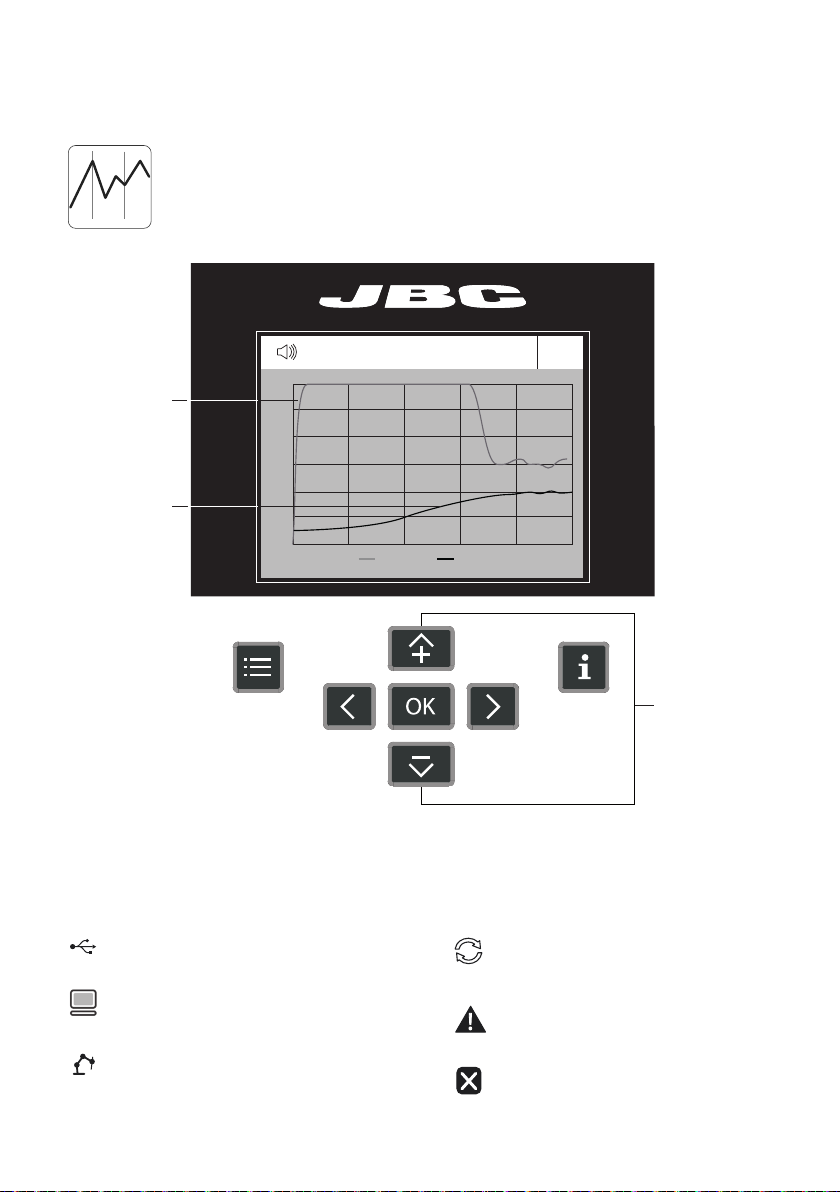

Work Display
Menu Options
Station
Information
Instant Power
Supplied to
Heater
Max. Heating
Rate
Status Bar
Thermocouple
Current Temp.
TC1 Current
and Selected
Temperature
The console offers an intuitive user interface, which provides quick access to station parameters.
Station troubleshooting is available on the product page at www.jbctools.com
Troubleshooting
USB flash drive is connected.
Station is controlled by a PC.
Station is controlled by a robot.
Station software update.
Press INFO to start the process.
Warning.
Press INFO for failure description.
Error. Press INFO for failure description,
the type of error and how to proceed.
System Notifications (Status Bar)
*Original PIN: 0105
General Work mode Profile editor
ResetGraphics Files
Available languages: English, Spanish,
German, French, Italian, Portuguese,
Japanese, Chinese, Russian and Korean.
Status
Indicator
C
P
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
8

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
C
P
Recommended Guidelines
1. Place the control thermocouple as near as possible to the component being worked on.
2. If there are any sensitive components, use a thermocouple as protection.
You can select the protection temperature in the thermocouples menu. If the selected temperature
is reached, the Heater Unit will stop the process and a warning message will be shown.
3. We don’t recommend exceeding ramp-up rates over 3 - 4 °C / sec (5 - 7 °F / sec) so as to
reduce the risk of thermal stress on the PCB.
Fix with Kapton Tape
Protection
Thermocouple
Setting Thermocouples Function
Select Thermocouples from the Work mode menu to set them up.
The thermocouples (TC) can work in three different ways depending on what is needed.
· Control: the unit maintains the selected temperature.
· Protection: the Heater Unit stops if the TC reaches the selected temperature.
· Info: the TC temperature is shown on the work display.
The TC1 is always working in Control mode for the Temperature mode as well as for Profiles mode.
The temperature of each TC can also be selected from the work display.
Control
Thermocouple
www.jbctools.com
9

Max. Heating
Rate
C
P
C
P
Instant Power
Supplied to
Heater
Status
Indicator
Selected
Power
Status Bar
Power Mode:
Select Power mode from the Work mode menu. In this mode, the heater unit maintains the selected
power as long as the thermocouples do not reach the control/protection temperature limit.
Thermocouple
current temp.
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
Instant Power
Supplied to
Heater
Status
Indicator
Work Mode
Status Bar
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
Thermocouple
Current Temp.
TC1 Current
and Selected
Temperature
Temperature Mode:
Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected
temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection
temperature limit.
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
10
Working within the Temperature Mode the maximum heating rate value (Max Rate) can be defined (1).
1

Max. Heating
Rate
C
P
C
P
Instant Power
Supplied to
Heater
Status
Indicator
Selected
Power
Status Bar
Power Mode:
Select Power mode from the Work mode menu. In this mode, the heater unit maintains the selected
power as long as the thermocouples do not reach the control/protection temperature limit.
Thermocouple
current temp.
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
Instant Power
Supplied to
Heater
Status
Indicator
Work Mode
Status Bar
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
Thermocouple
Current Temp.
TC1 Current
and Selected
Temperature
Temperature Mode:
Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected
temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection
temperature limit.
Max. Heating
Rate
C
P
C
P
Instant Power
Supplied to
Heater
Status
Indicator
Selected
Power
Status Bar
Power Mode:
Select Power mode from the Work mode menu. In this mode, the heater unit maintains the selected
power as long as the thermocouples do not reach the control/protection temperature limit.
Thermocouple
current temp.
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
Instant Power
Supplied to
Heater
Status
Indicator
Work Mode
Status Bar
Thermocouple
Selected Temp.
and Mode
· Control
· Protection
· Info
Thermocouple
Current Temp.
TC1 Current
and Selected
Temperature
Temperature Mode:
Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected
temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection
temperature limit.
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
www.jbctools.com
11
2
This function allows you to set a maximum value for the temperature increase per second when
heating.
The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None” if this function
is not desired.

For repetitive jobs it is also possible to run customized profiles without the thermocouple (TC). In order
to do so, the Teach profile mode has to be executed before running any profile. It can be executed
from the Work mode menu if the Profiles mode is selected. The first time, the thermocouple must be
connected. Once the profile has been run to the end, the system has all the process data which you
can save.
Once it is saved, you can run this profile without connecting the thermocouple (TC). The heating
process will be the same as long as the same working conditions are respected.
The profiles which already have the data from the Teach profile are marked with this symbol
These profiles can be run either with or without the Thermocouples. It can be chosen from the
Profiles mode work screen:
Teach Profile
Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature
of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the
control/protection temperature limit.
Profile Modes
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
12

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20 ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
· Add Point
· Delete Point
· Load Profile
· Save Profile
· Exit
Data for
these Points
Profile Name
Profile Editor
The Profile editor can be opened from the main menu or from the Profiles mode work
screen by pressing the ‘OK’ button.
In this mode, you can edit as many as 25 profiles of temperature.
Menu
Options
JBC Predefined Profiles
There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of
steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed
to obtain gradual warming.
Predefined profiles use the low position of the Support.
These profiles are not modifiable but they can be used as templates to create your own profiles.
JBC-A
2 steps
JBC-B
3 steps
JBC-C
4 steps
Reference-PCB
specifications:
FR4 1,6mm thick
and 2 layers.
FR4 2,2mm thick
and 6 layers.
FR4 1,6mm thick
and 6 layers.
Profile Editor
www.jbctools.com
13

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
Process Analysis
By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and
power figures in real time are displayed.
Temperature (ºC)
Power (%)
Switch Y Axis
Between Power
and Temperature
USB flash drive is connected.
Device is controlled by a PC.
Device is controlled by a robot.
System Notifications
Device software update.
Press INFO to start the process.
Warning.
Press INFO for failure description.
Error.
Press INFO for failure description,
the type of error and how to proceed.
The following icons will be displayed on the screen’s status bar.
Graphics
14

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
Zone B
Zone A
Zone A
Zone B
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
Zone B
Zone A
Zone A
Zone B
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
JBC
Update File
Files
Export Graphics
Insert a USB flash drive into
the USB-A connector to save
your soldering process in
CSV format.
Export / Import Profiles
Insert a USB flash drive into
the USB-A connector to
export/import profiles.
Update the Station Software
1. Download the JBC Update File from
www.jbctools.com/software.html and save
it on a USB flash drive. (Preferably one with no
other files).
2. Insert the USB flash drive into the console.
The icon is displayed while updating.
Files
Working with Pedal
Press the pedal to start heating and press again to stop as if it were the button on the console.
Once the Work Mode is set, the Heater Unit can work without the console using the pedal.
PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
TC1
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC2
P100ºC
14:15
20 ºC
T1 23 ºC
20
5’ 8’
ºC
120 ºC
T3
24 ºC
T7
StopPROFILE1
200
100
14:15
31ºC27ºC
TC1 TC2
StopPROFILE1
200
100
14:15
200
150
100
50
300
250
14:15
5m 00s
120ºC
PROFILE1
200
100
14:15
30ºC
Power
45%
Selected power
45%
TC1
C100ºC
---ºC
TC2
P100ºC
0 60 120 180 240 300
Point
2/3
Temp Time
2m 00s
14:15
20ºC20 ºC
TC1 TC2
20ºC
TC3
20ºC
TC4
StopPROFILE1
200
100
Ext. Temp [ºC]Power [%]
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
P100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
14:15
20ºC
Power
45%
Selected power
45%
14:15
TC5
P100ºC
20ºC
TC7
P100ºC
20ºC
TC8
P100ºC
20ºC
TC6
P100ºC
20ºC
TC5
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
25ºC
Selected 120ºC
TC2
P100ºC
14:15
20ºC
Power
45%
TC1
45ºC
Selected 120ºC
TC2
C100ºC
20ºC
TC3
P100ºC
20ºC
TC4
P100ºC
20ºC
TC5
P100ºC
20
5’ 8’
ºC
120 ºC
80 ºC
100 ºC
5’ 8’5’30”3’30” 8’
20 ºC
120 ºC
80 ºC
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
detalle parte trasera
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
TC1 TC2 TC3 TC4
ROBOT AUX. PEDAL
Hot
ZoneB
ZoneA
ZoneA
ZoneB
Hot
Hot
ZoneB
Hot
ZoneB
ZoneA
ZoneA
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Max. Rate
1.6ºC/s
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
14:15
Work mode
Mode
Time to stop
Thermocouples
Max Rate
Back
None
2min
Temp.
1.6ºC/s
Max Rate
Min 0.1ºC/s Max 2.0ºC/s
www.jbctools.com
15
PHXLE
Preheater Unit
P405
Pedal
(not included)

Maintenance
- Before carrying out maintenance or storage, always
allow the equipment to cool down.
- Check periodically that the equipment is clean.
- Use a damp cloth when cleaning. Alcohol can only
be used to clean the metal parts.
- Only if it is absolutely necessary and if cleaning
with isopropyl alcohol (IPA) is not enough, it is
recommended to use a scraper to remove dirt in
the glass area.
- Replace any defective or damaged parts. Use original
JBC spare parts only.
- Repairs should only be performed by a JBC authorized
technical service.
16
Clean periodically
the guide axes
Clean periodically
the heating area

Safety
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire.
- The mains cable must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- The temperature of accessible surfaces may remain high after the unit is turned off. Handle with care.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflammable products to ignite.
- Heat can cause inflammable products to ignite even when out of sight.
- Be careful with the remains of liquid tin. In contact with the skin, it can cause burns.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the smoke produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- This appliance can be used by children over the age of eight as well as persons with reduced physical,
sensory or mental capabilities or lacking experience provided that they have been given adequate
supervision or instruction concerning the use of the appliance and understand the hazards involved.
Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
www.jbctools.com
17

Notes
18

www.jbctools.com
19
Specifications
PHXLEK
Preheater Set for PCBs up to 51x61cm / 20x24”
Ref.: PHXLE-9KA 100V. Input 100/200V. 50/60Hz. Fuse T20A
Ref.: PHXLE-1K A120V. Input 120/208V. 50/60Hz. Fuse T20A
Ref.: PHXLE-2KA 230V. Input 230/400V. 50/60Hz. Fuse T10A
- Total Net Weight: 23.00kg / 50.7 lb
- Total Package Dimensions / Weight: 1200 x 800 x 374 / 73.00 kg
(L x W x H) 47.24 x 31.50 x 14.72 in / 160.94 lb
PHXLE Preheater Unit
- Maximum Power: 5400W
- Heating Areas (L x W): 6 areas, each: 255 x 203 mm / 10.04 x 8.07 in
total area: 510 x 610 mm / 20.08 x 24.02 in
- Ambient Operating Temp.: 10 - 50 ºC / 50 - 122 ºF
- Temperature Range: 50 - 250 °C / 120 - 482 ºF
- Temperature Measurement: Thermocouple type K
- JBCset Temperature Profiles: 3 profiles (2, 3 or 4 steps)
- User Profiles: 22 (up to 6 steps for each)
- Maximum Work Time: 600 min or indefinite
- Net Weight Preheater Unit: 6.90 kg / 15.21 lb
PHXLS Support
- Dimensions - Low Position: 75.3 x 73.7 x 7.8 cm
(L x W x H) 29.65 x 29.02 x 3.07 in
- Dimensions - High Position: 75.3 x 73.7 x 9.8 cm
(L x W x H) 29.65 x 29.02 x 3.86 in
- Max. PCB Dimensions Between Clamps: 51 x 61 mm / 20 x 24 in
Thickness 6 mm / 0.236 in
- Net Weight Support: 4.42 kg / 9.74 lb
Metallic PCB Supports for PHXLS
- Reference:
- Height Level:
- Total Net Weight (3 units):
Complies with CE standards.
ESD safe.
PH204 PH205 PH206
low medium high
39.6 gr 46.5 gr 51 gr
0.087 lb 0.10 3 l b 0.112 l b

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm
0026951-221123
