JBL/Infinity Soundbar Quick-Start Guide
IMPORTANT:Thisquick‐startguidecontainsinformationaboutassembling,mountingand
connectingyoursoundbar.Forcompleteinstallation,connection,setupandoperation
information,downloadthefull[Soundbar]UserManualat[jbl.com][infinitysystems.com].
Includeditems
2xsoundbarspeakersections(left&right)
1xthreadedrod
2xmountingbracketbaseassemblies
2xmountingbrackettops
8xlongmountingbracketscrews
8xshortmountingbracketscrews
2xbridgeplates
8xbridgeplatescrews
1xlargehexwrench
1xsmallhexwrench
2xsafetywireassemblies
2xhigh‐levelaudioadapters
1xAVRCPremotecontrolandbattery
1xquick‐startguide
1xsafetyinstructionbooklet
Assembly
1.Hand‐tightenthethreadedrodintothesoundbar’sleftspeakersection(withthecableattached).
[Insertillustration“Assembly_1_082316.ai”]

2.Screwthesoundbar’srightspeakersectionontotheportionofthethreadedrodthatisprotruding
fromtheleftspeaker.Whenthespeakeristhreadedallthewayontotherodthefrontsofbothspeakers
shouldbeproperlyaligned.
[Insertillustration:“Assembly_2_082316.ai”]

JBL/Infinity Soundbar Quick-Start Guide

3.Connecttheumbilicalcablesbetweenthetwospeakers.
[Insertillustration:“Assembly_3_082316.ai”]

4.Attachthebottombridgeplatetothetwospeakers,usingthesmallhexwrenchand4ofthebridge
platescrews.
[Insertillustration:“Assembly_4_082316.ai”]


JBL/Infinity Soundbar Quick-Start Guide

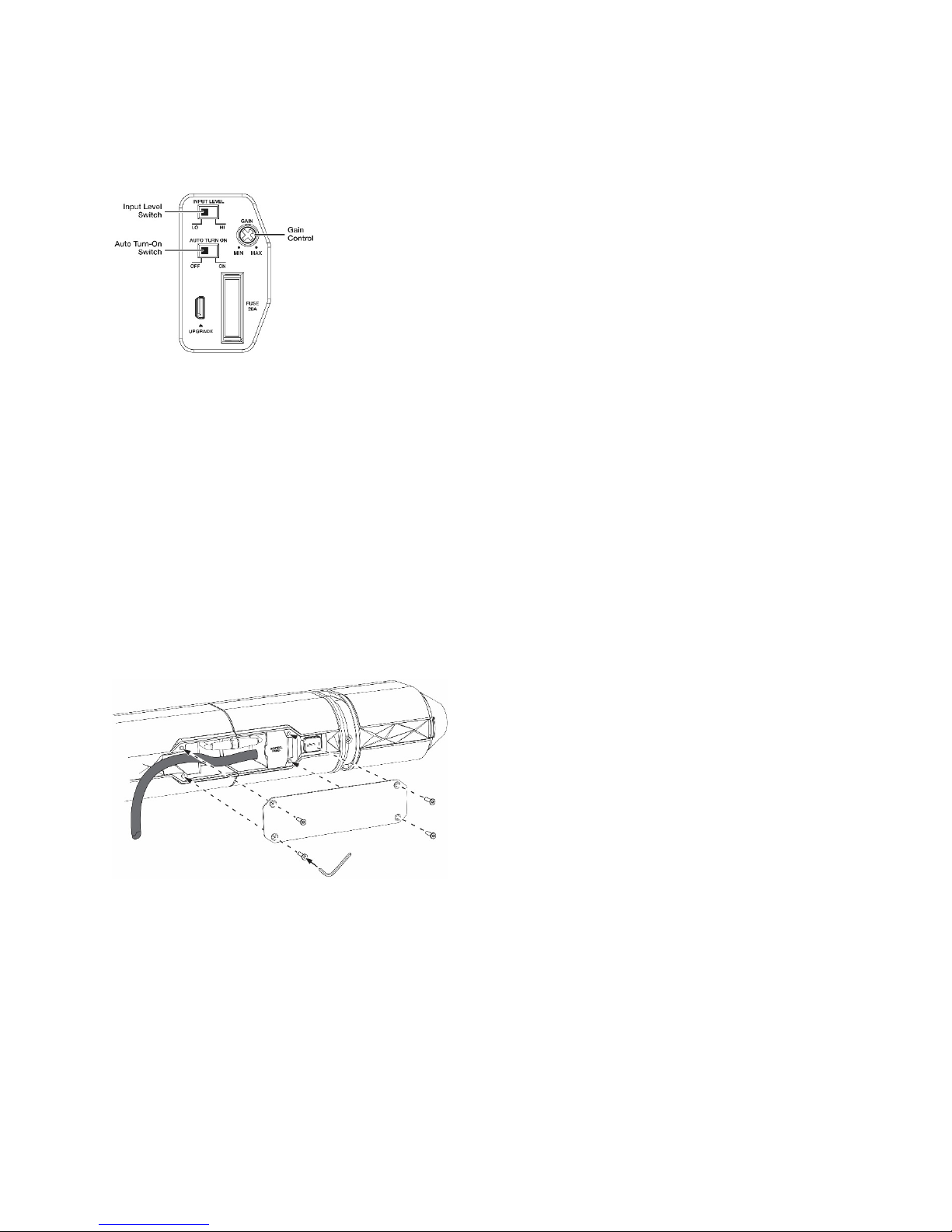

5.Beforeattachingtherearbridgeplate,youwillneedtosettheInputLevelswitch,AutoTurn‐On
switchandGaincontrols:
[Insertillustration:“ControlPanel_082316.ai”]

a.Ifyouwillbeconnectingthesoundbar’saudioinputstothepre‐outsofacarstereoheadunitor
otherline‐levelsource,settheInputLevelswitchinthe“Lo”position.Ifyouwillbeconnectingthe
soundbartothespeaker‐leveloutputsofacarstereoheadunit,settheInputLevelswitchinthe
“Hi”position.
b.IfyouhavesettheInputLevelswitchinthe“Lo”position,settheGaincontrol[TBD];ifyouhave
settheInputLevelswitchinthe“Hi”position,settheGaincontrol[TBD].Afteryoucompletethe
installationandbeginusingyoursoundbaryoucanfine‐tunetheGaincontrolsettingtomaximize
thesoundbar’sperformance.
c.Ifyouwantthesoundbartoautomaticallyturnonwhenitreceivesanaudiosignal,settheAuto
Turn‐Onswitchinthe“On”position.Ifnot,settheswitchinthe“Off”position.
6.Attachtherearbridgeplatetothetwospeakers,usingthesmallhexwrenchandtheremaining4
bridgeplatescrews.
[Insertillustration:“Assembly_5_082316.ai”]

Mounting
1a.Insertthe2mountingbracketbaseassembliesintothe2mountingtrackopeningsonthebottomof
thesoundbar.
1b.Slidethemountingbracketbasesinsidethetracksallthewayaroundtothetopofthesoundbar.
[Insertillustration:“Mounting_1_082816.ai”]

JBL/Infinity Soundbar Quick-Start Guide

2.Positionthesoundbarinthedesiredlocationagainstthevehiclemountingbar.Use4ofthesupplied
mountingbracketboltstosecureeachbrackettoptoabracketbase.(Twosetsofboltsaresupplied,
allowingthesoundbartobemountedtopipesuptoXXXindiameter.)
a.Whenthesoundbarisinthecorrectposition,tightenthemountingbracketadjustmentscrews.
[Insertillustration:“Mounting_2_082816.ai]

3.Installthe2safetyharnessassemblies[TBD]
Ground,Power,IlluminationandRemoteConnections
IMPORTANT:Disconnectthevehicle’snegative(–)batteryterminalbeforebeginningtheinstallation.
Connectthesoundbar’s+12Vpower(red),ground(black),illumination(orange)andremoteturn‐on
(blue)wiresasshownbelow.
Usesandpapertoclearthepaintfromthemetalsurfaceatthegroundconnection.Useastar‐type
lockwashertosecuretheconnection.
Installafuseholderfora40Afuseonthepower(12V)wirewithin18”(46cm)ofthe(+)battery
terminal.Donotinstallthefuseintheholderatthistime.

JBL/Infinity Soundbar Quick-Start Guide
[Insertillustration:“PowerConnect_090516.ai”]

AudioInputandOutputConnections
Connectingtoanaudiosystemheadunit
Connectthesourceunit’sRCAlineoutputstothesoundbar’s(black)RCAaudioinputcable,asshownin
theillustrationbelow.
[Insertillustration:“HeadUnitConnect_090516.ai”]

IfyoursourceunitdoesnothaveRCAoutputsusethesuppliedbarewire‐to‐RCAadapterstoconnect
thesourceunit’sspeakerwirestothesoundbar’saudioinputcable,asshownintheillustrationbelow.
[Insertillustration:“BareWireAdapters.ai”]


JBL/Infinity Soundbar Quick-Start Guide
Connectingtoamobilephoneorportableaudiodevice
Connectthemobilephone’sorportabledevice’sheadphoneporttothesoundbar’sblack3.5mmaudio
cable,asshownintheillustrationbelow.
[Insertillustration:“PhoneConnect_090516.ai”]

Connectingtoasubwooferorsecondaryamplifier
Connectthesubwooferorasecondaryamplifiertothesoundbar’s(gray)audiooutputcable,asshown
intheillustrationbelow.
[Insertillustration:“SubwooferConnect_090516.ai”]

Afteryouhavecompletedallofthesoundbarconnections:
1.Insertthe40Afuseintothefuseholderyouinstalledonthesoundbarpowerwire.
2.Re‐connectthevehicle’snegative(–)batteryterminal.
3.Forcompletesetupandoperationinformation,downloadthefull[Soundbar]UserManualat
[jbl.com][infinitysystems.com].
Specifications
Frequencyresponse:20Hz–20kHz
MaximumSPL:100dB
Totalamplifierpower:160watts
Drivers:4xlong‐excursion4”woofers;2x1”tweeters
Dimensions(assembled,LxWxH):31‐1/2”(800mm)x6‐1/8”(155.5mm)x5‐1/16”(128mm)
Weight(net):19.8lb(9kg)
