JBL TS8000 User manual

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance 6 Ohms
•Max Amp Power 200 Watts*
• Frequency Response 32Hz – 40kHz (–10dB)
42Hz – 38kHz (–3dB)
• Sensitivity 90dB (2.83V @ 1 meter)
• Crossover Frequency 500Hz, 12dB/Octave,
3.2kHz, 18dB/Octave
SYSTEM COMPONENTS:
• Cabinet TS8000 (Not for Sale)
• Grille Ass’y 364449-001
• Low-Frequency Transducer Dual 8" (203mm), shielded;
364496-001
DC Resistance 12.0 Ohms, ±10%
• Mid-Frequency Transducer 4" (101mm) Neodymium,
shielded; 364450-001
DC Resistance 4.1 Ohms, ±10%
•High-Frequency Transducer 1" (25mm) shielded;
364450-001
DC Resistance 3.4 Ohms, ±10%
• Crossover Network 013-7600-05585-E
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test 6.0V Input 33Hz to 20kHz
• L.F. Aural Sweep Test 5.0V Input 33Hz to 1kHz
• M.F. Aural Sweep Test 5.0V Input 500Hz to 4kHz
• H.F. Aural Sweep Test 5.0V Input 3kHz to 10kHz
PHYSICAL SPECIFICATIONS:
• Dimensions 47-1/2" x 15-1/4" x 10-3/4"
(HxWxD) (1207mm x 387mm x 273mm)
• Dimensions (with feet pad) 48-1/2" x 15-1/4" x 10-3/4"
(H x W x D) (1232mm x 387mm x 273mm)
• Weight 76.6 lb/34.5kg (each)
WARRANTY:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.
8
15
16
17
17
24
21
PACKAGING
WIRING DIAGRAM
TS8000 SCHEMATIC
Technical Manual
TS8000
TS8000
3/09
Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329
Release Date 2008
Discontinued Date XXXX
Legend on Page 2
M.F.
L.F.
H.F.
H.F. / M.F.
INPUT
L.F. INPUT
Yellow 12"
Green/Black 12"
White/Black 14"
White 14"
Green 12"
Orange 12"
Orange/Black 12"
Yellow/Black 12"
L4
0.14mH
C2
3.9mF
100v
C1
18.0mF
100v
LOW-FREQUENCY
TRANSDUCER 2
364496-001
LOW-FREQUENCY
TRANSDUCER 1
364496-001
HIGH/MID-
FREQUENCY
TRANSDUCER
364450-001
C4
3.9mF
100v
C3
56mF
100v
L1
.9mH
L2
0.6mH
C5
8.2mF
100v
L3
2.0mH
R1
3.0Ω
10W
C7
0.01mF
100v
C6
3.3mF
100v
C9
0.01mF
100v
C8
15mF
100v
.250
.250
.205
.205
R2
0.47Ω
5W
HF and LF
CROSSOVER NETWORKS
013-7600-05585-E
Red +
Black –
Red +
Black –
Green/Black –
Green +
White/Black –
White +
Yellow/Black –
Yellow +
Orange/Black –
Orange +
C1
3.9mF
100v
C2
43mF
100v
R1
3.9Ω
5W
L1
4.7mH
M.F.
L.F.
H.F.
H.F. / M.F.
INPUT
L.F. INPUT
Yellow 12"
Green/Black 12"
White/Black 14"
White 14"
Green 12"
Orange 12"
Orange/Black 12"
Yellow/Black 12"
L4
0.14mH
C2
3.9mF
100v
C1
18.0mF
100v
LOW-FREQUENCY
TRANSDUCER 2
364496-001
LOW-FREQUENCY
TRANSDUCER 1
364496-001
HIGH/MID-
FREQUENCY
TRANSDUCER
364450-001
C4
3.9mF
100v
C3
56mF
100v
L1
.9mH
L2
0.6mH
C5
8.2mF
100v
L3
2.0mH
R1
3.0Ω
10W
C7
0.01mF
100v
C6
3.3mF
100v
C9
0.01mF
100v
C8
15mF
100v
.250
.250
.205
.205
R2
0.47Ω
5W
HF and LF
CROSSOVER NETWORKS
013-7600-05585-E
Red +
Black –
Red +
Black –
Green/Black –
Green +
White/Black –
White +
Yellow/Black –
Yellow +
Orange/Black –
Orange +
C1
3.9mF
100v
C2
43mF
100v
R1
3.9Ω
5W
L1
4.7mH

1
12
3
2
7
9
4
14
20
4
13
6
19
10
22
23
11
18
5
14

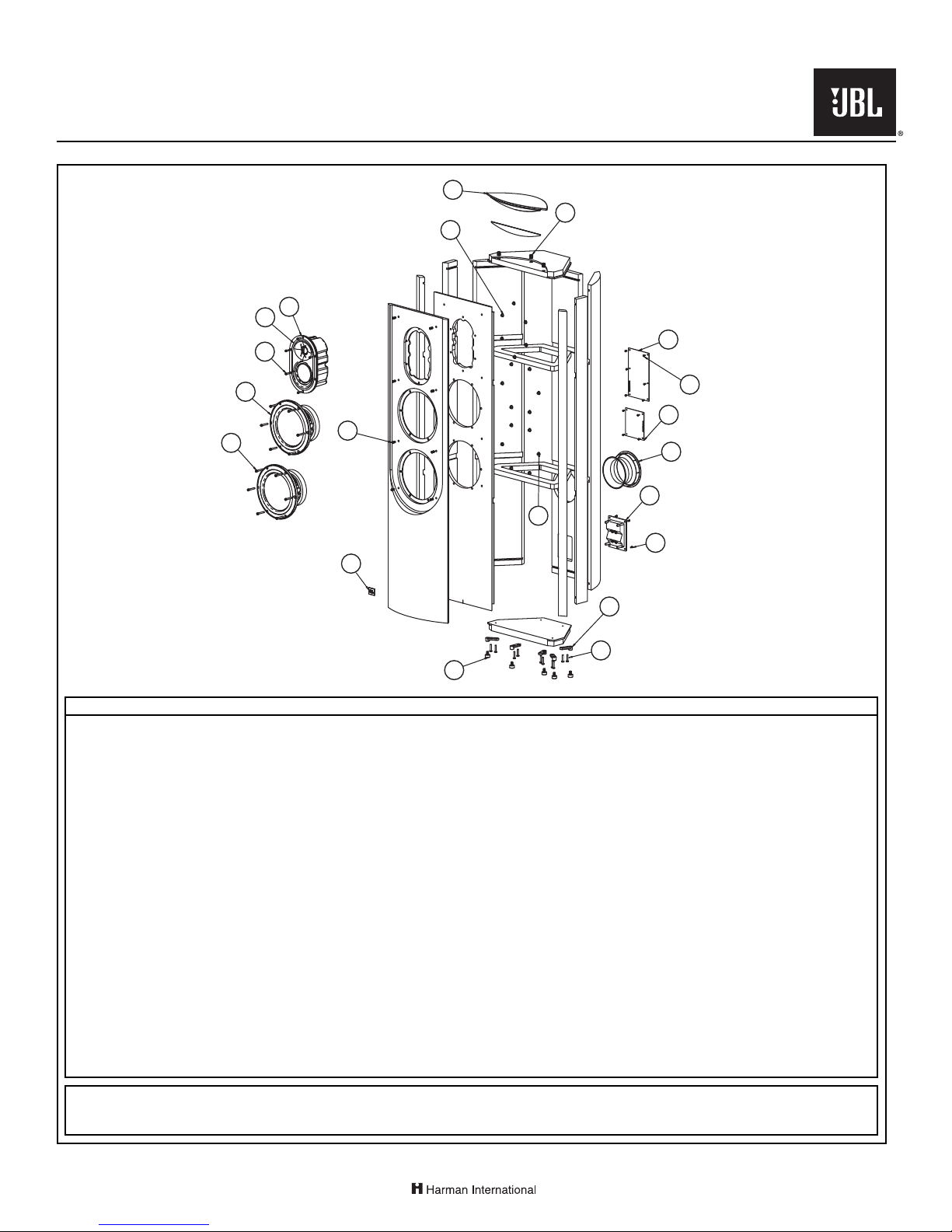

EXPLODED VIEW
Technical Manual
TS8000
TS8000
3/09
Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329
SERVICE NOTES
Note the midrange and tweeter cannot be ordered separately; order #364450-001 pod ass’y.
Shorting straps and binding posts from the terminal cup cannot be ordered separately; order #317-ABS-05154-0BAE terminal cup
ITEM PART NO. DESCRIPTION QTY.
1 364496-001 8" Woofer 2
2 364450-001 Pod Ass’y Containing Tweeter, Midrange, Wiring, Cup, Gaskets 1
3 874-33114-16 SCR, 10-32 x 1 SCKT, CAP, HEX, BLK ZINC, WFR 12
4 013-7600-05585-E HF and LF Crossover Networks 1 set
5365021-001 Logo, JBL, AL, 16.3mm x 20mm 1
6 61860 Insert, 8-32 x 4mm, HXS HF MODULE 6
7364011-001 Ring, Trim, Oval, Mid/Twt Faceplate 1
8 364449-001 Front Grille 1
9 315-BMC-05185-0BBE Top Bezel 1
10 337538-001 Grille Cup, Grille 8
11 333249-001 Grille Cup, Bezel 3
12 873-33114-12 SCR, 8-32 x 3/4", SCKT, CAP, HEX, BLK ZINC, HF MODULE 6
13 317-ABS-05154-0BAE Assy, Terminal Cup 1
14 882-41110-10 SCR, 6 x 5/8" PAN, PH, PB, BLK ZINC, LCS NETWORK 14
15 364499-001 Outer Carton 1
16 Visit www.jbl.com Owner’s Manual 1
17 364500-001 Top & Bottom End Pad 2
18 61861 T-nut 10-32, Woofer 12
19 373-000-05102-E Foot, Cast Base 5
20 Not for Sale Port Tube Ass’y 1
21 321-AL-05117-0BAE Spike Feet (5 pcs.) 1 set
22 804-41110-16 SCR, 10 x 1" PAN, PH, BLK ZINC, LCS FOOT 10
23 320-RUB-05160-0BAE Foot, Rubber 5
24 373-000-05101-E Coaster,Foot 5
THE TS8000 CABINET (NOT FOR SALE) DOES NOT COME APART
AND IS DEPICTED THIS WAY FOR ILLUSTRATIVE PURPOSES ONLY.
