JBT Fresh'n Squeeze Series User manual

June 2019
2nd Generation
Multi-Fruit Juicer
Service Manual

2FNS-0014-060-EN June 2019 Rev A
2nd Generation
Multi-Fruit Juicer
Service Manual
Copyright © John Bean Technologies Corporation 2019
JBT Corporation
400 Fairway Avenue
Lakeland, FL 33801
[phone]
Manual No. FNS-0014-060-EN

3FNS-0014-060-EN June 2019 Rev A
Table of Contents
Important Safety Information ······································ 4
Specifications ··························································· 6
General Information ·················································· 7
Juicer Screen Descriptions ······································· 9
Maintenance ····························································· 22
Troubleshooting ······················································ 28
Rebuilding ······························································· 31
Illustrated Parts List ················································· 45
Electrical Drawings and Procedures ···························· 75

4FNS-0014-060-EN June 2019 Rev A
Important Safety Information
You can help prevent personal injury and/or property damage.
Please read this manual carefully before operating the Multi-Fruit Juicer.
DO NOT attempt any operation until you understand exactly how the machine functions.
If uncertainty remains after studying this manual, please contact John Bean Technologies
Corporation.
We're here to help. With proper handling, the JBT Multi-Fruit Juicer will provide safe, efficient
and convenient service for years to come.
North America
JBT Corporation
400 Fairway Ave
Lakeland, FL 33801
USA
Phone: [phone]
Fax: [phone]
Europe
JBT Corporation, S.L.
Julián Camarillo 26, 4º
28037 Madrid Spain
Phone: [phone]
Fax: [phone]
South Africa
JBT (Pty) Ltd.
Koper Street
Brackenfell
Cape Town, South Africa 7560
Phone: [phone]
Fax: [phone]
www.jbtcorporation.com
Brazil
JBT Máquinas e Equipamentos Industriais Ltda.
Av. Eng. Camilo Dinucci 4605
14808-900 Araraquara
São Paulo Brazil
Phone: [phone]
Fax: [phone]
Latin America
JBT Corporation
Carr. Mty-Saltillo Km 7—Bodega 4
Colonia Las Mitras
Santa Catarina, NL
Mexico 66350
Phone: [phone]
Fax: [phone]
Asia / Pacific
JBT (Shanghai) Co. Ltd.
Room 3002-3003
Haitong Security Building
No. 689 Guangdong Road
Shanghai 200001,
China
Phone: [phone]
Fax: [phone]
Revision History
Manual
Code Rev.
Date Change History
FNS-0014-060
A
06/14/19
Initial release

5FNS-0014-060-EN June 2019 Rev A
Safety Labels
The safety labels shown below appear on the Juice Extractor. Safety labels provide essential
instructions on how to avoid possible hazards.
Please, for your safety: FOLLOW THOSE INSTRUCTIONS AT ALL TIMES.
Should the Juicer safety labels become damaged or unreadable, contact JBT Corporation for
replacement labels.
Safety Instructions
Carefully review the following safety instructions.
Make them a habit when using the JBT Corporation Multi-Fruit Juicer.
1. If Juicer continues to run when any access cover is open, the interlock switch is defective.
Turn Juicer off immediately. Call for service.
2. Prevent unauthorized access to Juicer by locking all covers with supplied key.
3. Prevent unauthorized operation of Juicer by placing electrical plug inside cart door.
4. NEVER attempt to make any safety device inoperative.
5. NEVER operate or perform maintenance or repair work on the Juicer when taking any kind of
drug or sedative, when under the influence of alcohol, or when fatigued.
6. ALWAYS check adjustment of all nuts, bolts, and screws after installation, repair, or periodic
maintenance.
7. NEVER attempt to operate or transport machine if the caster wheels are damaged, do not roll
freely, or if front and rear brakes do not lock.

6FNS-0014-060-EN June 2019 Rev A
Specifications
Technical Specifications
Fruit size: 2 1/2" to 3 3/4" diameter (6.5 cm to 9.5 cm)
Oranges — FL:·································· 125 to 50 count
Oranges — CA: ································· 138 to 48 count
Grapefruit — FL: ································ 56 to 48 count
Hopper capacity:································ 80 Ib. (2 cartons) (36 kg)
Reservoir capacity:···························· 3.5 gal. (1 carton) (13.2 liters)
Waste container capacity: ···················· 40 Ib. of peel (2 cartons) (18 kg)
Three Speeds:·································· 25 fruit/minute, 29 fruit/minute, 33 fruit/minute
Electrical Specifications
115V, 60 Hz Single Phase 15 AMP Service on a dedicated circuit
10 GA. wire — up to 200 ft. from main breaker panel
or
220 VAC, 50 Hz / 60Hz Single Phase 16 AMP Service
10 GA. wire — up to 200 ft. from main breaker panel
Shipping Specifications
Height: 65.4" (166 cm)
Width: 26" (65 cm)
Depth: 35" (89 cm)
Weight: 711 Ibs (323 kg)
Patents
U.S. Patents - #4905586 and #4922814
and Patents Pending

7FNS-0014-060-EN June 2019 Rev A
General Information
The JBT Corporation Juicer is designed to provide years of dependable service. It uses a
unique patented design to extract every available amount of juice from the fruit with the
least amount of peel oil. The peel is completely separated from the juice and juice sacs
before being compressed and strained.
The machine will juice all types of citrus — oranges, grapefruit, lemons, limes, tangerines,
etc. — without changing or adjusting parts. In fact, different varieties and sizes of fruit can
be juiced to create various fruit juice blends.
Clean-up is simple, requiring disassembly of only five parts. All waste material — peel,
membranes, and seeds — is collected in a disposable garbage bag for easy removal and
disposal.
The Juice Extractor is solidly built using heavy duty components in all assemblies, including
the drive. It is simple to operate and uses a minimal number of parts.
ALWAYS follow cleaning and maintenance schedules in this manual to prevent equipment
damage and maintain juicer performance.
Figure 1. 2nd Generation Multi-Fruit Juicer

8FNS-0014-060-EN June 2019 Rev A

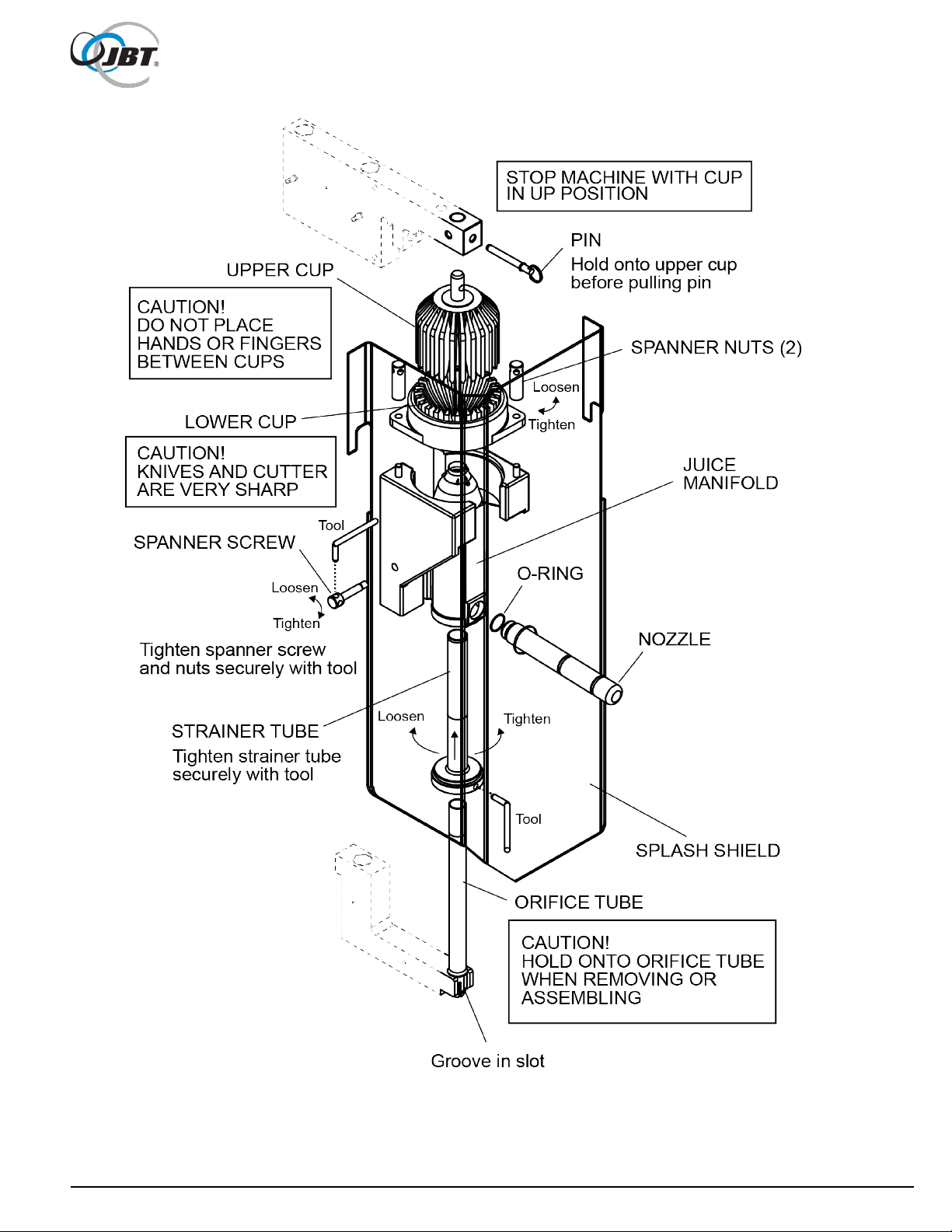

Figure 2. Juicing Components Assembly

9FNS-0014-060-EN June 2019 Rev A
Juicer Screen Descriptions
Standard Start Screen
Self-Service Start Screen
A. Start Button – Starts juicing
B. Go to Settings – Options to change the juicing speed and the animation shown while juicing.
C. Go to Status – View various information about the unit.
D. Go to Service – Various settings for the juicer (service personnel only).
Access requires a password which is simply “1”.
B
C
B
C
D
A
D

10 FNS-0014-060-EN June 2019 Rev A
Service 1
A. Total Cycles – Indicates the total number of cycles the juicer has run. This is value can be
changed by clicking on it. This is only meant for cases where electrical boxes are being
replaced so that the total juicers cycles will not be lost.
B. Cycles since last service – Indicates how many cycles have run since the last time the juicer
was serviced.
C. Reset Service Date – The button to the right of this will reset the service date shown below as
well as on the status screen.
D. Last Service Date – This shows what the date of the last service was for the juicer. The format
for this date is: Month Day Year.
E. Support Phone Number – Phone number for the service company for the juicer. To change
the number, simply click on the number itself and a keyboard will appear. If desired, dashes and
symbols can be added by clicking the down arrow on the top left twice, the dash is next to the
enter button. Click the up arrow in the top left to return to the numbers. This phone number
appears for general users on the Status page and Safety Fault screen.
F. Constant speed setting – Setting for testing the juicer at a constant speed either slower or
faster than normal operation. To use this feature the juicer must be on the normal speed setting
(top option on the settings screen). Once on this setting, the juicer will operate at whatever
frequency is specified here between 15 and 90 Hz. For example, with this feature the juicer can
be set to run at 15 Hz to see if parts are interfering with each other. This is programed to
default to 60 Hz whenever the juicer is powered off so as not to affect customer operation.
A
B
C
D
E
F

11 FNS-0014-060-EN June 2019 Rev A
Service 2
A. Clock – To change the date and clock, click on the numbers. Date and time format are show
above. Time is based on 24 hour format
B. Machine number – Click the numbers to enter the juicer's serial number. The serial number
can be found on the plate on the back of the juicer towards the bottom. The number entered
here is also displayed on the status page for general users to view.
C. Store number – Optional feature for entering an identification number for the facility where the
juicer is located. Currently not used elsewhere in the software.
D. Safety Check – Only viable on certain juicers. This provides a warning (shown later) if a safety
sensor has failed or is unplugged.
a. Turning this on for juicers that do not support this feature (certain juicers with serial
number starting with 83 and 93) will cause the safety circuit fault to always be on,
regardless if the safeties work or not. Refer to Safety Circuit Fault screen to turn off.
E. Tap – Changes how the juicer is operated. When activated, the juicer will run when the tap
handle is depressed, there is no longer a start button. Be aware that this feature requires
several physical alterations to the juicer including removal of the tank, a new front door, tap
housing, new safety sensor assembly, and modified juice manifold.
F. Language – Selection page to determine what language all the text is displayed in, available
languages are shown next.
A
B
D
E
C
F

12 FNS-0014-060-EN June 2019 Rev A

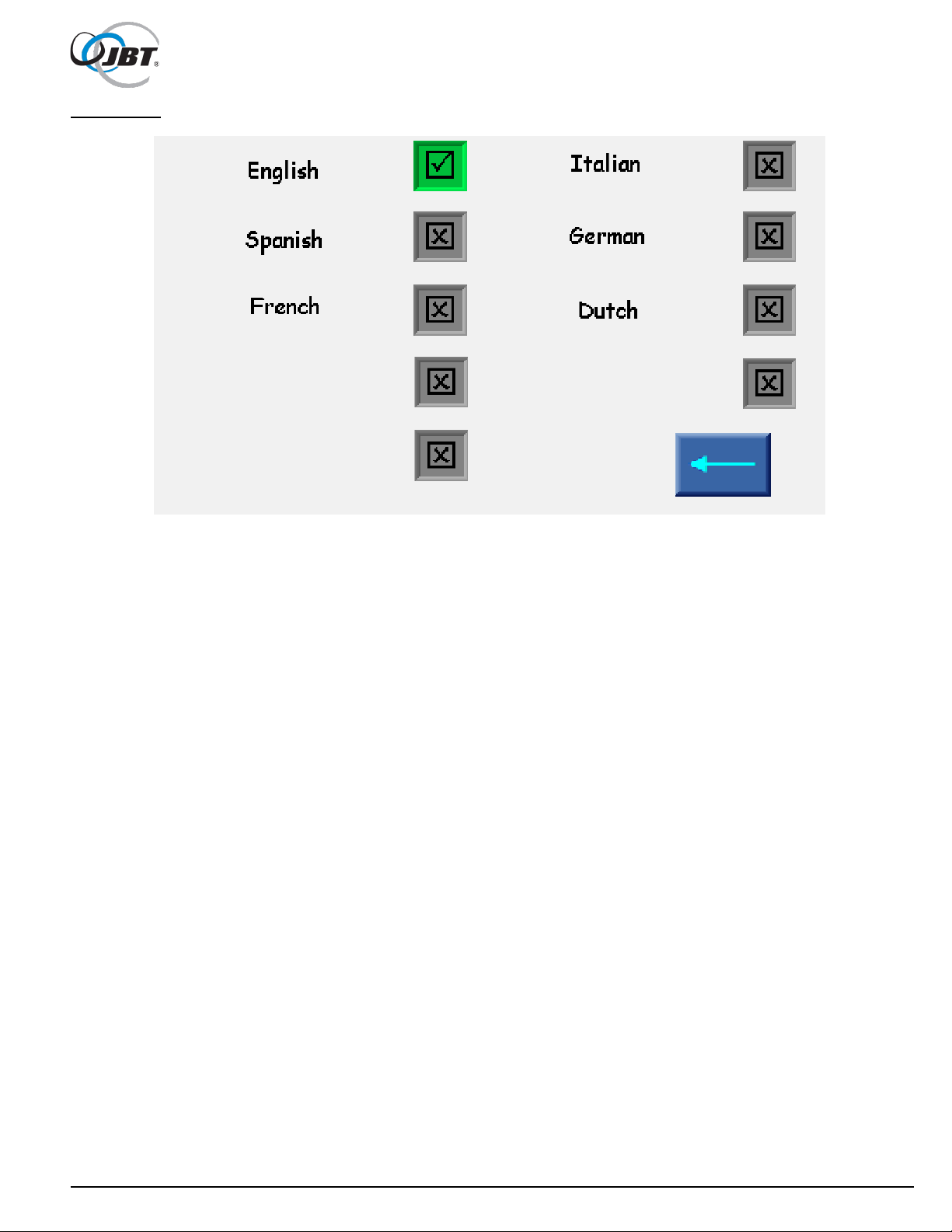

Languages
Selection for the language of all of the text found in the software. If language is changed
accidentally this page can be reached from the start screen or tap screen by:
1. Enter service page (gear icon) – again password is "1".
2. Click the next button (right arrow) found on the bottom right.
3. Click the globe text bubble on the right.
There are currently six available languages as shown here.

13 FNS-0014-060-EN June 2019 Rev A

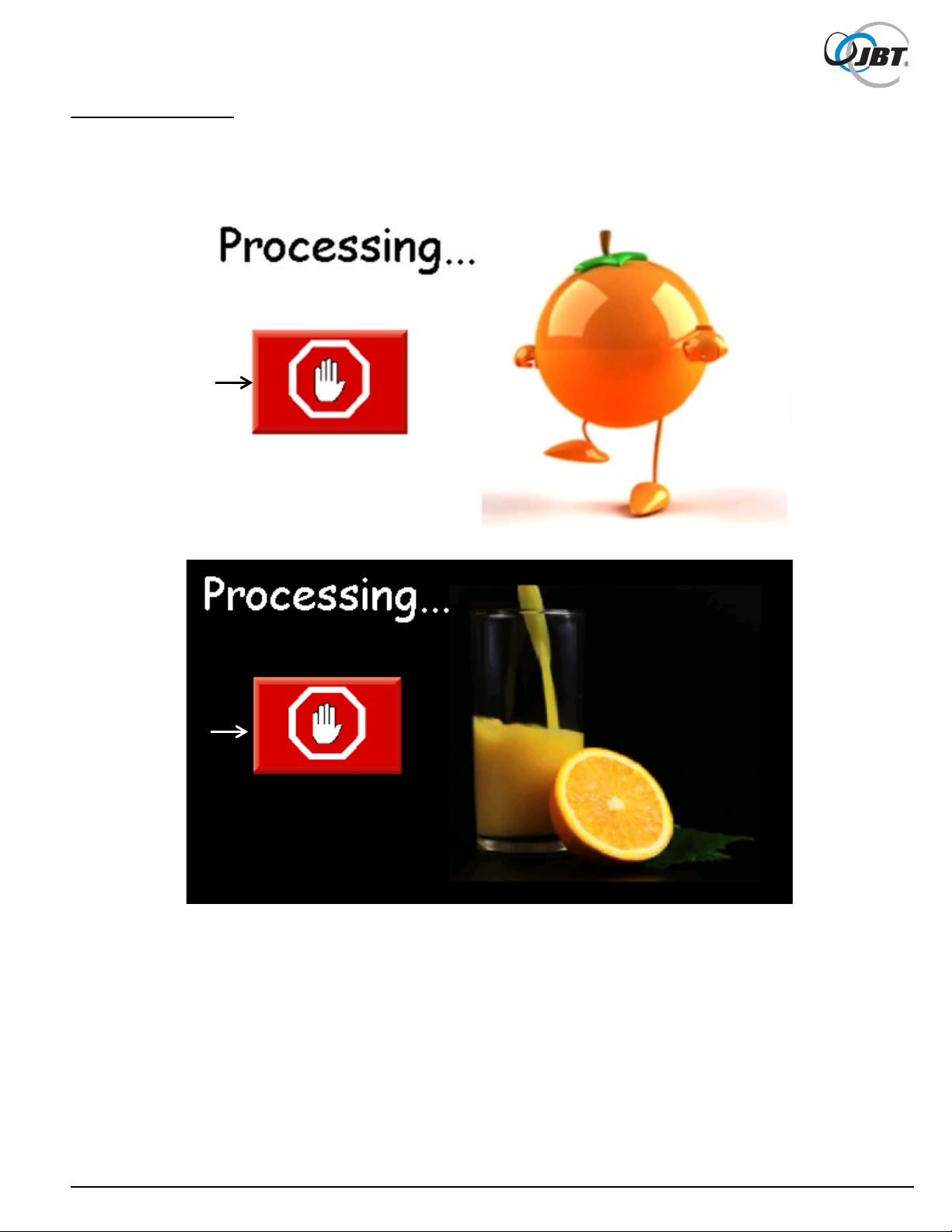

Processing Screens
These screens appear when the juicer is actively running.
There are two animations available which can be chosen on the settings page.
A. Stop Button – Juicer will continue to run until it reaches the point when the cups are farthest apart.
•NOTE 1 - In tap mode, the tap handle must be held down for this to function. Once the
juicer has stopped, then the handle can be released.
•NOTE 2 – if the positioning sensor is not functioning this stop button will cause the juicer
to stop immediately.
A
A

14 FNS-0014-060-EN June 2019 Rev A
Front Door Open
This screen indicates that the front door is not properly closed. The juicer will not run until the
door is fully closed
If this screen is appearing when the hopper door is open it indicates that the cables on the back
of the electrical panel are reversed. These are the two smaller plugs next two each other with
two cables entering the back of each plug. Switch these two plugs. Open the front door and
ensure the correct screen appears.
If this screen is always on it indicates that the front door safety sensor has malfunctioned. Verify
by swapping the safety cables on the back of the electrical panel. The error message should
switch to the hopper door and still remain on constantly. The cable assembly will need to be
replaced, make sure the cables are connected in their correct location if they had been swapped
for testing.

15 FNS-0014-060-EN June 2019 Rev A
Hopper Door Open
This screen indicates that the hopper door or fruit loading door on top is open. The juicer will not
run while this door is open
If this screen is appearing when the front door is open it indicates that the cables on the back of
the electrical panel are reversed. These are the two smaller plugs next two each other with two
cables entering the back of each plug. Switch these two plugs. Open the hopper door and
ensure the correct screen appears.
If this screen is always on then it indicates that the hopper door safety sensor has malfunctioned.
Verify by swapping the safety cables on the back of the electrical panel. The error message
should switch to the front door and still remain on constantly. The cable assembly will need to be
replaced, make sure the cables are connected in their correct location if they had been swapped
for testing.

16 FNS-0014-060-EN June 2019 Rev A
Settings Screen
A. Speed setting - The juicer can run at 25, 29, or 33 fruit per minute. Be aware that some harder
or larger fruit may not process at the higher speeds, attempting to do so could lead the juicer to
stall repeatedly.
B. Display setting – Controls the animation seen while the juicer is running (the processing
screens shown previously).
A
B

17 FNS-0014-060-EN June 2019 Rev A
Status Screen
This mirrors a lot of the information on the service screen but here it cannot be edited.
A. Total Cycles – Indicates the total number of cycles the juicer has run.
B. Cycles since last service – Shows how many cycles have run since the last time the juicer
was serviced.
C. Last Service Date – Date of the last service was for the juicer.
Format for this date is: Month Day Year.
D. Support Phone Number – Phone number for the service company for the juicer.
E. Juicer serial number – Serial number for the juicer.
A
B
C
D
E

18 FNS-0014-060-EN June 2019 Rev A
Juice Tank Full
When this screen appears it means that the juice tank is full and the juicer has stopped. The
juicer will not run again until juice is removed from the tank.
Motor Fault
If this screen appears it means that motor has stopped. This is usually caused by a blockage,
large fruit, hard fruit, frozen fruit, or something else. Press the button for the juicer to restart. If
the error continues, the blockage will need to be removed manually. *Always power off the juicer
before attempting to clear any blockage.
In some rare cases the juicer may need to be manually moved in order to clear the blockage.
If this screen appears often, it may mean the juicer is being run at too high of a speed for the
fruit being used. Try using one of the slower speeds to prevent this.

19 FNS-0014-060-EN June 2019 Rev A
Position Sensor Error
This error message occurs because the juicer is operating, but the position sensor (also referred
to as TDC or Top Dead Center sensor) has not been detected. The juicer is still capable of
running, but several features will be disabled. These features include:
1. The speed settings will not function properly, this could lead to the juicer stalling often.
Normal operation at the two faster speeds the juicer will slow while pressing the fruit to
achieve more power. If the position sensor is not detected, the juicer will not slow down and
instead run constantly at the faster speed. This will likely lead the juicer to stall more
because it does not have the power to properly press the fruit.
2. Pressing the stop button now will cause the juicer to stop immediately instead of running
until the cups are farthest apart.
3. Cycle counts will no longer be tracked.
Unplug the juicer and open the back panel, make sure that the safety sensor is connected.
If the sensor seems to work intermittently, check the position and mounting bracket used to hold
the position sensor. The bracket is not symmetrical and should be mounted so that the sensor
holes are near the back of the juicer and away from the juicing components. Also, the sensor
itself has slots so when mounted, the sensor should be pushed towards the back of the juicer as
much as possible.
Improper positioning can cause the juicer to double count cycles. If work is done on this sensor,
be sure to check the cycle count. Run the juicer for five cycles and recheck the cycle count.

20 FNS-0014-060-EN June 2019 Rev A
Safety Circuit Fault
When this message occurs it indicates there is a problem with one of the safety sensors. The
juicer will not run until the problem has been fixed.
It is possible one of the cables is not connected. Turn off the juicer and verify that all cables are
connected properly.
If the cables are connected, then it is possible a safety sensor has failed. Follow the procedure
for checking safety circuits in the “Electrical Drawings and Procedures” section of this manual to
determine which sensor is faulty.
This screen can be disabled. There is a hidden button in the bottom right corner (A), this pulls
up the password which is the same as for the service screen. Once on the service screen, go to
the second service screen and turn off the safety check.
NOTE: This will not fix a problem, if a cable is unplugged or safety has failed, the juicer will
still not run.
A
